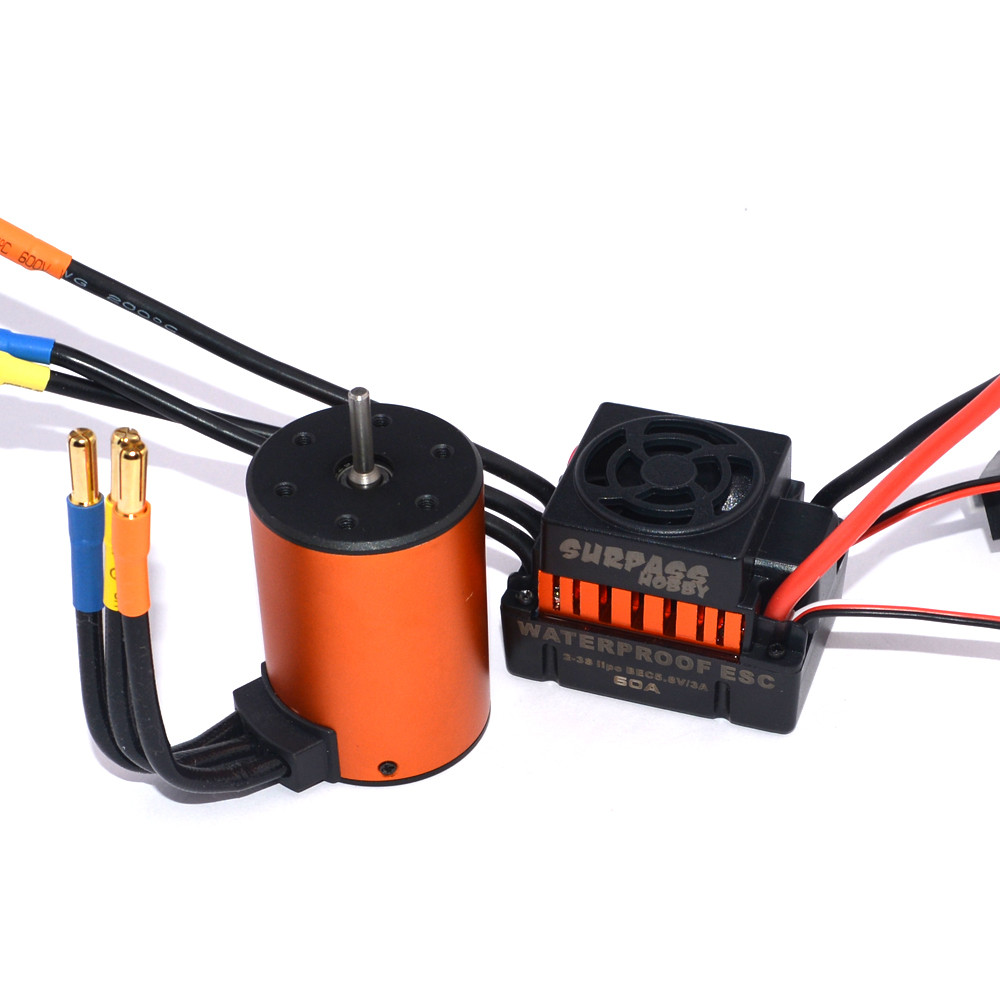

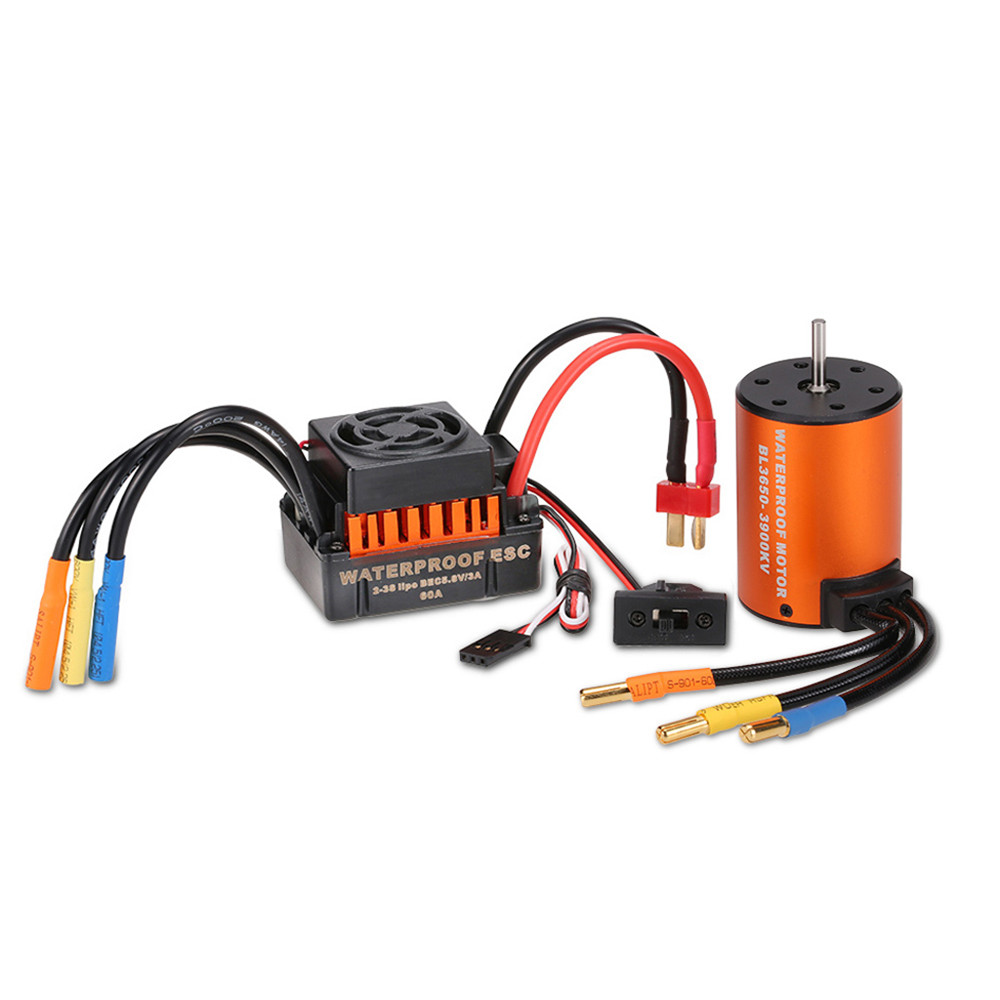

Surpass Hobby Waterproof 3650 3900KV Brushless RC Car Motor With 60A ESC Set For 1/10 RC Car
Features:
4 pole 12 slot high-torque motor design
3.175mm shaft diameter
High purity copper windings maximizes efficiency
Precision engineered for maximum energy conversion
Precision balanced rotor smoothness for best reliability and maximum RPM
Mutiple protection features: Low voltage cut-off protection over-heat protection throttle signal loss protection
Bulit-in 5.8V/3A BEC
Suit for 1/10 scale RC car

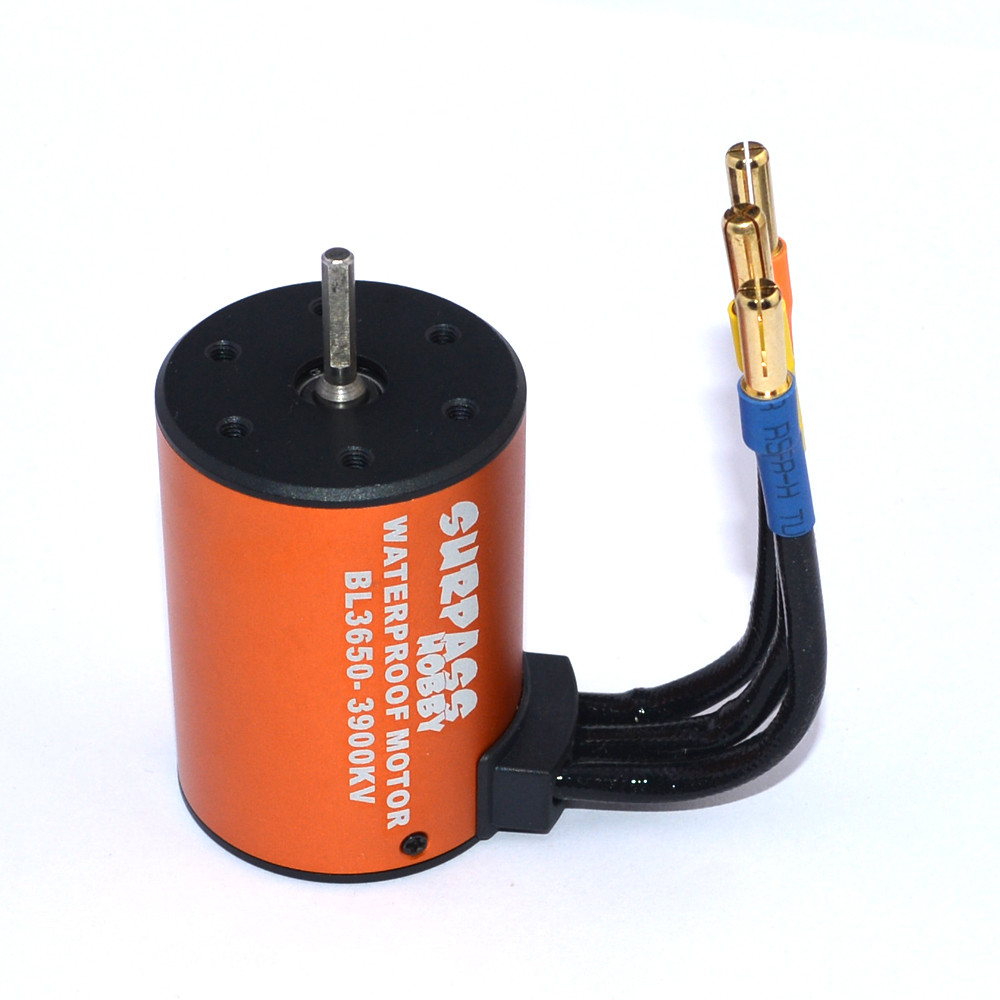

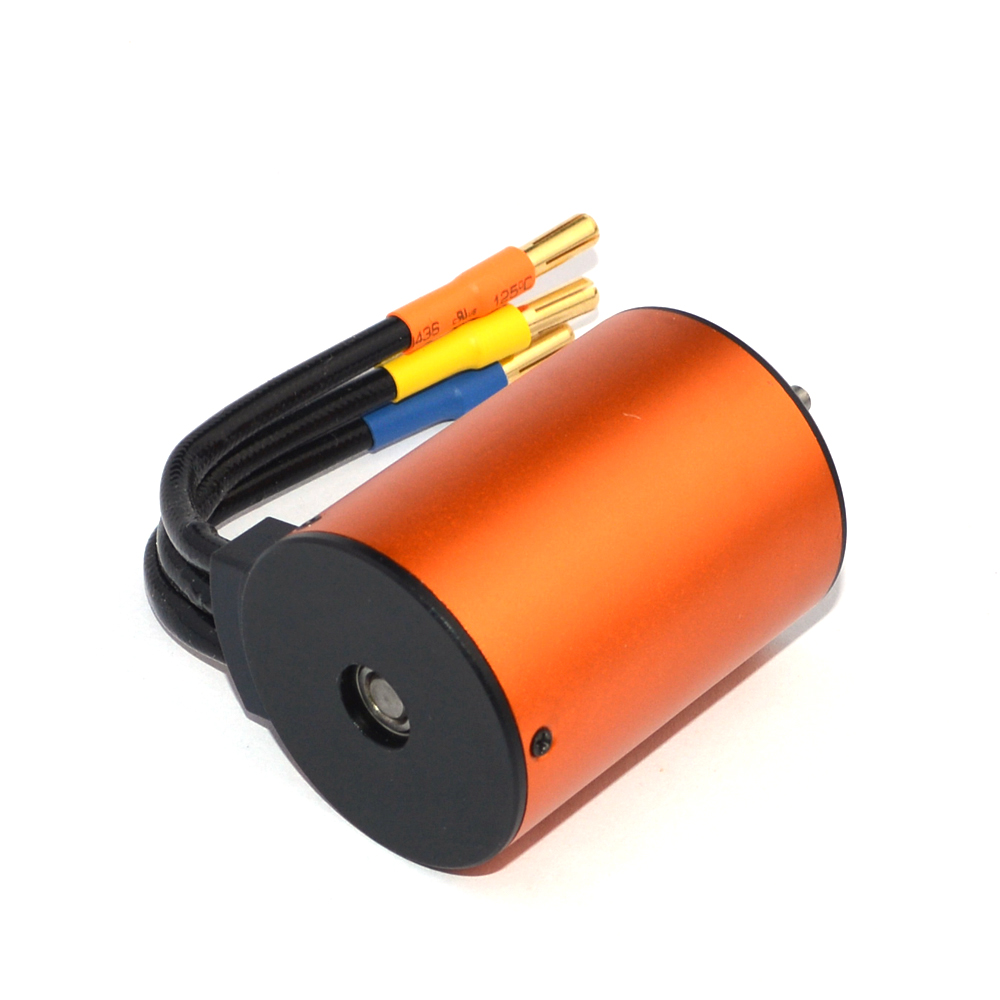

Motor Specifications:
Watts: 900W
Max voltage: <13V
Max Amps: 69A
KV(RPM/Volt): 3900KV
Max RPM: 50000
Diameter: 36mm
Length: 50mm
Shaft length: 15mm
Shaft diameter: 3.175mm
Plug type: 4mm golden banana plug

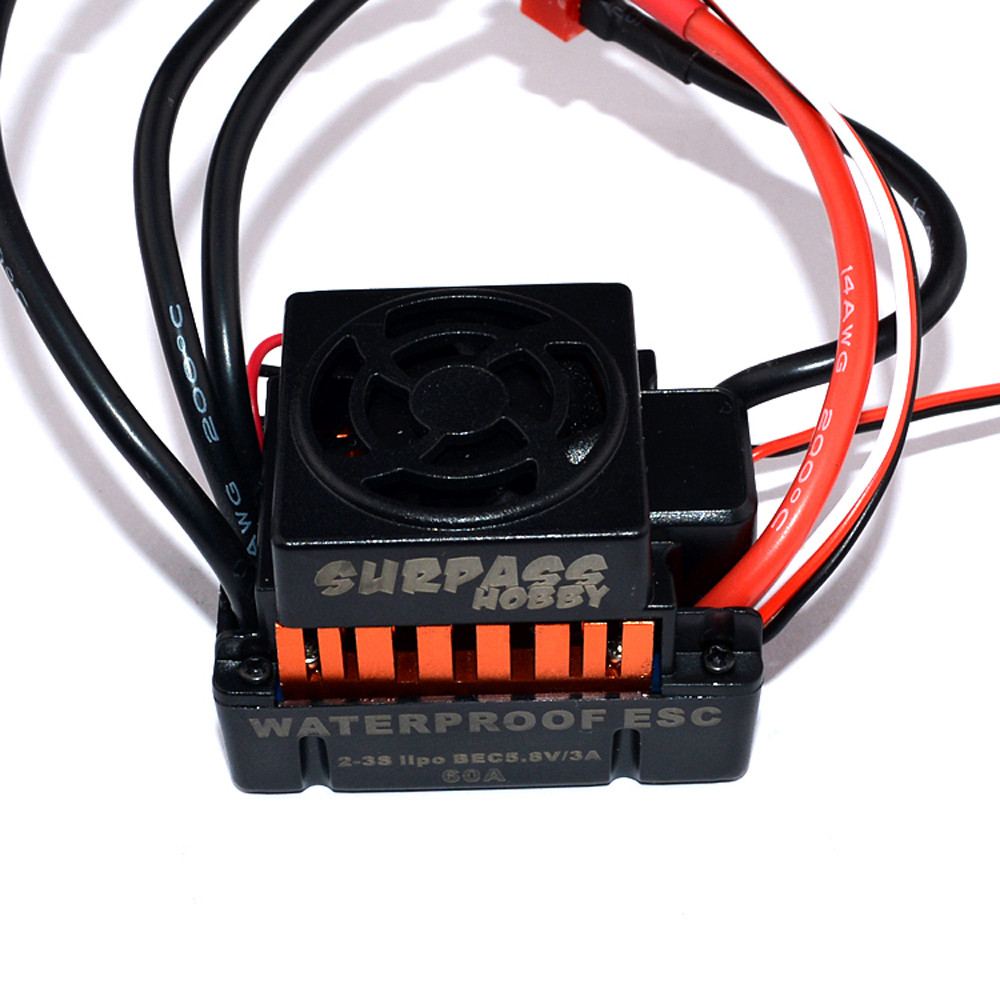

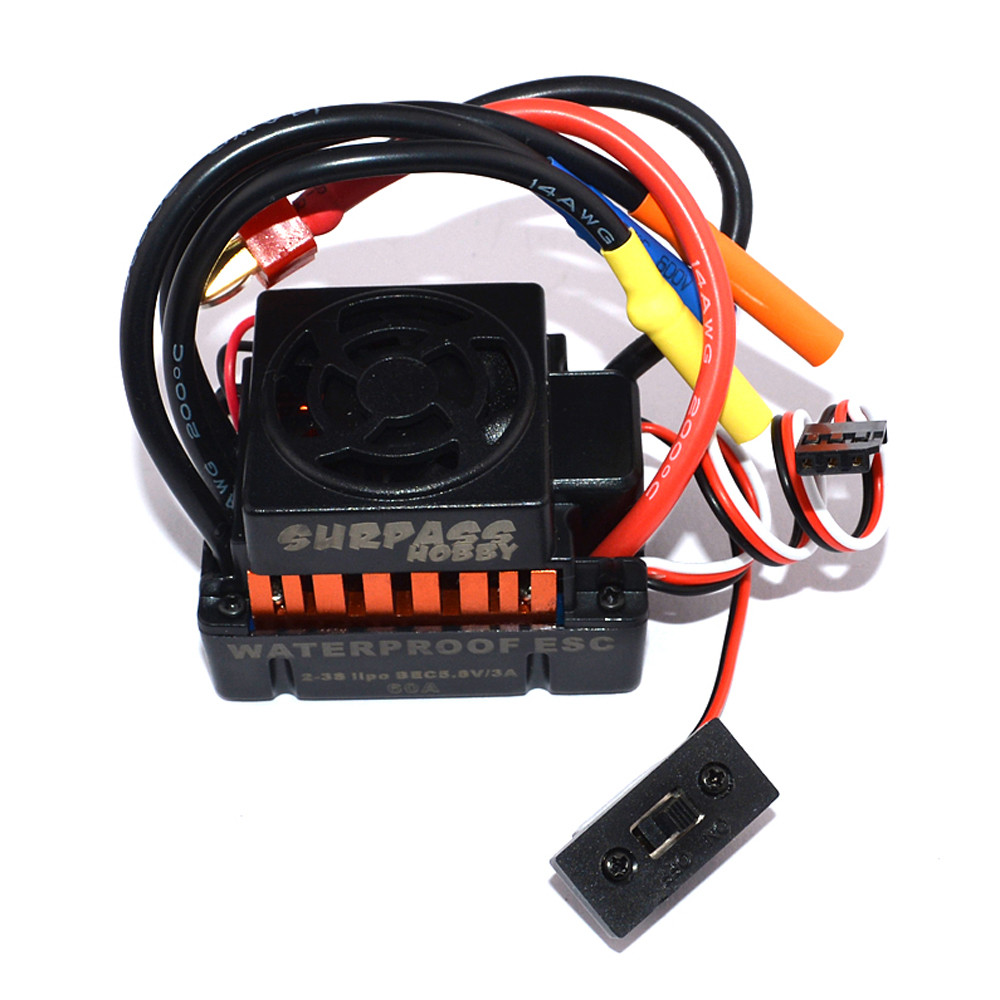

ESC Specifications:
Item name: waterproof ESC
Continue current: 60A
Burst current: 320A
Battery: 2-3S Li-Po / 4-9S Ni-Mh Ni-Cd
BEC output: 5.8V / 3A
Power supply plugs: T plug male
Motor plugs: 4mm banana plug female
Dimension: 50 * 35 * 34mm / 2.0 * 1.4 * 1.3in (without cables)
Notice:
Please kindly refer to the sutiable battery for the Motor/ESC don't use too large power battery when you use it at the first time.
Please kindly refer to the sutiable battery for the Motor/ESC don't use too large power battery when you use it at the first time.
Package Information:
Package size: 10.5 * 8 * 6cm / 4.1 * 3.2 * 2.4in
Package weight: 293g / 10.3oz
Gift box package
Package List:
1 * 3650 3900KV Motor
1 * Waterproof 60A Brushless ESC
