  3. ZTW 1/8 Beast Pro 220A Brushless ESC Full Aluminum Case Waterproof w/ 6V/7.4V Adjustable 8A BEC
Public Pricelist

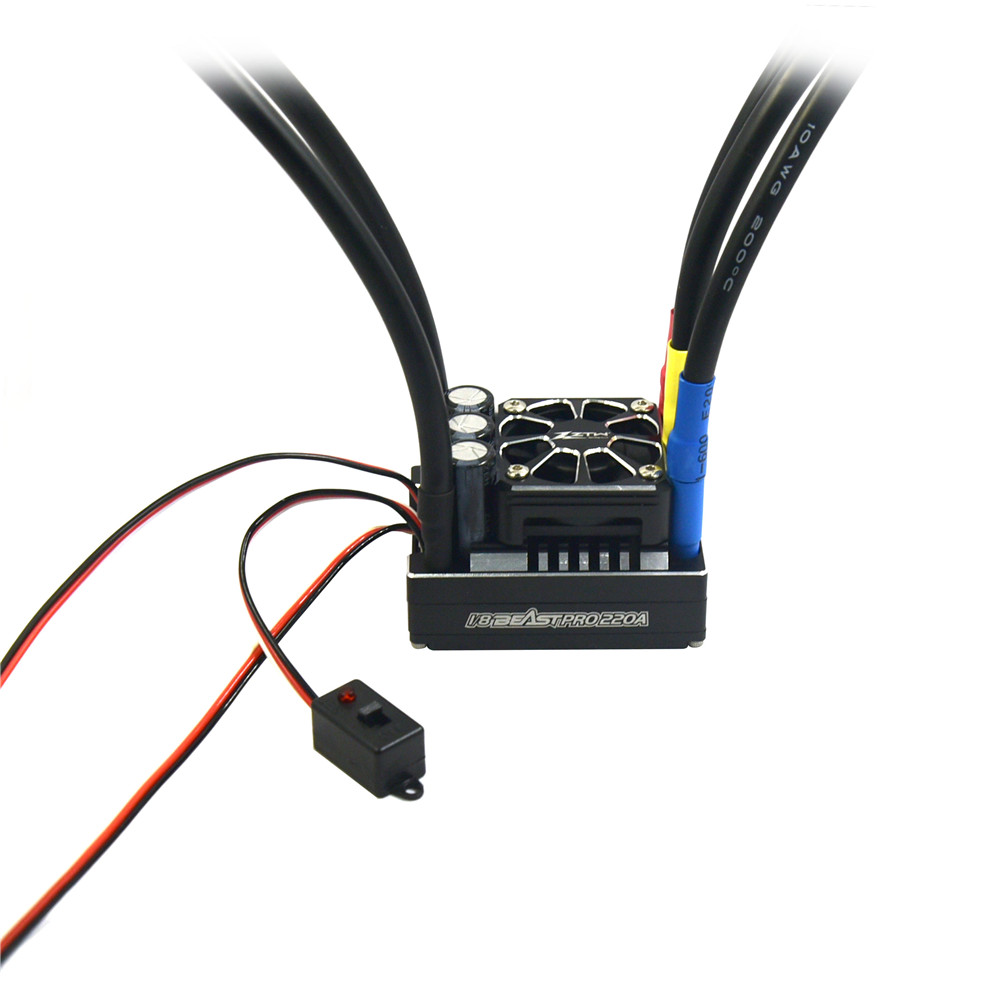

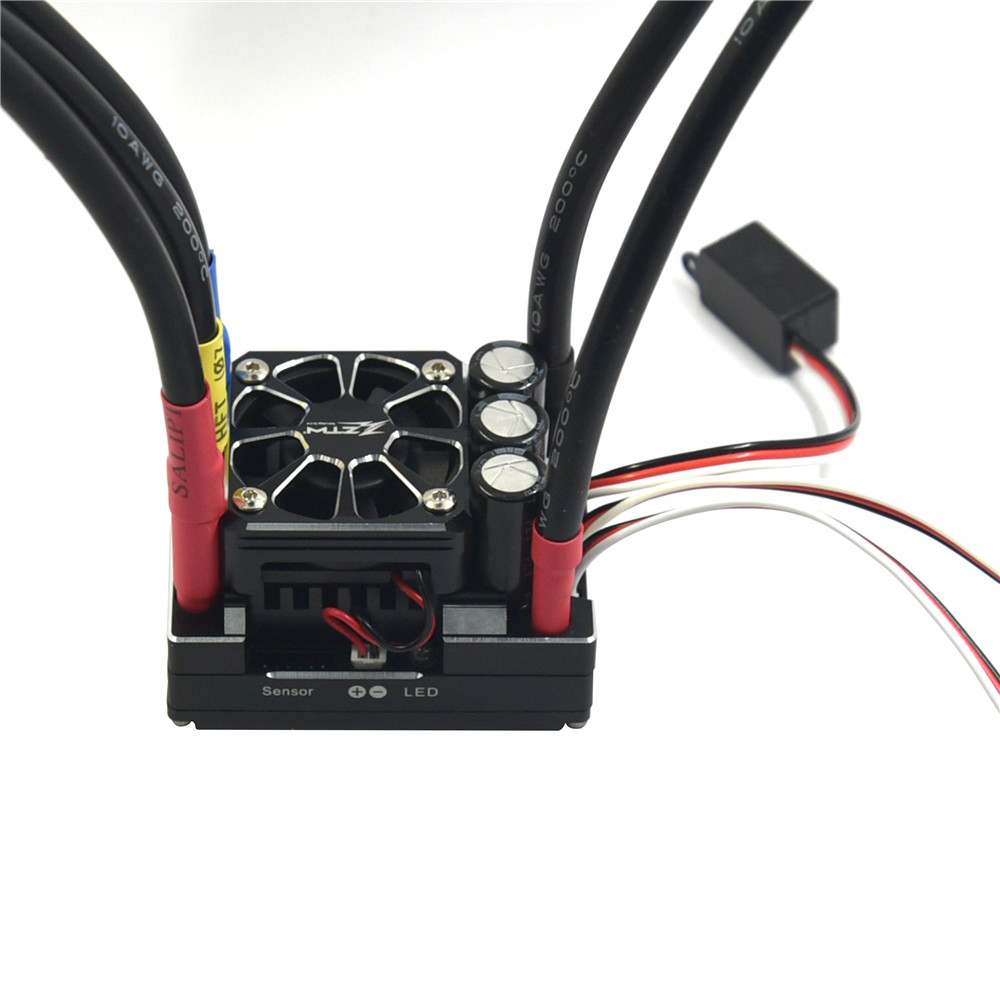

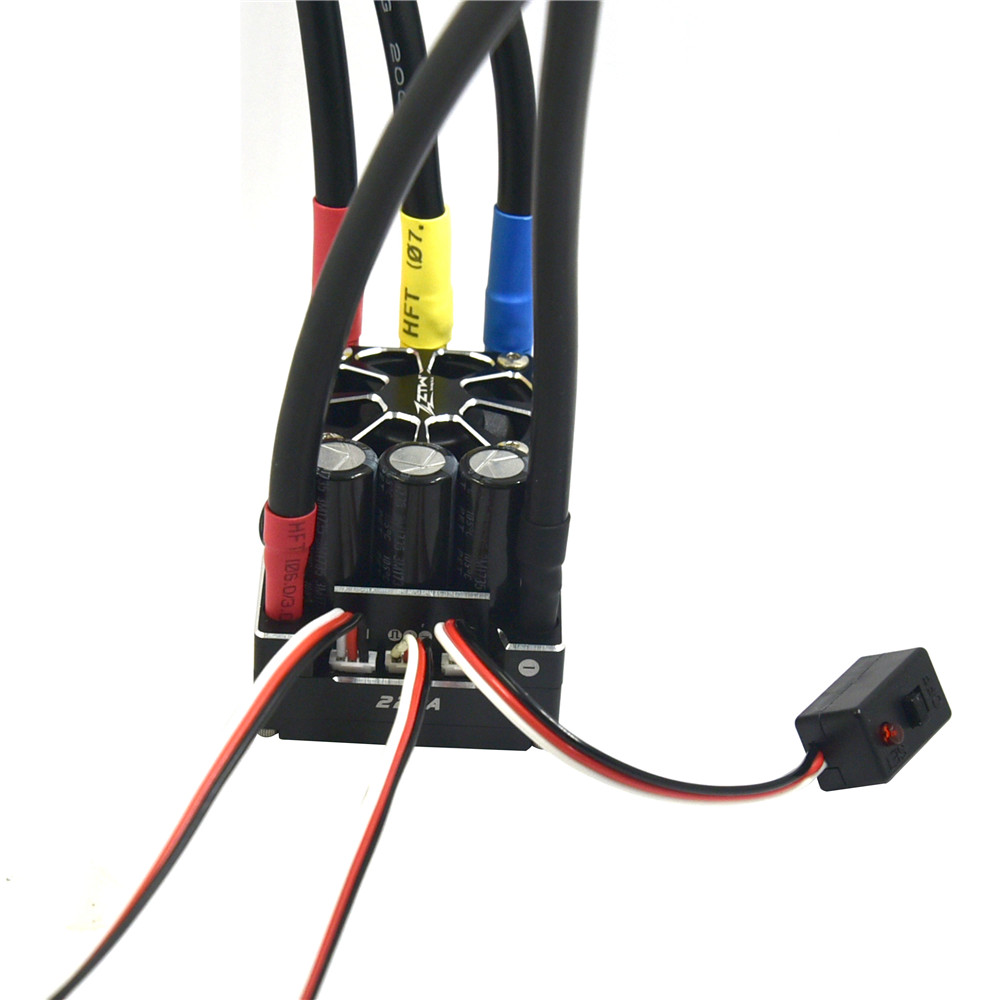

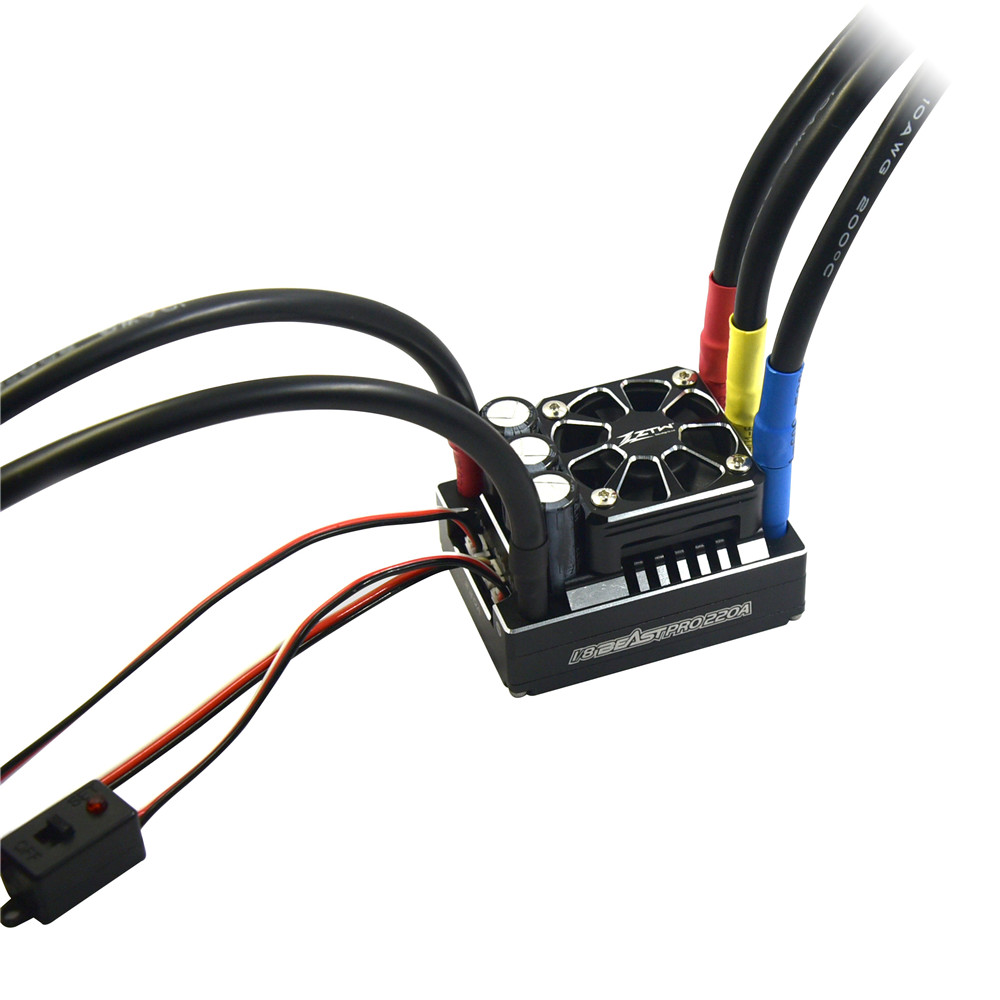

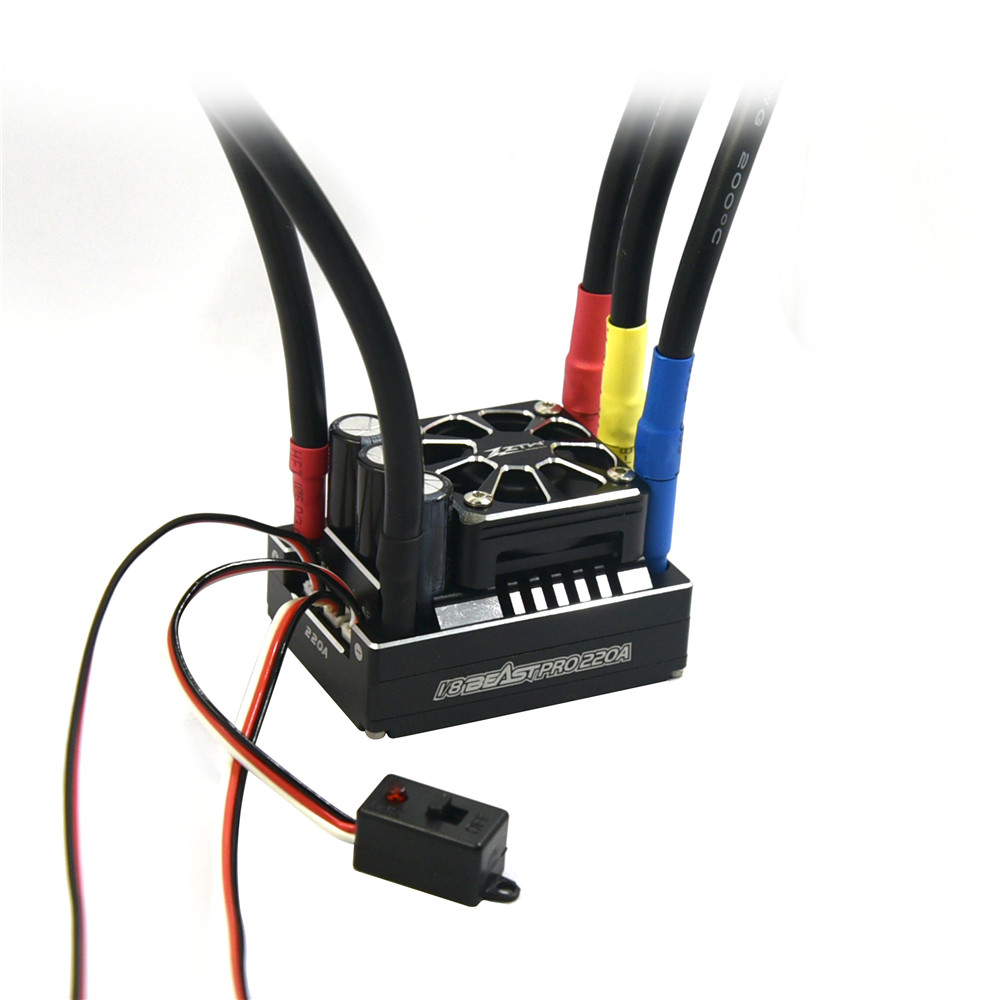

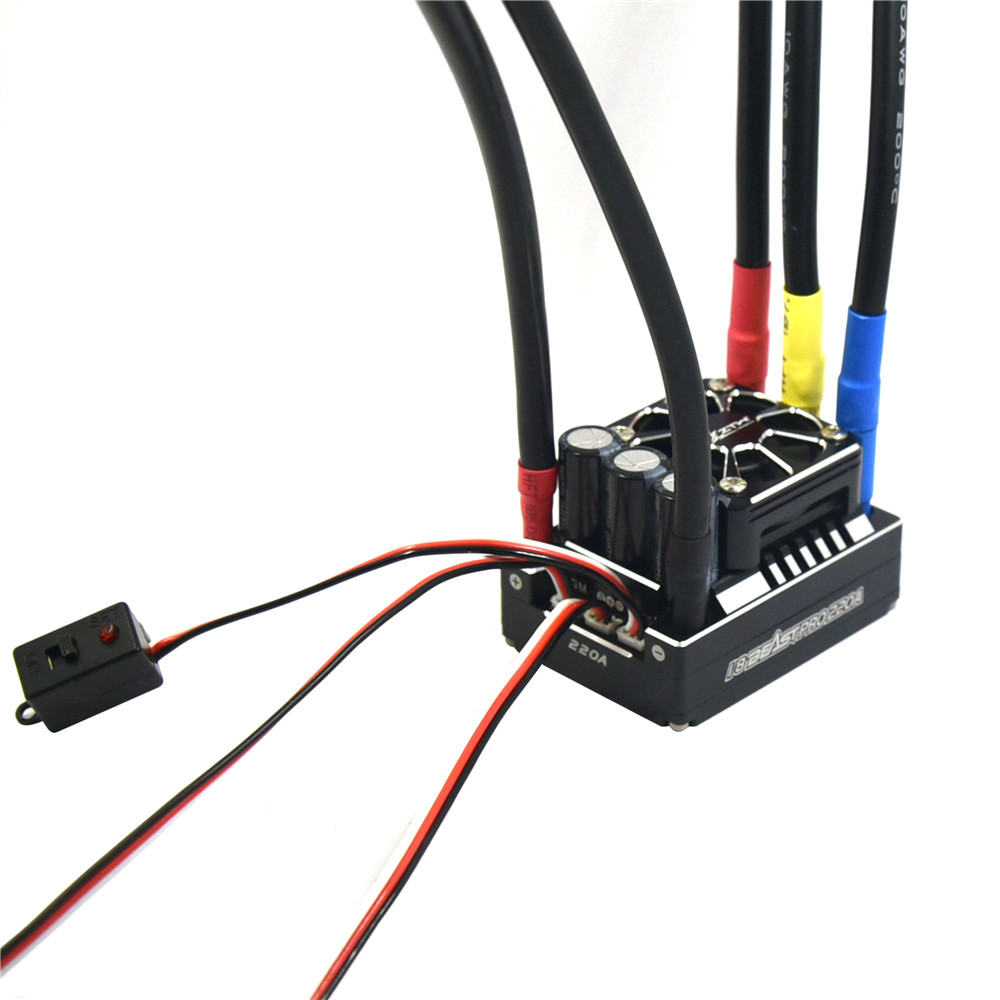

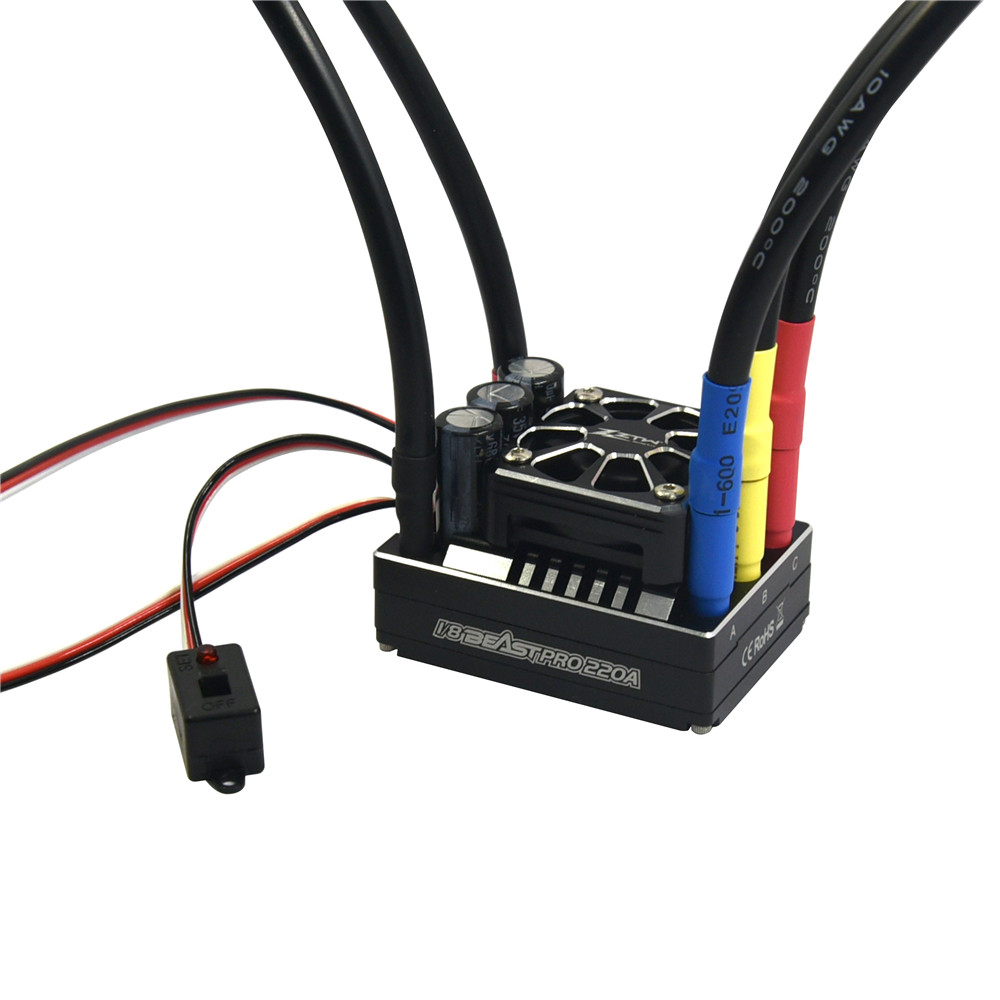

ZTW 1/8 Beast Pro 220A Brushless ESC Full Aluminum Case Waterproof w/ 6V/7.4V Adjustable 8A BEC

https://www.rcwarehouse.nl/web/image/product.template/1857/image_1920?unique=7d0437a

152.94 € 152.94 EUR 152.94 €

152.94 €

    This combination does not exist.

    Description:
    Item Brand:ZTW
    Model Number:422302
    Item Name:1/8 Beast Pro 220A Brushless ESC
    Continuous Current:220A
    Burst Current:1000A
    BEC:6.0V/7.4V Adujustable/8A
    Battery NiXX/Lipo:8-18NC/3-6Lipo
    Width:40mm
    Length:55mm
    Height:34mm
    Weight:140g
    Programmable:YES
    Software:GECKO-LCD
    Power Wires:10#AWG 160mm-Red/black
    Motor Wires:5.0 Male 6*22 Gold
    Signal Wire:(Black/Red/White)30C 300mm/PH1.5 3P to JR3P
    Signal Wires2:(Black/Red/White)30C 200mm/PH1.5 3P to JR3P
    Switch Wire::(Black/Red/White)30C 90mm
    Motor Wire:(random distribution) 10#AWG with 5.0mm Gold Connector 160mm-Black

    Features:
    1.220A continuous current designing specialy for 1/8th scale .
    2.Programmable by LCD program card.
    3.Advanced PC interface to set up or update the firmware.
    4.Adjustable BEC Output which is up to 7.4V.
    5.Full aluminum top case better for heat sinking.
    6.Multiple protection : Low voltage cut-off protection
     7.Over-heat protection and throttle signal loss protection.

    Recommedation:(the packaging do not include)
    1.ZTW LCD Programming Card:1/5 Programming card for rc car
    2.ZTW  4269 4 pole 2150kv motor

    Package included:
    1X ZTW 1/8 Beast Pro 220A Brushless ESC
