  3. AFPV SN-L V2 Owl FPV Flight Controller HD OSD With PMU M8 GPS Module For RC Airplane Fixed-Wing Model
Public Pricelist

AFPV SN-L V2 Owl FPV Flight Controller HD OSD With PMU M8 GPS Module For RC Airplane Fixed-Wing Model

https://www.rcwarehouse.nl/web/image/product.template/2129/image_1920?unique=0483037

11.49 € 11.49 EUR 11.49 €

11.49 €

    This combination does not exist.




    Description:
    SN-L OWL flight controller is a high-definition OSD flight control designed for FPV fixed-wing compatible with 95% FPV mini fixed wing such as Sonicmodell EDO Skywalker and other brands aircraft. Excellent algorithm processing is complemented by powerful hardware performance and pixel-level OSD display for a smooth flight experience. Under the premise of improving performance the interface processing is optimized and the customized fully integrated interface is adopted to reduce the volume which makes installation and use more simple and convenient.

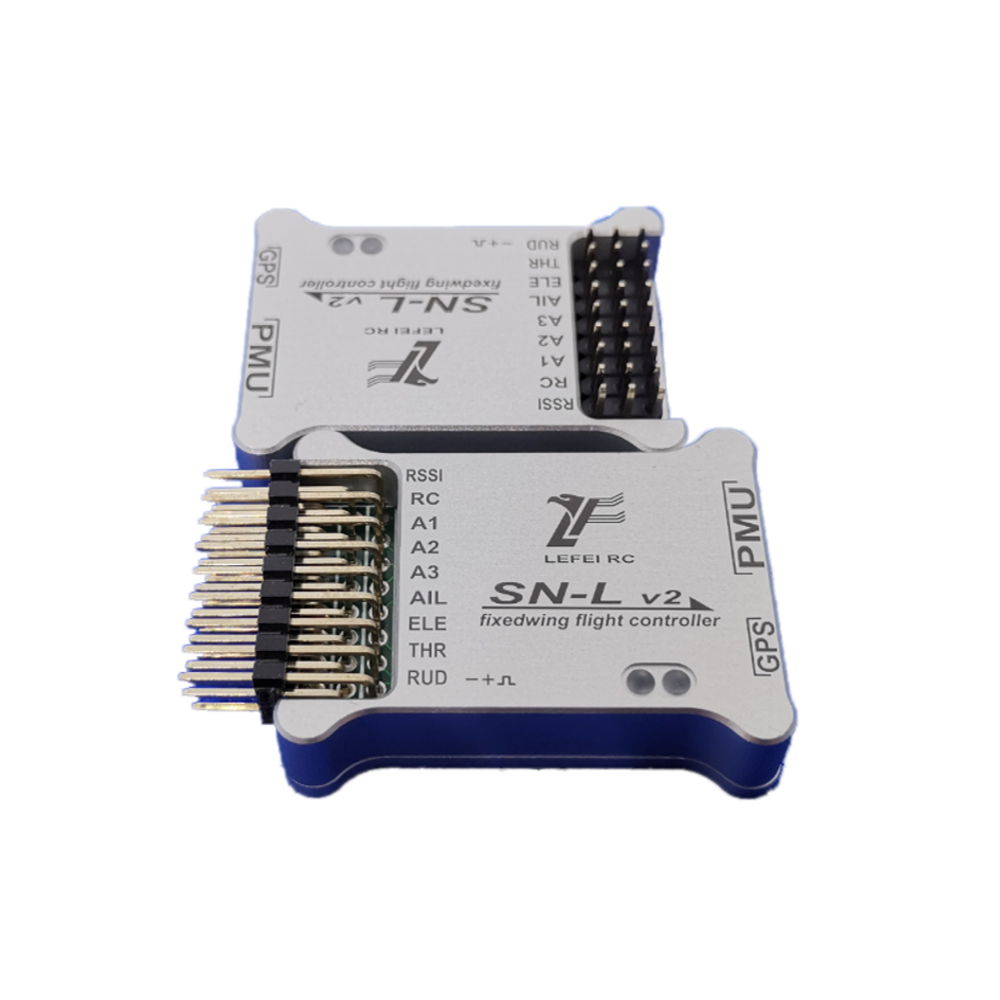

    Flight Controller Specifications:
    Brand Name: AFPV
    Item Name: SN-L V2
    Shell Material: Metal
    FC Dimension: 4.3x3.3x1.5cm
    FC Weight: 6.8g

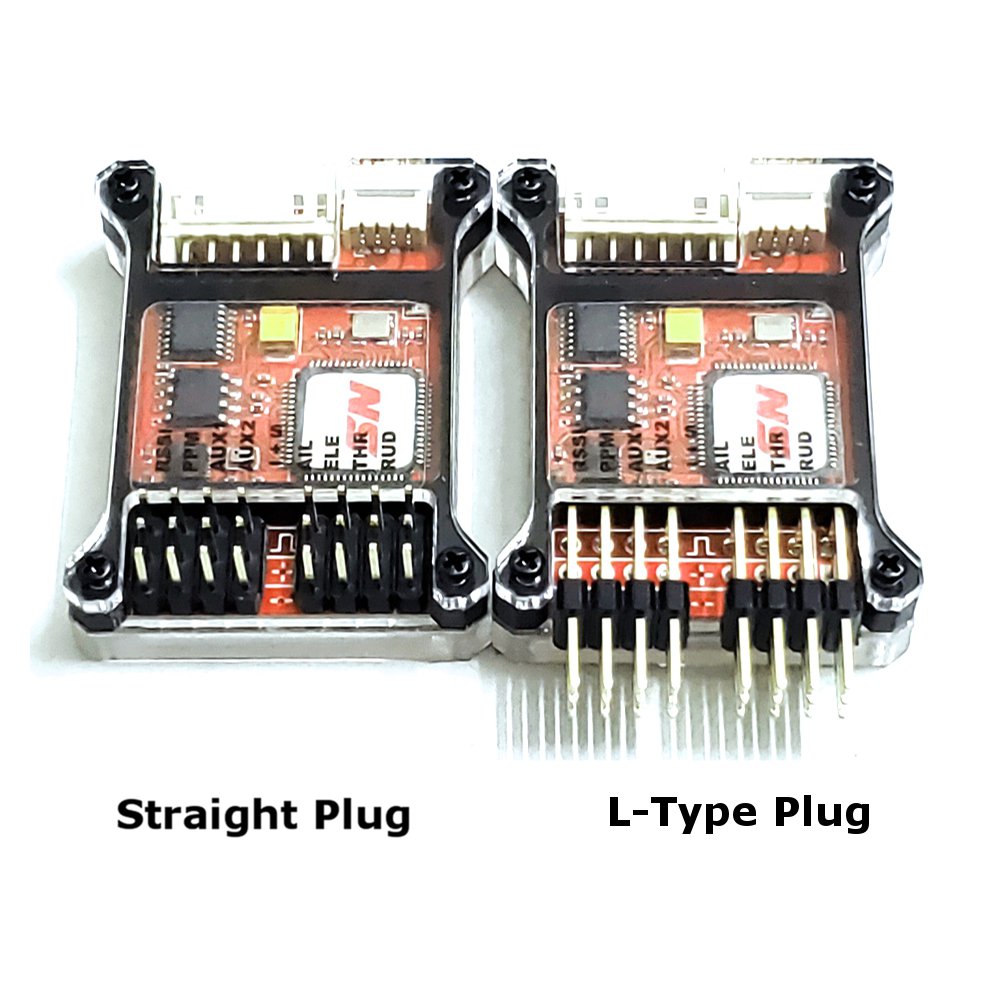

    Plug Type: Straight Plug L-Type Plug (optional)
    Combo Weight: 40g (FC+PMU+M8 GPS Module+Firmware upgrade module+cables)

    Available Airspeed Meter Specifications:
    Material: Metal
    Process: CNC
    Weight: 6.6g
    Dimension: 78x12x6mm
    Cable Length: 30cm

    Flight Controller Features:

    - Ultra-mini size for all types of installations.
    - Equipped with a pixel-level OSD the picture clarity does not affect the angle of view.
    - High-performance F4 processor clocked at 168Mhz onboard MPU9250 BMP280.
    - Supports a variety of practical functions such as balance return flight gyro stabilization fixed height orientation and auxiliary takeoff.
    - Learning remote control function automatic recognition of PPM and SBUS interface.
    - Six-way PWM output which can customize the channel function to make the wiring method more flexible and convenient.
    - Built-in acceleration gyroscope magnetic compass barometer.
    - Built-in high-performance AHRS algorithm for optimized fixed-wing.
    - Support for expanding high-precision digital airspeed meters.
    - Support SN_AAT built-in AAT algorithm no need for external AAT onboard module.
    - Support firmware upgrade.
    - Support PPM SBUS interface receiver independent RSSI interface.
    - Support full model 6 flight modes.
    - Support 'vertical tail' 'V tail' 'delta wing' models.

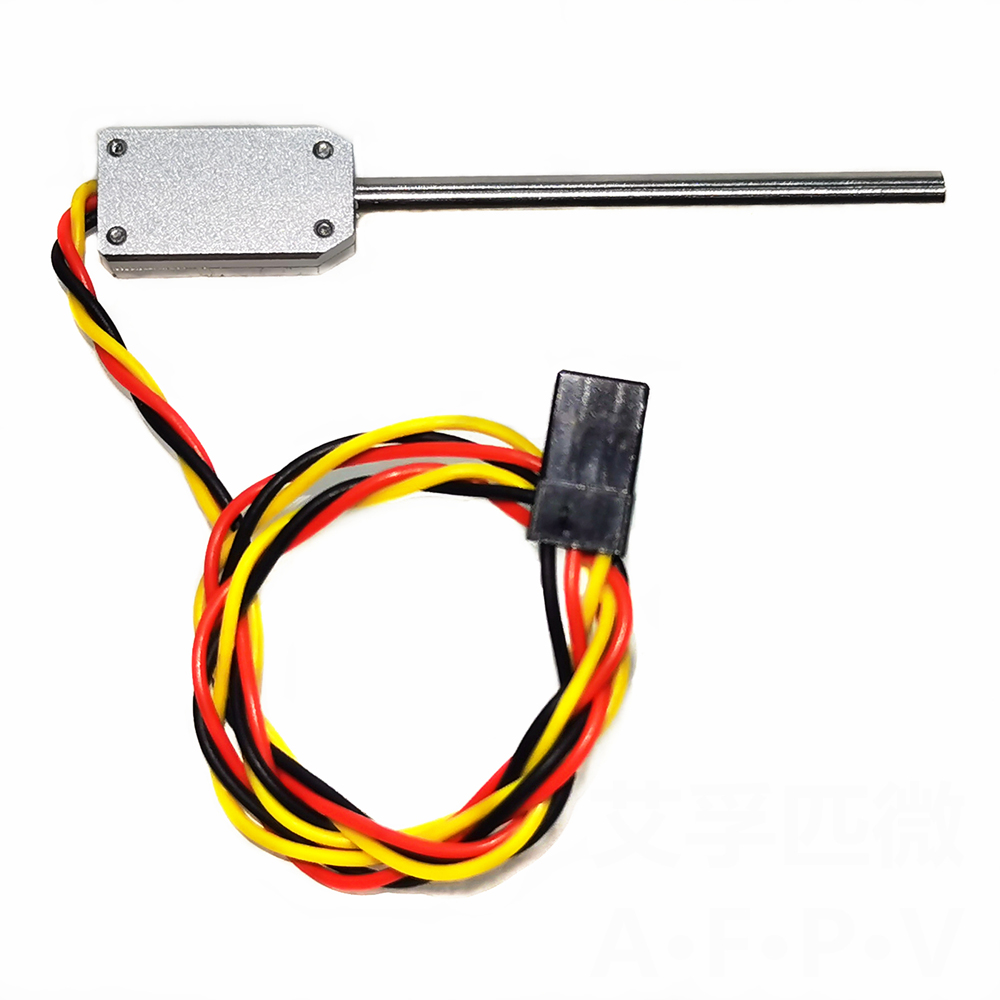

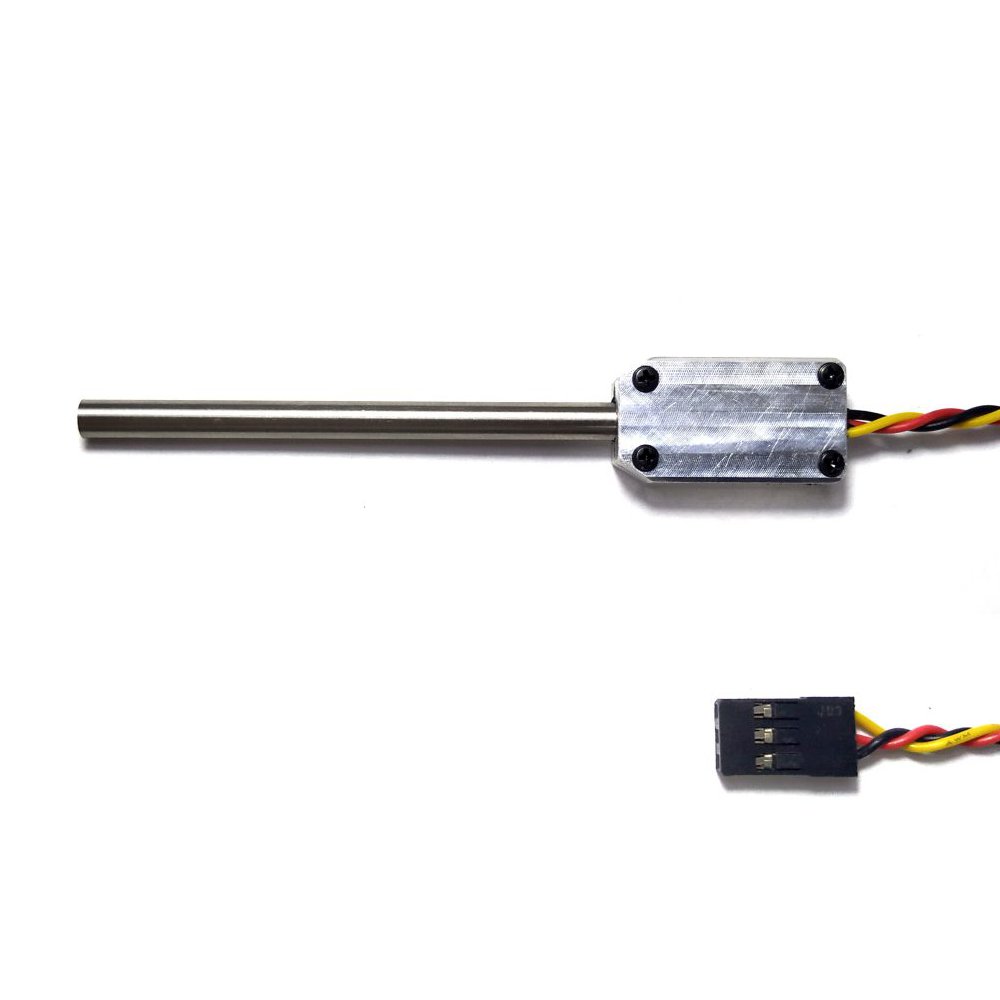

    Airspeed Meter Features:
    - High-precision digital processing chip faster computing speed and higher precision.
    - Ultra-small size currently the smallest airspeed meter on the market weighing only 6g compatible with any model.
    - Full metal casing stainless steel intake pipe aluminum alloy CNC casing durable and stable performance.

    English Manual Click Here

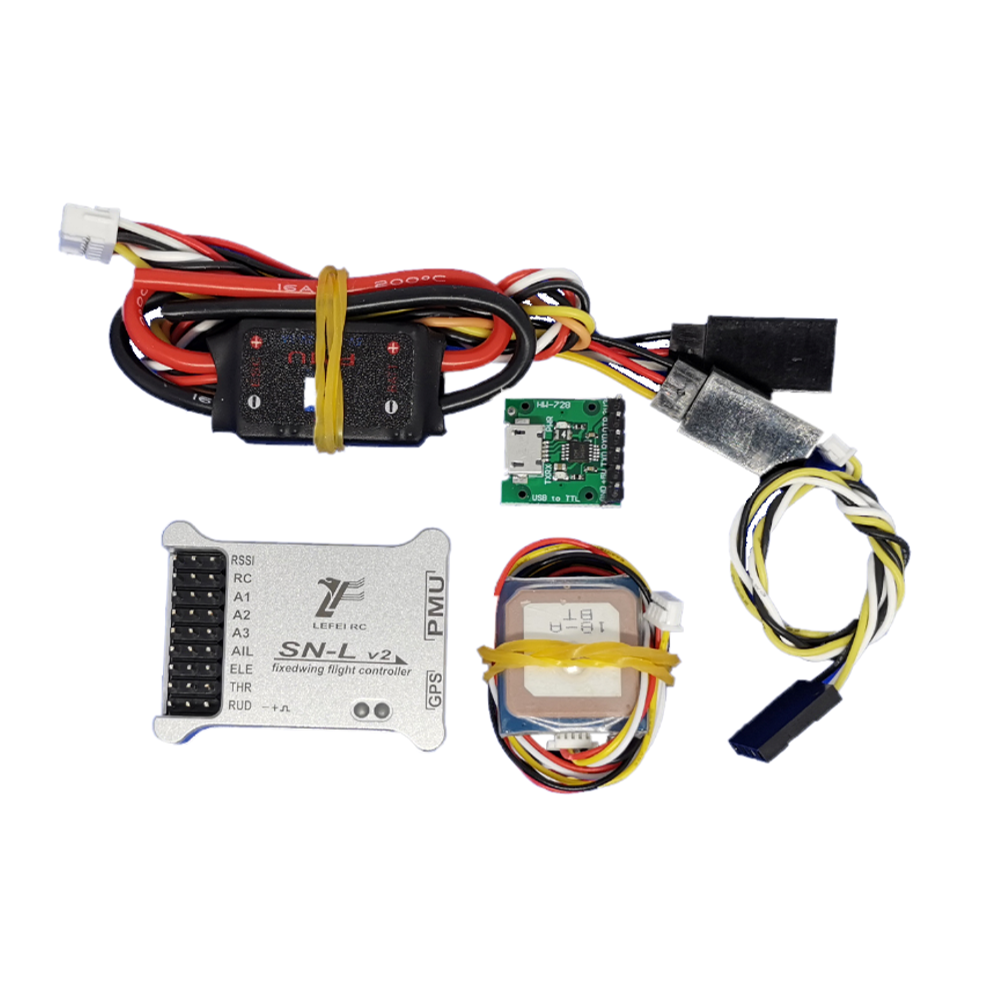

    Straight Plug / L-Type Plug Version Included:
    1x AFPV SN-L V2 Flight Controller
    1x PMU Voltage Regulator Module
    1x M8 GPS Module
    1x Firmware Upgrade Module
    1x Cables

    SN-L Flight Controller Included:
    1x AFPV SN-L V2 Flight Controller without casing

    Airspeed Meter Version Included:
    1x Airspeed Meter (flight controller not included)

    Current Meter Version Included:
    1x Current Meter (flight controller not included)


    GPS Module Version Included:

    1x GPS Module (flight controller not included)

    1x Cables


    bluetooth Module Version Included:

    1x bluetooth Module (flight controller not included)
    1x Cables
