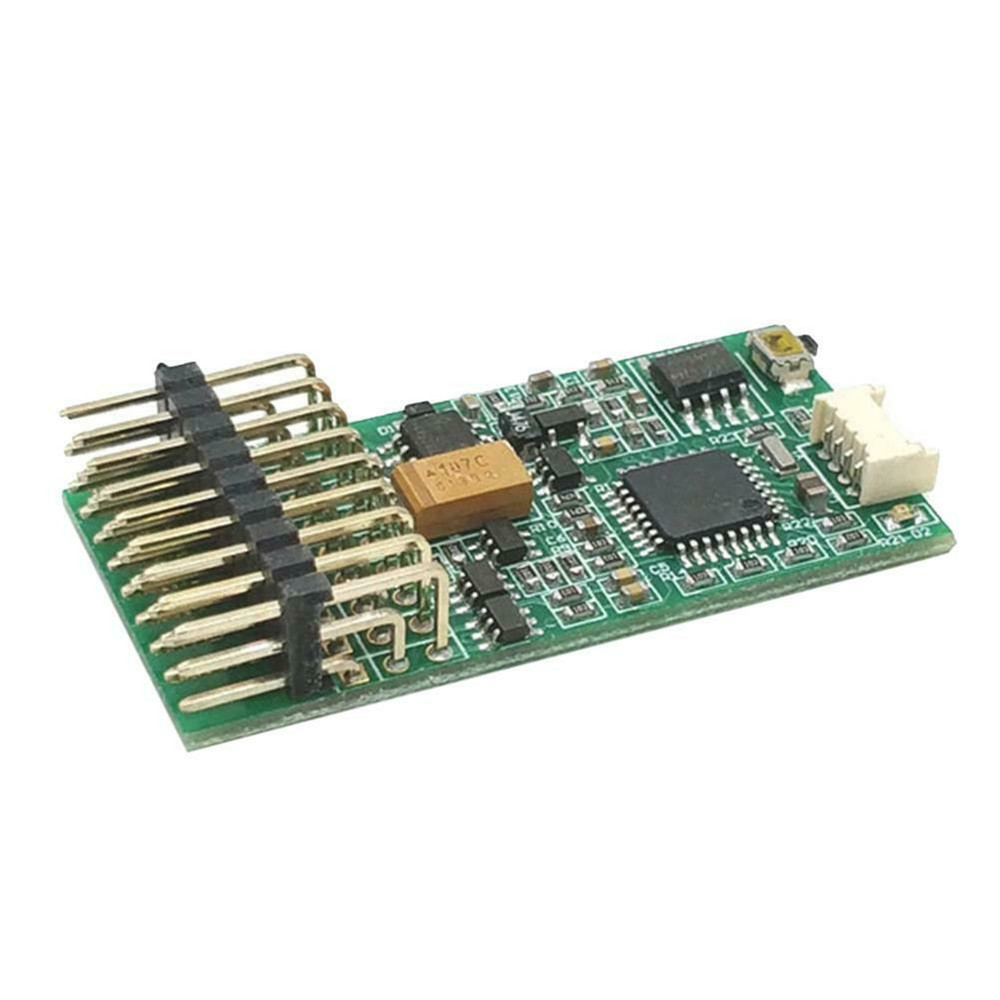

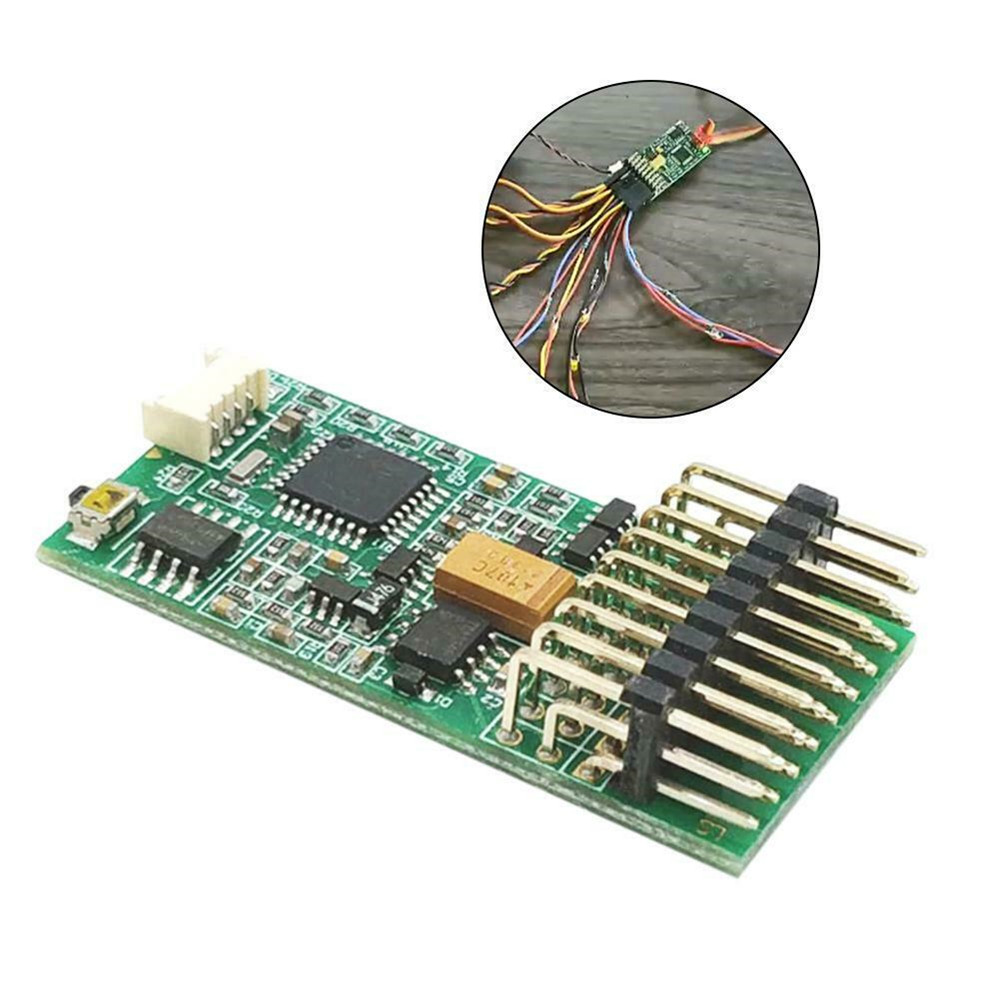

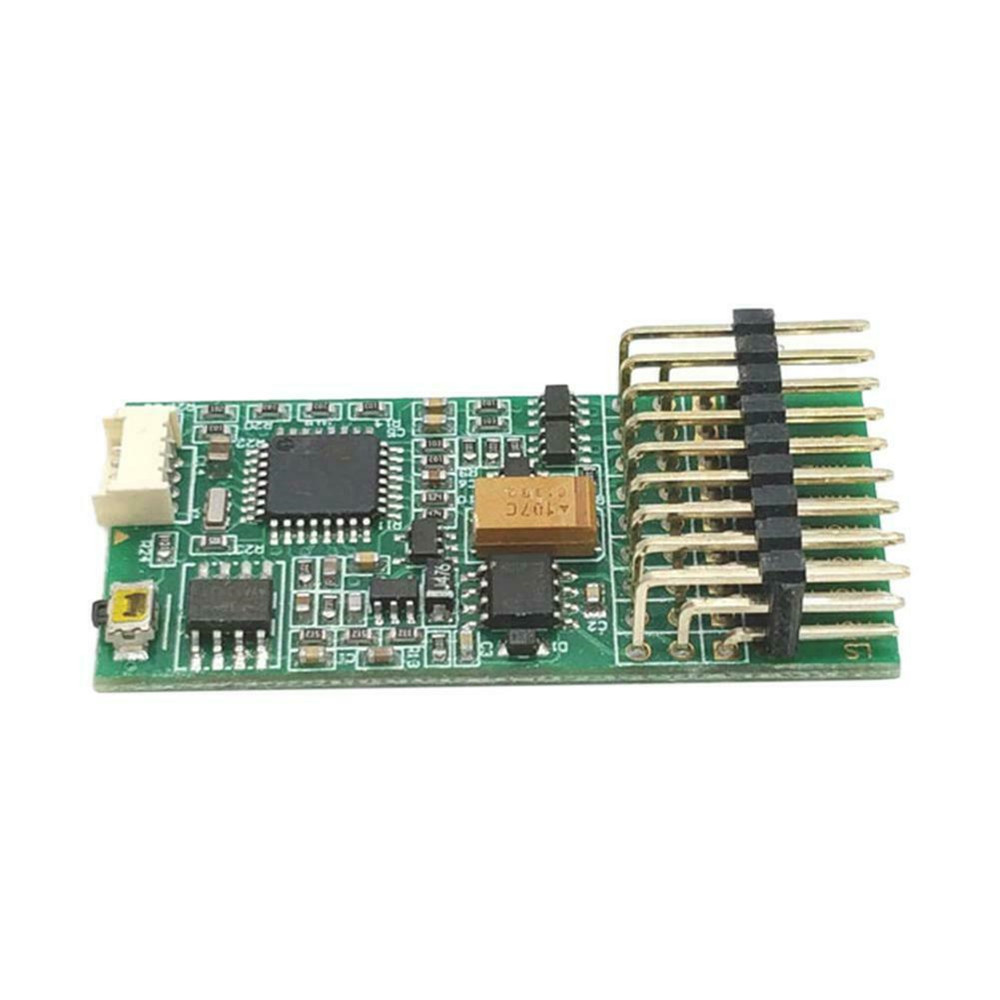

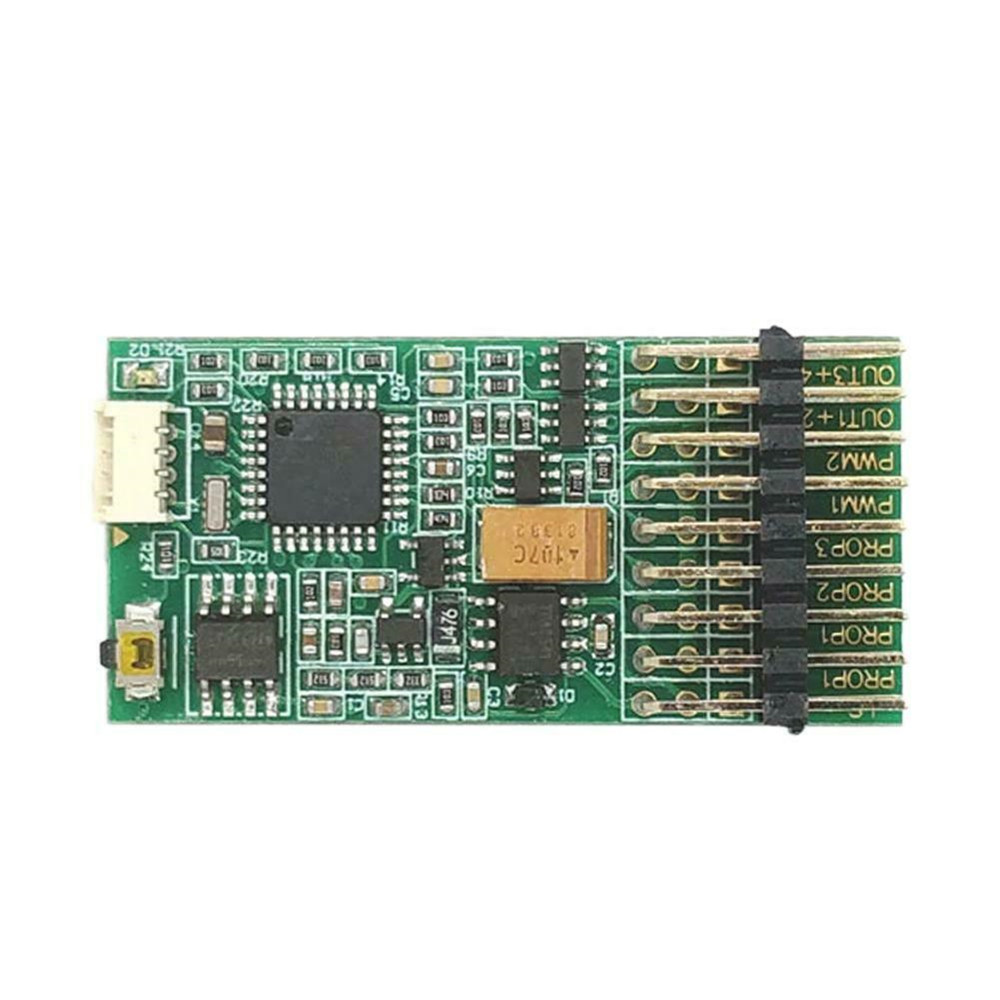

DasMikro TBS Mini Programmable Sound and Light Control Unit for RC Model Car Parts
Description:
This sound unit is developed for all kinds of RC controlled models including trucks crawlers tanks airplanes...
Features:
Fully customer programmable you could load your own sounds
Large sound library of original recordings is available
Sound quality at 22KHz
Capability to play two sounds simultaneously (engine and one special sound)
16Mbit sound memory enough for 93sec. of sound recordings at 22KHz
Internal 1 2W amplifier at 8 Ohm speakers
Remote volume control (depending on control mode)
Up to 6 electronic switching outputs
Two servo signal outputs
All connections made by plugs no solder work necessary
Fully assembled in SMD technology (no heavy vibration sensitive components)
Speed signal derived from the receiver. This allows combination with brushless or brushed motors.
Horizontal plug connections this allows total electric isolation by shrinking plastic tube.
Technical Spec:
Supply voltage: 3.5~12V (from receiver)
Internal amplifier: 1.2W at 8 Ohm and 5V supply
Switching outputs: Minus switching maximum at 12V/0.5A each
Product Dimensions: 55x25x10mm
Product Weight: About 6g
About the software and manual please click here to download
Package Included:
1 x DasMikro TBS Mini Sound And Light Control PCB
2 x 10cm 3P receiver connection servo cable
1 x 10cm 3P receiver connection servo Y cable (for tank second ESC speed input)
1 x 20cm 2P speaker connection cable
4 x 30cm 3P external switching connection cable
