5PCS Feiyue Upgraded Brushless Kit Motor ESC Servo Receiver Gear for FY03 FY03H FY05 Vehicles
Description:
Item Brand:Feiyue
Item Number:Motor(FY-2212) esc(FY-DT01) servo(FY-S3) receiver(FY-RX02) gear(FY-2T)
Item Name:Upgraded Brushless Kit Motor ESC Servo Receiver Gear
Material:Metal and plastic
Color:As the picture shown
Product Size:

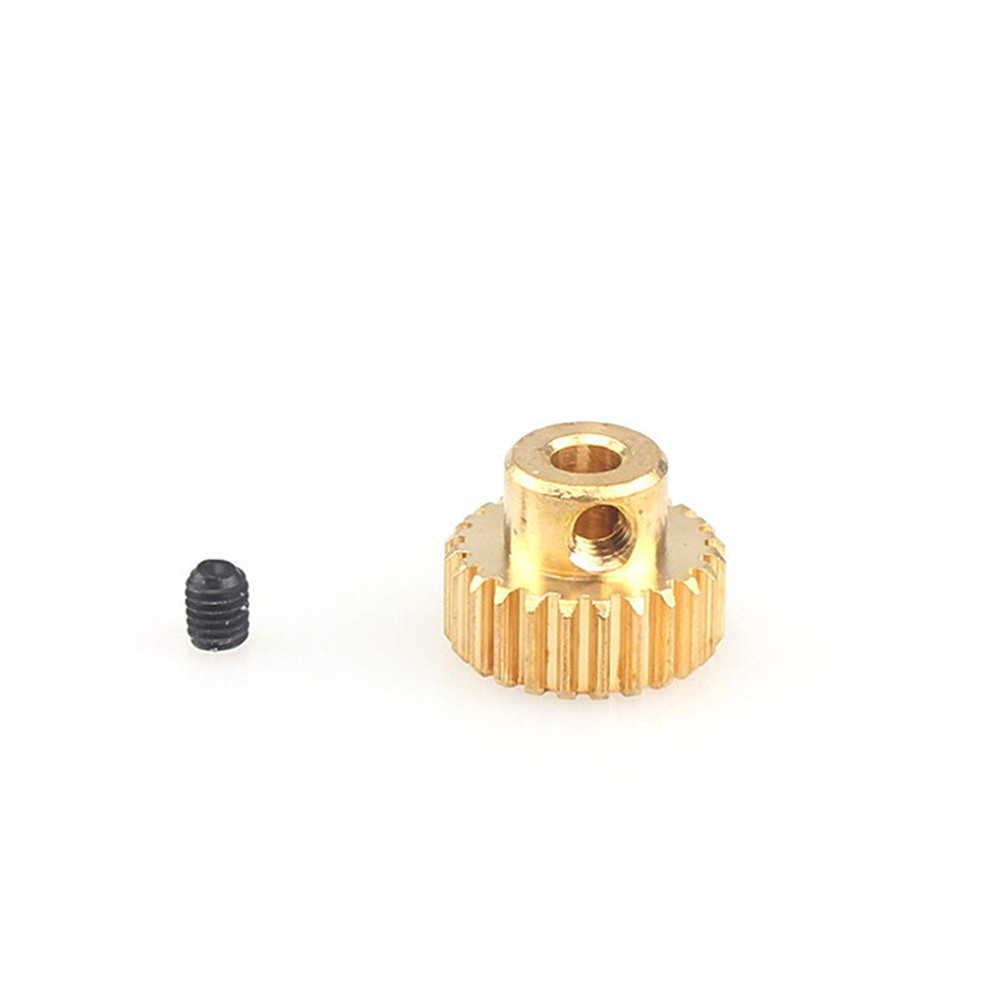

Motor Gear:26T 3.2mm

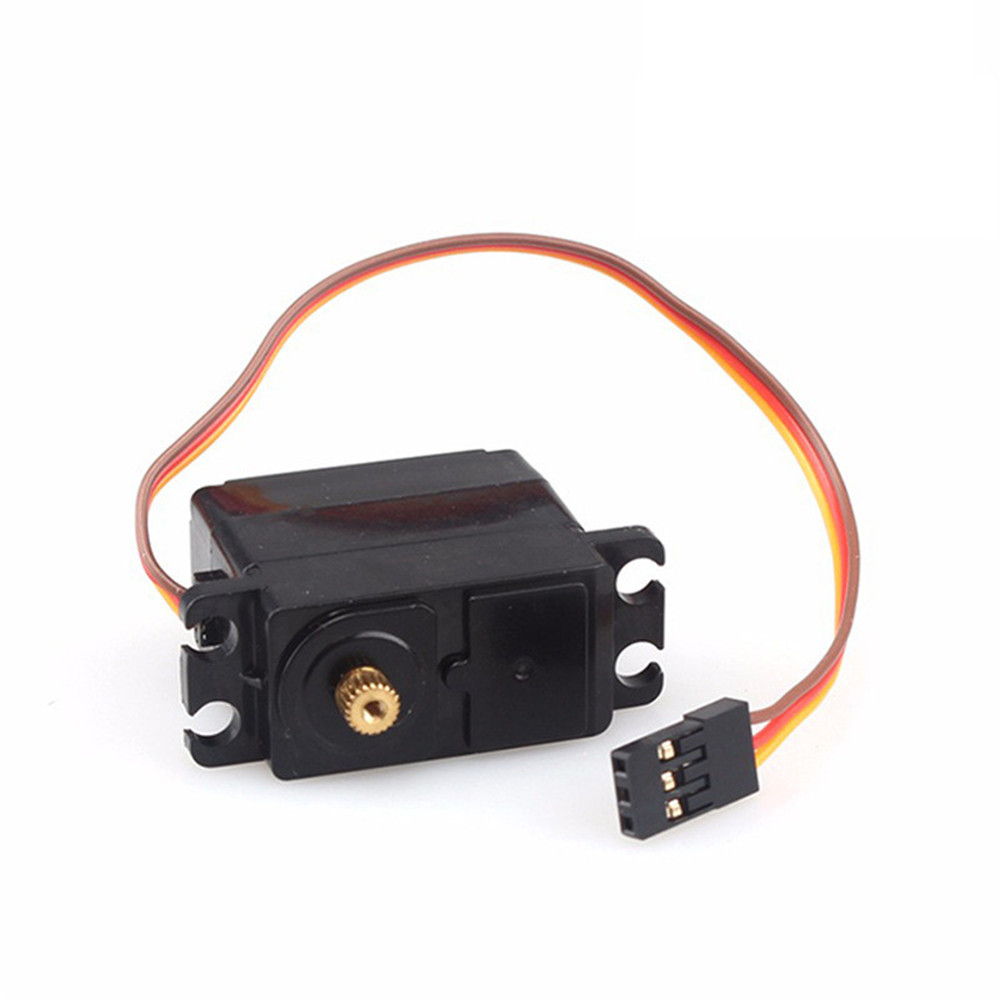

Servo:2.8KG 3 wires

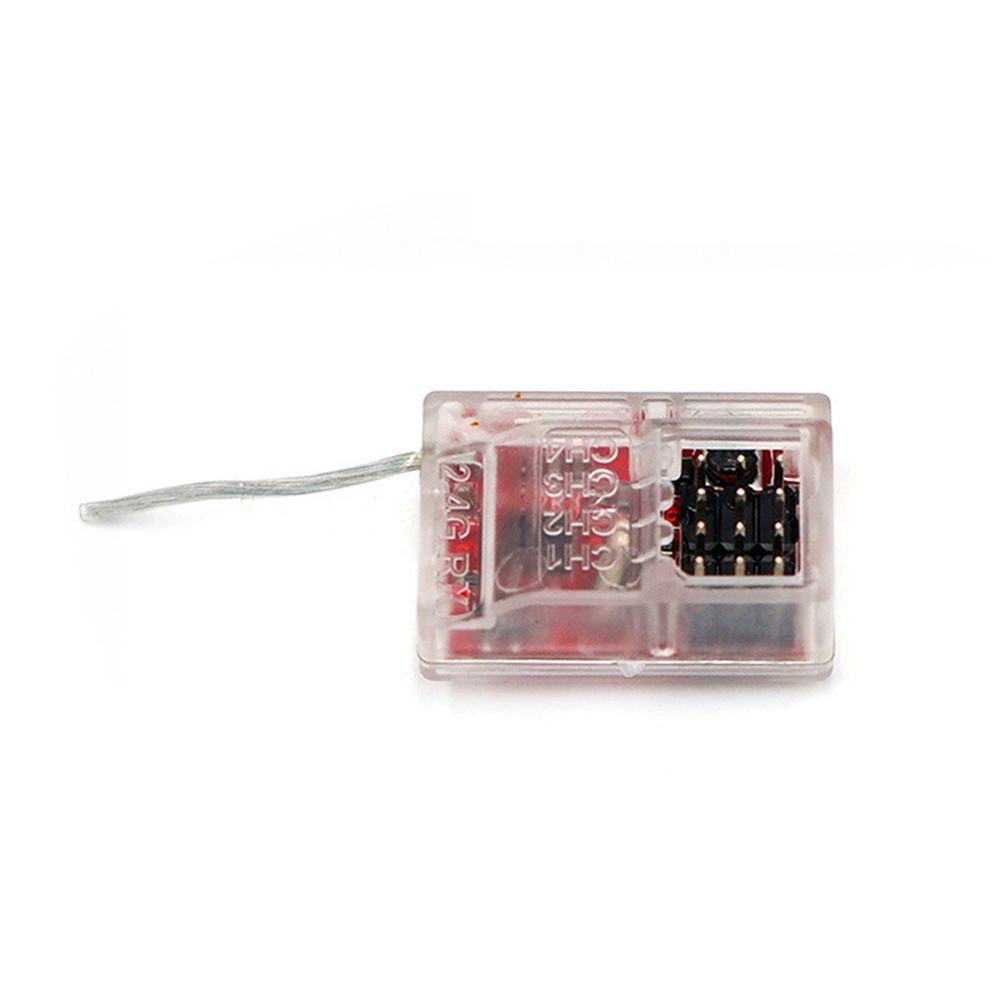

Receiver:30*25*15mm

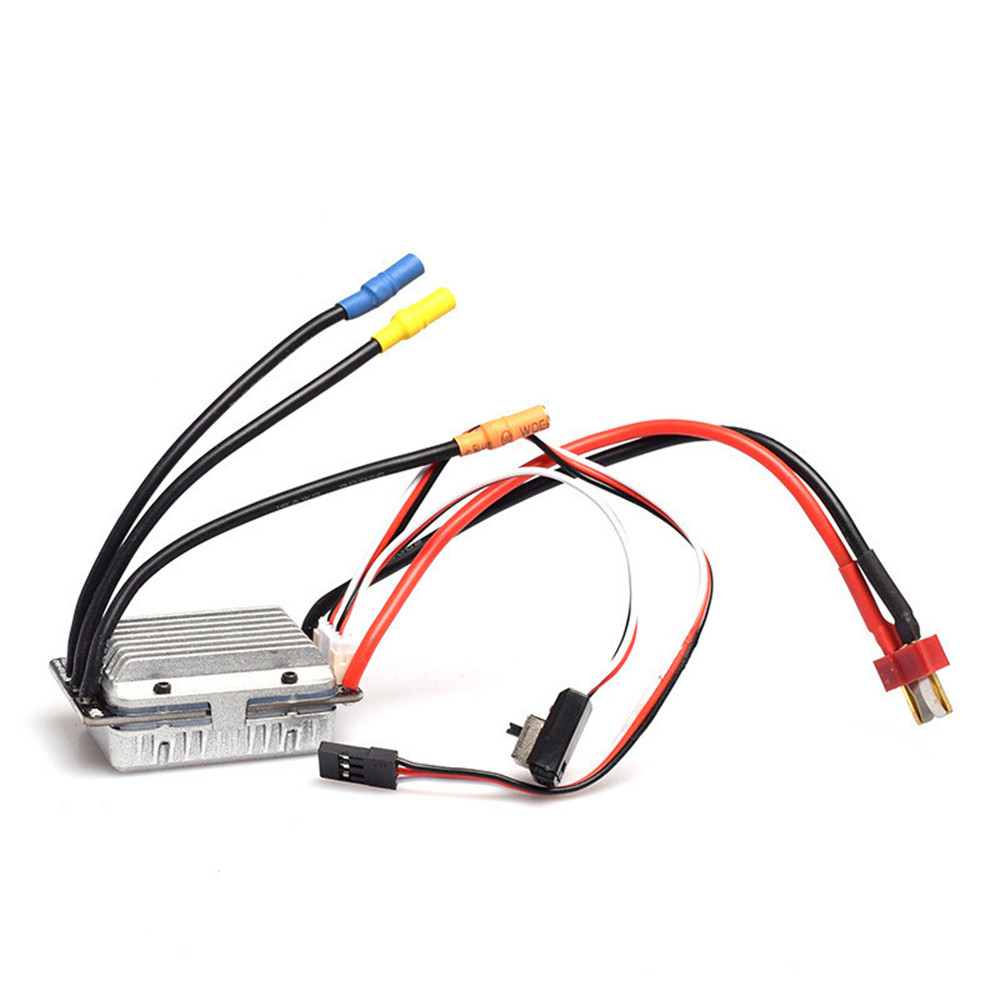

ESC:45A
Product Weight:About 173g
Fit For:
Feiyue FY01/ 02/03/03H/04/05 1/12 rc vehicles model

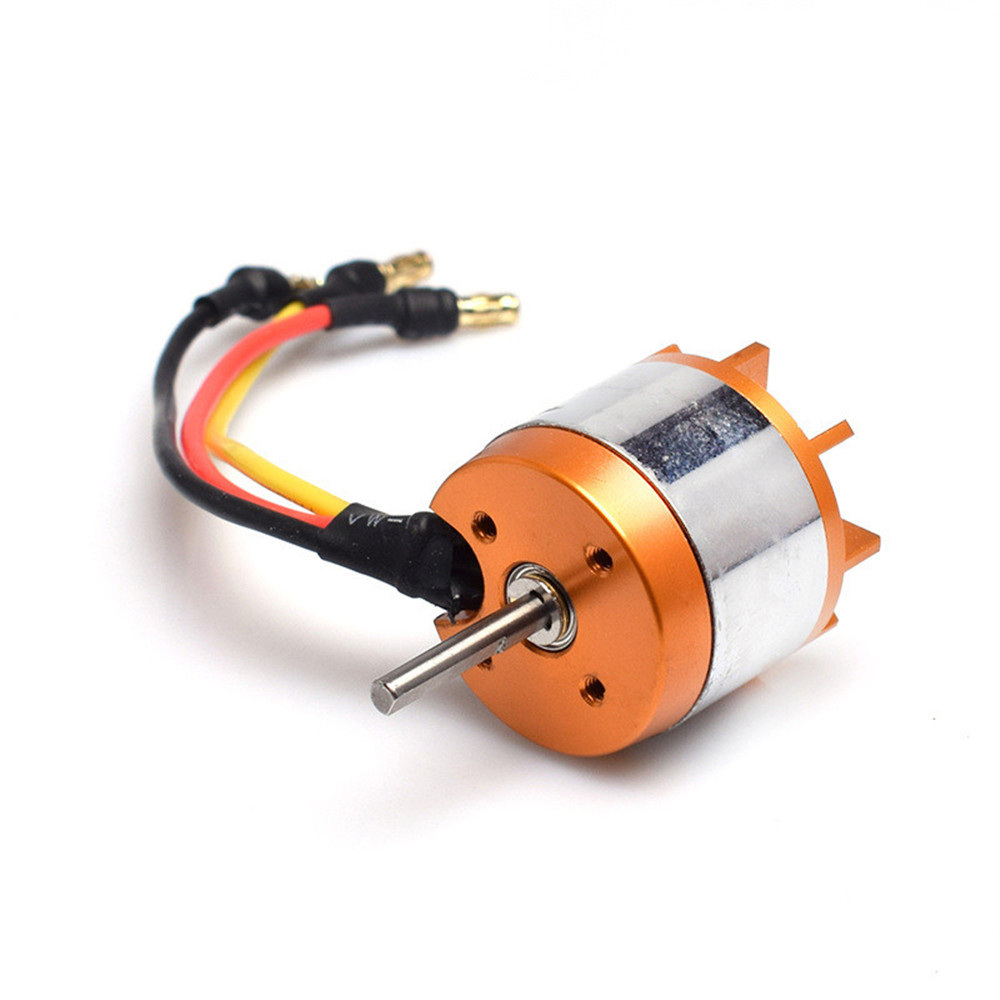

Specification of the Motor:
Name:RCD2212
Motor KV:2700KV+/-10%
Stator Diameter:22mm
Stator Thickness:12mm
Number of Stator Arms:12
Number of Stator Poles:14
No-load current:(10V) 3.6A (Ref)
Motor Resistance:26m(Ref)
Motor Weight:60g+/-2g
Outside Diameter:28+/-0.2mm
Body Length:28.2+/-0.5mm
Shaft Diameter:3.175mm

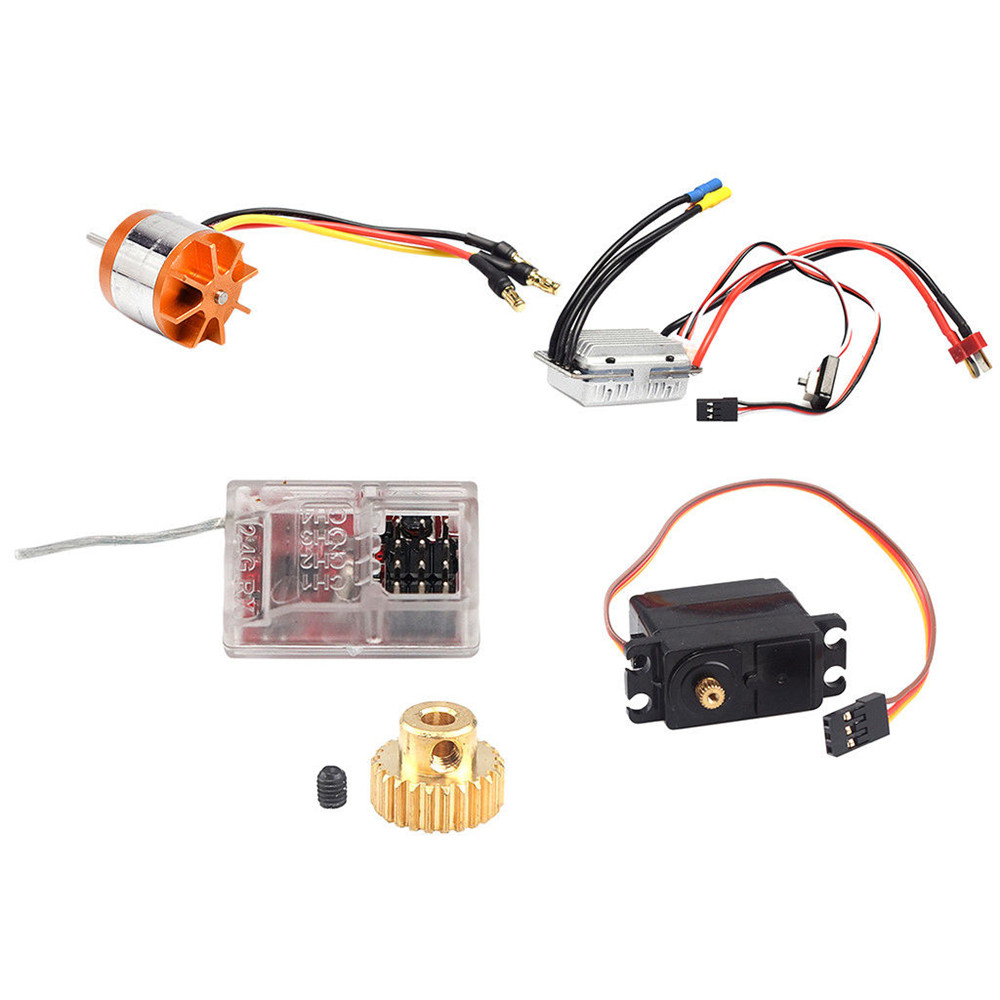

Package included:
1X Brushless Motor
1X Brushless ESC
1X Servo
1X Receiver
1X Motor Gear
