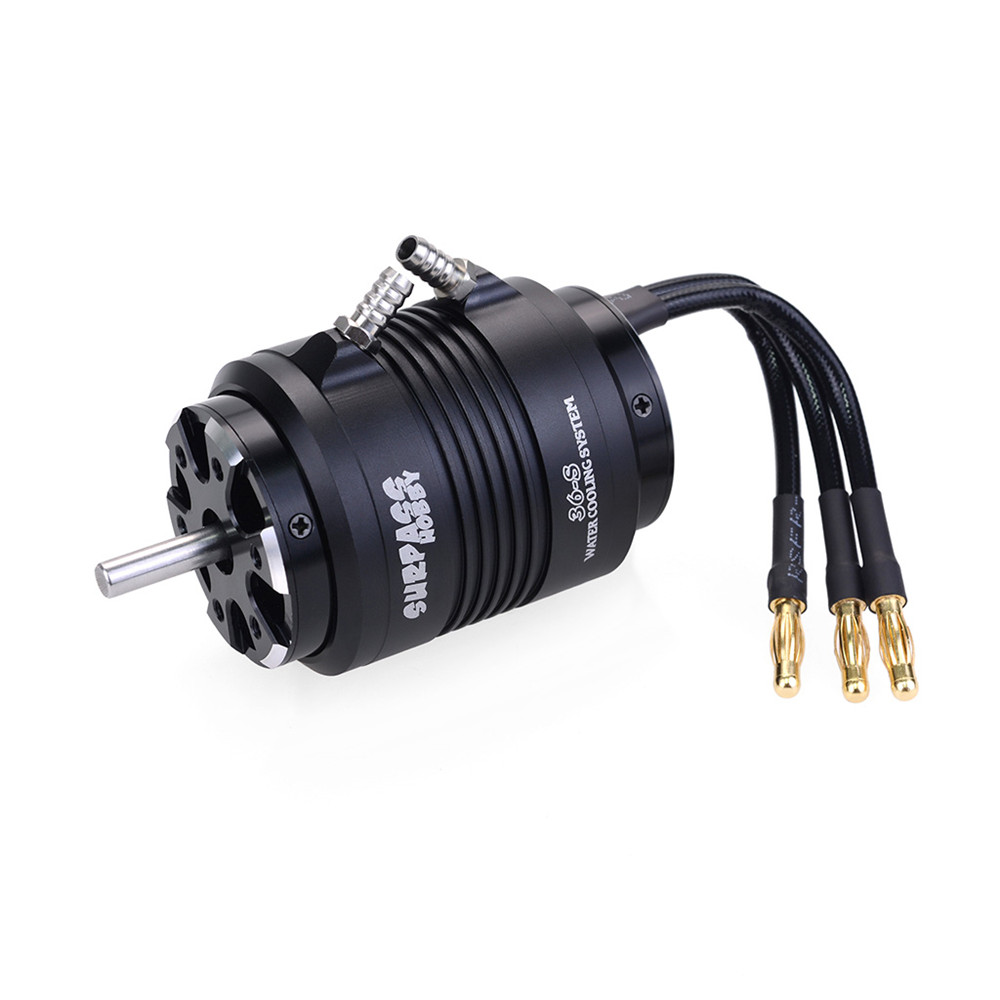

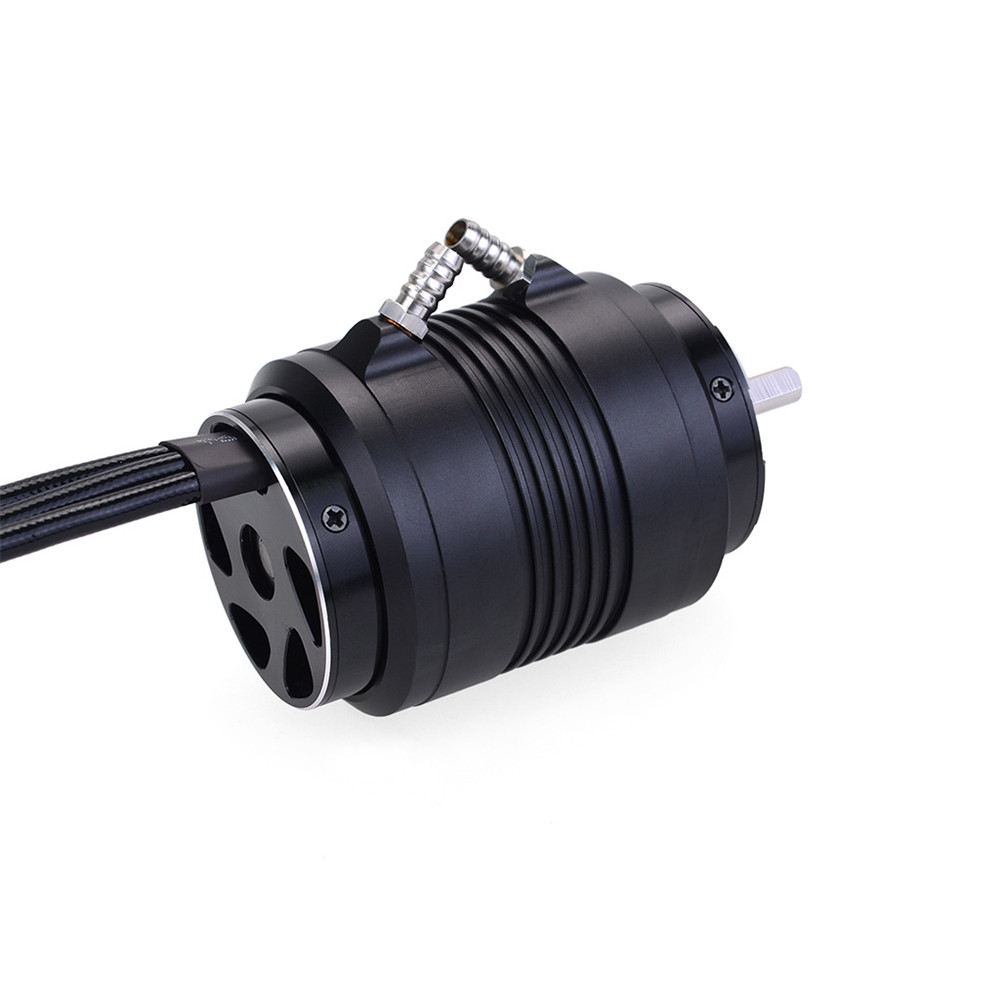

Surpass Hobby 3660 3500KV Brushless Motor +90A ESC +36-S Water Cooling Jacket for RC Boat
Description:
Item Brand:Surpass Hobby
Item Name:3660 3500KV Brushless Motor +90A ESC +36-S Water Cooling Jacket
Material:Metal and plastic
Color:Black
Packaging Size:19*11*7cm
Packaging Weight:About 494g
Fit For:800-900mm rc boats
1/8 1/10 rc cars

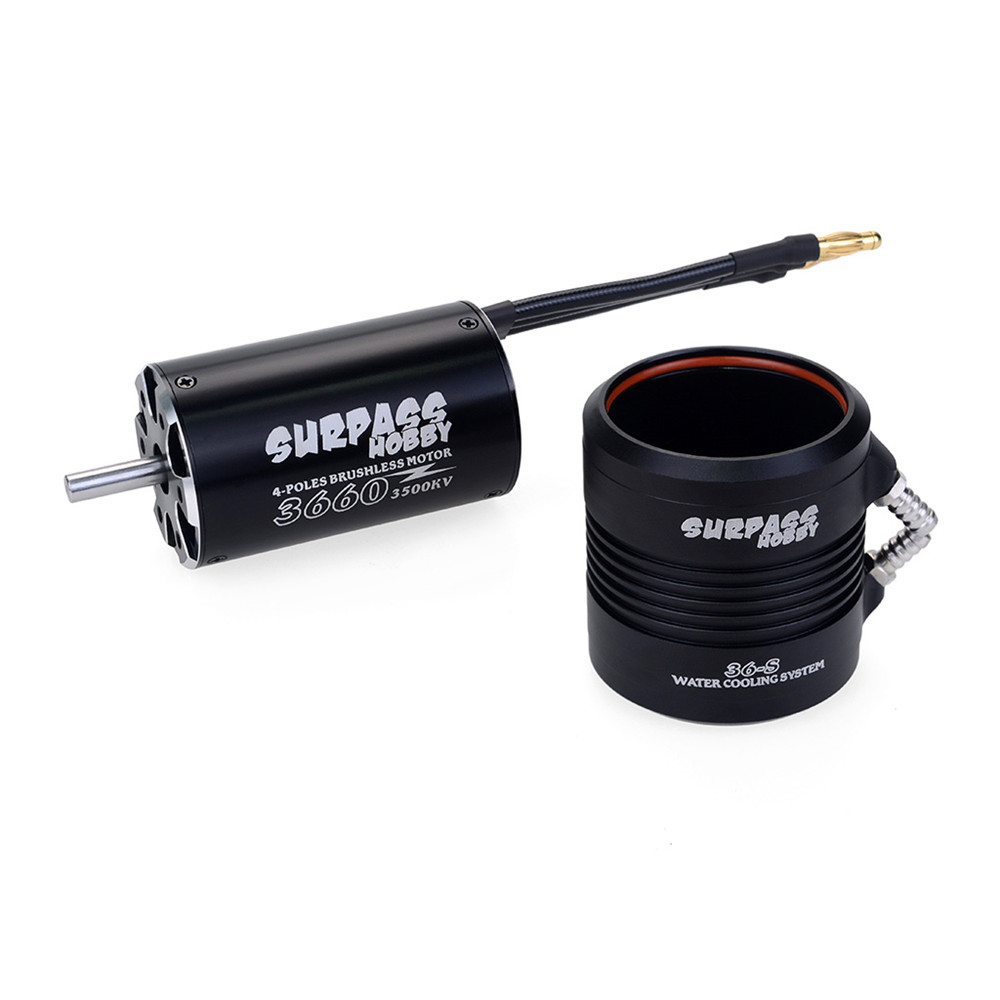

Motor Specification:

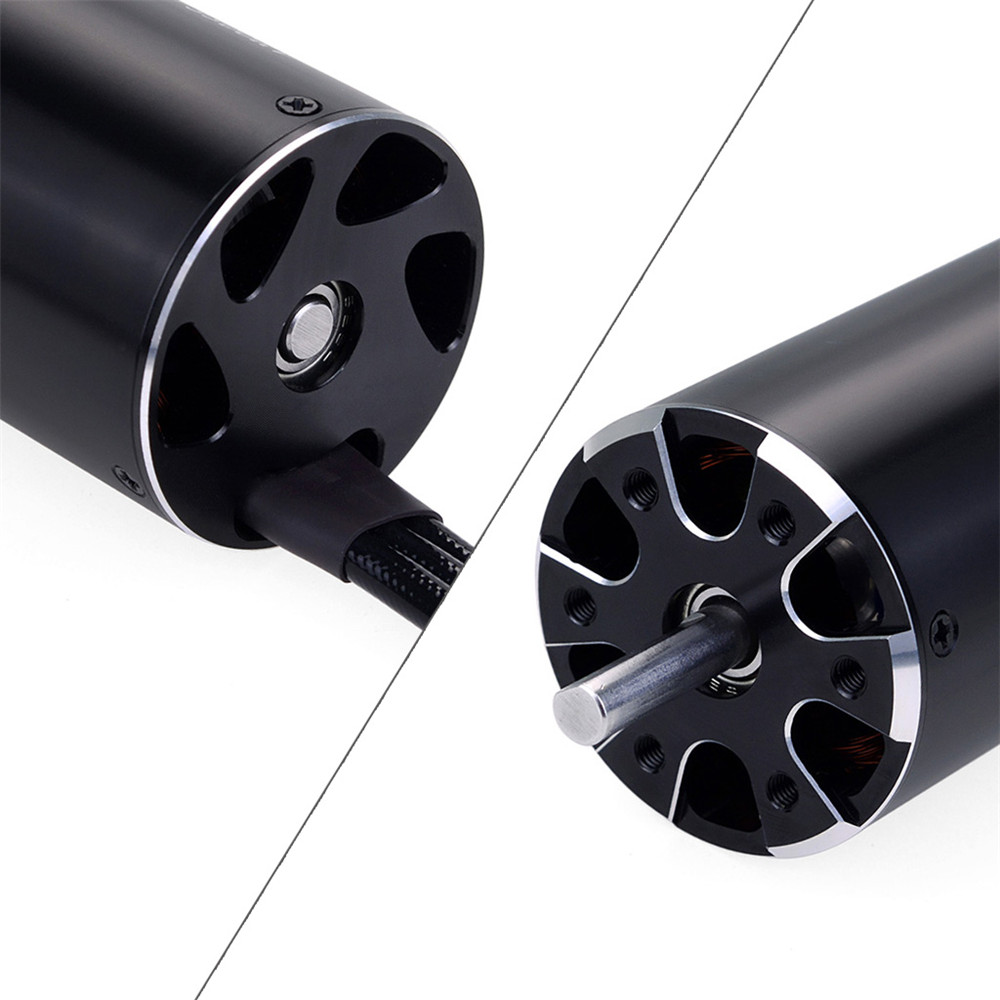

Motor Size:Length 60mm diameter 36mm shaft diameter is 5mm
Motor Weight:About 195g
KV:3500KV
Max Voltage:17V
Max Amps:70A
Max Power:1200W
Winding Type:WYE
Rotor Poles:4
Number of Turns:2Y
No Load Current:3.1A
Max RPM:60000
ESC Specification:

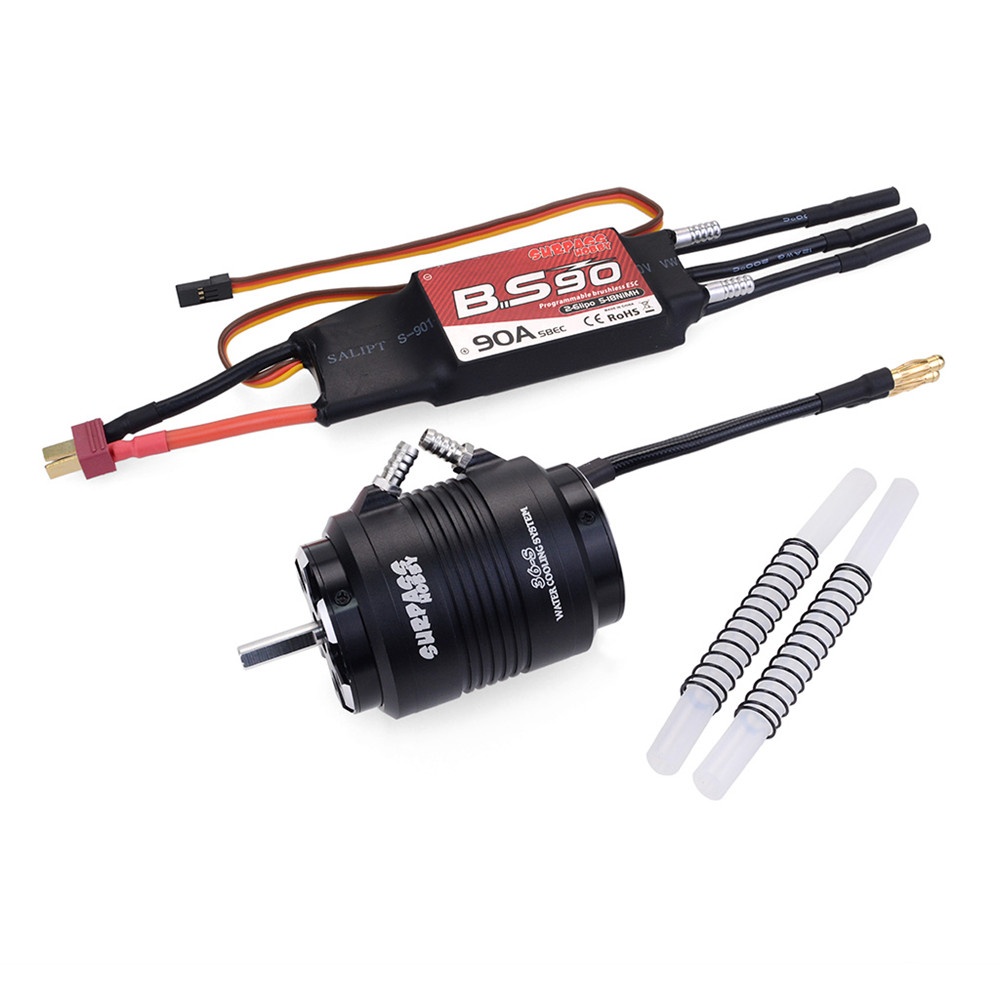

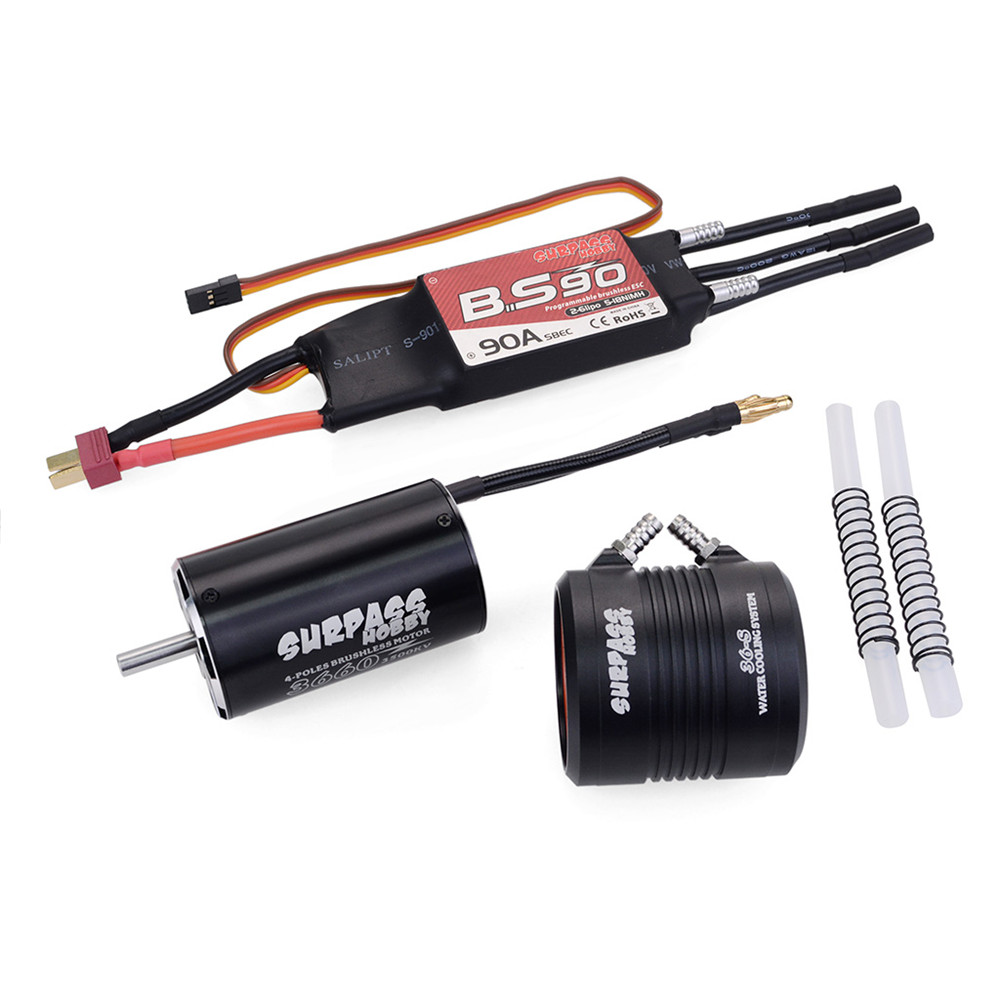

Package included:

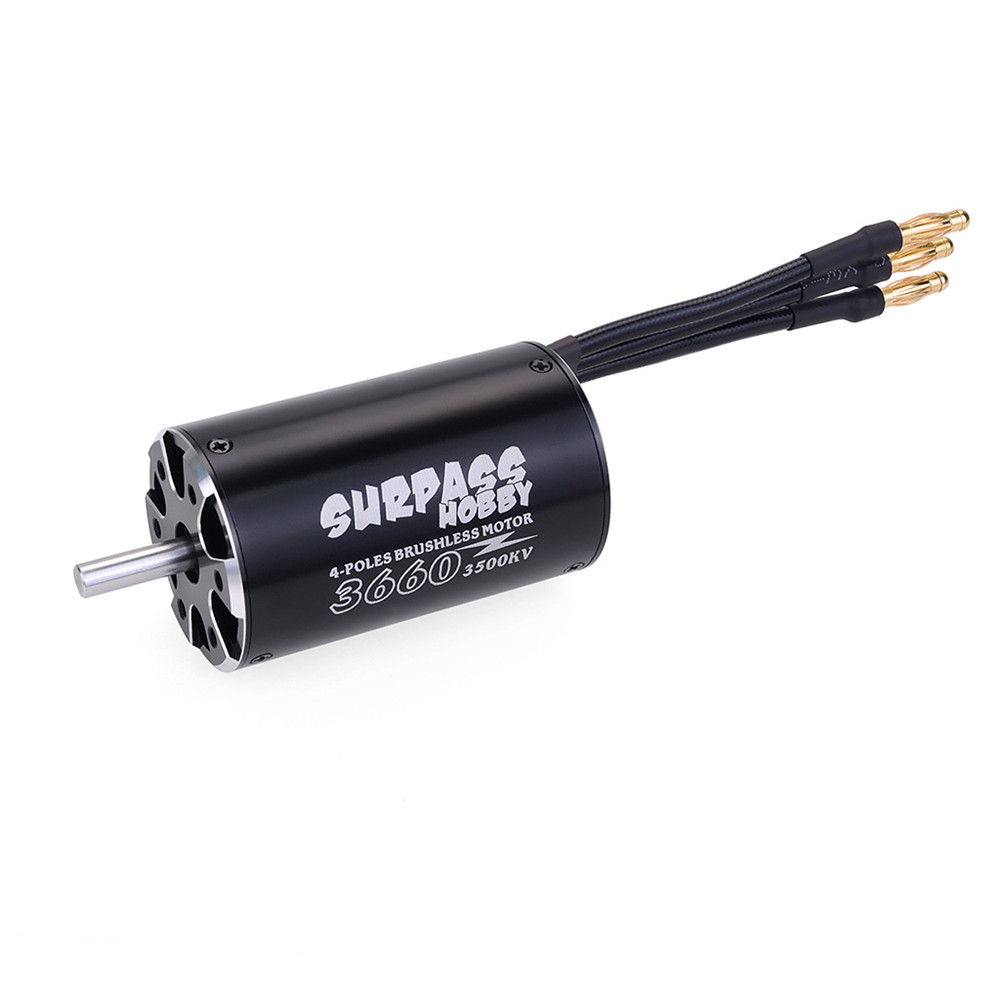

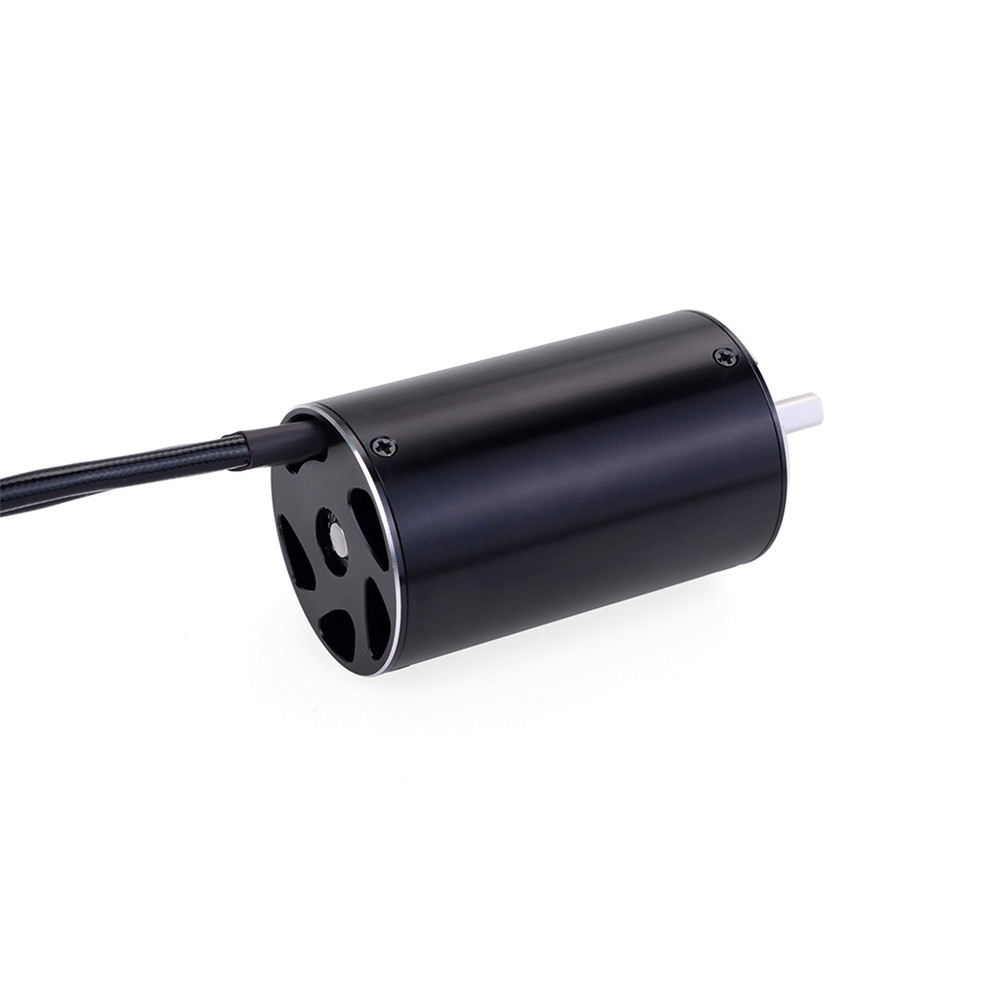

1X 3660 3500KV Brushless Motor
1X 90A ESC
1X 36-S Water Cooling Jacket
Item Brand:Surpass Hobby
Item Name:3660 3500KV Brushless Motor +90A ESC +36-S Water Cooling Jacket
Material:Metal and plastic
Color:Black
Packaging Size:19*11*7cm
Packaging Weight:About 494g
Fit For:800-900mm rc boats
1/8 1/10 rc cars
Motor Specification:
Motor Size:Length 60mm diameter 36mm shaft diameter is 5mm
Motor Weight:About 195g
KV:3500KV
Max Voltage:17V
Max Amps:70A
Max Power:1200W
Winding Type:WYE
Rotor Poles:4
Number of Turns:2Y
No Load Current:3.1A
Max RPM:60000
ESC Specification:

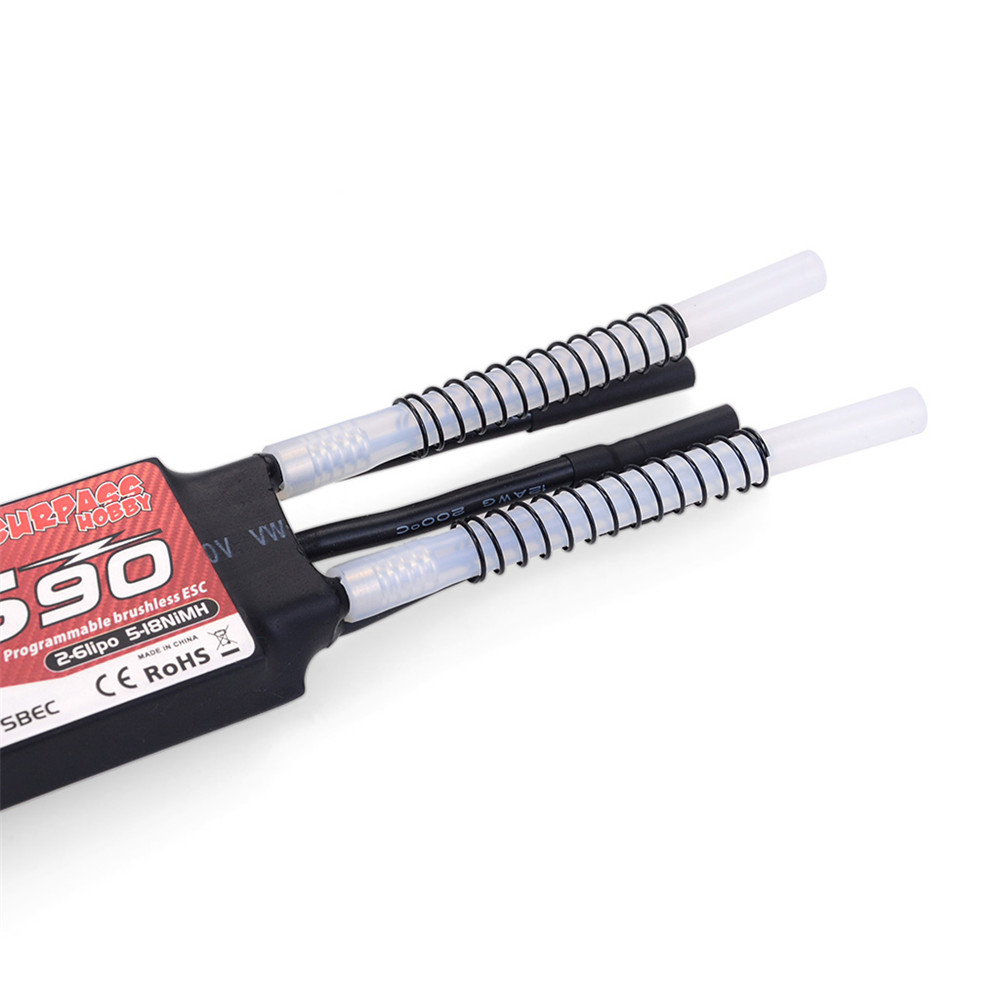

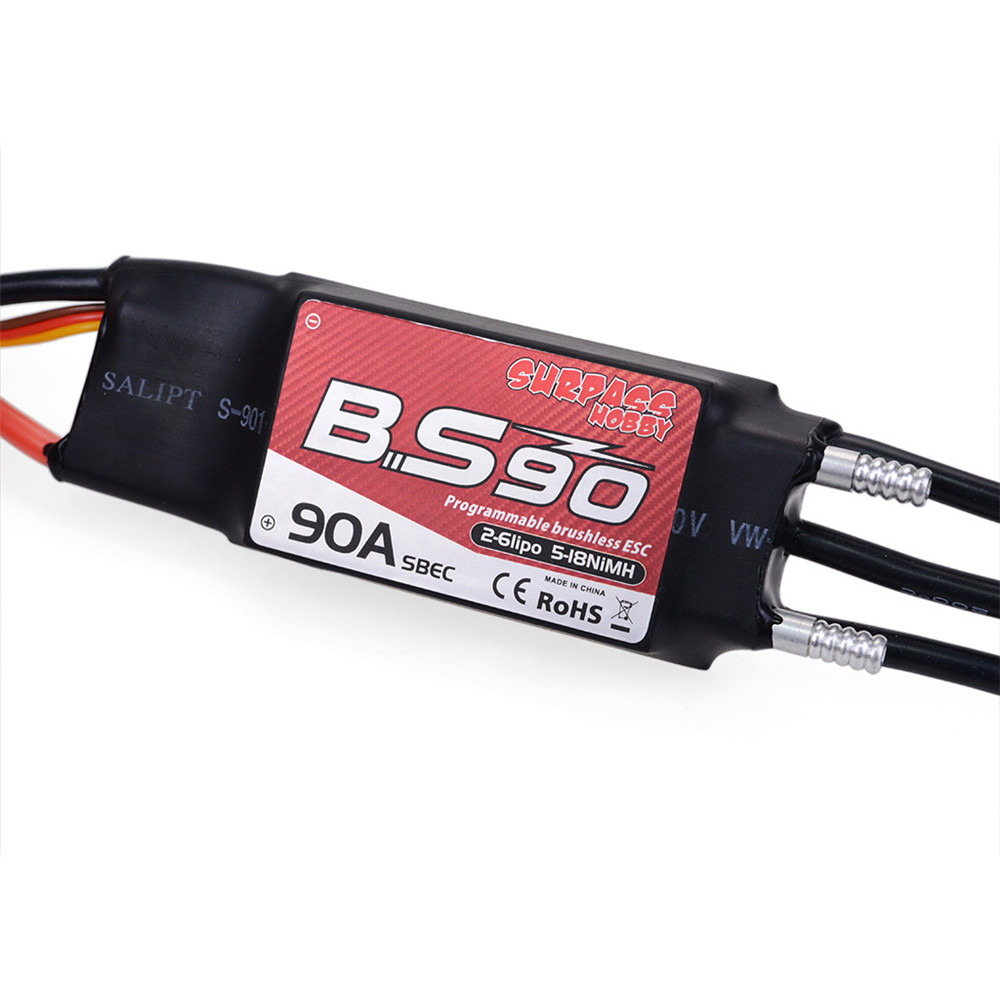

ESC Size:68*37*18mm(W*L*H)
ESC Weight:About 118.5g
ESC Weight:About 118.5g
PN#Model:9080101
Cont.Current:80A
Burst Current:90A
Battery Cell:5-18NC/2-6Nixx
BEC Output:5.5V/5A
User Program:Yes
Recommendation(they are not included in the package):
1.Separate link for 3660 3500KV 4 Poles Internal Sensorless Brushless Motor product id is 1558331
2.Separate link for 90A SBEC Programmable ESC product id is 1558351
3.Suitable program card for the esc product id is 1558326
BEC Output:5.5V/5A
User Program:Yes
Recommendation(they are not included in the package):
1.Separate link for 3660 3500KV 4 Poles Internal Sensorless Brushless Motor product id is 1558331
2.Separate link for 90A SBEC Programmable ESC product id is 1558351
3.Suitable program card for the esc product id is 1558326
1X 3660 3500KV Brushless Motor
1X 90A ESC
1X 36-S Water Cooling Jacket
