  3. JDHMBD MT-003 H2222-PRO 1-6S 1850KV 3.5mm Output Shaft Brushless Motor For 450/450L/480/X360 RC Helicopter
Public Pricelist

JDHMBD MT-003 H2222-PRO 1-6S 1850KV 3.5mm Output Shaft Brushless Motor For 450/450L/480/X360 RC Helicopter

https://www.rcwarehouse.nl/web/image/product.template/2742/image_1920?unique=1b82771

35.64 € 35.64 EUR 35.64 €

35.64 €

    This combination does not exist.

    Description:
    Brand: JDHMBD
    Item: MT-003 H2222-PRO
    Product: Brushless Motor
    Motor KV: 1850KV
    No-lood Current(1o/10v): 2.5A
    Lipo Battery: 2-6S
    Weight: About 94g
    Max Continuous Current: 30A
    Max Continious Power: 720W
    Max Peak Current: 45A(2seconds)
    Max Peak Power: 1080W(2seconds)
    Configu-ration: 9N/6P
    Motor Resistance(RM): 0.0382Ω

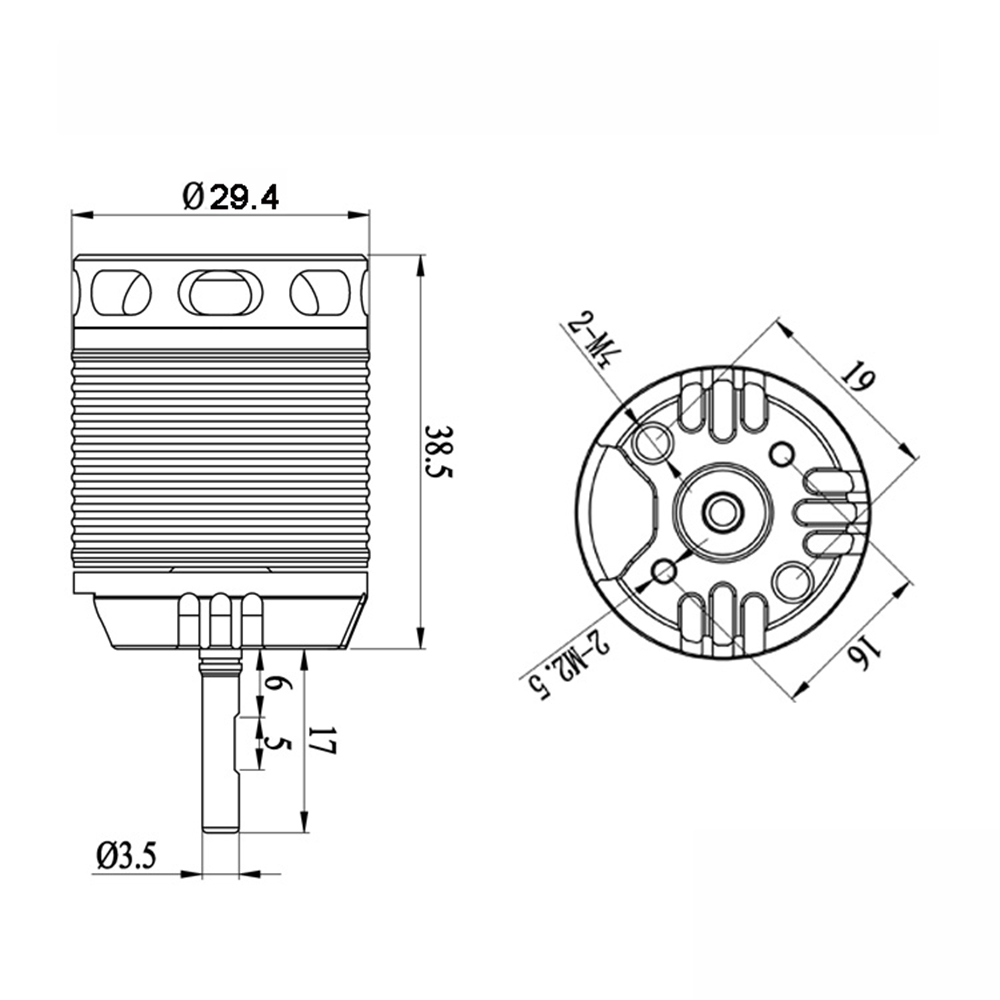

    Stator Diameter: 22mm
    Stator Thinkness: 22mm
    Motor Diameter: 29.4mm
    Shaft Diameter: 3.5mm
    Motor Body Length: 38.5mm
    Overall Shaft Length: 55.5mm
    Bolt Thread: 16/19mm
    Bolt Screw: M2.5/M4
    Motor Timing: 5deg
    Drive Frequency: 8KHz
    Applicatino: For 450/450L/480/X360 RC Helicopter

    Package:
    1* JDHMBD MT-003 H2222-PRO 1850KV 3.5mm Brushless Motor
