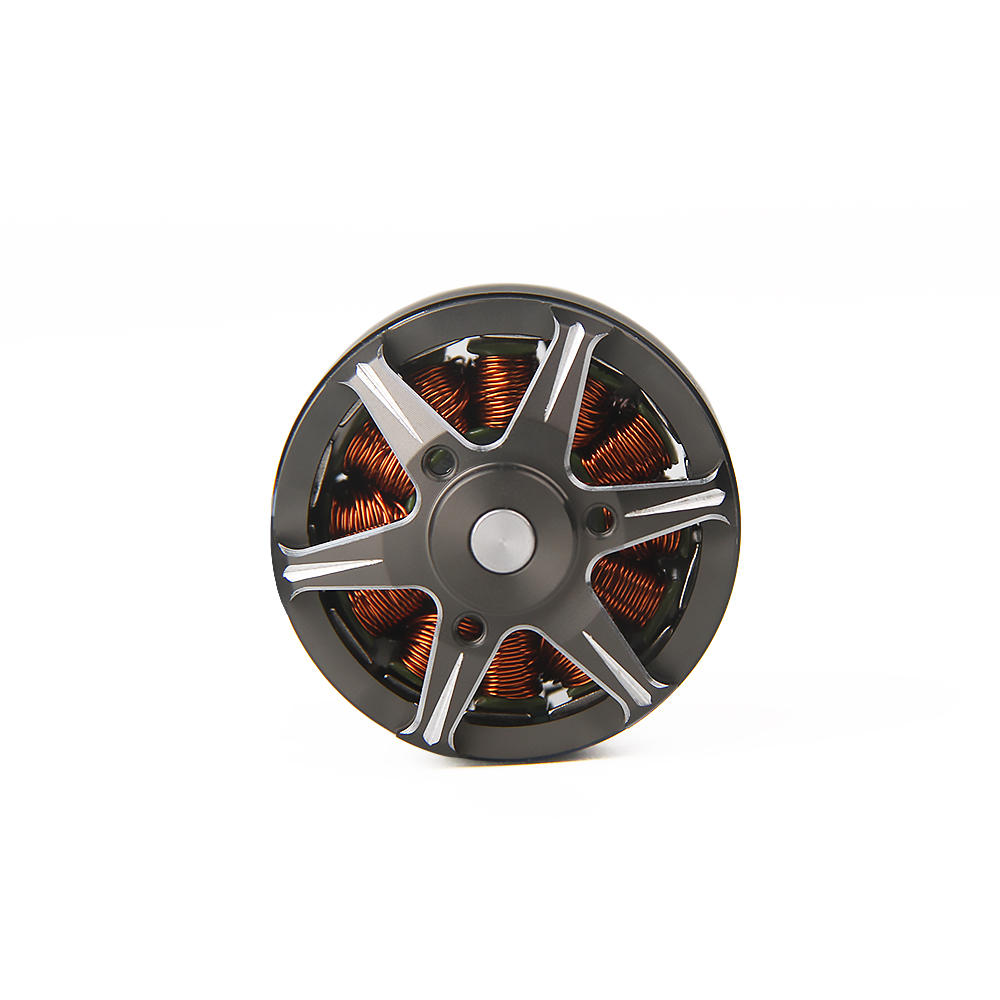

T-motor AS2304 1500KV /1800KV/2300KV 2-3S Brushless Motor for RC Airplane Fixed Wing

https://www.rcwarehouse.nl/web/image/product.template/2915/image_1920?unique=0483037

11.33 € 11.33 EUR 11.33 €

11.33 €

    This combination does not exist.

    Tmotor AS2304 1500KV /1800KV/2300KV 2-3S Motor for RC Airplane Fixed Wing

    Description:
    Brand: Tmotor
    Model: AS2304
    KV: 1500KV 1800KV 2300KV (Optional)
    Motor appearance size: short shaft /C 28 * 16.5mm
    Stator: High temperature coating resistant to 150
    Number of slots: 12N14P
    Motor shaft diameter: IN: 4mm OUT: 3mm
    Bearing model: imported 684ZZ bearing
    Magnet grade: 150
    Silicone wire specifications: 40mm enameled wire
    Enameled wire insulation grade: 220
    Coil insulation test: 500V withstand voltage test
    Centrifugal cooling method: ON
    Rotor dynamic balance standard: `` 5Mg
    Motor overall dynamic balance standard: `` 10Mg
    Dust and waterproof rating: IP35

    1500KV:
    No load current: 10V/0.35A
    Maximum current (A) 180S: 9A
    Maximum power (W) 180S:  72W/3S
    Internal resistance (including wire): 236 Milliohm
    Rated voltage: 2-3S
    ESC recommendation: 20A
    Propeller recommendation: 8040/9050/1060
    Motor weight (including wire): 20g
    Package weight: 50g

    1800KV:
    No load current: 10V/0.5A
    Maximum current (A) 180S: 16A
    Maximum power (W) 180S:  168W/3S
    Internal resistance (including wire): 138 Milliohm
    Rated voltage: 2-3S
    ESC recommendation: 20-25A
    Propeller recommendation: 7035/8040/9050
    Motor weight (including wire): 20g
    Package weight: 50g

    2300KV:
    No load current: 10V/0.75A
    Maximum current (A) 180S: 16A
    Maximum power (W) 180S:  108W/3S
    Internal resistance (including wire): 88 Milliohm
    Rated voltage: 2-3S
    ESC recommendation: 30A
    Propeller recommendation: 7035/8040/9050
    Motor weight (including wire): 20g
    Package weight: 50g

    Features:
    * AS Series motor internal winding are uniform and orderly fully meet the performance consistency and motor efficiency play.
    * Using imported NMB bearings ensuring the motor working lifetime.
    * High standard of dynamic balance testing.

    Package Included:
    1x Tmotor AS2304 2-3S Motor
    2x O-ring 2.0 * 20mm
    4x Cross head tapping screws M2 * 5mm
    1x Aluminum adapter ring 10 * 5.5 * 7 * 2.5mm
    1x Aluminum adapter ring 10 * 5.5 * 8 * 2.5mm
