  3. JDHMBD H500-3524 1600KV 5.0mm Output Shaft Brushless Motor For ALIGN RC Helicopter
Public Pricelist

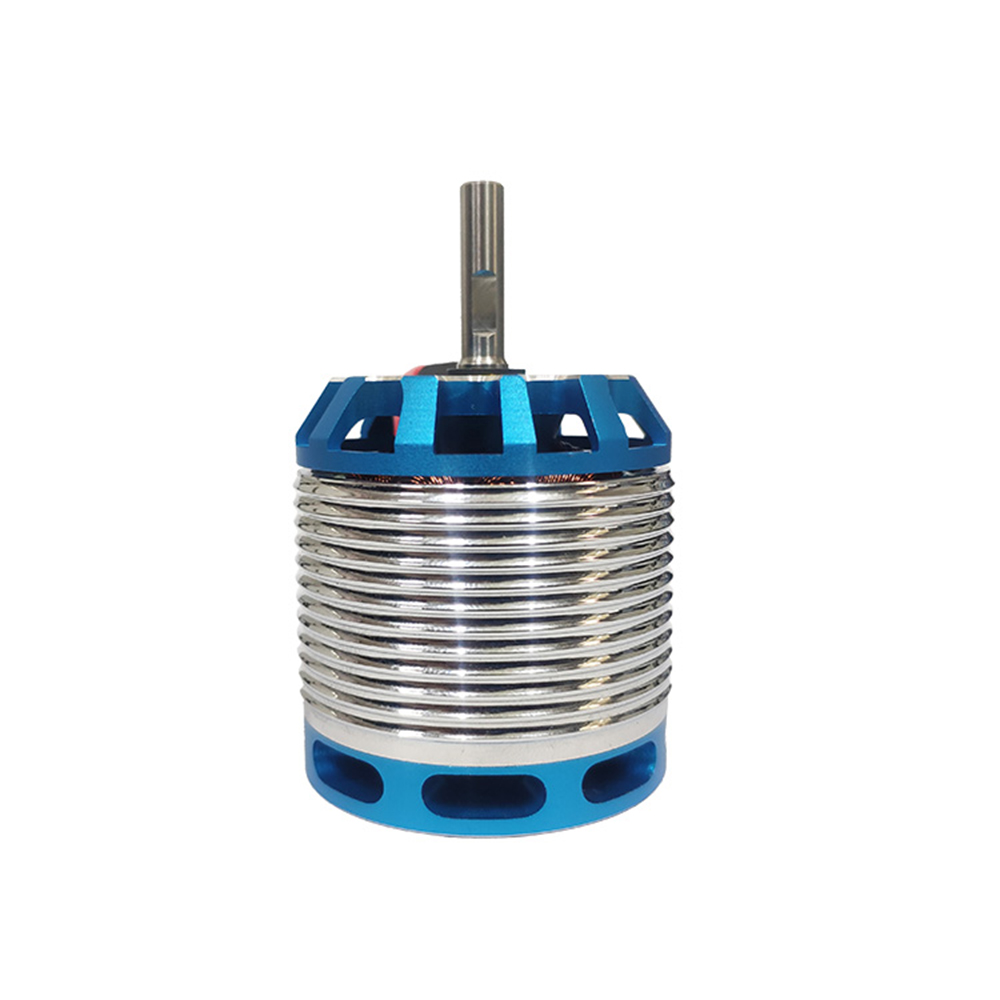

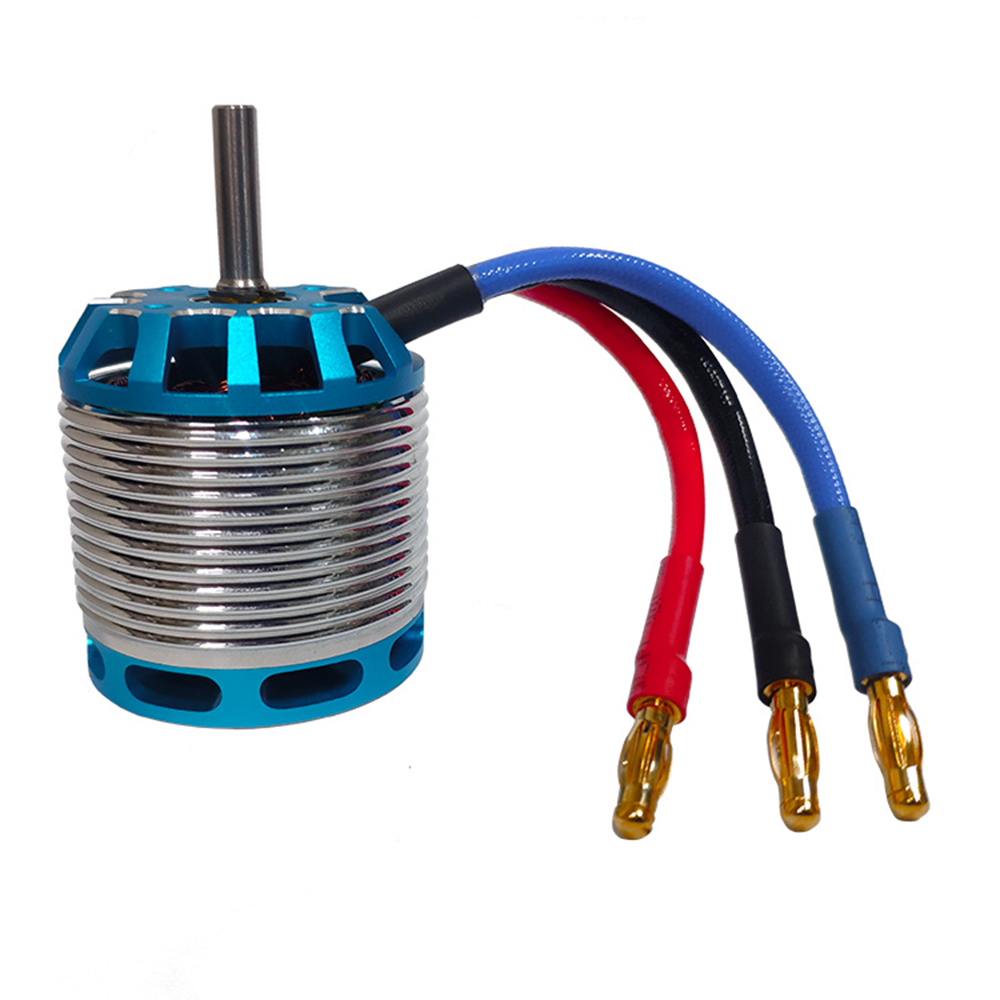

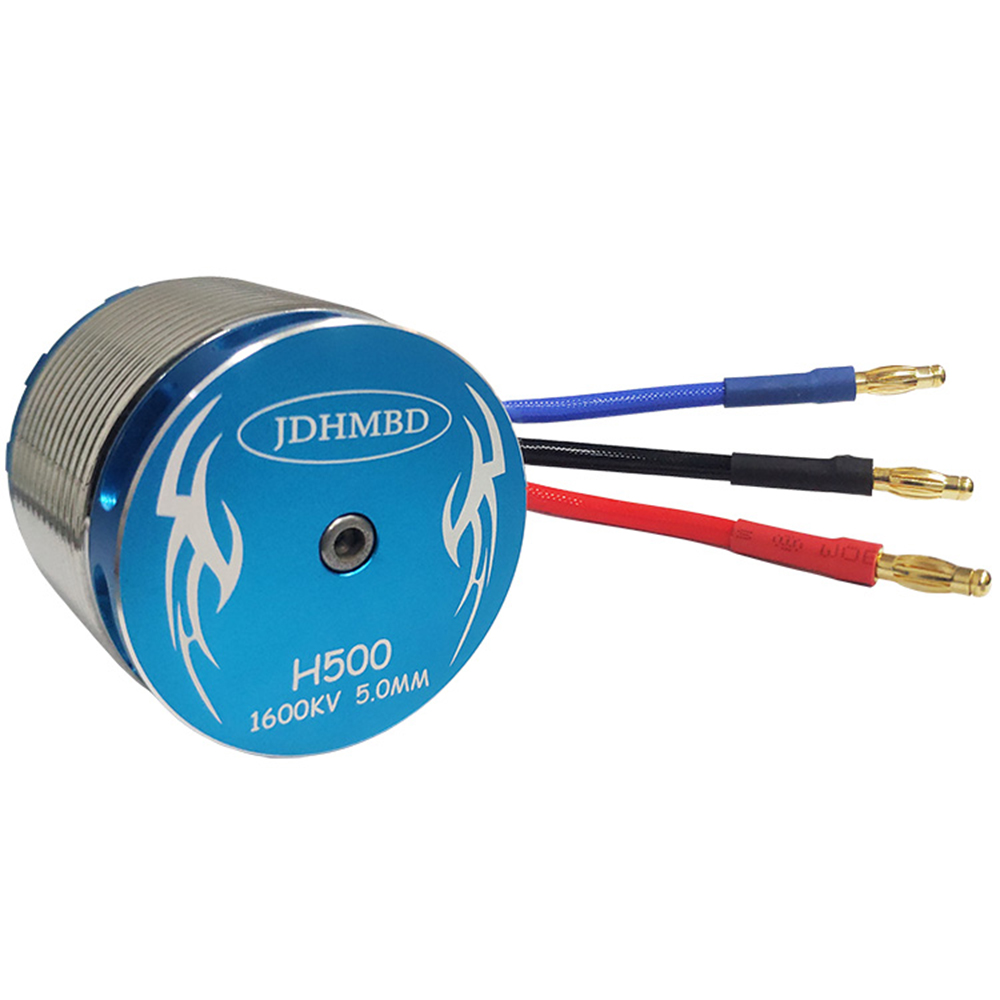

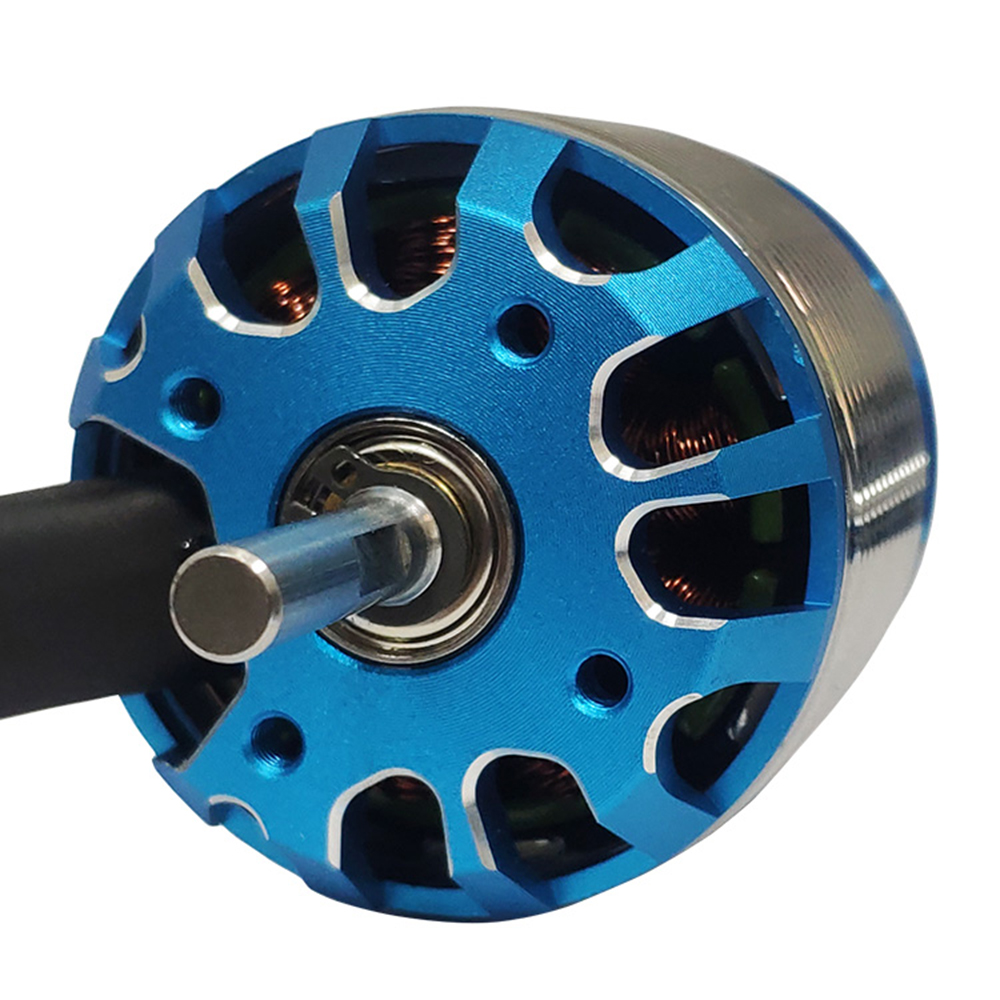

JDHMBD H500-3524 1600KV 5.0mm Output Shaft Brushless Motor For ALIGN RC Helicopter

https://www.rcwarehouse.nl/web/image/product.template/2978/image_1920?unique=b0e9499

55.19 € 55.19 EUR 55.19 €

55.19 €

    This combination does not exist.

    Description:
    Brand: JDHMBD
    Item: H500-3524
    Product: Brushless Motor
    Motor KV: 1600KV
    No-lood Current(1o/10v): 3.1A
    Lipo Battery: 3-6S
    Weight: About 235g
    Max Continuous Current: 85A
    Max Continious Power: 1900W
    Max Peak Current: 120A(2seconds)
    Max Peak Power: 2700W(2seconds)
    Configu-ration: 9N/6P
    Motor Resistance(RM): 0.017Ω
    Stator Diameter: 35mm
    Stator Thinkness: 34mm
    Motor Diameter: 43.5mm
    Shaft Diameter: 5.0mm
    Motor Body Length: 44.8mm
    Overall Shaft Length: 65.5mm
    Bolt Thread: 25mm
    Bolt Screw: M3
    Connection: 4mm
    Motor Timing: 5deg
    Drive Frequency: 8KHz
    Applicatino: For ALIGN RC Helicopter

    Package:
    1* JDHMBD H500-3524 1600KV 5.0mm Brushless Motor
