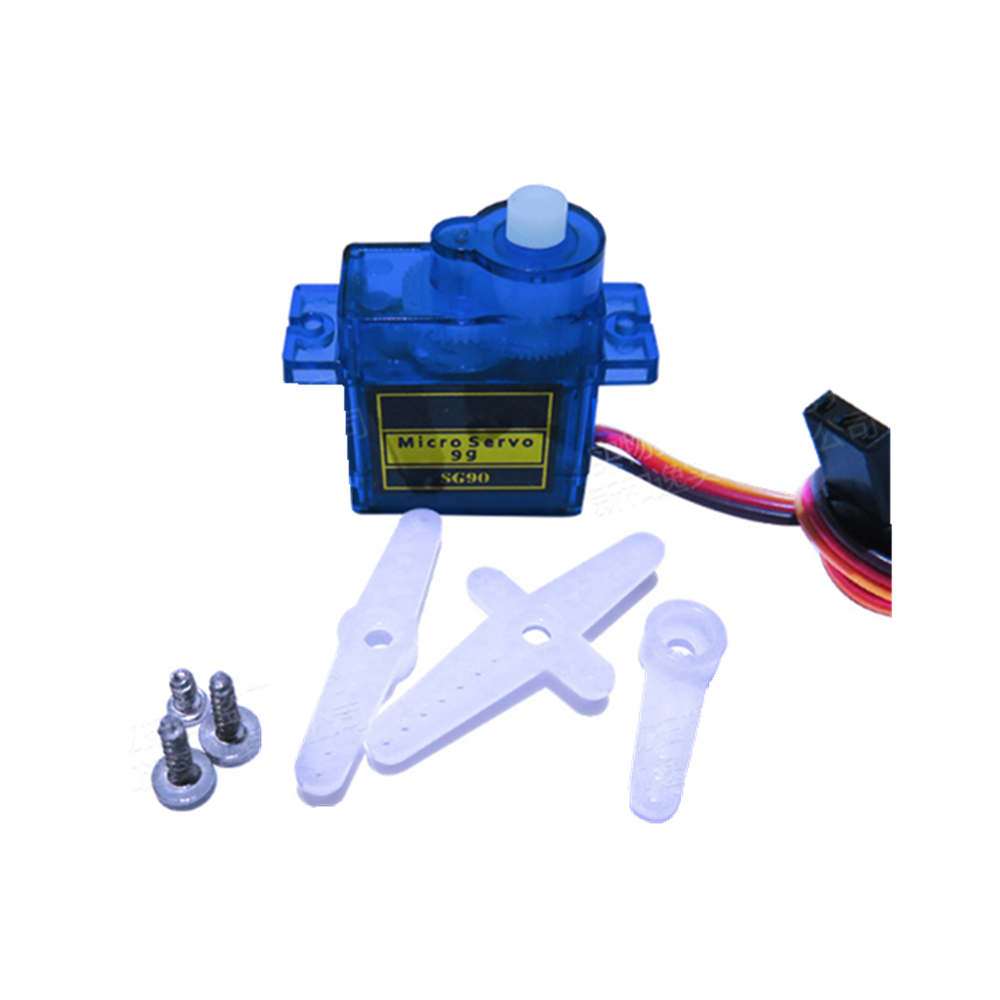

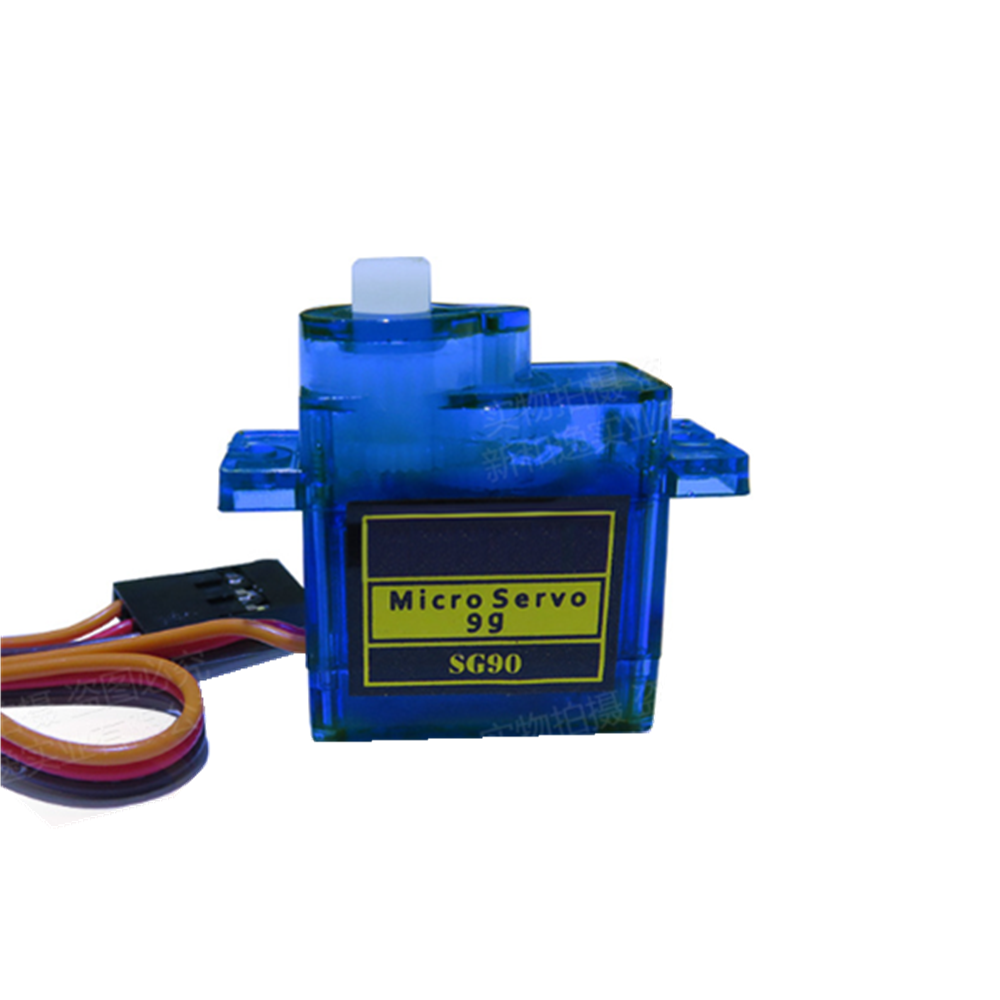

1PC/4PCS/5PCS/10PCS/20PCS NHYTech SG90 9g 4.8-6V 180 Degree Mini Analog Servo Smart Horn For RC Fixed Wing Airplane Model Robot Parts Motor DIY Models

https://www.rcwarehouse.nl/web/image/product.template/3001/image_1920?unique=0483037

8.04 € 8.040000000000001 EUR 8.04 €

8.04 €

    This combination does not exist.



    Specification:
    Model:SG90
    Size:22.9*12.2*30mm
    Weight:9g

    Apply Environmental Condition:
    Storage temperrature range:-20~60
    Operating temperrature range:-10~50
    Operating voltage range:4.8~6v
    Eletrical specification:
    Operating speed(at no load):
    0.12+-0.01 sec/60(4.8v)
    0.1+-0.01 sec/60 (6v)
    Running current(at no load):
    200+-20mA(4.8v)
    220+-20mA(6v)
    Stall torque(at locked):
    1.3+-0.01kg.cm(4.8v)
    1.5+-0.1kg.cm(6v)
    Stall current(at locked):
    600mA+-50mA(4.8v)
    700mA+-50mA(4.8v)

    Control specification:
    Control system:Change the pulse width
    Amplifier type:Analog controller
    Operating travel:90deg+-5deg(1000-2000u sec)
    Left and right travelling angle deviation:<=5deg
    Centering deviation:<=1deg
    Neu position:1500 u sec
    Rotating direction:Counter clockwise(1500-1000u sec)
    Pulse width range:800-2200u sec
    Maximum travel:about 135deg(800-2200u sec)

    Package included:

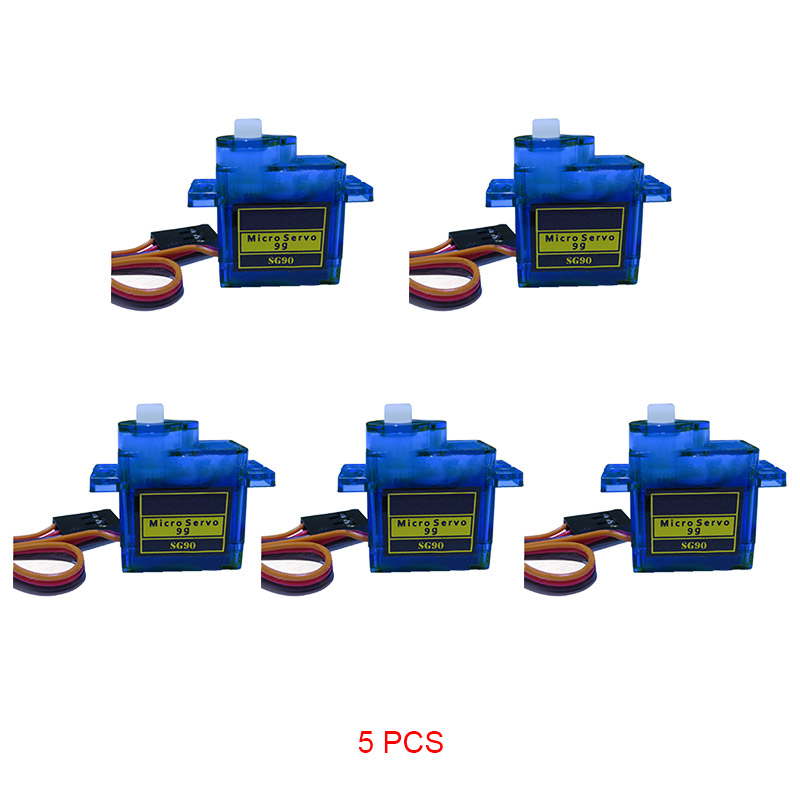

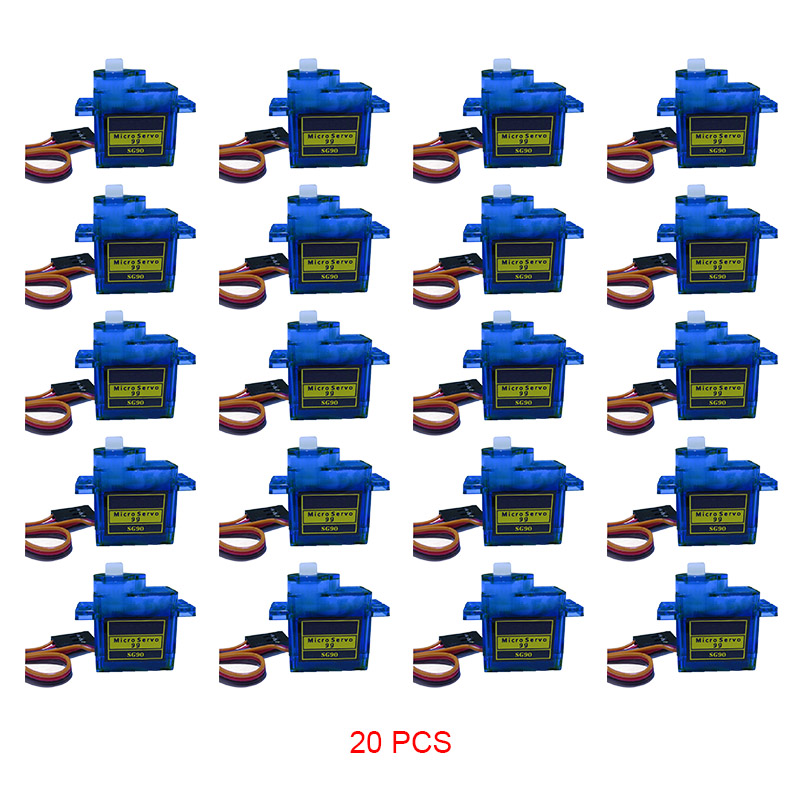

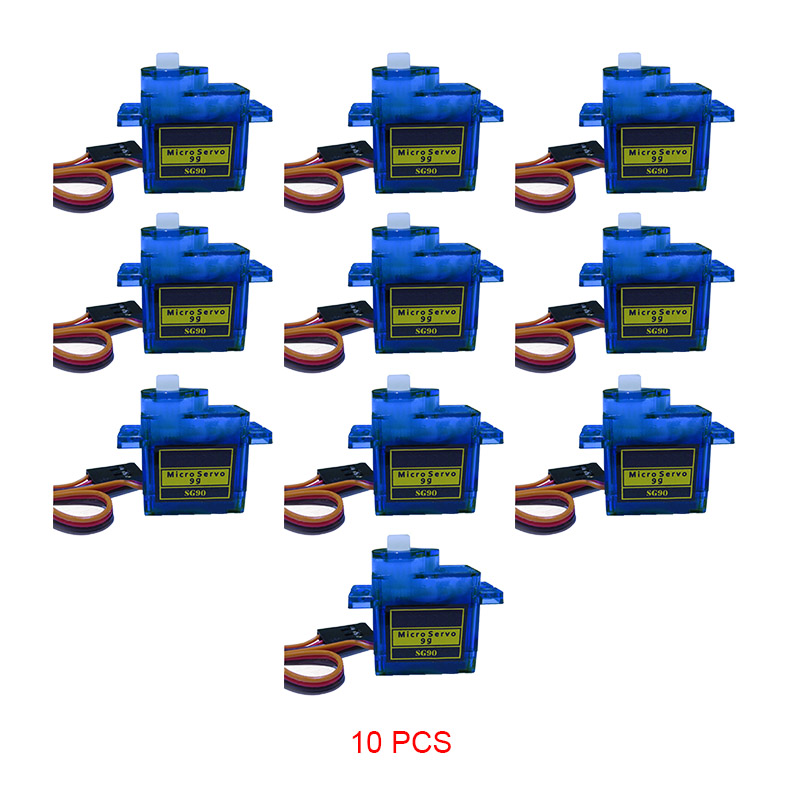

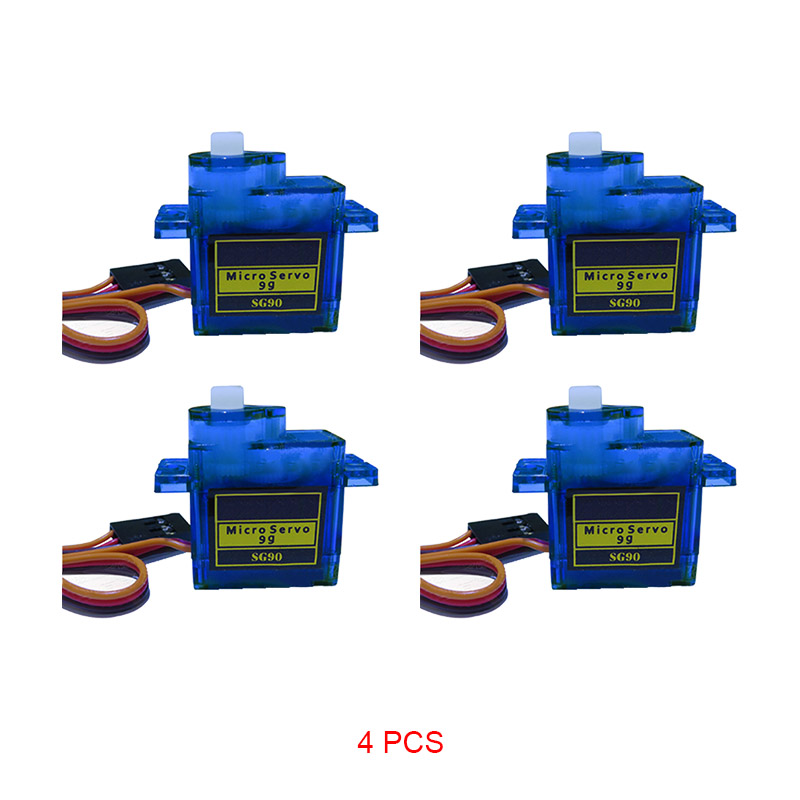

    1PC/4PCS/5PCS/10PCS/20PCS x SG90 9g 4.8-6V Micro Analog Servo for Fixed Wing Aircraft RC Model
