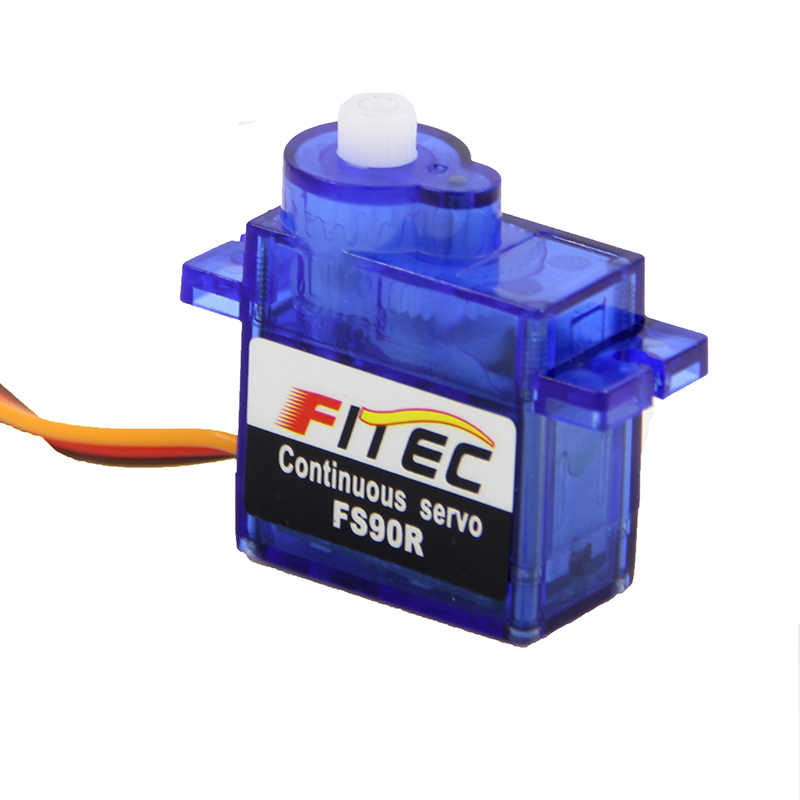

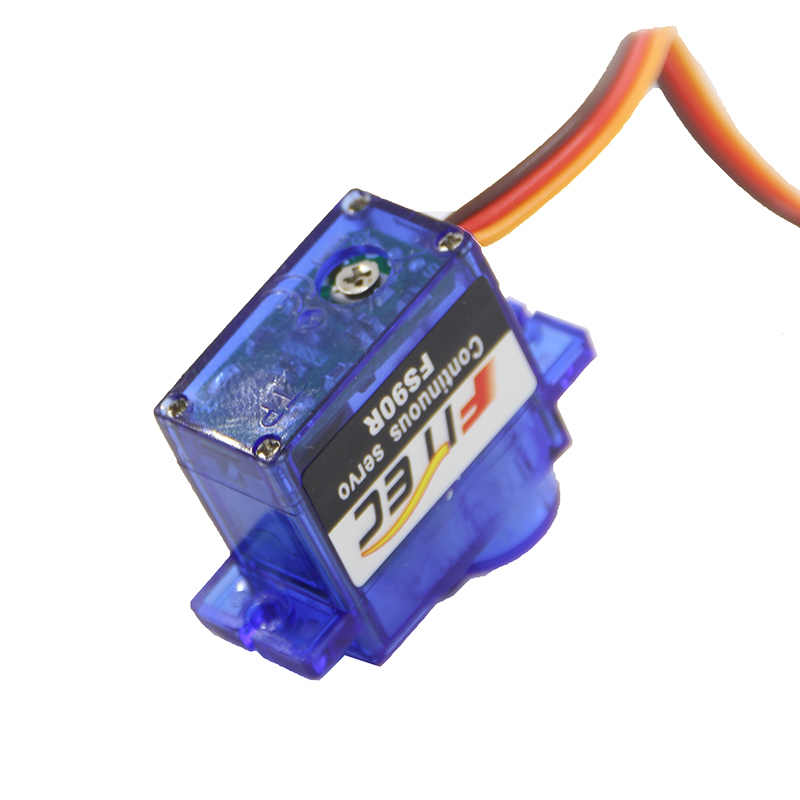

2/4/6pcs Feetech/FITEC 9g Micro Servo 6V 1.5kg/cm Analog 360 Degree Continuous Rotation Servo for Diy RC Helicopter Airplane Drone Robot Car
Feetech/FITEC 9g Micro Servo
6V 1.5kg/cm Analog 360 Degree Continuous Rotation Servo
for Diy RC Helicopter Airplane Drone Robot Car
6V 1.5kg/cm Analog 360 Degree Continuous Rotation Servo
for Diy RC Helicopter Airplane Drone Robot Car
Specification
Model : Micro analog plastic gears servo
Size : 23.2mm x 12.5mm x 22mm
Weight : 9g +-0.2
Gear type:Plastic Gear(Nylon & POM )
Limit Angle:NO limit
Bearing:NO Ball bearings
Horn gear spline:20T(4.8mm)
Horn type:Plastic POM
Case:Nylon & Fiberglass

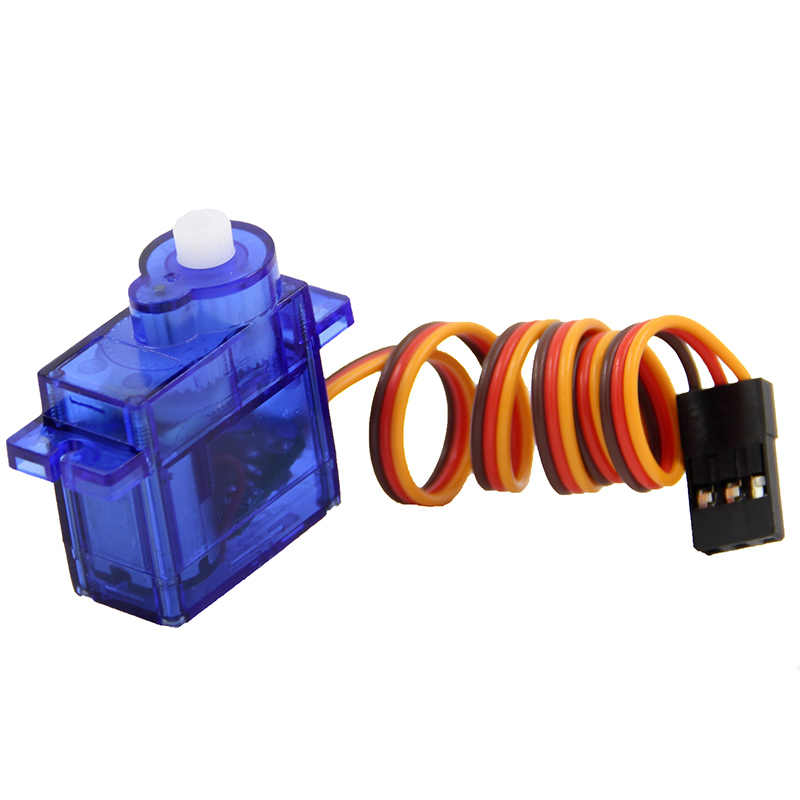

Connector wire:200mm +-5 mm
Motor:Metal brush motor
Splash water resistance:NO
Operating Voltage Range | 4. 8V | 6V |
Idle current(at stopped) | 5mA | 6mA |
No load speed | 110RPM | 130RPM |
Runnig current(at no load) | 100 mA | 120 mA |
Peak stall torque | 1.3kg.cm | 1.5kg.cm |
| 18.09oz.in | 20.86oz.in |
Stall current | 550mA | 650mA |
One Servo Package Included
1 x Servo

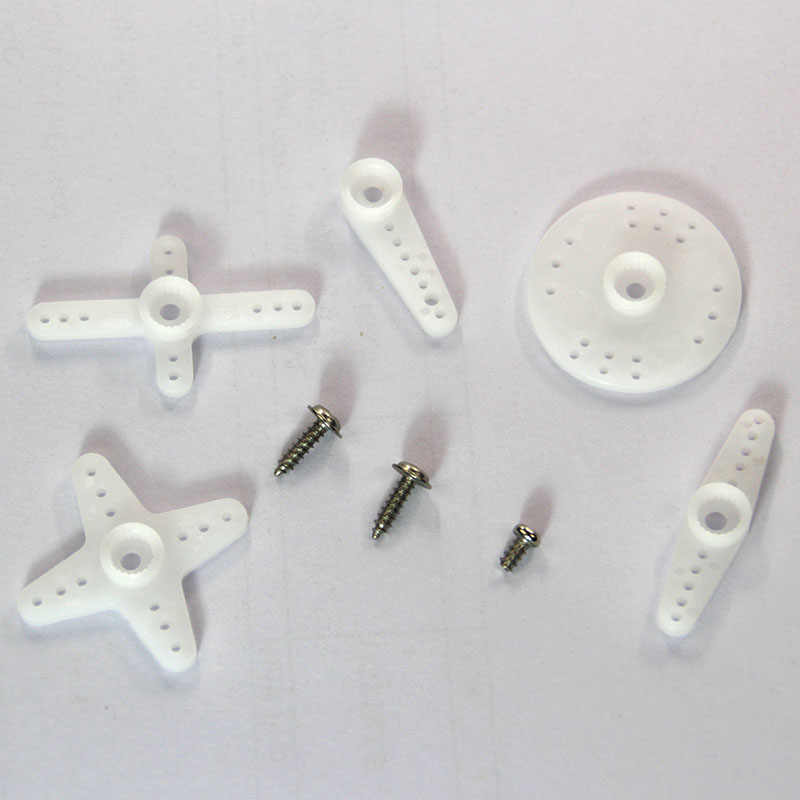

1 x Servo arm
