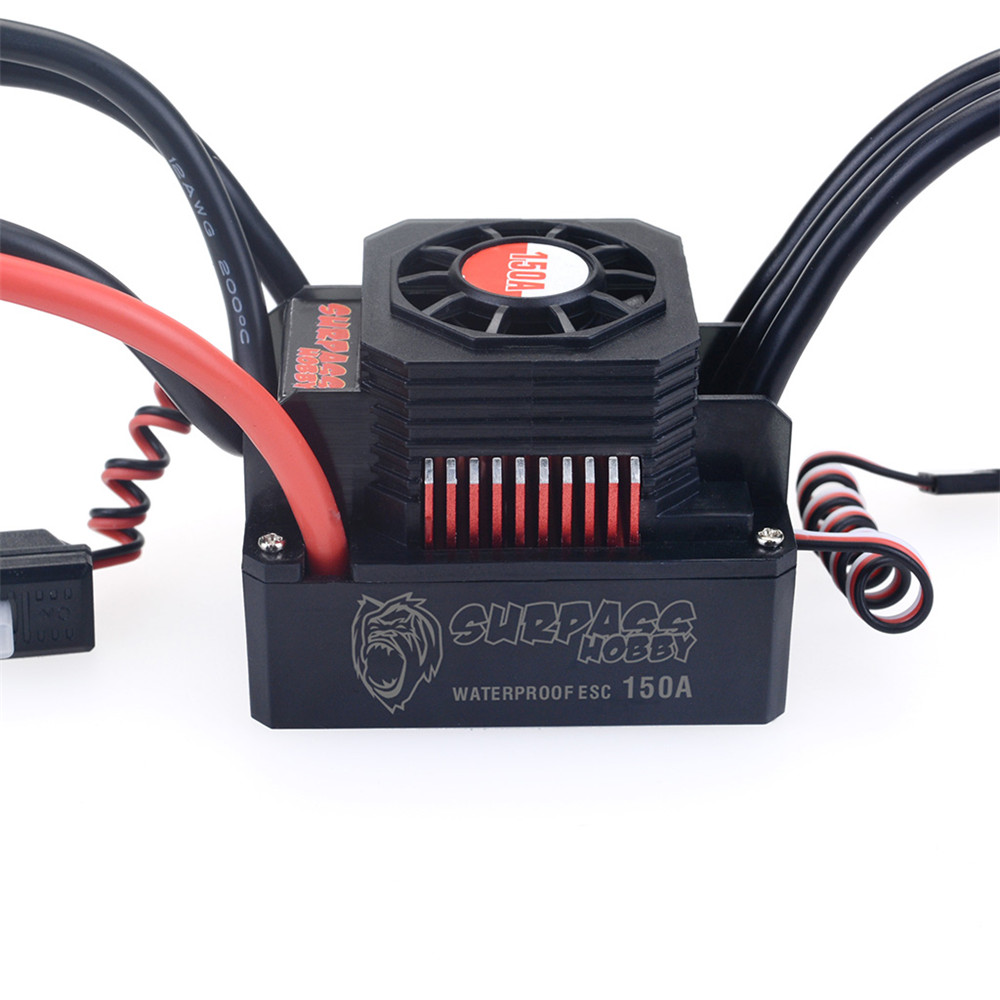

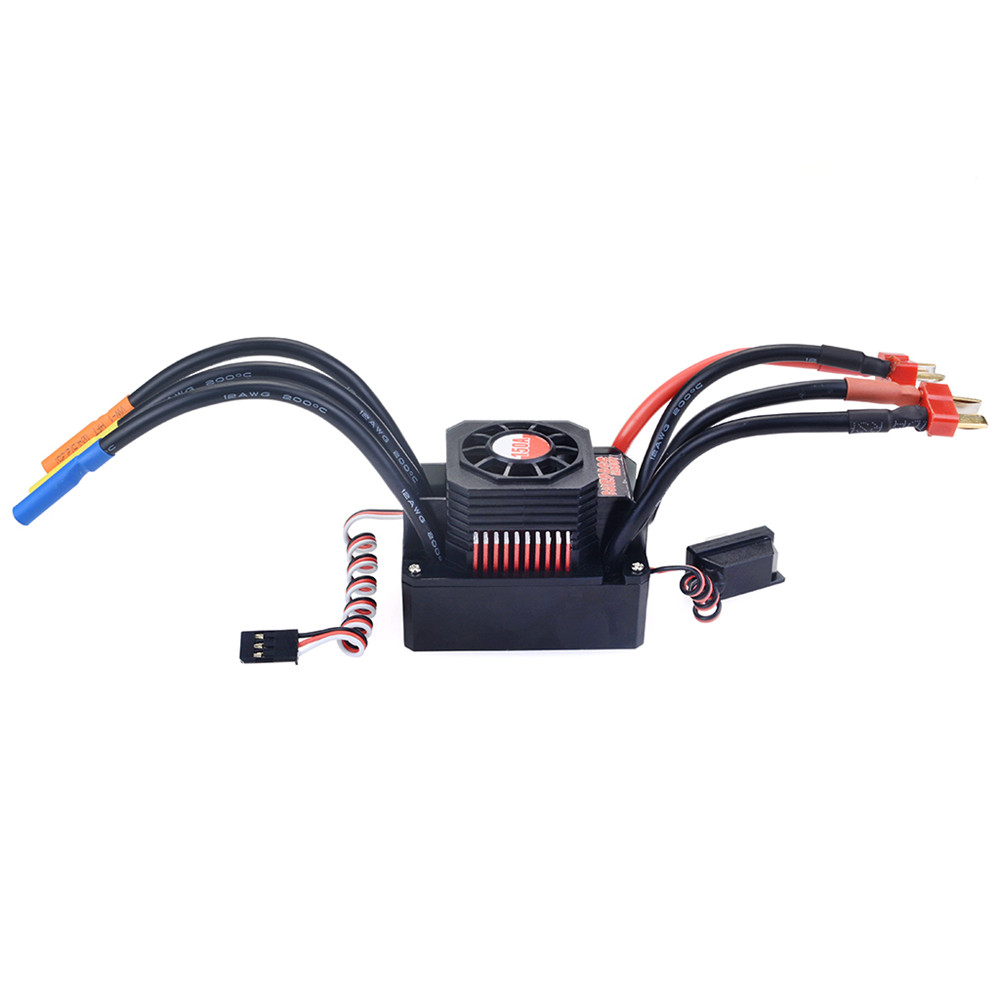

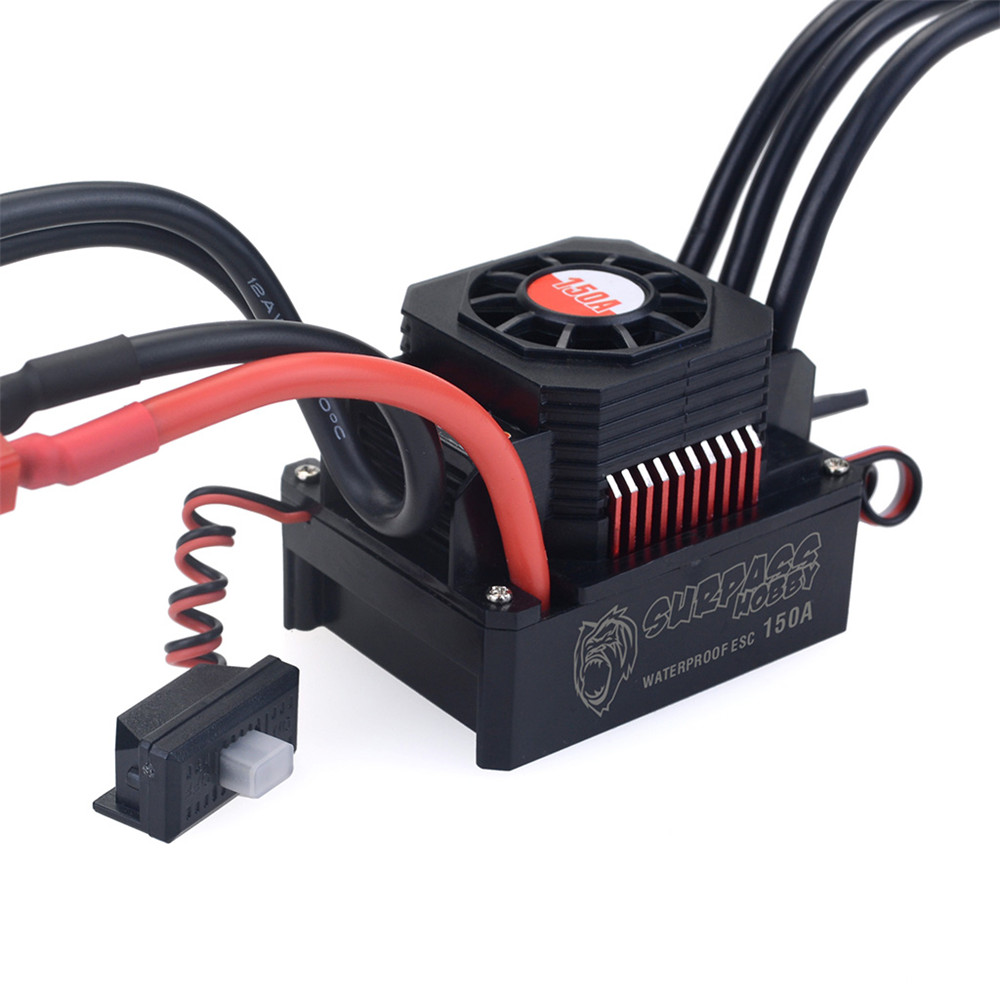

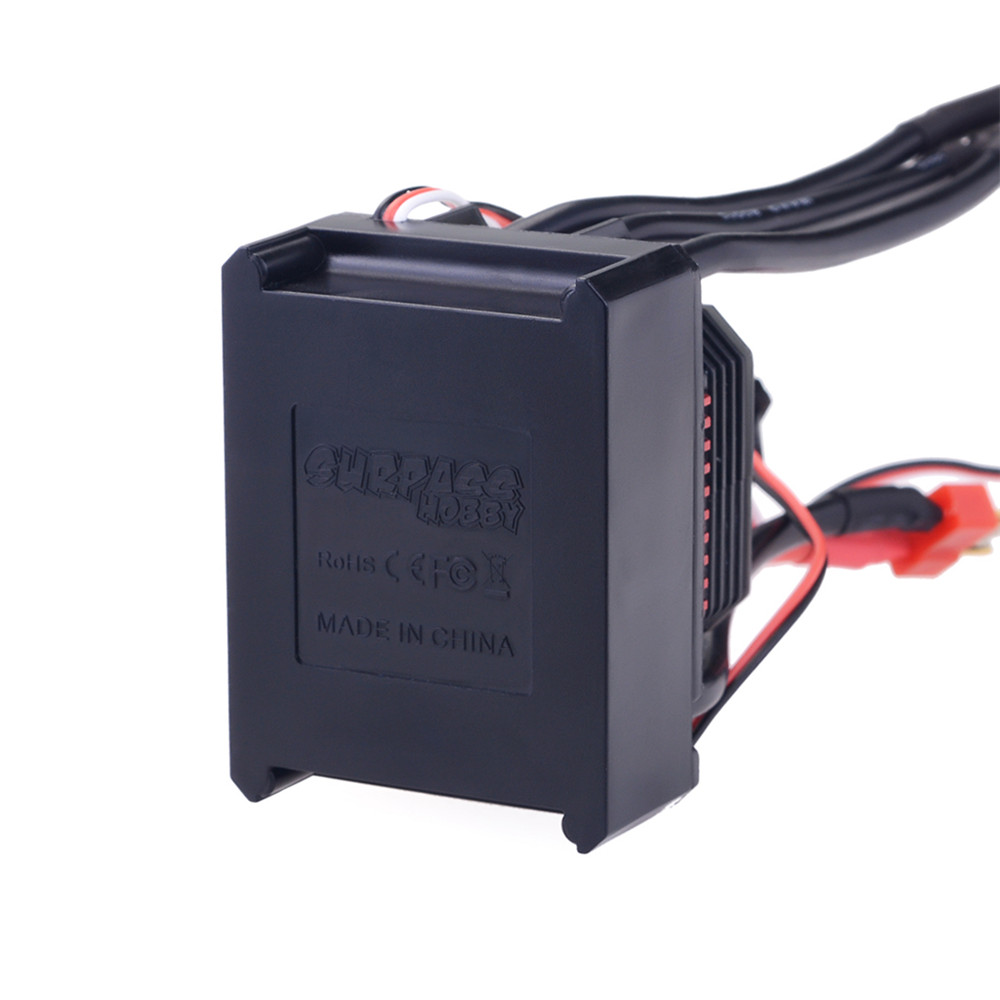

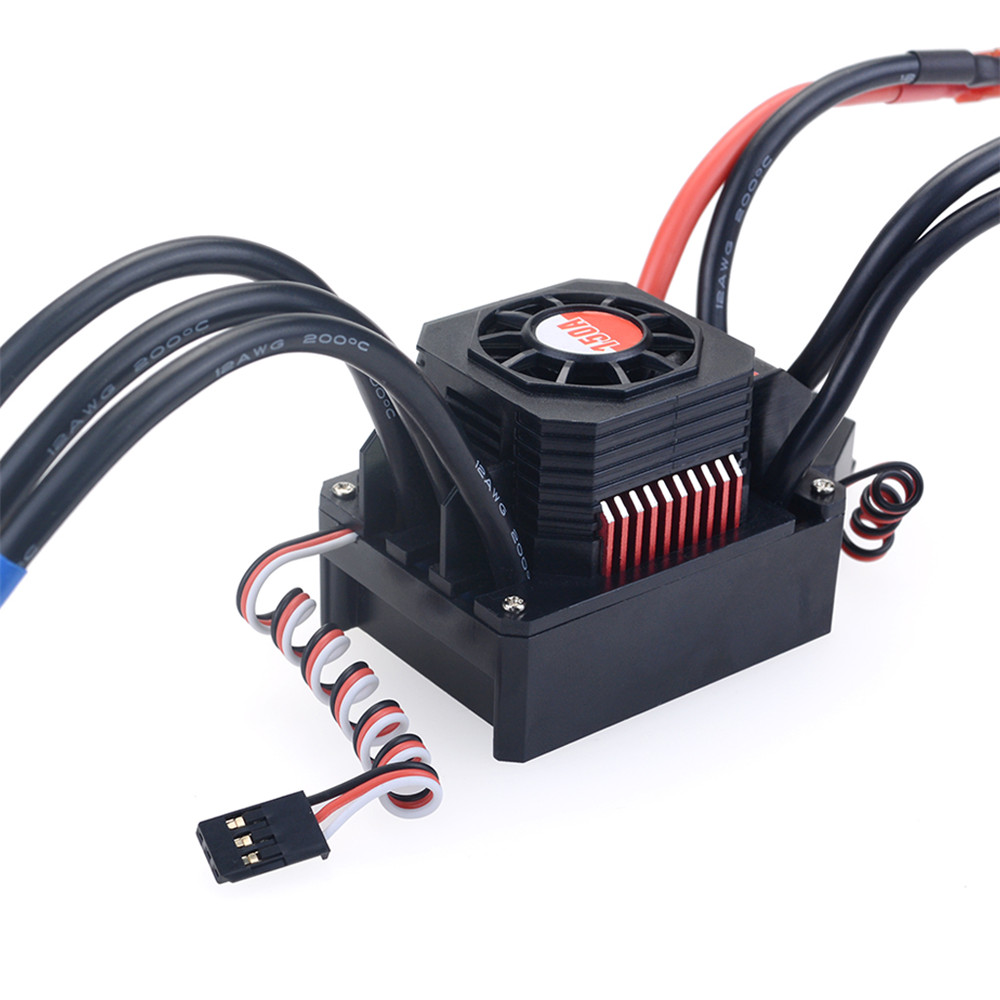

Surpass Hobby KK Series 150A Brushless Waterproof ESC for 1/8 2-6S RC Car Vehicles
Description:
Item Brand:Surpass hobby
Item Name:150A esc
Material:Metal and plastic
Color:Red&black
Product Size:59*46*45mm
Box Size:140*90*60mm
Product Weight:About 148g
Packaging Weight:Approx.202g
Compatible Cars:1/8 rc cars
Recommended Motor and program card:(they are not included in the package):
1.Motor:Surpass hobby kk series 4076 or 4084 motor
2.Program card:Racerstar program card product id:1057127
Specification:
Continue Current: 150A
Burst Current:720A
Motor Type:Sensorless Brushless Motor
Motor Type:Sensorless Brushless Motor
For 4S Lipo or 12 cells NiMH:
1.on-road:42XX-size or smaller motor with the KV<3000
2. Off-road / Monster:42XX-size or smaller motor with the KV<2500
For 6S Lipo or 18 cells NiMH:
1. On-road:42XX-size or smaller motor with the KV<2500
2. Off-road / Monster:42XX-size or smaller motor with the KV<2000.
Resistance:0.00030ohm
Battery:3-6S cells lipo battery/9-18 cells NiMH
BEC Output:6.1or7.4V/3A(switch mode)
Features:
1.Water-proof and dust-proof for all-weather races; (Note: please uninstall the cooling fan before using this ESC in water; Clean and dry it soon after the use for avoiding the connectors get rusty.)
2. Specially designed for RC car with excellent start-up acceleration and linearity features.
3. Compatible with sensorless brushless motor.
4. The strong resistant current capability excellent heat dissipation.
5. Multiple protection features: Low voltage cut-off protection for lithium or nickel battery / Over-heat protection / Throttle signal loss protection / Motor blocked protection/
6. Easily programmed and compatible with pocket-sized program card.
Package Included:
1X Brushless ESC 150A
