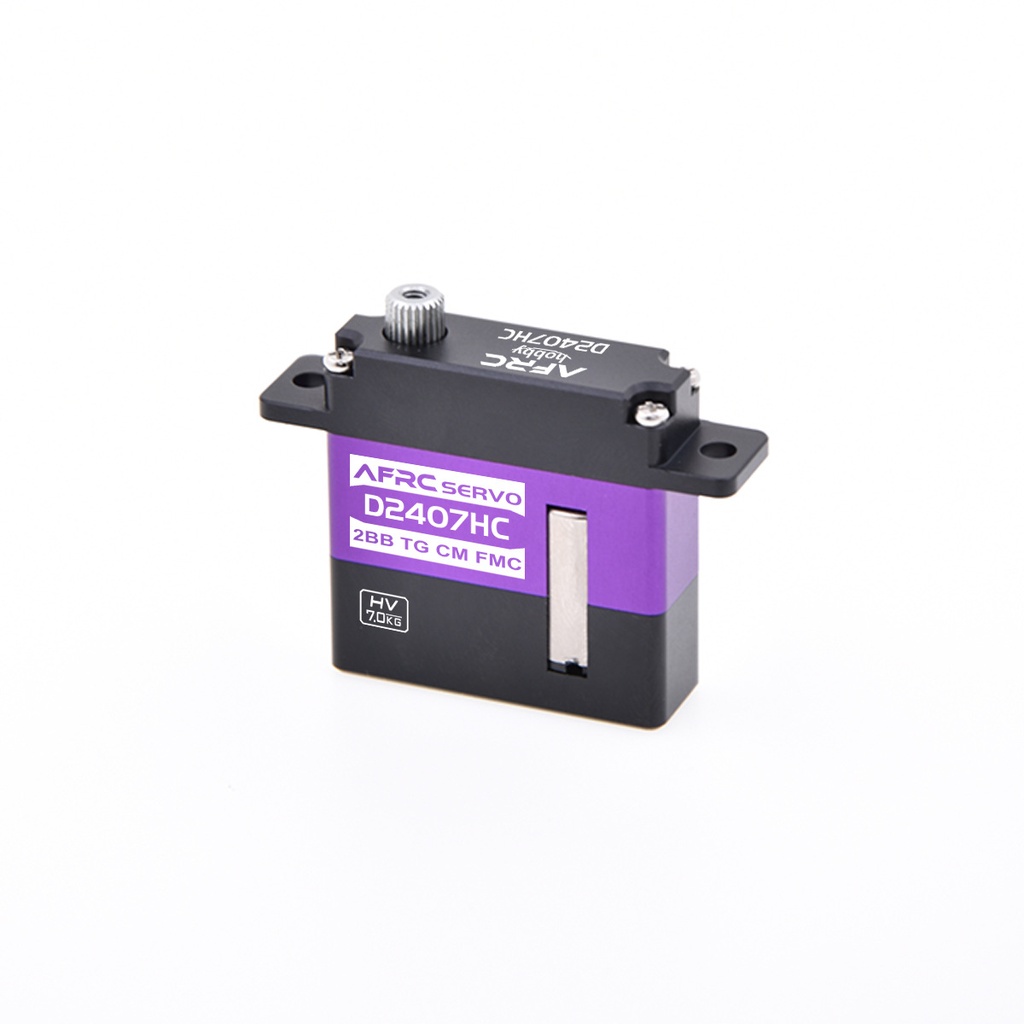

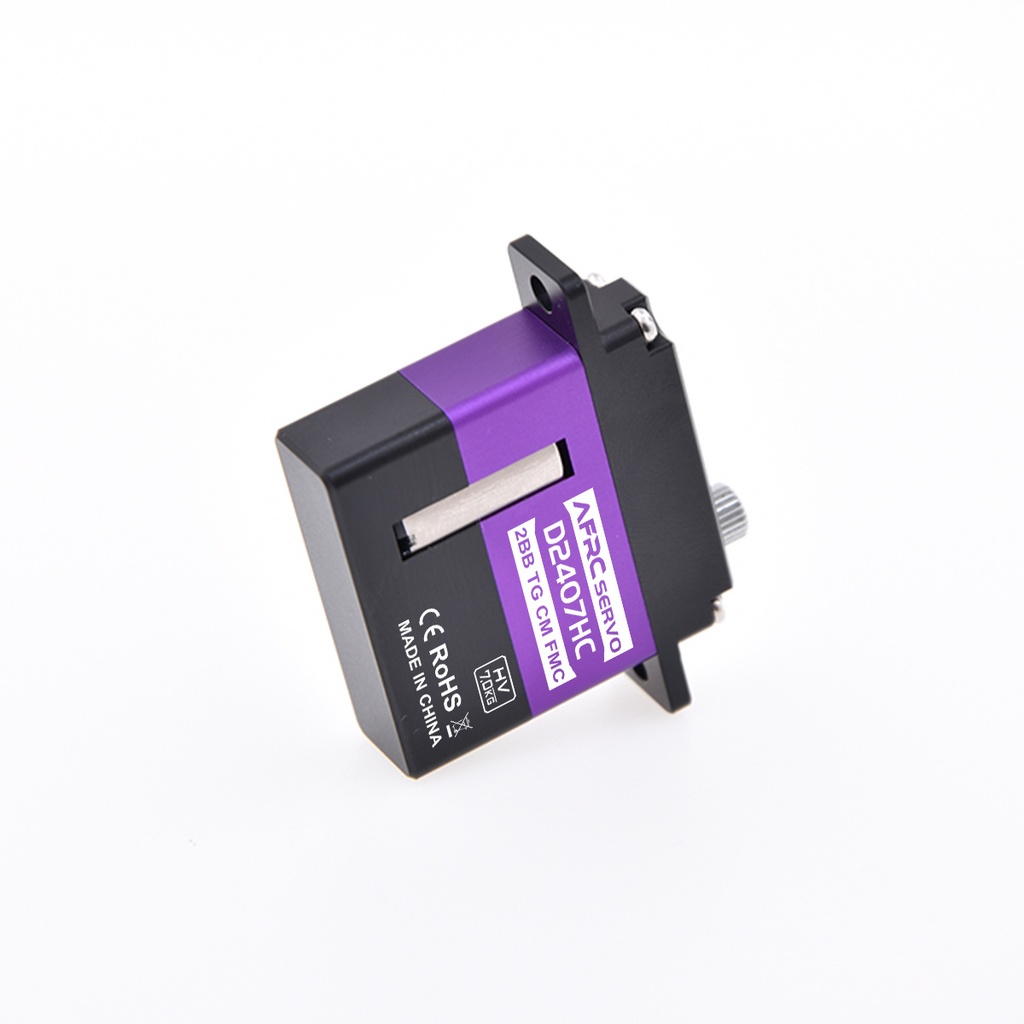

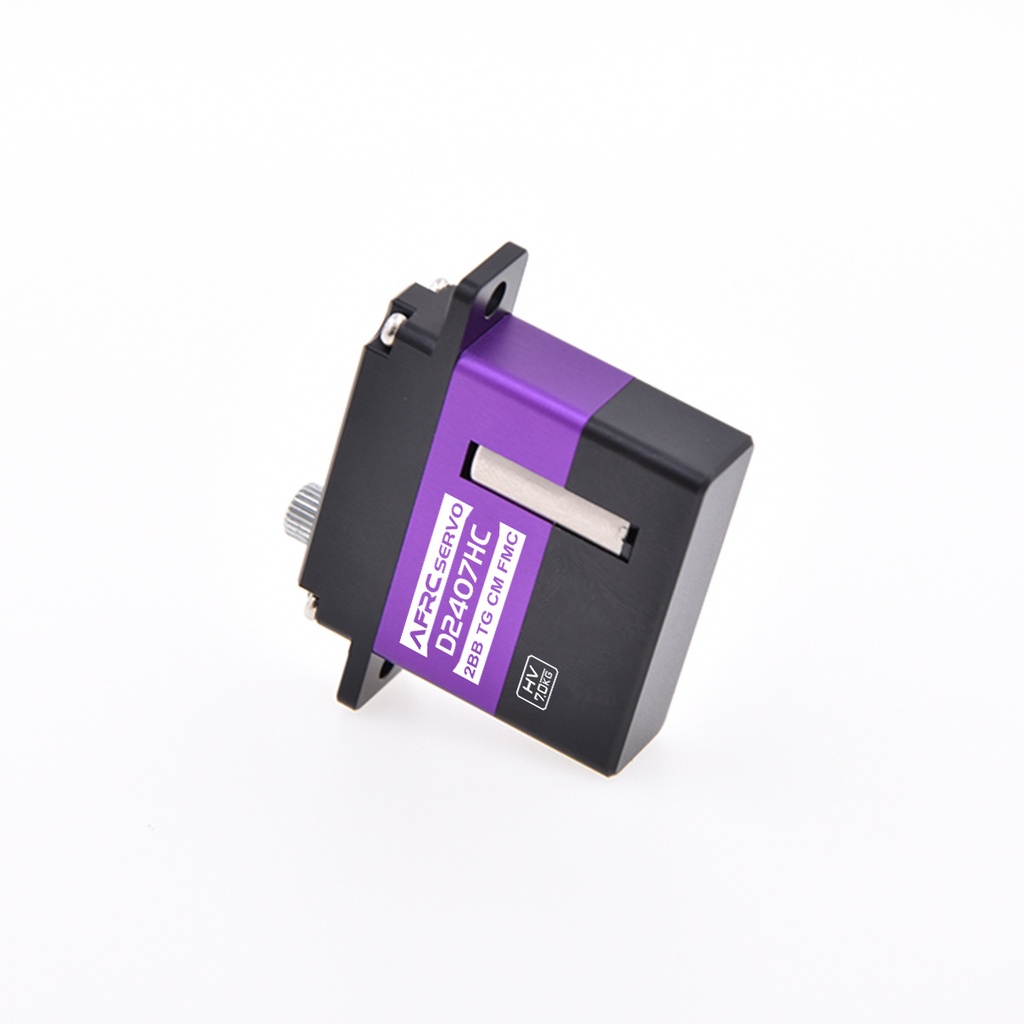

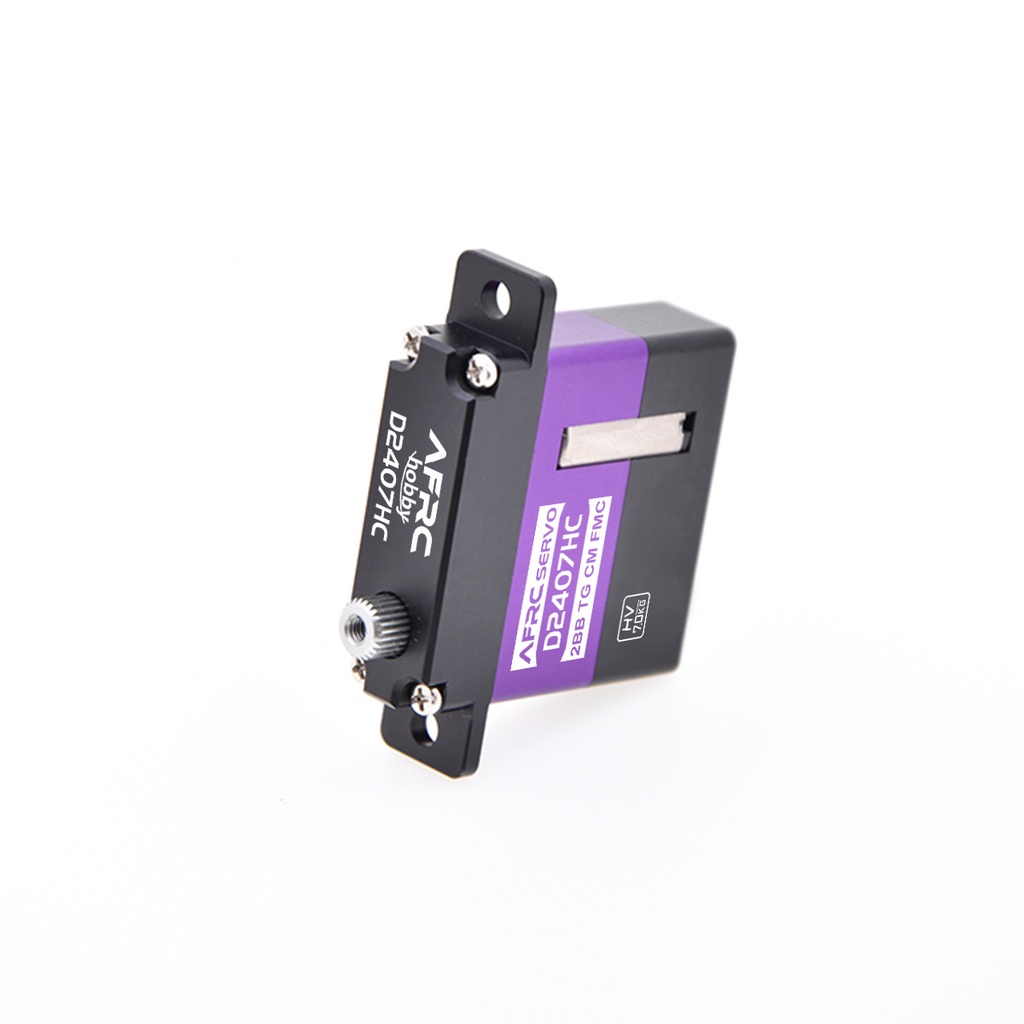

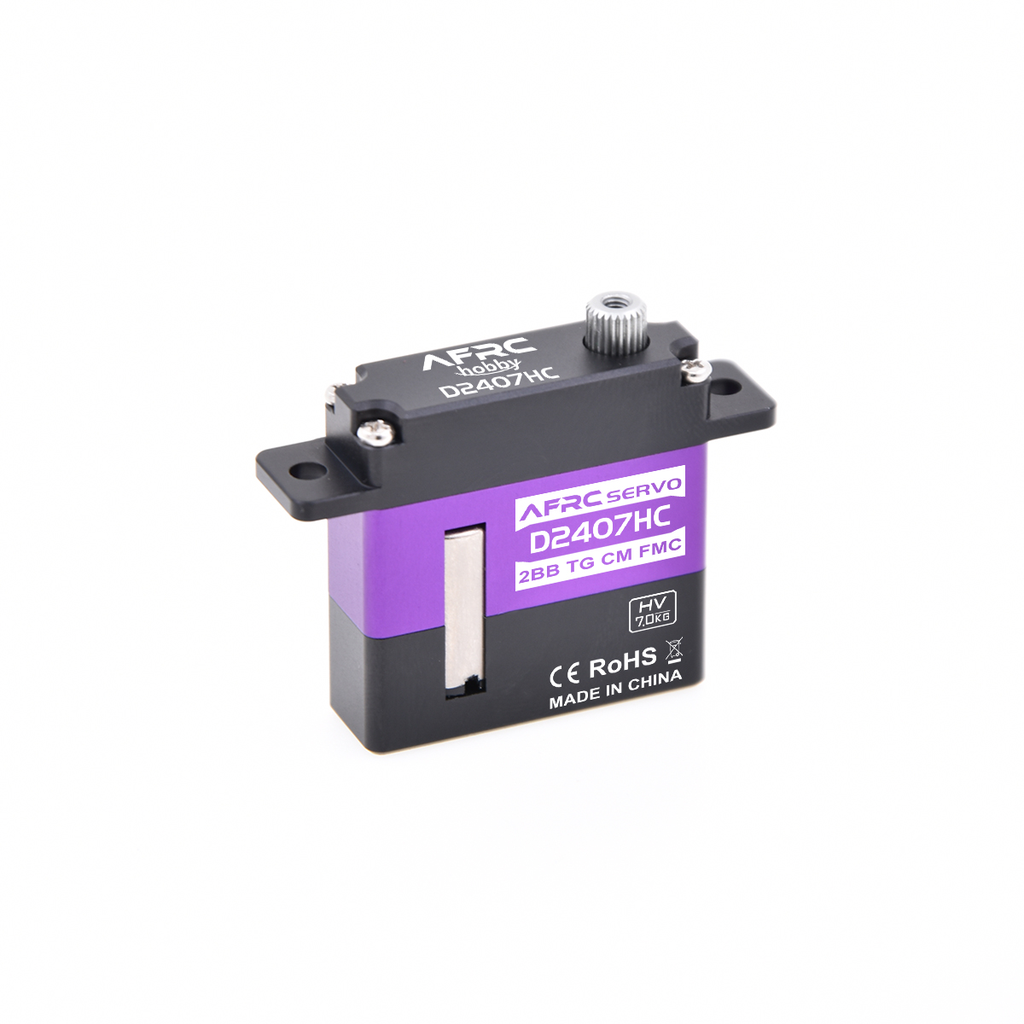

AFRC-D2407HC Vertical Micro Servo
7KG Torque 120 Degree 4.8-8.4V Low Full Metal Digital Steering Gear
For DIY Robot RC Fixed Wing Car UAV
Features
- The shell adopts full CNC aluminum alloy + surface anodizing treatment.
- Use high-performance special custom Coreless motor.
- Imported high precision titanium gear(Steering super mute).
- Fully enclosed ball bearing higher accuracy and longer life.
Specification
Model: D2407HC
Dimensions: 30 x 10 x 30.5 mm
Weight: 23g (No including accessory)
Working voltage: 4.8~ 8.4V
Torque:
4.8V: 4.5 kg-cm
6.0V: 5.2 kg-cm
7.4V: 6.5 kg-cm
8.4V: 7.0 kg-cm
Speed:
4.8V: 0.14 sec / 60 deg
6.0V: 0.12 sec / 60 deg
7.4V: 0.10 sec / 60 deg
8.4V: 0.09 sec / 60 deg
Motor type: Coreless motor
Gear type: Titanium gear
Case type: Aluminium AL6061T6
Wire gauge: JR plug L = 180mm (Black- Red + White S) Please pay attention to distinguish before powering on!
Application: RC fixed wing UAV industrial intelligence etc.
Packge Included
1 x Servo
