Detrum Z3-FPV FPV Aircraft Flight Control Built-in OSD With 3-in-1 Programming Card GPS & PMU for FPV RC Drone Airplane

Detrum Z3-FPV FPV Aircraft Flight Control Built-in OSD With 3-in-1 Programming Card GPS & PMU for FPV RC Drone

Z3-FPV is a first person view flight controller applied on RC aircraft. The important data such as real-time altitude speed voltage posture and distance can be shown on screen with the OSD function in Z3-FPV. The PMU(power management module) that supports 2-6S input can provide real-time data collection of battery voltage and current while providing stable power supply to the flight control providing indispensable key information for FPV voyage. It can be applied on normal wing fly-wing and V-tail airplanes.

It supports five flying modes when it controls the airplane flying after connected with receiver. The RTH mode can allow the aircraft to return to the take-off point safely under any circumstances. Under normal stability-enhancing mode the stability of flight can be fully improved. Safe mode allows the aircraft to fly at a fixed altitude and directional stability. Aerobatics mode can lock the flight attitude to meet the aerobatic needs of players. Off mode (manual mode) allows the player to control the aircraft completely autonomously. And it can automatically switch back to the self-driving mode when the remote control signal is lost or out of control allowing the aircraft to return to the take-off point safely.

Z3-FPV uses the original lever mode to enter the horizontal calibration the triggering method is simple no need to connect a computer more convenient and fast

Features

1. OSD Information Display Function: Real-time Monitoring of Flight Data

Through the built-in OSD the plane altitude speed posture and distance can be shown on the screen.

When it cooperated with Detrum Blitz-DT9 Transmitter and RXC9M receiver it can return real-time voltage altitude speed attitude distance satellite signal and other information to the transmitter in real time with voice broadcast and record the maximum & average value of information after the aircraft landed for analysis.

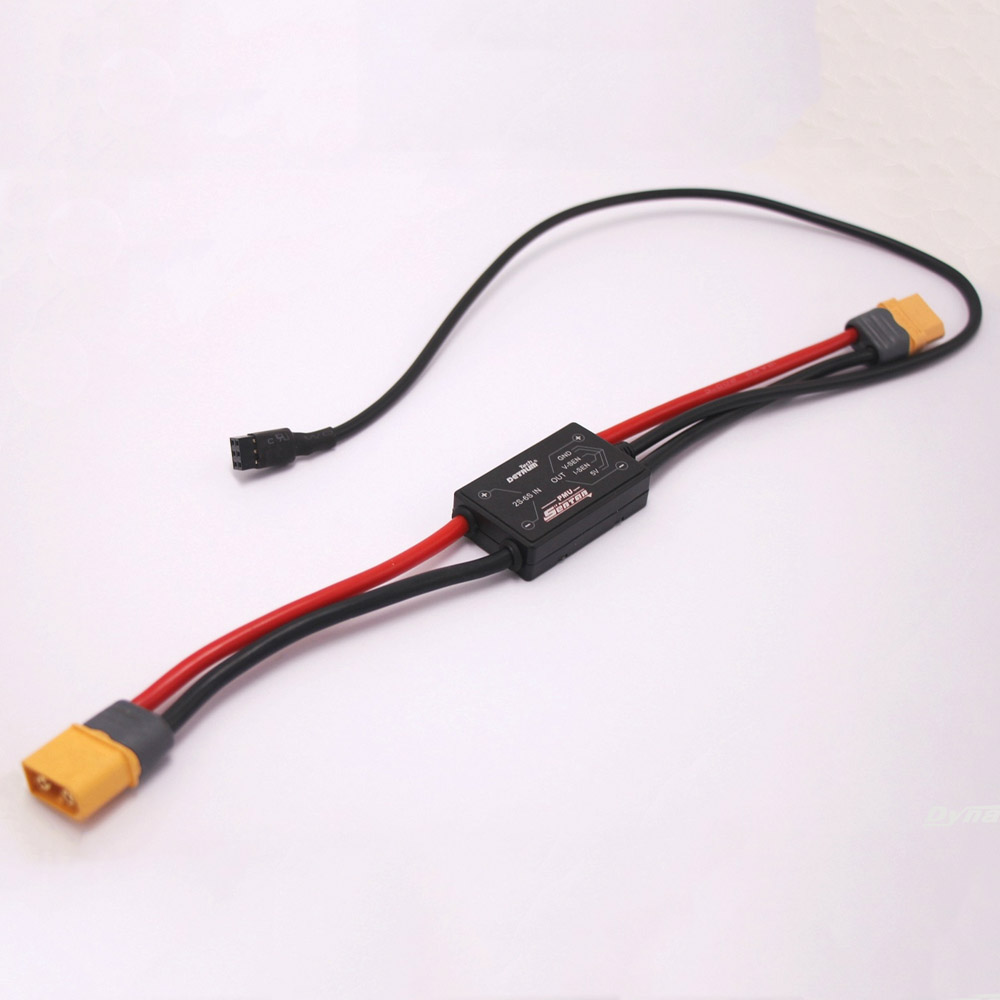

2. Independent PMU: Stable Power Supply Guarantee

The PMU supports 2-6S can provide stable power supply (5V) for flight control camera and other equipment and can collect current voltage and other information.

3. One-click RTH & Fail Safe: The Guarantee of Safe Flight

Toggle the remote control RTH switch when required the aircraft will maintain the current altitude(By default when manually returning home the aircraft will climb to 60 meters when the altitude is lower than 60 meters and lower to 120 meters when it is higher than 120 meters.) and the autopilot will return to the take-off point side by side-waiting for you to regain control of the aircraft(The default circle radiu is 50 meters). Parameters such as return speed and hovering radiu can be set in the programming card according to the properties of the aircraft.

With out-of-control protection function (DSM S.BUS receiver is activated automatically PPM receiver needs to set out-of-control protection) when the aircraft flies out of the remote control range or the signal is bad Z3-FPV flight control will automatically take over the aircraft the height * keep 100 meters Fly back to the take-off point and circle (circling radiu 50 meters) waiting for you to regain control of the aircraft.

* The above mentioned heights are relative to the take-off point

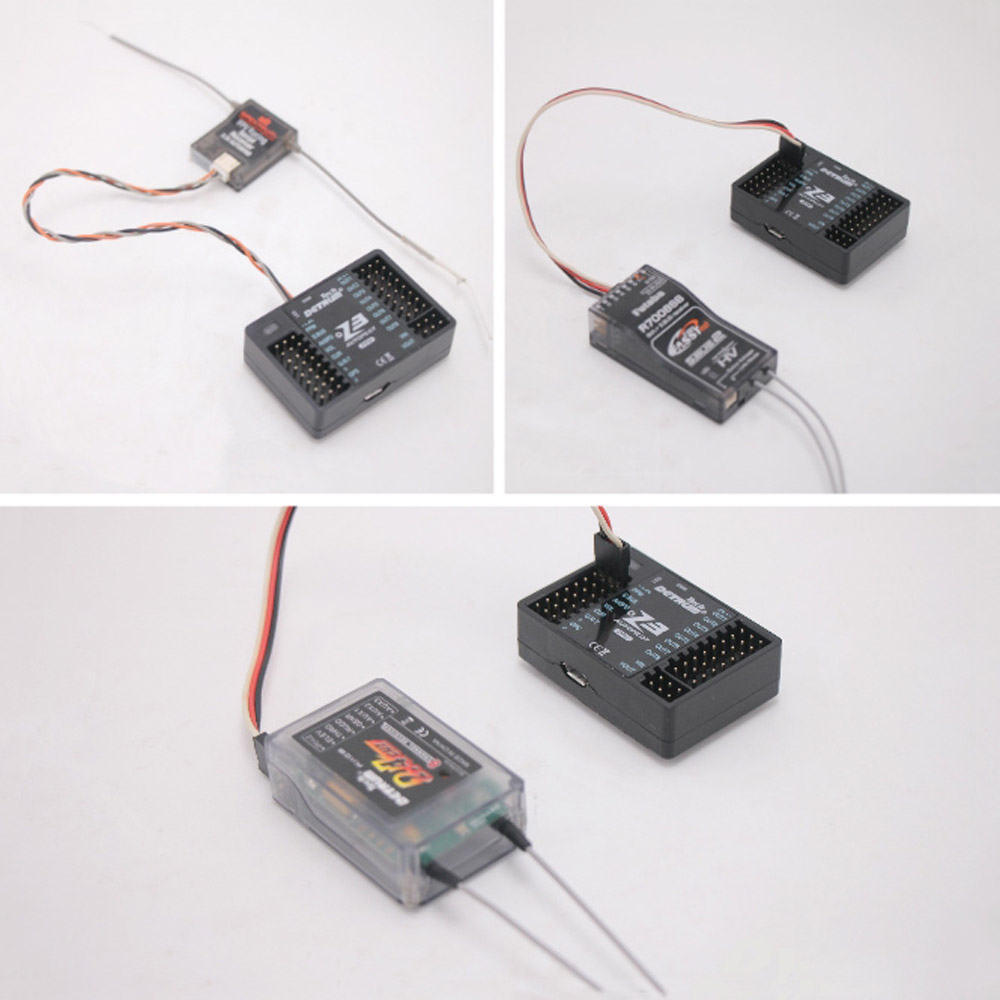

4. Compatible with Most Receivers on the Market

Z3-FPV is compatible with Spektrum Futaba Detrum and all other transmitters on the market and supports DSM S.BUS PPM receivers. And by connecting with Detrum's programming card it is convenient for parameter setting and simple and intuitive operation. When working with Blitz-DT9 and RXC9M receivers it can transmit real-time information such as voltage altitude speed posture distance satellite signals etc. to the transmitter and can perform voice broadcast. And record the maximum value and average value of information after the aircraft landed for analysis

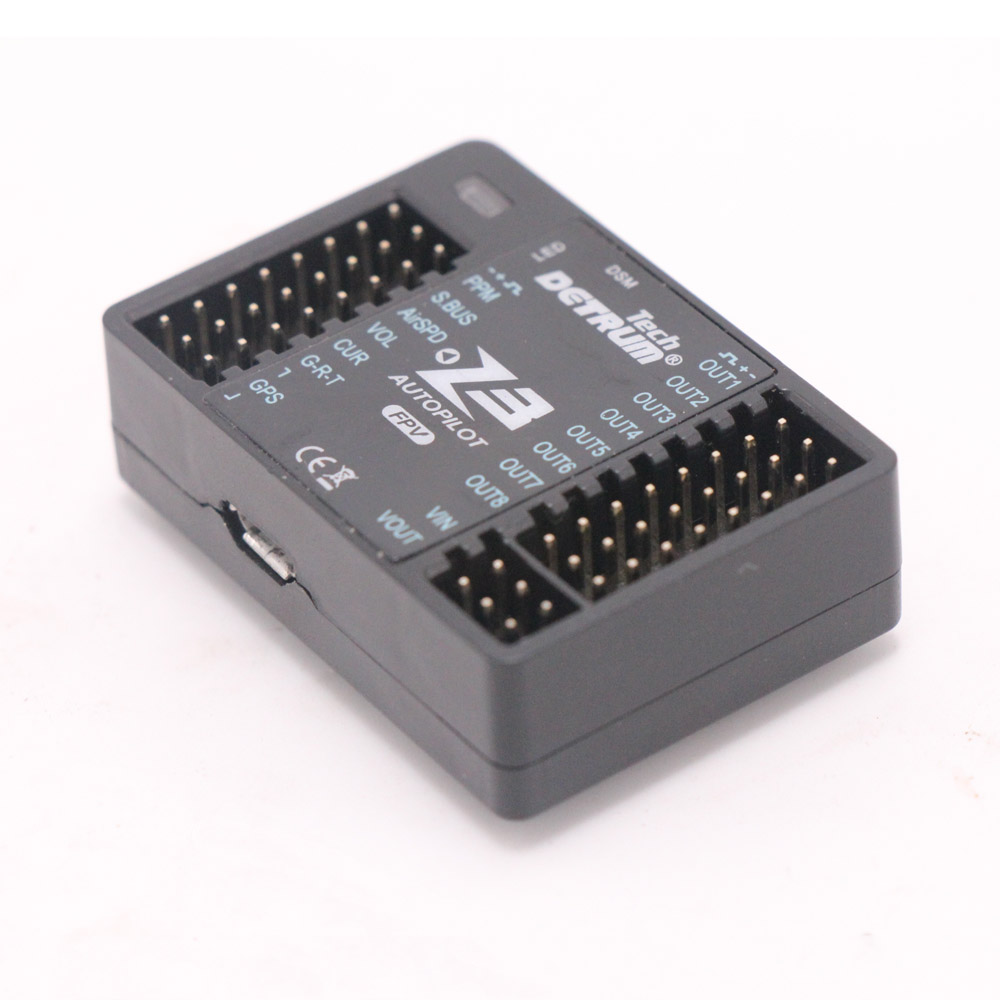

5. Main Control IC

32-bit high-performance ARM core processor 6-axis MEMS gyro chipset barometer.

6. Control Algorithm

Original airplane attitude stabilization algorithm and control algorithm. Support normal wing fly wing V-tail airplanes and 3D planes.

7. Flying Mode

There are 5 modes: Gyro Off Mode(OFF) Normal Mode(normal) Auto-Recovery Mode(Safe) Aerobatic Mode(Aerobatic) Return to Home Mode(RTH). Different mode can be switched during flying.

8. Adjusting the Gain

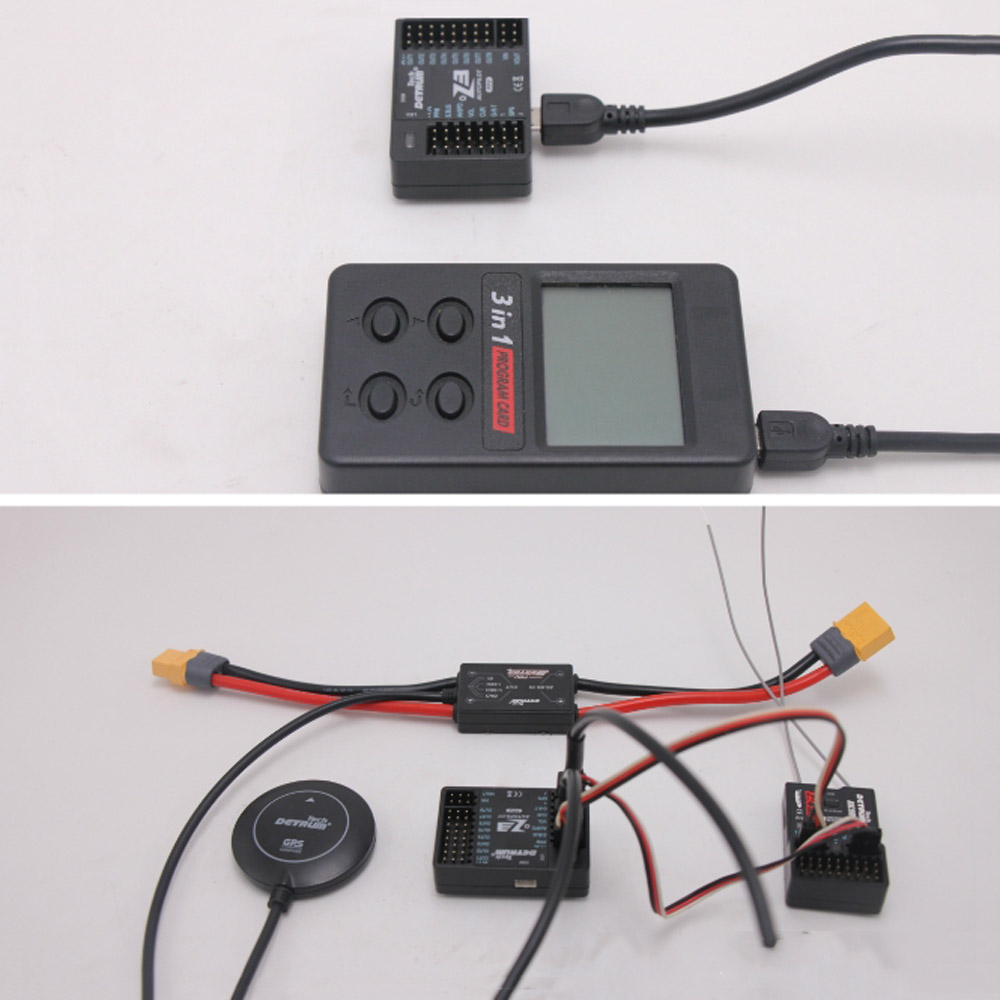

Set the gain and other programmable items with 3in1 program card.

9. Firmware Upgrade

With USB upgrade function manufacturers continue to update the function and upgrade firmware.

Technical Parameter

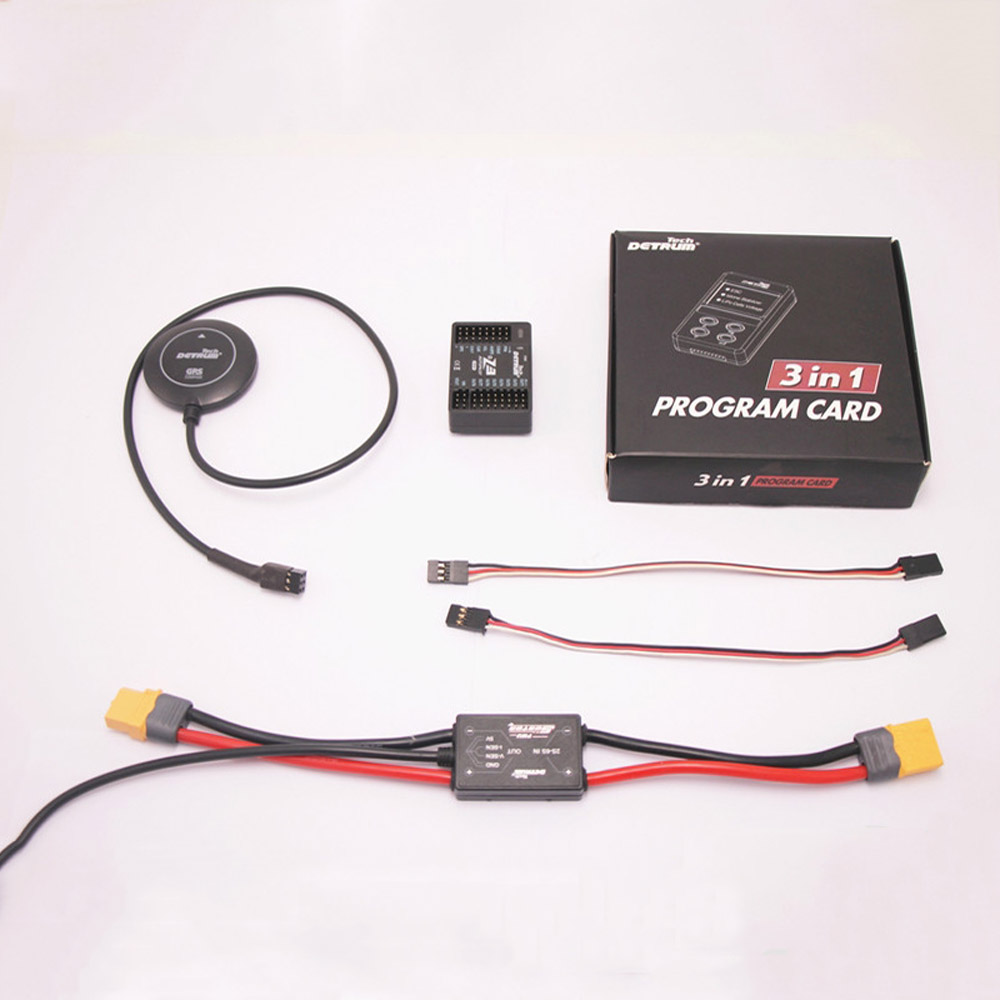

Package Included:

Z3-FPV autopilot x1
PMU module x1

GPS module x1

3-signal wire x1

Anti-shock double sided tape x2

Single-signal wire x2

Program Card and USB cable (optional) x1
User manual x1
