Toyan FS-S100WA 4 Stroke RC Engine Water Cooled Four Stroke Methanol Engine Kit for RC Car Boat Plane RC Vehicles Model

"

Toyan FS-S100(WA) 4 Stroke RC Engine Water Cooled Four Stroke Methanol Engine Kit for RC Car Boat Plane

A four-stroke (also four-cycle) engine is an (IC) engine in which the piston completes four separate strokes while turning the crankshaft. A stroke refers to the full travel of the piston along the cylinder in either direction.
Methanol is a high fuel that is also extremely resistant to detonation. It has a tendency to absorb heat out of - something known as ""latent heat of vaporization."" The water also absorbs heat and provides a further cooling effect as the finely atomized water/methanol mix is pumped into the engine. The cooler denser intake charge reduces the chances of detonation even as the methanol boosts power.

Features:

1 Powerful Performance: While it starts the rotate speed can up to 13500 RPM / Mins.
2 Fuel: the fuel is consisting of : 20% castor oil nitro-methane 5-30% and the rest is methanol. 20-25% methanol content can be used as fuel. No need 100% pure methanol.
3  Extra Accessories Needed for Operation: Spark plug + Starting ESC module + 30cm oil tube +F-shape Glow Plug which can be purchased in our shop directly. ( click buy directly)
4 Priority Gift Option for Many Applications: The four-stroke engine can used on 1:10 1:12 1:14 scale car model or ship model and other equipment. Also it can be used for classroom display as teaching Aids. Besides it is Gift for engine lovers.

Operation Methods:

1 For ignition part it refers that spark plug connected to corresponding spark plug cap then connect to the voltage regulator module. Then connected to 7.4V T-Plug Battery.
2 For fuel part it means connect the oil tube to fuel tank then connected to the engine.
3 For starting part it means connect the 11V T-Plug Battery to Start Connector then connect to simulator and starting motor. (Starting motor is included in the engine)

Tips:

1 Do not touch the motor fan with your hands to avoid scratching.
2 Do not touch the cylinder department with your hands to prevent burns.
3 Lubricating engine first before use to avoid wear.  (Lubricate grease is included into the package)

Descriptions:

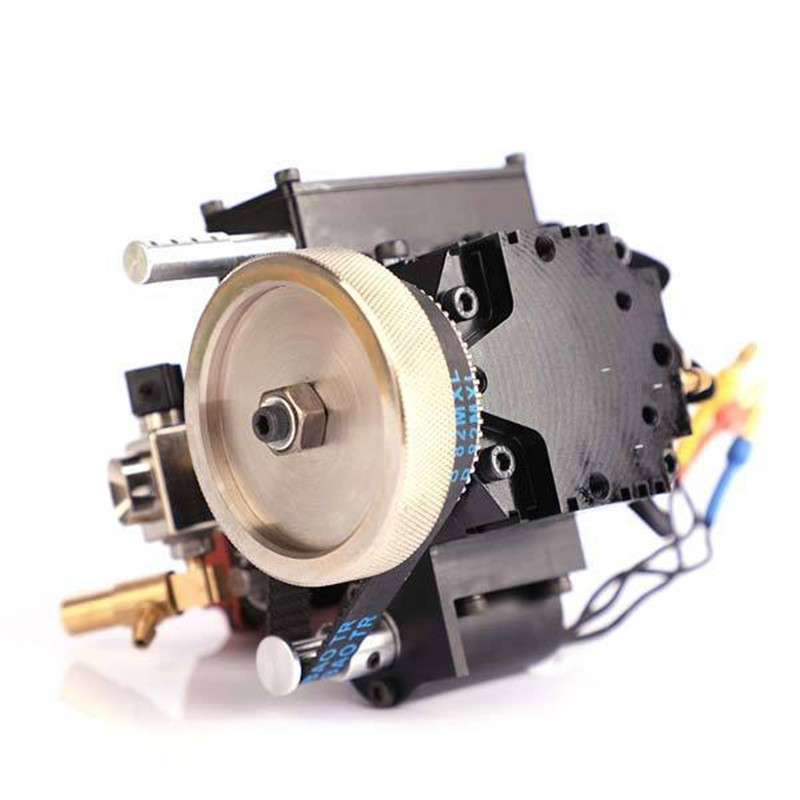

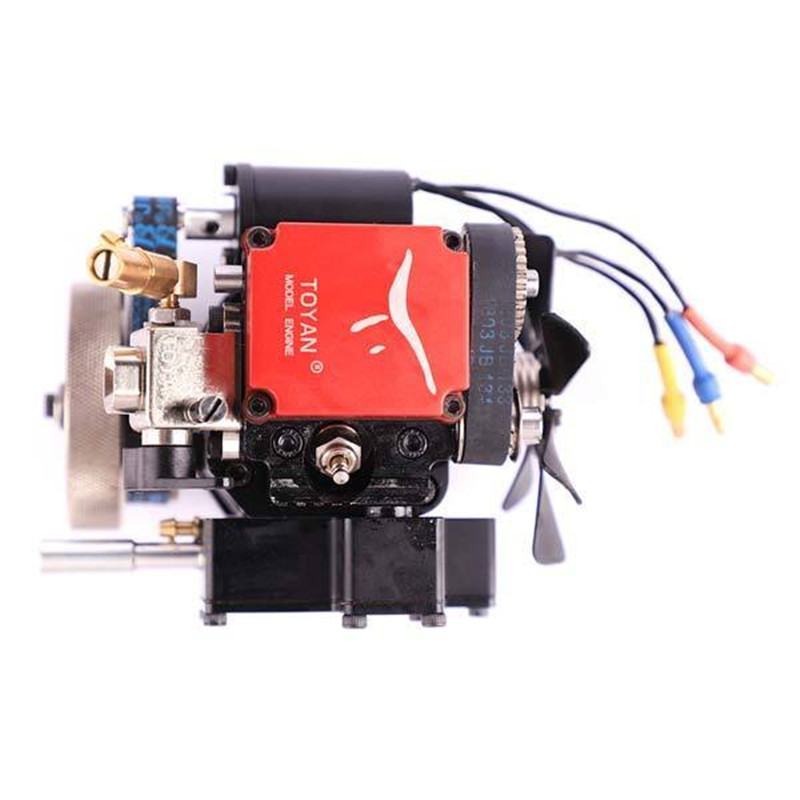

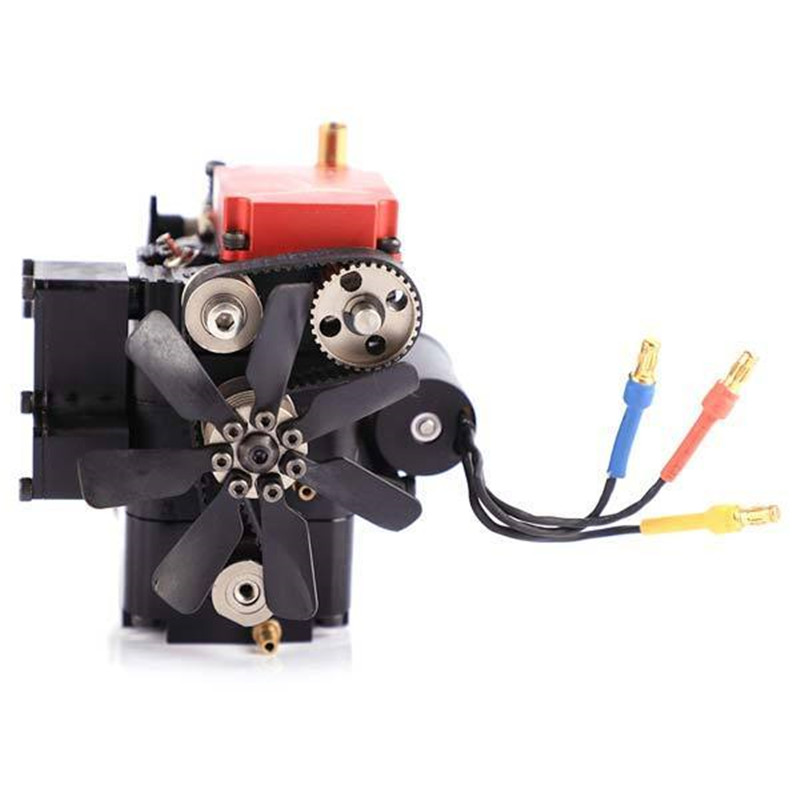

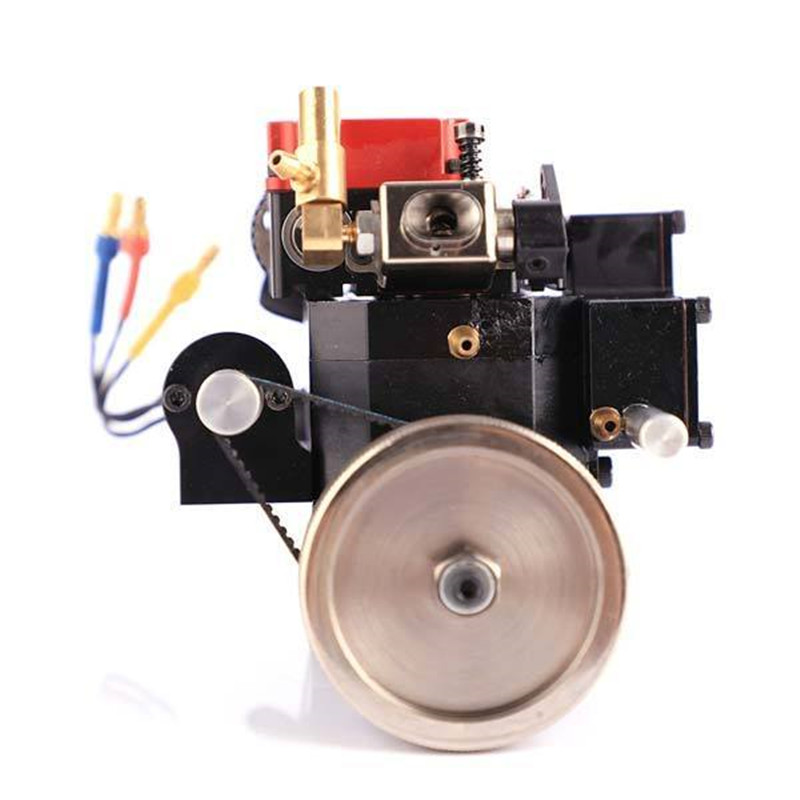

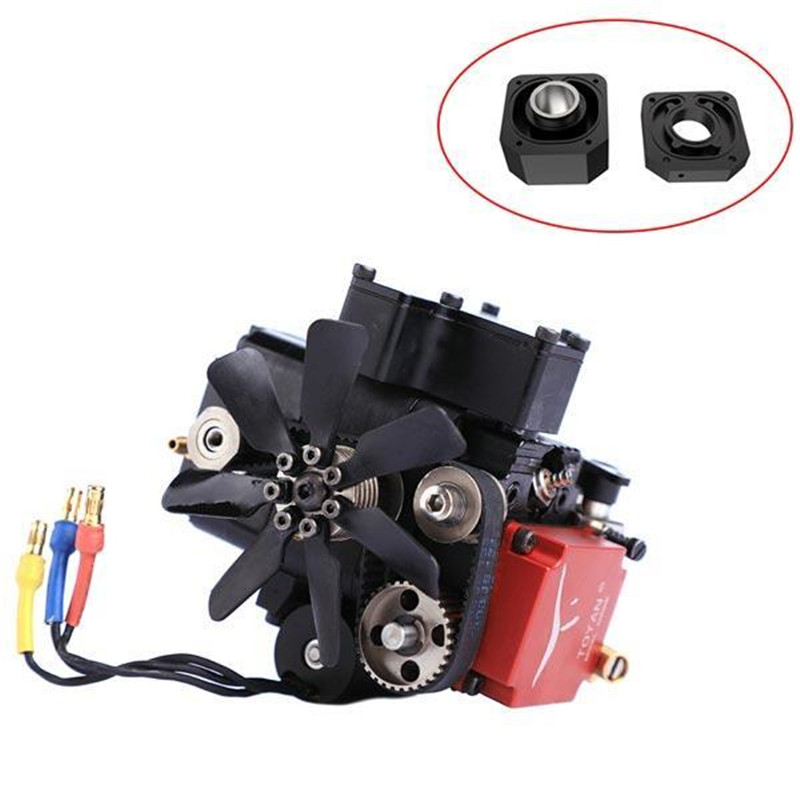

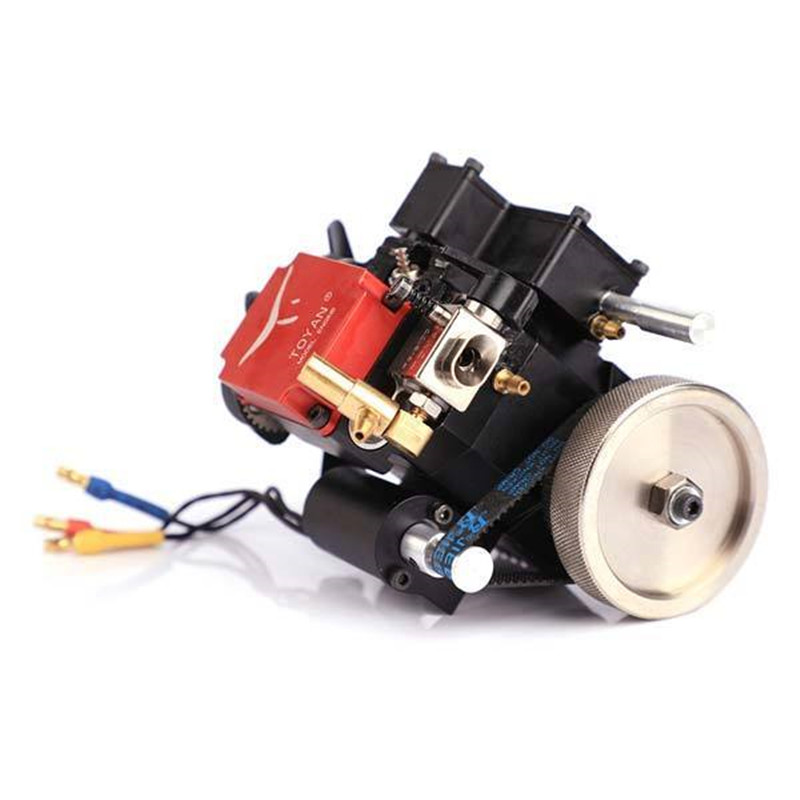

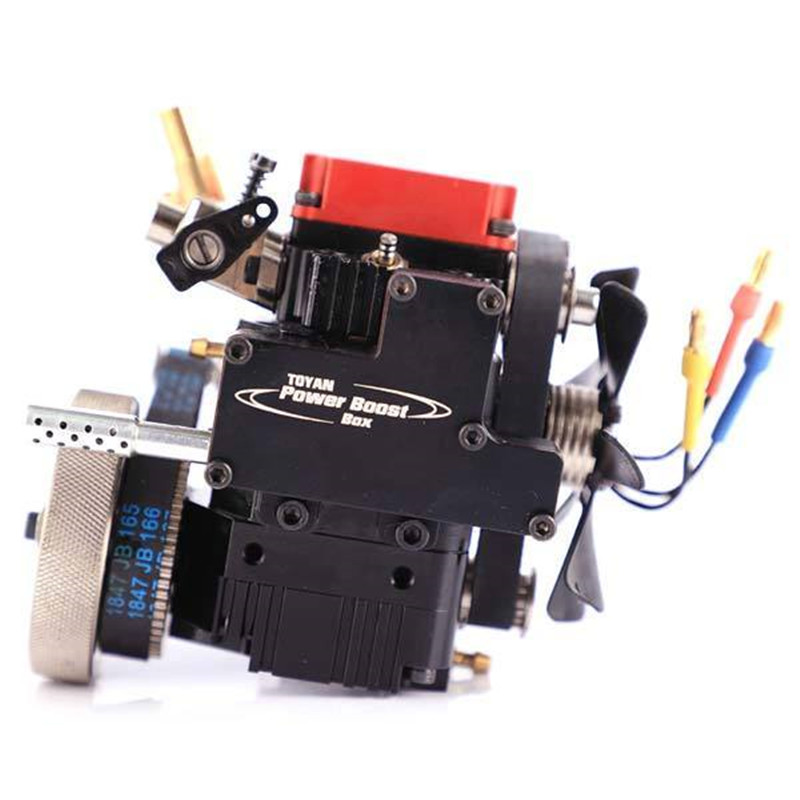

Item Name: Water Cooling Four Stroke Methanol Engine
Material: Metal + Plastic

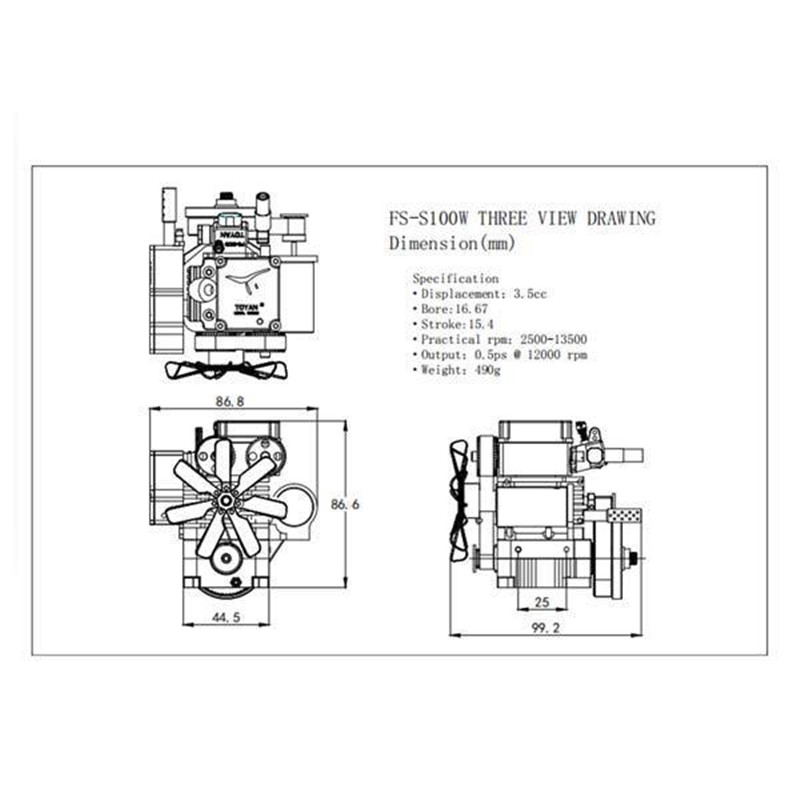

Engine Dimensions: 100.5 x 85.4 x 86.5mm
Piston Diameter: 16.67mm
Displacement: 3.5cc
Output Power: 0.5ps horsepower
Speed: 2200-10500rpm
Product Dimensions: 10.5 x 8.54 x 8.65cm
Product Weight: 490g
Package Dimensions: 12 x 10 x 10cm
Package Weight: 520g
Packing: Box

Packing List:

1 x Water Cooling Four Stroke Methanol Engine (With Starting Motor)
