Surpass Hobby F540 Brushless Motor 60A ESC LED Program Card Combo for 1/10 RC Crawler Car Vehicles Model Spare Parts

Description:

Item Brand:Surpass Hobby

Item Name:Brushless motor esc combo

Material:Metal and plastic

Color:As the picture shown

Compatible Models:1/12 1/14 rc crawler truck car vehicles models

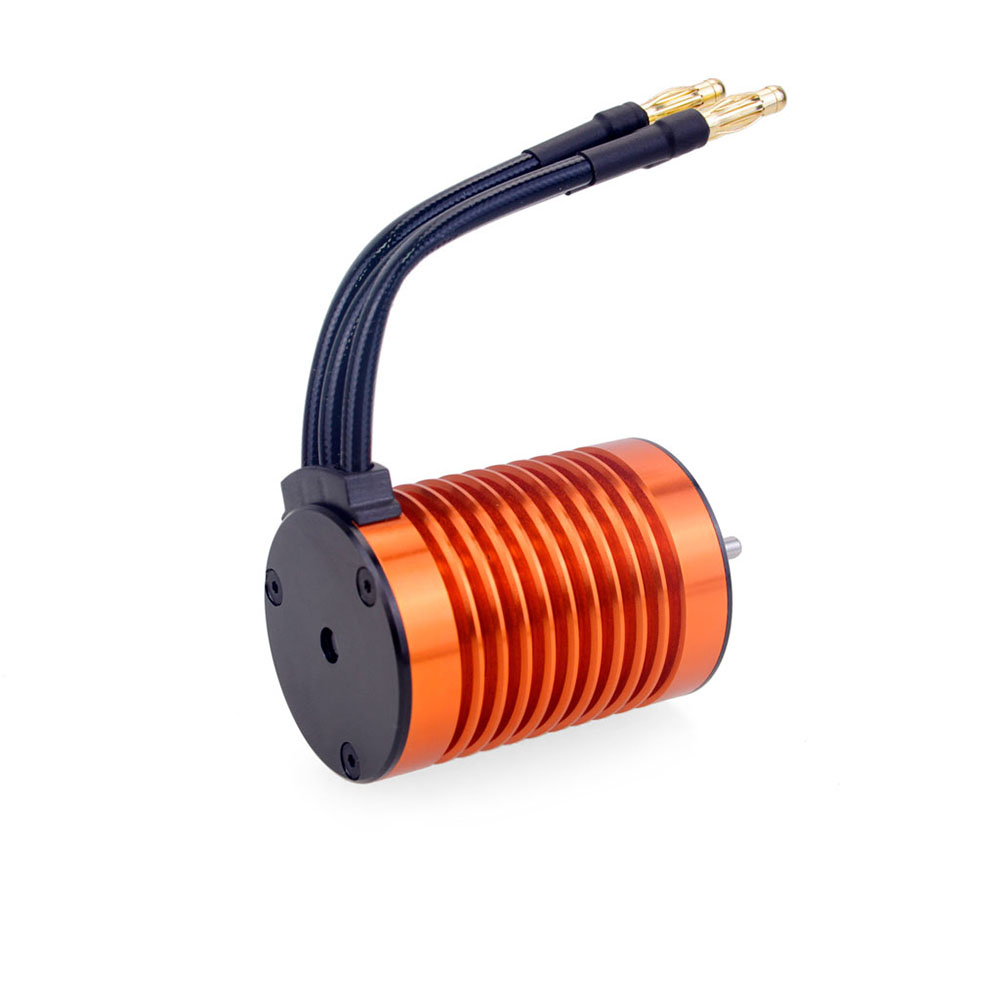

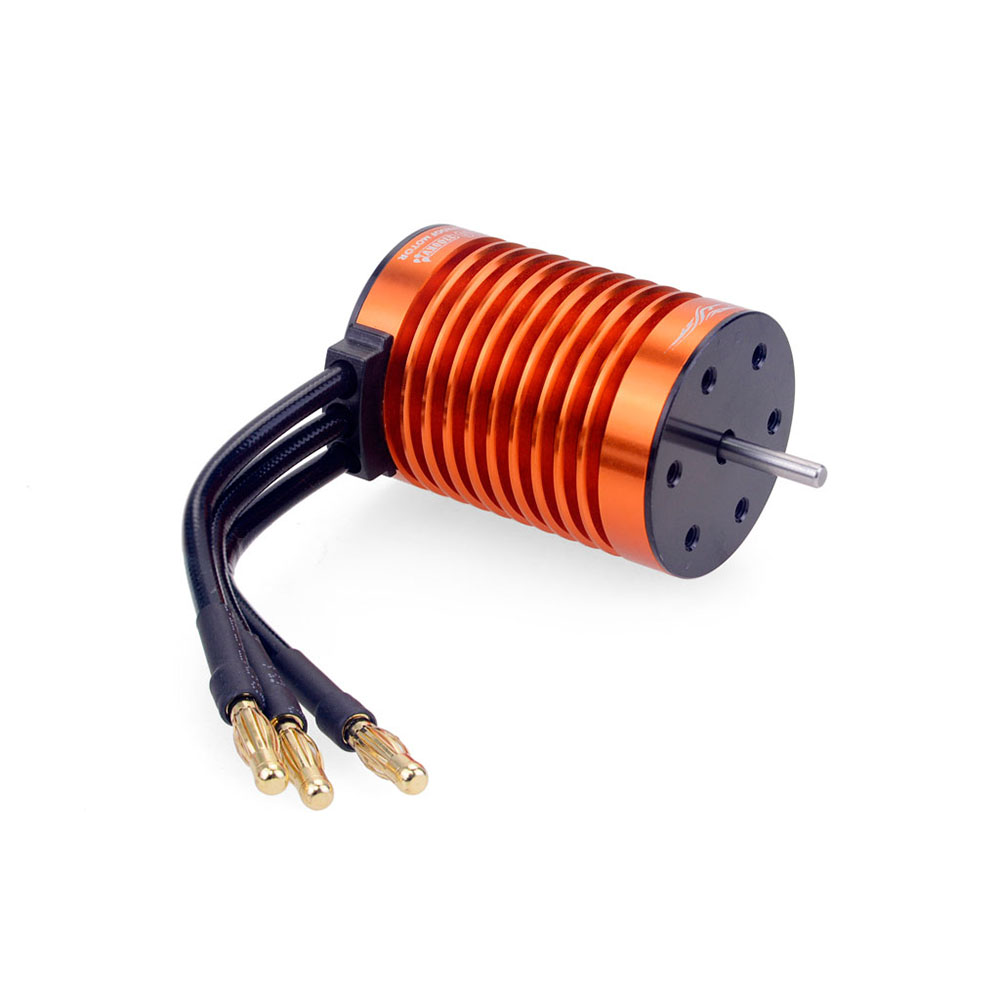

Motor Specifications:

KV(RPM/Volt):3300KV / 4370KV

Max Voltage:<17V / <12V

Max Amps:47A / 66A

Watts:820W

Max RPM:50000

Diameter:36mm

Length:50mm

Shaft Length:15mm

Shaft Diameter:3.175mm

LED Program Card Specifications:

Brand:Racerstar

Only ApplyTo:Racerstar motor & ESC combo

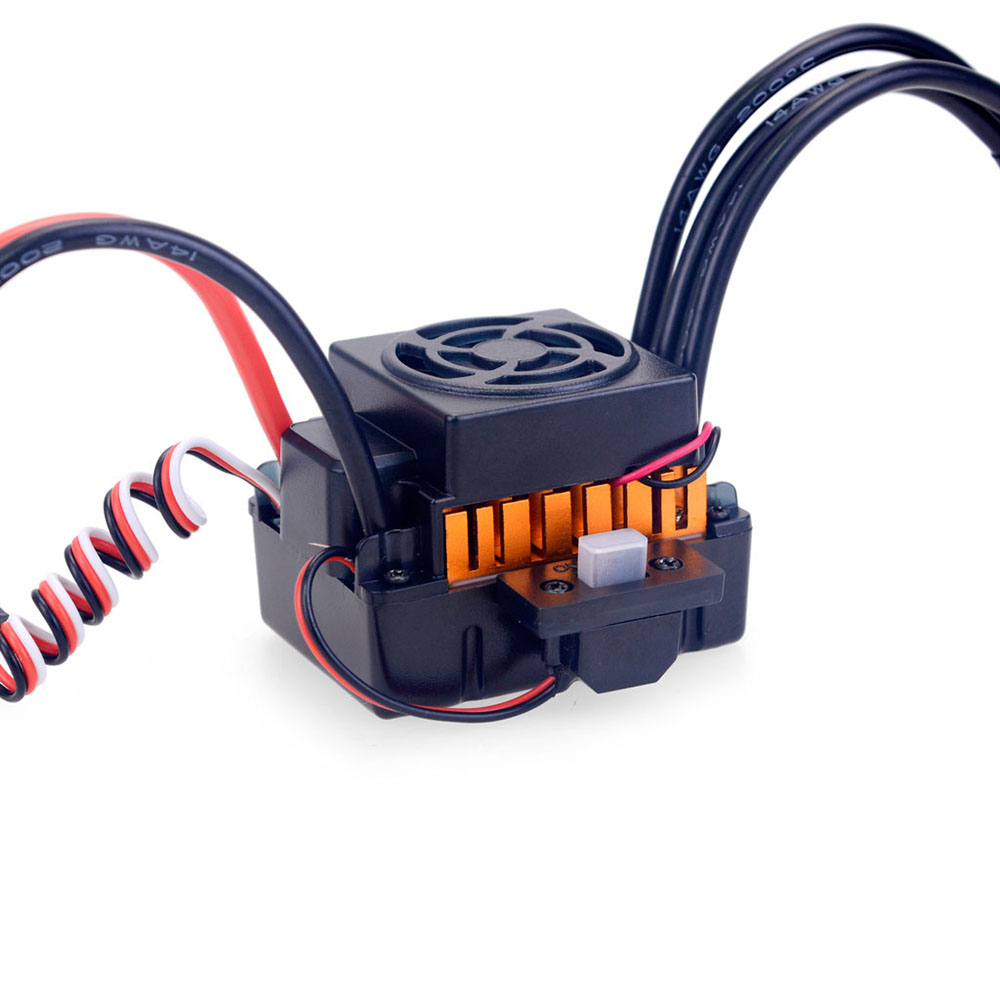

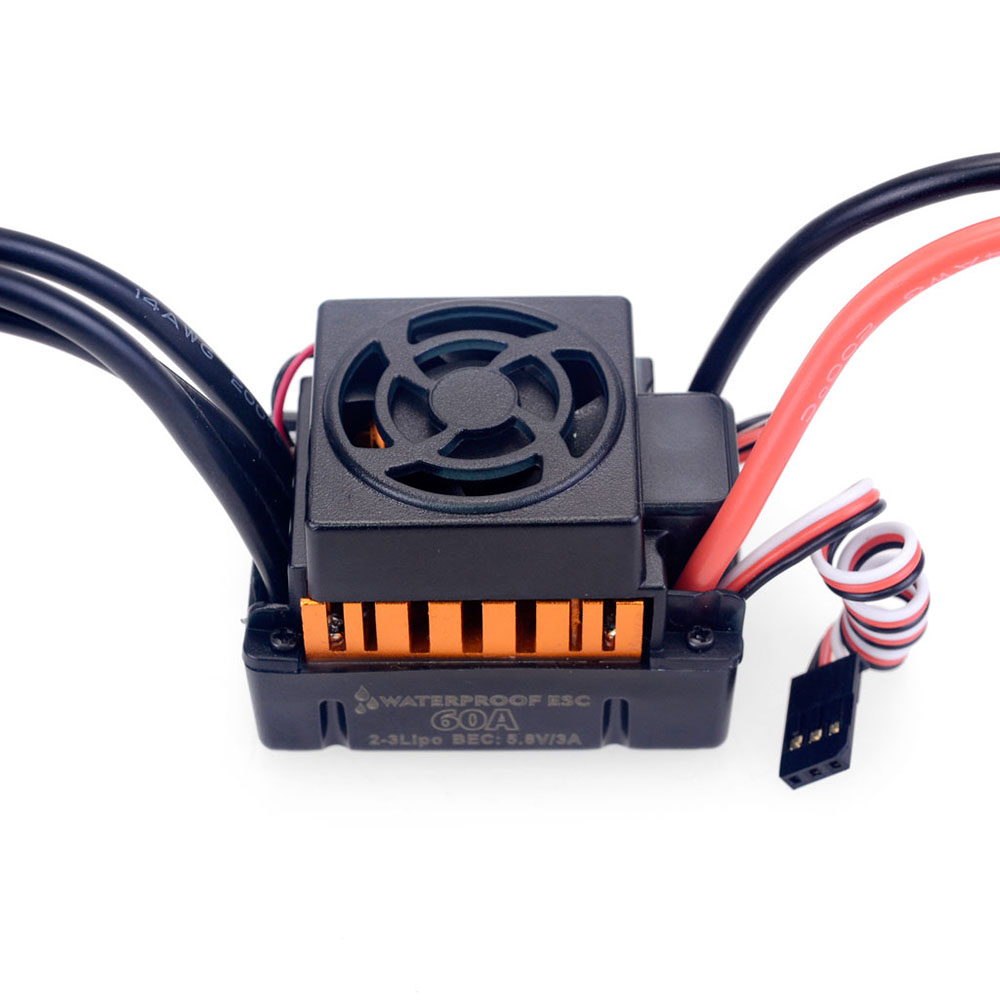

ESC Specifications:

Item Ame:Waterproof ESC

Continue Current:60A

Burst Current:320A

Battery:2-3 cells Li-Po / 4-9 cells NiMH

BEC Output:5.8V / 3A

Dimension:50 * 36 * 36mm

Features:

4-pole 12-slot high torque motor design

CNC machining 6061 T6 billet aluminum can

High purity windings for maximum efficiency

High RPM ABEC5 oversized bearings

Universal version for all 1/10 brushless cars-multi-mounting system for M3 screws

Precisely balanced rotor smoothness for beat reliability and maximum RPM

Stator - Super Thin (0.35mm) Laminations

Removable/ Replaceable Rotor

Precision engineered for maximum energy conversion

Notice:

Please kindly refer to the sutiable battery for the Motor/ESC don't use too large power battery when you use it at the first time.

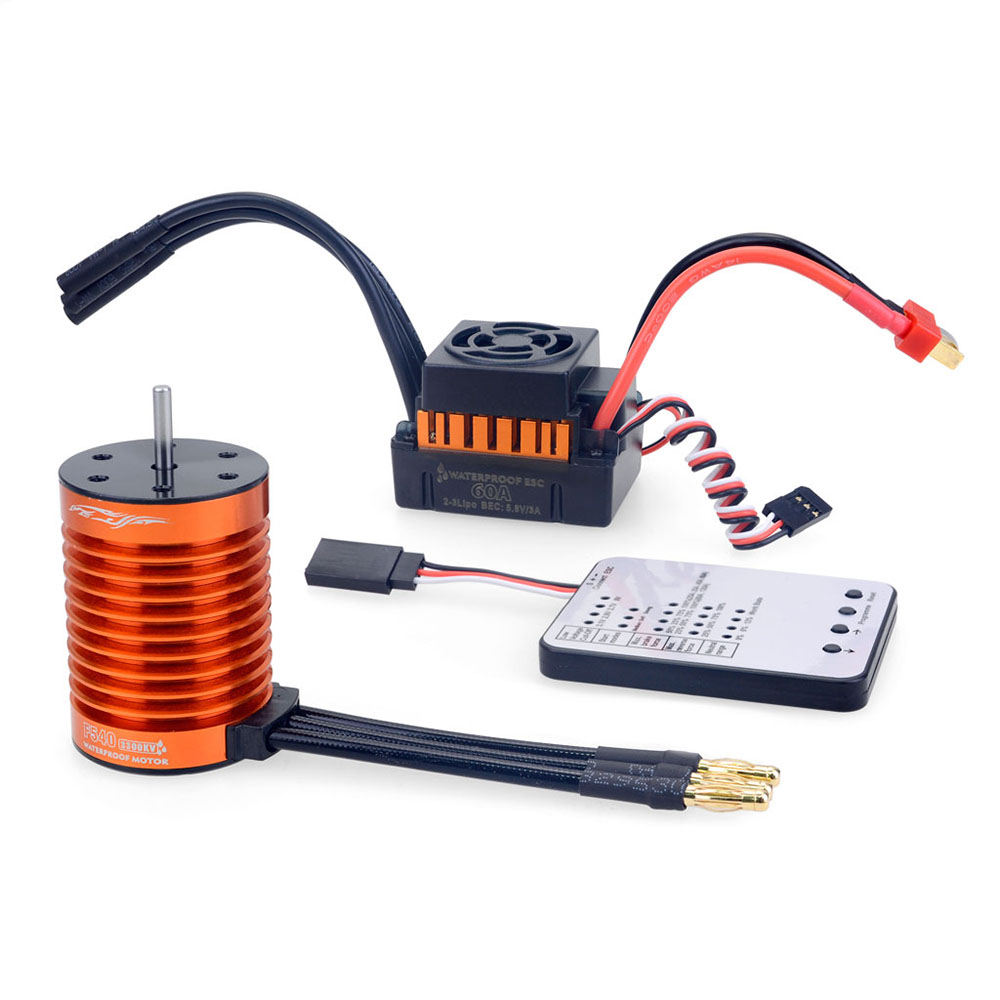

Package Included:

1 X F540 Brushless Motor

1 X 60A Brushless ESC

1X LED Programming Card
