Flipsky Dual Way 5AX2 Brushed ESC Speed Controller 2-3S for 130/180 Motor Engine RC Car Airplane Model Parts
Description:
Item Brand:Flipsky
Item Name:5AX2 brushed esc
Material:Metal and other parts
Color:As shown

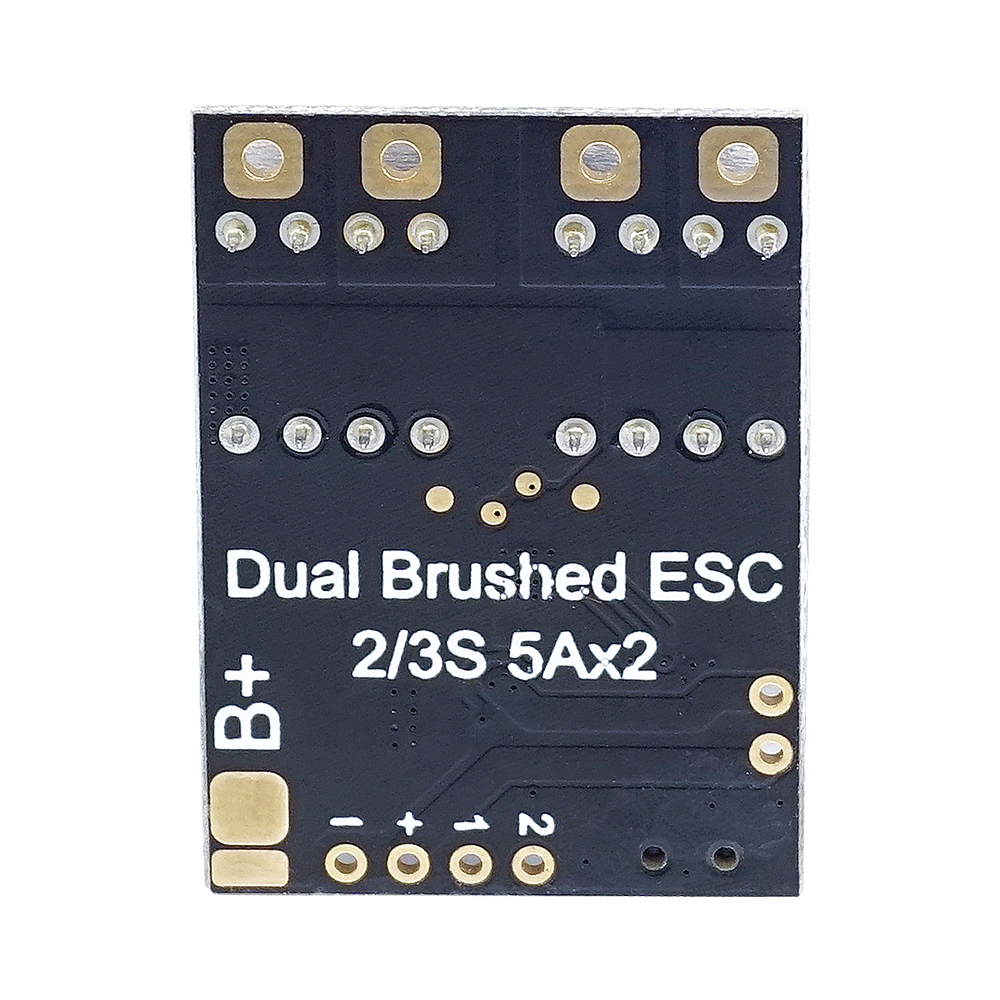

Product Size:24*45mm(board size is 24*33mm)
Product Weight:
Compatible With:RC car vehicles airplane models
Specification:
Rating voltage: 6V-14V (safe for 2 / 3S lithium battery)
Output current: single channel 5A (single channel previous 13A)
Control signal: PPM signal
Features:
There is a power-on prompt
You will hear a beep from the motor prompting you to power on
Start at the centre position
Throttle channel 1 is 1500 you will hear the motor beep and the ESC will start
Out of control protection
If the signal is lost the throttle needs to be returned to the center and unlocked again for safety and motor protection.
The signal is abnormal : PPM1 signal is greater than 2.1MS or less than 0.9MS abnormal signal is equivalent to signal loss.
Over current protection
130 degree overheat protection and hardware over current protection
Power-off protection
Power supply voltage is lower than 4V ESC restart protection

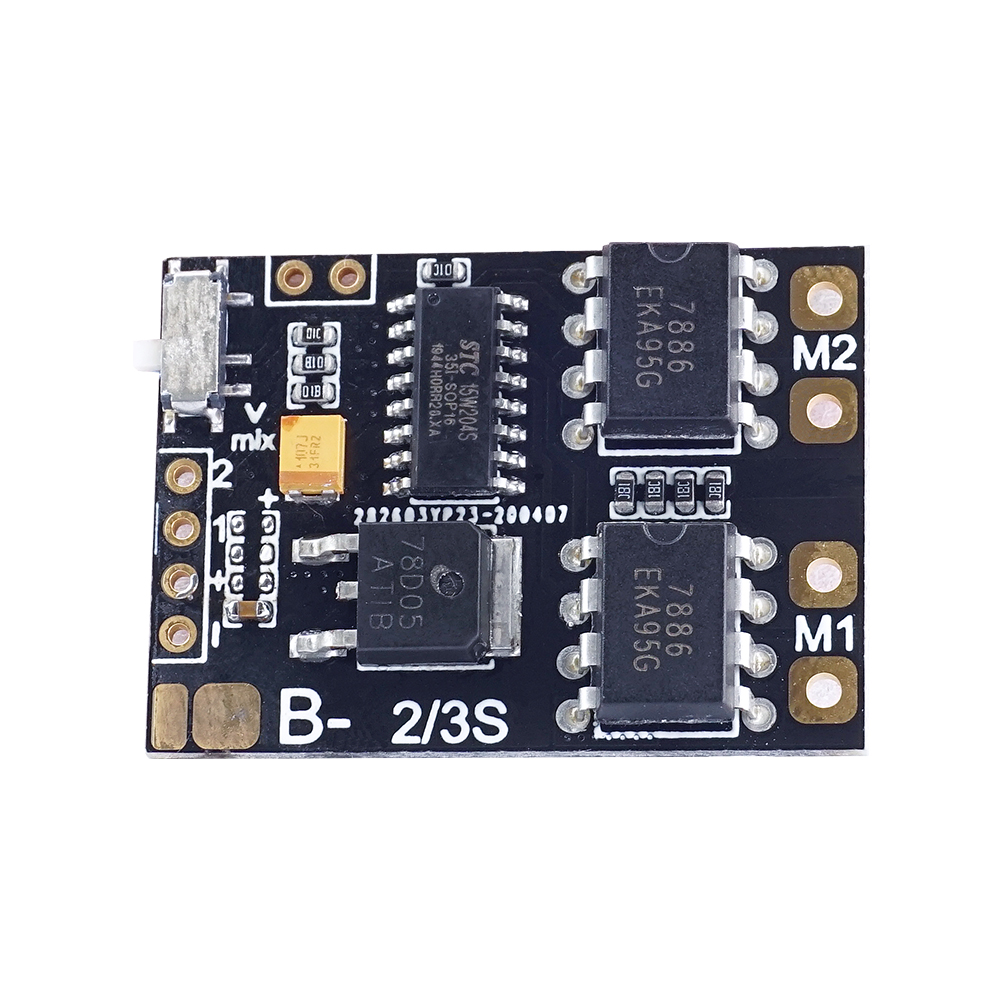

This ESC has three modes choose it before before power on(toggle switch)
Mixed control (differential speed) control mode by toggling switch inward
The two outputs are controlled by two PPM signals to achieve differential speed control and a differential remote control is required.
Two-way synchronous control mode (switch inward)
The output power of the two channels is the same (only connected to PPM1 not connected to PPM2) and also forward and reverse.
Two independent control modes (switch extension)
MC1 is consistent with PPM1 and MC2 is consistent with PPM2
Instructions for use:
Use HGL-YK01(it not included in the package) as the remote controller for operation instructions.
PPM0 is connected to ESC PPM1 and PPM1 is connected to ESC PPM2
Package Included:
1X 5AX2 Brushed ESC
Wiring Diagram:(the following motors remote control and receiver are recommendation and they are not included in the package)
