SURPASS HOBBY F540 Waterproof Brushless Motor +60A ESC T plug for 1/12 RC Cars Parts
Description:

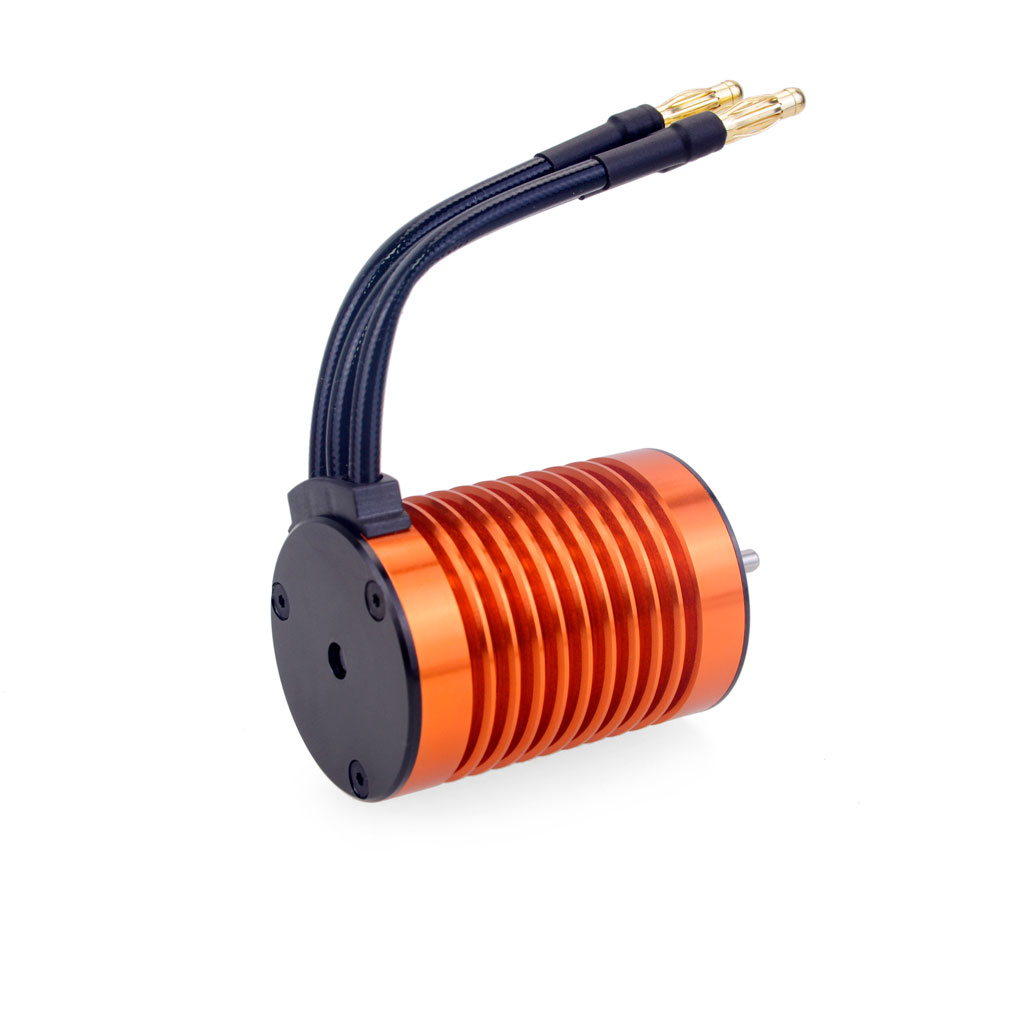

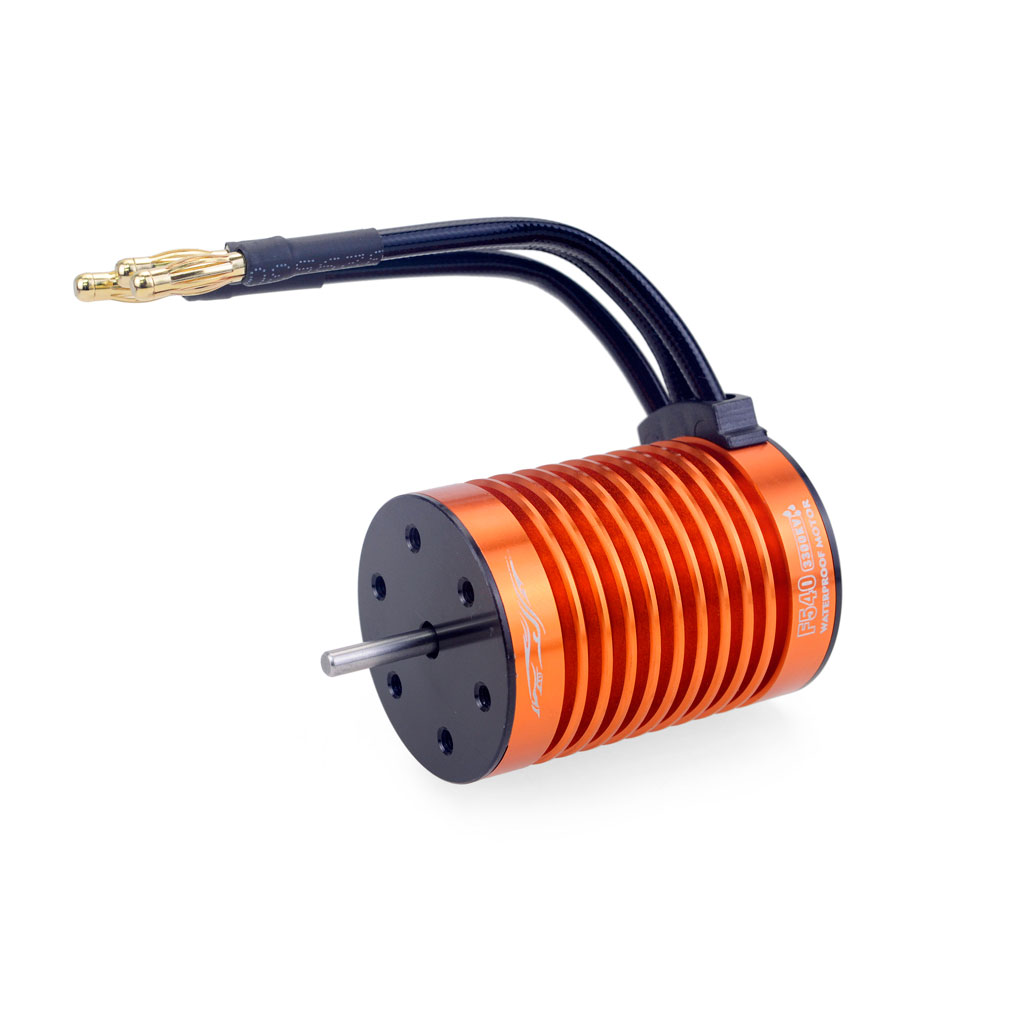

Motor:
*4 Pole 12 Slot Hi-torque Motor Design
*CNC Machined 6061T6 Billet Aluminum HeatsinkCan
*High Purity CopperWindings Maximizes Efficiency
*High RPM ABEC5 Oversized Bearings
*Universal fit fits all 1/10 brushless cars-multi-mounting system for M3 screws
*Precision balanced rotor smoothness for best reliability and maximum RPM
*Stator-SuperThin (0.35mm) Laminations
*Removable/Replaceable Rotor
*Precision Engineered for Maximum Energy Conversion
| Product | Kv | Watts | Max voltage | Max Amps | Rotor Poles | Io | Resistance | Max RPM | Shaft | Length of | Connector | Packing size (mm) | I G.W I (g) | I N.W |
| (RPM/Volt) | (mm) | extend shaft | (g) | |||||||||||
| F540 | 4370 | 820 | <12V | 66A | 4 | 3.2A | 0.0185 | 50000 | 3.175 | 15mm | 4.0mm gold | 110x68x42 | 181 | 148 |
| F540 | 3930 | 820 | <13V | 60A | 4 | 2.4A | 0.0196 | 50000 | 3.175 | 15mm | 4.0mm gold | 110x68x42 | 181 | 148 |
| F540 | 3300 | 820 | <17V | 47A | 4 | 1.9A | 0.0285 | 50000 | 3.175 | 15mm | 4.0mm gold | 110x68x42 | 181 | 148 |
| F540 | 3000 | 820 | <18V | 45A | 4 | 1.3 A | 0.0355 | 50000 | 3.175 | 15mm | 4.0mm gold | 110x68x42 | 181 | 148 |

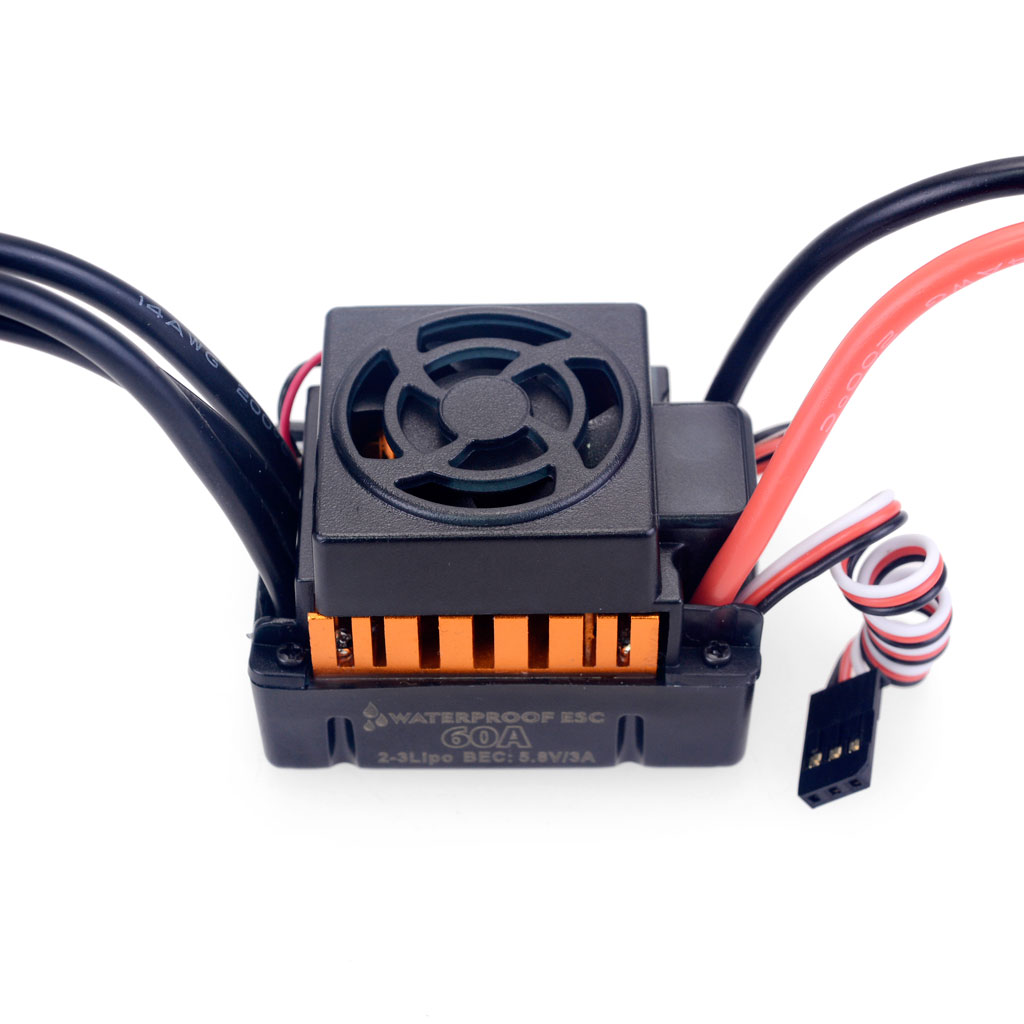

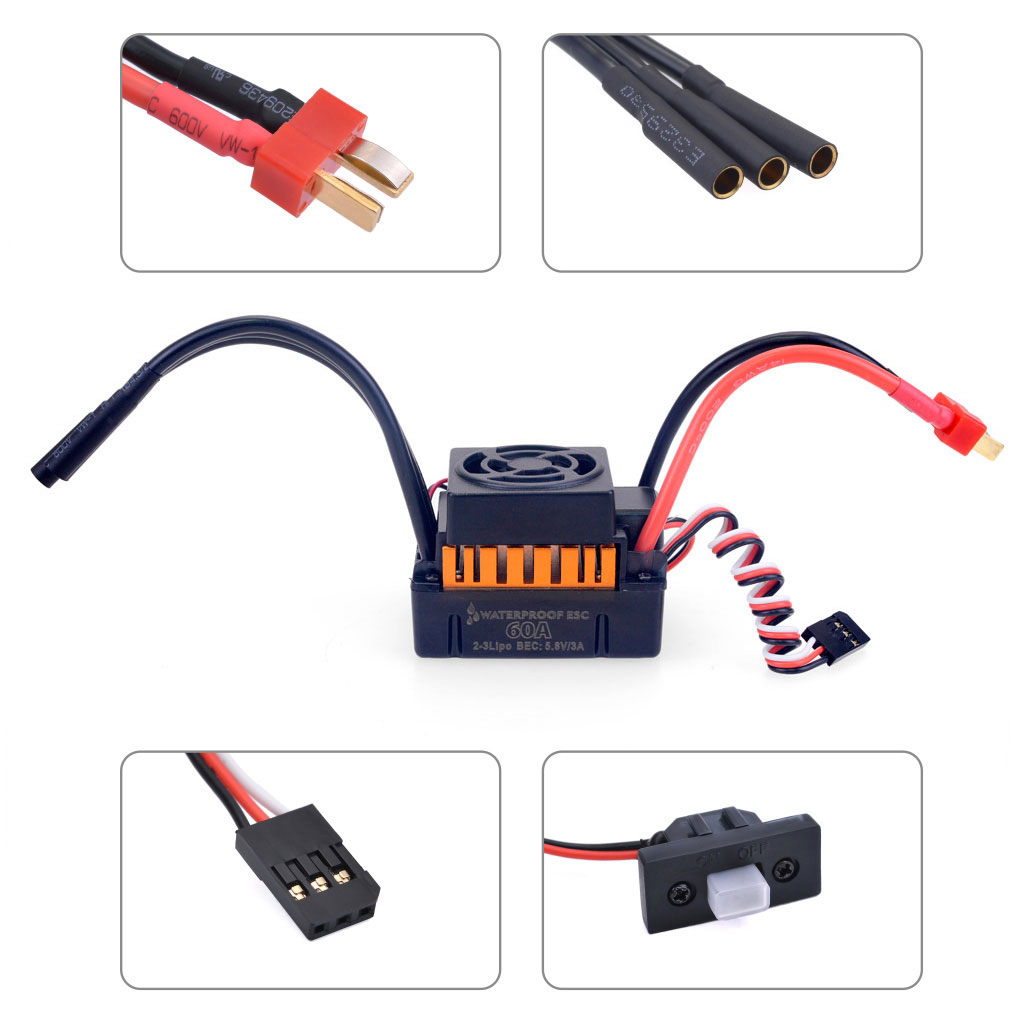

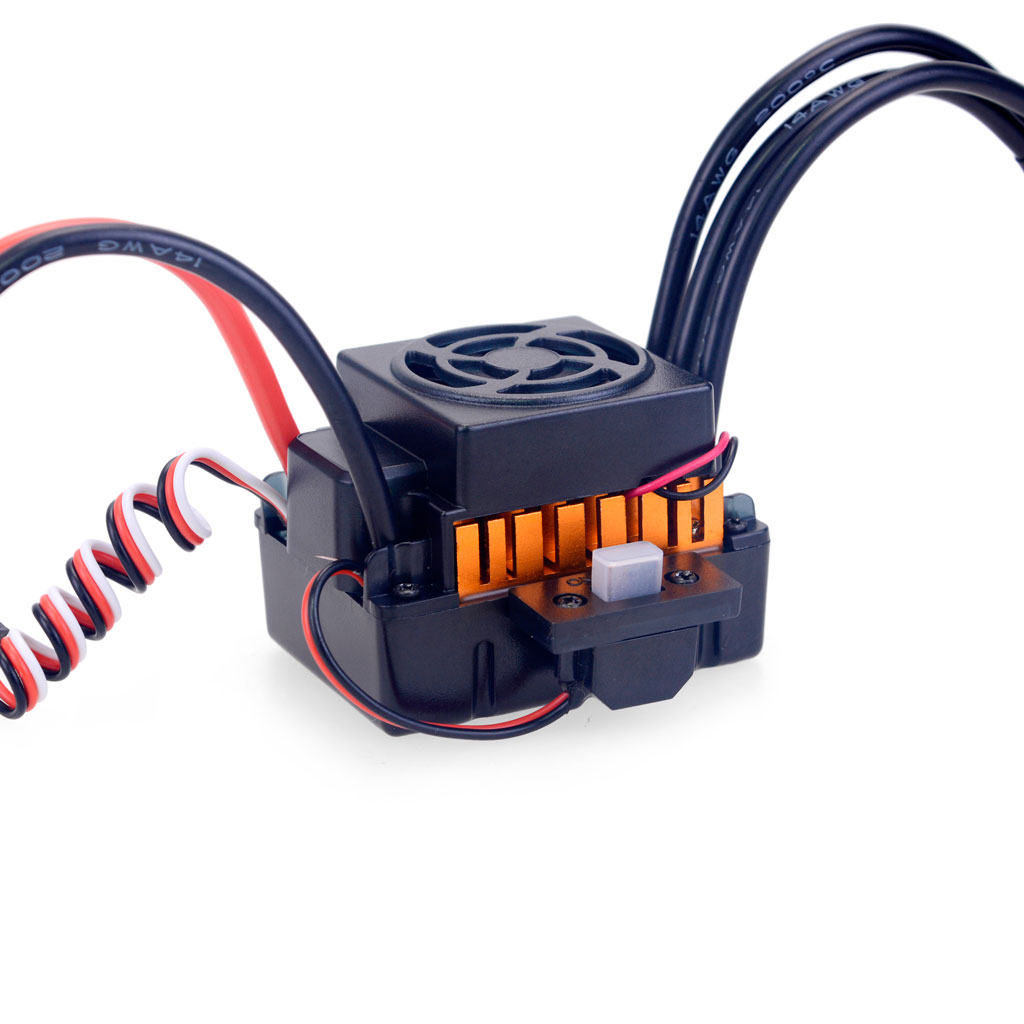

ESC:
Sensorless brushless motor.
For2S Lipoor6cells NiMH:
1.on-road :3660-size or smaller motor with the KV<6000
2. Off-road / Monster:3660-size or smaller motor with the KV<4000
For3S Lipo or 9 cells NiMH:
1.On-road:3660-size or smaller motor with the KV<4000
Off-road / Monster:3660-size or smaller motor with the KV<3000.
Battery:2-3 cells Lipo / 4-9 cells NiMH
BEC Output:5.8V/3A(switch mode)

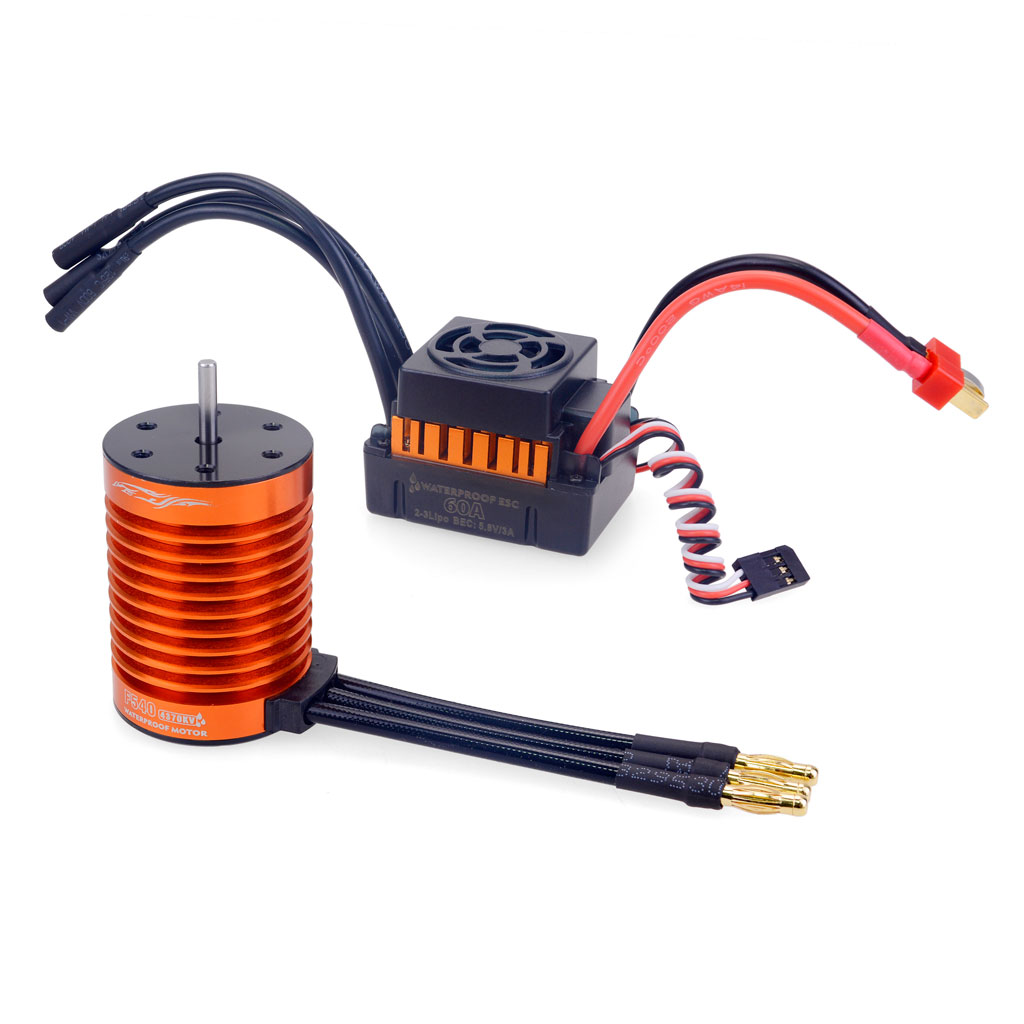

Package Included:
1x motor
1x ESC
Specifications
| NO. | 01 or 02 |
