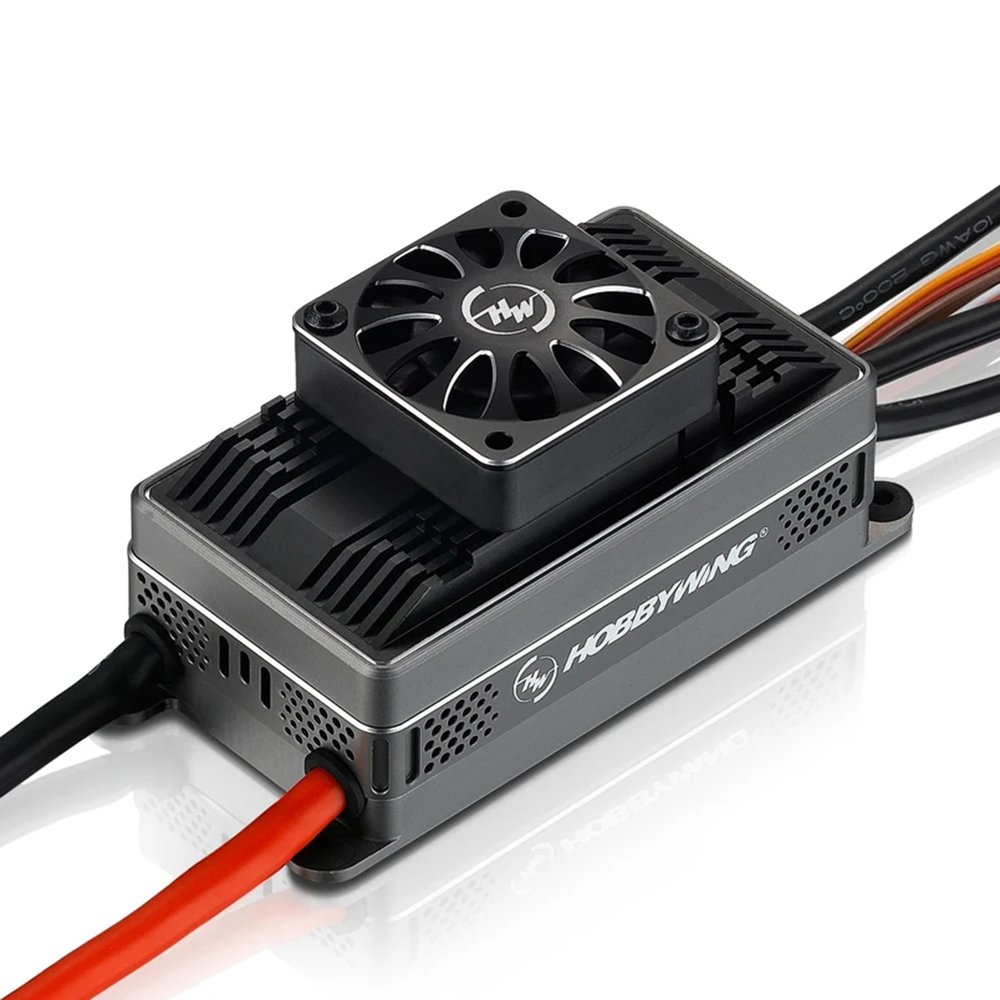

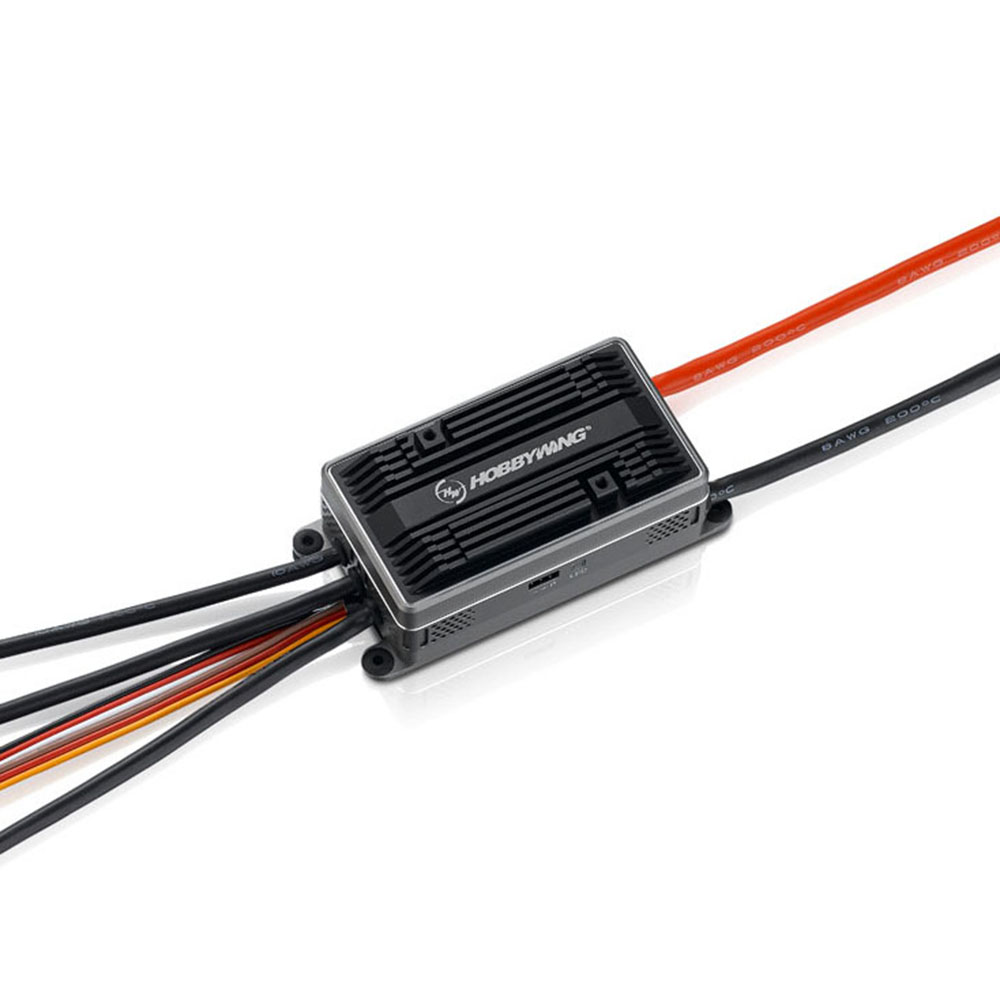

Hobbywing Platinum PRO 200A HV V4.1 6S-14S SBEC/OPTO ESC For RC Helicopter Quadcopter
Note:
2 Models: Super BEC version or OPTO version available

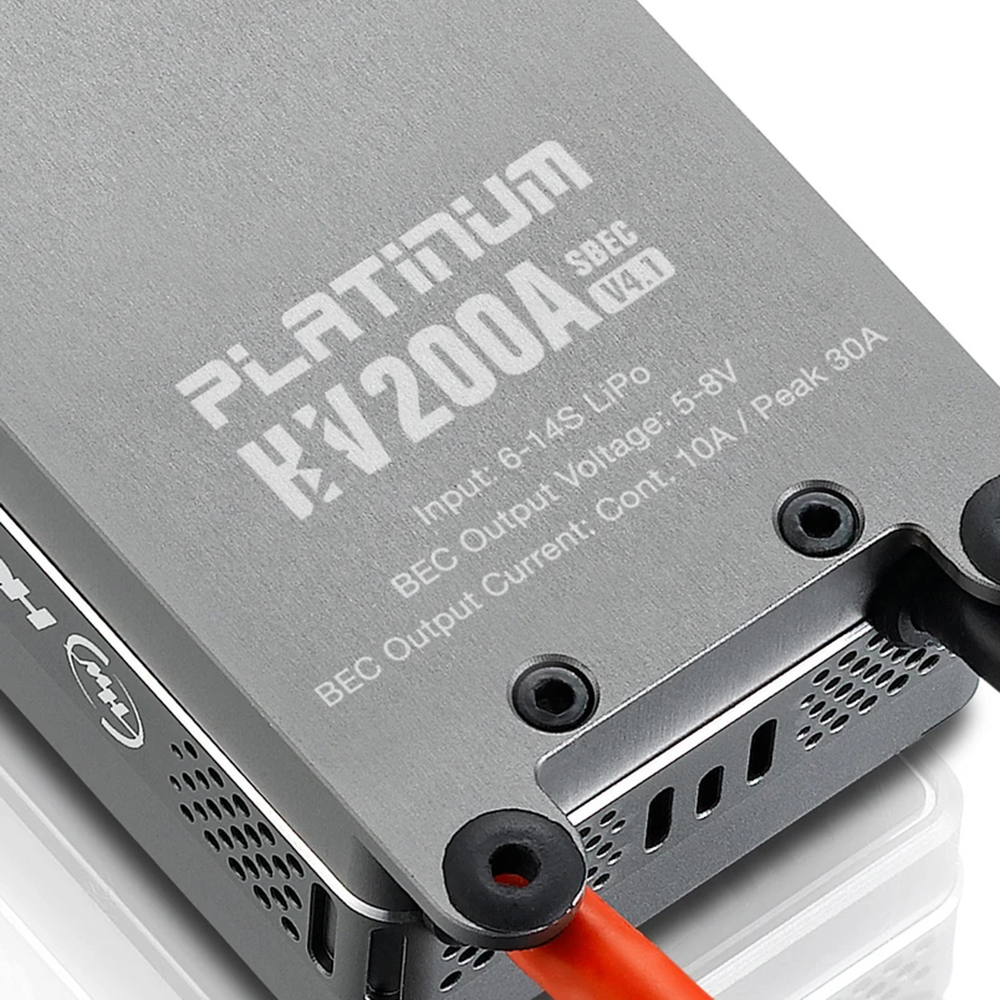

Platinum 200A v4.1 SBEC ESC (5-8V 10/30A)

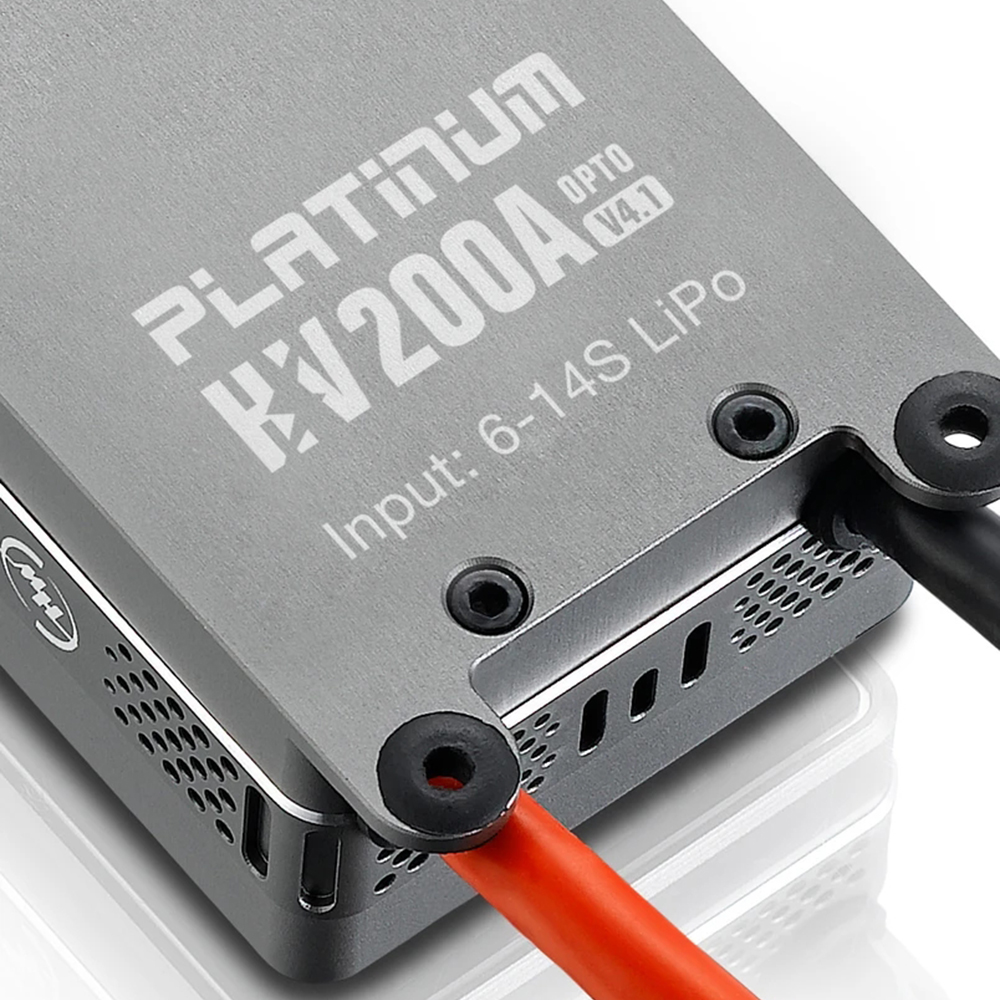

Platinum 200A v4.1 OPTO ESC (without BEC)
Features:
High-performance 32-bit processor combined with advanced algorithm makes the speed-governing excellent for different conditions. With the adjustable sensitivity of speed-governing every pilot can find the most suitable settings for his helicopter.
6-14S

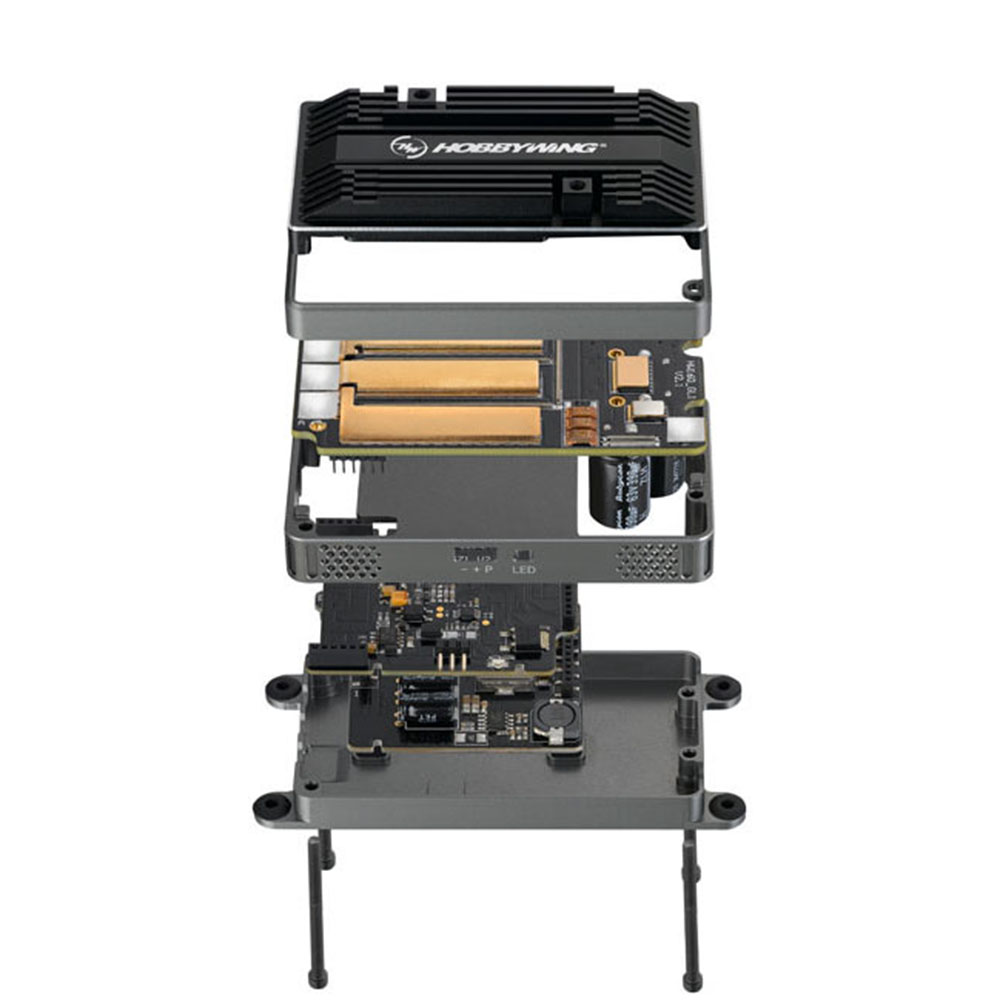

The elegant cases are made by Aluminum. Top level components combined with the exquisite industrial design guarantee the Platinum HV 200A SBEC V4.1 ESC the unmatchable quality & look.
The built-in switch-mode BEC with continuously adjustable output voltage range from 5V to 8V (step: 0.1V) supports connecting a 2S backup battery (to the connection) in parallel for improving the safety and reliability its backflow-proof circuit prevents the voltage (which is higher than the BEC voltage) from the servo or backup battery from flowing back to the BEC. The addition of buffer enhances the output of high peak current to make the servo response more precise and quick.
A 32-bit microprocessor 72MHz
he built-in spark-proof circuit effectively eliminates the sparks produced when the ESC is powered on and extends the service life of connectors.
Programming through WiFi Express Module or LCD program Box (purchase separately)
Specification:
Brand: Hobbywing
Item: Pla tinum PRO V4.1
Product: 200A ESC
Type: SBEC/OPTO
Connection Wires: 2x 8AWG for Battery
Connection Wires: 3x 10AWG for Motor
Cont./Pe ak Current: 200A / 300A
Motor Type: Sensorless Brushless Motor
Applications: 700-800 class Helis
LiPo/NiMH Cells: 6-14S LiPo
BEC Output: 5V - 8V (Switchable in 0 1V Steps)
BEC Current (Cont. / Pe ak): 10A / 30A
Throttle Signal / RPM Signal Transmission: via optical coupler
Size (LxWxH): 105 x 50 x 36 mm
Weight: 325g (with wires)

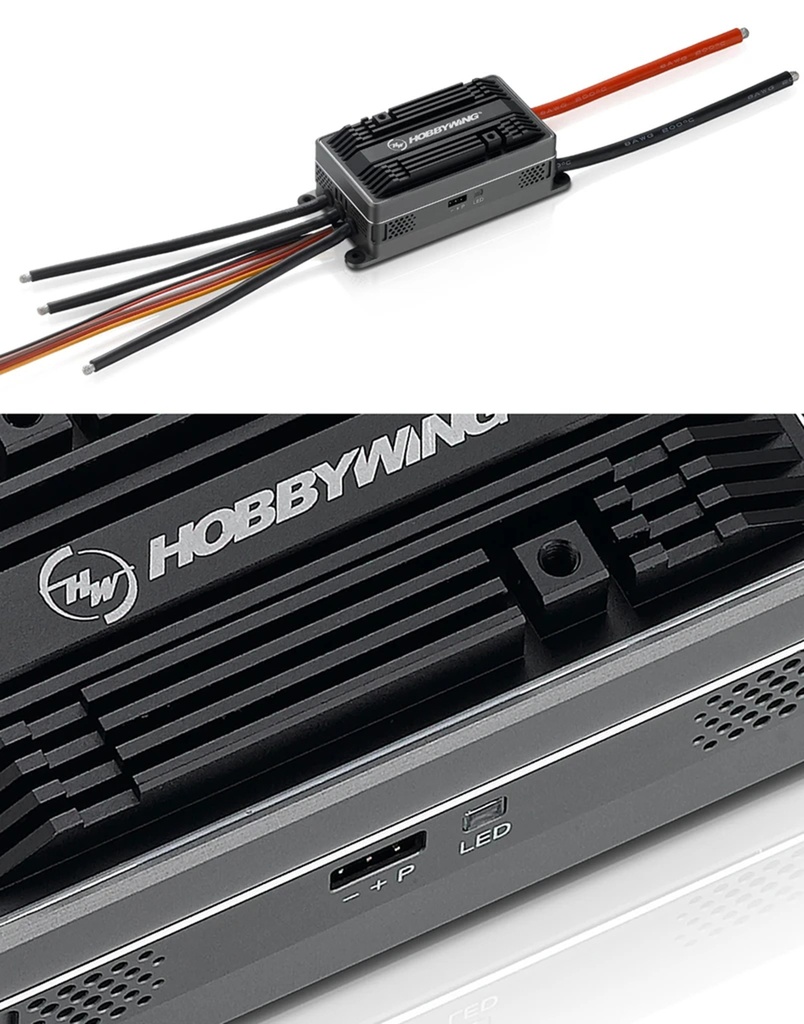

Programming Port: FAN/PRG Port
ESC Programming Via: LCD Program Box
User Manual:Click Here
Package:
1* Hobbywing Platinum PRO V4.1 200A ESC
