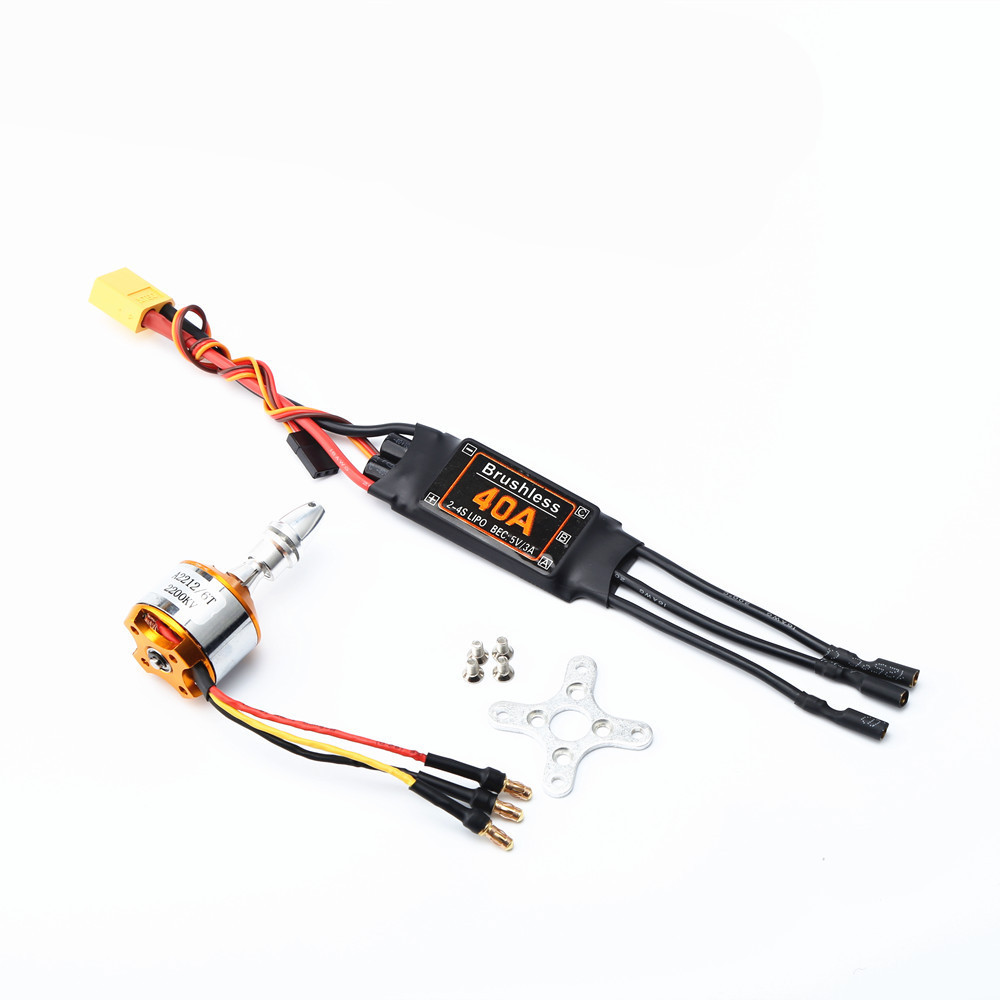

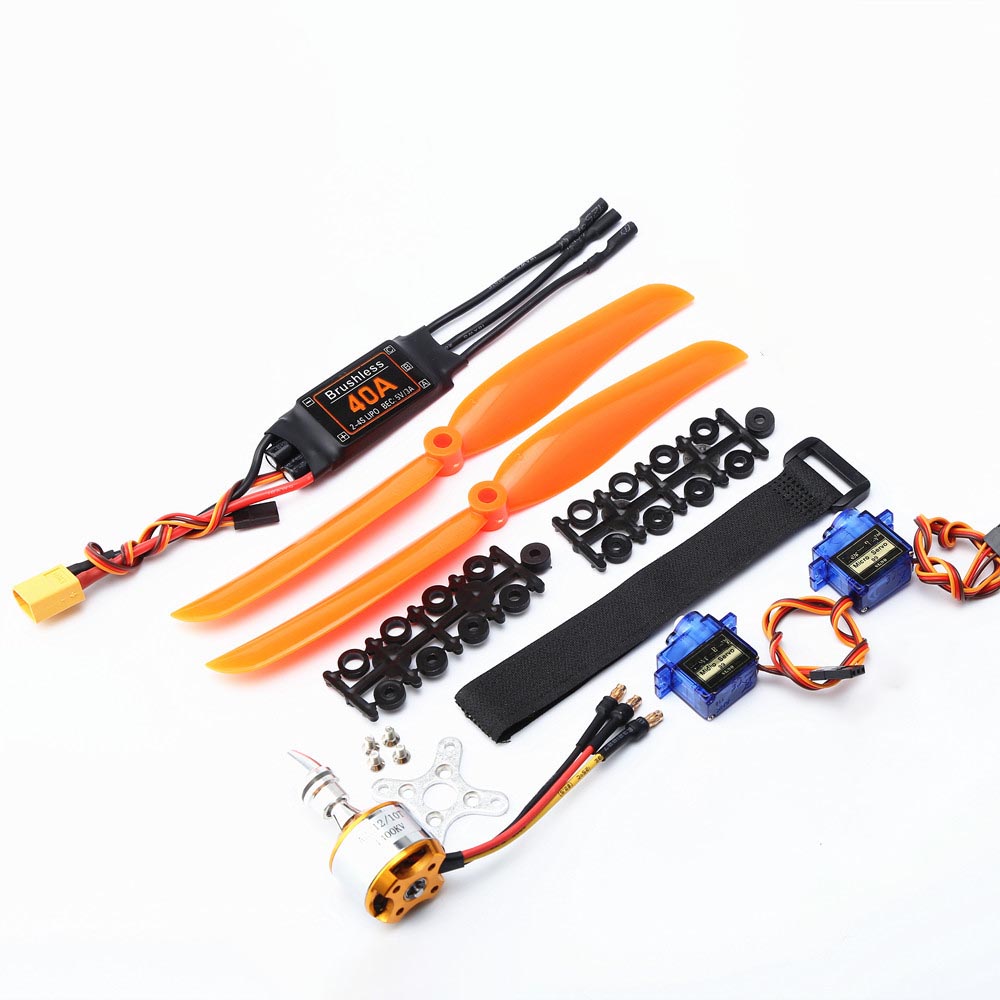

A2212 1000KV/1400KV/2200KV Brushless Motor+40A ESC+SG90 9g Servo+8060/6035 Propeller RC Power Combo System for RC Airplane Fixed Wing
A2212 1000KV/1400KV/2200KV Brushless Motor+40A ESC+SG90 9g Servo+8060/6035 Propeller RC Power Combo System for RC Airplane Fixed Wing
Description:
Item: RC Power Combo System

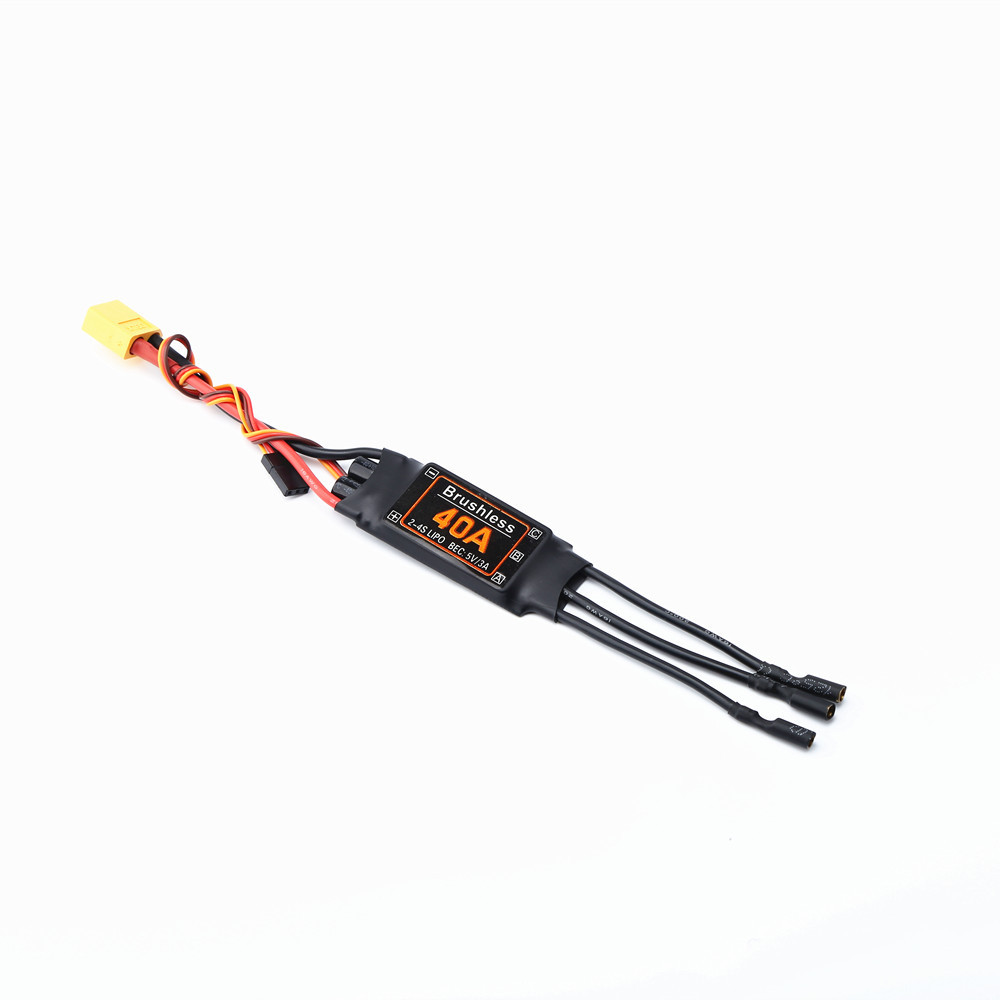

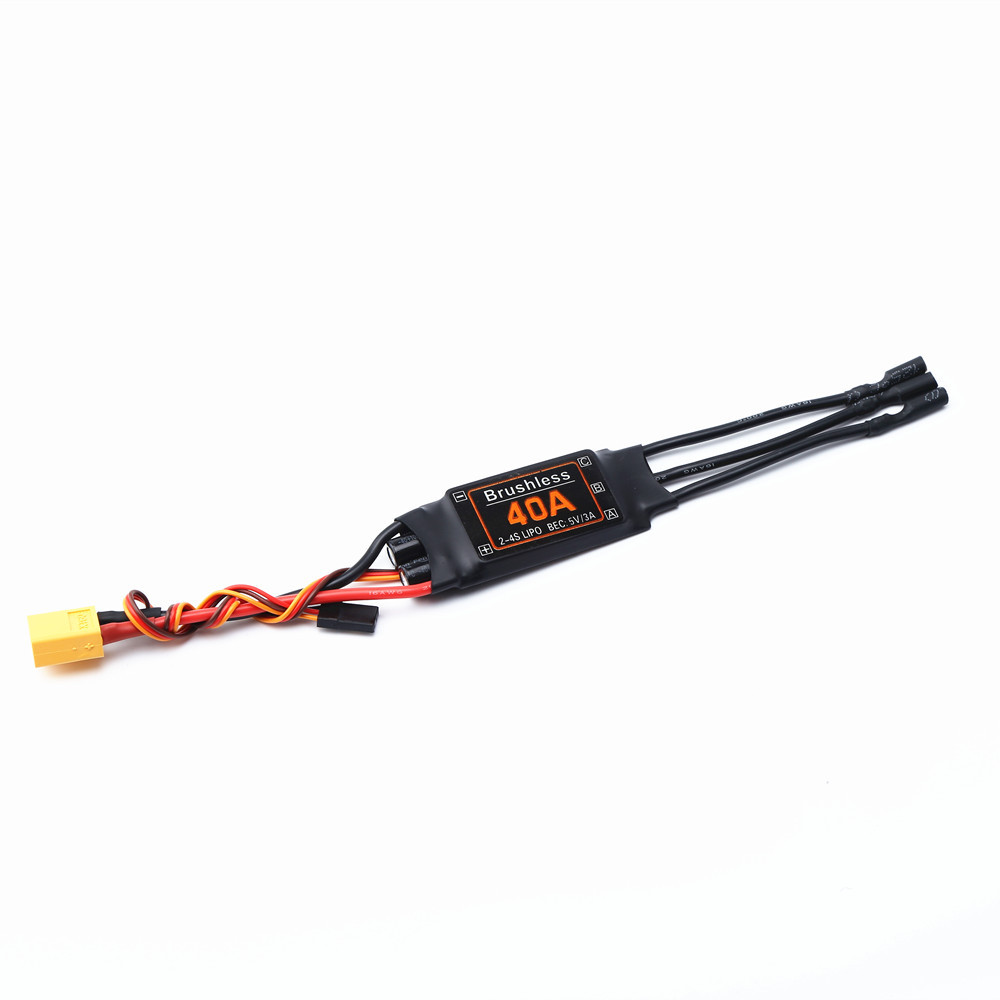

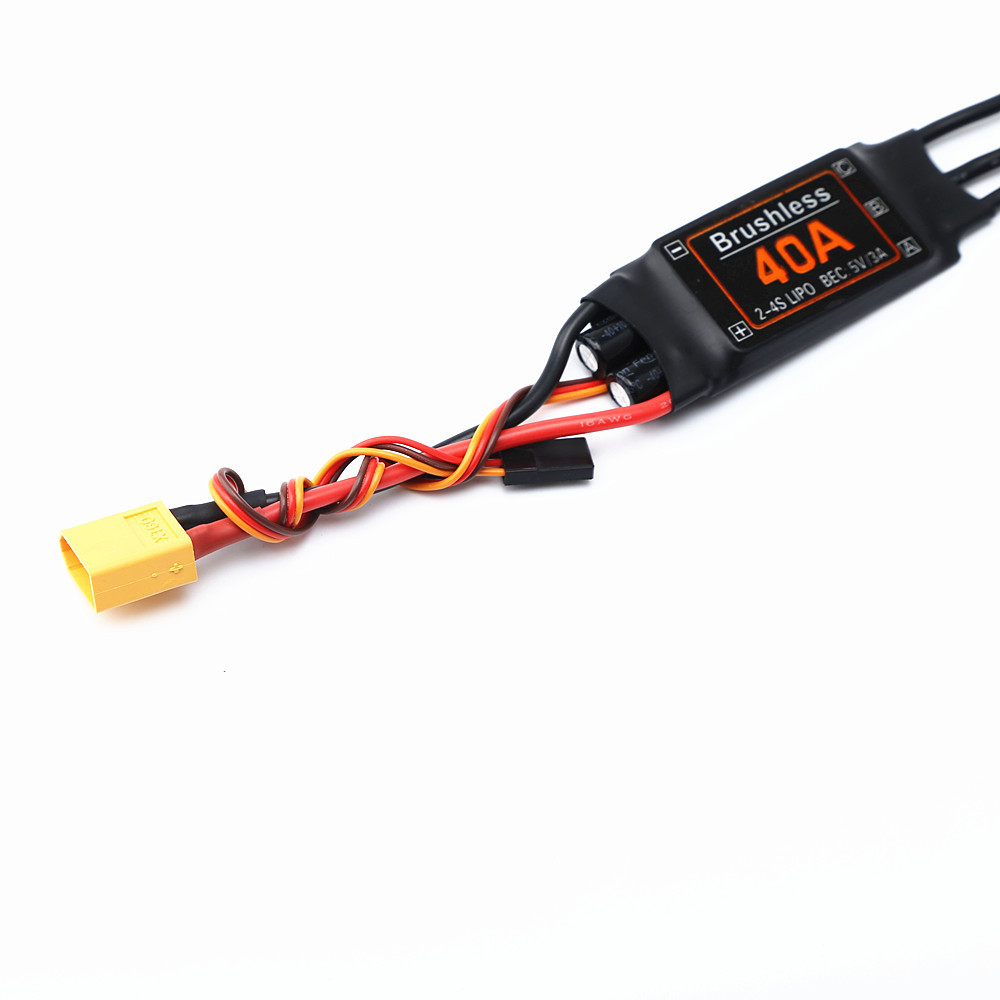

40A brushless ESC Specification:
Type: long short
Current: 40A
Output capacity: continuous current 40A short-term current 55A (not less than 10 seconds)
Power input: 2-4 lithium batteries (not included)
BEC output: 5V@3A (linear regulator mode-linear mode)
Maximum speed: 210000 rpm for 2-pole motors 7000 rpm for 6-pole motors 35000 rpm for 12-pole motors
Size: (approximately) 68x25x8mm
Features:
* Safety protection function: Regardless of the position of the throttle lever the motor will not rotate after connecting the battery.
* Throttle valve calibration function: The throttle valve range can be calibrated to be compatible with different transmitters.
* User programmable.
* Support a variety of program methods: launch stick LED program card. It is easy to carry out electronic stability control at home or in the flight field.
* Compatible with Lipo and NiMH batteries.
* The timing can be changed to suit different brushless motors.
* Full protection: low pressure cut-off protection/overheat protection/throttle signal loss protection.
Note:
1. Due to the difference of light and screen the color of the item may be slightly different from the picture.
2. Due to manual measurement please allow a difference of 0.5-2 cm.
SG90 9G Servo:
This is the most popular micro servo. Only 1.5 g/kg of torque. In terms of its size it is quite powerful. Suitable for beam robots.
Size: 21.5mmX11.8mmX22.7mm
Weight: 9 grams
No-load speed: 0.12 seconds/60 degrees (4.8 volts)
Locked-rotor torque: 1.5-1.7kg/cm (4.8V-6V)
Working temperature: -30~+60 degrees Celsius
Dead zone setting: 5 microseconds
Working voltage: 4.8V-6V
Feature:
* Translucent body
* Lightweight
* Less noise
A2212 2200kv Motor specifications:
KV: 2200
Ri (MO): 0.033
Battery: 2-3Li-Po
Maximum power: 342W
Test props: 7x3/7x4
Motor size: 27.5x38mm/1.08 inches x 1.5 inches
Shaft diameter: 3.17mm/0.12'
Pacakge included:
1x RC Power Combo System
Specifications
| Model | 2200KV Motor+40A ESC XT60 Plug or 1400KV Motor+40A ESC XT60 Plug or 1000KV Motor+40A ESC XT60 Plug or 2200KV Motor+Servo+Propeller+40A ESC XT60 Plug or 1400KV Motor+Servo+Propeller+40A ESC XT60 Plug or 2200KV Motor+Servo+Propeller+40A ESC T Plug or 1400KV Motor+Servo+Propeller+40A ESC T Plug or 40A ESC +XT60 Plug |
