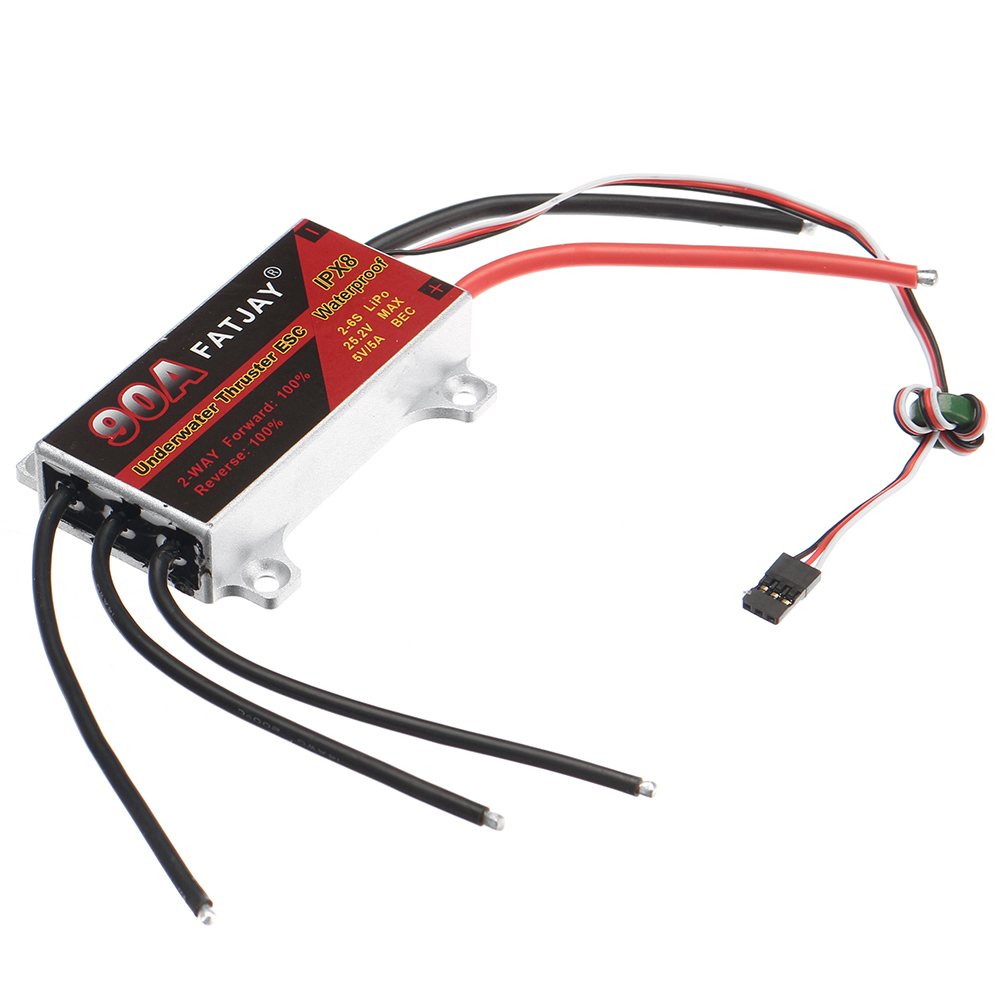

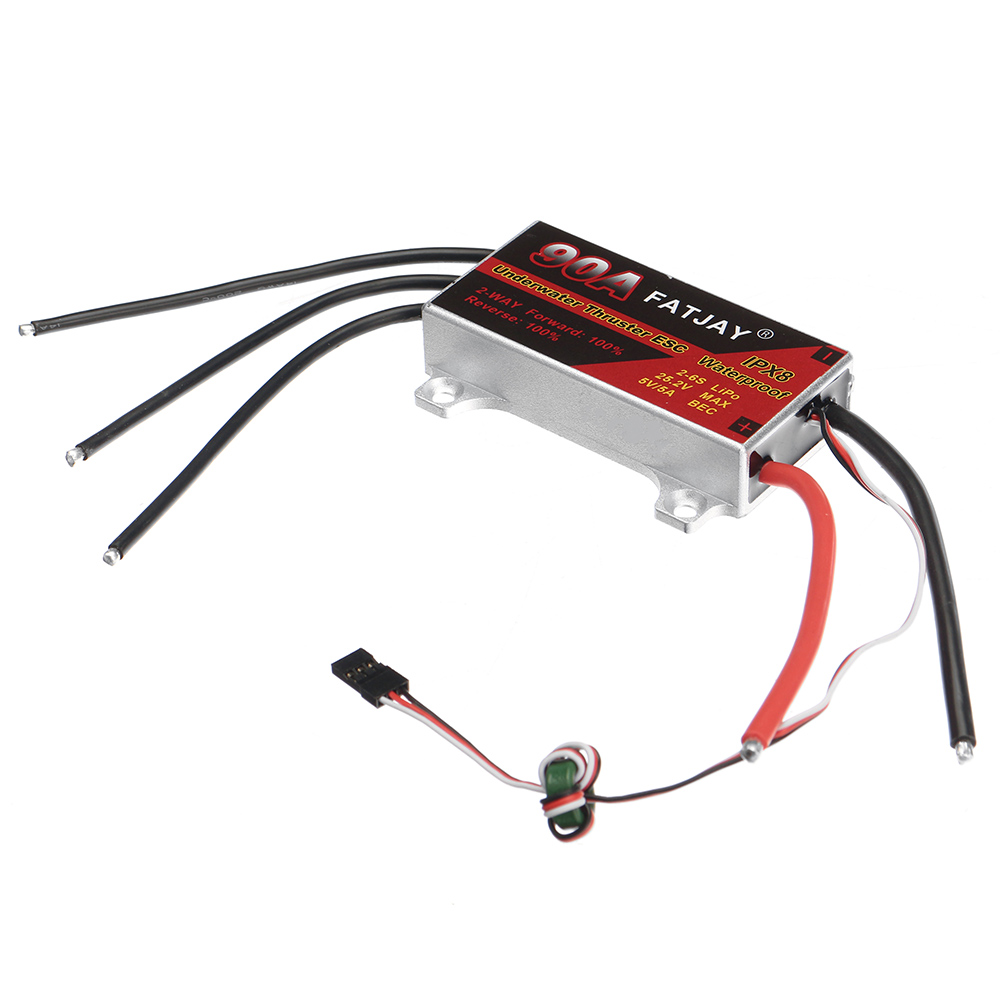

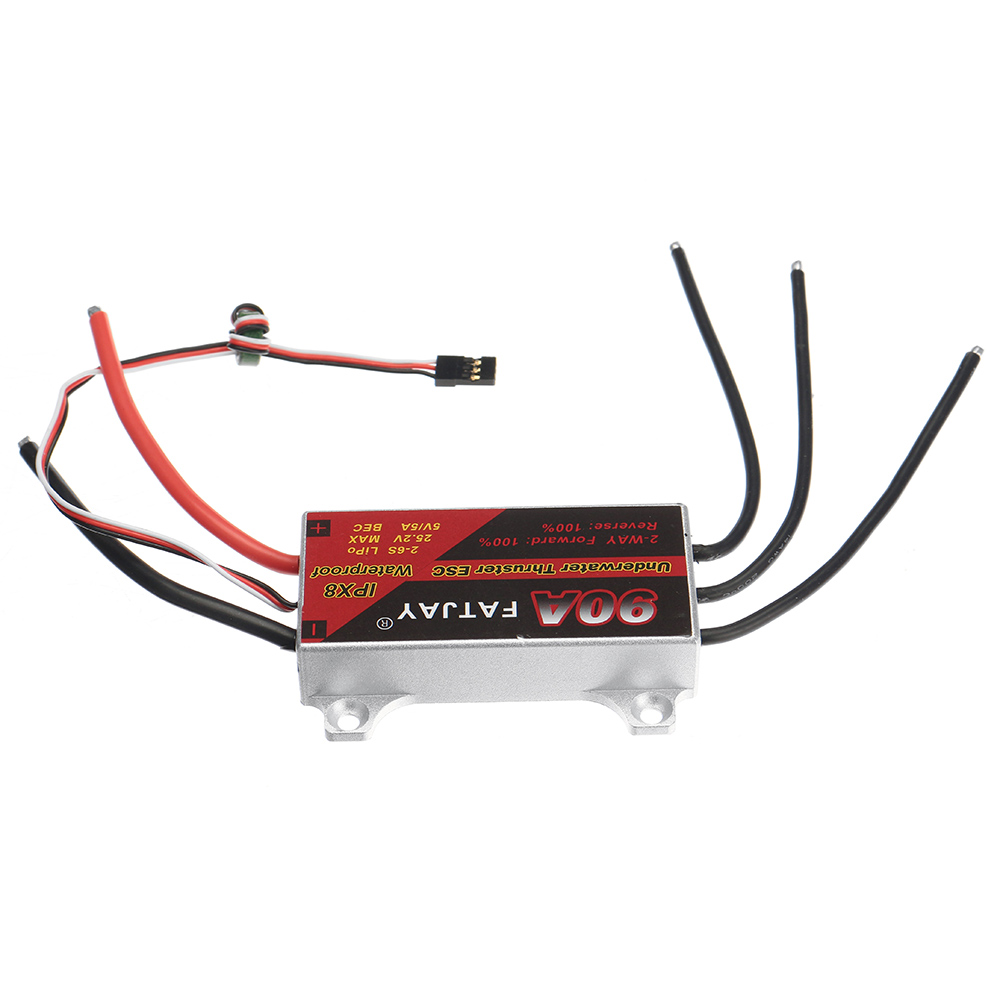

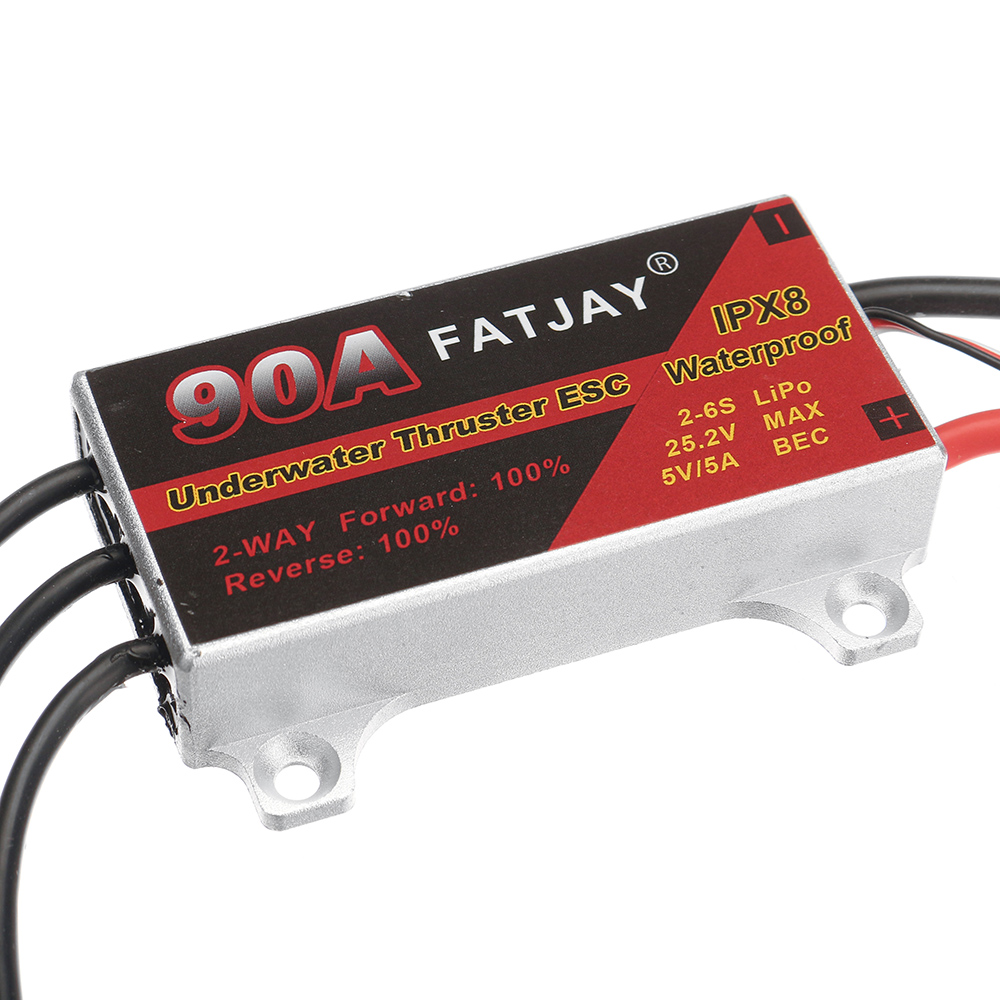

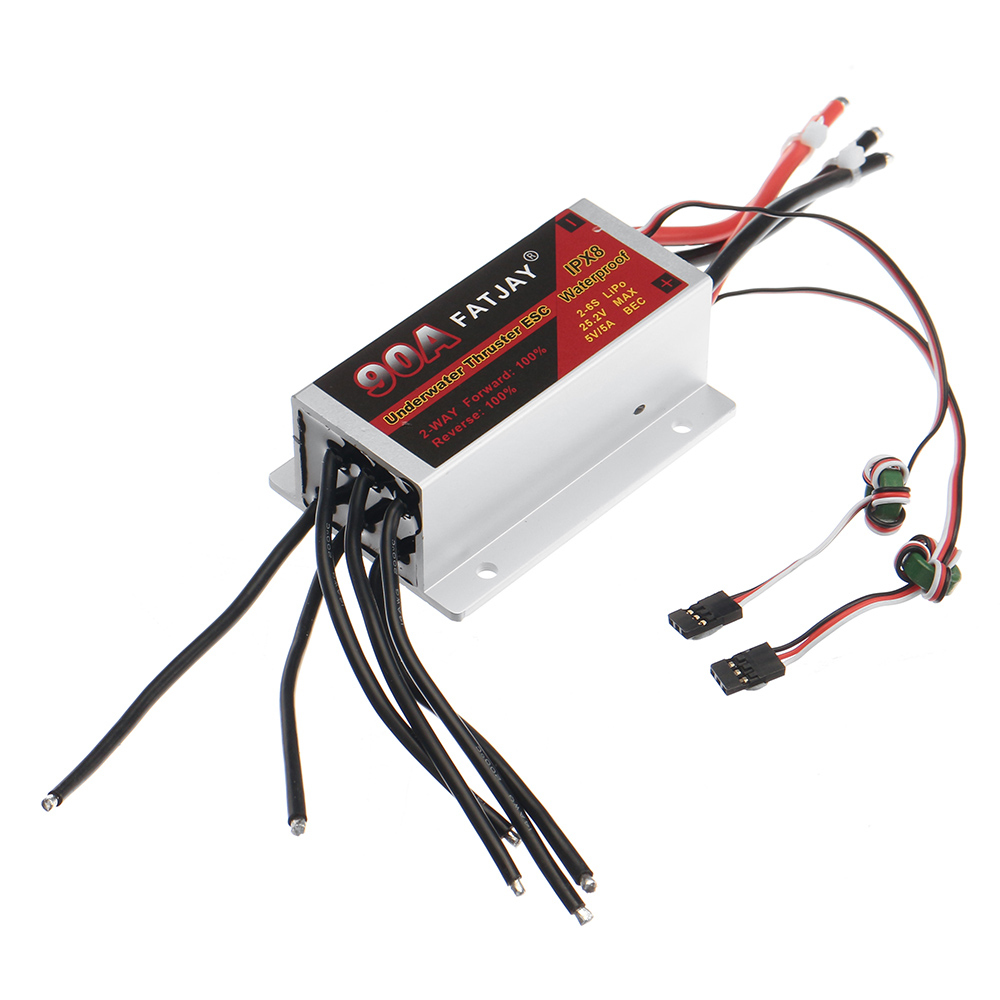

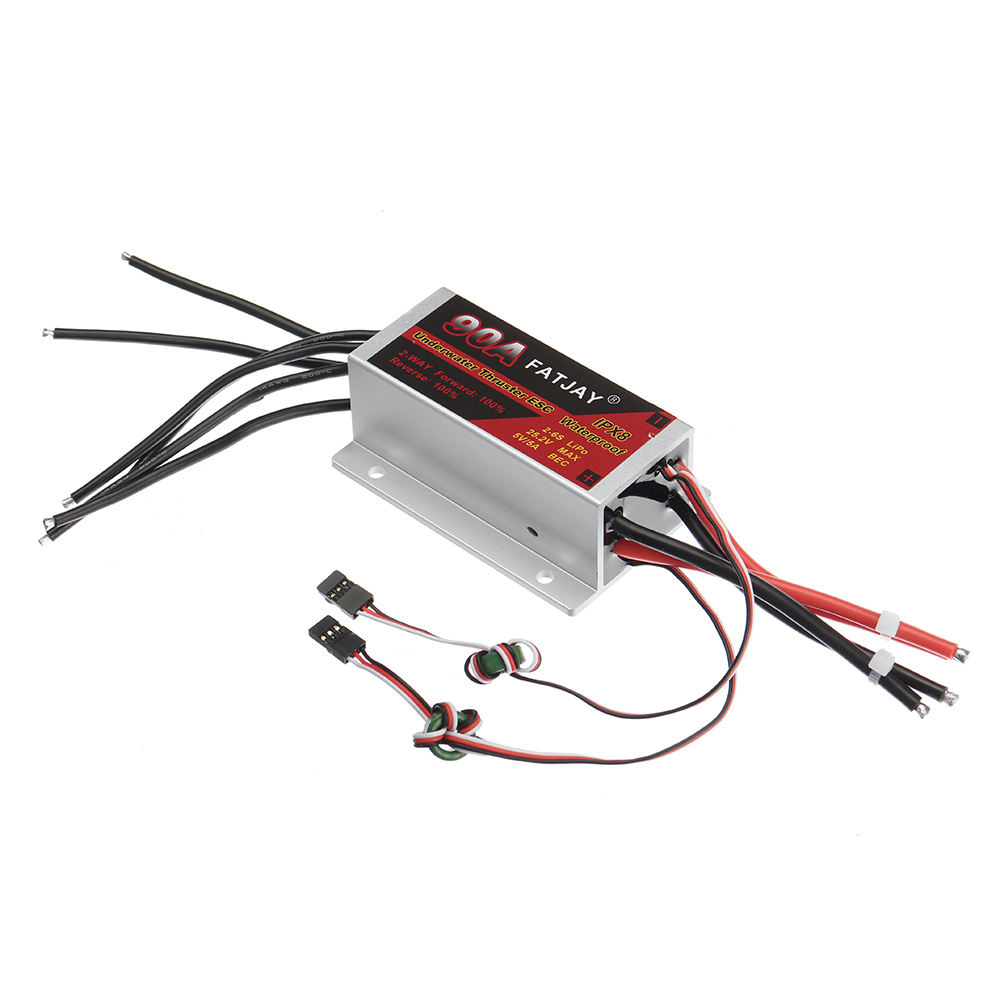

Double Sides Brushless 90A ESC Forward Reverse Two Way IPX8 Waterproof for Underwater Thruster Parts

Description:

Item Name:Brushless ESC

Material:Metal and plastic

Color:As shown

Type:For one motor esc/For Two motor ESC/Program card(these are not all included you need to choose it optional by yourself)

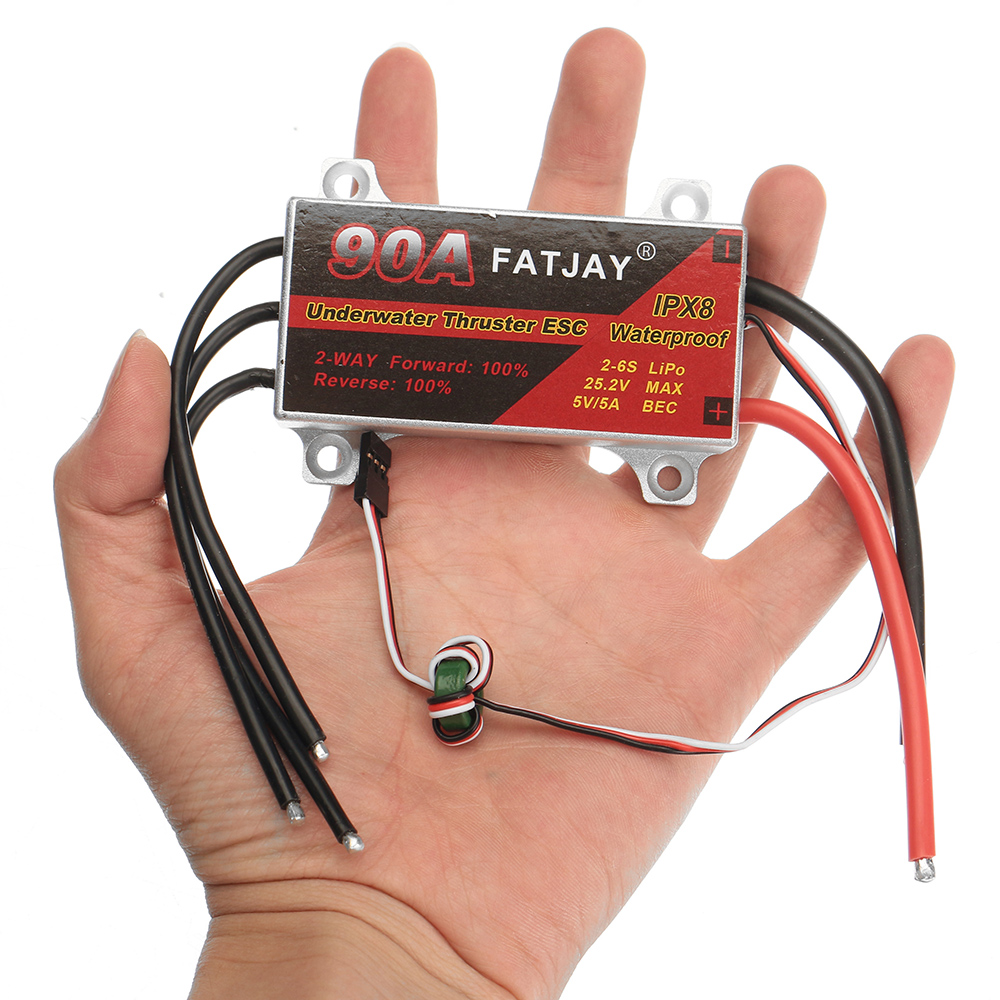

Product Size:82*60*35mm(Length*width*height)

Product Weight:For one motor esc weight is about 155g for two motors esc is about 315g program card is about 47g

Compatible Model:Underwater thruster

Spec:

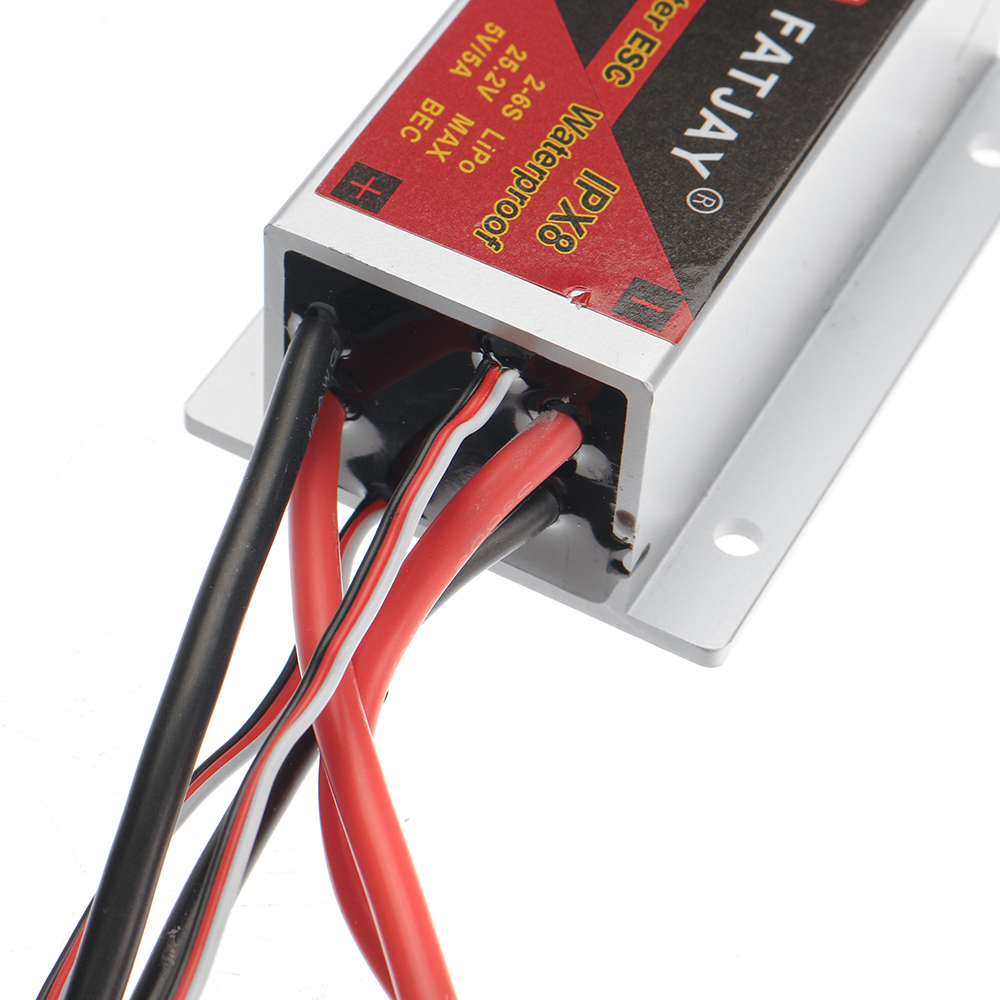

Power connector red is positive black is negative length is 100mm

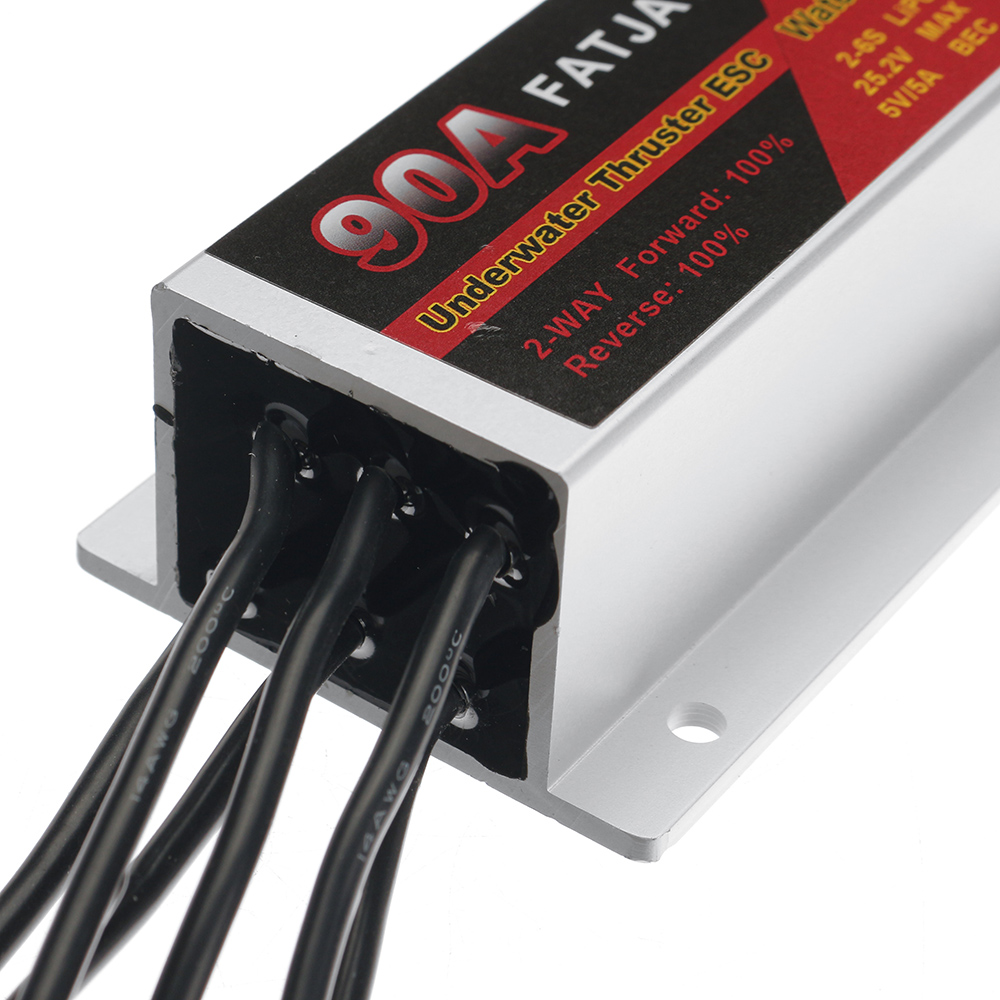

At the motor connector the three black wires are connected to the three wires of the brushless propeller in no particular order if the direction of rotation is reversed swap any two wires the cable length is 100mm and the plug is a 4.0mm gold plug

BEC is with 5V5A output with anti-interference magnetic ring red is positive black is negative and white is signal wire if you connect to a single-chip microcomputer and you do not need 5V voltage only plug in black and white wires

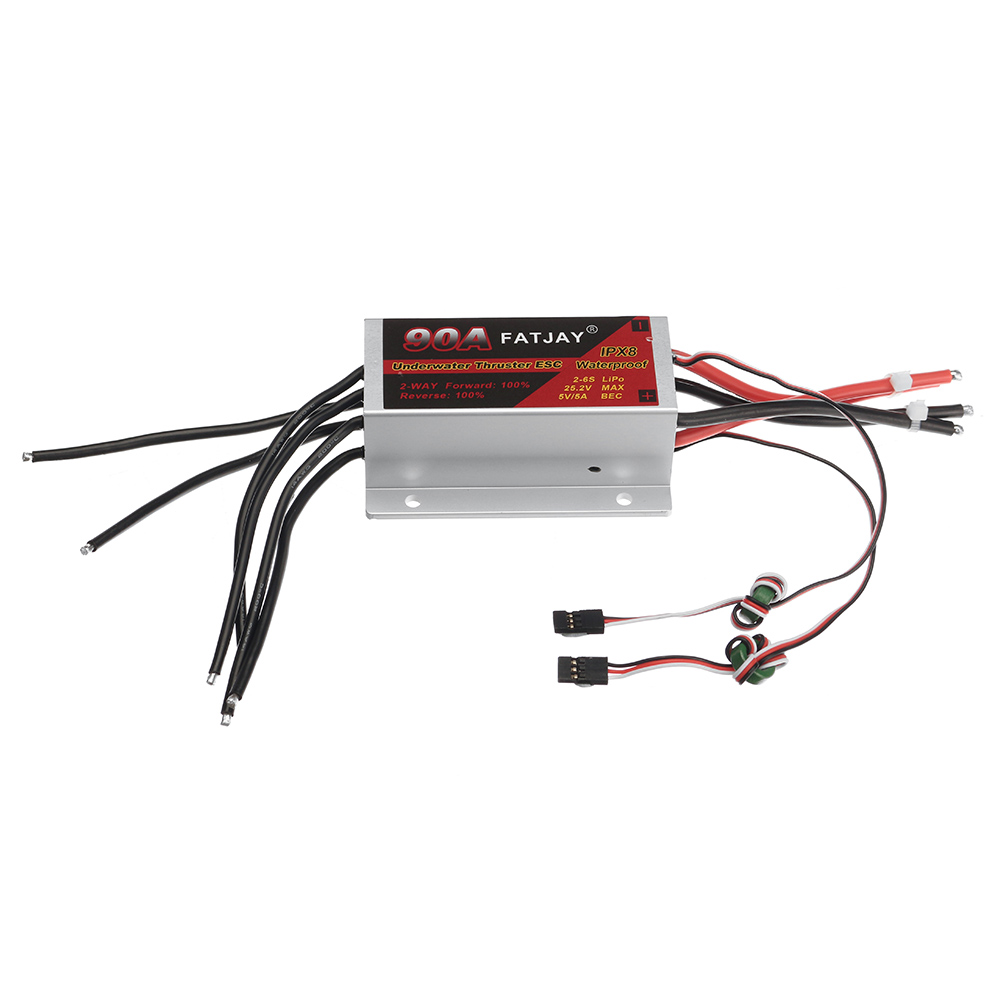

One of the ESC can drive with two motors at the same time there are two modes the first mode is the same speed of the two motors and the second mode is the mixed control of the two motors with differential speed.

The speed of the forward throttle and reverse throttle of the ESC is 1:1 which means that the forward throttle is 100% throttle and the reverse is 100% throttle

Continue Current:90A

Peak Current:540A

Suitable Voltage:2-6S 7-25.2V

Waterproof Level:IPX-8 up to 100m water depth

Input Signal Type:PWM signal

Note:

1.The program card can set the esc to single or double direction it should be separately selected by yourself only esc do not include program card

2.Only the for two motors ESC can drive with two brushless motors

Package Included:
1X Brushless ESC
