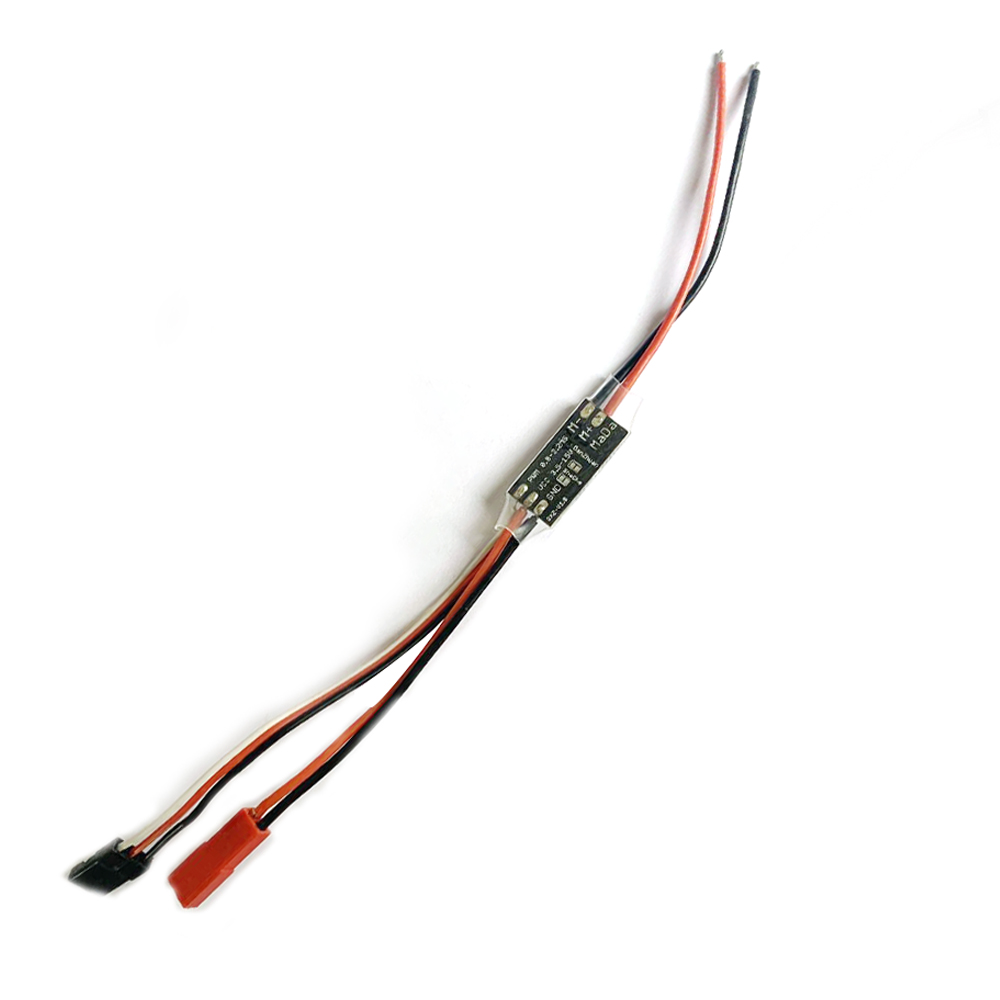

Brushed ESC Bidirectional DC Double Sides ESC Module 1S-2S Motor Drive Board RC Car Boat Model Parts

Description:

Brushed ESC Bidirectional DC motor electronic speed control module 1S-2S Car model Boat model Motor drive board

This is a DC motor drive board to control the forward and reverse rotation and speed control board (PWM control).

It can be controlled by a steering gear tester or a single-channel receiver interface (throttle channel is recommended).

Signal input: detect the pulse width of the receiver's PWM 1ms~2ms to control the motor speed and so on.

Size: 24*11*2.8MM

Weight: 7g

Recommended voltage: 3.5-5.5V allowing ESC BEC to supply power to the receiver

Support voltage: 3.7-7.4V remember that the input voltage is greater than 5.5V and the 5V power supply of the signal line must be cut off otherwise the receiver will be burned out (additional 5V power supply is required for the ESC to work normally)

Continuous working current: 3A Instantaneous current: 7A

The power cord has a JST male connector and the output cord has no connector

 Rated power: <10W (does not support violent motors such as ship model car model airplane model etc.!)

Protection function: After the motor rotates the ESC will generate heat if the chip is larger than 3.5A and the output will be cut off when the temperature reaches 120 degrees.

ESC advantages: suitable for all small motors geared motors coreless motors 350 motors.

Suitable for small current and small volume motors such as miniature brushed DC motors coreless motors geared motors N20 geared motors etc.

Package Included:

1x ESC
