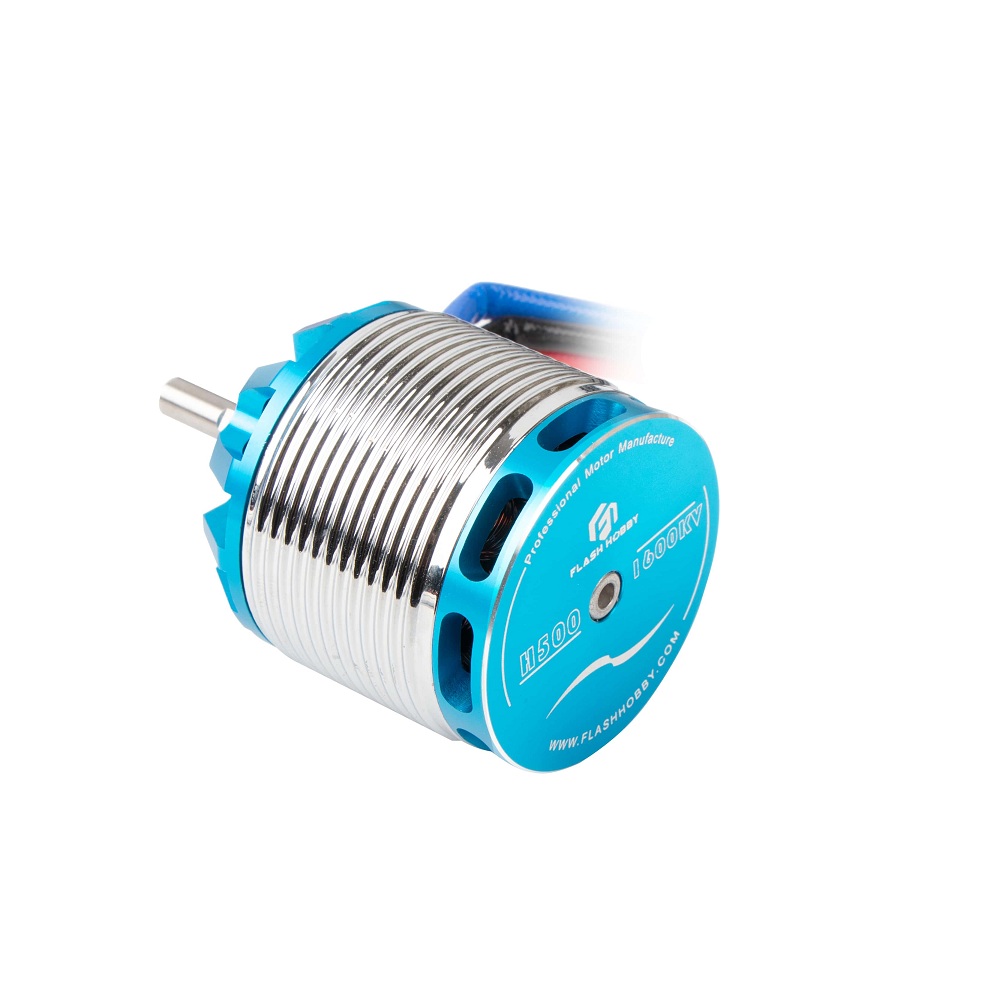

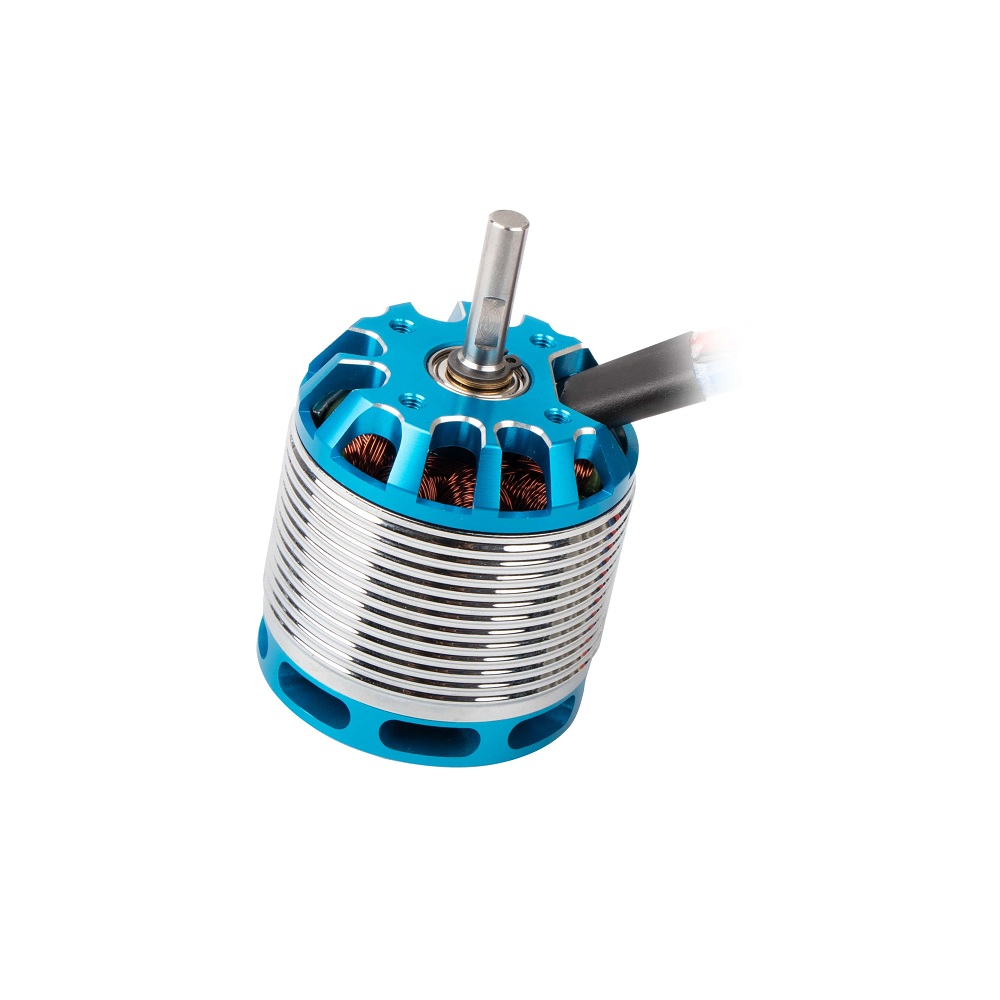

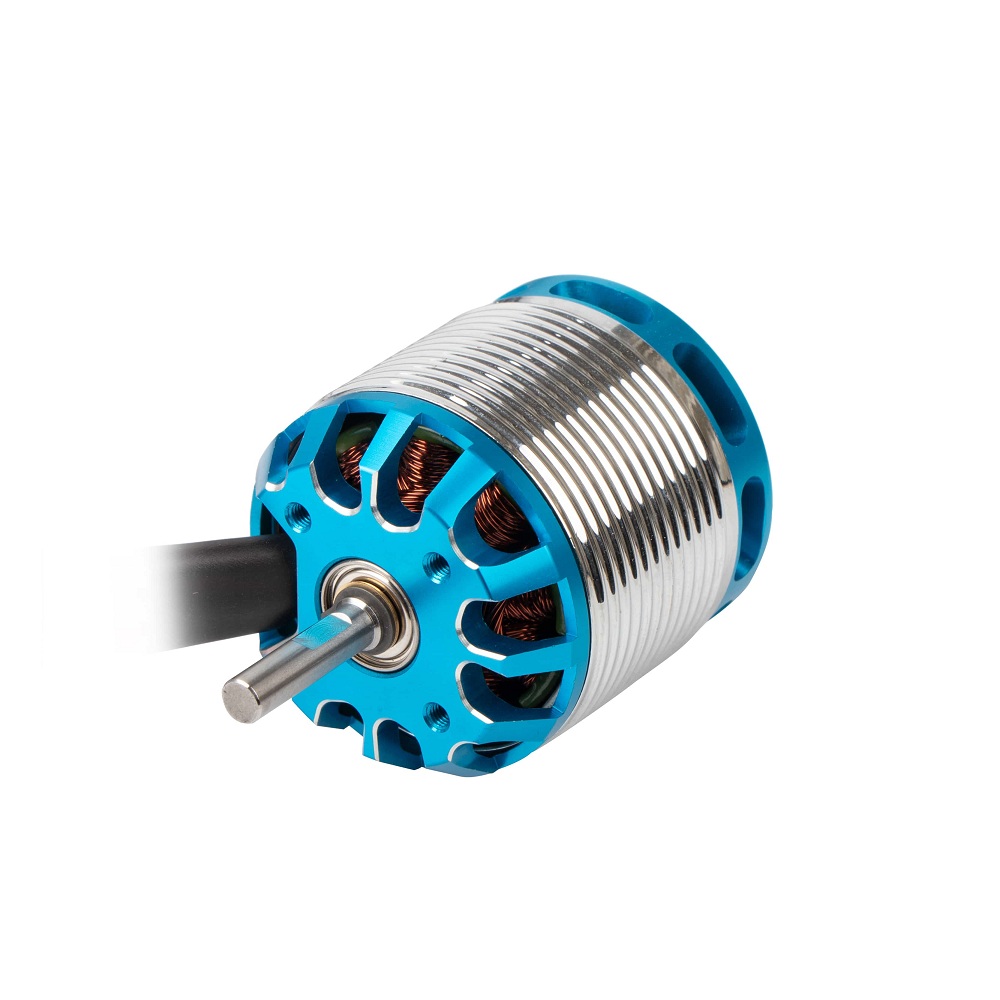

FLASH HOBBY H500 3524 1600KV 80A 1700W Helicopter Brushless Motor 4mm Bullet-connector For 500 Align Trex RC Helicopter
Specification:
KV: 1600KV
Max current: 80Amps
Max Power: 1700watts
Idle current: 3.2Amps
Resistance: 0.0183O
Shaft: 5.0mm
Weight: 230g
Suggested ESC: 80A
Cell count: 3-6s Lipoly (Voltage)
Bolt holes spacing:M3 X25mm
Bolt thread: M3X8

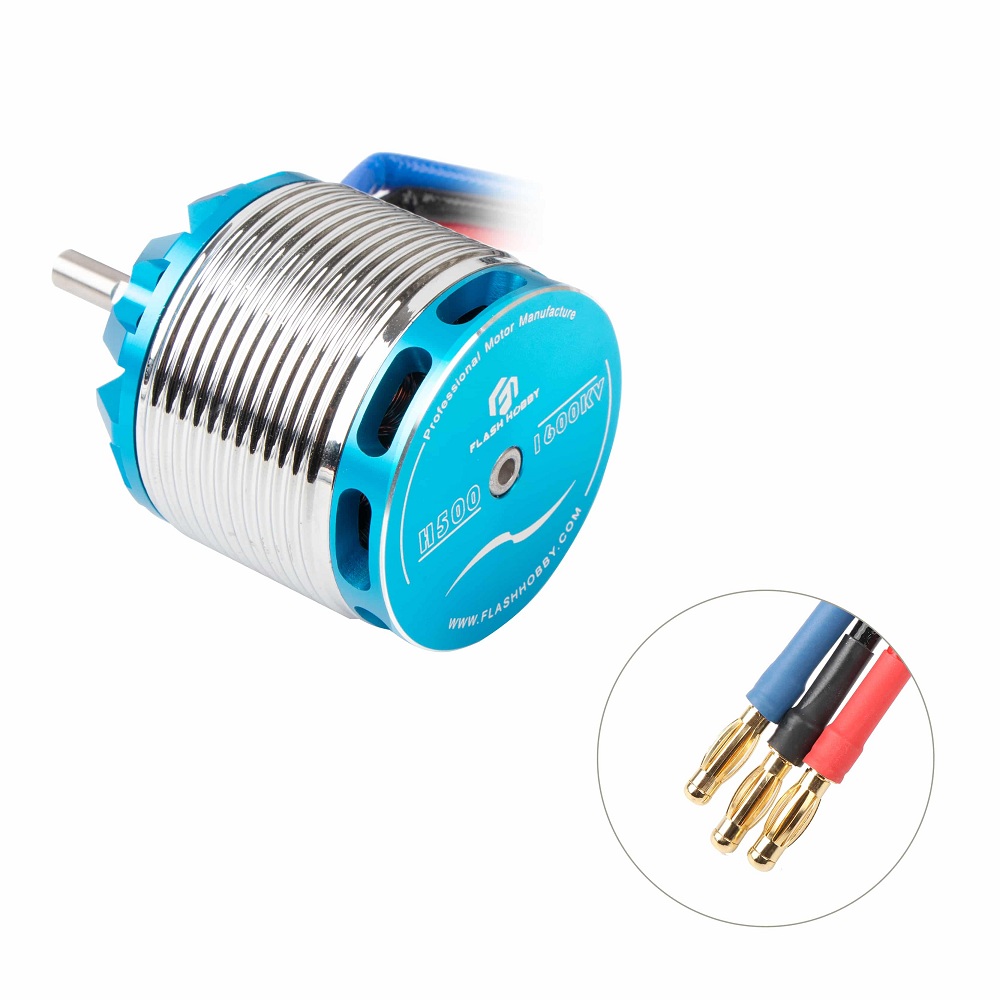

Connection: 4.0mm Bullet-connector

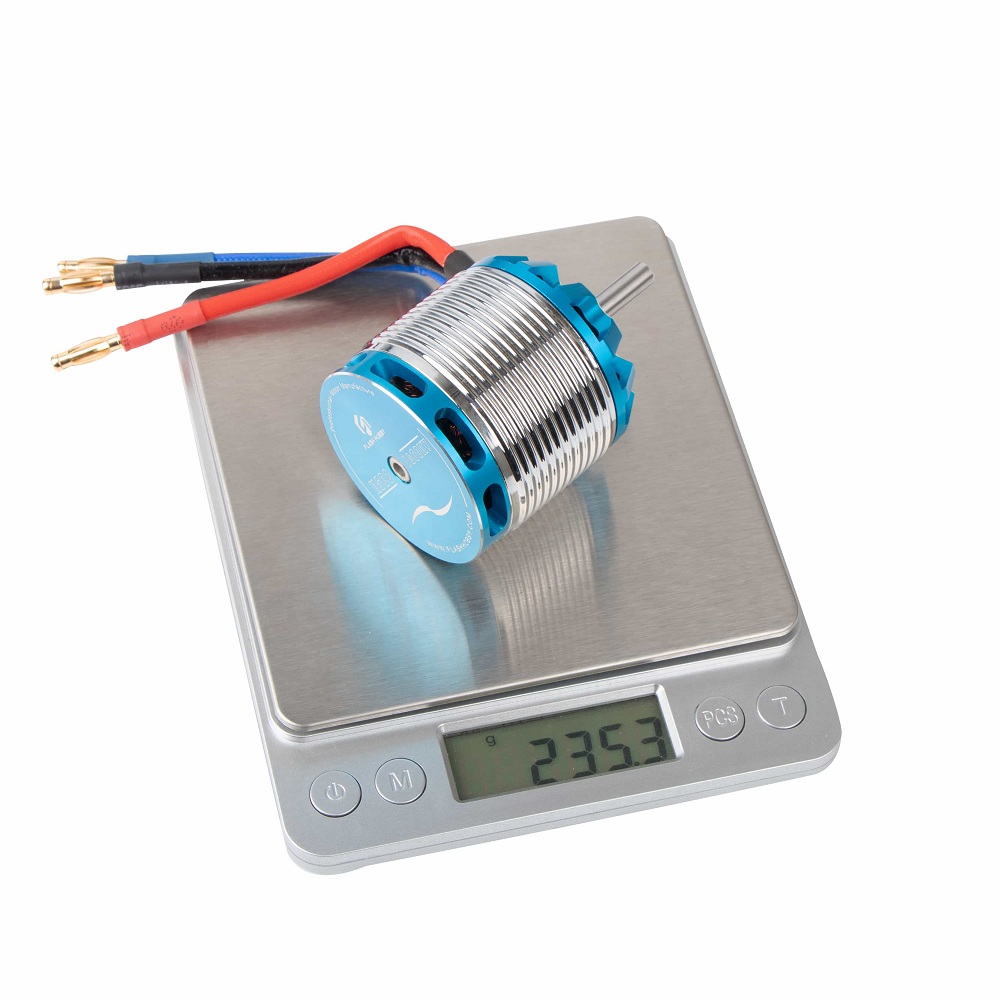

Weight: 253. 3g (including the cables)
Motor Size 43.5x445mm
Stator Diameter: 35mm
Stator Height: 24mm
Shaft Diameter: 5.0mm
Motor Mount: 25*25mm(M3*4)
Configuration: 9N6P
Feature:
H500 motor uses high magnetic energy product N45SH magnetic steel temperature resistance up to 150 degrees. The 6-level magnetic steel forms a powerful magnetic field. In combination with the 0.2 Kawasakis steel sheet the H500 motor not only has high torque but also high efficiency.
The H500 motor has a maximum speed of up to 40 000 rpm and the high-speed motor is a test for bearings and shafts. Therefore on the HF500 motor we installed the NMB original imported bearings and the shaft material was changed to HRC 55 degree stainless steel which improved the defects of the previous shaft.
The F500 motor adopts 220 high-temperature enameled wire and the outlet bushing is changed to a carbon fiber casing which is fireproof and strong and better protects the copper wire from damage. With a 4.0 connector it can withstand larger currents and is safer.
The F500 motor rotors are calibrated at high speeds to make the motor vibrate less at high speeds and the flight is more stable!

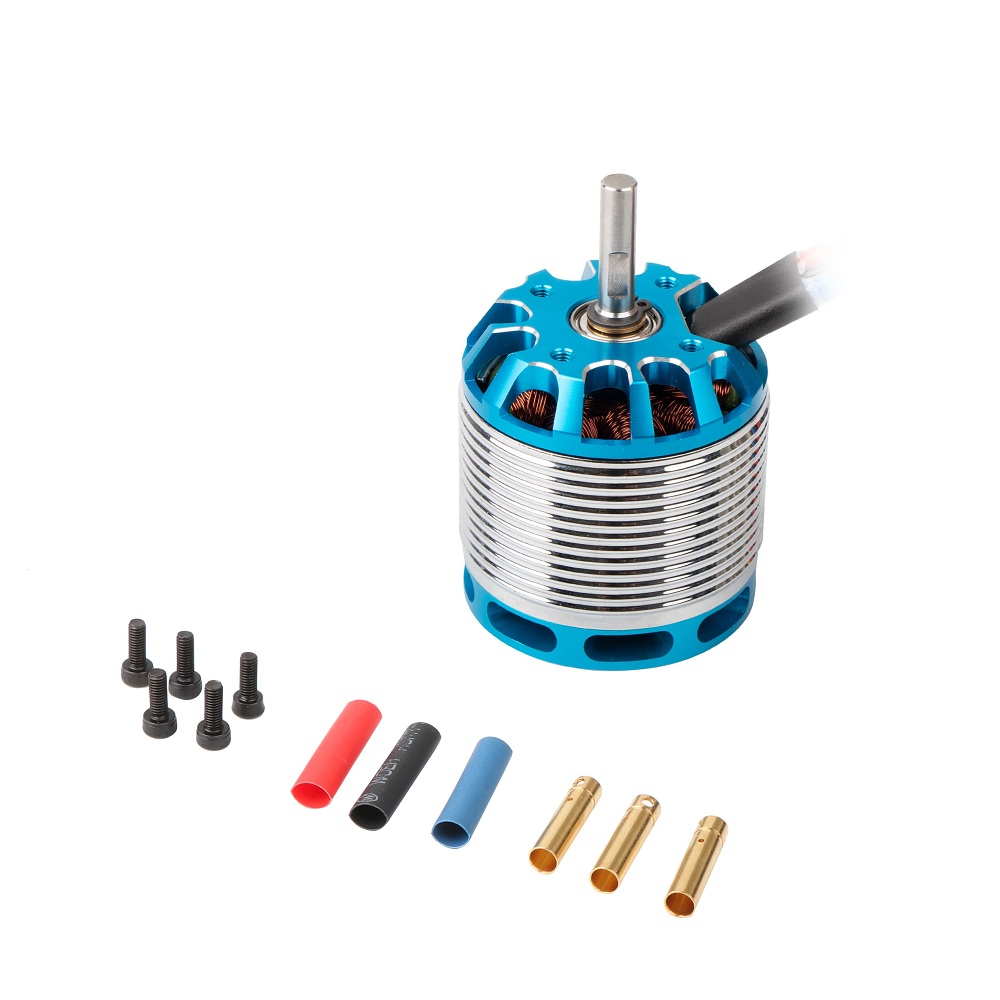

Package Included:
1xH500 Helicopter Motor
