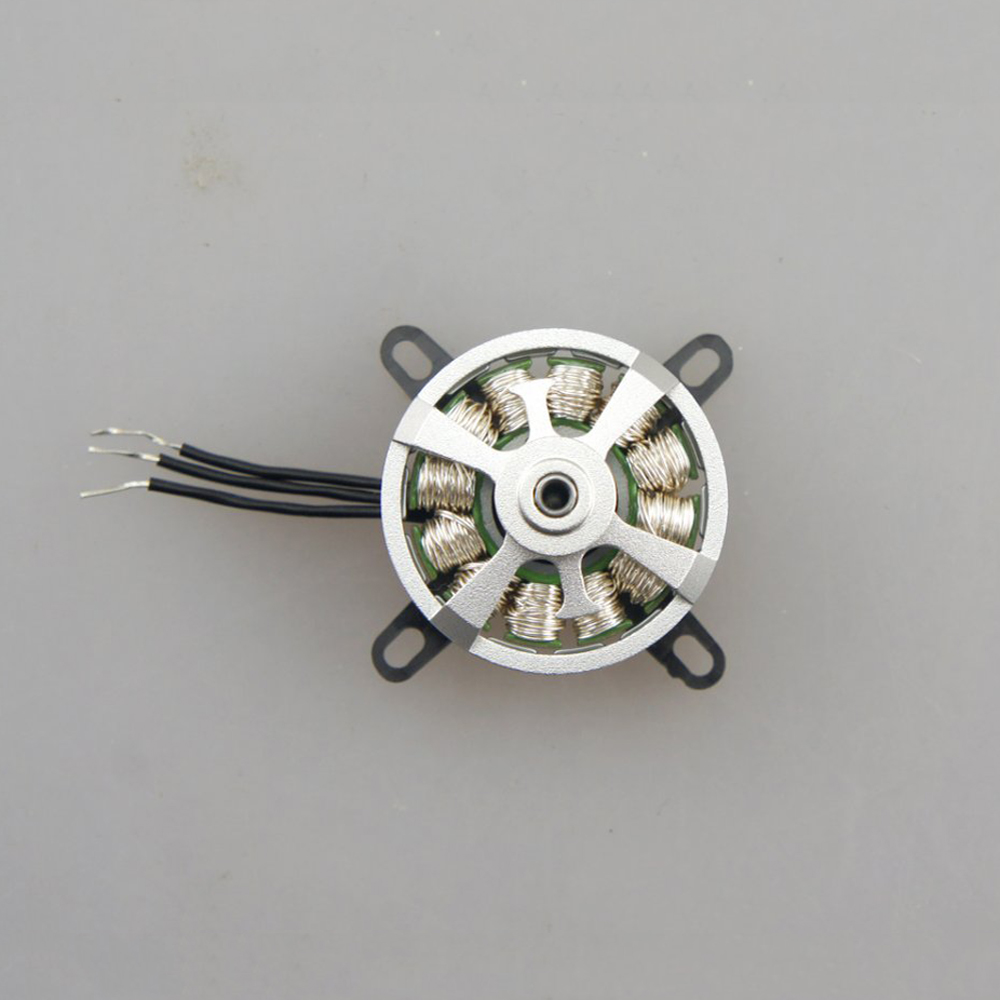

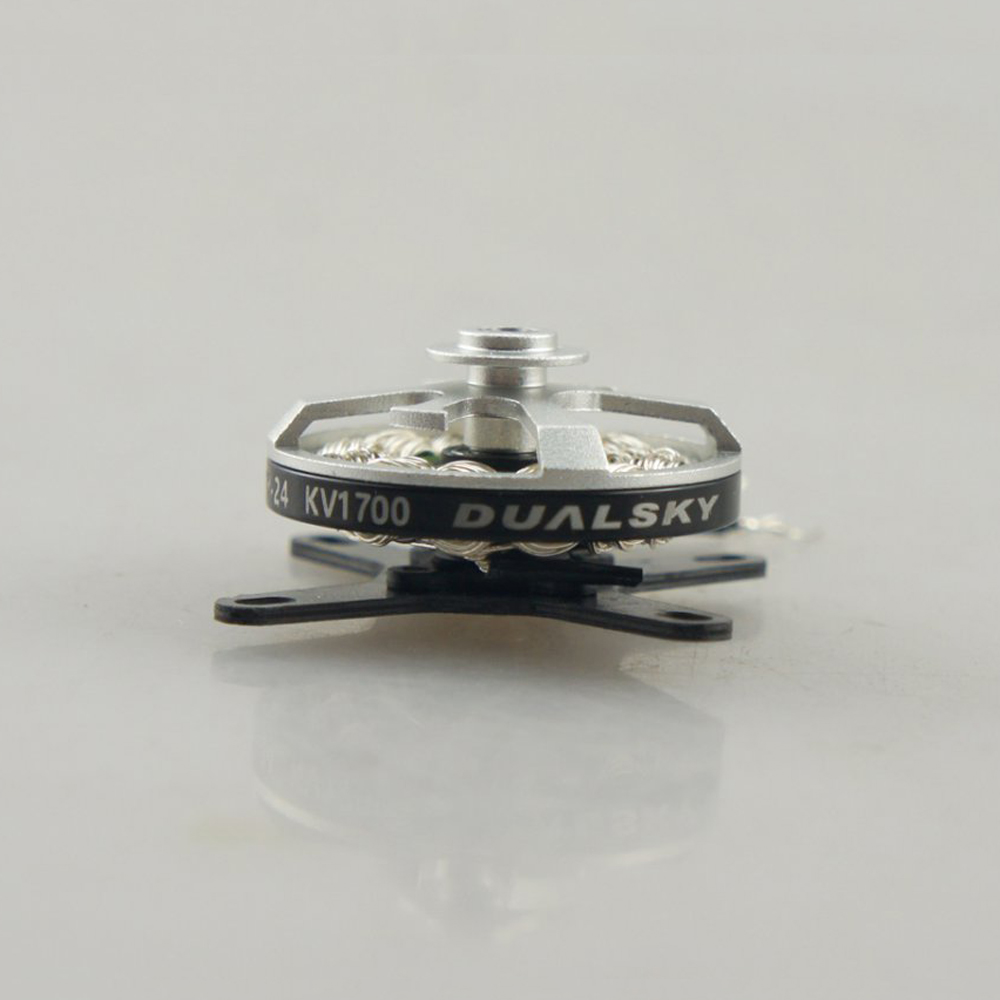

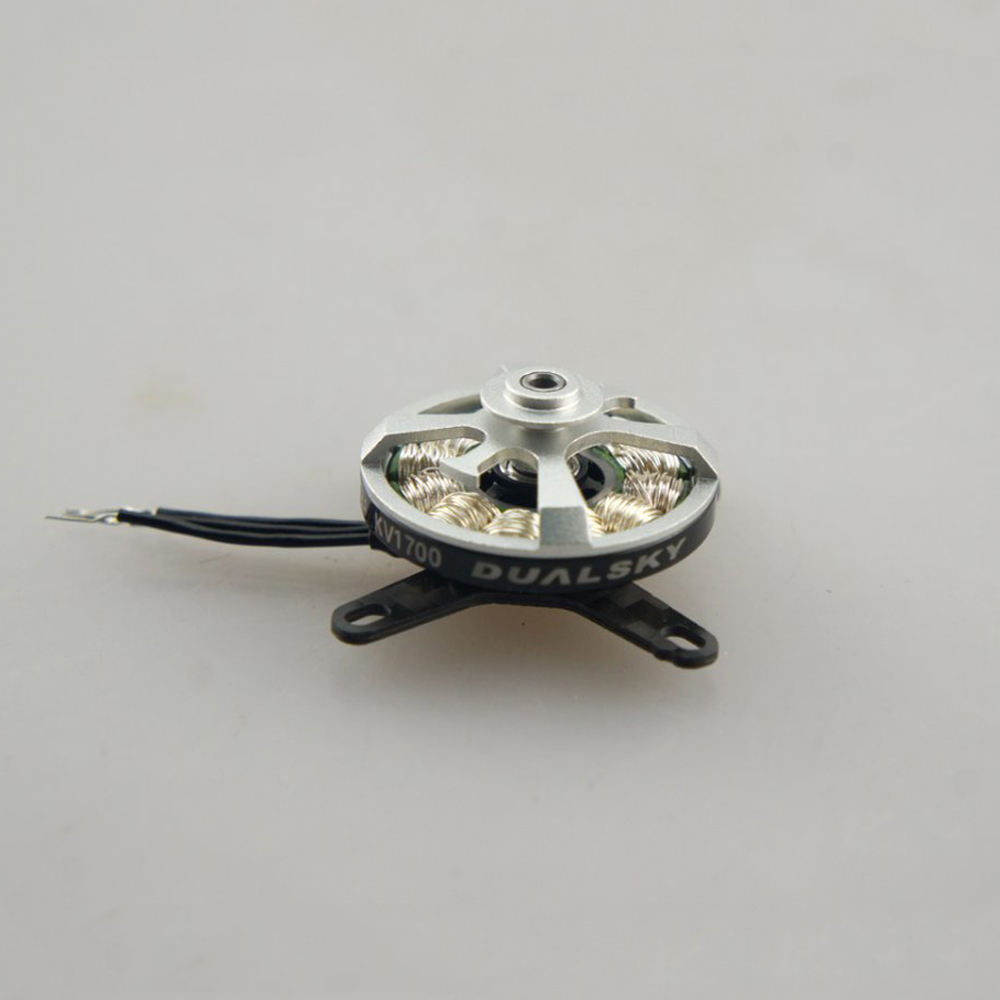

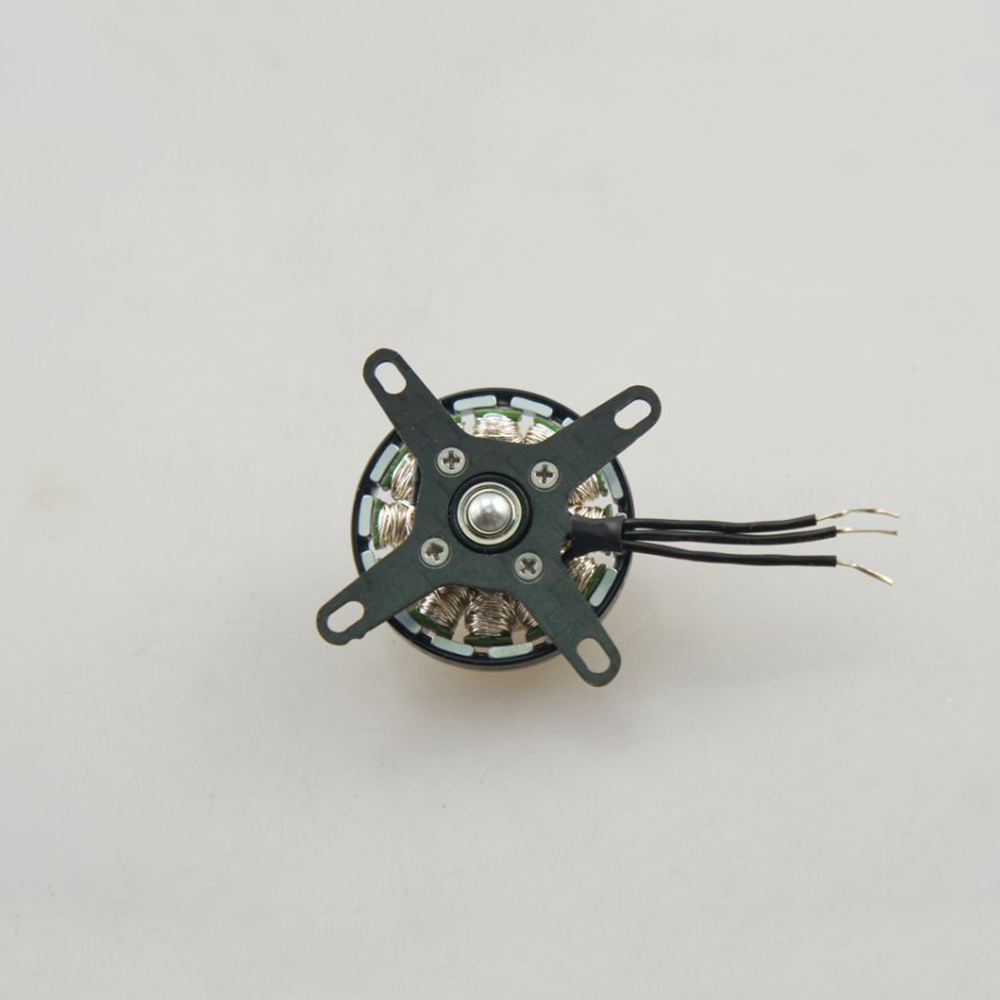

Dualsky XM2202TY-24SE XM2202TY-24 XM2202RTR-24 1700KV F3P Outrunner Brushless Motor for RC Airplane Fixed Wing RC Racer Drone
Dualsky XM2202TY-24SE XM2202TY-24 XM2202RTR-24 1700KV F3P Outrunner Brushless Motor for RC Airplane Fixed Wing RC Racer Drone
Description:
Brand: Dualsky
Model: XM2202TY-24SE SM2202TY-24 XM2202RTR-24 (Optional)
KV: 1700KV
Specification:
| Xmotor TY & RTR Series | XM2202TY-24SE | XM2202TY-24 | XM2202RTR-24 |
| KV | 1700 | ||
| Wiring | 24T WYE silver wire | 24T WYE | |
| Slots & Poles | 12 14 | ||
| Weight w/ wires(g) | 10.2 | 10 | 16 |
| Outer Diameter (mm) | 26 | ||
| Length (mm) | 14.8 | 15.3 18.5 w/ ICs | |
| Diameter of Shaft (mm) | 3mm hollow | ||
| Mounting holes pitch (mm) | M1: 30 to 33 M2: 44 | ESC bord: 31.4 | |
| Idle Current(lo) @10V (A) | 0.15 | 0.18 | |
| Resistance(Ri) (mO) | 460 | 540 | |
| Cruising power(W)[5 mins] | 15 | 14 | |
| Bursts current(A)[15s] | 3.7 | 34 | 3.6 |
| Peak power(W)[15s] | 27 @7.4V | 25 @7.4V | |
| Recommended ESC | XC0610BA-V2 | Integrated ESC Board | |
| Propeller | GWS0843 PT9x2.3i PT9x3i @7.4V | ||
| Memo | For up to 120g F3P models | For up to 110g F3P models | |
Package included:
1x Dualsky XM2202TY-24SE XM2202TY-24 XM2202RTR-24 1700KV F3P Outrunner Brushless Motor
Specifications
| Model | XM2202RTR-24 or XM2202TY-24 or XM2202TY-24SE |
