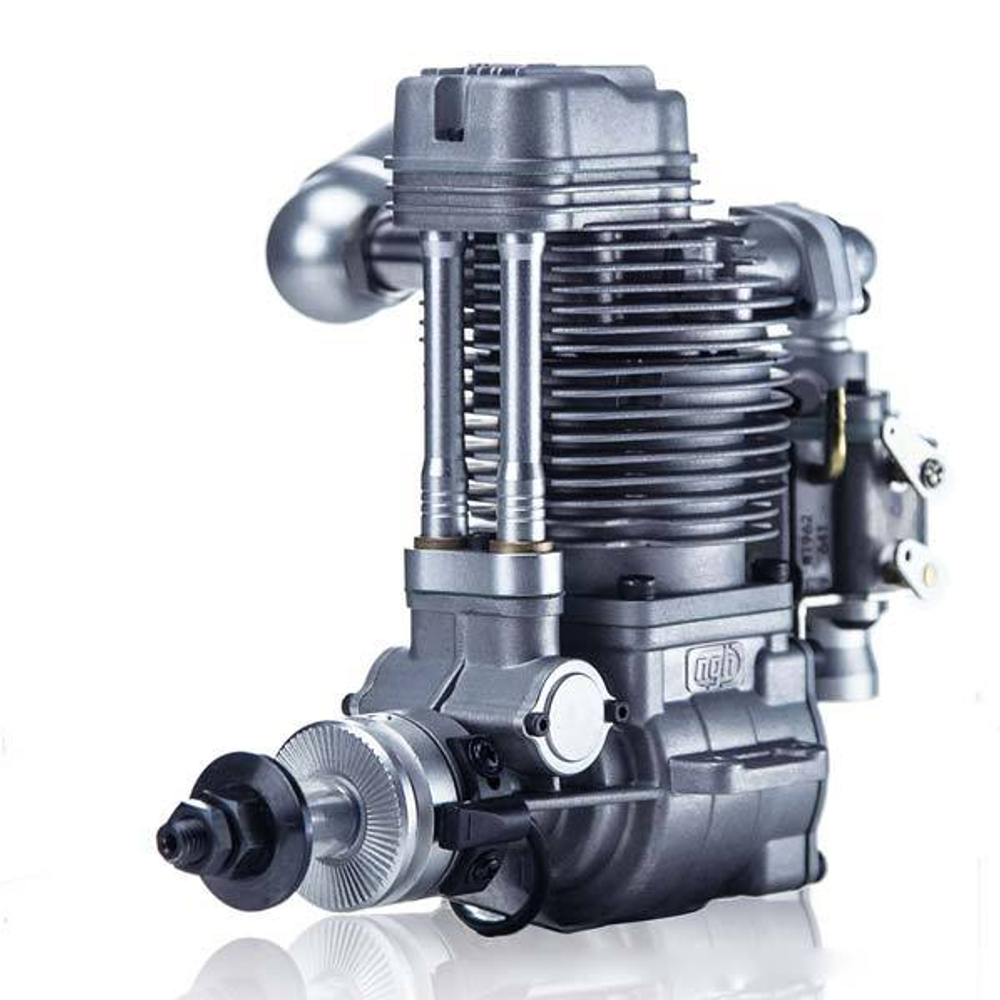

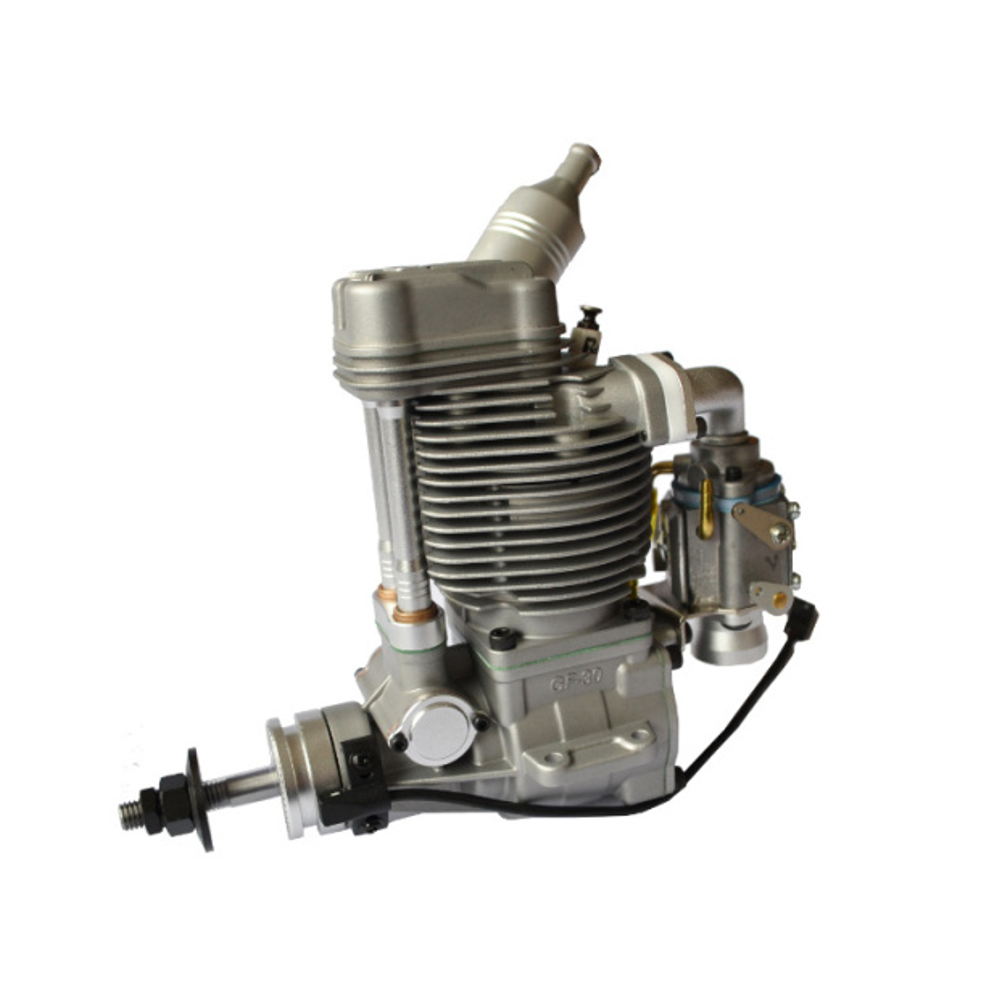

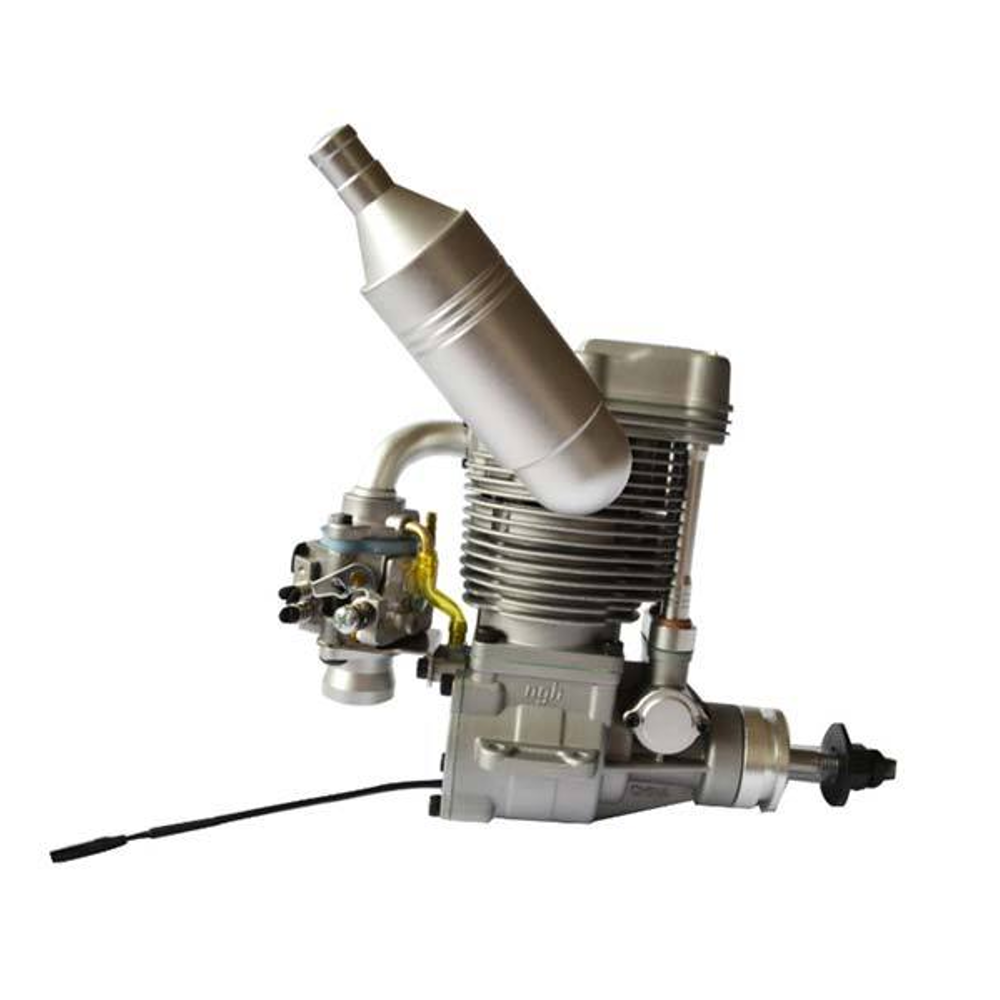

NGH GF30 30cc Four Stroke Single Cylinder Petrol Engine Gasoline Engine for RC Airplane

Overview:

GF30 has the same installation dimensions as the 120-180 grade methanol four-stroke engine. Its power is quite beautiful. The 120-180 grade methanol four-stroke engine is suitable for RC aircraft with a take-off weight of 6-10kg. It is a good power configuration for 120-180 grade RC aircraft. .

GF30 uses CM6 spark plug standard NGH universal exhaust muffler smoother exhaust lower sound more surging power and is equipped with CNC-engraved and anodized adjustable-length T-type engine mounting frame for engine installation More stable and less vibration.

The rear carburetor makes the engine adjustment more convenient; the connecting rod is equipped with a needle bearing to lubricate the pin shaft; the separation lubrication circulation system makes the engine lubrication more fully; the double piston ring (one lubricating oil ring and one sealing ring) Can be sealed and lubricated well; the cylinder liner is made of wear-resistant ductile iron and the hole roundness tolerance of the cylinder body is within 0.01mm and the accuracy is higher than the roundness tolerance of the aluminum alloy chromium-plated cylinder liner by 0.03mm. In principle the aluminum alloy chromium-plated cylinder liner Does not meet EU environmental requirements.

Specifications:

Brand Name: NGH

Item Name: GF30

Type: Gas 4 stroke air cooled engine

Cylinders: Single

Displacement: 29.91cc

Bore x Stroke: 36 x 29.4mm

Power: 2.68HP/9000rpm

RPM Range: 1600 - 8500rpm

Ignition: Auto advanced RcEXL DC-CDI

Ignition battery: DC 4.8~8.4V 1000mAh recommended

Spark Plug: CM6 RcEXL

Ignition Power: 4.8~6V DC (4~5 cell nimh battery)

Fuel: Unleaded 90# Gas / 2T Oil mix 35:1

Recommended Propellers: 16x8-10 17x8 17x10 18x8 2 blade

Weight: 1250g with ignition system

Features:

* Four stroke sound and efficiency

* Twin roller CNC conrod

* Angle adjustable exhaust system with baffler

* Speed Stack installed on the carb for improved throttle response

* Compact and powerful design ideal for scale model installations

* Genuine Walbro carburetor for reliable running and easy tuning

* Blue anodized 'beam' style engine mounts included

* RCEXL Ignition with automatic advancing system

* Ideal for 20-25cc 2 stroke class models

* Powerful output and excellent reliability

* Attractive blue anodized prop hub

* locking prop nut included

* Clean burning no more oily residue on your model

* Purpose made specifically designed from the ground up and optimized for gas powered RC planes

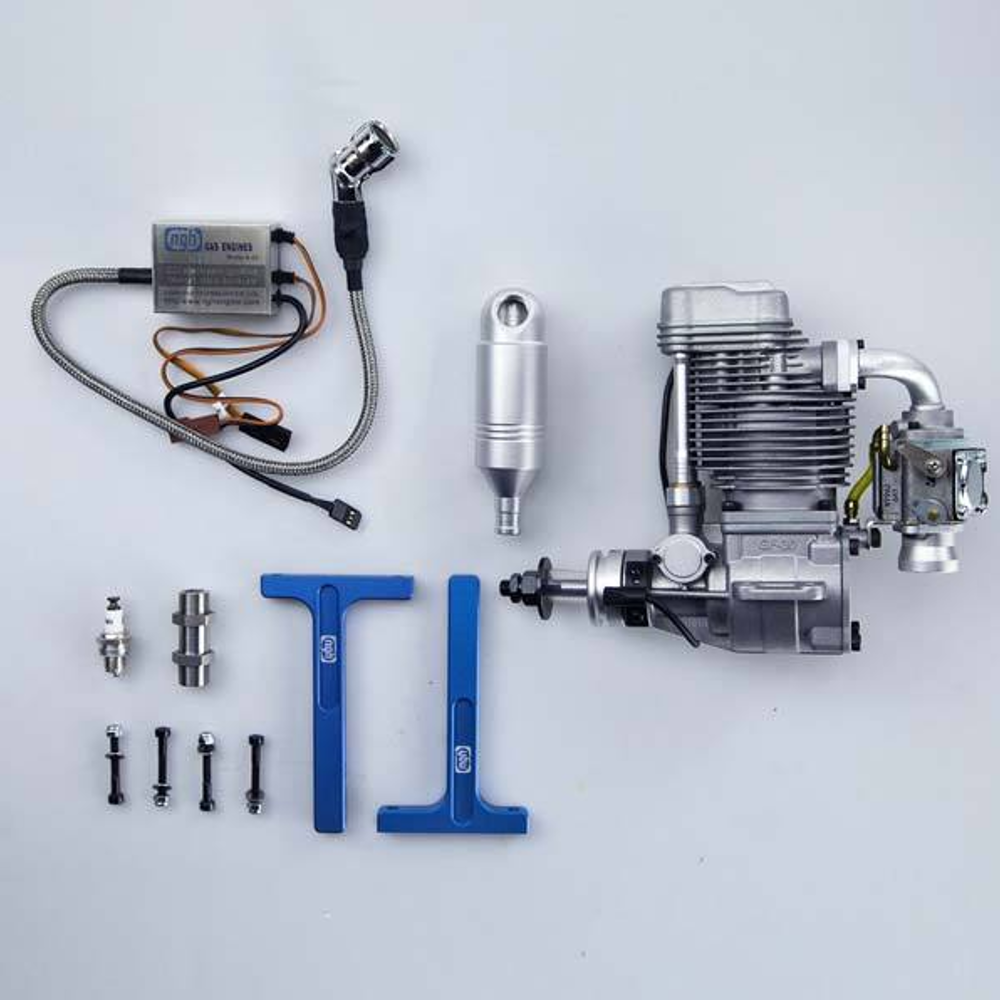

Package Included:

1x NGH GF30 30cc Four-Stroke Engine

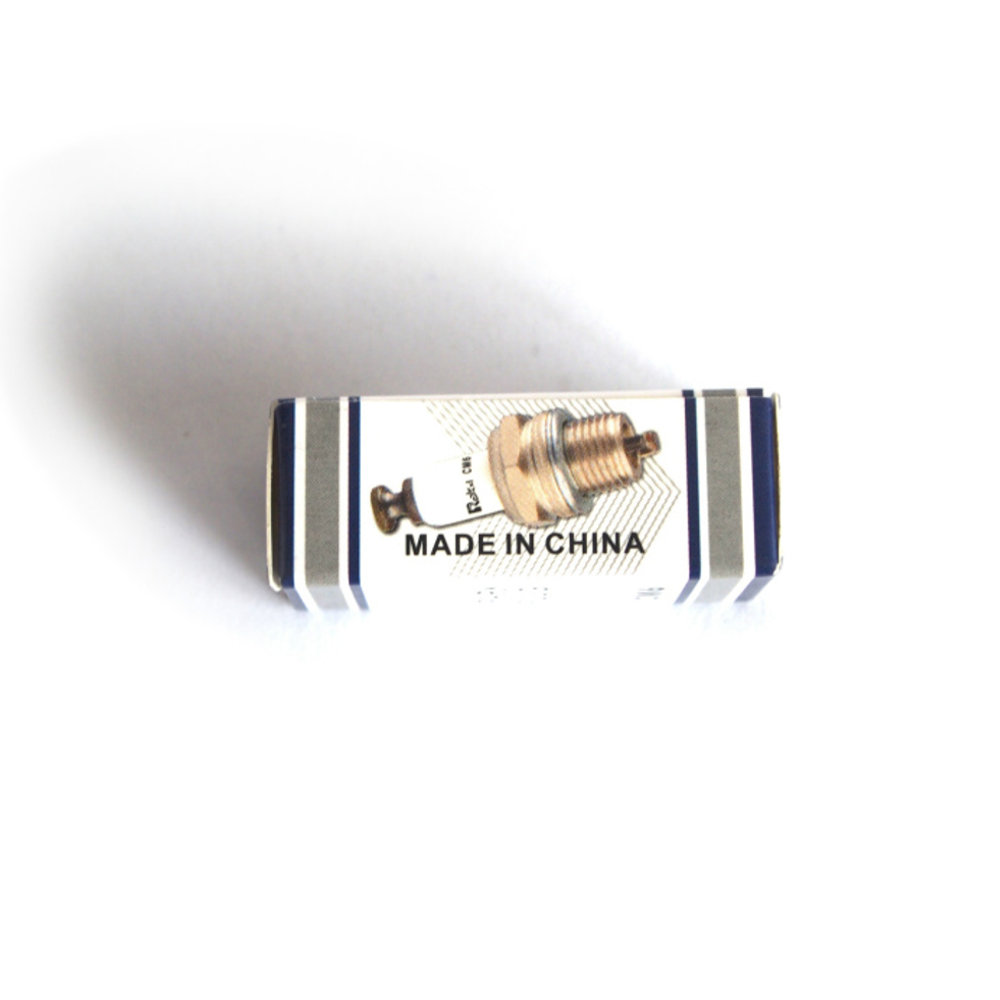

1x Spark Plug

1x CDI

1x Exhaust Pipe

1x Mounting Bracket Base

1x English Manual
