T-MOTOR MF1302/MF1503/MF1604/MF1806/MF2009/MF2211/MF2412/MF2614/MF2815/MF301/MF3218 Folding Polymer Propeller for FPV RC Drone RC Airplane Fixed Wing

https://www.rcwarehouse.nl/web/image/product.template/5502/image_1920?unique=6c16aba

34.04 € 34.04 EUR 34.04 €

34.04 €

  • Model

This combination does not exist.

T-MOTOR MF1302/MF1503/MF1604/MF1806/MF2009/MF2211/MF2412/MF2614/MF2815/MF301/MF3218 Folding Polymer Propeller for FPV RC Drone RC Airplane Fixed Wing

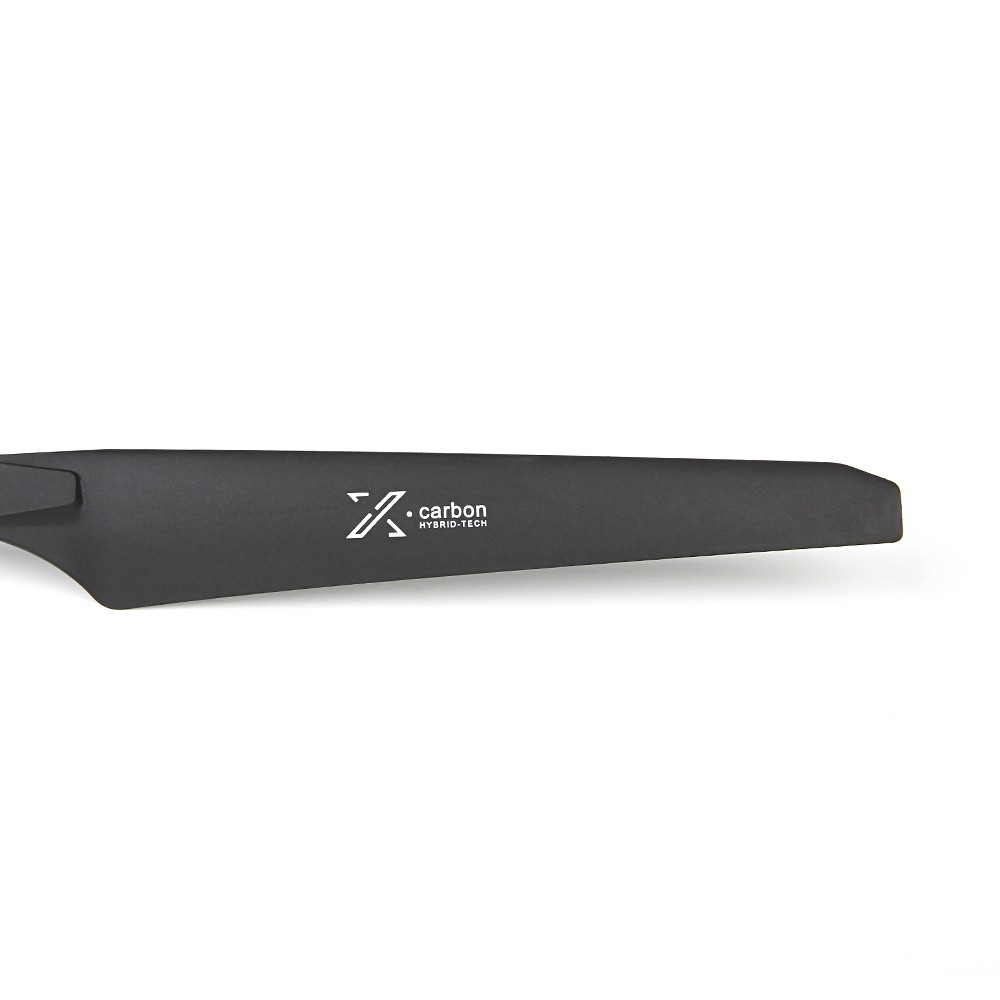

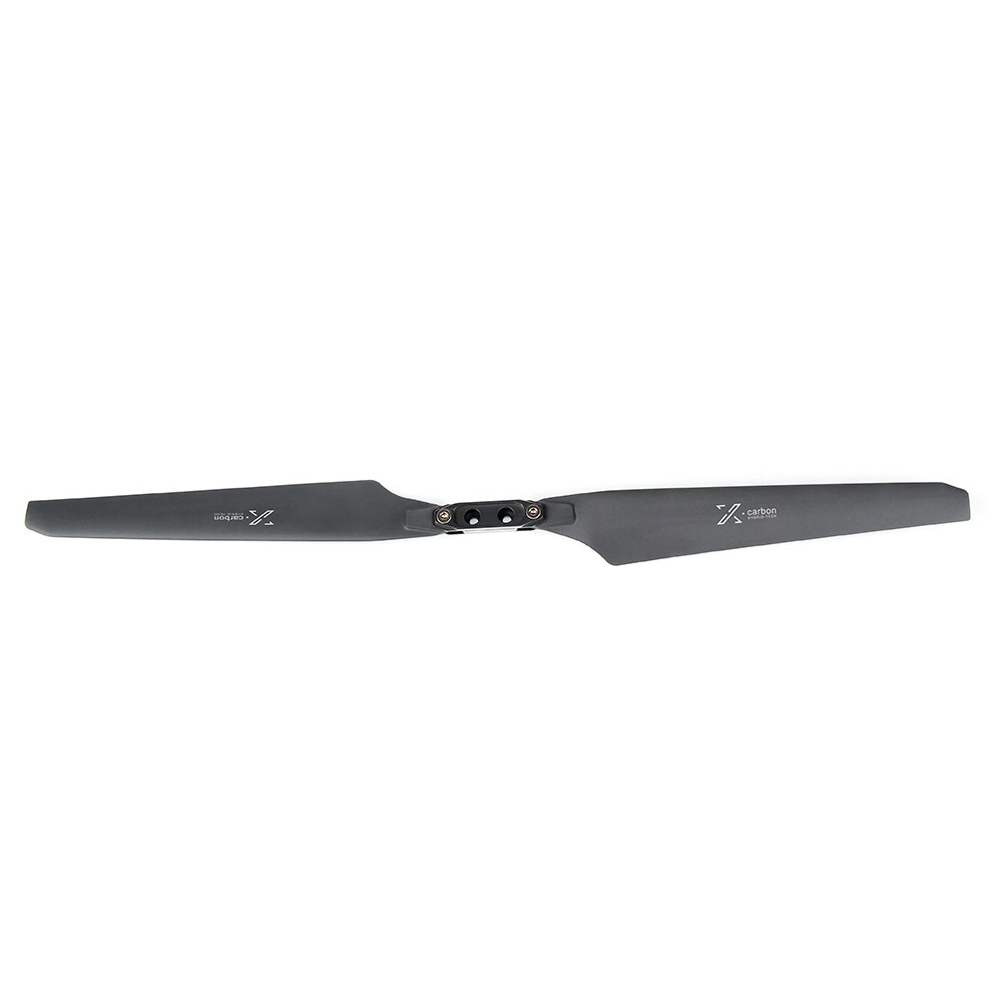

The T-Motor Folding Polymer Propeller is Tiger Motor's latest propeller innovation for the large scale / commercial drone industry. T-Motor's injection molding process has been refined time and time again resulting in the X Carbon series. X Carbon props feature an impressive mix of carbon fiber and polymer properties that give the user a lightweight yet amazingly durable folding propeller that exudes quality.

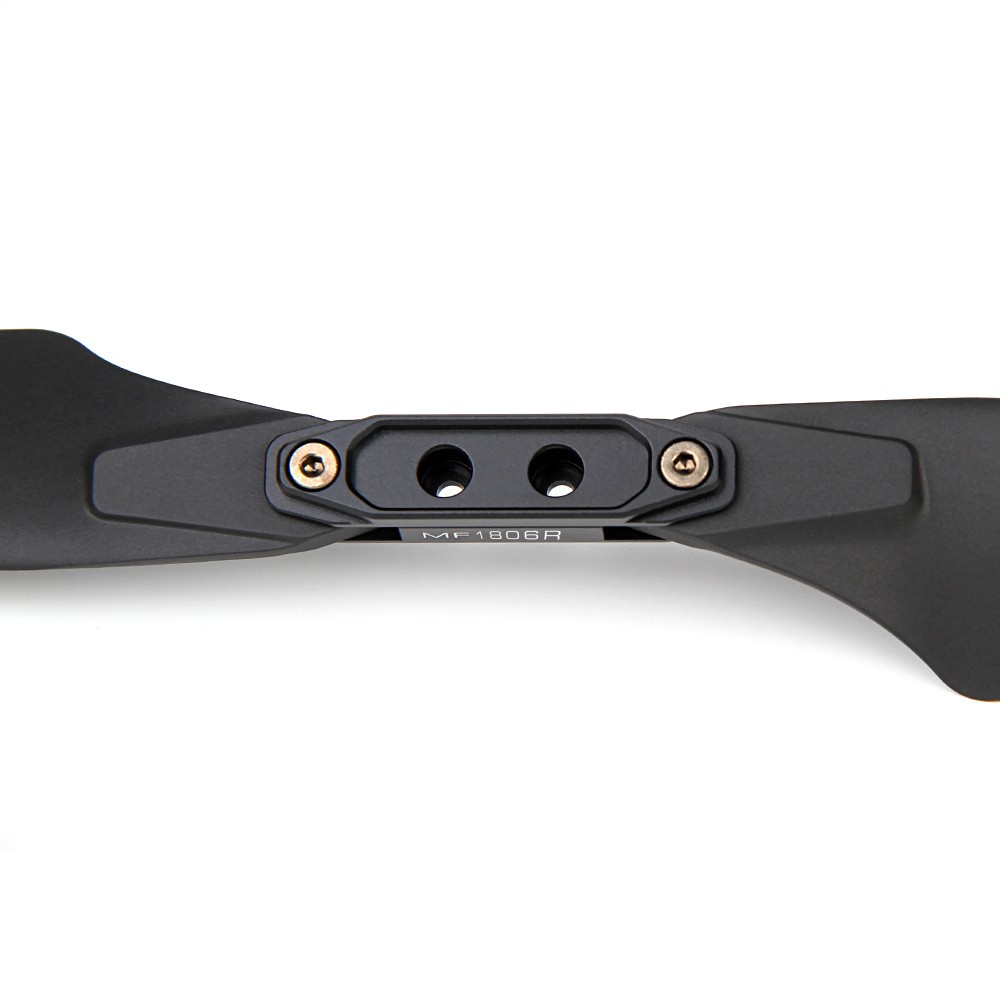

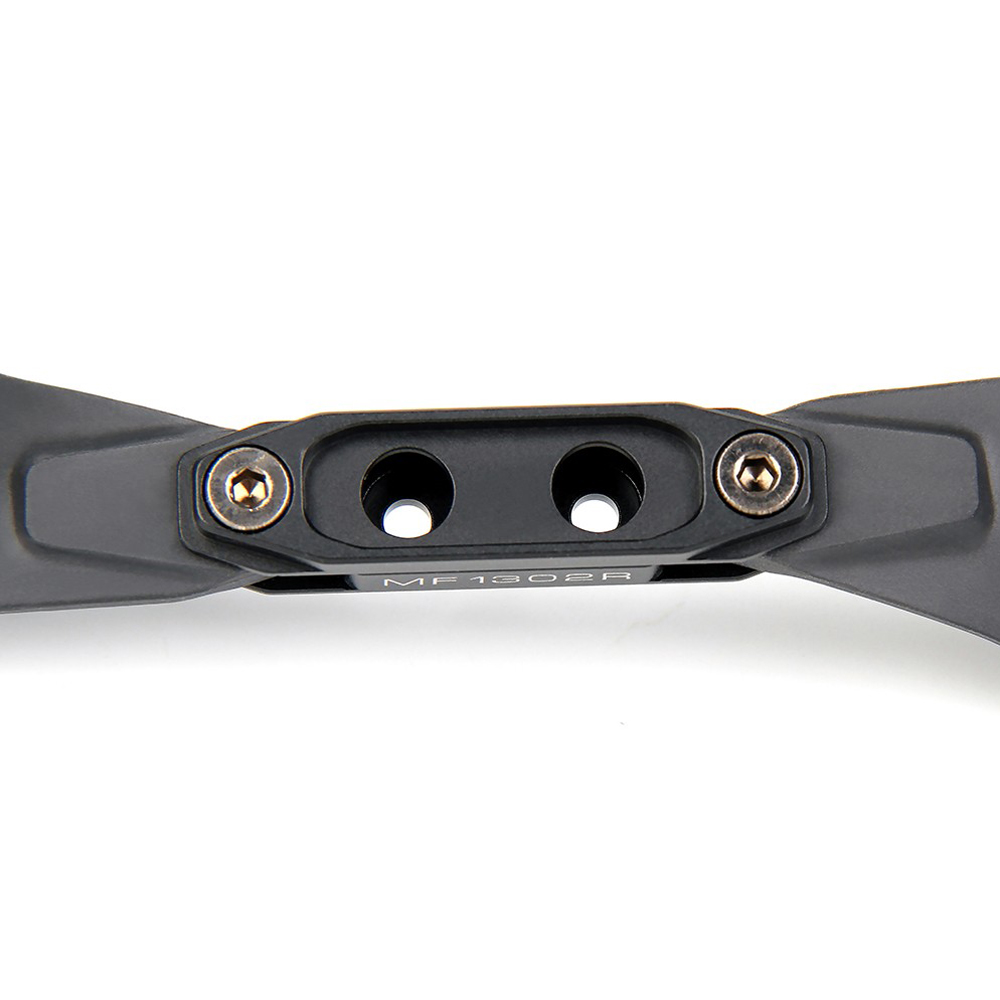

This folding propeller has great features like 0.25mm trailing edges to reduce airflow resistance to your drone and provide more lift. Its prop connector is made of 7075 aluminum alloy to help prevent rust. Additionally a heat insulating coating is employed to the surface of the propeller to protect your propeller from ultraviolet rays that could heat up and deform the shape of the propeller over time.

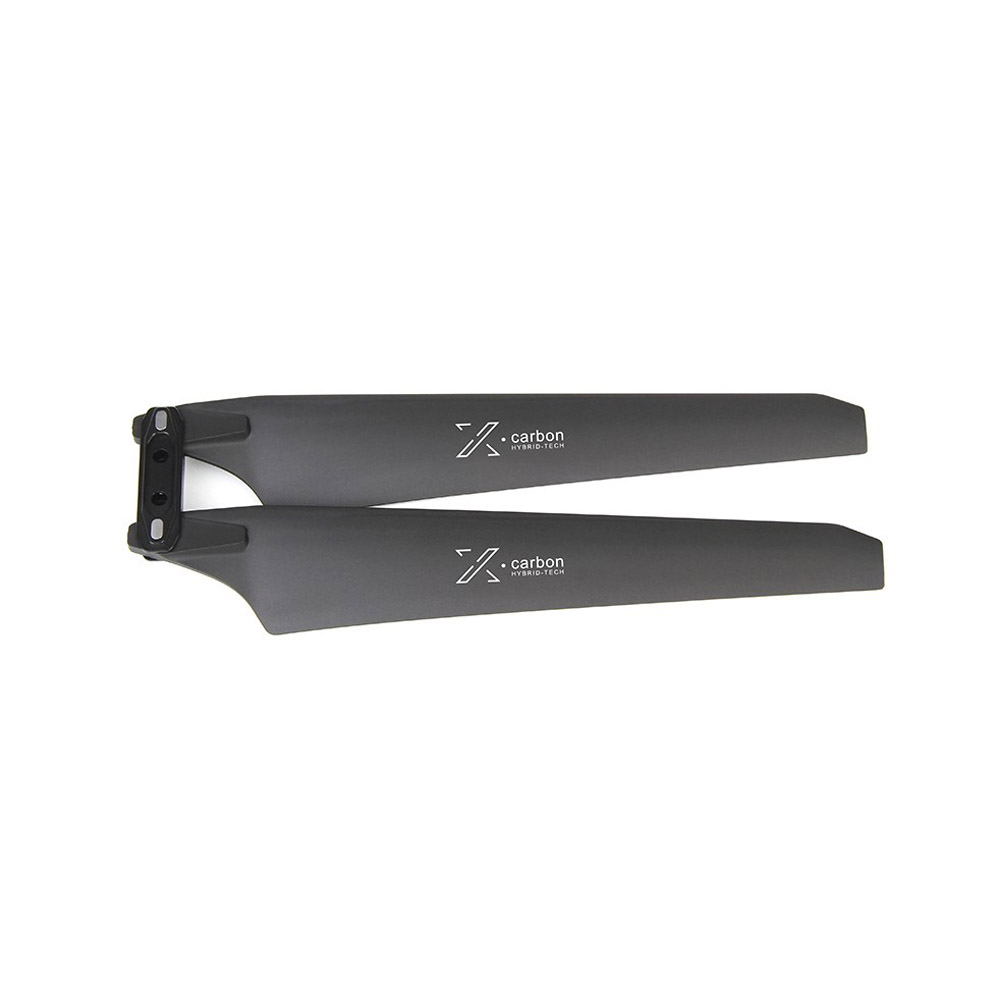

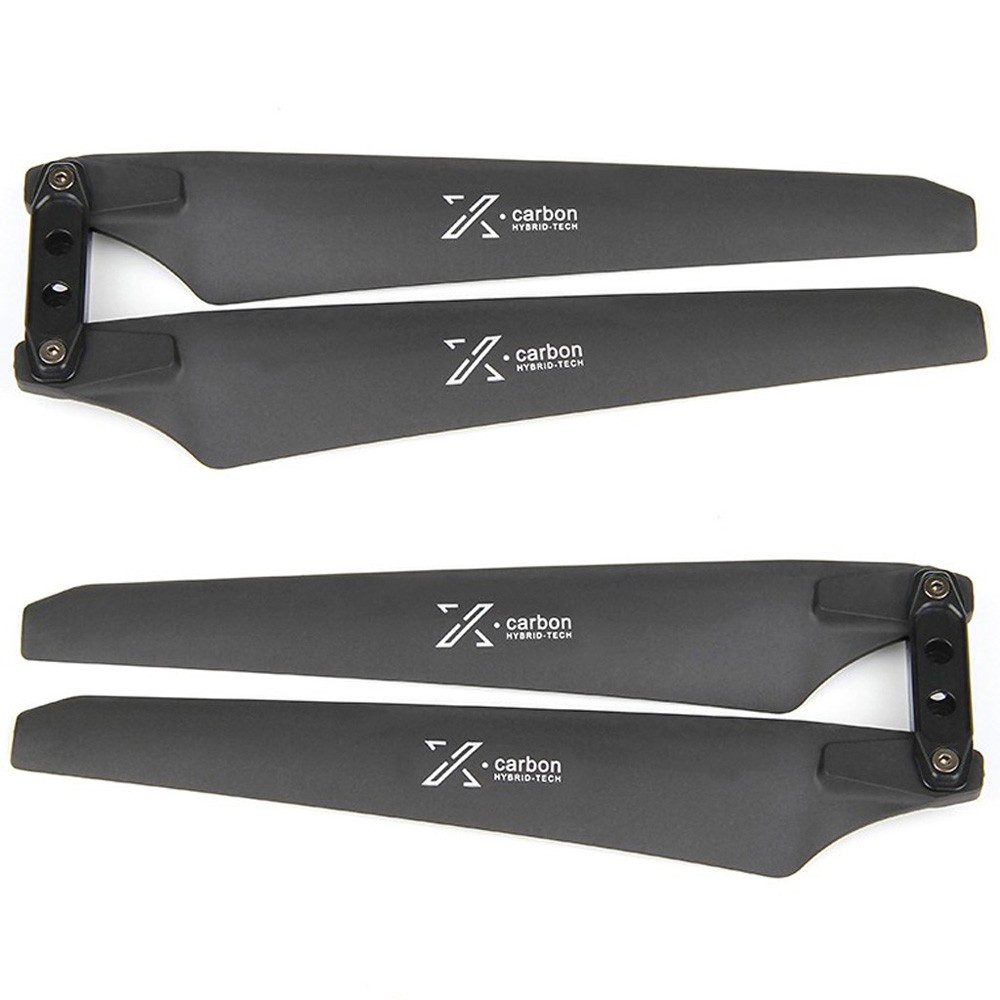

The folding ability of these propellers allows for easy transport and practicality in storage.


Description:

Brand: T-Motor

Item: Folding Propeller

Material: Polymer+CF

Size:  MF1302/MF1503/MF1604/MF1806/MF2009/MF2211/MF2412/MF2614/MF2815/MF301/MF3218 (Optional)



MF1302 Specification:

Weight (Single Blade): 17g

Package Weight: 83g

Diameter: 13.4inch(339.8mm)

Pitch: 48inch(121.6mm)

Recommended Thrust/RPM: 0.7~1.2kg/5100~6600RPM

Recommended Max Thrust/RPM: 2kg/8400RPM

Ambient Temp: -40~65

Storage Temp/Humidity: -10/ <85%

Package Size: 187*76*38mm


MF1503 Specification:

Weight (Single Blade): 24g
Package Weight: 121g
Diameter: 15inch(381mm)
Pitch: 5.4inch(136.1mm)
Recommended Thrust/RPM: 1~1.5kg/4100~4900RPM
Recommended Max Thrust/RPM: 3kg/7000RPM
Ambient Temp: -40~65
Storage Temp/Humidity: -10~50/ <85%
Package Size: 224*87*41mm

MF1604 Specification:
Weight (Single Blade): 30g
Package Weight: 130g
Diameter: 16.4inch(415.6mm)
Pitch: 5.9inch(148.8mm)
Recommended Thrust/RPM: 0.6~1.2kg/3400~4600RPM
Recommended Max Thrust/RPM: 4kg/8000RPM
Ambient Temp: -40~65
Storage Temp/Humidity: -10~50/ <85%
Package Size: 207*82*36mm

MF1806 Specification:
Weight (Single Blade): 37g
Package Weight: 152g
Diameter: 18.4inch(465.6mm)
Pitch: 6.6inch(166.9mm)
Recommended Thrust/RPM: 1~1.8kg/3200~4200RPM
Recommended Max Thrust/RPM: 6kg/7500RPM
Ambient Temp: -40~65
Storage Temp/Humidity: -10~50/ <85%
Package Size: 230*85*38mm

MF2009 Specification:
Weight (Single Blade): 59g
Package Weight: 213g
Diameter: 20.4inch(515.8mm)
Pitch: 7.3inch(185.1mm)
Recommended Thrust/RPM: 1.9~3.5kg/3400~4700RPM
Recommended Max Thrust/RPM: 9kg/7000RPM
Ambient Temp: -40~65
Storage Temp/Humidity: -10~50/ <85%
Package Size: 260*95*40mm

MF2211 Specification:
Weight (Single Blade): 71g
Package Weight: 247g
Diameter: 22.4inch(515.8mm)
Pitch: 8inch(185.1mm)
Recommended Thrust/RPM: 4~7kg/3700~4700RPM
Recommended Max Thrust/RPM: 11kg/6500RPM
Ambient Temp: -40~65
Storage Temp/Humidity: -10~50/ <85%
Package Size: 285*100*42mm

MF2412 Specification:
Weight (Single Blade): 96g
Package Weight: 327g
Diameter: 24.4inch(619.8mm)
Pitch: 8.7inch(221.3mm)
Recommended Thrust/RPM: 2.8~5kg/2700~3800RPM
Recommended Max Thrust/RPM: 12kg/5500RPM
Ambient Temp: -40~65
Storage Temp/Humidity: -10~50/ <85%
Package Size: 305*127*48mm

MF2614 Specification:
Weight (Single Blade): 126g
Package Weight: 415g
Diameter: 26.4inch(671.8mm)
Pitch: 9.4inch(221.3mm)
Recommended Thrust/RPM: 2.8~5kg/2700~3800RPM
Recommended Max Thrust/RPM: 12kg/5500RPM
Ambient Temp: -40~65
Storage Temp/Humidity: -10~50/ <85%
Package Size: 330*130*55mm

MF2815 Specification:
Weight (Single Blade): 164g
Package Weight: 521g
Diameter: 28.4inch(671.8mm)
Pitch: 10.1inch(257.6mm)
Recommended Thrust/RPM: 3.5~7kg/2200~3000RPM
Recommended Max Thrust/RPM: 15kg/5000RPM
Ambient Temp: -40~65
Storage Temp/Humidity: -10~50/ <85%
Package Size: 355*145*58mm

MF3016 Specification:
Weight (Single Blade): 184g
Package Weight: 604g
Diameter: 30.4inch(775.8mm)
Pitch: 10.9inch(275.8mm)
Recommended Thrust/RPM: 4~8kg/2000~2800RPM
Recommended Max Thrust/RPM: 16kg/4000RPM
Ambient Temp: -40~65
Storage Temp/Humidity: -10~50/ <85%
Package Size: 380*155*65mm

MF3218 Specification:
Weight (Single Blade): 204g
Package Weight: 656g
Diameter: 32.4inch(823.6mm)
Pitch: 11.6inch(293.9mm)
Recommended Thrust/RPM: 5~10kg/2200~3000RPM
Recommended Max Thrust/RPM: 18kg/4000RPM
Ambient Temp: -40~65
Storage Temp/Humidity: -10~50/ <85%
Package Size: 405*158*67mm

Package Included:
1x T-MOTOR MF1302/MF1503/MF1604/MF1806/MF2009/MF2211/MF2412/MF2614/MF2815/MF301/MF3218 Folding Polymer Propeller



Specifications

Model MF1302 or MF1503 or MF1604 or MF1806 or MF2009 or MF2211 or MF2412 or MF2614 or MF2815 or MF3016 or MF3218
