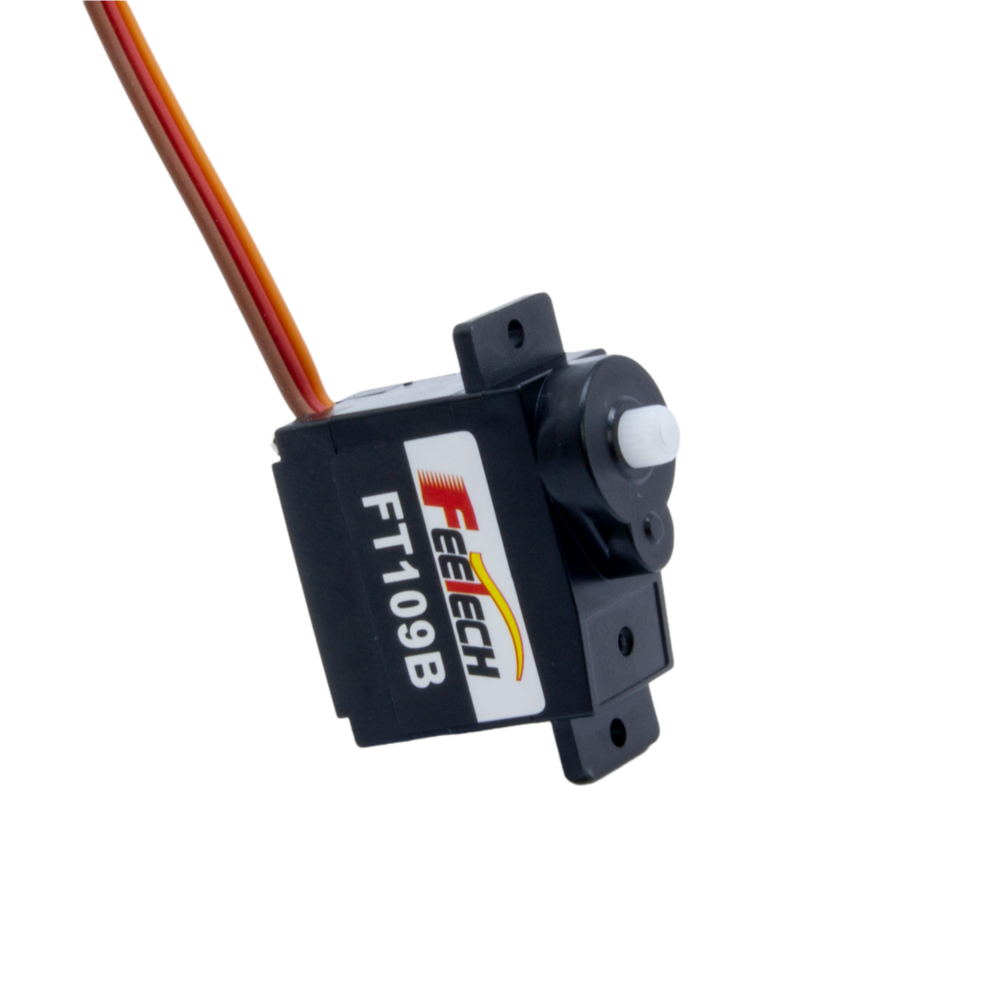

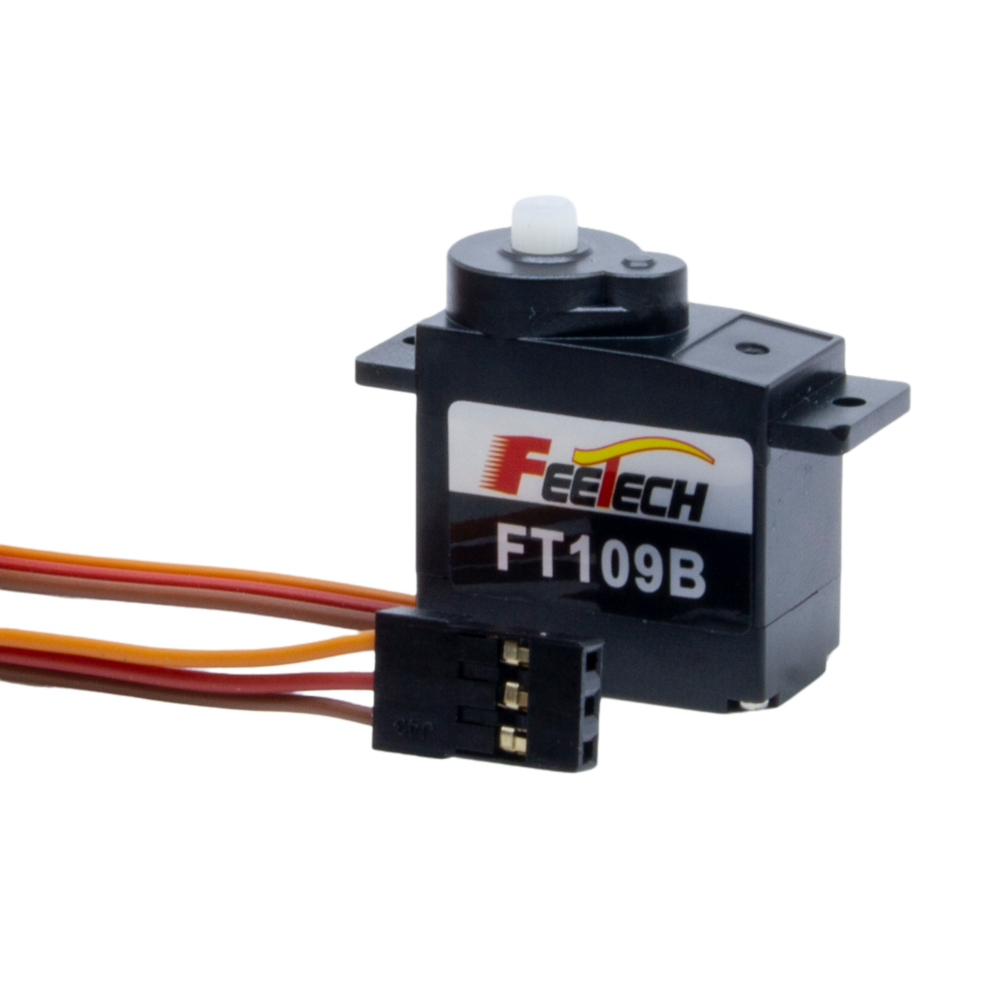

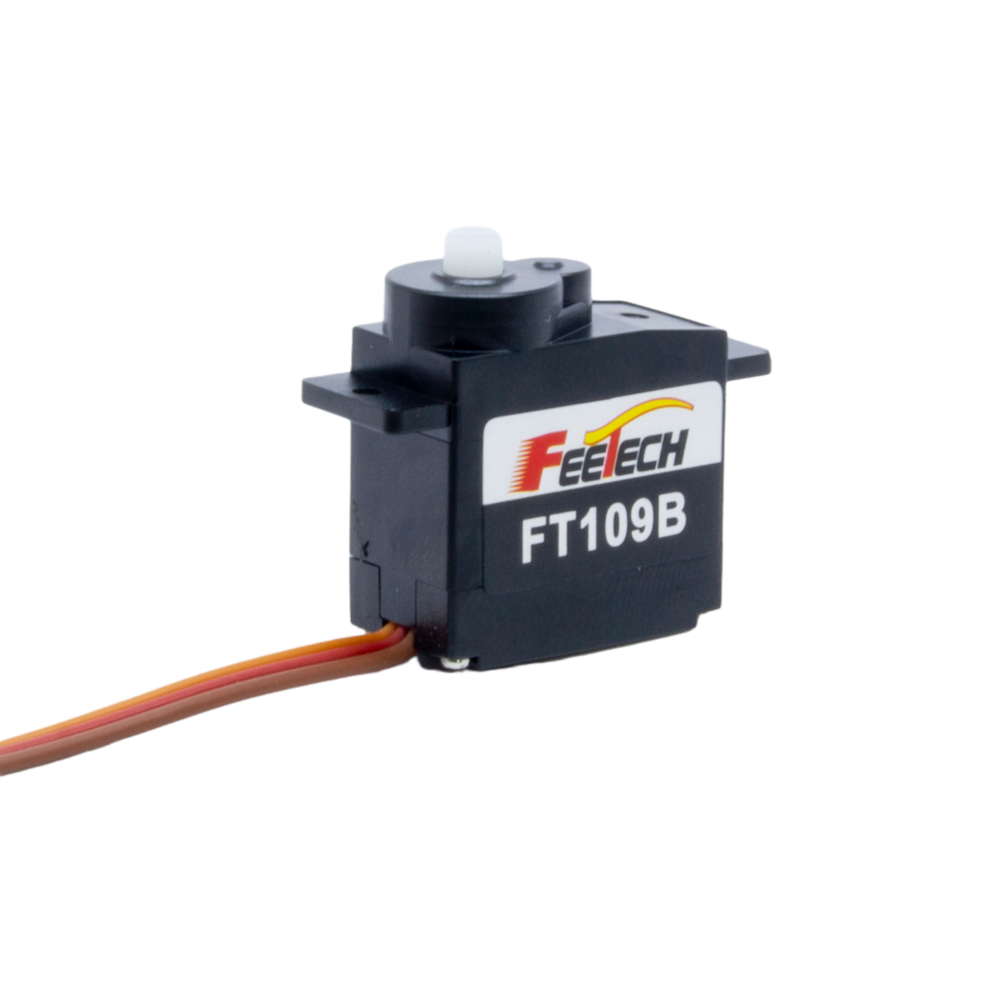

FEETECH FT109B 10.5g 4V-7.4V 1.8kg.cm 280 Degree POM Gear Iron Core Digital Servo For RC Airplane

https://www.rcwarehouse.nl/web/image/product.template/5676/image_1920?unique=0483037

11.49 € 11.49 EUR 11.49 €

11.49 €

    This combination does not exist.






    Specifications:

    Brand Name: FEETECH

    Item Name: FT109B

    Storage Temperature Range: -30~80

    Operating Temperature Range: -20~60

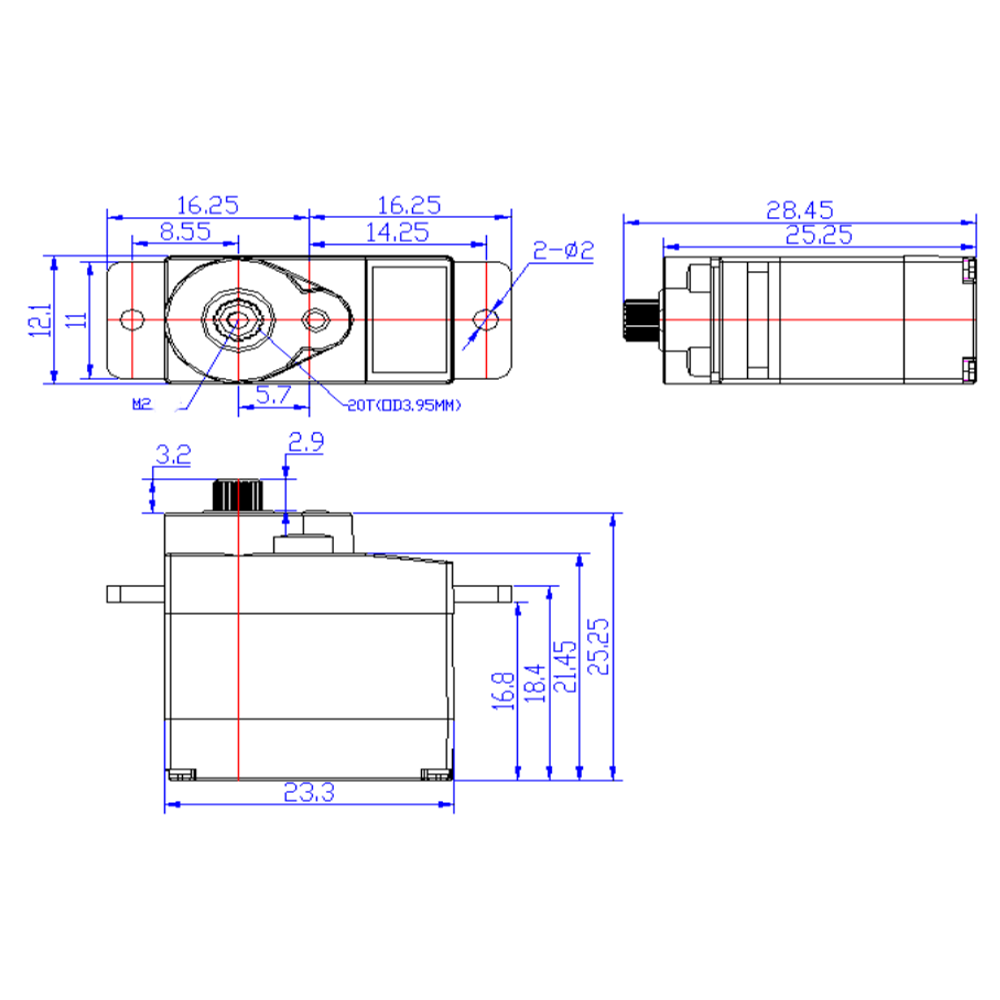

    Size: 23.2mmx12.1mmx25.25mm

    Weight:10.5+- 1g

    Gear Type: POM

    Limit Angle: No limit

    Bearing: NO

    Horn Gear Spline: 20T/3.95mm

    Gear Ratio: 1/416

    Case: PC plastic

    Connector Wire: 25CM

    Motor: Core Motor

    Operating Voltage Range: 4V-7.4V

    Idle Current (at stopped): 6MA@6V

    No load Speed: 0.1sec/60deg@6V

    Runnig Current(at no load): 150mA@6V

    Peak Stall Torque: 1.8kg.cm@6V

    Rated Torque: 0.6kg.cm@6V

    Stall Current: 1000A@6V

    Command Signal: Pulse width modification

    Amplifier Type: Digital comparator

    Pulse Width Range: 500~2500 msec

    Stop Position: 1500 msec

    Running Degree: 280deg (at 500-2500msec)

    Dead Band Width: <=4 msec

    Rotating Direction: Counterclockwise (at 1500-2000 msec)

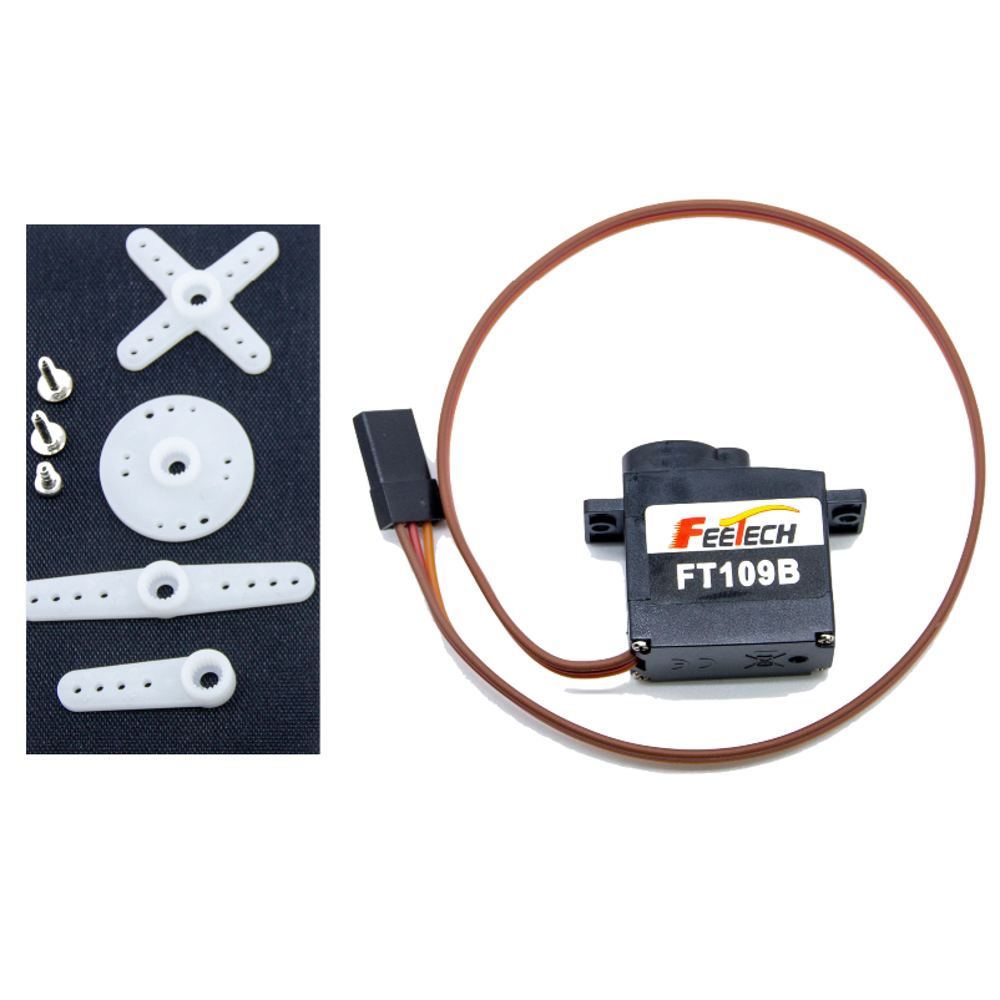

    Package Included:

    1x FEETECH FT109B Digital Servo
