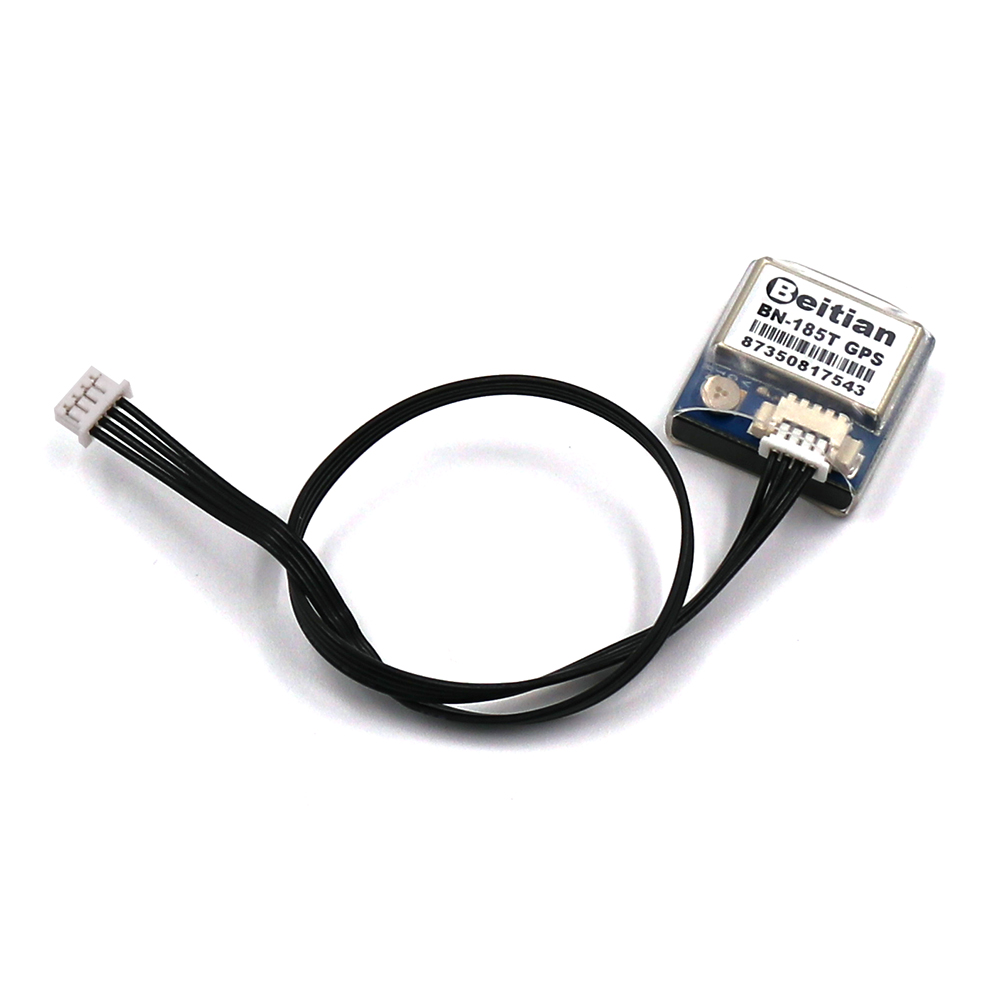

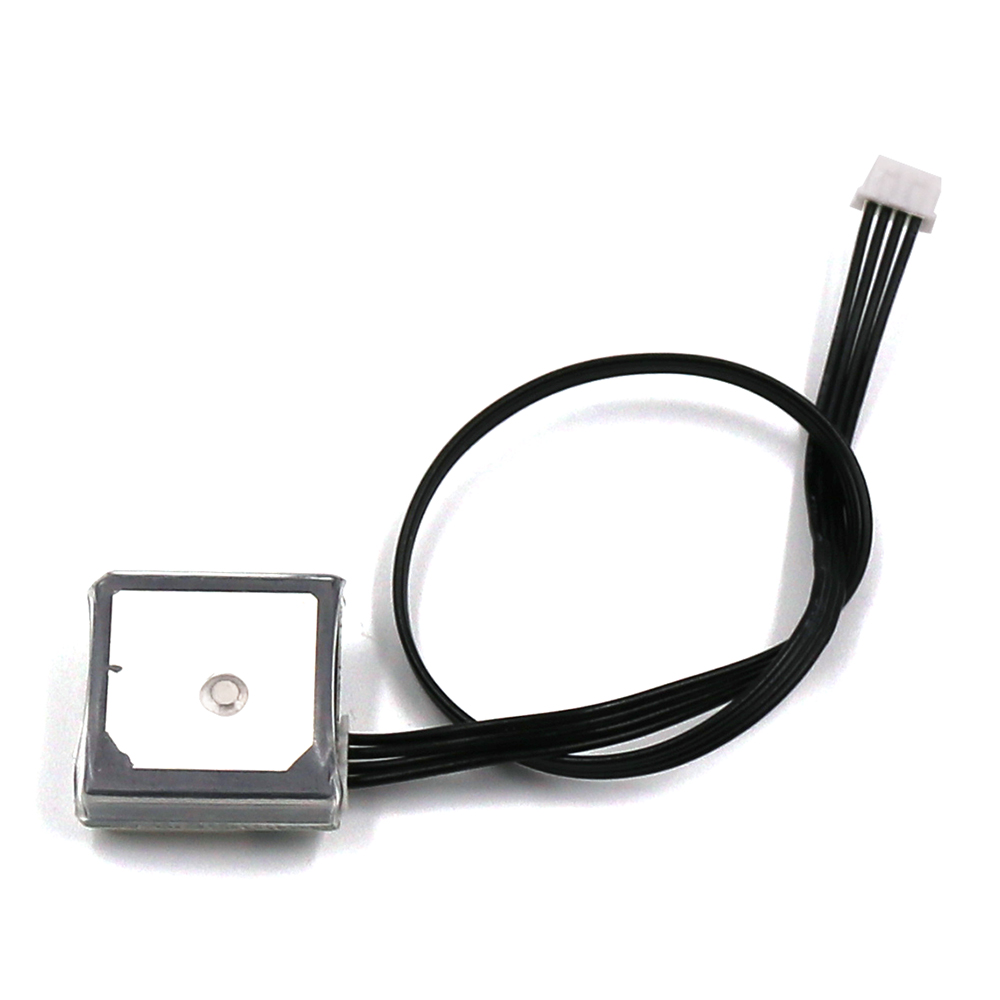

Beitian BN-185T GPS + GLONASS Dual Module Datesheet w/Cable For APM Pixhawk CC3D Naze32 F3 F4 Flight Controller
Beitian BN-185T GPS + GLONASS Dual Module Datesheet w/Cable For APM Pixhawk CC3D Naze32 F3 F4 Flight Controller
Description:
Brand name: Beitian

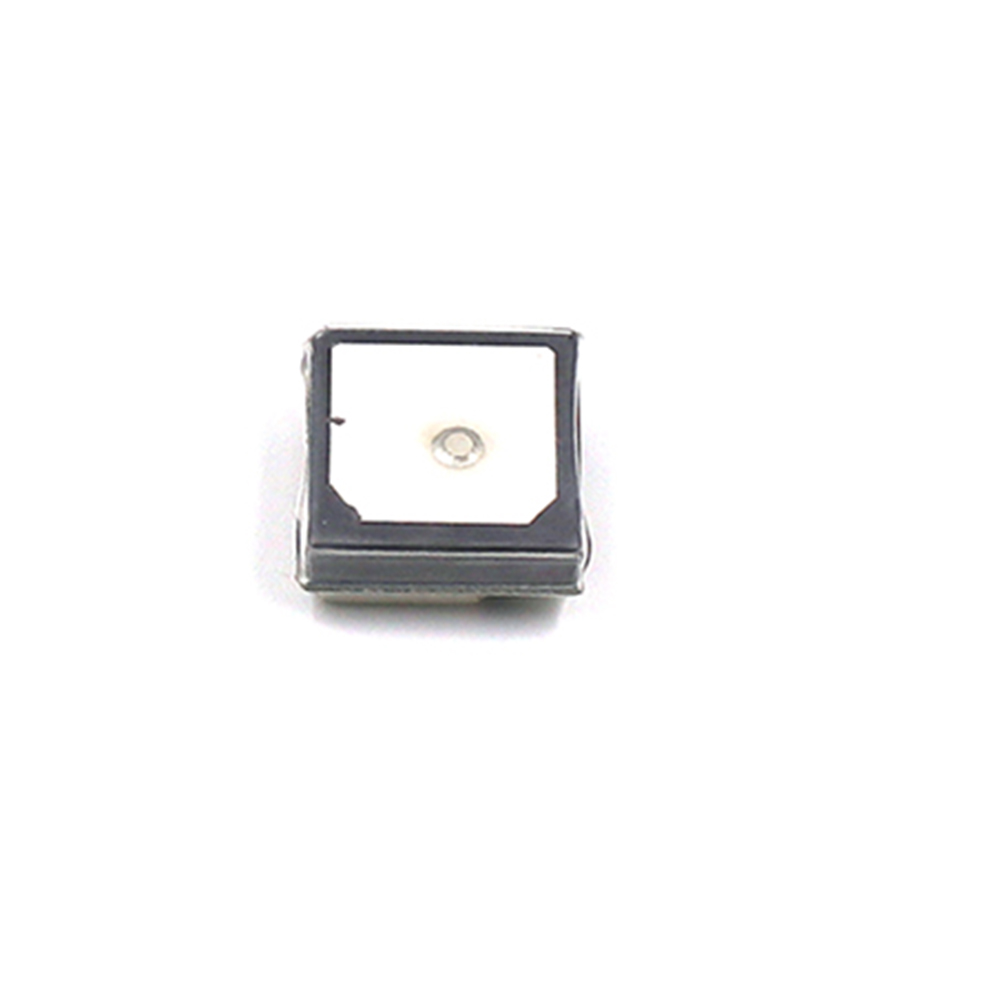

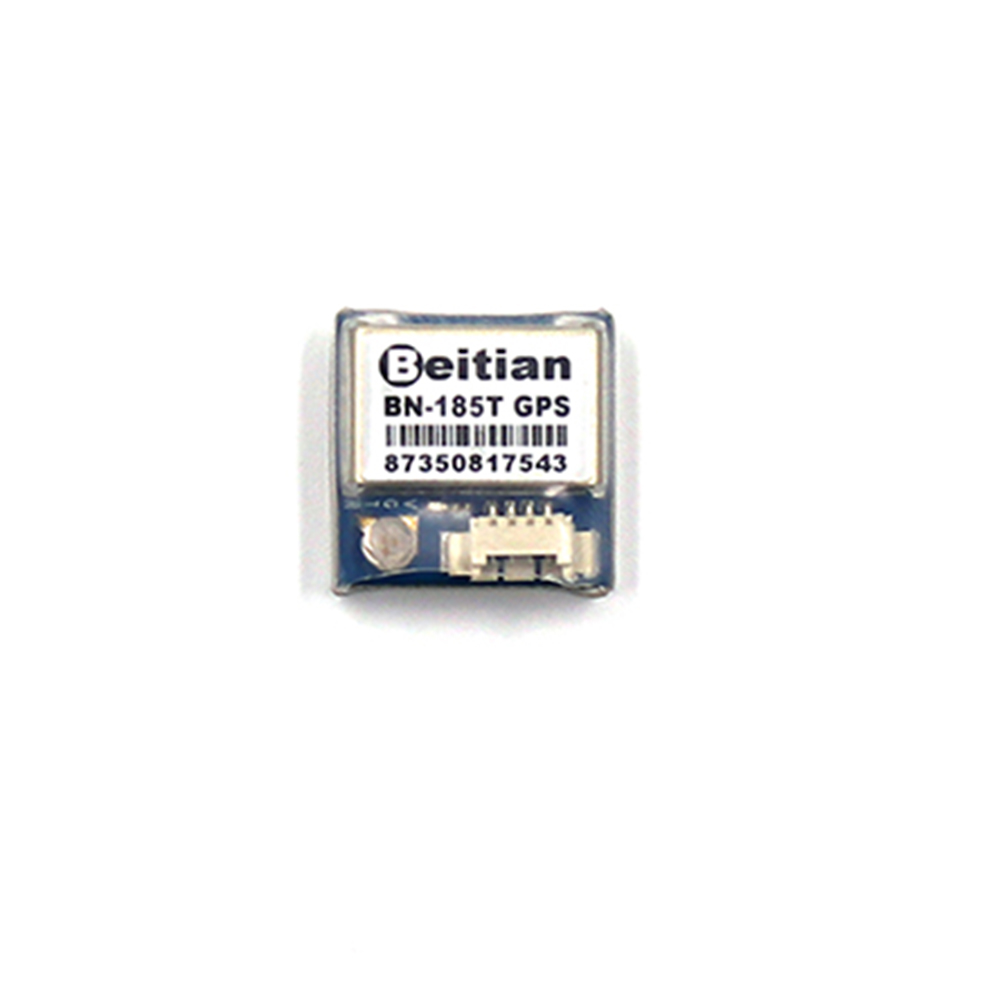

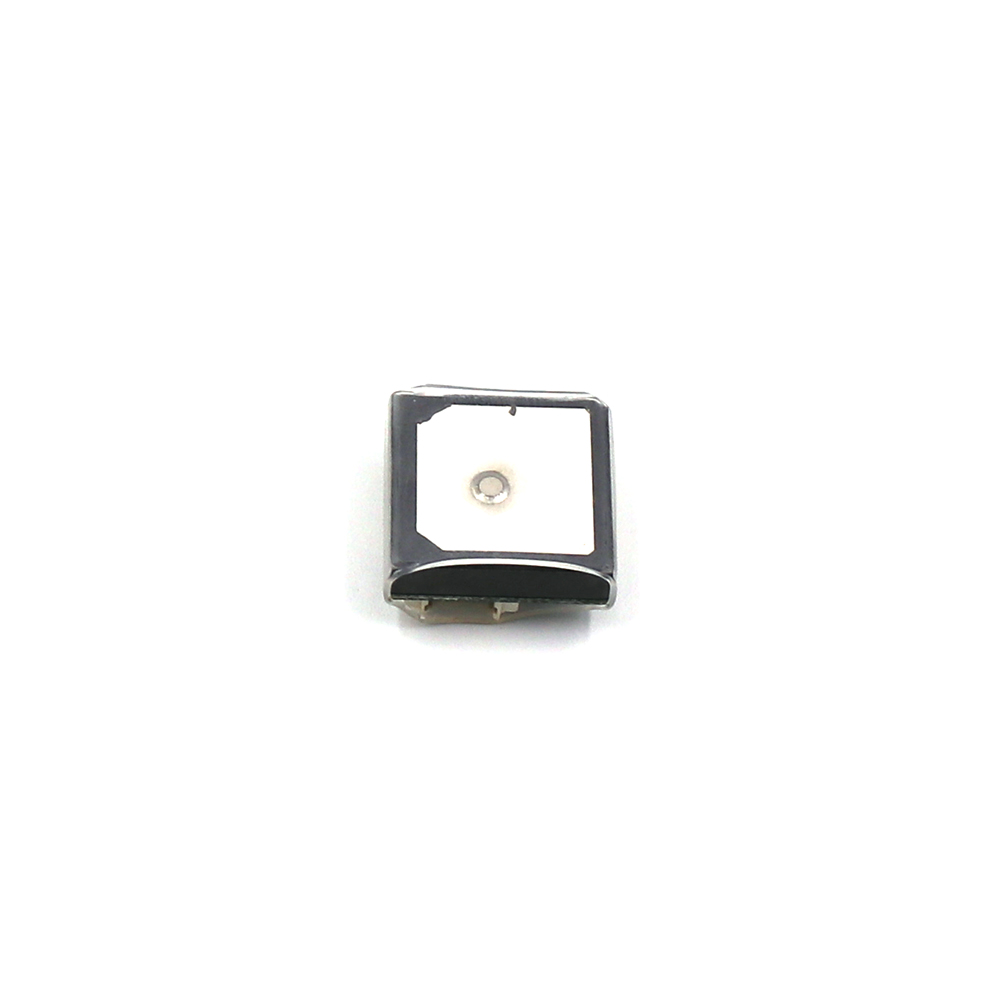

Item name: BN-185T GPS+Glonass antenna module
| Parameters | Description | |
| Chip features | Chip | M8030-KT |
| Frequency | LPS L1 GLONASS L1 BDS B1 GALILEO E1 SBAS L1 QZSS L1 | |
| Working mode | GPS GLONASS BDS GALILEO SBAS and QZSS. Default GPS+GLAONASS+SBAS+QZSS | |
| Channel | 72 searching channel | |
| Sensitivity | Track | -167dBm |
| Recapture | -160dBm | |
| Cold start | -148dBm | |
| Hot start | -156dBm | |
| Precision | Horizontal accuracy | 2.0 m CEP 2D RMS SBAS assist (open space) |
| Speed accuracy | 0.1m/s 95%(SA off) | |
| Time accuracy | 1us | |
| Startup time | Cold start | 26s |
| Warm start | 25s | |
| Hot start | 1s | |
| Output data | Baud rate | 4800bps-921600bps default 9600bps |
| Output level | TTL | |
| Output protocol | NMEA-0183 | |
| NMEA sentences | RMC VTG GGA GSA GSV GLL | |
| Update frequency | 1Hz-10Hz default 1Hz | |
| FLASH | 4M FLASH The configuration can be changed and will not be lost after power off | |
| Working limit | Height | 50 000m max |
| Speed | 515m/s max | |
| Gravity acceleration | 4g max | |
| Power consumption | Voltage | DC 3.6V-5.5V typical: 5.0V |
| Current | Normal 50mA@5.0V | |
| Physical parameter | Size | 18.5mm*18.5mm*9.5mm |
| Weight | 8.1g | |
| Connector | 1.25 pitch 4pin carrier | |
| Environment | Operate temperature | -40~+85 |
| Storage temperature | -40~-+105 | |
| Indicator light | TX light | Blue light flashing when power-on indicated that there is data output |
| PPS light | The light is not lit when it is not positioned; after 3D positioning it starts to blink. | |
Package Included:
1x BN-185T GPS+Glonass antenna module
1x BN-185T GPS+Glonass antenna module
