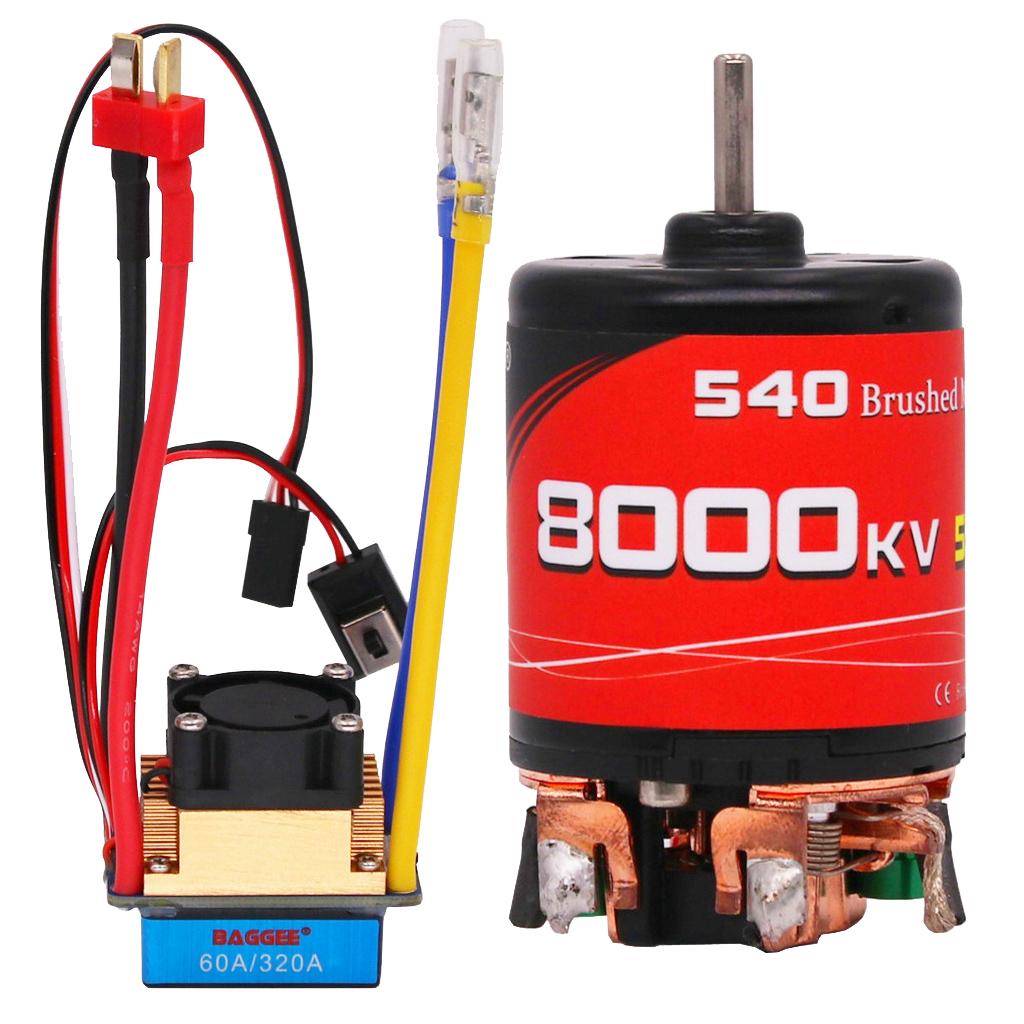

BAGGEE 540 55T Brushed Waterproof RC Car Motor 8000KV 60A Double Side ESC For 1/10 SCX10 TRX4 TRX6 RC Car Parts

Description:

Name: 1/10 Waterproof remote control climbing car 540 brush motor 55T/8000KV (changeable carbon brush motor motor) + 320A/60A waterproof brush two-way brush ESC (with motor fan + with brake)

Model: Suit

Material: PVC+metal

Color: icon color

Specification: 1 set (brush motor*1+brush ESC+1)

Packaging: carton packaging

Product weight: 240G

Package weight: 270G

Product size: Motor 36*36*50mm/42*22*36mm

Packing size: 180*60*20mm

Suitable models: 1/8 1/10 remote control car climbing car general type (such as SCX10 II D90 90046 90047 TRX4 TRX6 CC01 and other 1/10 models); suitable for some models of remote control boats;

Packing accessories content:

1 55T/8000kv waterproof brush motor *1

2. 60A/320A waterproof brushed ESC*1

Features and parameters:

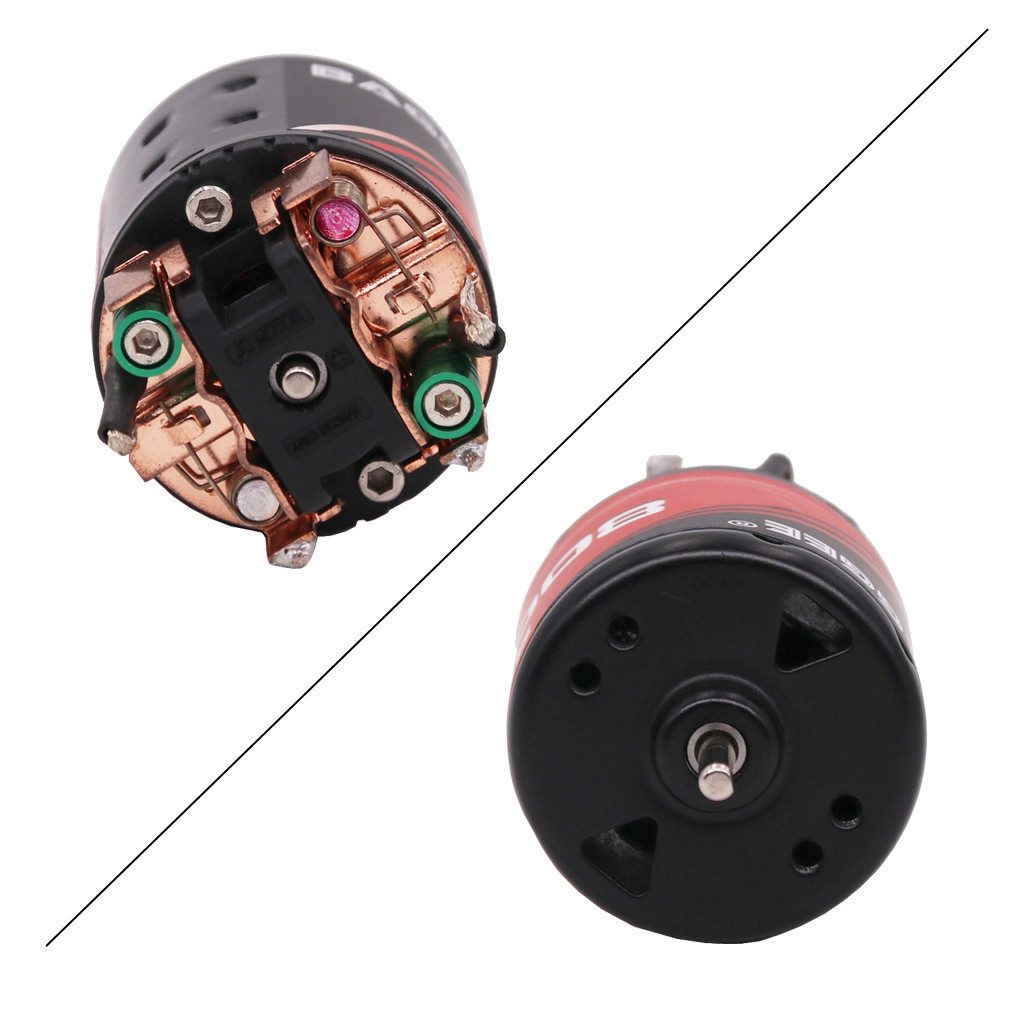

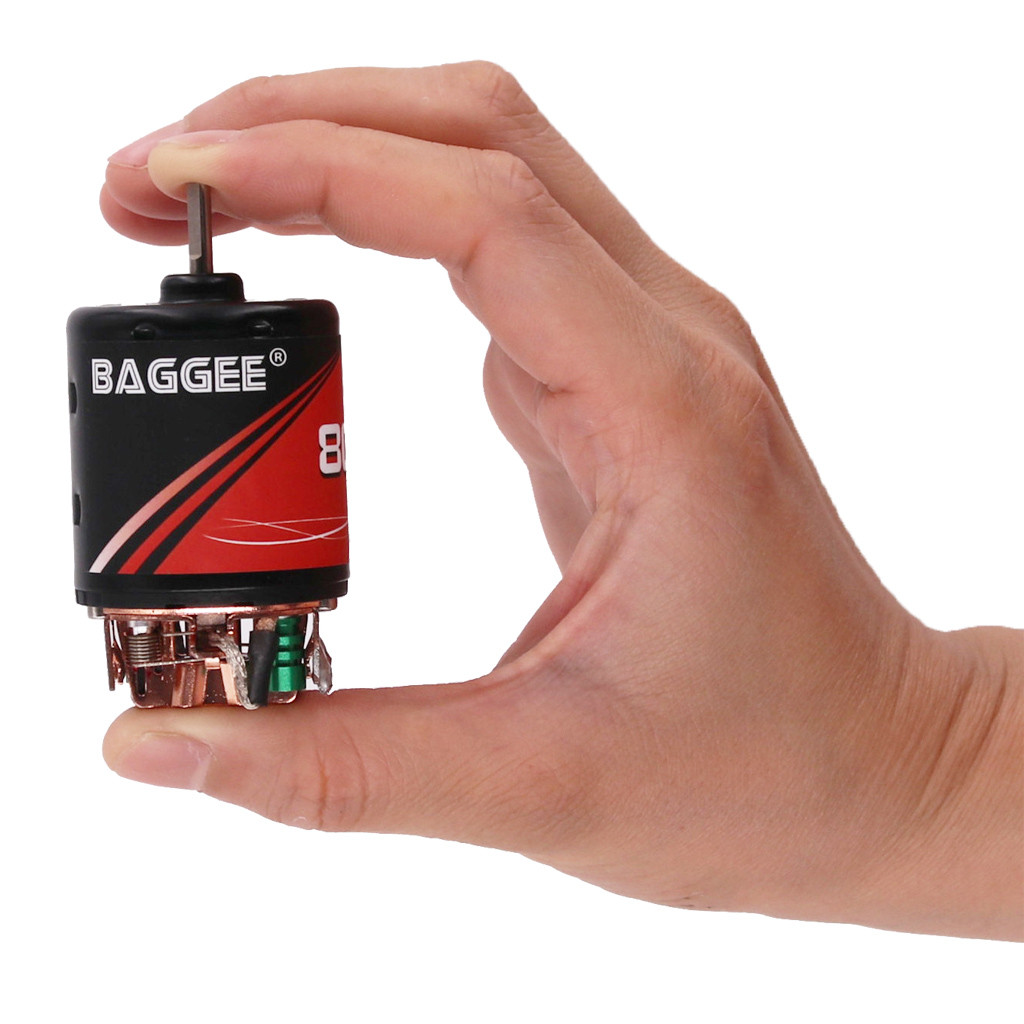

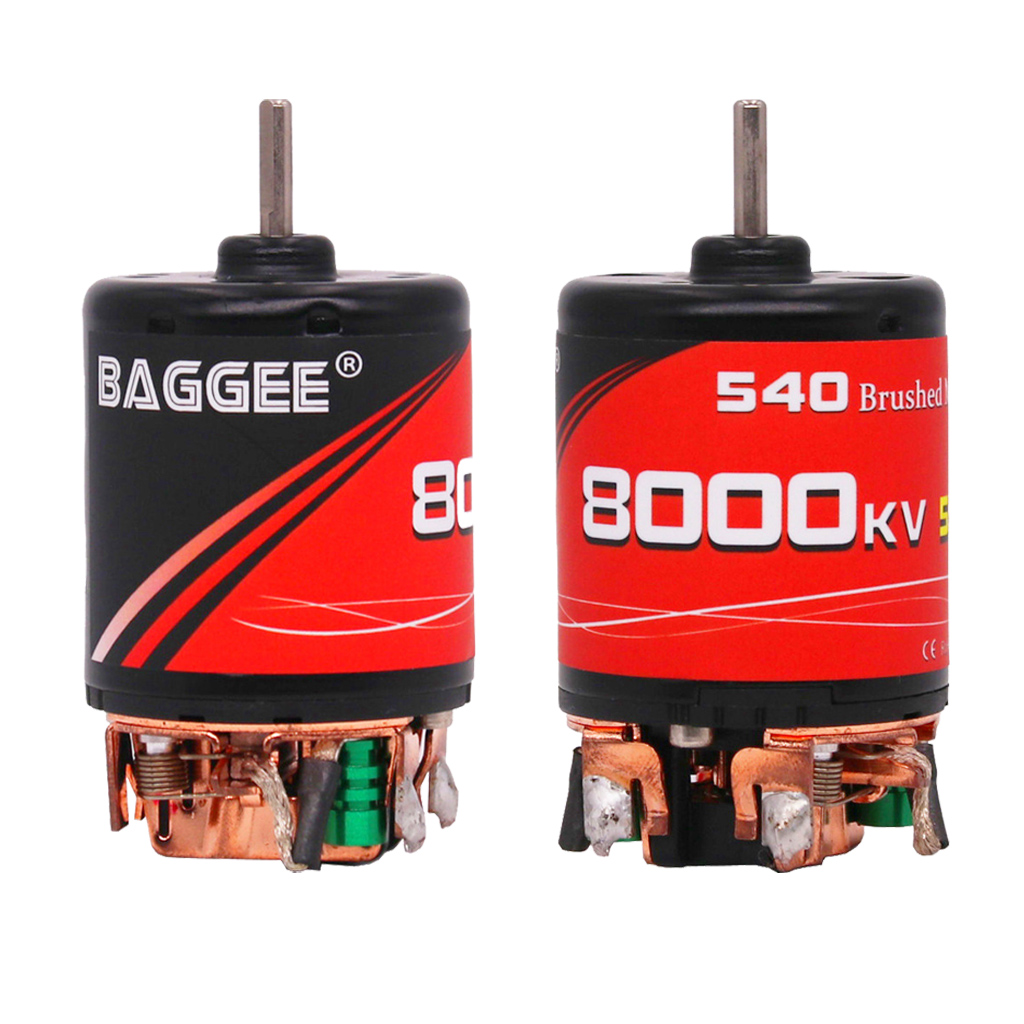

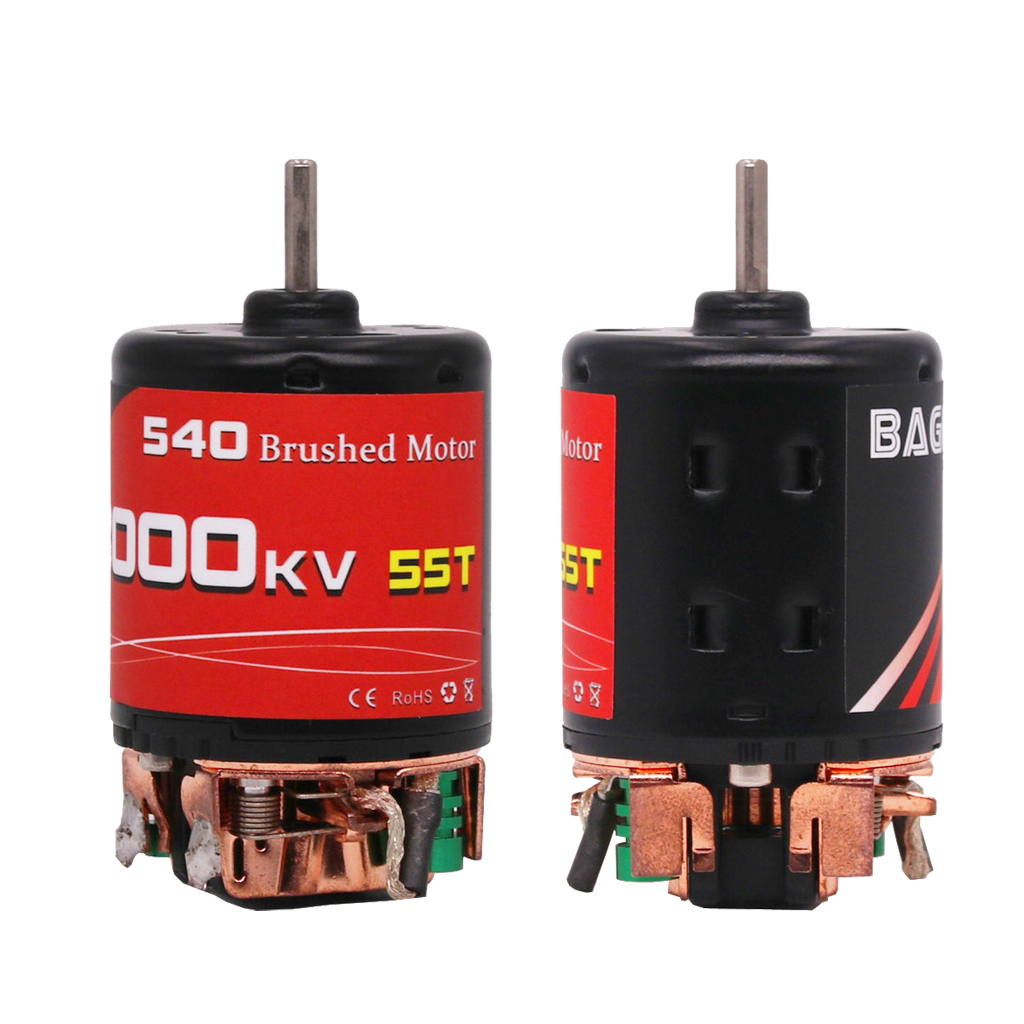

1. 55T/8000KV Waterproof Brush Motor

Adaptation range: 1/10 RC climbing car/remote control boat

Brand: BAGGEE

Model: 8000KV/55T

Waterproof performance: waterproof

material: metal

External diameter: 36MM

Total length: 50MM (excluding motor shaft)

Motor shaft length: 12MM

Motor shaft diameter: 3.17MM

No-load current: 1.4A

7.2V voltage no-load speed: 8000KV

It is recommended to adapt to ESC: 40A/60A/80A (most common brushed ESCs)

The highest support voltage of the motor: 12V

Recommended battery voltage: 7.2V-7.4V (2-3S lipo or 5-9 NIMH)

Mounting screw fixing holes: 22*8 (4 M3 screw holes)

Packaging: carton packaging

Product weight: 185G

Package weight: 195G

Product size: 36*36*50mm

Packing size: 80*60*55mm

Suitable models: 1/8 1/10 remote control car climbing car general type (such as SCX10 II D90 90046 90047 TRX4 TRX6 CC01 and other 1/10 models); suitable for some models of remote control boats

1. The new 540 brush motor high-quality craftsmanship high-performance positioning. Imported NMB bearings are used for smoothness can work for a long time and reduce wear. The motor is a skewed slot rotor which has a higher energy efficiency ratio and better linearity compared to a straight slot;

2 8000KV 55T high torque design suitable for most 1/8 1/10 climbing car models with a wide range of adaptability characteristics (such as SCX10 II D90 90046 90047 TRX4 TRX6 CC01 and other 1/10 models General)

3. Two-way bearing strong magnetic characteristics low heat good heat dissipation high power and can also change the carbon brush motor (external carbon brush can work for a long time)

4. Recommendations: 8000KV/55T specifications are recommended for climbing vehicles and large bikes and 16800KV/27T specifications are recommended for flat sports cars and drifting vehicles.

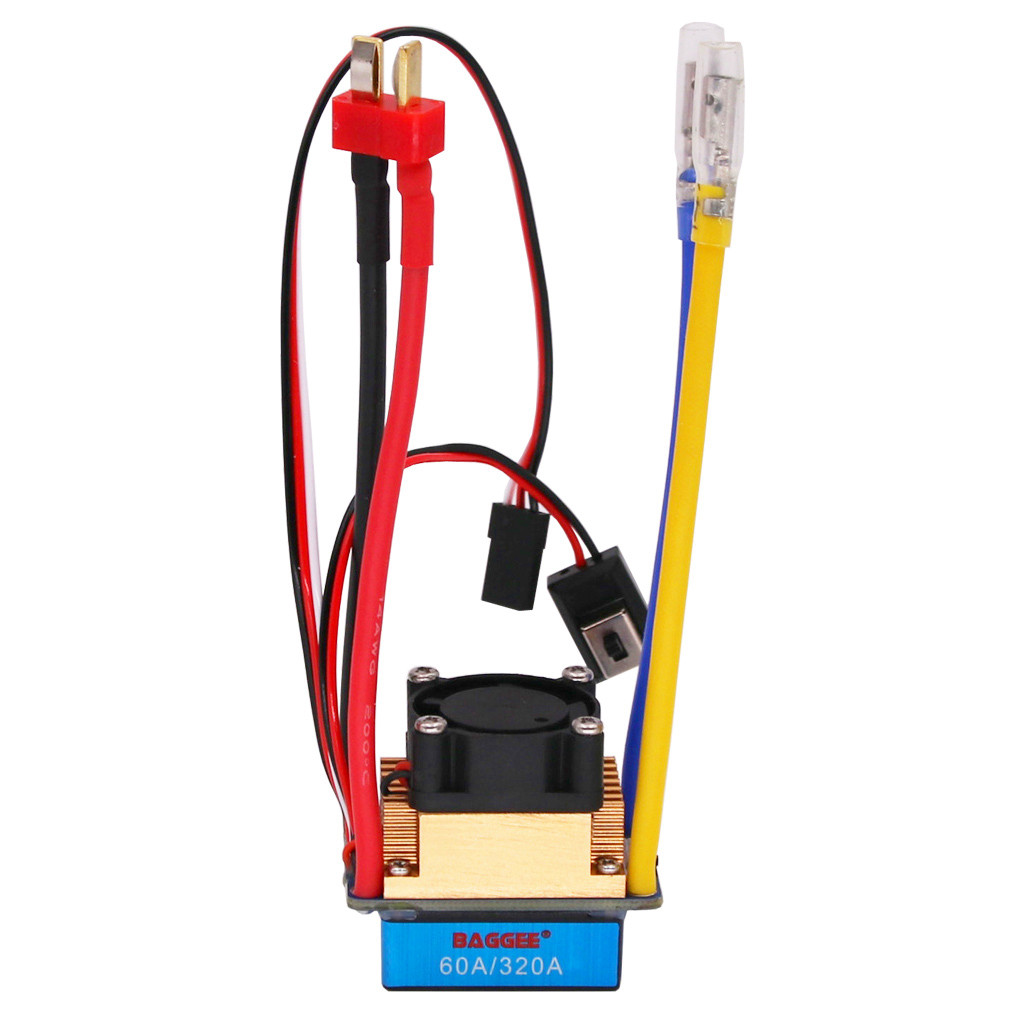

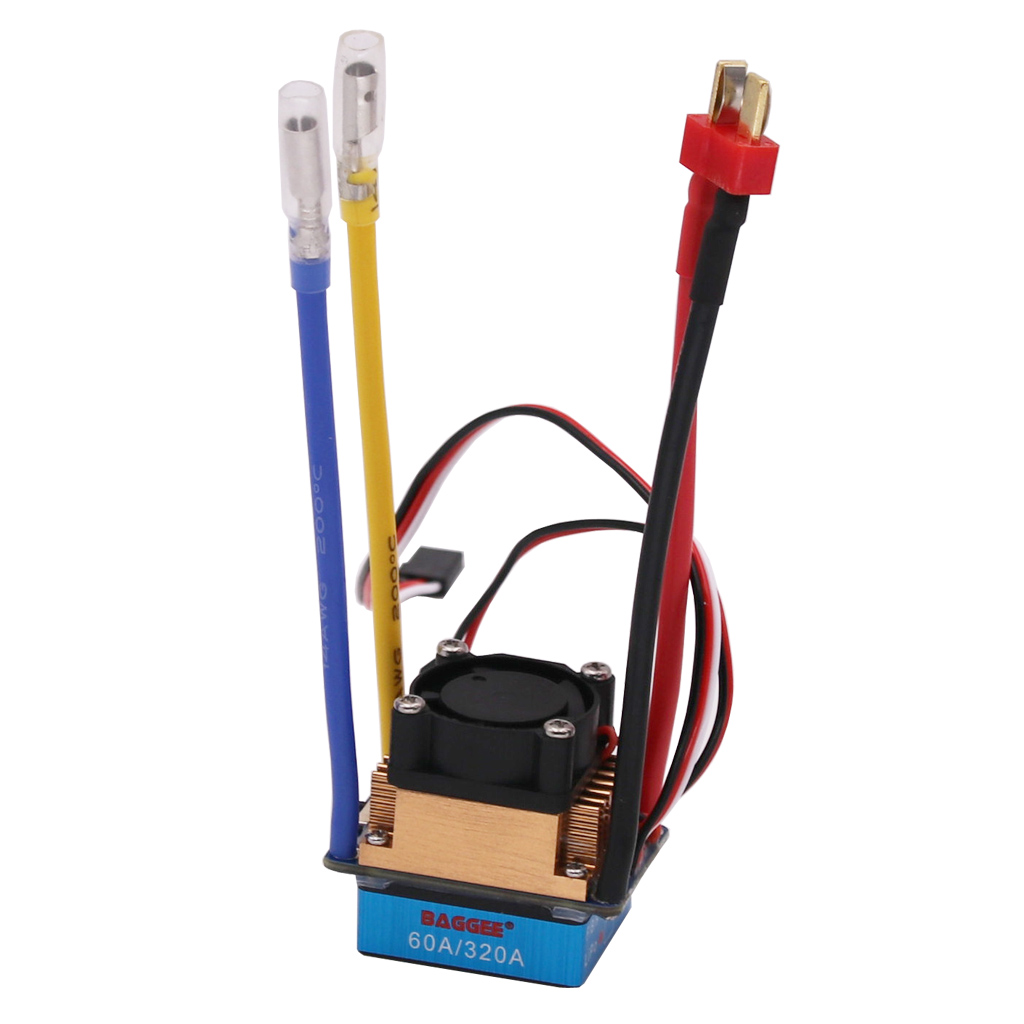

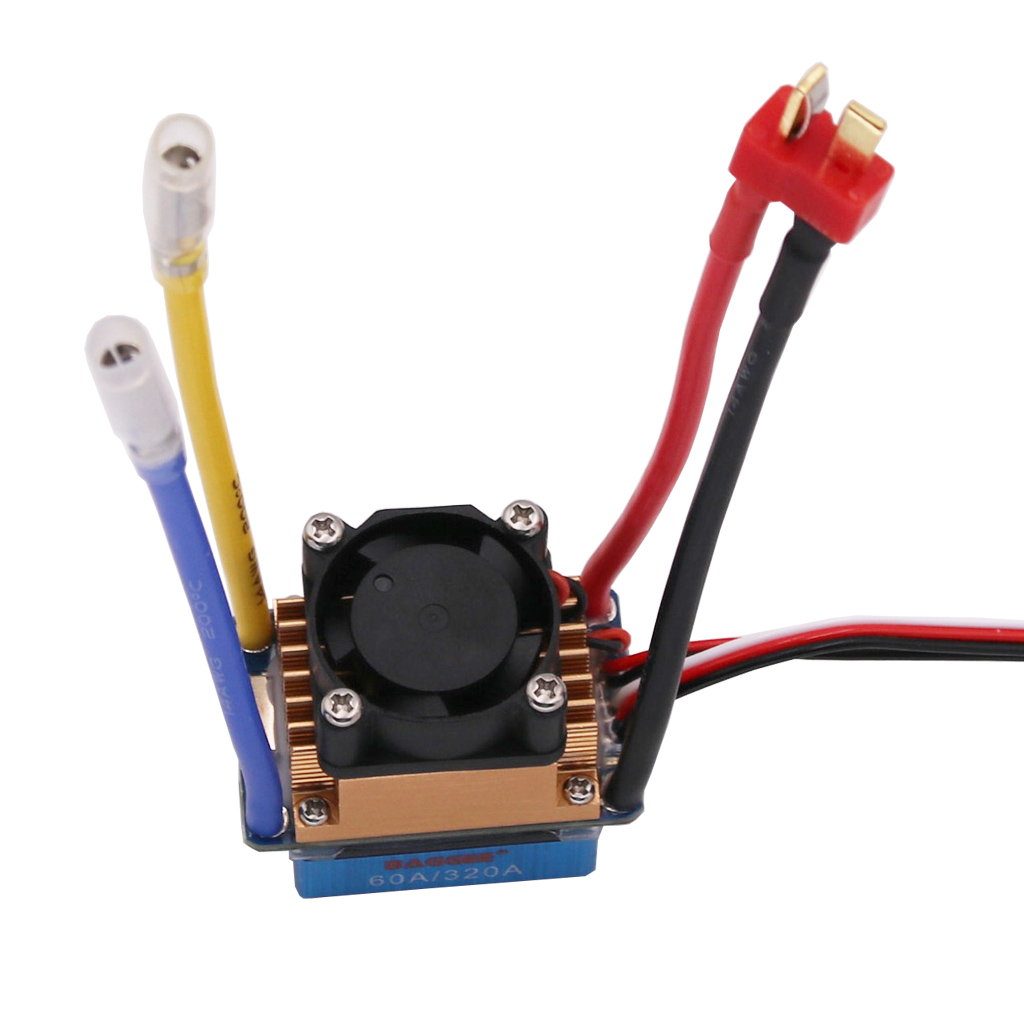

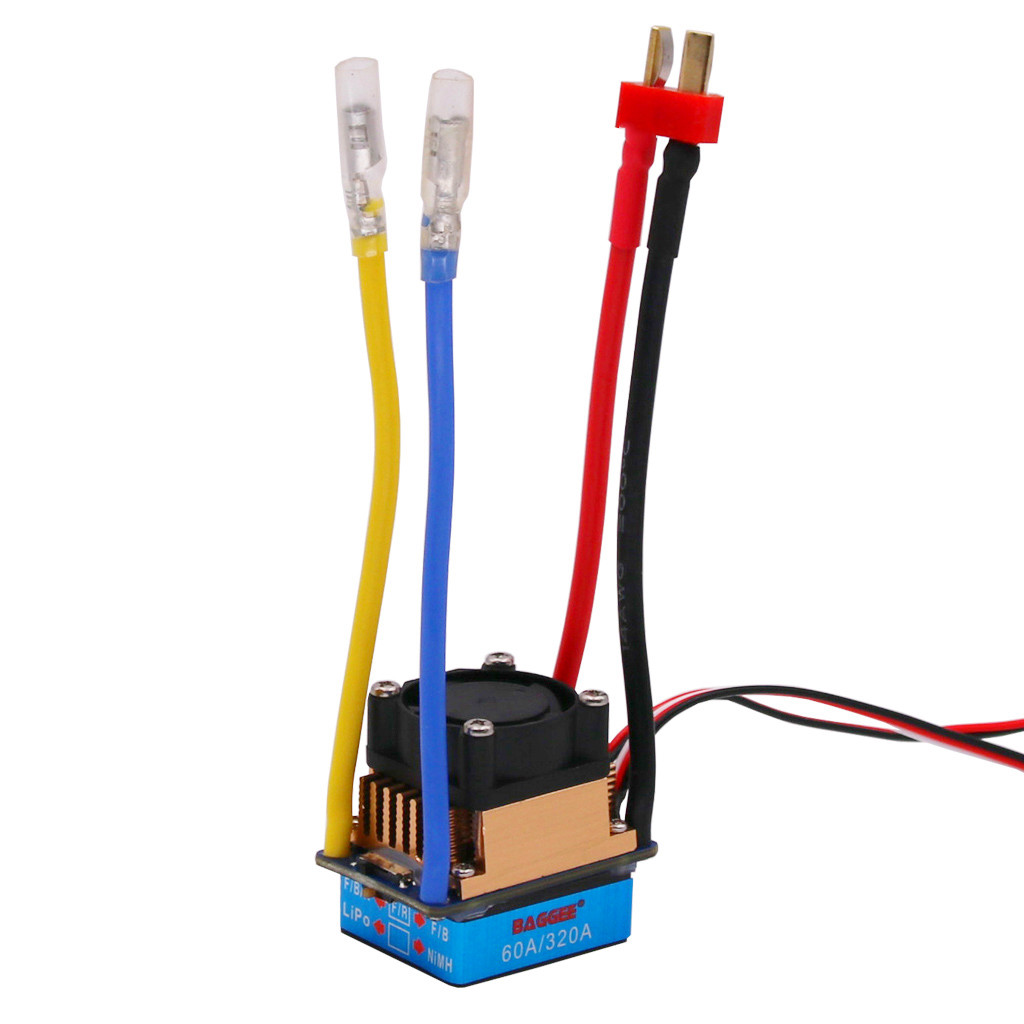

60Awaterproof brushed ESC

Model: 60A (with motor fan + with brake)

Brand: BAGGEE

Material: PVC/Metal

Colour: Black

Plug: T plug

Voltage range: 7.4V-11.1V

Continuous/instant current: forward 60A/320A; reverse 45A/200A

Adapted motor: 540 550 brushed motor

Battery specifications: 2-3 lithium batteries (Lipo) or 5-9 nickel-metal hydride batteries (NiMH) or 12V batteries;

BEC output: 5V/3A

Internal resistance: 0.0015 ohm

Packaging: carton packaging

Product weight: 57G

Package weight: 75G

Product size: 42*22*36mm

Packing size: 140*45*30mm

Suitable models: 1/10 remote control car climbing car model car etc. (such as SCX10 90046 90047 TRX4 TRX6 D90 and other models)

Motor speed range:

(1) 2 lithium batteries (Lipo) or 6 nickel-metal hydride batteries (NiMH): 540 775 motor size The motor speed is lower than 20000 rpm;

(2) 3 lithium batteries (Lipo) or 9 nickel-metal hydride batteries (NiMH): 540 775 motor size The motor speed is lower than 15000 rpm;

Package Included:

1x motor

1x ESC
