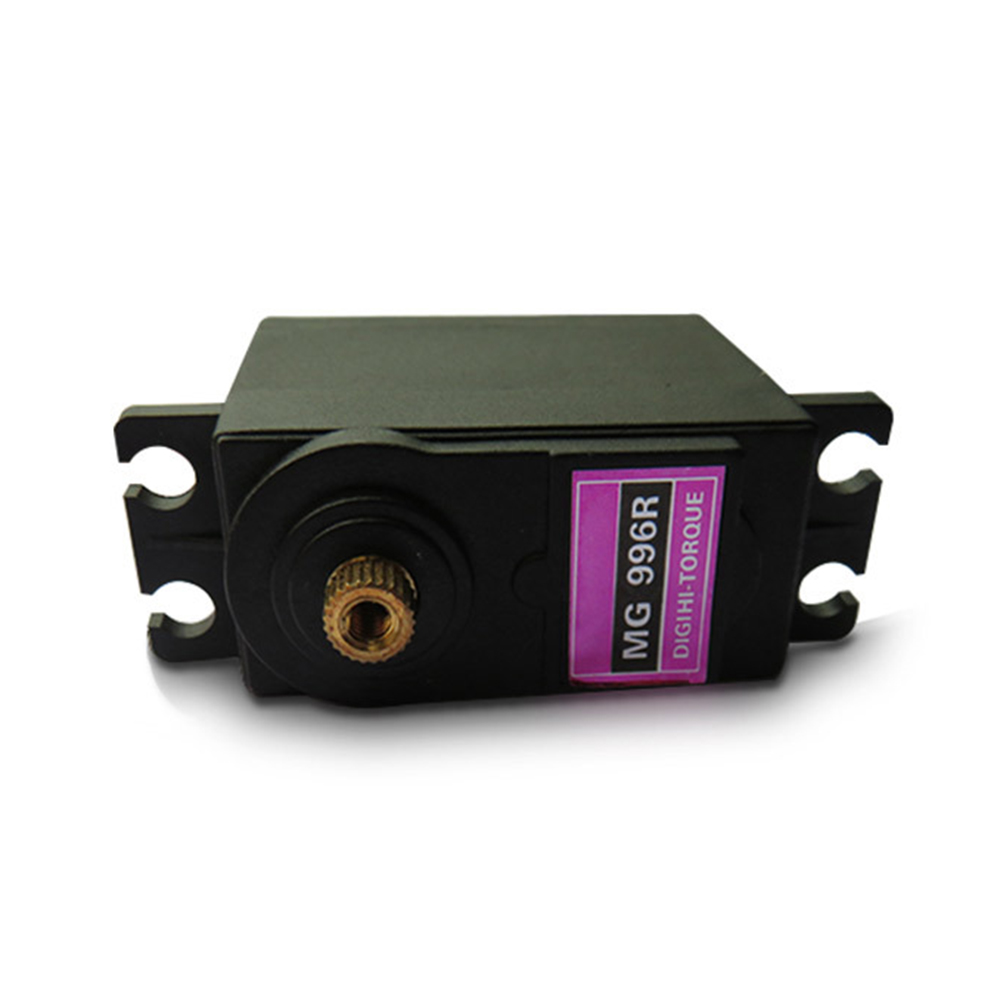

MG996R 55g 4.8V-6V 13kg/cm High Torque Metal Gear Analog Servo for RC Airplane Fixed Wing Robot Helicopter Boat DIY Models
Description:
Model: MG996R
Dimensions: 40.5x20x41mm
Weight: 55g
Apply Enciromental Condition:
Storage Temperature range: -20degC-60degC
Operating Temperature range: -10degC-50degC
Operating Voltage range: 4.8V-6V
Electrical Specification:
Operating Speed(at no load): 0.12+-0.01sec/60 (4.8v) 0.11+-0.01sec/60 (6v)Running Curret(at no load): 220+-20mA (4.8v) 250+-20mA (6v)
Stall Torque(at locked): 11+-0.1kg.cm (4.8v) 13+-0.1kg.cm (6v)
Stall Current (at locked): 2000mA+-30mA (4.8v) 2200mA+-30mA (6v)
Idle Current (at stopped): 4+-1mA (4.8v) 4+-1mA (6v)
Control Specification:
Control System: Change the pulse width
Amplifier Type: Analog controller
Operating Travel: 90deg+-3deg(1000-2000u sec)
Left and Right Travelling Angle Deviation: <=3deg
Centering Deviation: <=1deg
Neutral Position: 1500 m sec
Dead Band Width: <=5msec
Rotating Direction: Counter clockwise(1500-1000m sec)
Pulse Width Range: 800-2200m sec
Maximum Travel: About 145deg(800-2200msec)
Package Included:

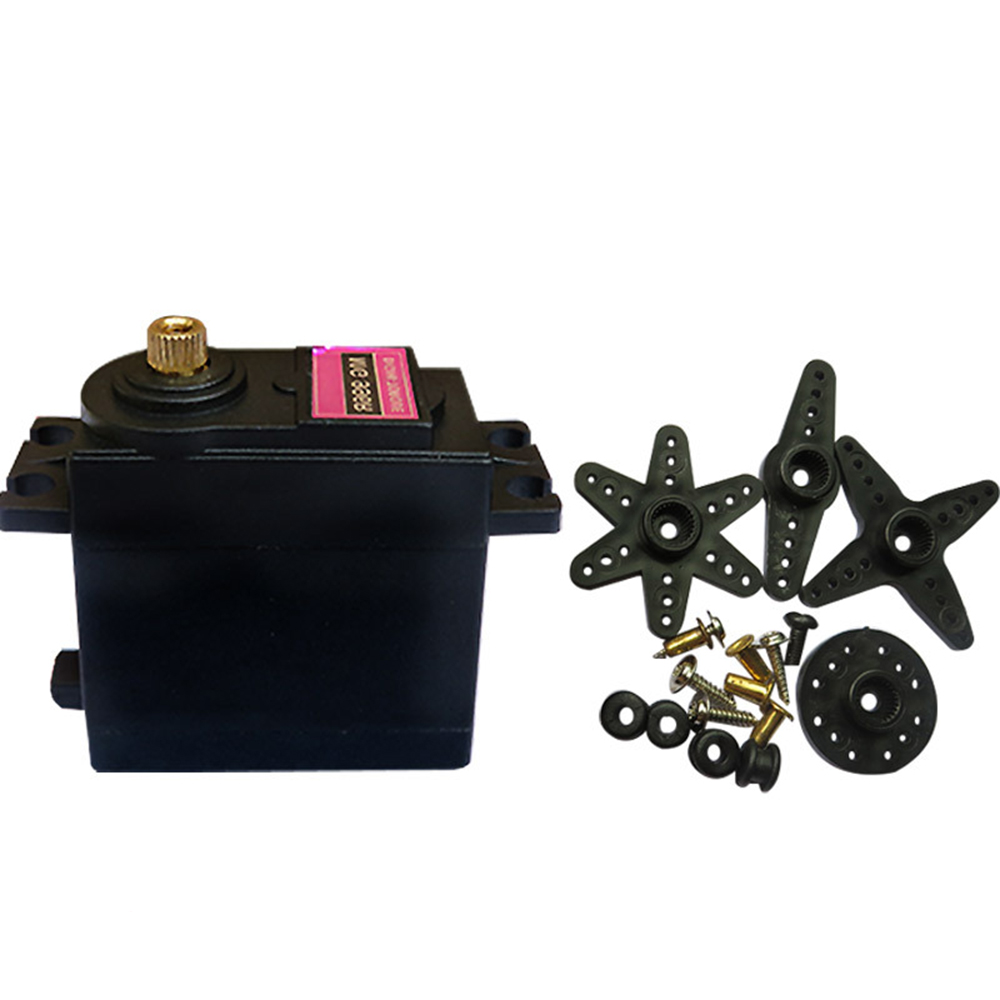

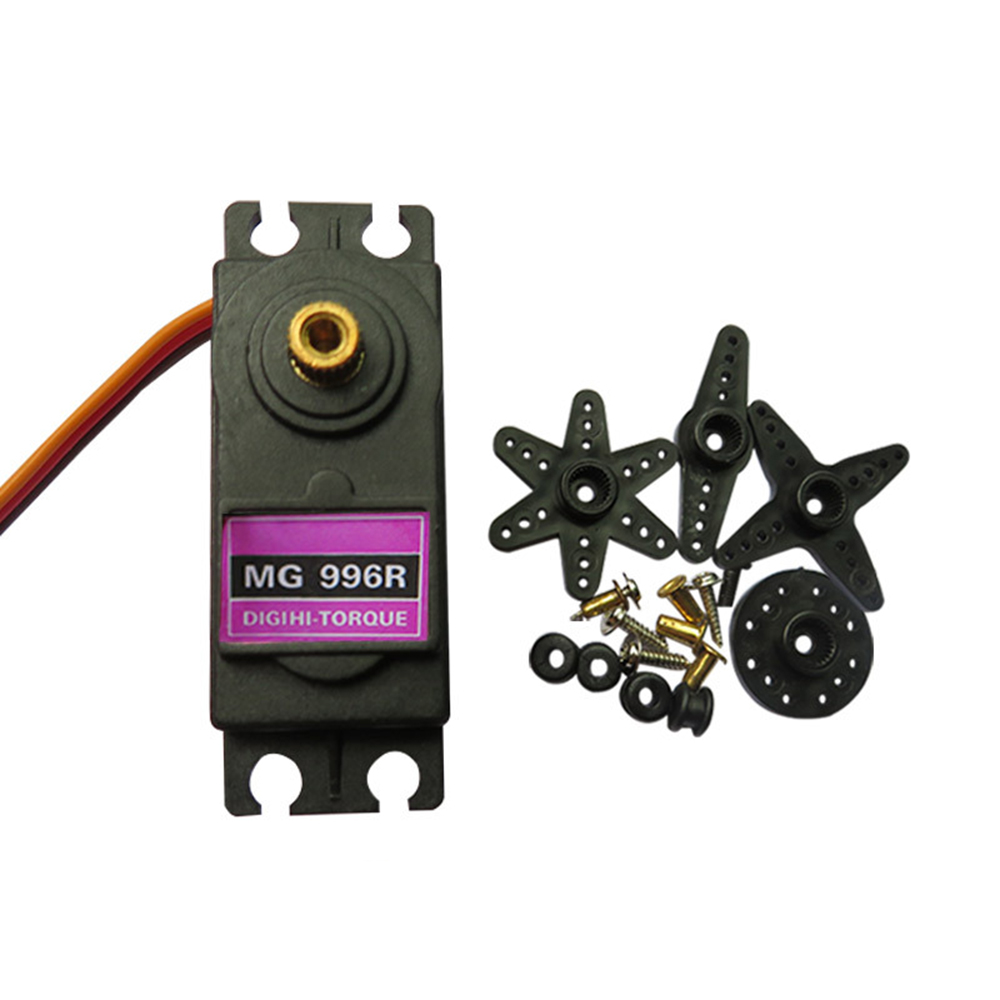

1x MG996R 55g Metal Gear Analog Servo
Specifications
| Model | 1 Piece or 4 PCS or 6 PCS or 5PCS or 2 PCS or 10pcs |
