Flashhobby D2830EVO 750KV 850KV 1000KV 1300KV Brushless Motor for RC Helicopter Parts
Features:
48 Level H Magnet
Balanced Rotor Accuracy Test
14p12n high torque motor design
CNC 6061-T6 Aluminum Bell
Imported high rpm (nsk/nmb) bearing
High Temperature Resistant Copper Wire Winding
Description:
Item Name: Flashhobby D2830evo Brushless Motor

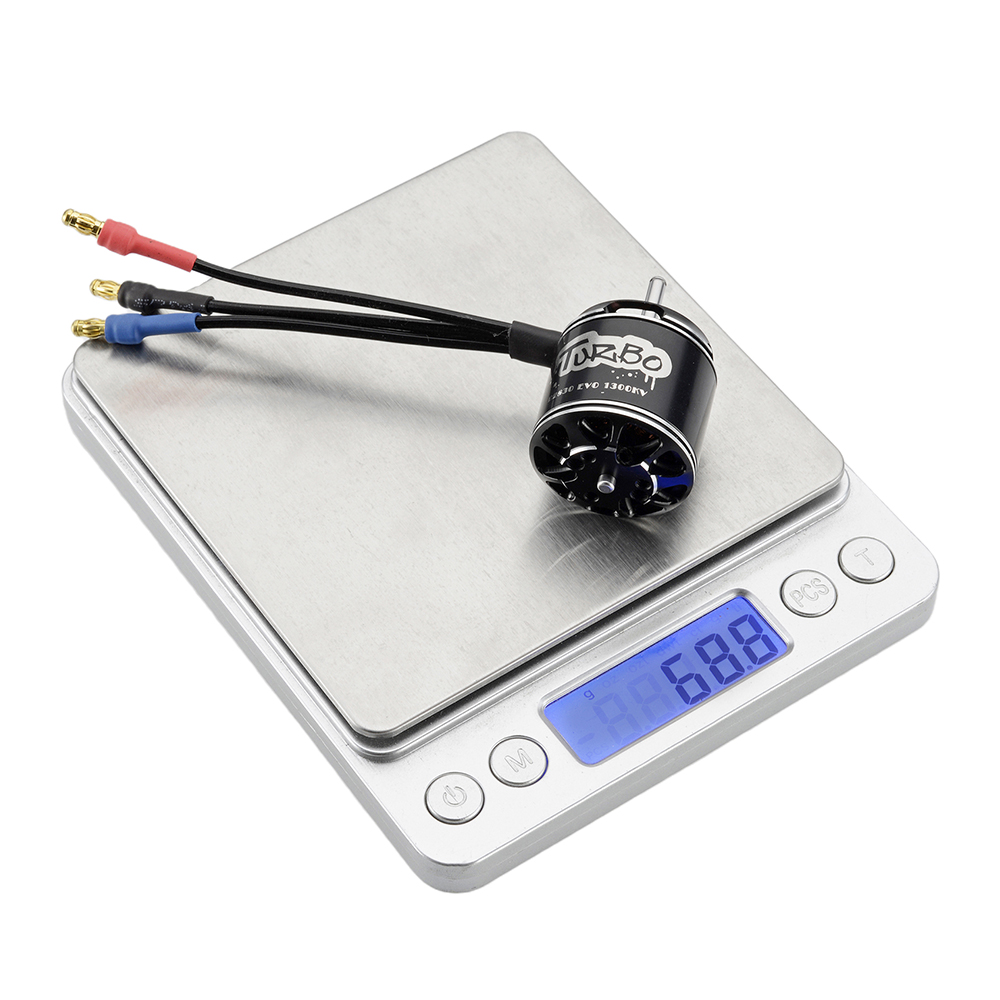

Weight: 68.1g (including yarn)
Engine Size: 28x30mm
Shaft size: 3.0*47.0mm
Motor mounting: 16*19mm (m3*4)
Configuration: 12N14P
KV: 750KV 850KV 1000KV 1300KV (Optional)
Working Temperature Range:-0 ~ + 80
Control method: use esc and adjust the pwm signal for control pwm adjustment range 900-2100us
Motor type: brushless outrunner motor three-phase motor
| KV: 750KV | Max Watts: 175.4w Current Max: 10.78A No load current: 0.6a Resistance: 168.5mO Battery: 3-4s lipo Suggested bracket: 9-inch bracket |
| KV: 850KV | Maximum Watts: 195w Current Max: 15.87A No load current: 0.68a Resistance: 145.4mO Battery: 3-4s lipo Suggested prop: 11 inch stand |
| KV: 1000KV | Max Watts: 196.6w Current Max: 16.8A No load current: 0.86a Resistance: 92.8mO Battery: 3-4s lipo Suggested prop: 10 inch support |
| KV: 1300KV | Max Watts: 324.4w Max Current: 28.3A No charging current: 1.24a Resistance: 63mO Battery: 3-4s lipo Suggested prop: 10 inch support |

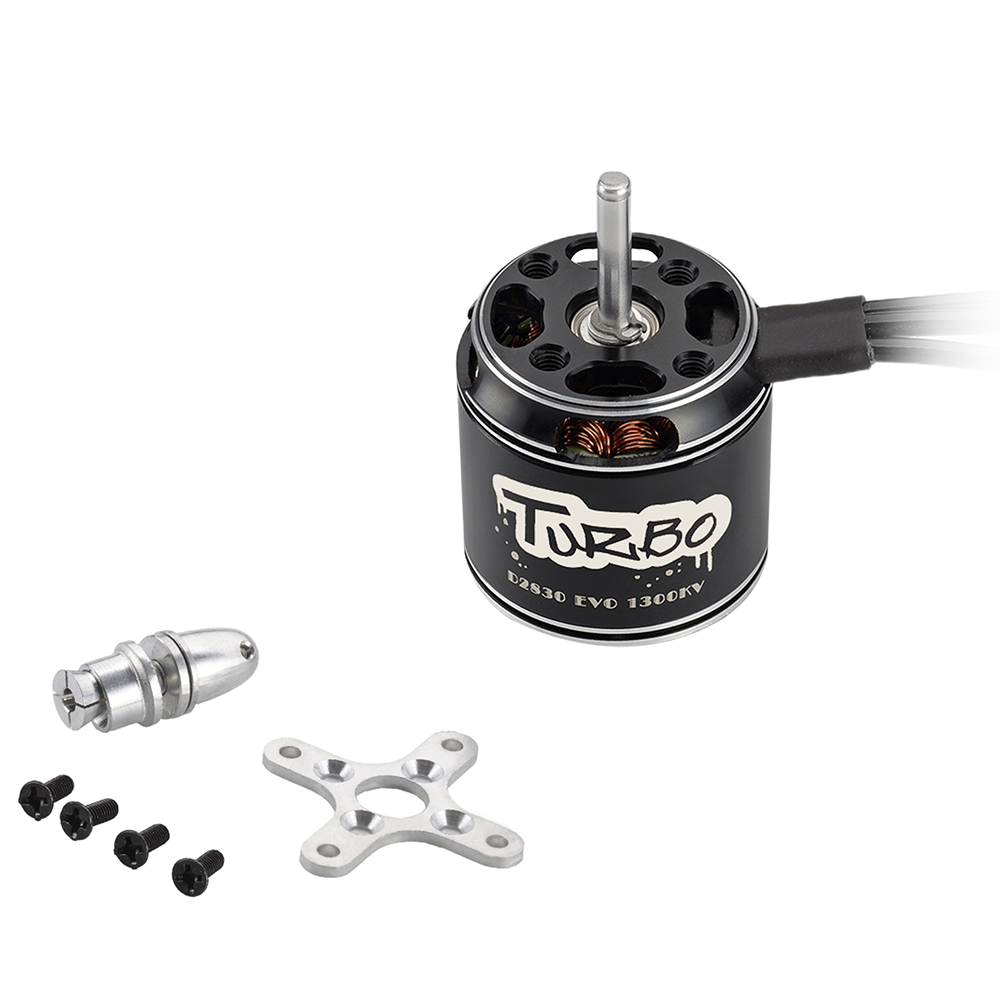

Package Included:(Optional)
1x Flashhobby D2830evo 750KV/ 850KV/ 1000KV/ 1300KV Brushless Motor
Specifications
| KV | 750KV or 850KV or 1000KV or 1300KV |
| Color | Black |
