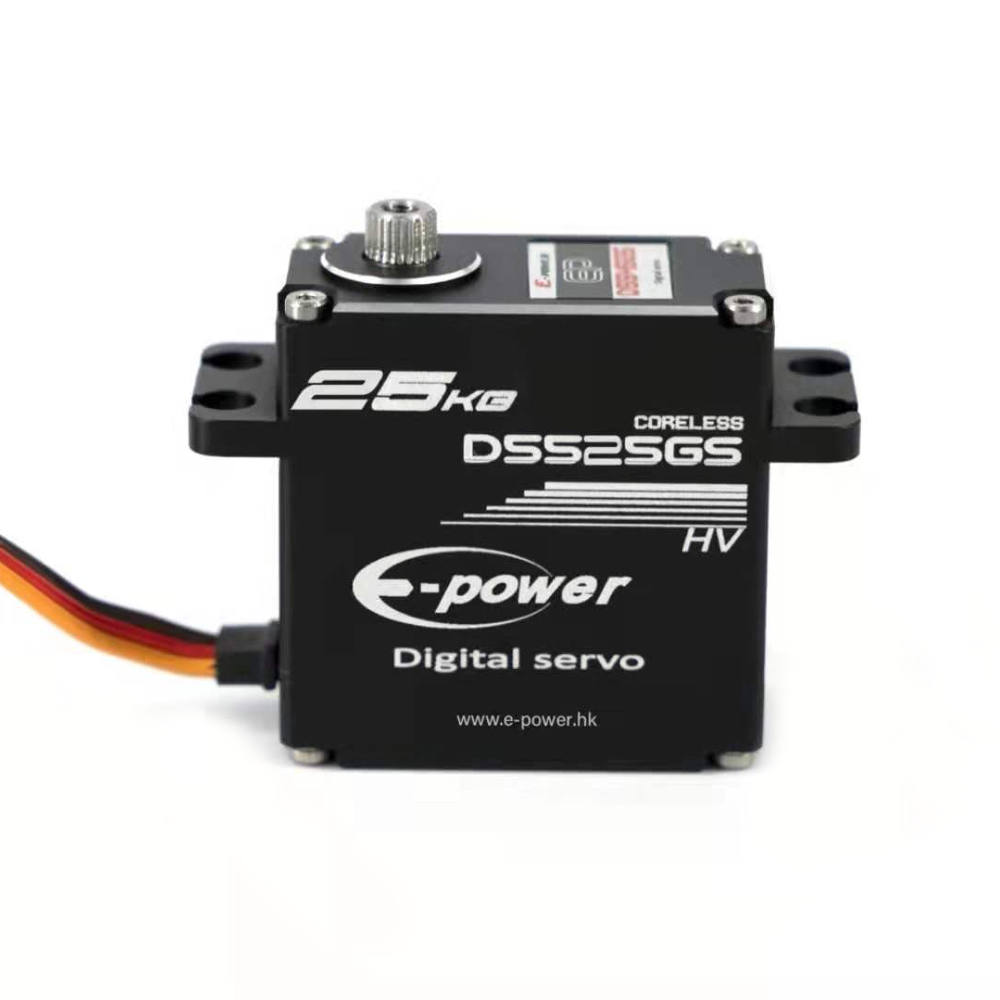

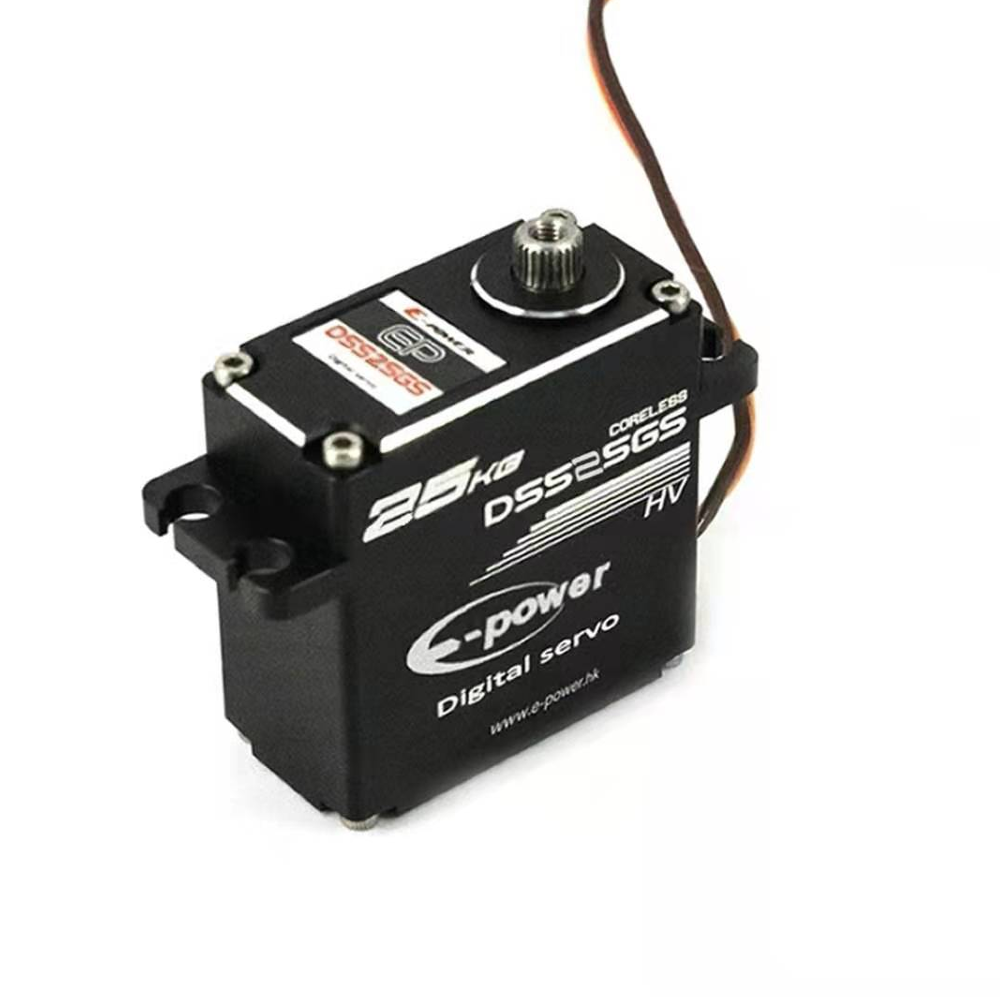

E-Power DSS25GS 75g 25kg High Torque Metal Gear Digital Servo 6.0V-8.4V Waterproof For 3D F3A RC Airplane

Specifications:

Brand Name: E-Power

Item Name: DSS25GS

Control System: PWM Control (1500msec in the central point)

Operation Voltage Range: 6.0V-8.4V

Operation Temperature Range: -20 ~ +60

Circle: >60000 times without load

Operation Travel: 60deg+-1

Limit Angle: 180deg+-1

Direction: Re-clock wise/Pulse Travel 500-2500 msec

Diver Type: Mos Drive

Motor Type: Coreless Motor

Potentiometer Type: Direct Drive

Amplifier Type: Digital Control

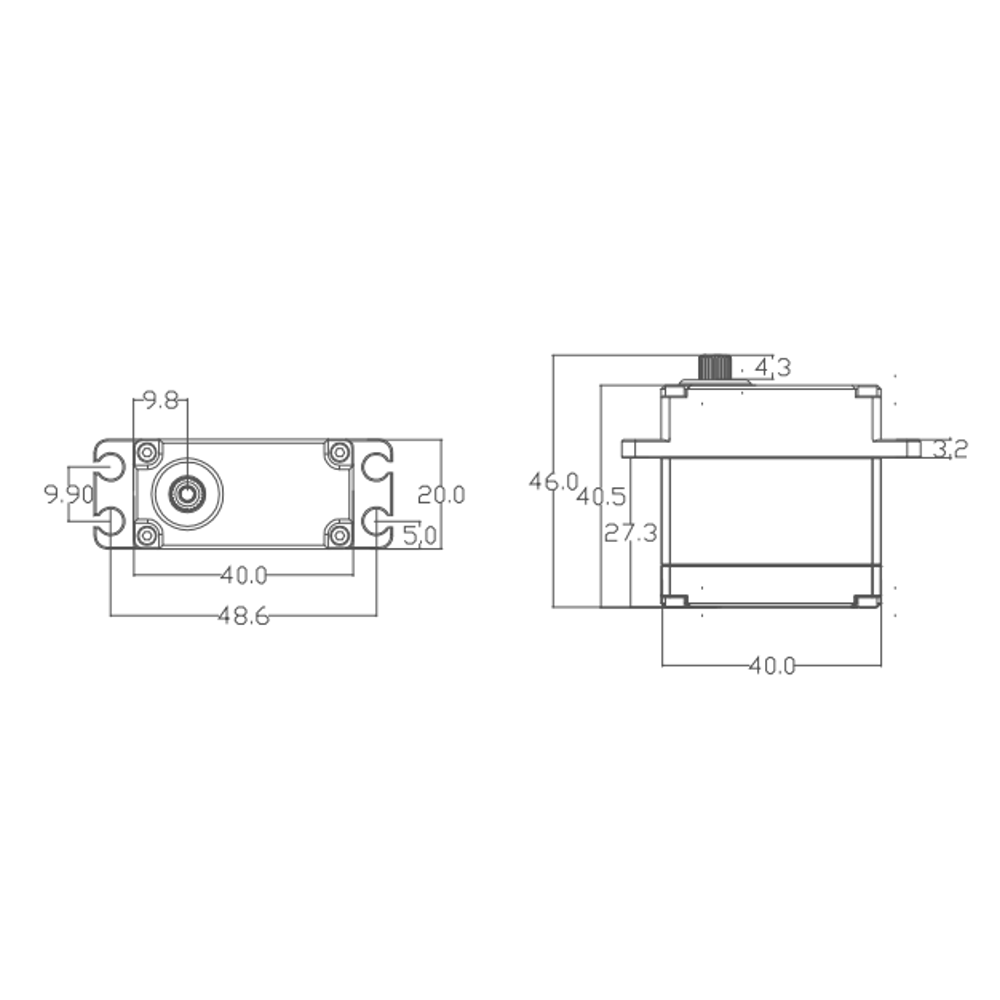

Dimensions: 40x20x40.5mm

Weight: 75g (without servo horn)

Standing Torque: 18kg-cm (6.0V) 25kg-cm(8.4V)

Speed: 0.07sec/60deg(6.0V) 0.05sec/60deg(8.4V)

Idle Current: 300mA(6.0V) 350mA(8.4V)

Running Current: 3000mA(6.0V) 3800mA(8.4V)

Dead Band Width: 1msec(6.0V) 1msec(8.4V)

Ball Bearing: 2BB

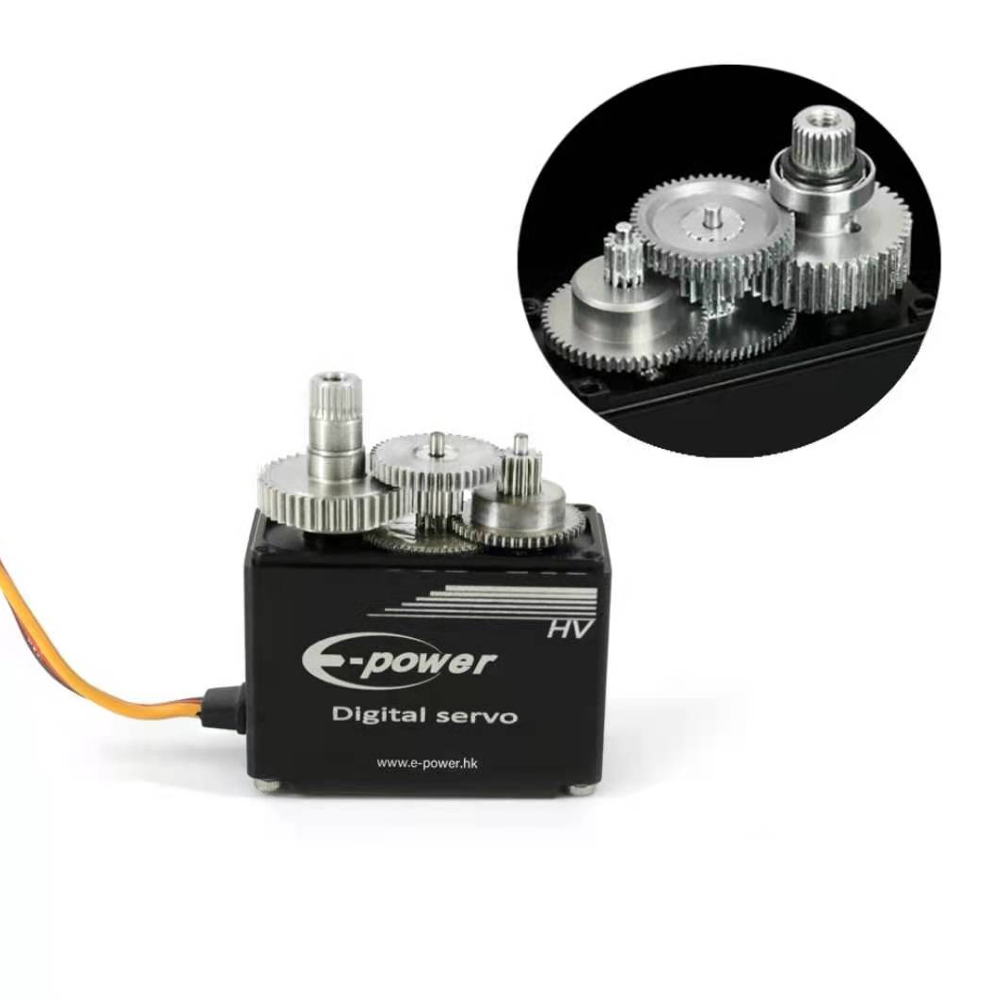

Gear Material: Metal Gear

Case Material: Aluminum Case

Connector Wire Length: 300mm JR Plug

Connector Wire Gauge: 22AWG

Wire Info (Brown): Negative

Wire Info (Red): Positive

Wire Info (Yellow): Signal

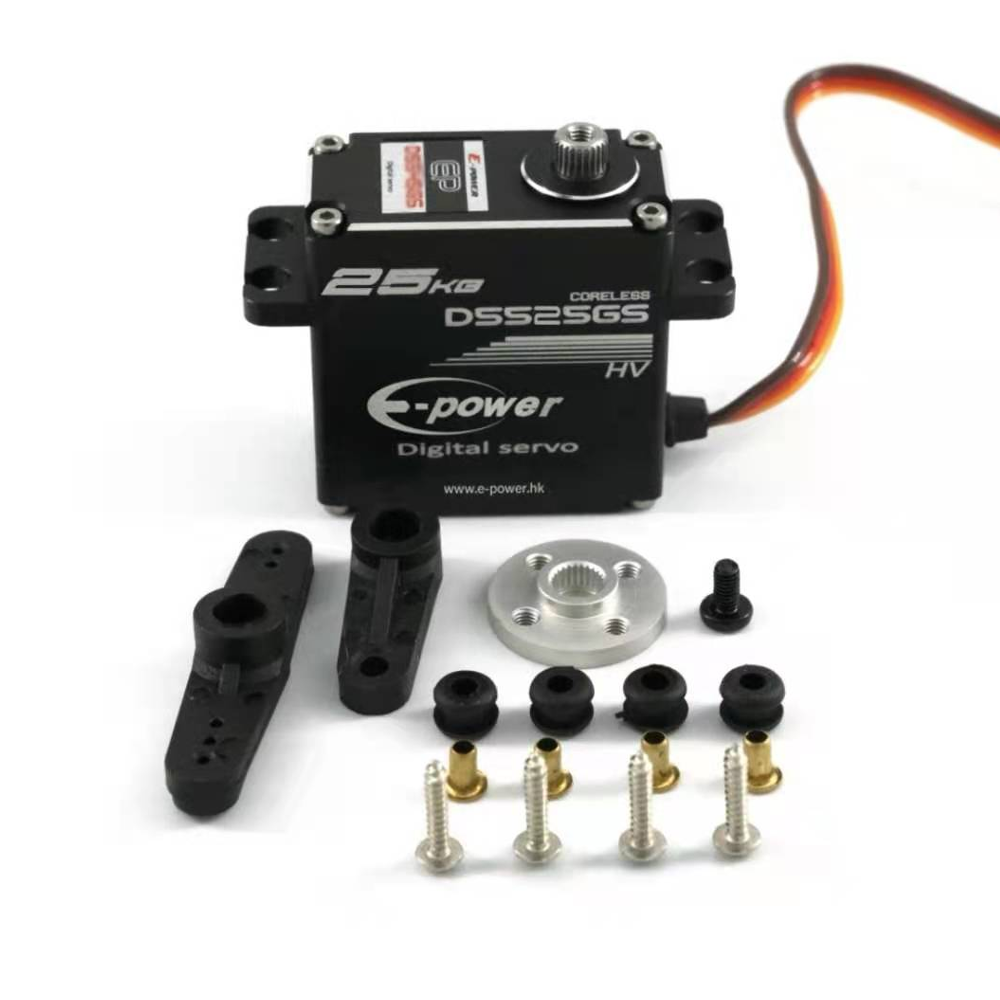

Package Included:

1x E-Power DSS25GS Servo
