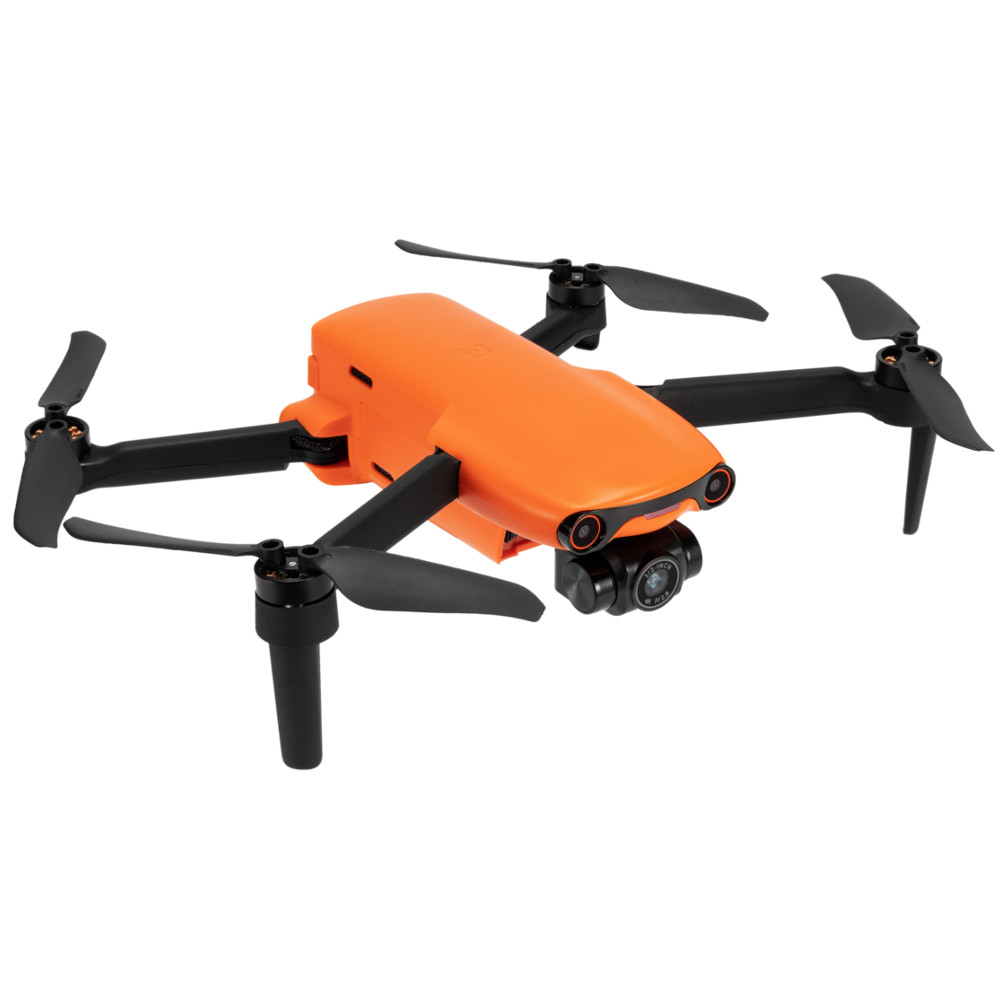

  3. Autel Robotics EVO Nano Nano+ Series 249g 10KM FPV with 1/1.28" CMOS 50MP Camera 3-Axis Gimbal 28mins Flight Time RC Drone Quadcopter RTF
Public Pricelist

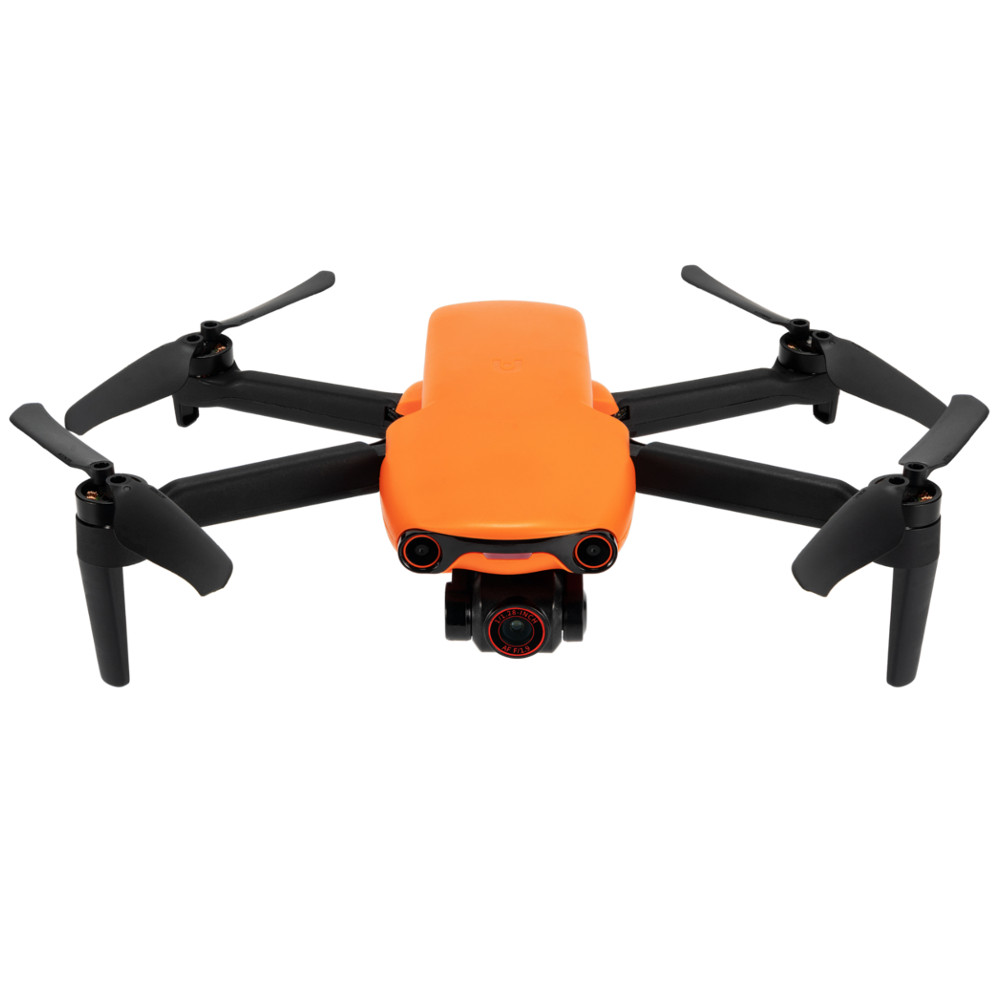

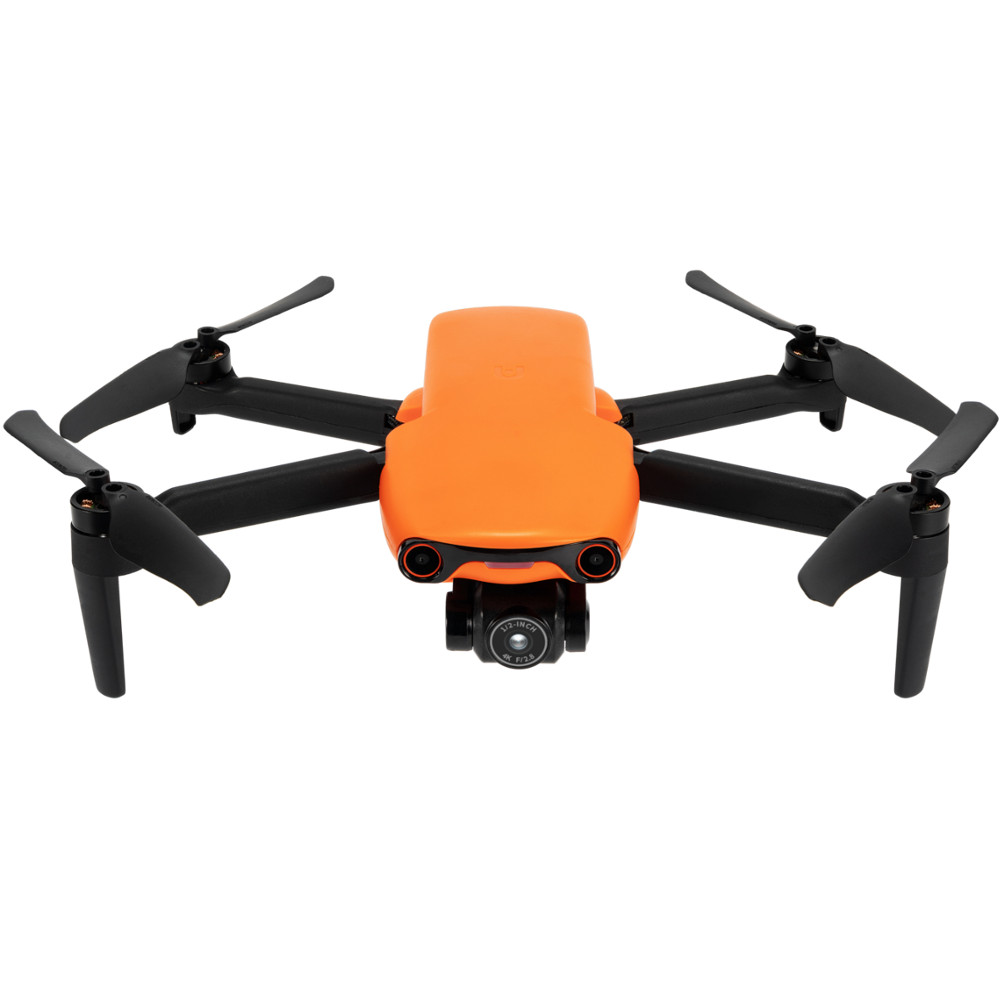

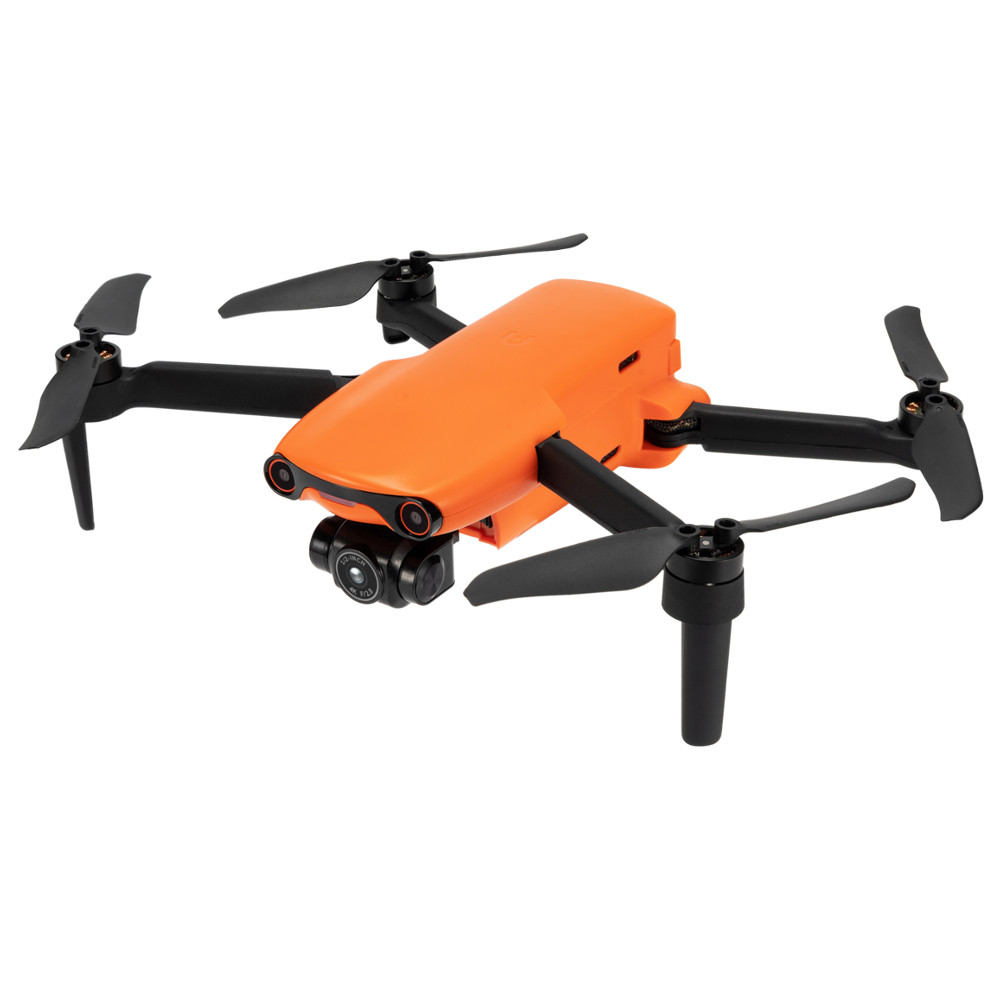

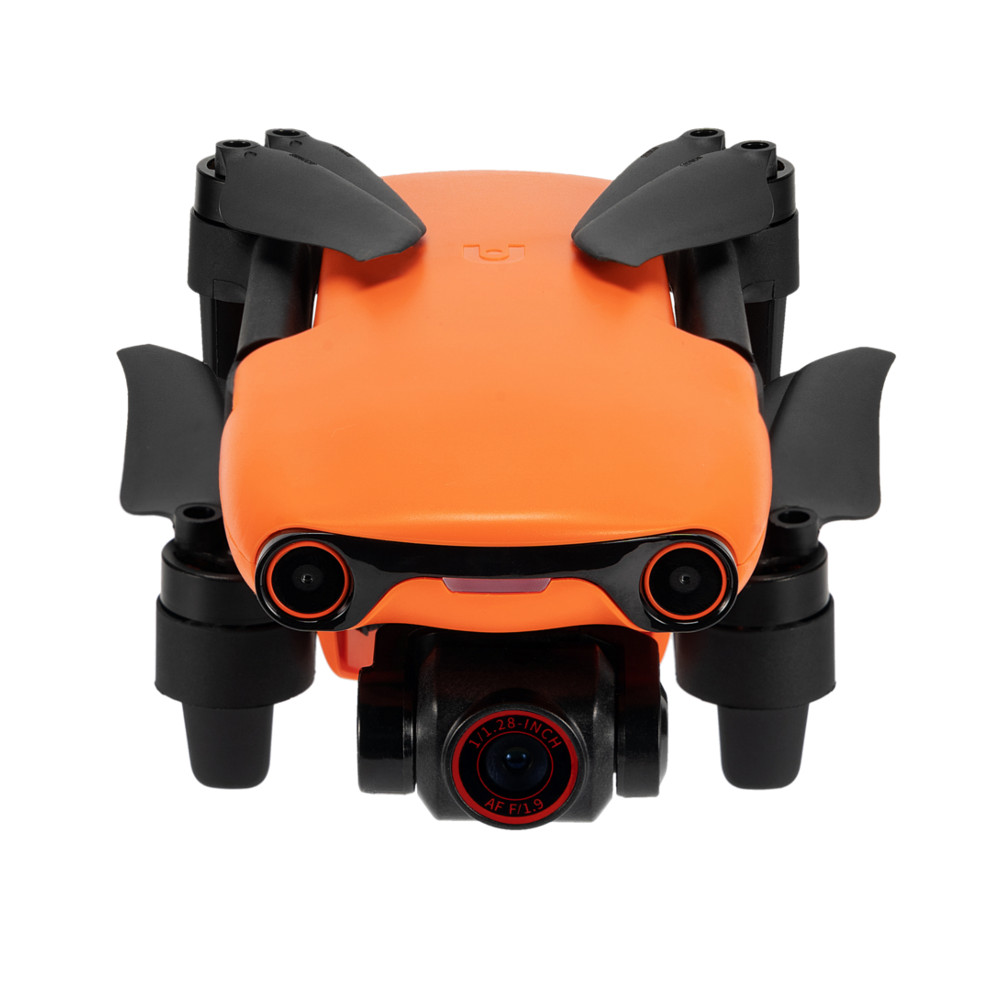

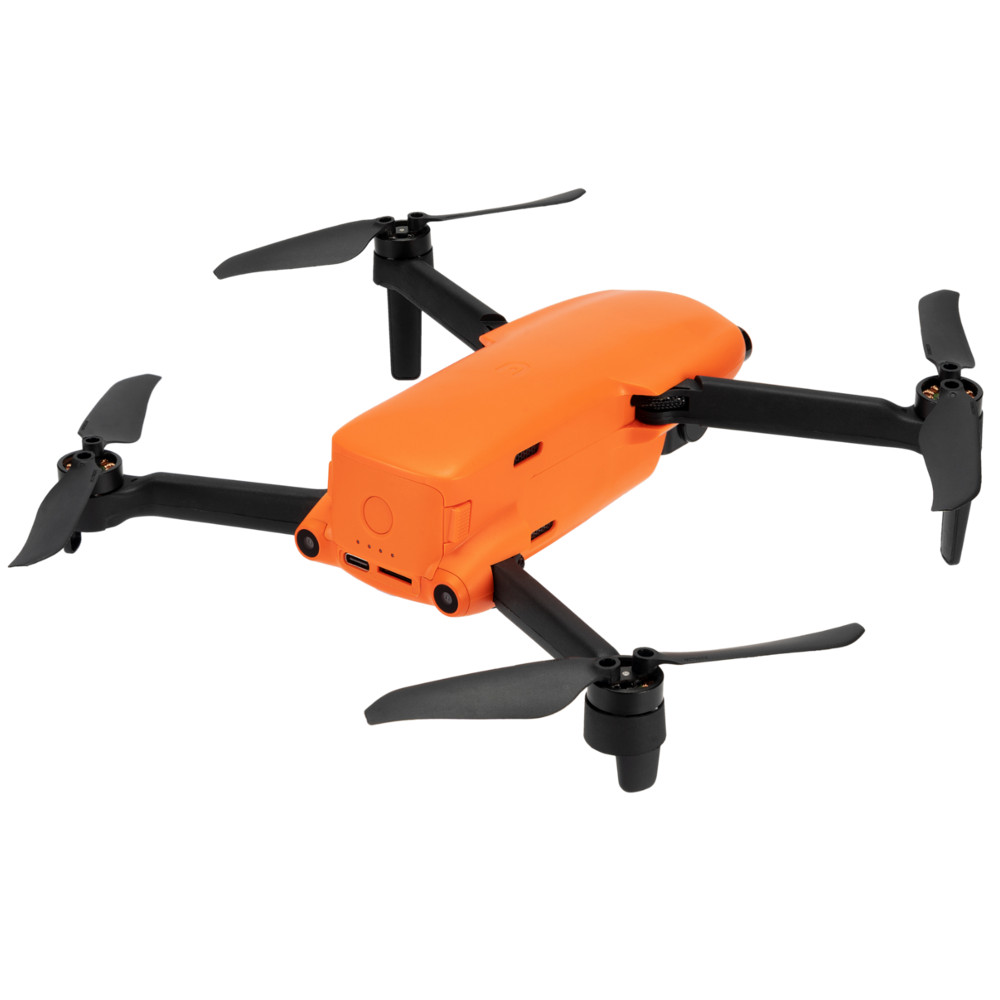

Autel Robotics EVO Nano Nano+ Series 249g 10KM FPV with 1/1.28" CMOS 50MP Camera 3-Axis Gimbal 28mins Flight Time RC Drone Quadcopter RTF

https://www.rcwarehouse.nl/web/image/product.template/5986/image_1920?unique=a2d6a01

1,400.97 € 1400.97 EUR 1,400.97 €

1,091.35 €

  • Color
  • Mode
  • Model

This combination does not exist.

Autel Robotics EVO Nano Nano+ Series 249g 10KM FPV with 1/1.28' CMOS 50MP Camera 3-Axis Gimbal 28mins Flight Time RC Drone Quadcopter RTF


Specifications:


Aircraft

Takeoff Weight
249 g
Dimensions (including blades)
Folded: 140x90x50mm
Unfolded: 264x310x50mm
Wheelbase
231 mm
Max Ascension Speed6 m/s (S Mode)
4 m/s (N Mode)
3 m/s (C Mode)
Max Descent Speed4 m/s (S Mode)
3 m/s (N Mode)
2 m/s (C Mode)
Max Level Flight Speed

(near sea level no wind)

15 m/s (S Mode)
10 m/s (N Mode)
5 m/s (C Mode)
Maximum Takeoff Altitude
4000 m
Max Flying Time (no wind)
28 minutes
Max Hovering Time (no wind)
26min
Max Flying Distance (no wind)
16.8KM
Max Wind ResistanceLevel 5
Max Tilt Angle33deg (S Mode)
25deg (N Mode)
25deg (C Mode)
Max Angular Vellocity200deg/s (S Mode)
120deg/s (P Mode)
60deg/s (C Mode)
Operating Temperature Range-10degC ~ 40degC
Operating Frequency2.400-2.4835GHz 5.725-5.850GHz 5.150-5.250GHz
Transmitter Power (EIRP)FCC:<=30dBm
GNSSGPS
Hovering AccuracyVertical: +-0.1 m (when the Visual Positioning is active) +-0.5 m (with GPS Positioning)
Horizontal: +-0.3 m (with Visiion Positioning) +-1.5 m (with GPS Positioning)

Gimbal

Mechanical RangePitch:  -125deg~35deg
Roll:  -34deg~33deg
Yaw:  -25deg~25deg
Controllable RangePitch: -90deg~ 0deg
Stabilization3-axis
Max Control Speed (Pitch)30deg/s
Angular Vibration Range+-0.003deg

Perception System

ForwardAccurate Measurement Range: 0.5~16m
Effective Sensing Speed: <10m/s
FOV: Horizontal<40deg Vertical<30deg
Backward
Accurate Measurement Range: 0.5~18m
Effective Sensing Speed: <12m/s
FOV: Horizontal <40deg Vertical <30deg
Downward
Accurate Measurement Range: 0.5~20m
Visual Hovering Range: 0.5~40m
FOV: Horizontal <40deg Vertical <30deg
Operating EnvironmentForward Backward:
Surface with clear pattern and adequate lighting(lux> 15)
Downward:
Surface with clear pattern and adequate lighting(lux> 15);
Detects diffuse reflective surfaces(>20%) (walls trees people etc.)

Remote Controller

&
Video Transmission

Operating Frequency2.400-2.4835GHz 5.725-5.850GHz 5.150-5.250GHz
Max Transmission Distance
(unobstructed free of interference)		FCC: 10KM
Operating Temperature Range0deg to 40degC
Transmitter Power (EIRP)FCC: <=30dBm
Battery Capacity3930 mAh
Max Battery Life3.5h (when connected to a mobile phone)
2.5h (when not connected to mobile phone)
Interface TypesType-C
Video Transmission SystemSkyLink
Max Transmission Quality2.7K(<1km)
Transmission Bitrate90 Mbps
Transmission delay
<=200ms

Intelligent Flight  Battery

Capacity2250 mAh
Voltage7.7 V
Max Charging Voltage8.8 V
Battery TypeLiPo 2S
Energy17.32Wh
Single Battery Charging Time90min
Max Charging Power30 W
Charging Temperature
5deg to 45degC

Charger

Input100-240 V 50-60 Hz
Output5V3A 9V3A 12V2.5A
Rated Power30W

APP


NameAutel/Sky
Mobile System RequirediOS 12.0 and above
Android 8.0 and above

Storage

Supported SD CardsMax. Support 256GB (UHS-3 Rating Required)


Camera Specifications:



Nano
Nano+
Sensor
CMOS: 1/2 inch
Effective Pixels: 48M
Pixel Size: 1.6mm*1.6mm (Bin2)
CMOS: 1/1.28 inch
Effective Pixels: 50MP
Pixel Size:: 2.44mm*2.44mm (Bin2)
Lens
FOV: 84deg
Equivalent Focal Length: 24mm
Aperture: f/2.8
Focus Range:1m ~
Focus Mode: Fixed Focus
FOV: 85deg
Equivalent Focal Length: 23mm
Aperture: f/1.9
Focus Range: 0.5m ~
Focus Mode: PDAF+CDAF/MF
Shooting Mode
Automatic Mode (P Gear): EV Adjustable ISO/Shutter Automatic
Manual Mode (M Gear): ISO/Shutter Adjustable EV not Adjustable
Shutter Priority (S File): Shutter/EV Adjustable ISO Automatic
Automatic Mode (P Gear): EV Adjustable ISO/Shutter Automatic
Manual Mode (M Gear): ISO/Shutter Adjustable EV not Adjustable
Shutter Priority (S File): Shutter/EV Adjustable ISO Automatic
ISO Range
Video: ISO100 ~ ISO3200
Photo: ISO100 ~ ISO3200
Video:ISO100 ~ ISO6400
Photo:ISO100 ~ ISO6400
Shutter Speed
Photo Mode: 1/8000 ~ 8s
Other: 1/8000 ~ 1/Frame Rates
Photo Mode: 1/8000 ~ 8s
Other: 1/8000 ~ 1/Frame Rates
Portrait Blur
Real-time Image Transmission Portrait blur and Photo Portrait Blur
Real-time Image Transmission Portrait Blur and Photo Portrait Blur
Defog Mode
Support
Support
Zoom Range
Digital Zoom: 1 ~ 16 times
Digital zoom:1 ~ 16 times
Photo Format
JPG / DNG / JPG+DNG
JPG / DNG / JPG+DNG
Photo   Resolution
48MP:8000x6000 (4:3)
12MP (Default): 4000x3000 (4:3)
4K: 3840x2160 (16:9)
50MP: 8192x6144 (4:3)
12.5MP (Default): 4096x3072 (4:3)
4K: 3840x2160 (16:9)
Photo Shooting Mode
Single Shot
Burst Shooing: 3/5
Auto Exposure Bracketing(AEB): 3/5 Shots
Interval: 2s/3s/4s/5s (default)/6s/.../60s (DNG min 5s)
HDR Imaging: 3840x2160
Single shot
Burst shooing: 3/5
Auto exposure bracketing(AEB): 3/5 shots
Interval: 2s/3s/4s/5s (default)/6s/.../60s (DNG minimum 5s)
HDR imaging: 3840x2160
Video Coding Format
H265/H264
H265/H264
Video Resolution
3840x2160 p30/25/24
2720x1528 p30/25/24
1920x1080 p60/50/48/30/25/24
HDR:
3840x2160 p30/25/24
2720x1528 p30/25/24
1920x1080 p60/50/48/30/25/24
3840x2160 p30/25/24
2720x1528 p30/25/24
1920x1080 p60/50/48/30/25/24
HDR:
3840x2160 p30/25/24
2720x1528 p30/25/24
1920x1080 p60/50/48/30/25/24
Max Bitrate
100Mbps
100Mbps
Timelapse
Original Image: 3840*2160 JPG/DNG
Video: 4K P25
Original Image: 3840*2160 JPG/DNG
Video: 4K P25
Panorama
Horizontal/Vertical/Wide-angle/Spherical
Original Image: 4000*3000 JPG/DNG
Horizontal/Vertical/Wide-angle/Spherical
Original Image: 4096*3072 JPG/DNG
Supported File System
Fat32 exFat
Fat32 exFat
Video Format
MP4/MOV
MP4/MOV
WIFI Transfer
20MB/s
20MB/s


Features:

- The weight of Nano series is <=249g
- Support 2.4GHz/5.8GHz/5.2GHz tri-band
- Effective image transmission range up to 10KM (6.2Miles).
- Real-time image transmission resolution 2.7K/30FPS
- Obstacle Avoidance
- Maximum battery life up to 28mins
- Nano with 48MP / 4K HDR / 0.5' CMOS
- Nano+ with 0.8' CMOS / RYYB Sensor / 2.44um / PDAF+CDAF

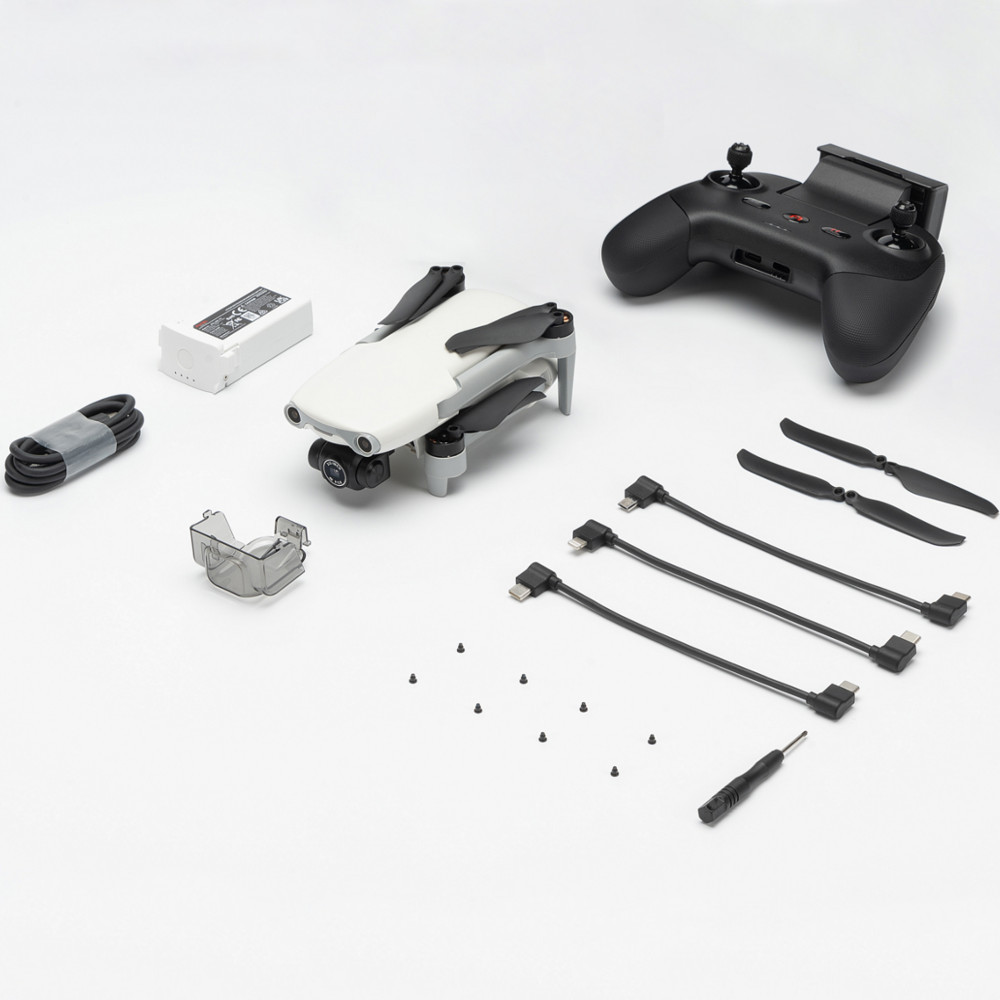

Package Included:

Standard Version:
1 x EVO Nano / EVO Nano+ Aircraft (Optional)
1 x Remote Control
1 x 2250mAh Battery
1 x Charging Cable
2 x Spare Propeller
3 x USB Cable
8 x Screw
1 x Screwdriver
1 x User Manual

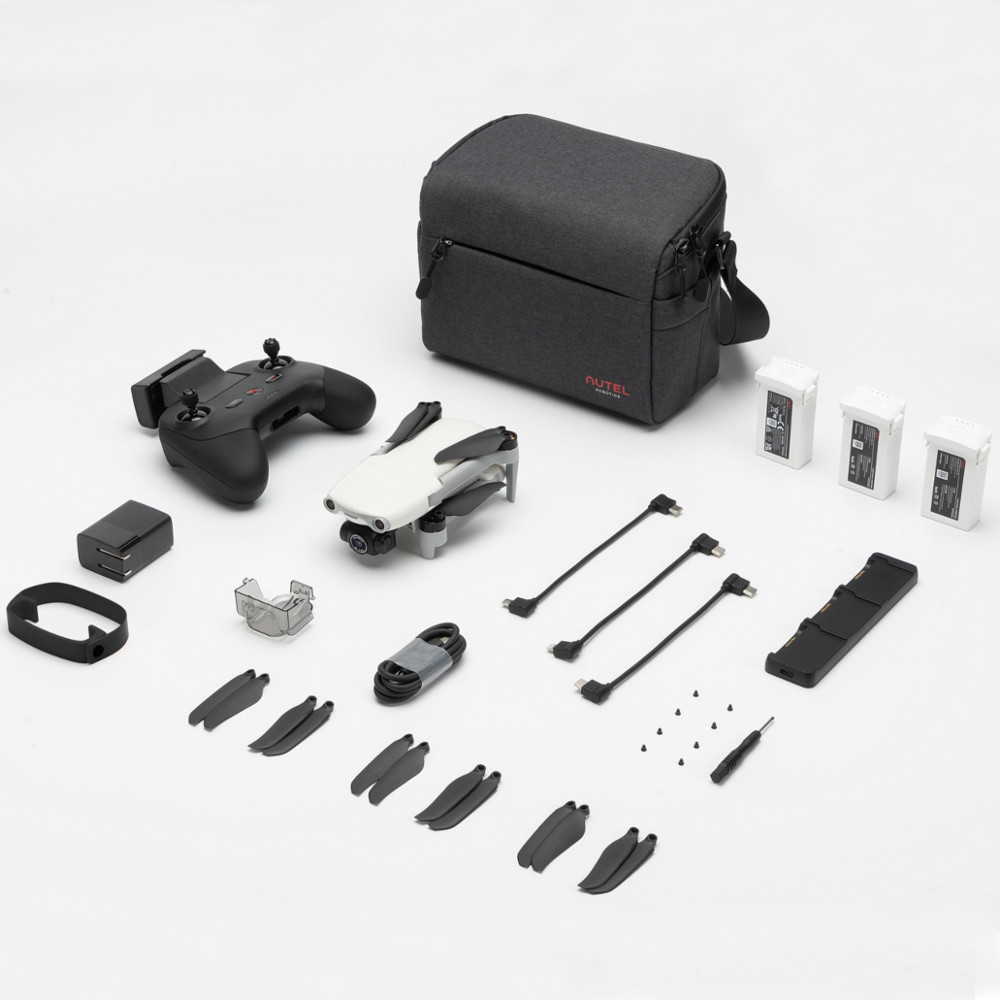

Fly More Combo:
1 x EVO Nano / EVO Nano+ Aircraft (Optional)
1 x Remote Control
3 x 2250mAh Battery
1 x Charging Cable
6 x Spare Propeller
3 x USB Cable
8 x Screw
1 x Screwdriver
1 x Storage Bag
1 x User Manual





Specifications

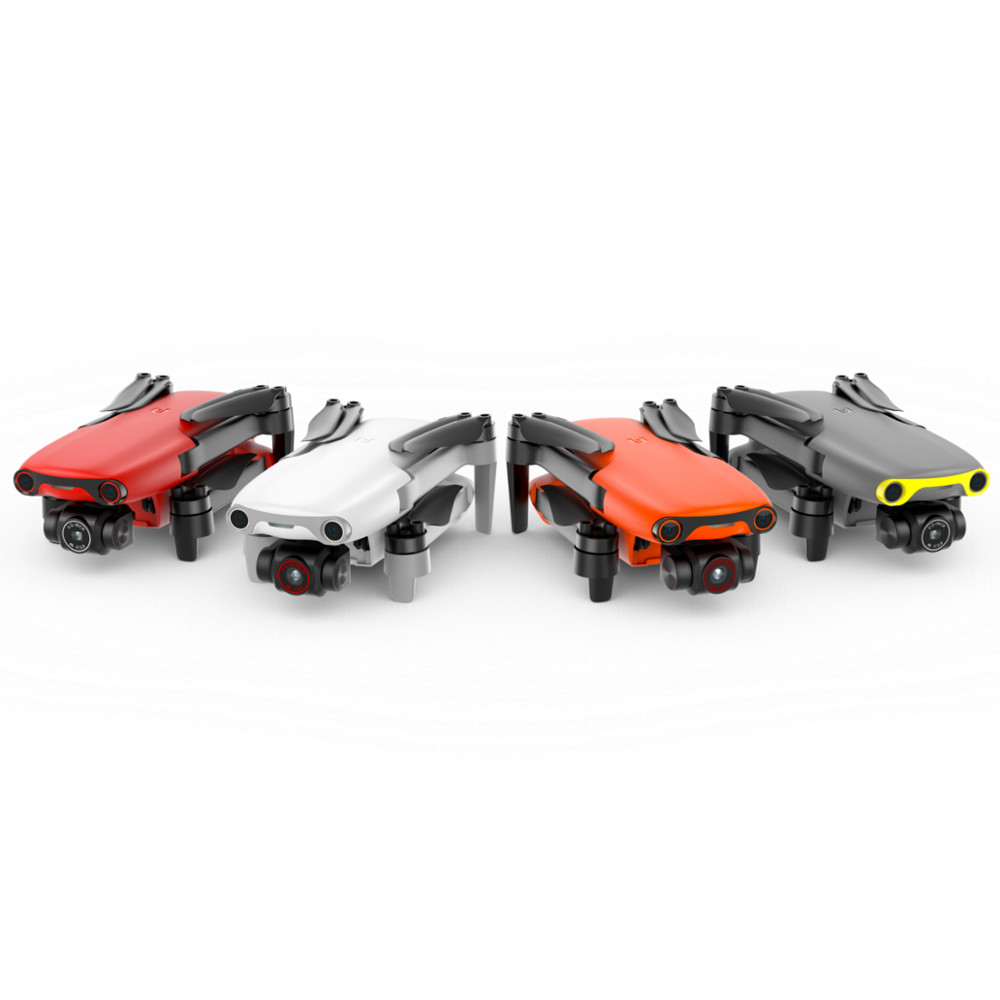

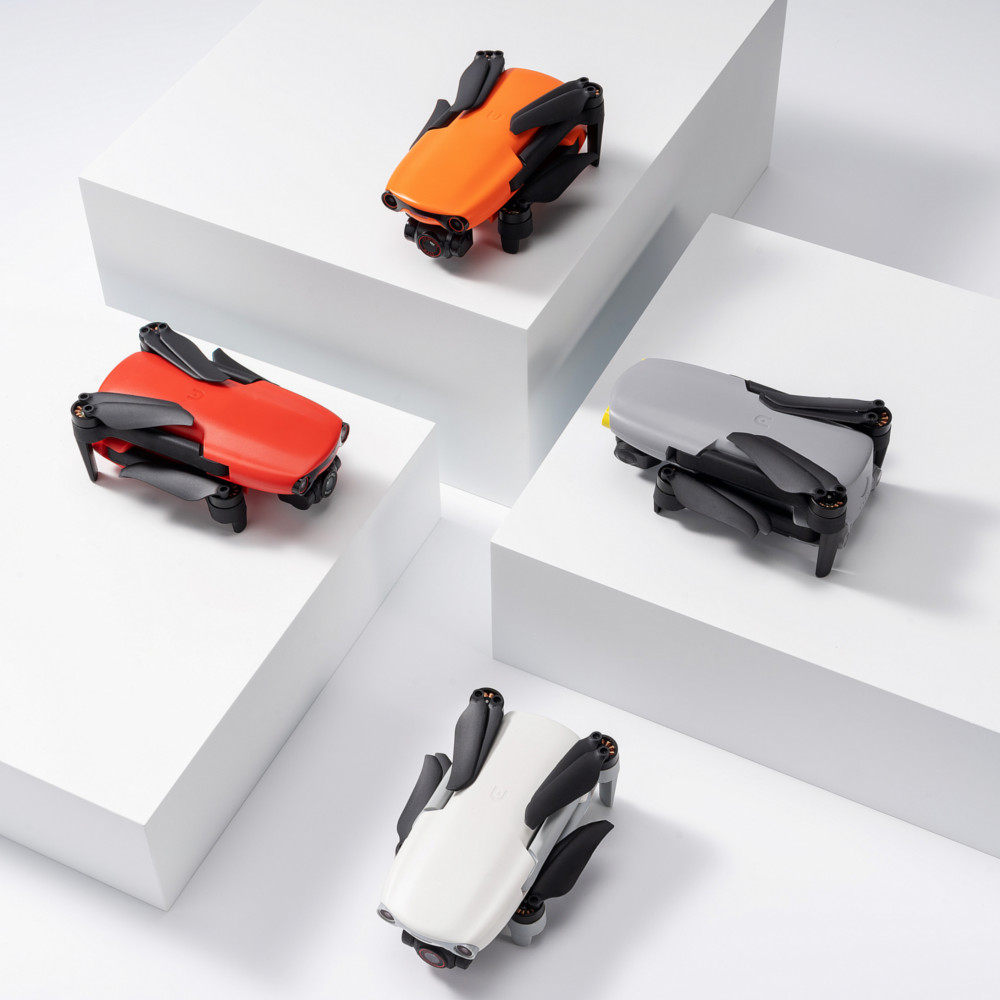

Color Red or White or Orange or Black
Mode Standard Version or Fly More Combo
Model EVO Nano+ PLUS
