Flashhobby D2826EVO 2208 930KV 1000KV 1450KV 2200KV RC Brushless Motor Reverse Shaft Support 3-4S for RC Airplane
Features:
48H Level Magnet
Precision Balanced Rotor Test
14P12N High Torque Motor Design
CNC 6061-T6 Aluminum Bell
High RPM Imported(NSK/NMB)Bearing
High Temperature Resistant Copper Wire Winding
Description:
Item Name: Flashhobby D2826EVO(2208) Brushless Motor
Model: D2826EVO
Weight: 55.7g(Including wires)
Motor size: 28x26mm
Shaft size: 3.0x41.0mm
Stator Diameter: 22mm
Stator Height: 8mm
Motor Mount: 16x19mm(M3x4)
Configuration: 12N14P
KV Value: 930KV/ 1000KV/ 1450KV/ 2200KV(Optional)
| KV:930KV | Max watts:162.9W Max current:13.2A No Load current:0.63A Resistance:156.3mO Battery: 3-4S Lipo Suggested Prop: 9 inch prop |
| KV:1000KV | Max watts: 292W Max current:18.43A No Load current:0.7A Resistance:137.9mO Battery: 3-4S Lipo Suggested Prop: 9 inch prop |
| KV:1450KV | Max watts: 367W Max current:30.97A No Load current:1.26A Resistance:30.5mO Battery: 3-4S Lipo Suggested Prop: 9 inch prop |
| KV:2200KV | Max watts: 311.5W Max current:26.1A No Load current:1.26A Resistance:30.5mO Battery: 3-4S Lipo Suggested Prop: 9 inch prop |

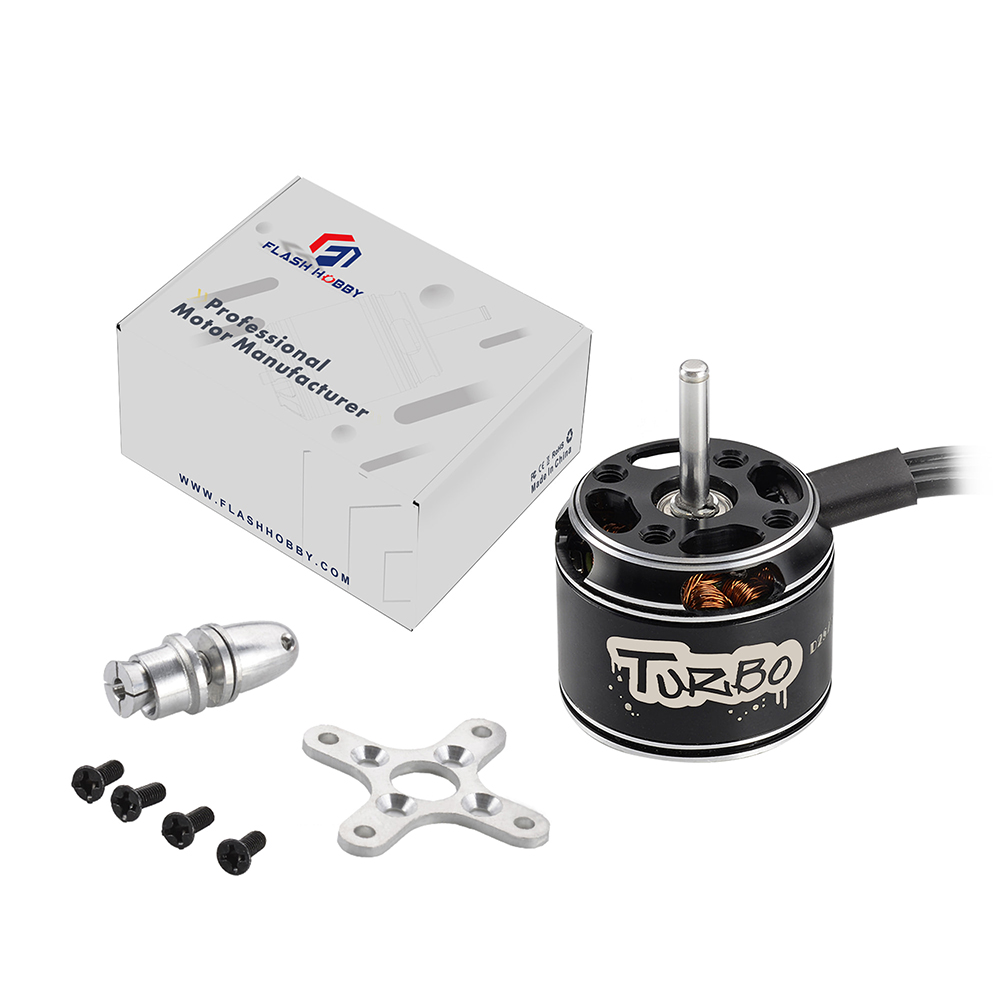

Package Included(Optional):
1x Flashhobby D2826EVO(2208) Brushless Motor
Specifications
| KV | 1000KV or 2200KV or 1450KV or 930KV |
