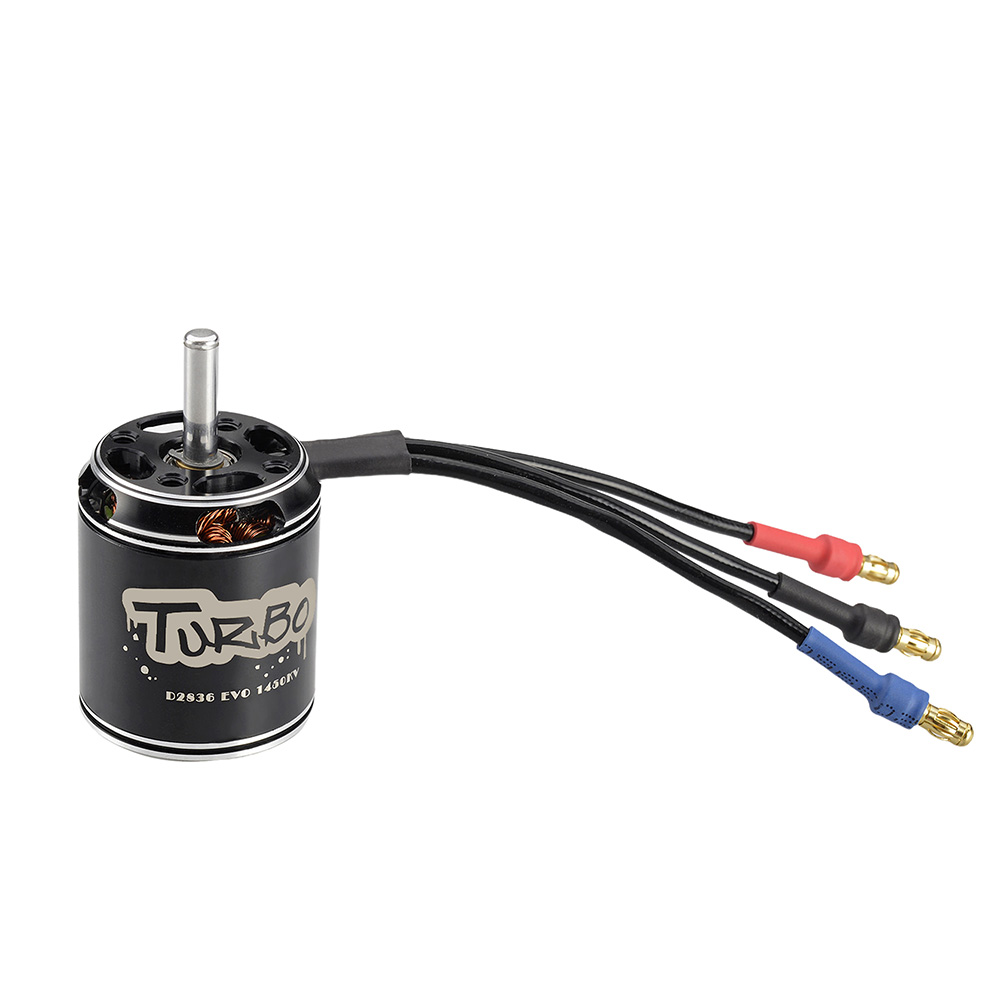

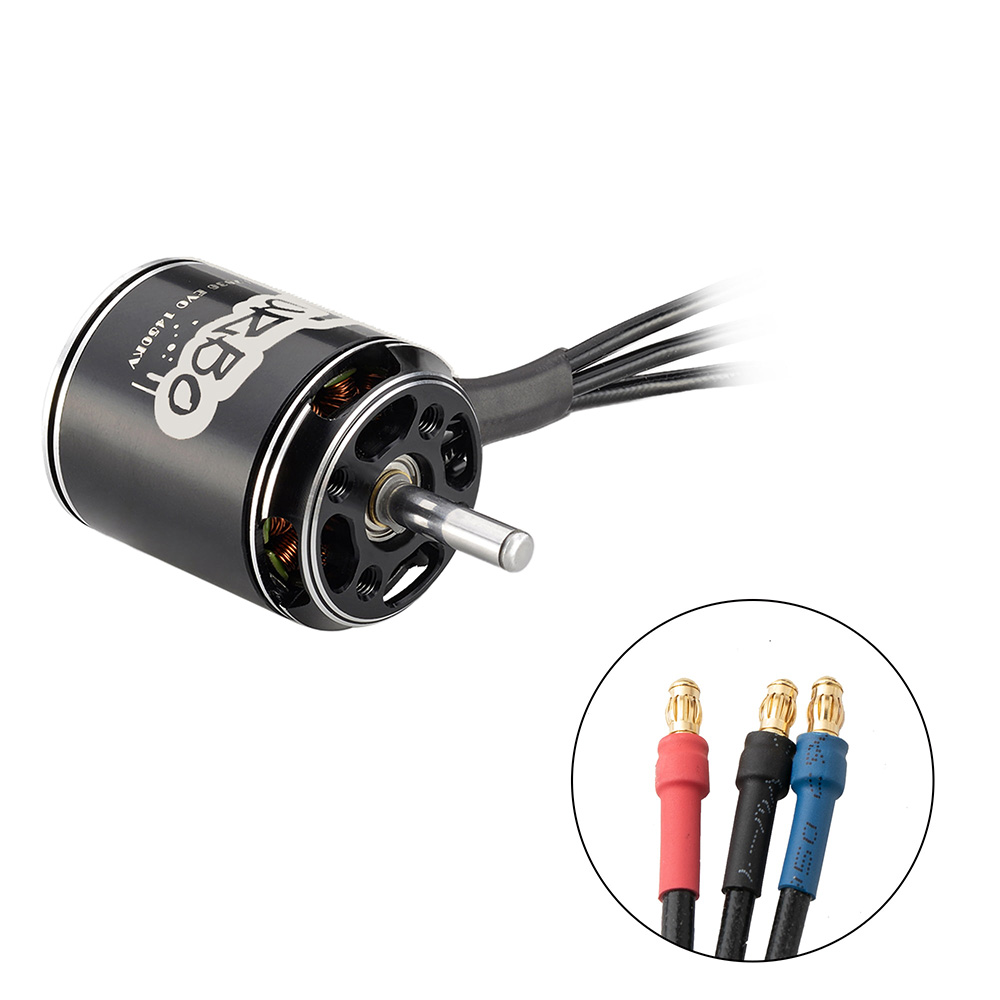

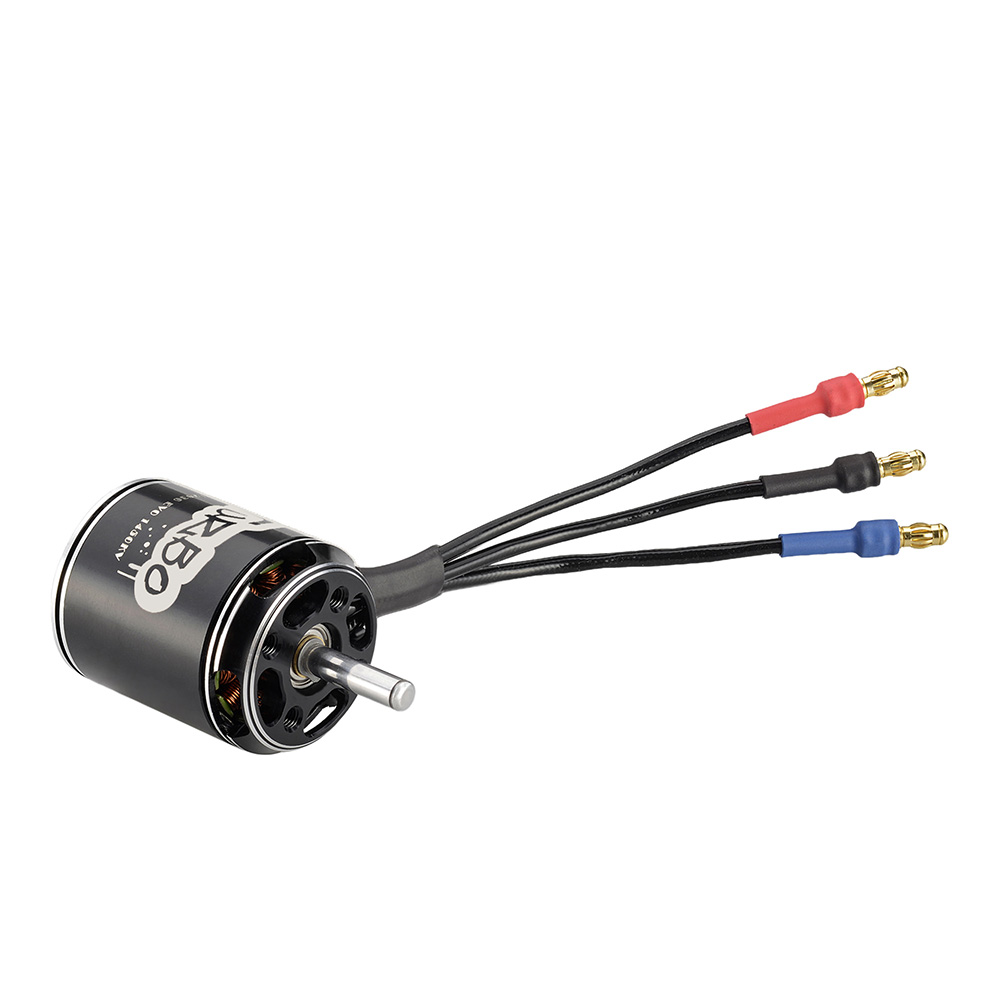

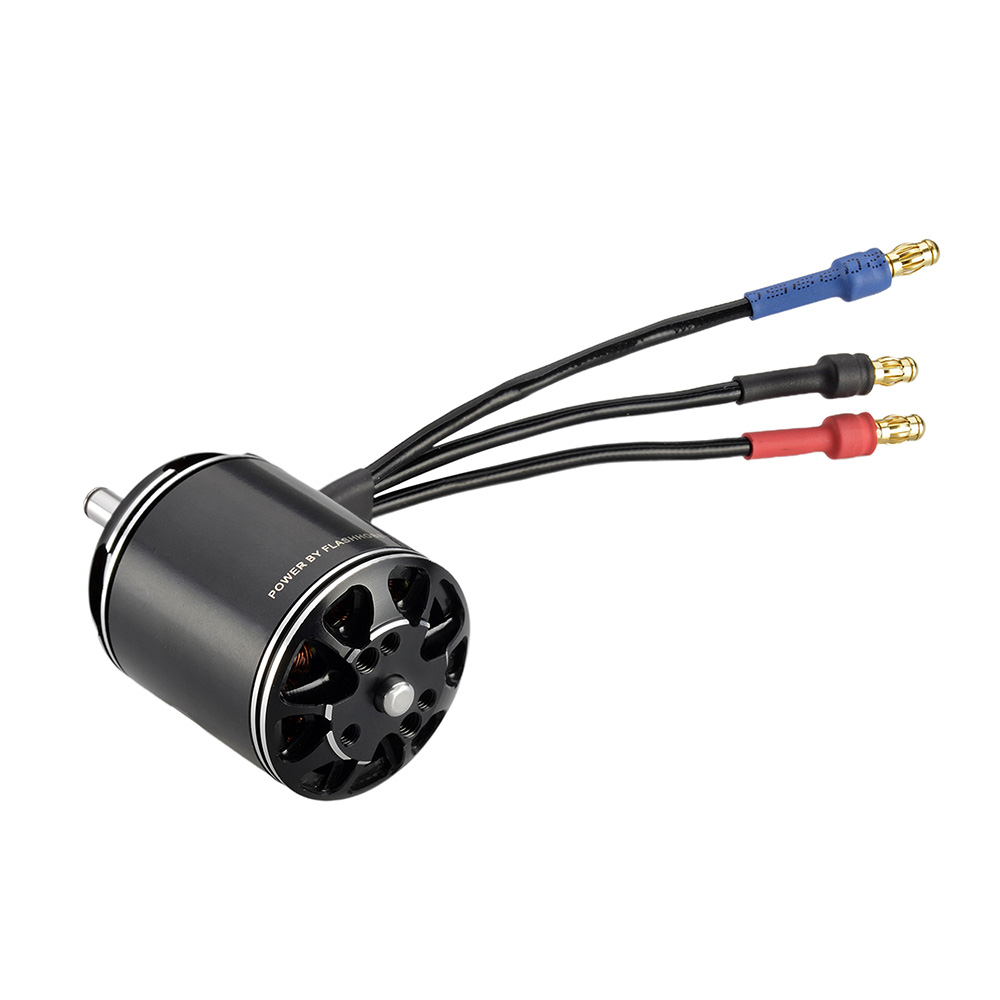

Flashhobby D2836EVO 2217 750KV 850KV 1100KV 1450KV RC Brushless Motor Reverse Shaft Support 3-4S for RC Airplane
Features:
48H Level Magnet
Precision Balanced Rotor Test
14P12N High Torque Motor Design
CNC 6061-T6 Aluminum Bell
High RPM Imported(NSK/NMB)Bearing
High Temperature Resistant Copper Wire Winding
Description:
Item Name: Flashhobby D2836EVO (2217) Brushless Motor
Model: D2836EVO

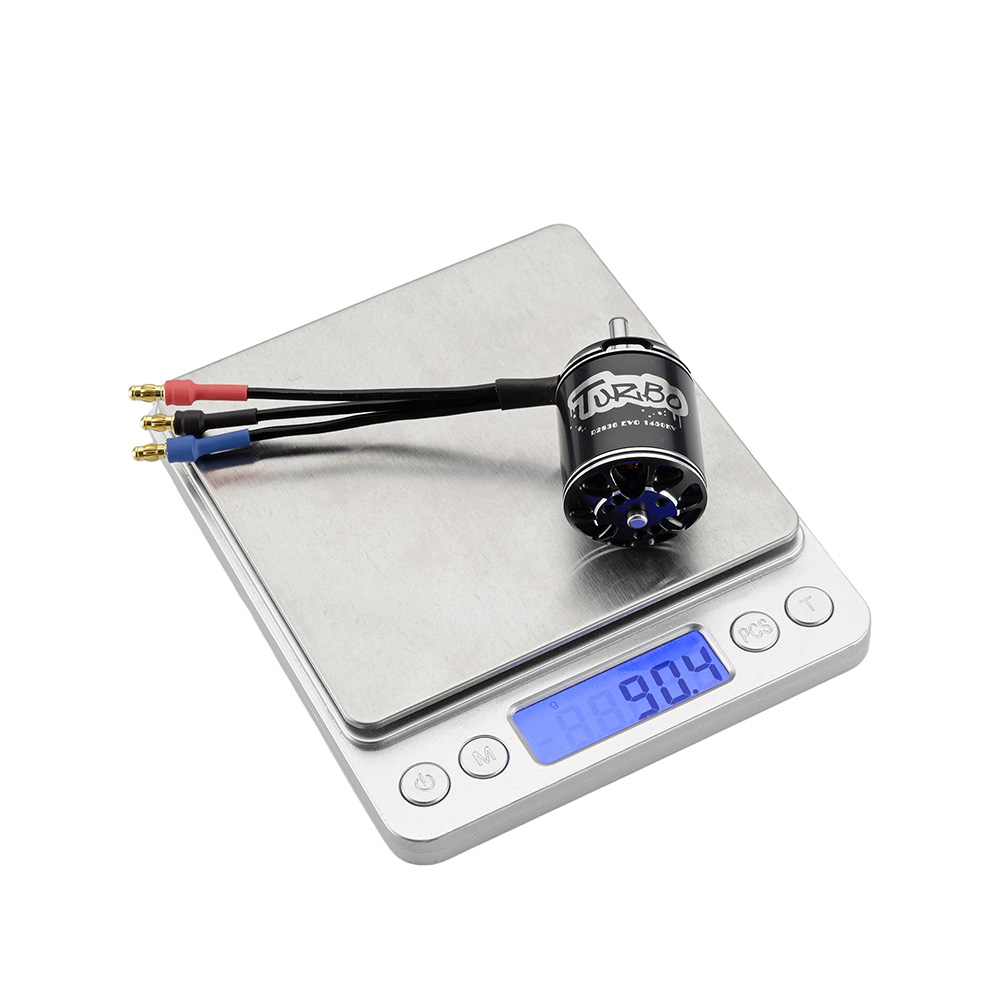

Weight: 88.6g(Including wires)
Motor size: 28x36mm
Shaft size: 4.0x51.0mm
Stator Diameter: 22mm
Stator Height: 17mm
Motor Mount: 16x19mm(M3x4)
Configuration: 12N14P
KV Value: 750KV/ 850KV/ 1100KV/ 1450KV(Optional)
| KV: 750KV | Max watts:194.9W Max current:11.95A No Load current:0.74A Resistance:124mO Battery: 3-4S Lipo Suggested Prop: 9 inch prop |
| KV:850KV | Max watts:244.5W Max current:15.11A No Load current:0.92A Resistance:97.4mO Battery: 3-4S Lipo Suggested Prop: 10 inch prop |
| KV:1100KV | Max watts:462.7W Max current:30.3A No Load current:1.37A Resistance:57.9mO Battery: 3-4S Lipo Suggested Prop: 9 inch prop |
| KV:1450KV | Max watts:739.6W Max current:48.69A No Load current:2.24A Resistance:33.5mO Battery: 3-4S Lipo Suggested Prop: 9 inch prop |

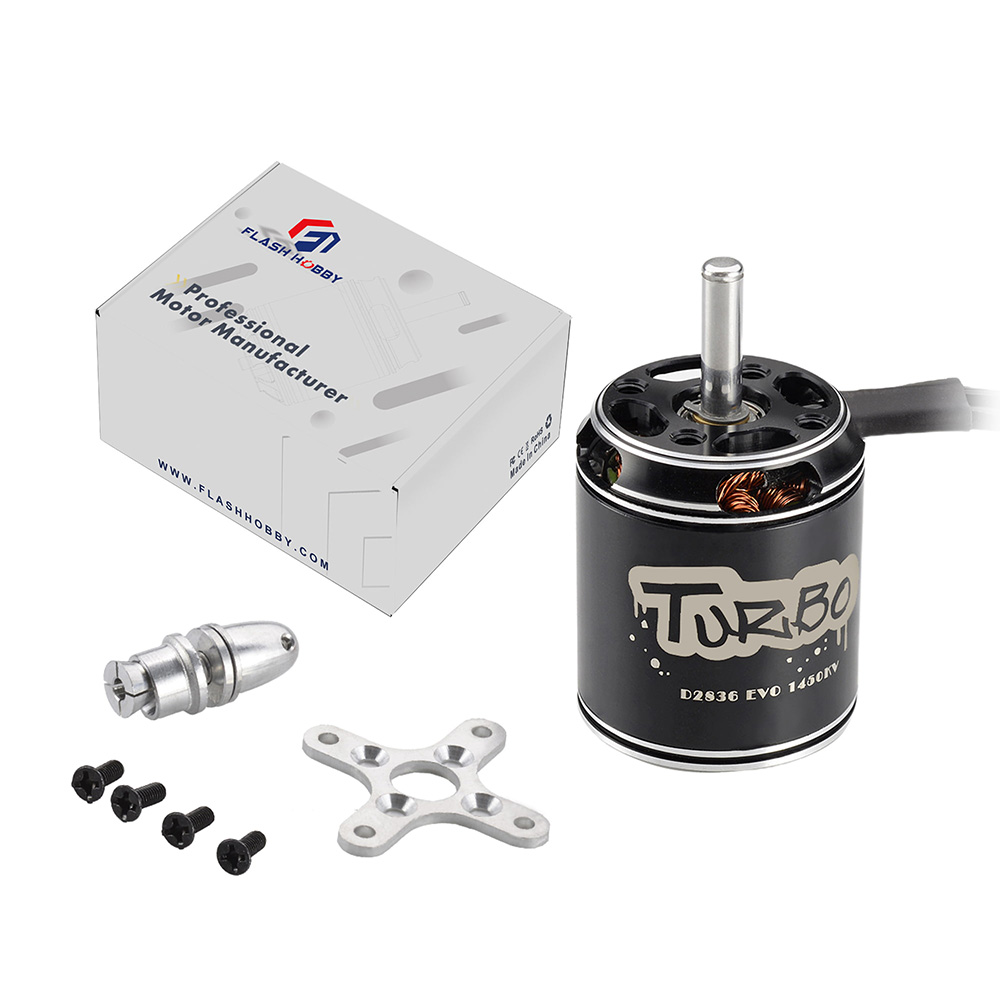

Package Included(Optional):
1x Flashhobby D2836EVO (2217) Brushless Motor
Specifications
| KV | 750KV or 850KV or 1450KV or 1100KV |
