Flashhobby D3530EVO 2808 1100KV 1400KV 1700KV RC Brushless Motor Reverse Shaft Support 3S-4S for Airplane
Features:
48H Level Magnet
Precision Balanced Rotor Test
14P12N High Torque Motor Design
CNC 6061-T6 Aluminum Bell
High RPM Imported(NSK/NMB)Bearing
High Temperature Resistant Copper Wire Winding
Description:
Item Name: Flashhobby D3530EVO(2808)Brushless Motor
Model: D3530EVO

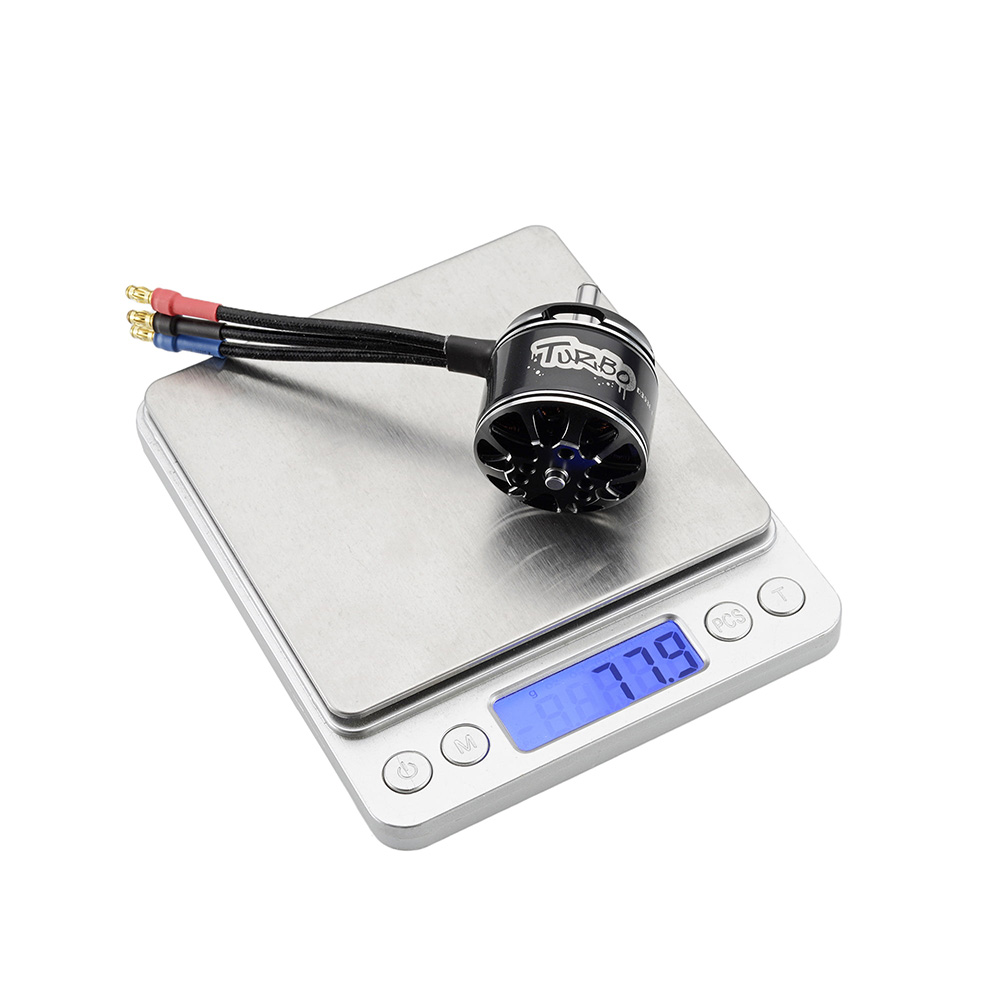

Weight: 75.1g(Including wires)
Motor size: 35.3x30mm
Shaft size: 5.0x47.5mm
Stator Diameter: 28mm
Stator Height:8mm
Motor Mount: 19x25mm(M3x4)
Configuration: 12N14P
KV Value: 1100KV/ 1400KV/ 1700KV(Optional)
| KV:1100KV | Max watts:380W Max current:23.27A No Load current:1.16A/10V Resistance:97.5mO Battery: 3-4S Lipo Suggested Prop: 8 inch prop |
KV:1400KV | Max watts:663W Max current:42.97A No Load current:1.77A/10V Resistance:54.4mO Battery: 3-4S Lipo Suggested Prop: 8 inch prop |
| KV:1700KV | Max watts:702.5W Max current:44.92A No Load current:2.48A/10V Resistance:34.3mO Battery: 3-4S Lipo Suggested Prop: 7 inch prop |

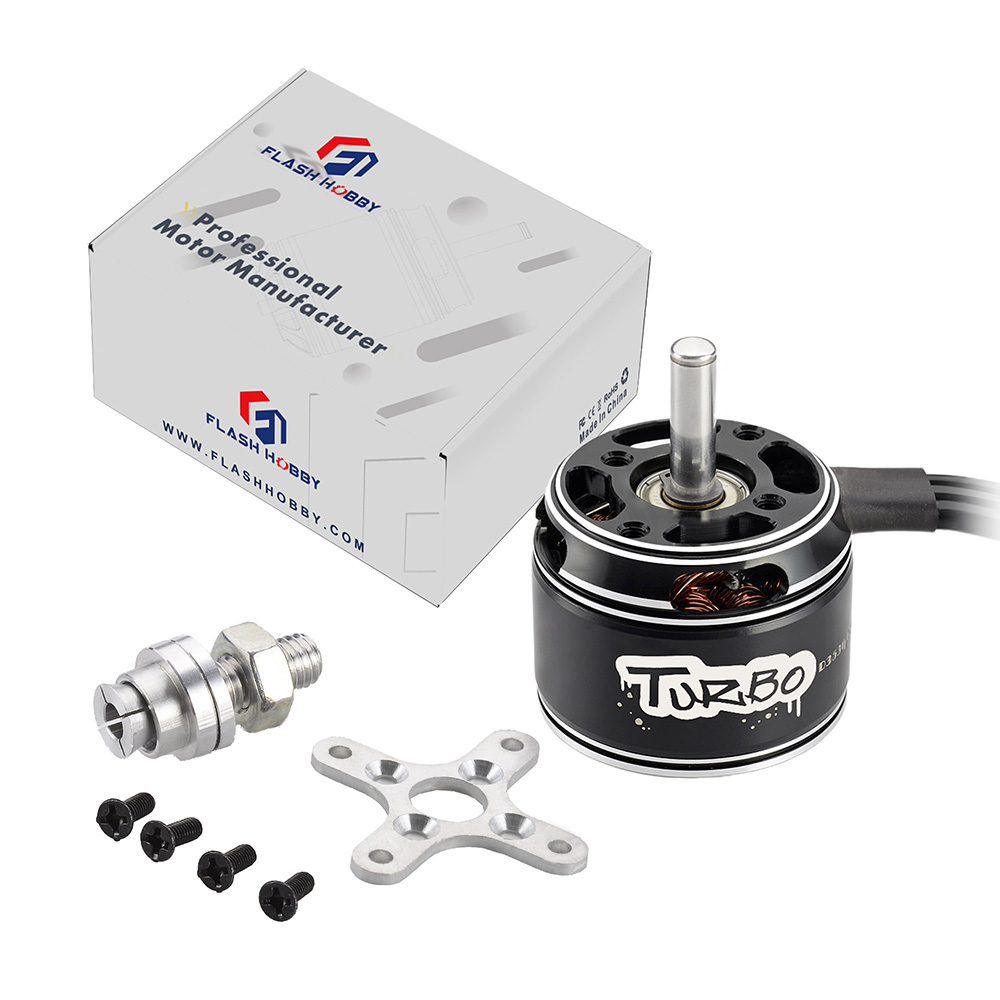

Package Included(Optional):
1x Flashhobby D3530EVO(2808)Brushless Motor
Specifications
| KV | 1700KV or 1400KV or 1100KV |
