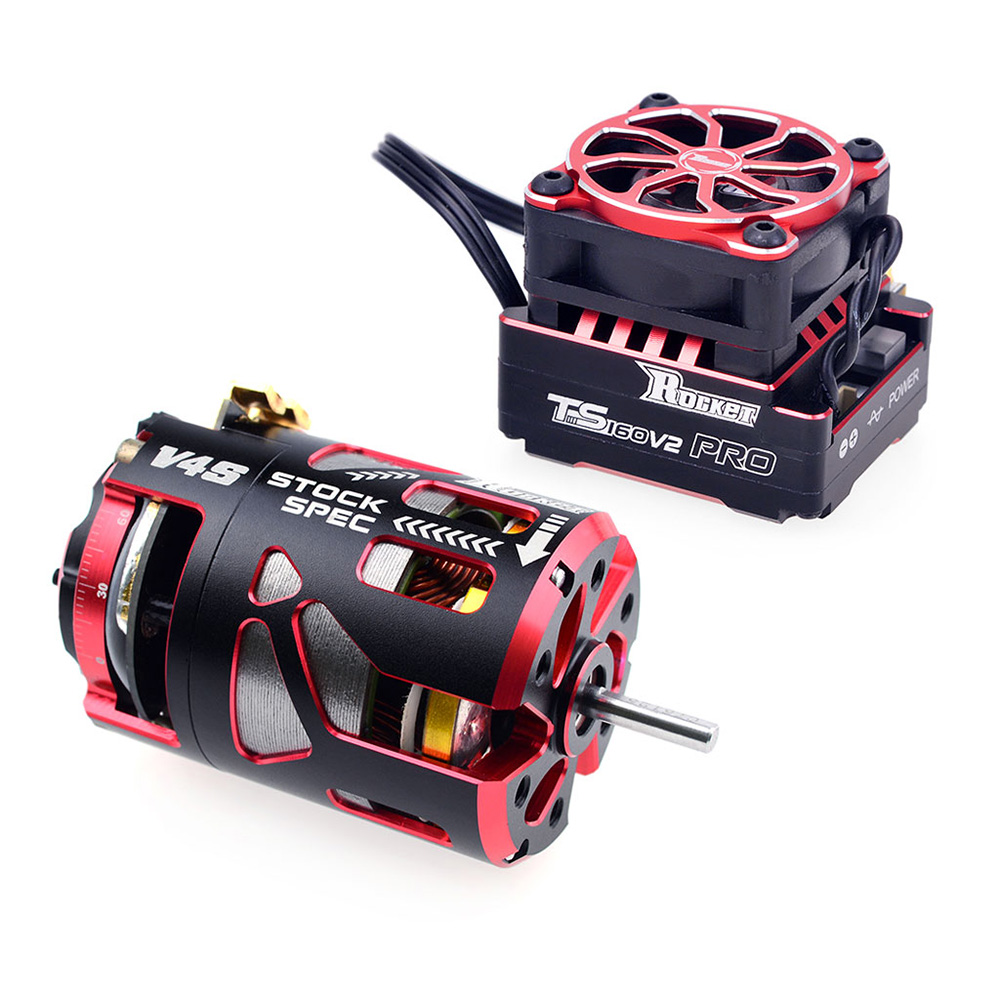

Surpass Hobby ROCKET 540 V4S Sensored Brushless Motor V2 160A ESC Modified for 1/10 RC Car Vehicles Parts
Description:
Item Brand:Surpass Hobby
Item Number:ROCKET 540-V4S V2(F540/8.5T F540/10.5T)+160A
Item Name:RC car motor +esc set
Material:Metal and plastic
Color:Black
The Size of the Motor:Length 52.1mm diameter 35.8mm shaft diameter is 3.175mm length of extended shaft is 35.8mm
The Size of the ESC:38.2x32x30.6mm
The Weight of the Motor/ESC:About 160g/54g
Recommendating Program Card(Not included):LCD program card picture please click here
Fit For:1/10 drift rc cars

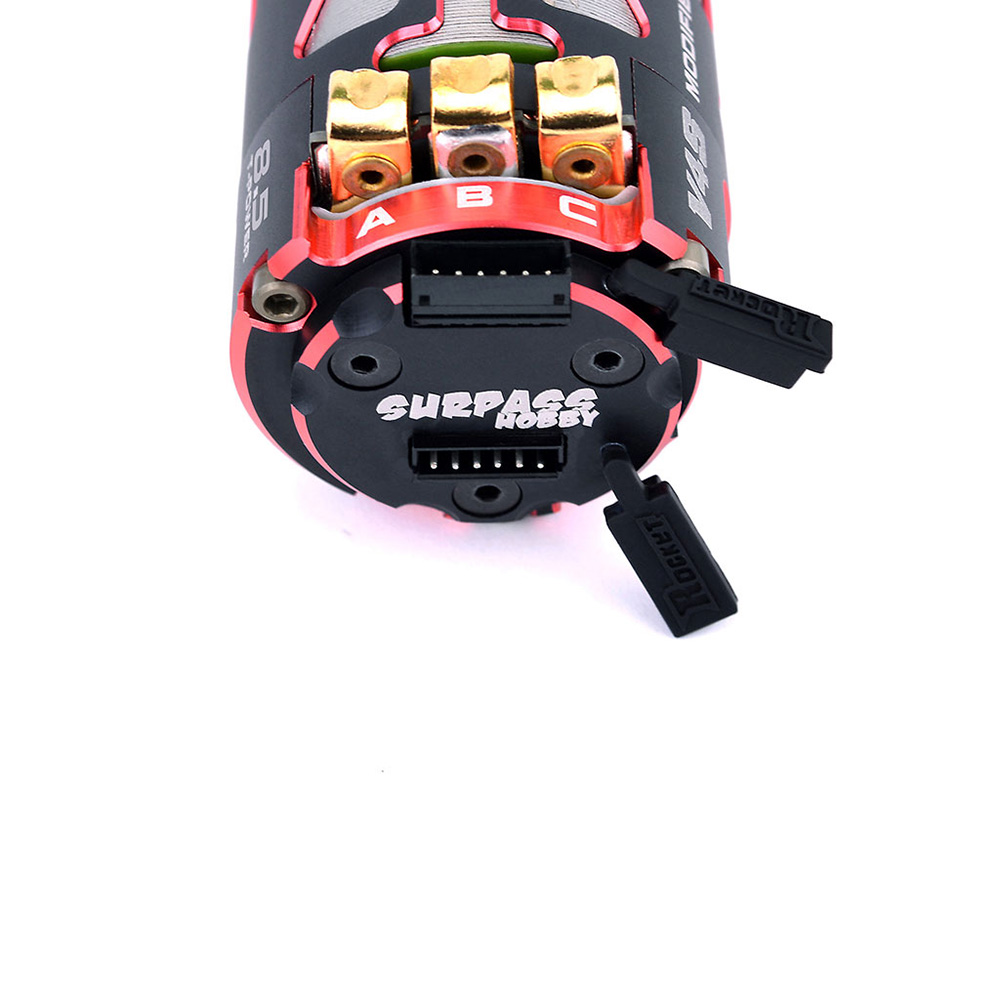

The Specification of the Motor:
KV:4250KV/3800KV
Watts:340/250
Max Voltage:
Max Amps:80A/63A
Rotor Poles:2
IO:3.2A/1.9A
Resistance:0.0138/0.0198

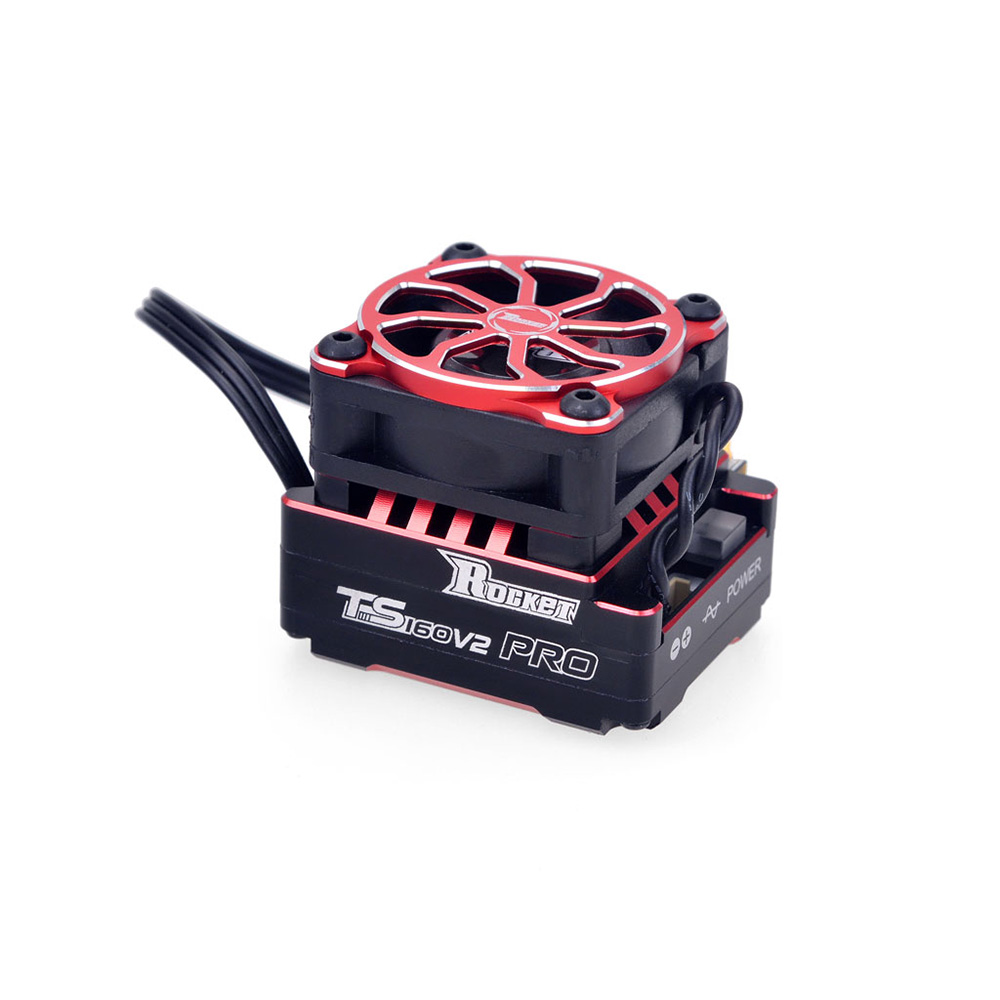

The Specification of the ESC:
Cont.Current:160A
Burst Current:760A
Motor Type:Sensorless Brushless Motor
Suitable Car:1/10 car

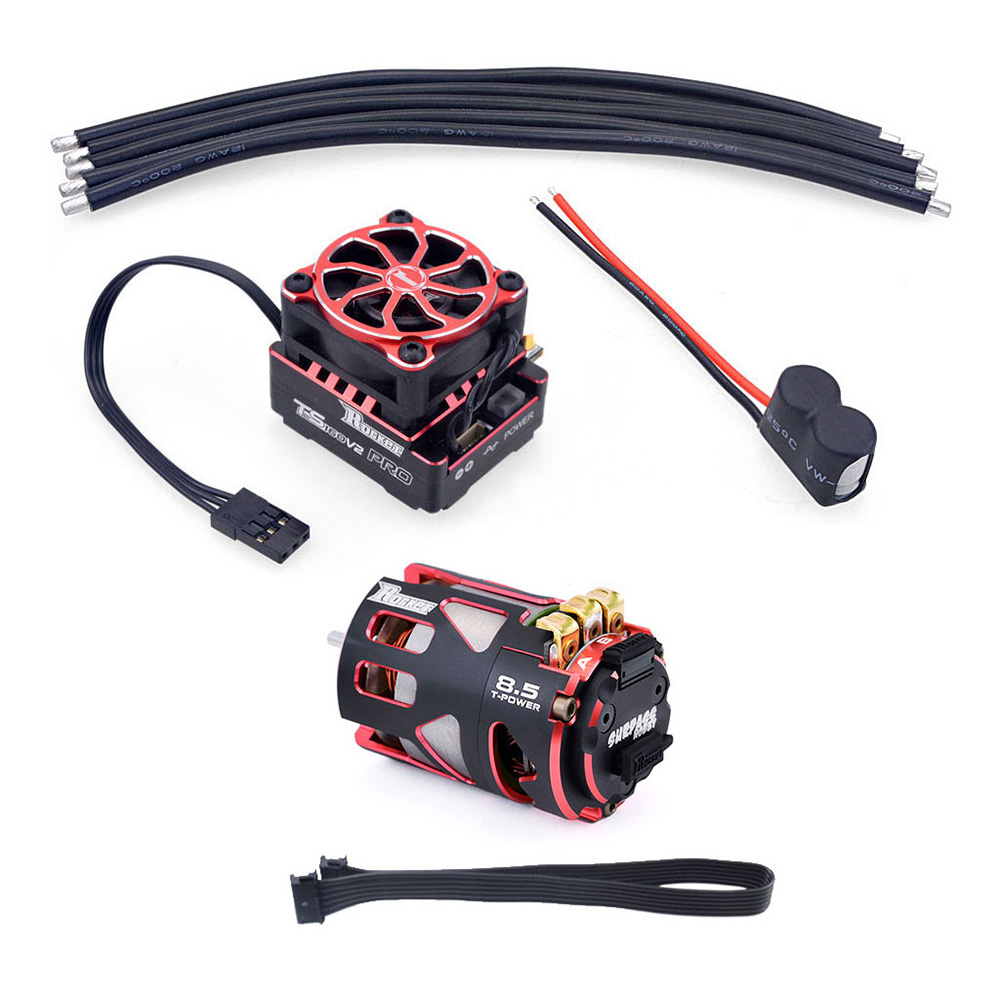

Features: Package included:

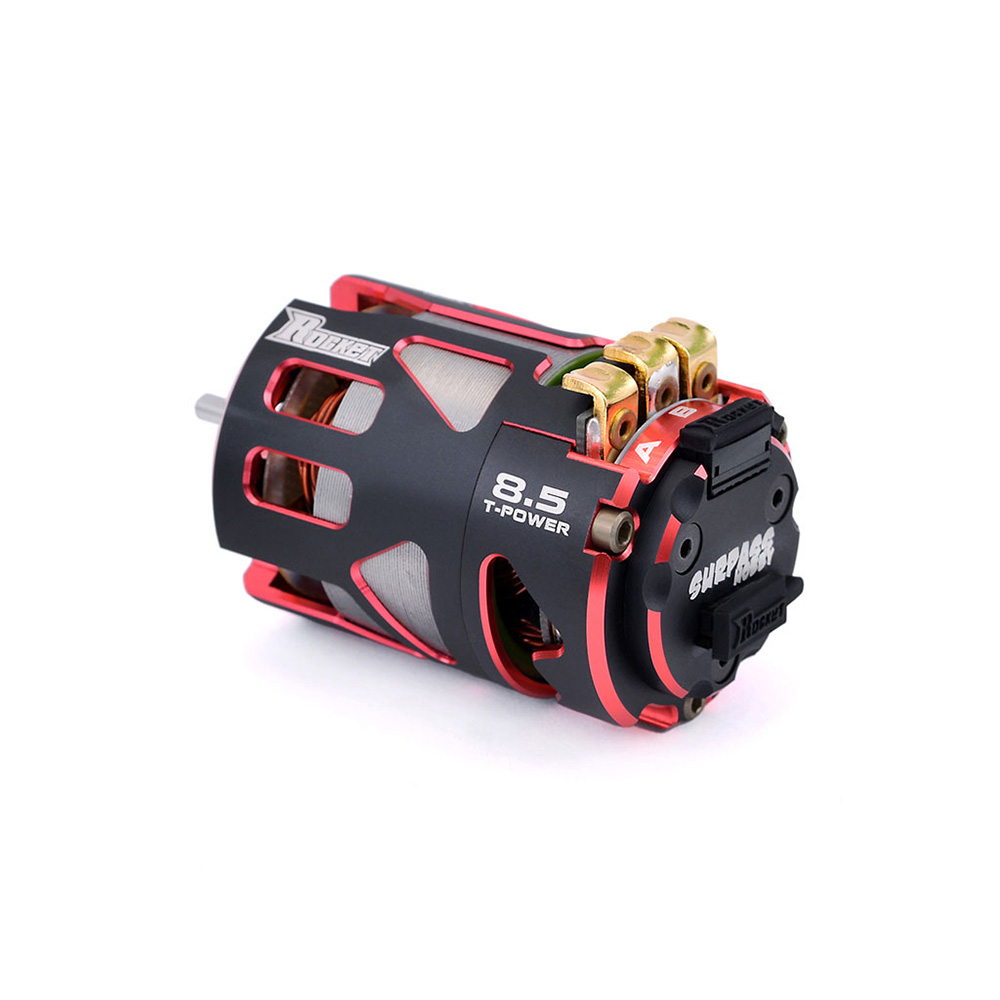

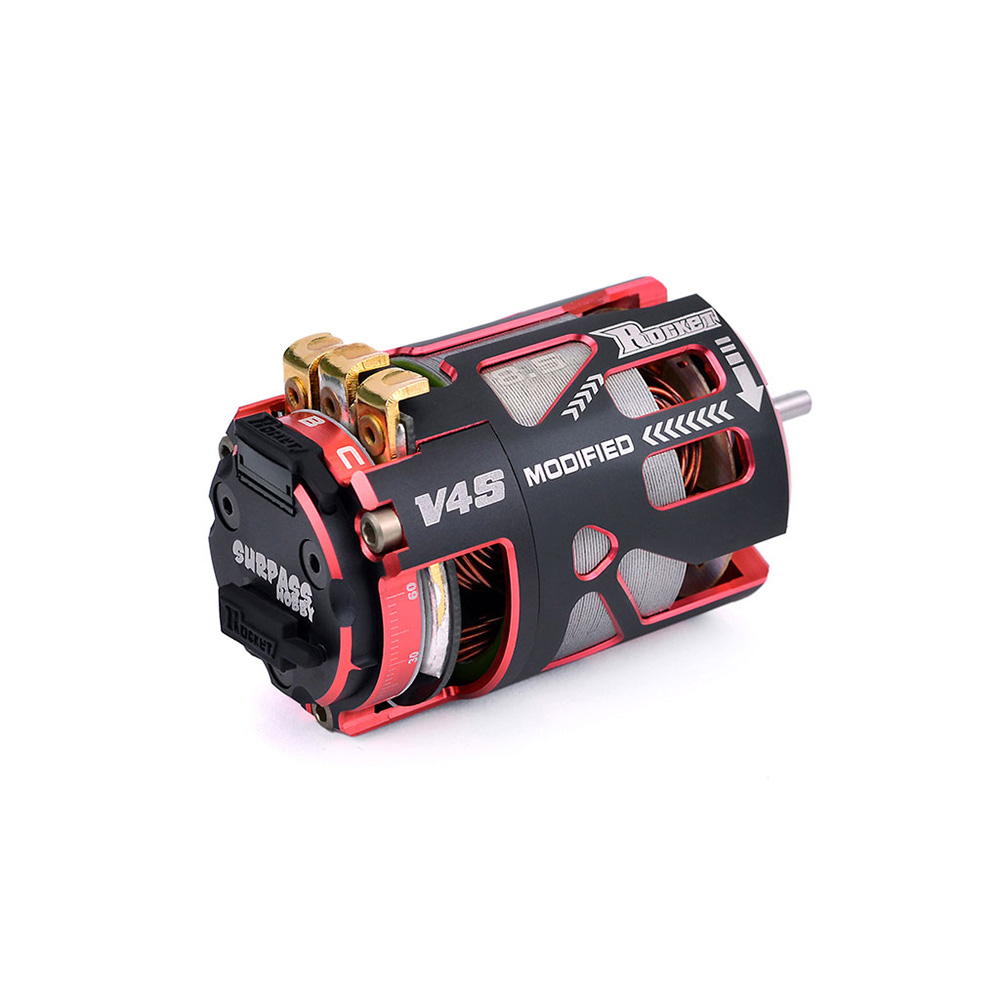

1X ROCKET 540-V4S V2 Brushless Motor

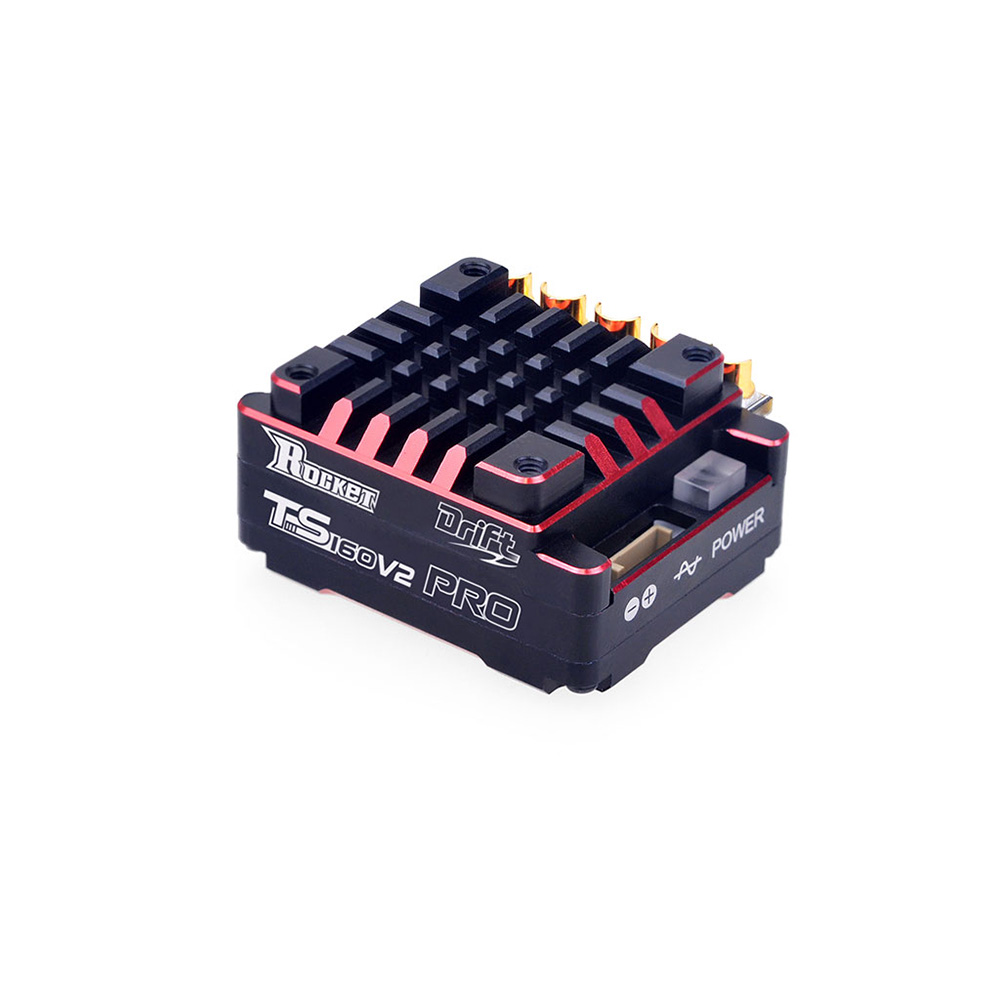

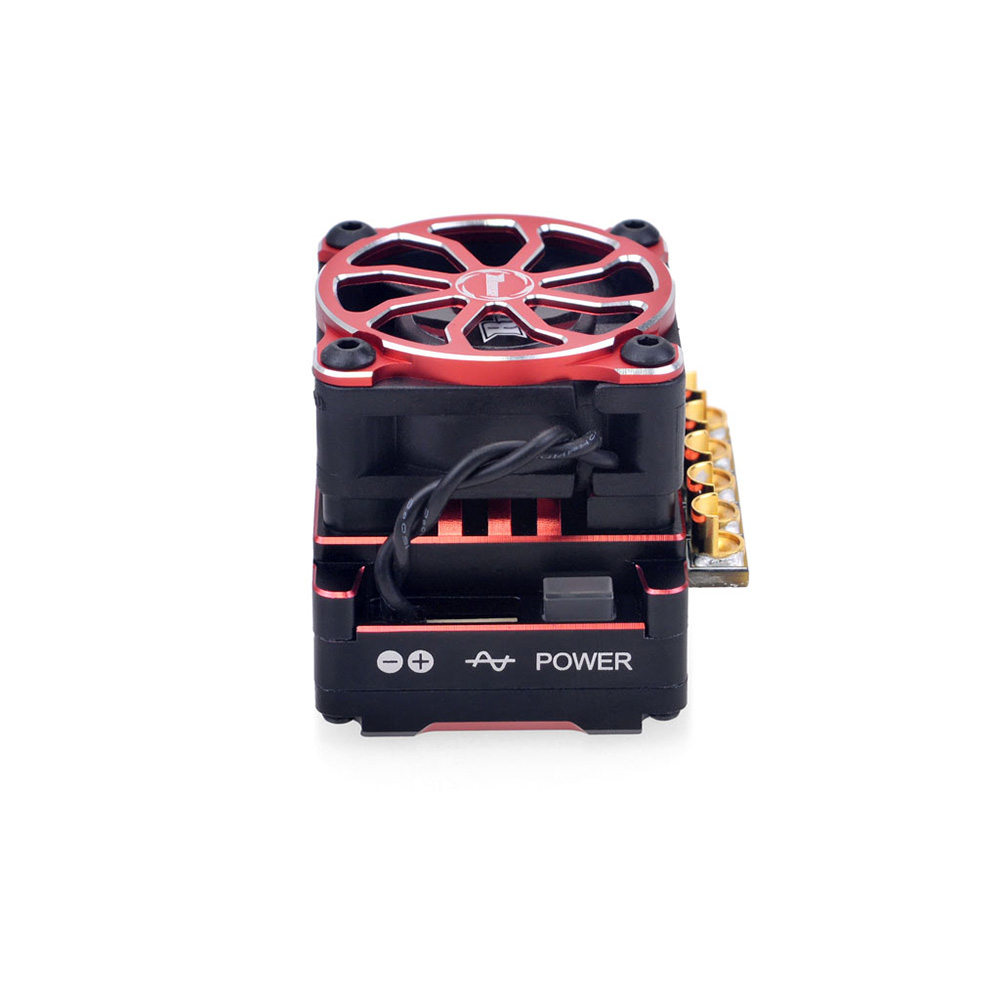

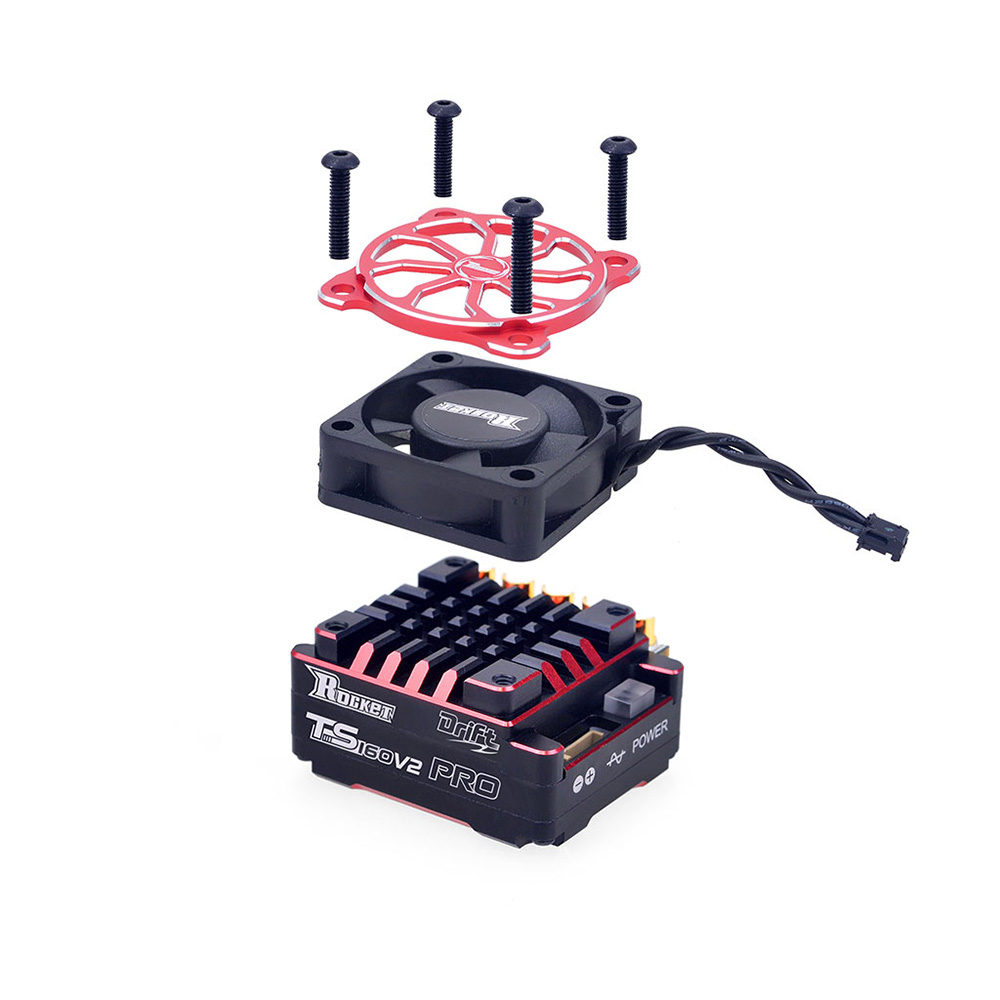

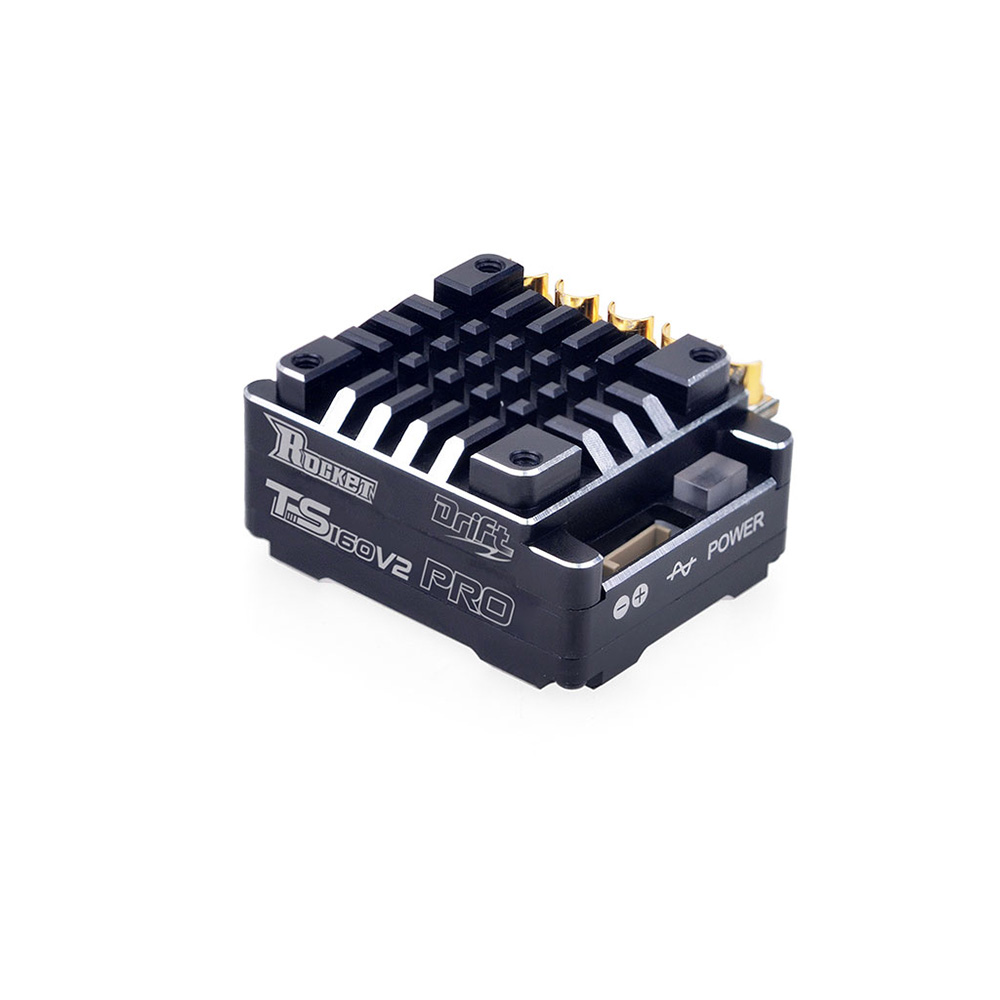

1X 160A ESC
Item Brand:Surpass Hobby
Item Number:ROCKET 540-V4S V2(F540/8.5T F540/10.5T)+160A
Item Name:RC car motor +esc set
Material:Metal and plastic
Color:Black
The Size of the Motor:Length 52.1mm diameter 35.8mm shaft diameter is 3.175mm length of extended shaft is 35.8mm
The Size of the ESC:38.2x32x30.6mm
The Weight of the Motor/ESC:About 160g/54g
Recommendating Program Card(Not included):LCD program card picture please click here
Fit For:1/10 drift rc cars
The Specification of the Motor:
KV:4250KV/3800KV
Watts:340/250
Max Voltage:
Max Amps:80A/63A
Rotor Poles:2
IO:3.2A/1.9A
Resistance:0.0138/0.0198
The Specification of the ESC:
Cont.Current:160A
Burst Current:760A
Motor Type:Sensorless Brushless Motor
Suitable Car:1/10 car
Voltage Input: 4.8V-9.9V
Motor Limit: Over 4.5Turns
B.E.C: 3A 6V/7.2V
Forward/Brake/Reverse: Yes(Preset-Forward/Brake)
Multi Protection System: Yes
ESC Online Manual:Please Click Here
Features:
1.Precision balanced rotor smoothness for best reliability and maximum RPM.
2.High power output heatsink design replaceable brushes.
3.Excellent torque and long-run times.
4.Dual-ball bearings design and Direct-solder wiring tabs for flexible soldering options.
5.Direct-solder wiring tabs for flexible soldering options.
2.High power output heatsink design replaceable brushes.
3.Excellent torque and long-run times.
4.Dual-ball bearings design and Direct-solder wiring tabs for flexible soldering options.
5.Direct-solder wiring tabs for flexible soldering options.
1X ROCKET 540-V4S V2 Brushless Motor
1X 160A ESC
Specifications
| Teeth | 10.5T |
