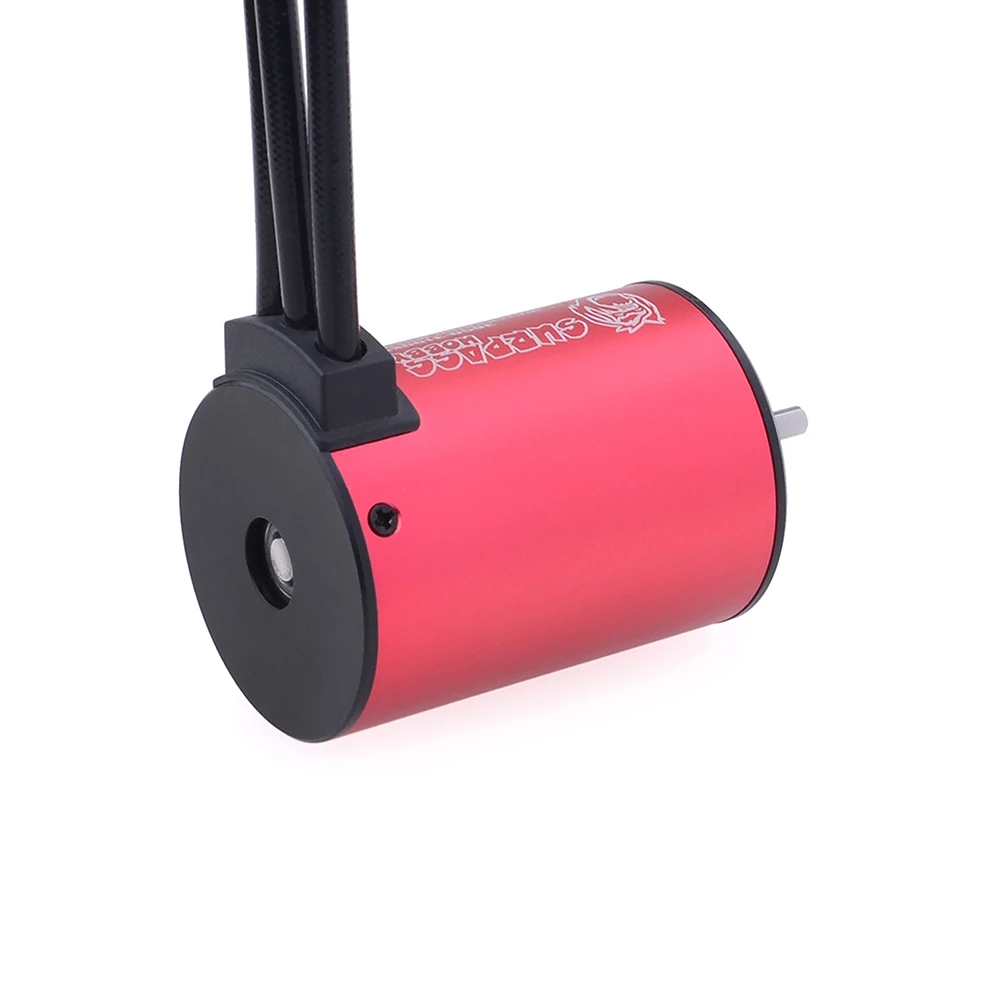

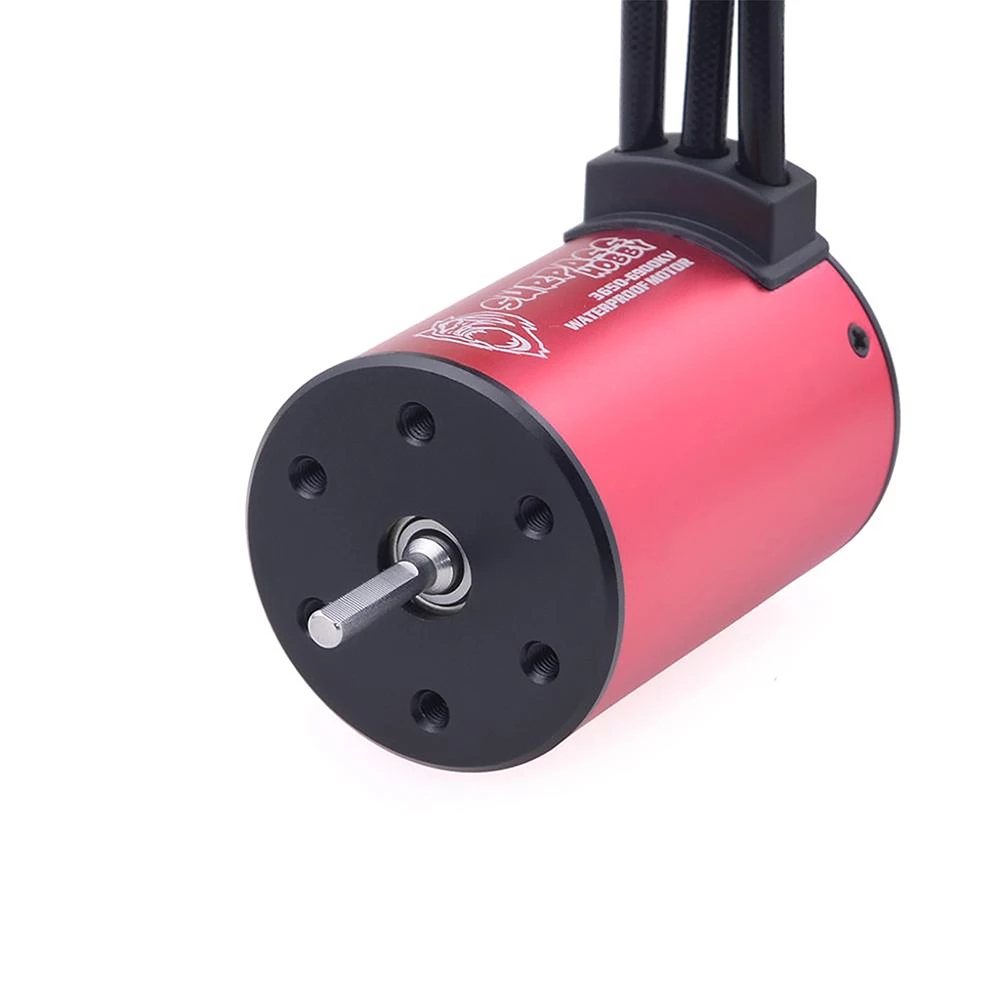

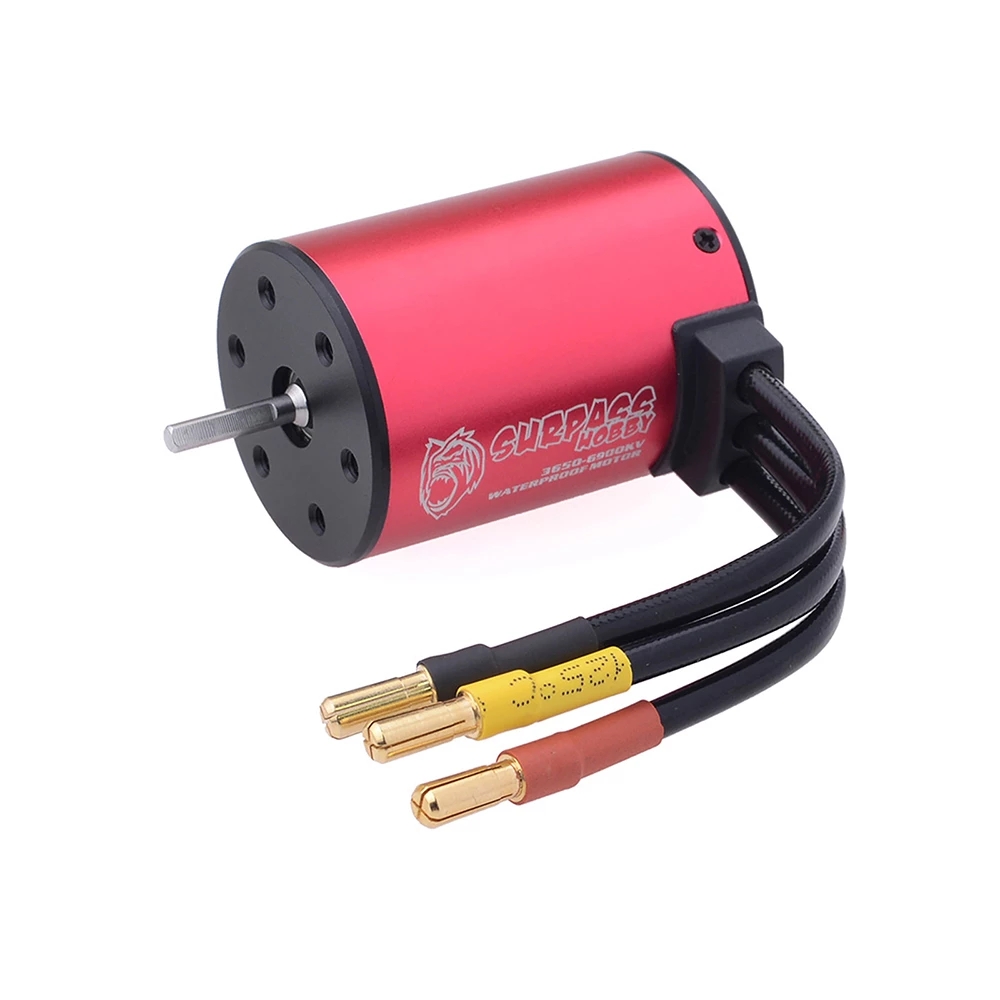

Surpass Hobby Waterproof 3650 Sensorless Brushless Motor 3.175mm 5600KV 4700KV 4350KV 3250KV for 1/10 RC Vehicles
Description:
Item Brand:Surpass Hobby
Item Number:3650(3650/3T 3650/3.5T 3650/4T 3650/5T)
Item Name:RC car motor
Material:Metal and plastic
Color:Black
The Size of the Motor:Length 50mm diameter 36mm shaft diameter is 3.175mm length of extended shaft is 15mm
The Weight of the Motor:About 188g
Fit For:1/10 brushless rc cars
The Specification of the Motor:
KV:5600KV/4700KV/4350KV/3250KV
Watts:900
Max Voltage:<8.4V/<9.6V/<12V/<16V
Max Amps:107A/94A/75A/56A
Rotor Poles:4
IO:5.6A/4.2A/3.8A/2.9A
Resistance:0.0051/0.0058/0.0068/0.0095
Max RPM:50000
Connector:4.0mm gold
Features:
1X 3650 Brushless Motor
Item Brand:Surpass Hobby
Item Number:3650(3650/3T 3650/3.5T 3650/4T 3650/5T)
Item Name:RC car motor
Material:Metal and plastic
Color:Black
The Size of the Motor:Length 50mm diameter 36mm shaft diameter is 3.175mm length of extended shaft is 15mm
The Weight of the Motor:About 188g
Fit For:1/10 brushless rc cars
The Specification of the Motor:
KV:5600KV/4700KV/4350KV/3250KV
Watts:900
Max Voltage:<8.4V/<9.6V/<12V/<16V
Max Amps:107A/94A/75A/56A
Rotor Poles:4
IO:5.6A/4.2A/3.8A/2.9A
Resistance:0.0051/0.0058/0.0068/0.0095
Max RPM:50000
Connector:4.0mm gold
Features:
4 Pole 12 Slot Hi-torque Motor Design
CNC Machined 6061 T6 Billet Aluminum Heatsink Can
High Purity Copper Windings Maximizes Efficiency
High RPM ABEC5 Oversized Bearings
Universal fit fits all 1/10 brushless cars-multi-mounting system for M3 screws
Precision balanced rotor smoothness for best reliability and maximum RPM
Removable/Replaceable Rotor
Precision Engineered for Maximum Energy Conversion
Package included:1X 3650 Brushless Motor
Specifications
| KV | 3250KV or 5600KV or 4700KV or 4350KV |
