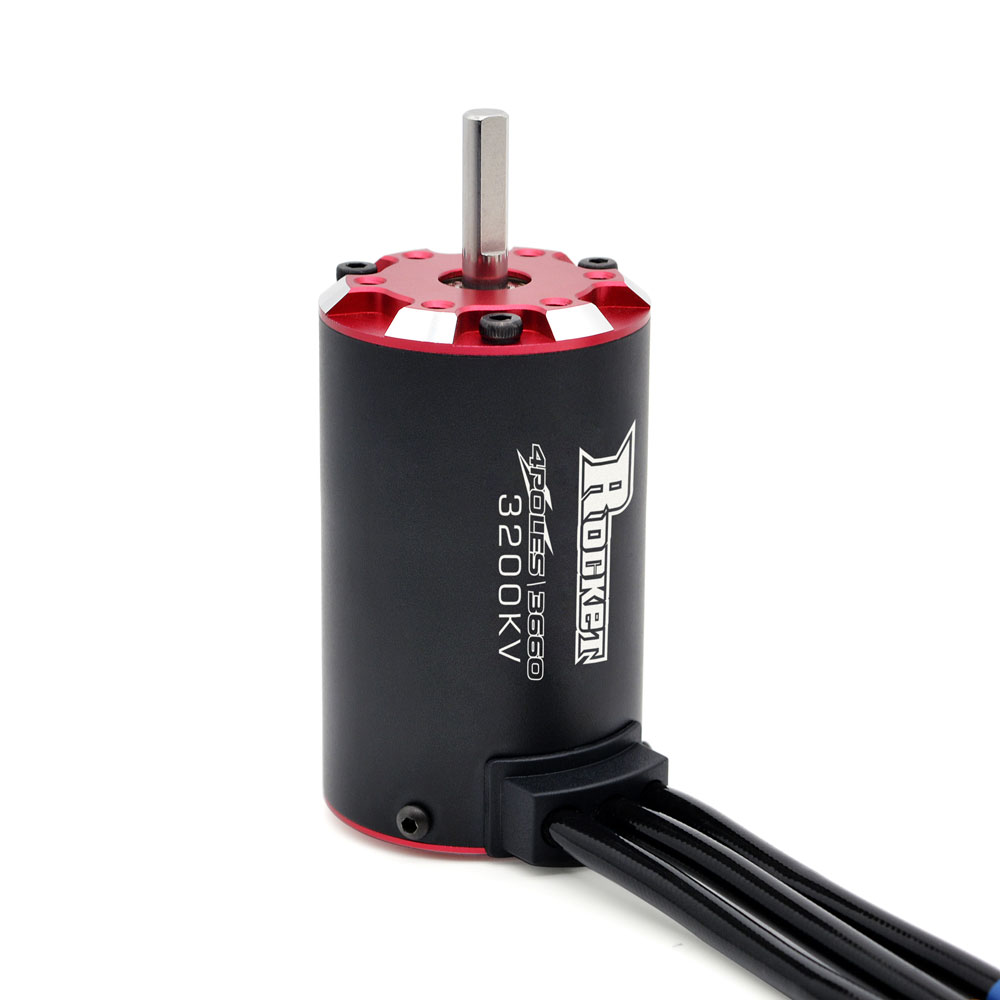

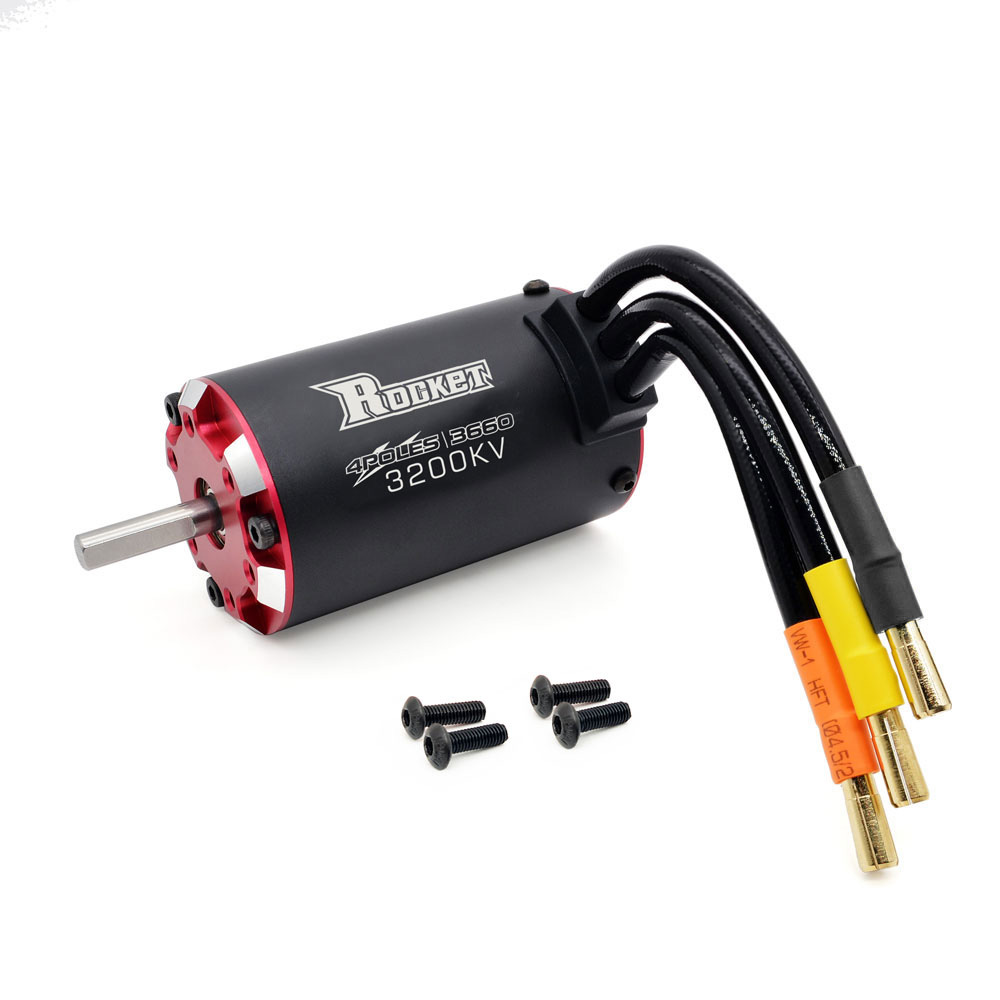

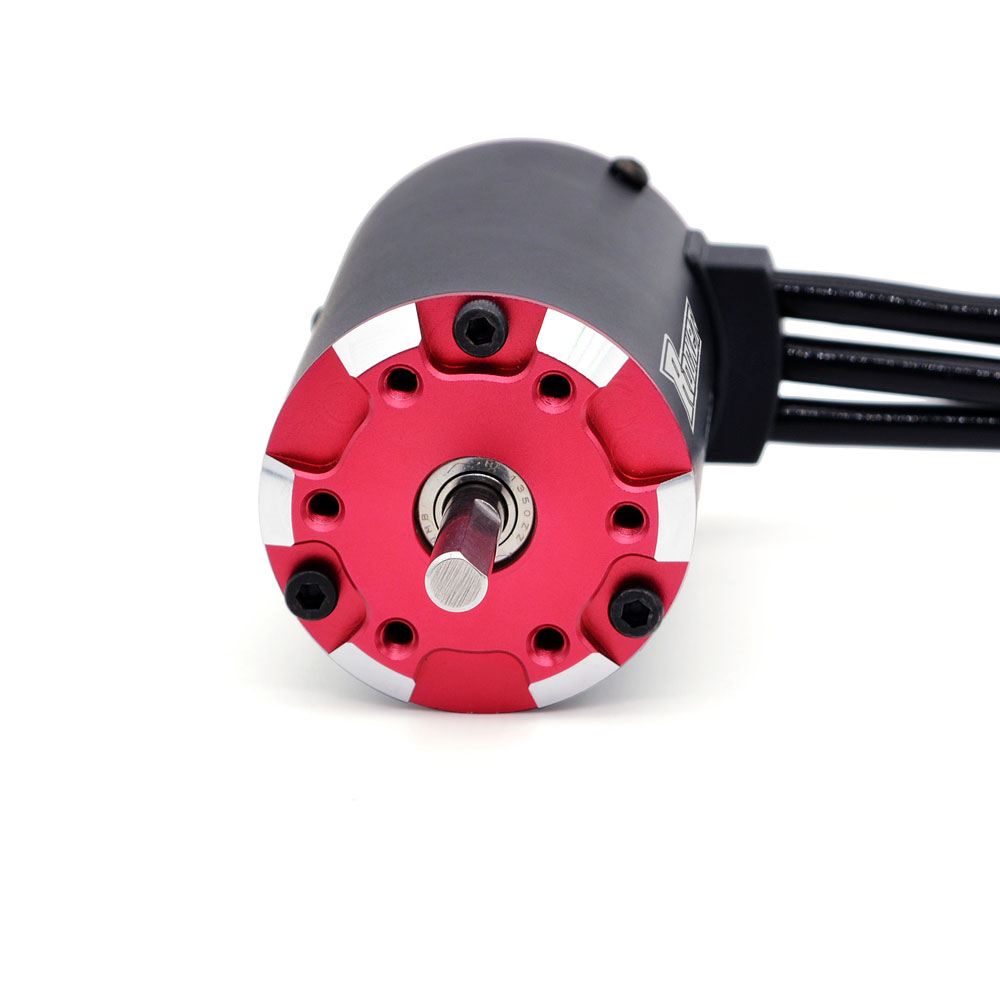

Surpass Hobby Waterproof 3660 Sensorless Brushless Motor 3.175mm 4250KV 3600KV 3200KV 2800KV for 1/10 RC Vehicles
Description:
Item Brand:Surpass Hobby
Item Number:3660(3660/2.5T 3660/3T 3660/3.5T 3660/4T)
Item Name:RC car motor
Material:Metal and plastic
Color:Black
The Size of the Motor:Length 60mm diameter 36mm shaft diameter is 3.175mm length of extended shaft is 17mm
The Weight of the Motor:About 244g
Fit For:1/10 brushless rc cars
The Specification of the Motor:
KV:4250KV/3600KV/3200KV/2800KV
Watts:1200
Max Voltage:<12V/<13V/<15V/<19V
Max Amps:100A/92A/80A/63A
Rotor Poles:4
IO:5.0A/4.8A/3.8A/2.3A
Resistance:0.0038/0.005/0.0075/0.008
Max RPM:50000
Connector:4.0mm gold
Features:
1X 3660 Brushless Motor
Item Brand:Surpass Hobby
Item Number:3660(3660/2.5T 3660/3T 3660/3.5T 3660/4T)
Item Name:RC car motor
Material:Metal and plastic
Color:Black
The Size of the Motor:Length 60mm diameter 36mm shaft diameter is 3.175mm length of extended shaft is 17mm
The Weight of the Motor:About 244g
Fit For:1/10 brushless rc cars
The Specification of the Motor:
KV:4250KV/3600KV/3200KV/2800KV
Watts:1200
Max Voltage:<12V/<13V/<15V/<19V
Max Amps:100A/92A/80A/63A
Rotor Poles:4
IO:5.0A/4.8A/3.8A/2.3A
Resistance:0.0038/0.005/0.0075/0.008
Max RPM:50000
Connector:4.0mm gold
Features:
4 Pole 12 Slot Hi-torque Motor Design
CNC Machined 6061 T6 Billet Aluminum Heatsink Can
High Purity Copper Windings Maximizes Efficiency
High RPM ABEC5 Oversized Bearings
Universal fit fits all 1/10 brushless cars-multi-mounting system for M3 screws
Precision balanced rotor smoothness for best reliability and maximum RPM
Removable/Replaceable Rotor
Precision Engineered for Maximum Energy Conversion
Package included:1X 3660 Brushless Motor
