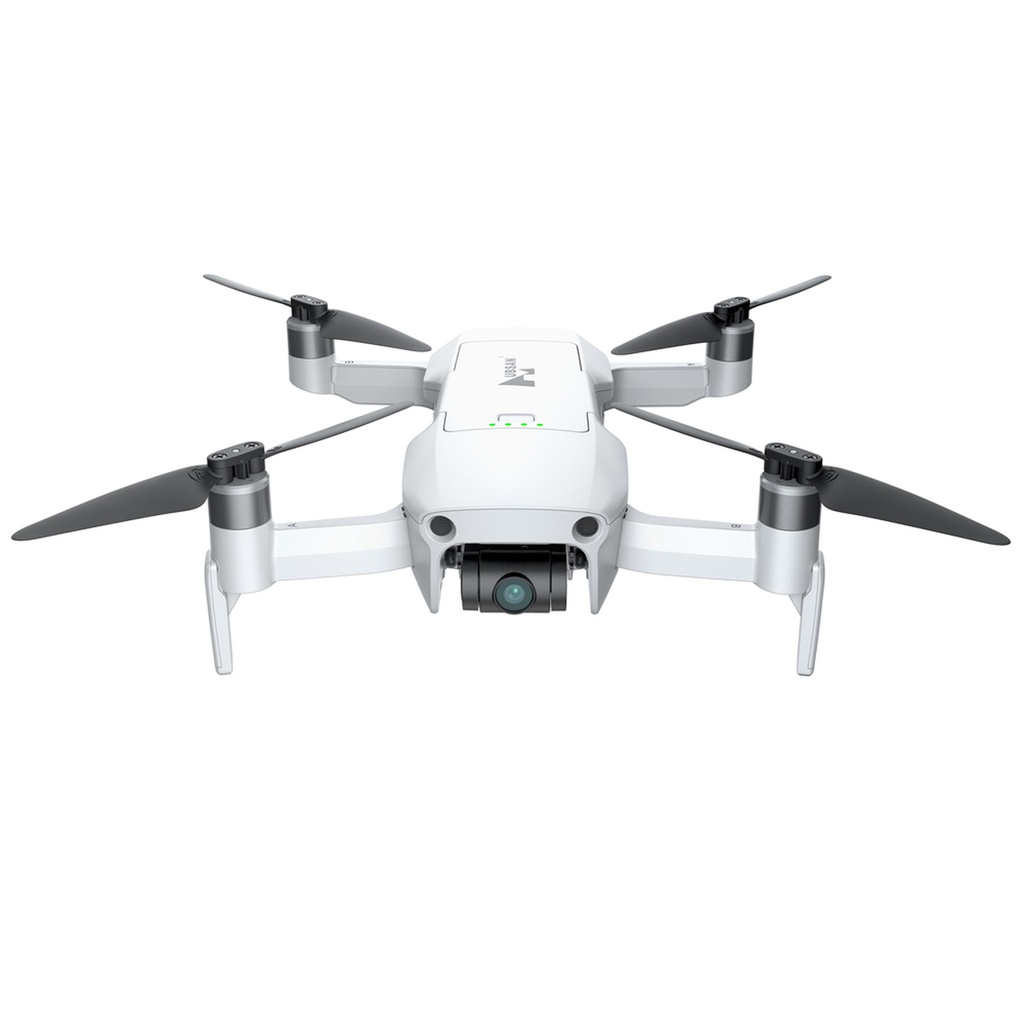

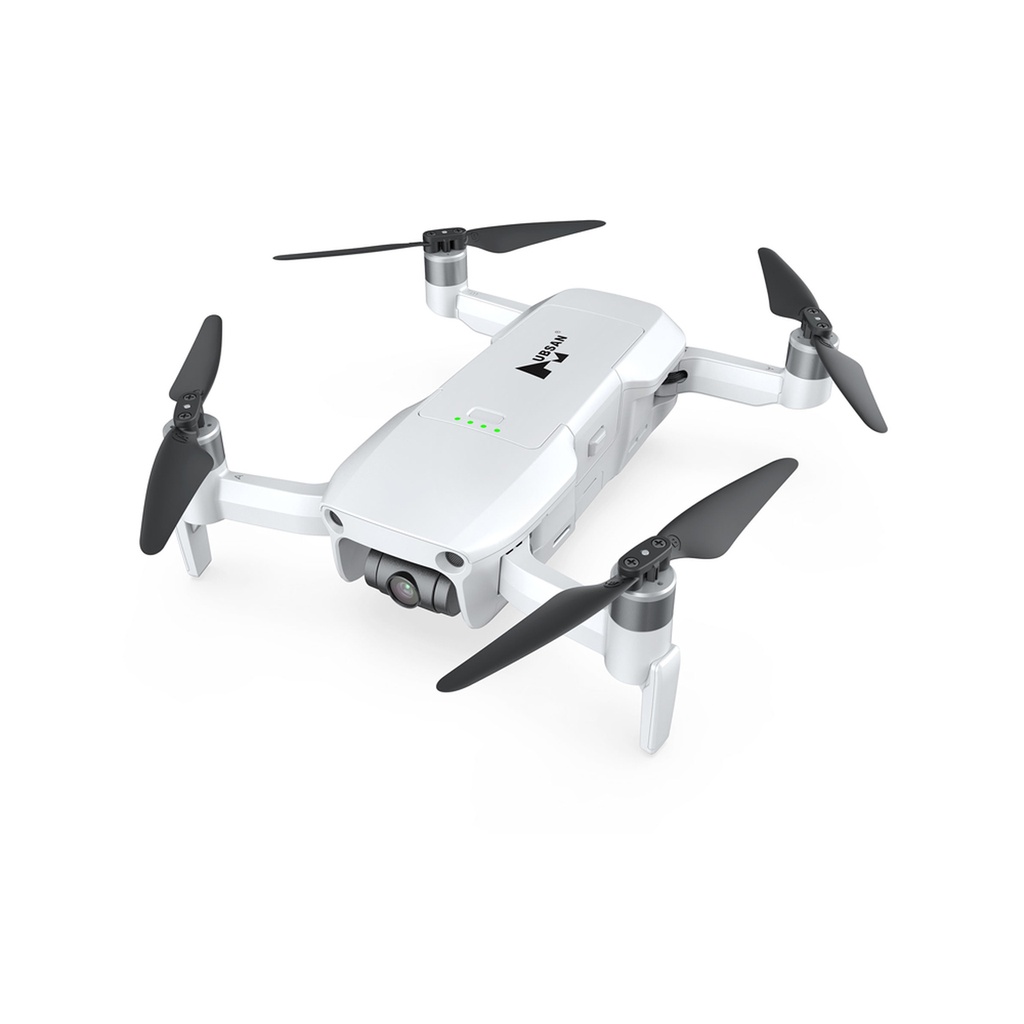

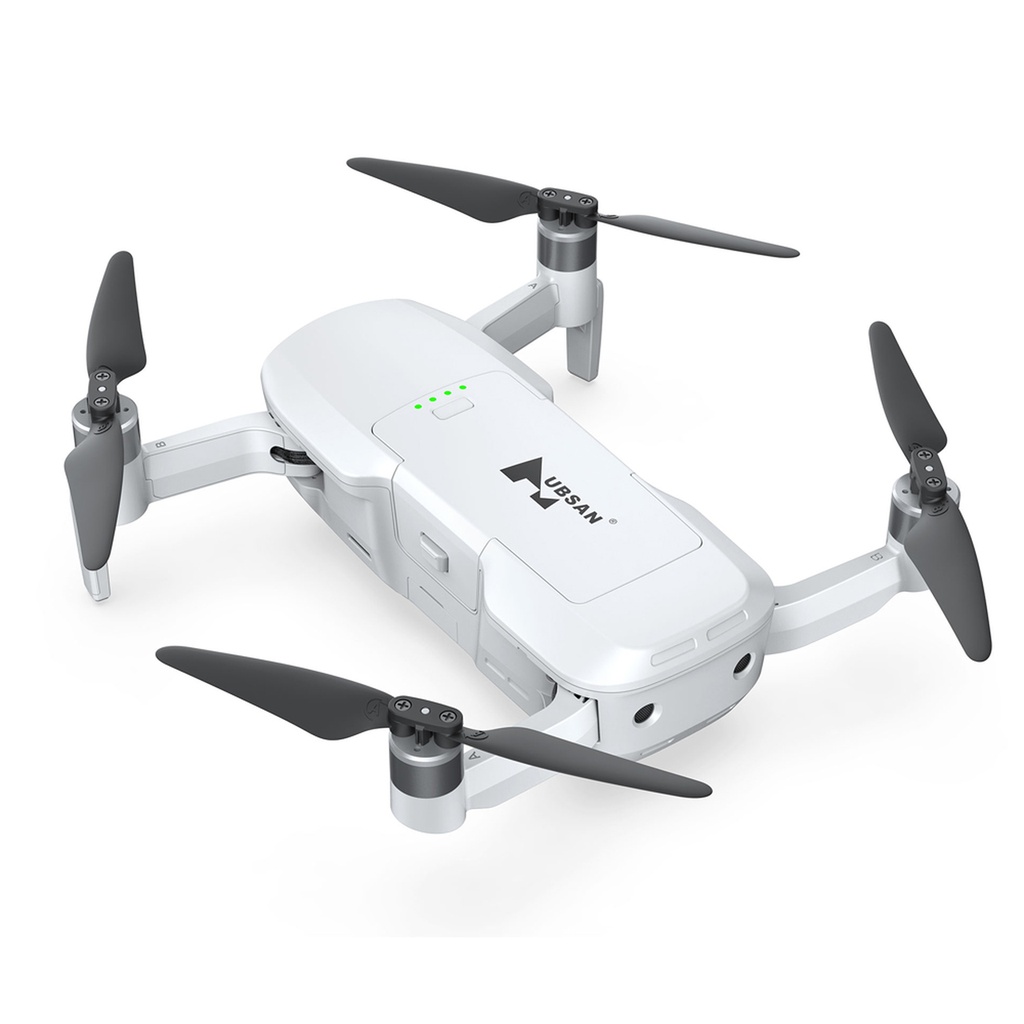

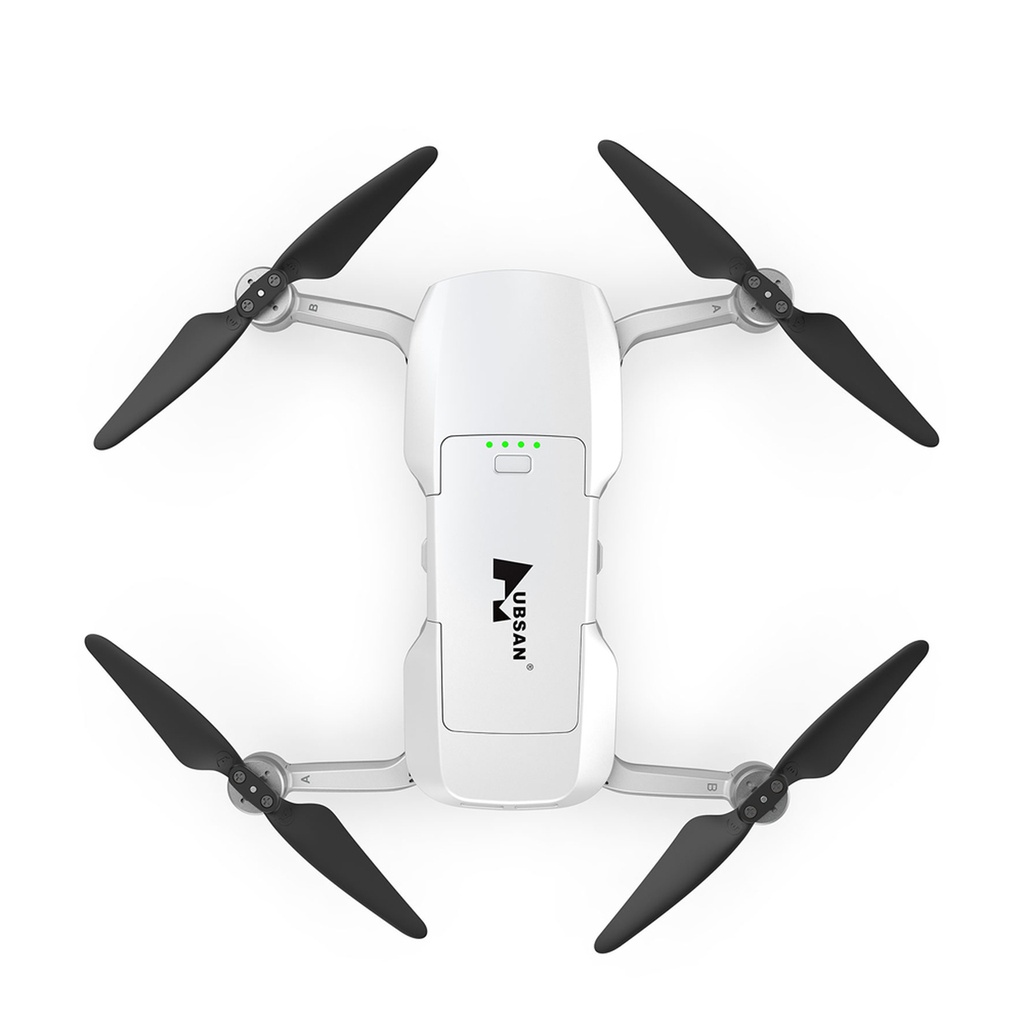

Hubsan ACE SE GPS 10KM 1080P FPV with 4K 30fps Camera 3-axis Gimbal 35mins Flight Time AVT 3.0 Tracking RC Drone Quadcopter RTF
Hubsan ACE SE GPS 10KM 1080P FPV with 4K 30fps Camera 3-axis Gimbal 35mins Flight Time AVT 3.0 Tracking RC Drone Quadcopter RTF
| Which is the Best for You? |
| Hubsan ACE SE | Hubsan ZINO MINI SE | Hubsan ACE | Hubsan ACE PRO |
543g 1/2.6inch CMOS CMOS f/2.2 4K@30fps 64Mbps-100Mbps Video Bitrate Dedault Video Mode 1080P@60fps Intelligent Mode 1080P@30fps Night Mode 1080P@25fps 35-minute Max Flight Time SyncLeas 3 Digital Transmission 10KM Image Transmission 5000m Max Take-off Altitude Wind Resistance Class 8 ATVT3.0 Tracking Home VI(Visual Identity) Micro SD Card Over U3 16G/32G/64G/128G | <250g 1/2.6inch CMOS CMOS f/2.2 4K@30fps 45Mbps-100Mbps Video Bitrate 45-minute Max Flight Time SyncLeas 2 Digital Transmission 6KM Image Transmission 4000m Max Take-off Altitude Wind Resistance Class 5 ATVT3.0 Tracking Home VI(Visual Identity) Night Mode Micro SD Card Over U3 16G/32G/64G/128G | 543g 1/1.3inch CMOS CMOS f/1.85 4K@30fps+HDR 64Mbps-100Mbps Video Bitrate 35-minute Max Flight Time SyncLeas 3 Digital Transmission 10KM Image Transmission 5000m Max Take-off Altitude Wind Resistance Class 8 ATVT3.0 Tracking Home VI(Visual Identity) Micro SD Card Over U3 16G/32G/64G/128G | 543g Obstacle Avoidance 1/1.3inch CMOS CMOS f/1.85 4K@30fps+HDR 100Mbps-200Mbps Video Bitrate 35-minute Max Flight Time SyncLeas 3 Digital Transmission 10KM Image Transmission 5000m Max Take-off Altitude Wind Resistance Class 8 ATVT3.0 Tracking Home VI(Visual Identity) SC Card Inseted 8G/64G/128G avaible Micro SD Card Over U3 16G/32G/64G/128G |
Specifications:
Aircraft | Dimensions | Expand: 182x176.5x73mm Folded: 118.7x172.5x73mm |
| Diagonal Wheelbase | 246mm | |
| Color | White | |
| Takeoff Weight (with battery) | 543g | |
| Hover Accuracy | Indoor: Vertical +- 0.1m Horizontal +- 0.1m Outdoor: Height<7m Vertical < Height * 0.02m Horizontal < Height * 0.02m Height>7m Vertical +- 0.1m Horizontal +- 0.5m | |
| Max Ascension Speed | 3m/s (N) 4m/s (S) 1m/s (F) | |
| Max Descent Speed | 1.5m/s (N) 3m/s (S) 1m/s (F) | |
Maximum Horizontal Flying Speed | 12m/s (N) 16m/s (S) 1m/s (M) | |
| Maximum Take-off Altitude | 5000m | |
| Max Wind Speed Resistance | Grade 5 Wind (10m/s) | |
| Max Tilt Angle | 30deg(S) 20deg(N) 20deg(F) | |
| Positioning | GPS + GLONASS Beidou Satellite | |
| Flight Duration | Hovering for 33 minutes (Windless measured in 2-4 meters hovering) Slow Flight Time 35 minutes | |
Power System | Maximum Working Current | 34A |
| Propeller | Model: Foldable & Diameter 143mm Color: Black | |
| Motor | Outward Rotation Brushless Motor 1503 KV2820 | |
| ESC | Digital ESC Brushless 20A x 4 | |
Camera | CMOS Image Sensor | 1/2.6inch CMOS Sensor |
| Lens Specifications | FOV 80deg Aperture f/2.2 EFL: 3.5mm Distortion: <1.5% | |
| Focus Point | 0.5m to | |
| Video Compression Method | H.264 | |
| Video Resolution | 4K 30fps Shooting Video: 1080P 60fps In Smart Mode: 1080P 30fps Night Mode: 1080P 25fps | |
| Video Bitrate | 64Mbps-100Mbps | |
| Photo Format | JPEG | |
| Video Format | MP4 (H.264/MPEG-4 AVC) | |
| Control Method | APP Remote Control | |
| Firmware Upgrade | OTA | |
| USB Interface | Micro-USB | |
| Supported SD Cards | MicroSD Card U3 or Class10 above 16G/32G/64G/128G | |
Wireless Transmission System | Image Transmission System | SyncLeas 3 |
| Effective Range | FCC: 10KM CE: <= 6KM; SRRC: <= 10KM | |
| Band Mode | Frequency Button | |
| Transmission Delay | Within 200ms | |
| Antenna Position | Forearm Support Foot | |
| Remote Control | HT018F | |
Gimbal | Gimbal | HY817C |
| Stabilization | 3-Axis (tilt roll pan) | |
| Degree of Freedom | Triaxial | |
| Max Pitch Speed | 120deg/s | |
| Mechanical Range | Pitch: -120deg to 45deg Roll: +- 35deg Yaw: +- 35deg | |
Flight Controller | FC Version | Third-generation Flight Controller |
| Basic Flight Mode | Wind Resistance Mode / Sports Mode / Normal Mode / Movie Mode | |
| Altitude Hold Mode | Tof Barometer | |
| Fixed-point | Visual Optical Flow GPS | |
| Unlock/Lock | Outer 'Eight' Unlock/Lock | |
| Fill Light | Support 0.5m-5m low light environment to automatically turn on the light | |
| One Key Take-off/Landing | APP Supported Remote Control Unsupported | |
| Headless Mode | ||
| Out of Control Protection | ||
| Low Battery Protection | Automatically Return to Home and Land on Low Battery | |
Home Visual Recognition (search for drone apron) | ||
| Visual Tracking | Third-generation Tracking Technology (ATVT 3.0) | |
| Waypoint Flight | ||
| Flying Around | ||
| Intelligent Battery | Power Management Overcurrent Protection Over-discharge Protection Overcharge Protection Balanced Charging Auto-Discharging Protection | |
| ESC | Self-developed ESC digital PWM | |
| Motor Stall Protection | ||

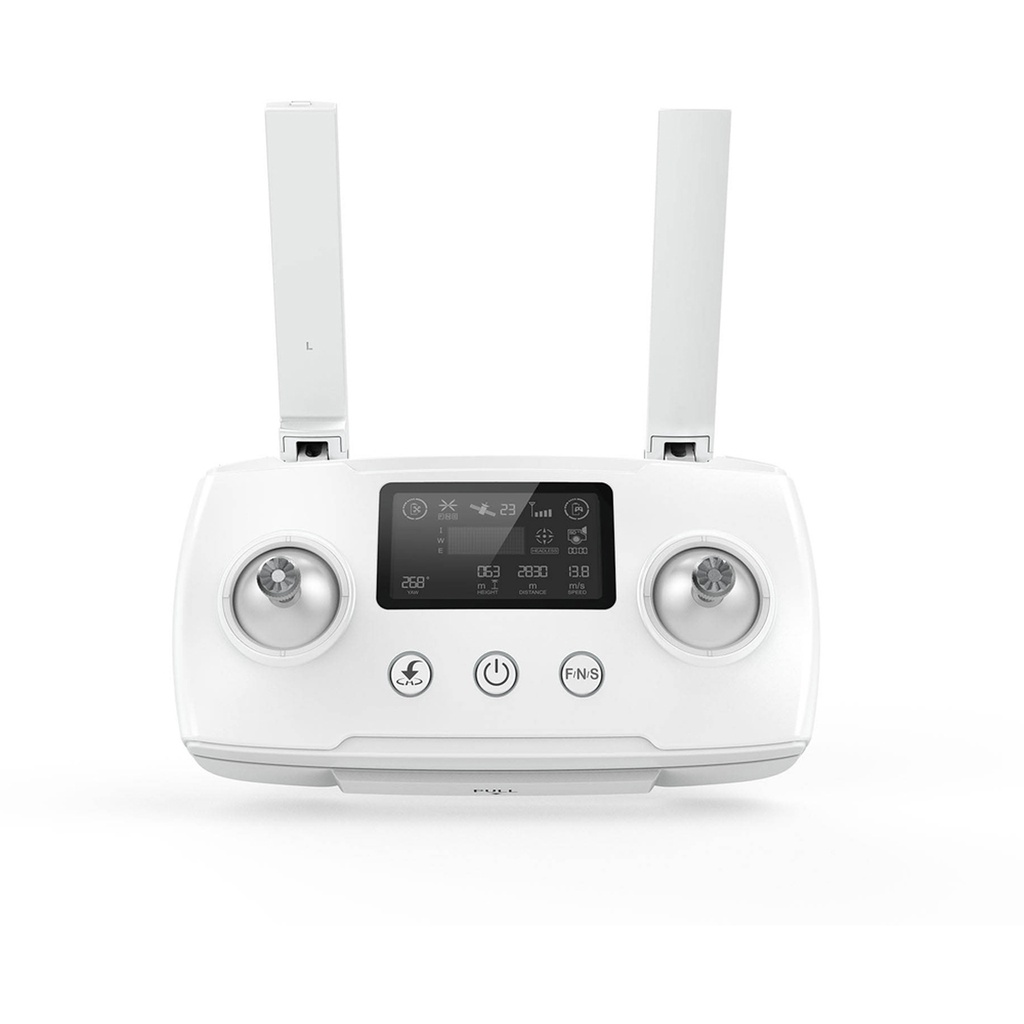

Remote Control | Color | White |
| Wireless Transmission Solution | SyncLeas 3 | |
| Display | Highlight LED Display | |
| Operating Environment Temperature | -5 Deg.C- 50 Deg.C | |
| Effective Range | FCC: 10KM CE: 6KM; SRRC: 10KM | |
| Built-In Battery | 4400mAh | |
| Mode | Mode 2 (Left Hand Throttle) | |
| Buzzer | Support | |
| Support Mobile System | Android iOS | |
| Working Time | 2.5h (Normal Flight Time) | |
| Interfaces Type | Lighting / Micro USB / Type-C | |
Battery | Battery Type | Li-ion Battery 3S |
| Capacity | 3800 mAh | |
| Standard Voltage | 11.1V | |
| Charging Limit Voltage | 13.05V | |
| Discharge Rate | 8C | |
| Charging Time | 90 minutes | |
| Weight | 233g | |
| Working Environment Temperature | -5 Deg.C- 40 Deg.C | |
| Charging Environment Temperature | 0 Deg.C- 40 Deg.C | |
| Smart Battery Balance | ||
| Smart Battery | ||
| Smart Charging Head | ||
| Battery Smart Buckle | ||
| Automatic Discharge | ||
| Hibernation Mode | ||
APP | APP Name | X-Hubsan 2 |
Mobile Device | Requirements | iOS 10.0 or higher Android 6.0 Or higher |
Features:
- 543gm Lightweight & Foldable Design
- Ultra-Clear 4K 30-frame Video
- 1080P Digital Image Transmission
- 10KM HD video Transmission
- 3-Axis Stabilized Gimbal
- Grade 8 Wind Resistance
- ATVT3.0 Visual Active Tracking
- 3x digital ZOOM Shots
- Intelligent Battery
- Maximum Flying Time up to 35mins
- Optical Flow & GPS & TOF & Barometer
Package Included:
1 x ACE SE Drone
1 x Remote Controller
1 x Drone Battery
1 x Pair of Propellers
1 x Intelligent Charger
1 x Micro-USB Cable
1 x Micro-USB RC Cable
1 x USB Type-C RC Cable
1 x RC Cable for iPhones
1 x Screwdriver
1 x Manual
Specifications
| Mode | Without Storage Bag or With Storage Bag |
| Battery | One Battery or Two Batteries |
