Flipsky 200A ESC Dual FSESC6.7 Based Upon VESC6 with Aluminum Heatsink for Electric Surfboard RC Car Drone E-Bike

Description:

Advanced Features:

Dual ESC can reach continuous 200A big current give your board strong power

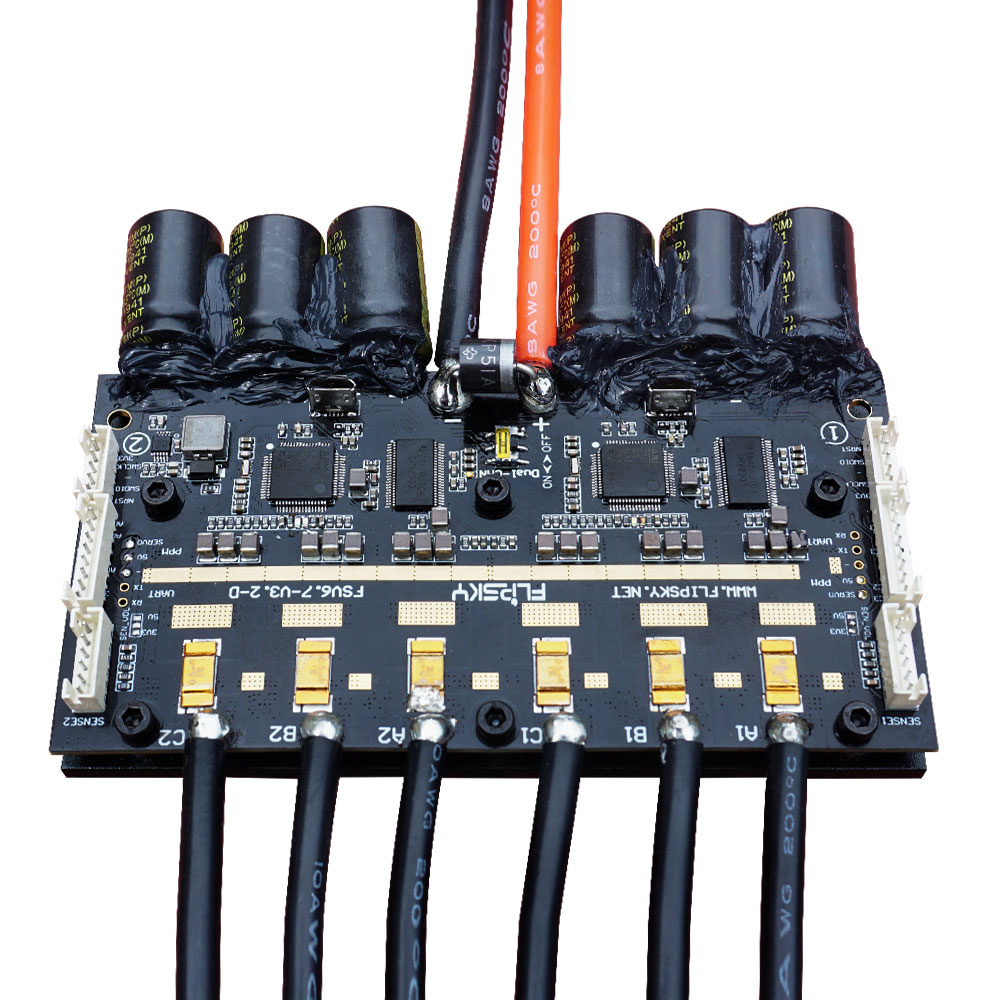

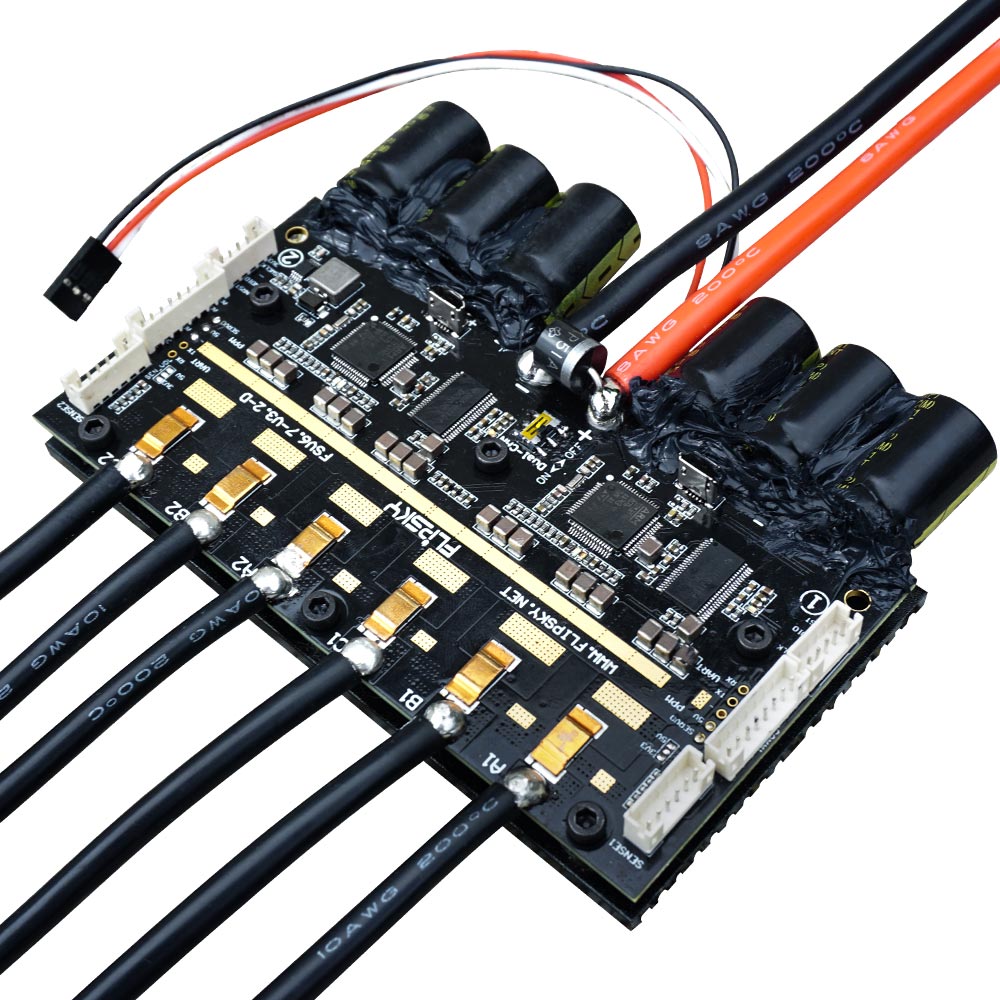

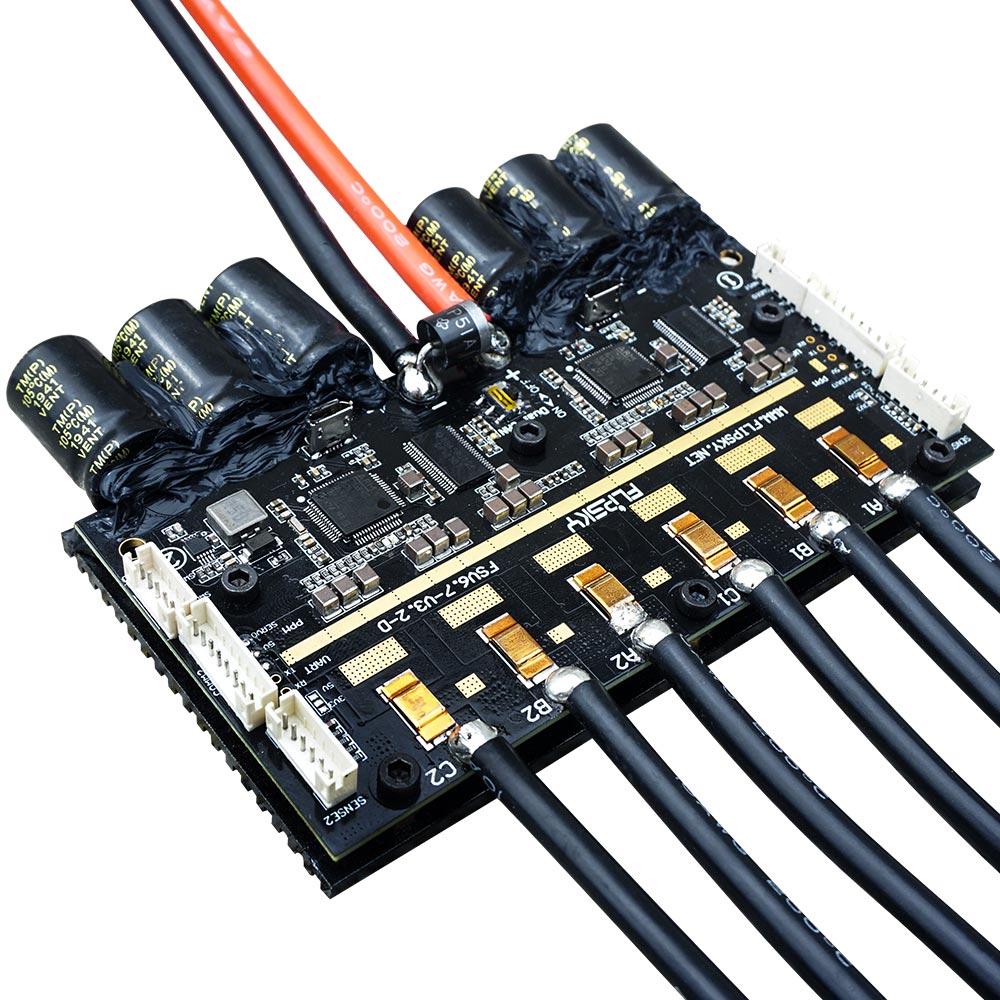

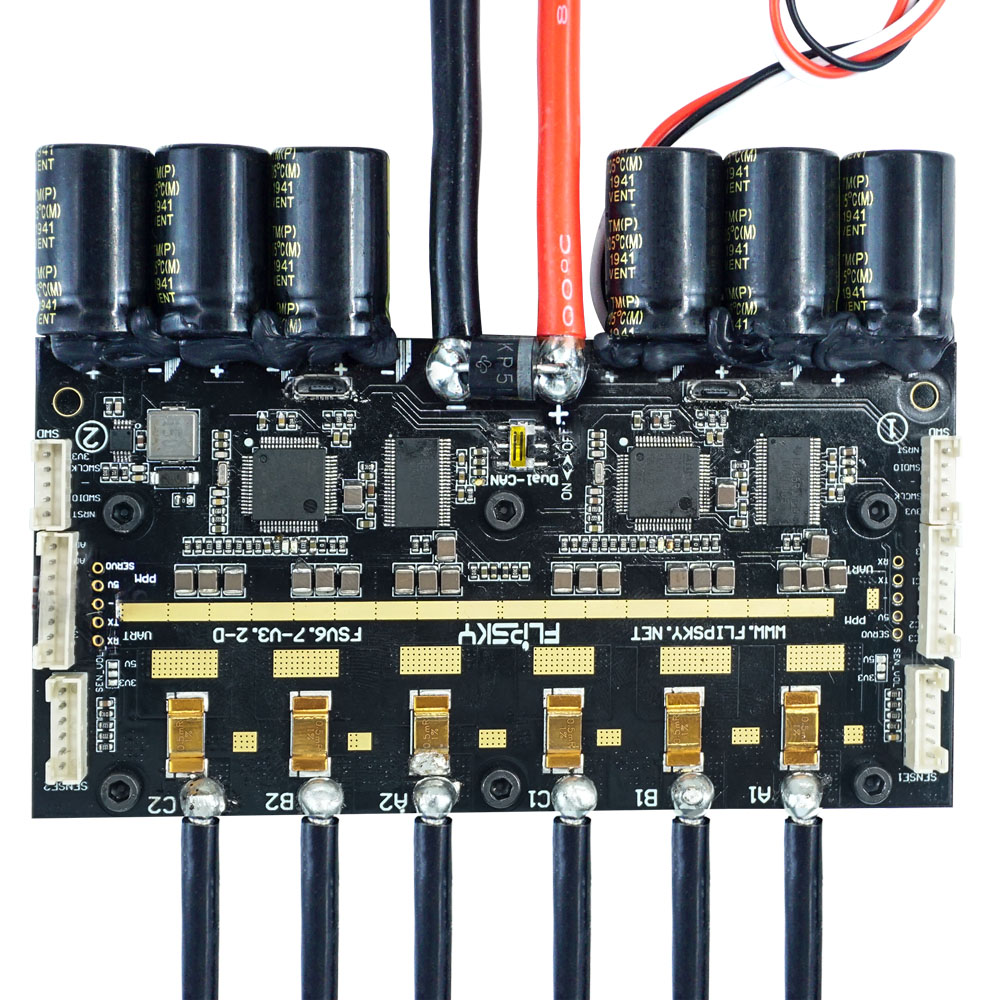

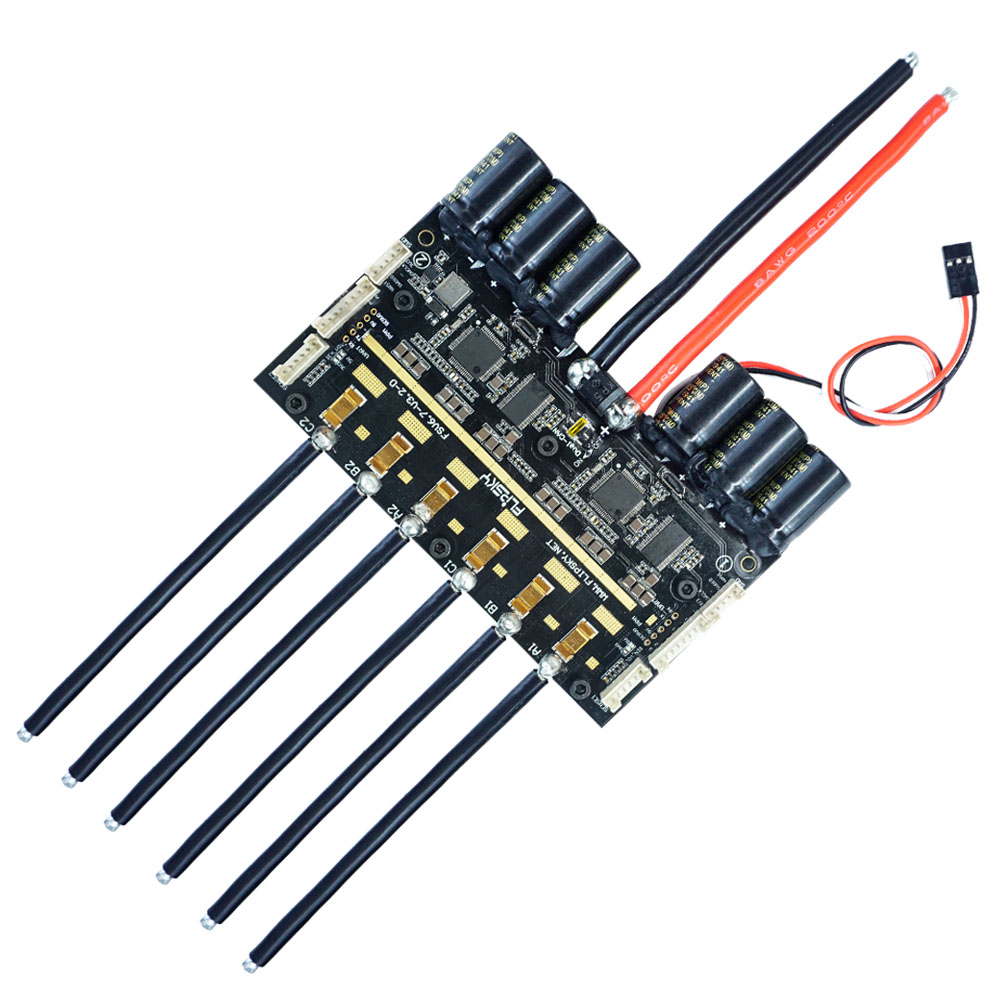

One PCBA board integrate two FSESC6 's function by internal CAN BUS circuit connection.

The main and slave board connection can be switched On/Off

Preserve Bluetooth module and RF module connections for both master and slave board

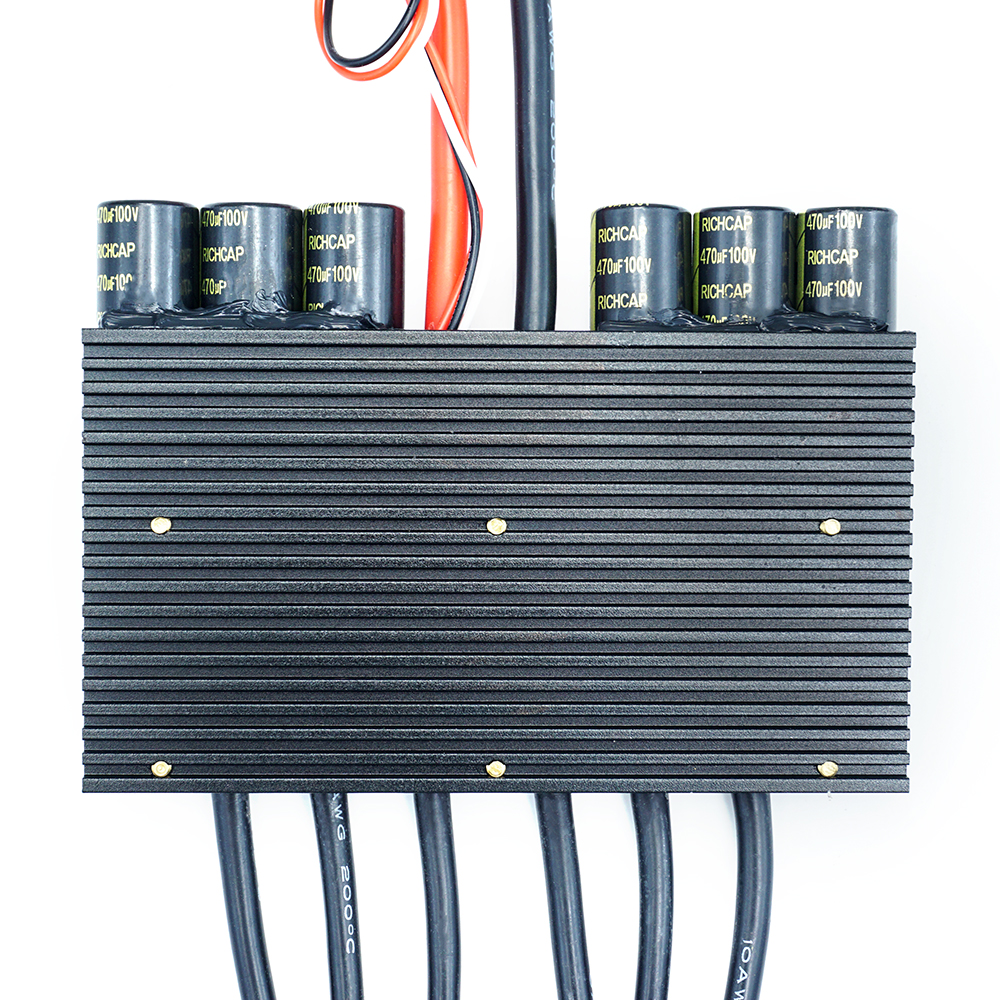

Aluminum anodized Heat sink with fins design for better heat dissipation

Size with heatsink: 128.5x91x21mm (L*W*D)

PCB layers: 8layers thickness: 3oz/layer total 24 oz thickness

Spec:

Hardware:V 6.6

Eprm:150000

Firmware:Latest firmware version

Voltage:8V - 60V (Safe for 3S to 12S LiPo) for the dual ESC

Voltage spikes may not exceed 60V

Current: Continuous 100A single total 200A   Instantaneous current 400A per single total 800A for system instantaneous current. values depend on the mounting  and ambient temperature around the device

5V 1.5A output for external electronics for single

3.3V 1A output for external electronics for single

Modes: DC BLDC FOC (sinusoidal)

Supported sensors: ABI HALL AS5047

6 shunts in dual system. Each is measurable for the current.

Recommend bullet connectors: 5.5mm Special Banana Connectors

Motor wire: 10AWG

Power cable: 8AWG

Note:

1. Detected battery voltage tolerance: +/-0.6V

2. This version doens't support setup for 4WD

 If you want to set up 4WD get the dual fsesc6.6 plus based on vesc not this one

Wiring Diagram Please Click here

Package Included:

1X Dual FSESC6.6 + Heatsink

2X VESC Sensor Wires

1X Mirco USB

1X Manual
