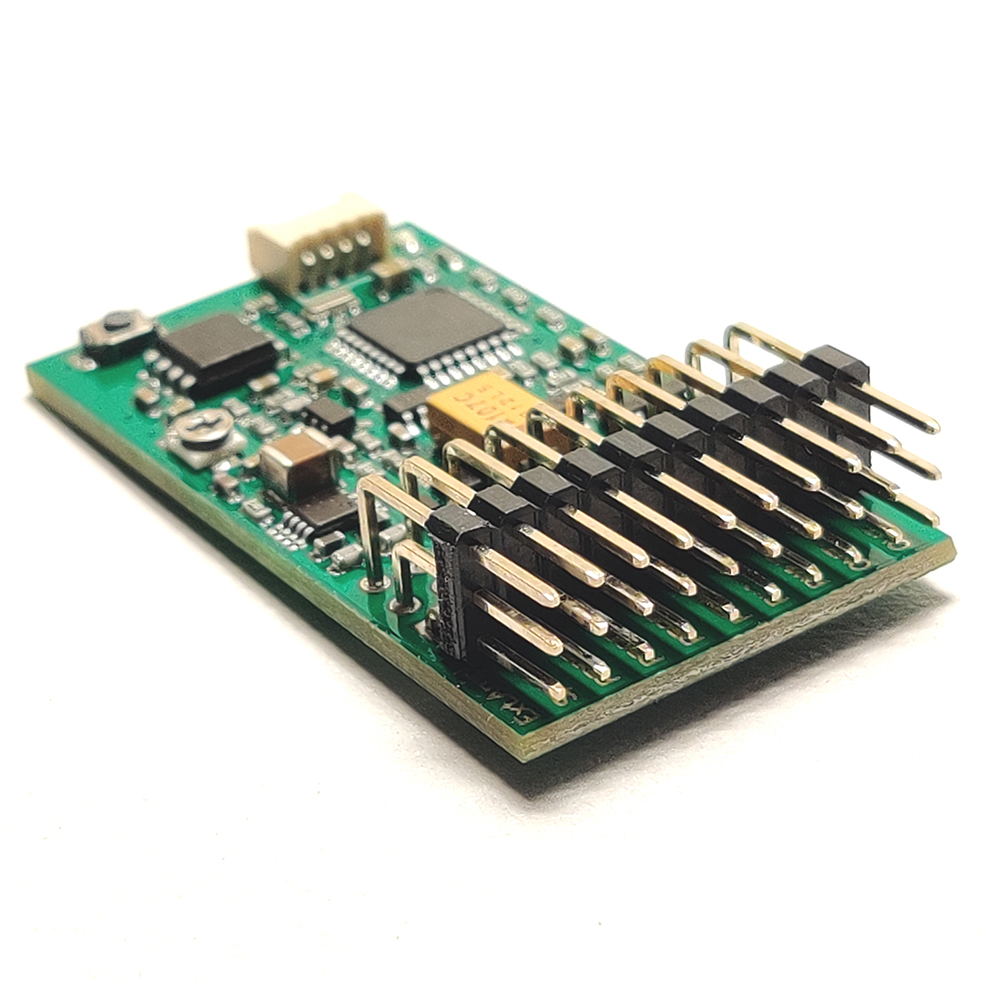

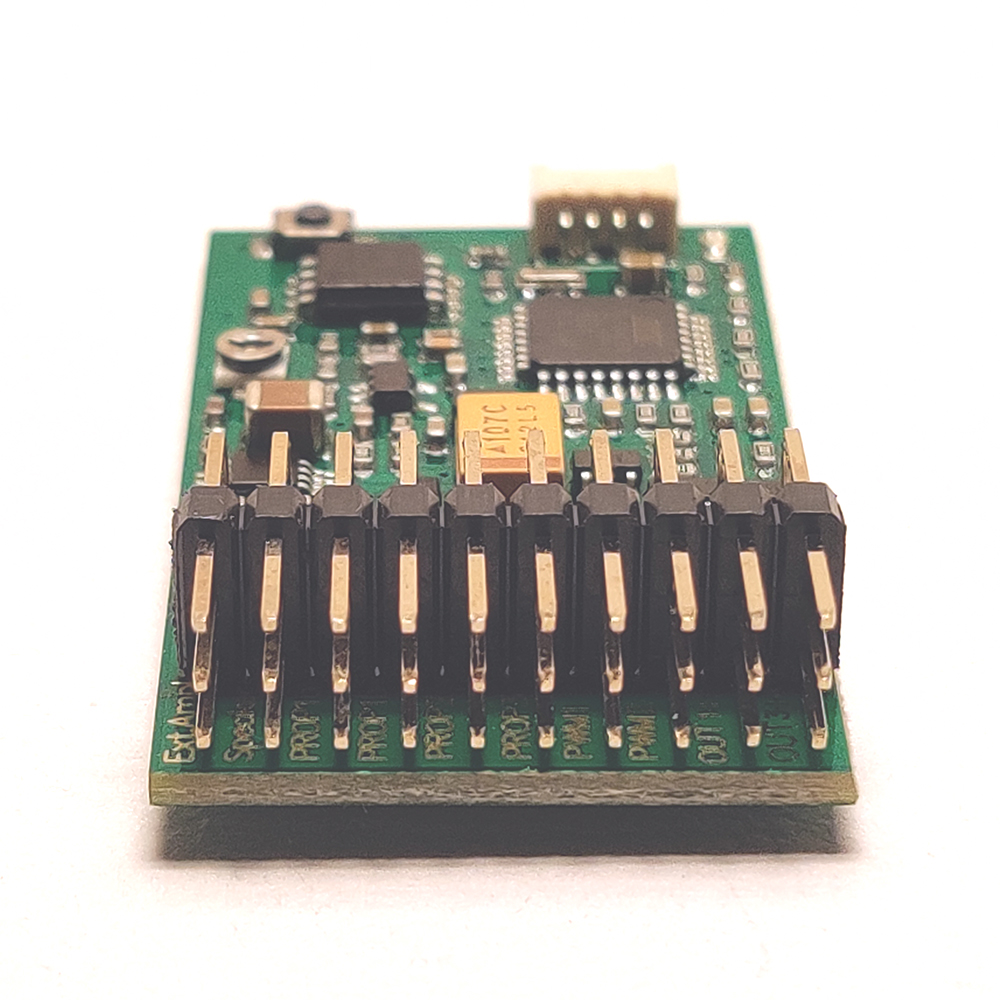

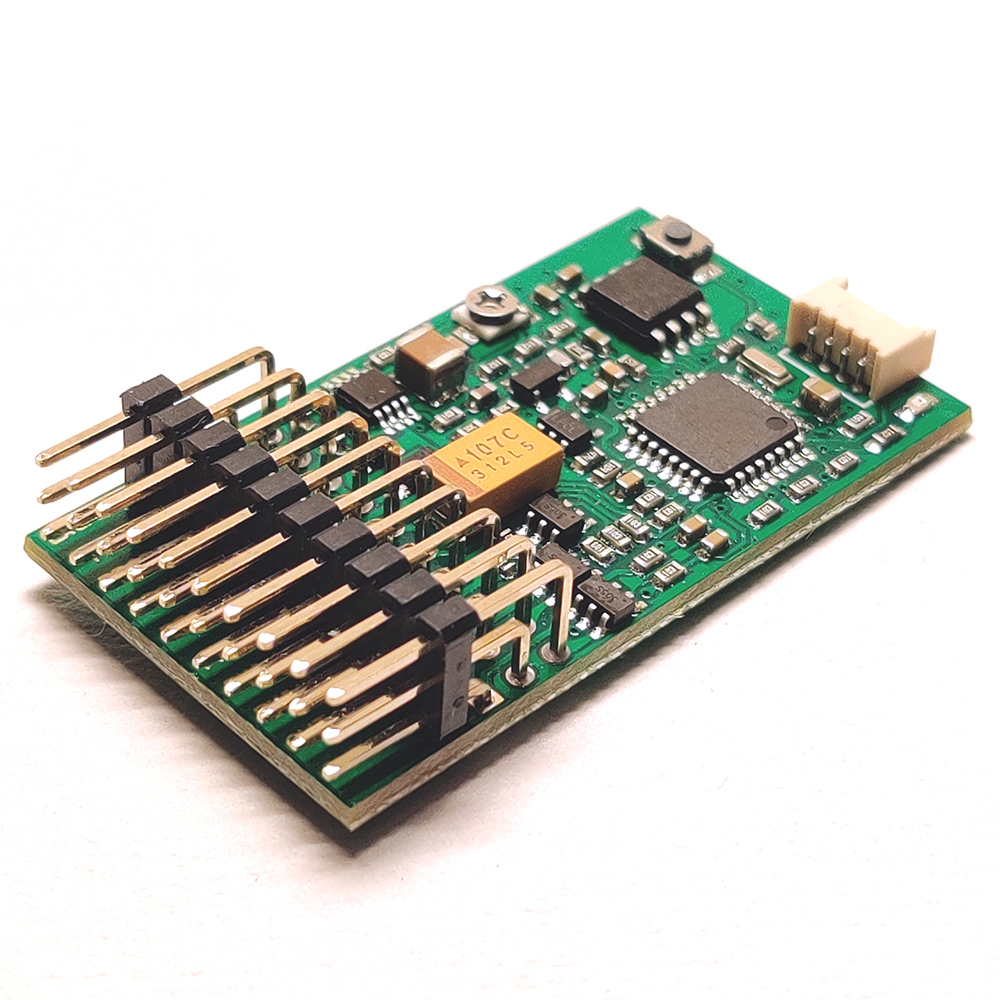

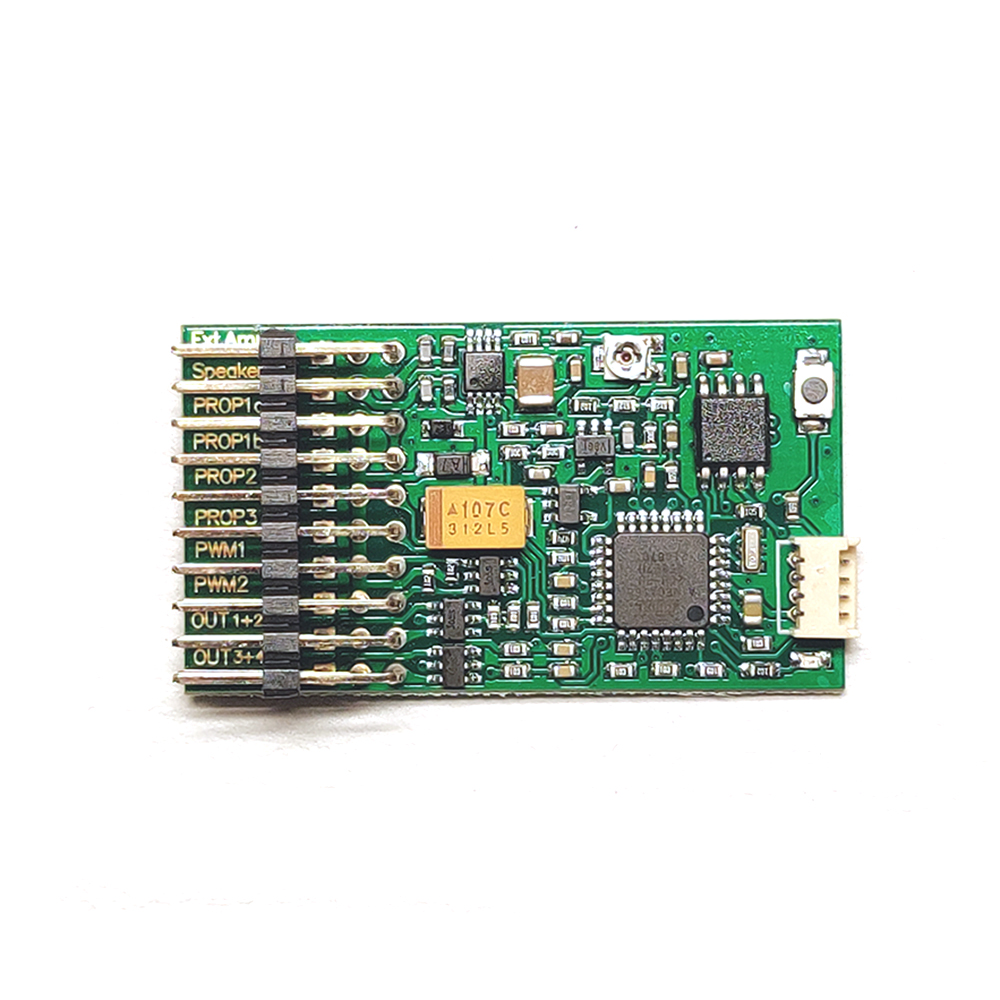

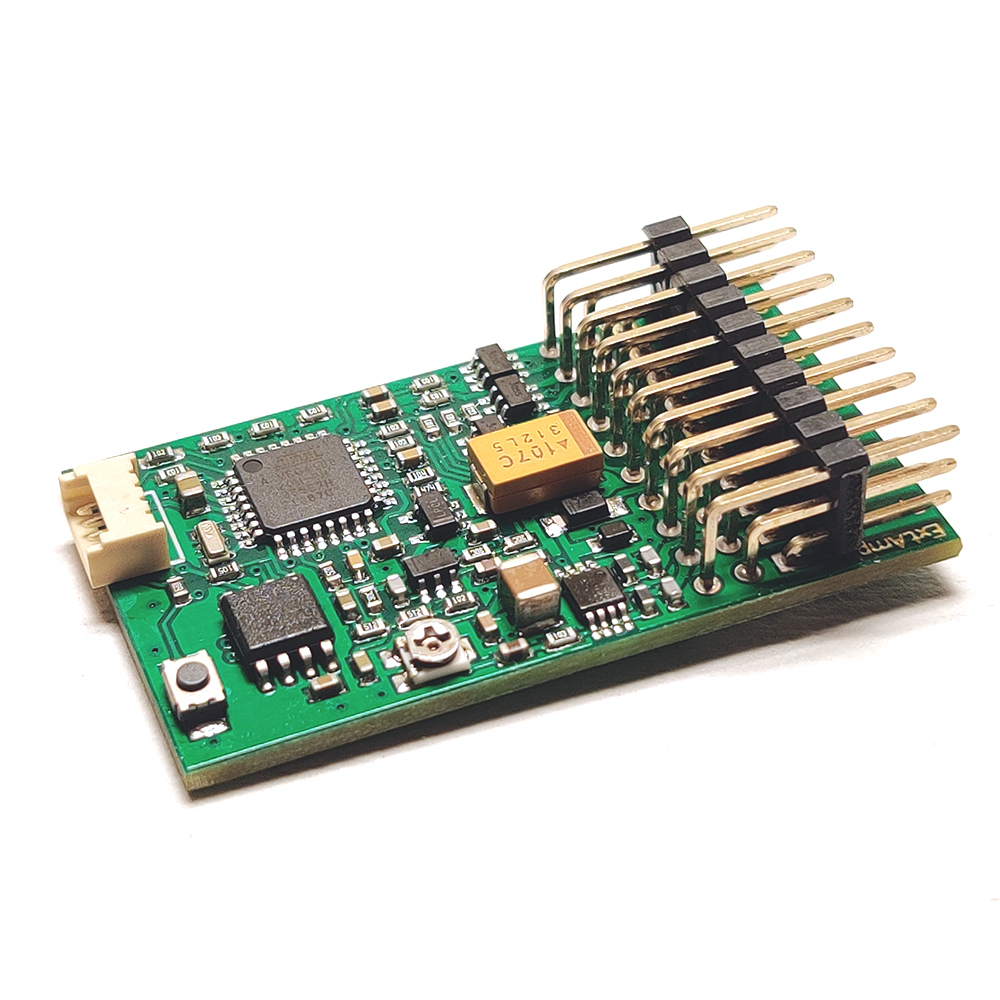

DasMikro V3 TBS Mini Programmable Sound Light Control Unit for RC Car Vehicles Airplanes Tanks Crawler Model Spare Parts

Description:

This sound unit is developed for all kinds of RC controlled models including trucks crawlers tanks airplanes...

Features:

- 16x larger sound memory enough for 28 Minuts of sound

- Powerful 3W digital amplifier on board

- 4OHm and 8Ohm speakers can be used

- Volume controller on board

- New connector for 3rd party amplifiers -> See manual !

- Dimension is 3mm wider than the former TBS Mini V1

- Receiver supply must be in the range of 4V - 6V(max) !!!

Additional Features:

- Fully customer programmable

- Large FREE OF CHARGE sound libraries of original recordings

- Sound quality 22KHz

- 16Mbit Sound memory enough for 93s of sound recordings

- Internal 1 2W amplifier at 8 Ohm speakers

- External high power amplifiers connection possible

- Up to 6 electronic switching outputs

- External smoke generator for exhaust simulation

- Two digital inputs for triggering sounds by an external signal

- Two servo signal outputs retractable landing gears

- All connections done by plugs no solder work necessary

- Receiver signals are used for speed information  this allows brushless or DC Motor usage

- All connections horizontally -> full isolation and protection by shrink plastic tube possible

- Fully SMD technology (no heavy vibration sensitive components)

- All wires included

- Very little dimensions and weight

- USB or RS232 programing interface by external adaptor (optional)

- Can be fully configured by free of charge PC software:

- You can make your own sound creation or using the original sounds

- Plays two sounds simultaneously (engine plus a special sound) from TBS Flash Ver. 1.0.1.0 on

Technical Specification:

Voltage Supply Range:  4V - max. 6V (from receiver)

Internal Amplifier: 3W at 4 Ohm and 6V supply

Switching Outputs: Minus switching max. 12V/0 5A each

Product Dimensions:55mm x 28mm x 10mm  (3mm wider than the TBS Mini V1)

Product Weight:About 6g

Package Included:

1 x DasMikro TBS Mini Sound Unit PCB V3

2 x 10cm 3P Receiver Connection Servo Cable

1 x 10cm 3P Receiver Connection Servo Y Cable (for tank second ESC speed input)

1 x 20cm 2P Speaker Connection Cable

4 x 30cm 3P External Switching Connection Cable

1 x Test Speaker
