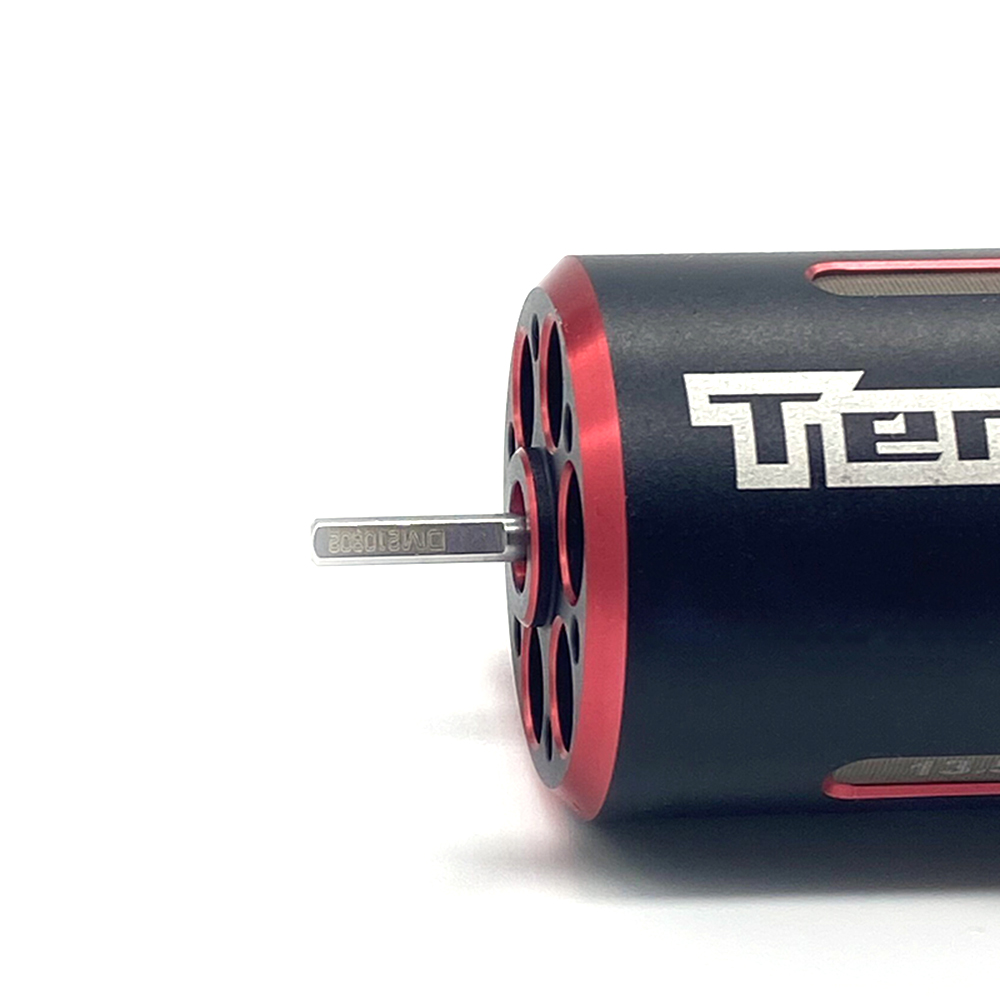

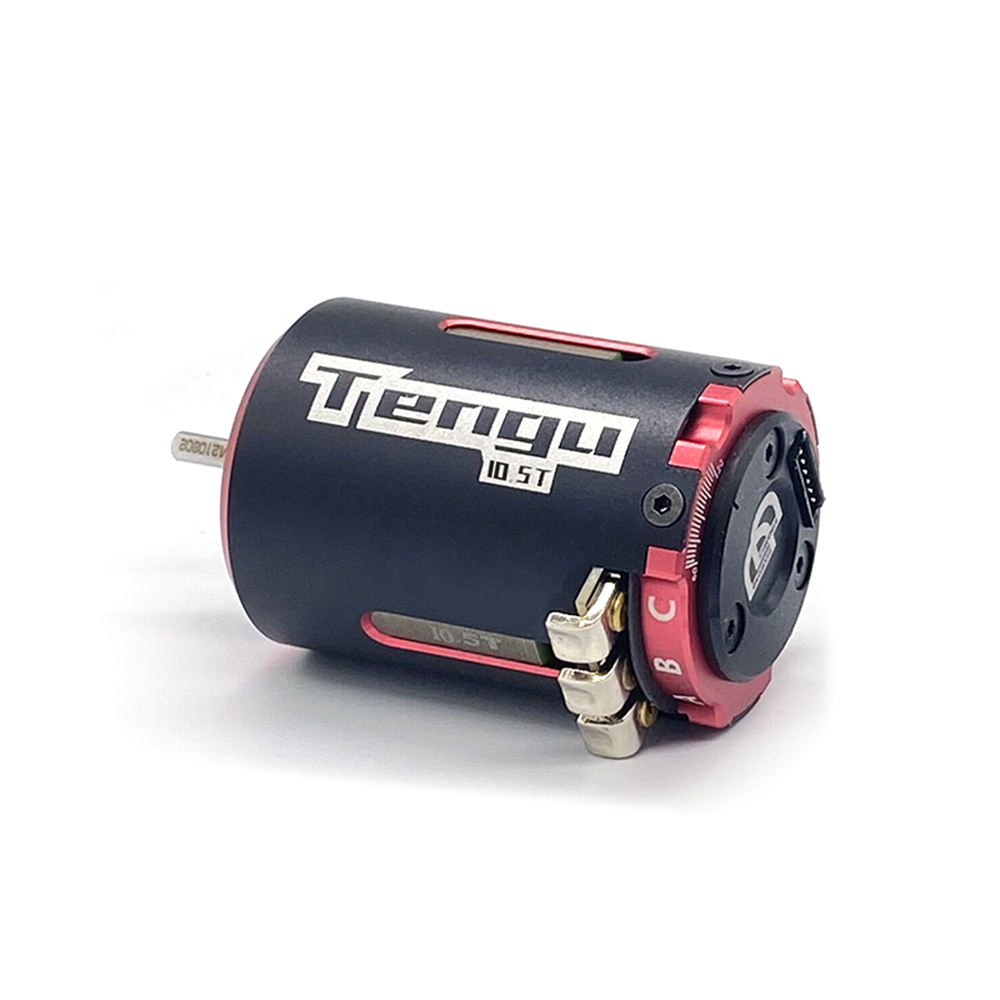

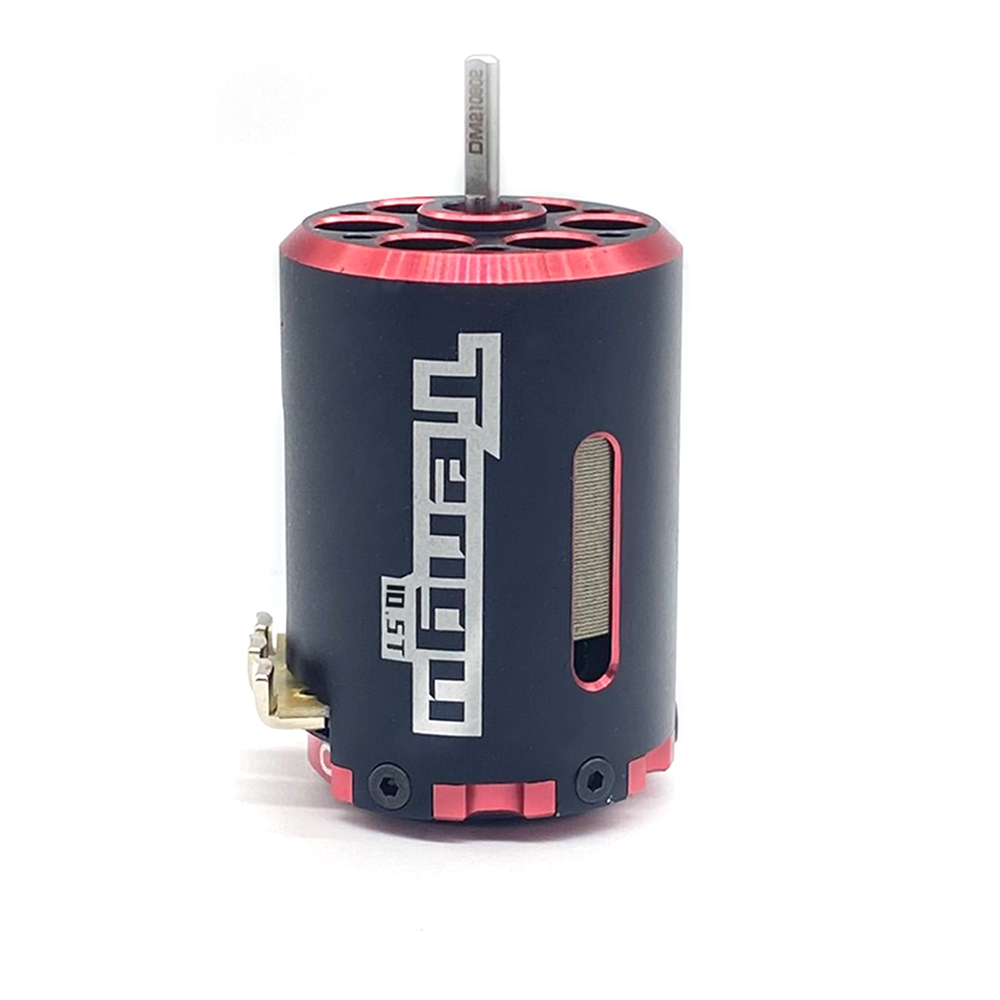

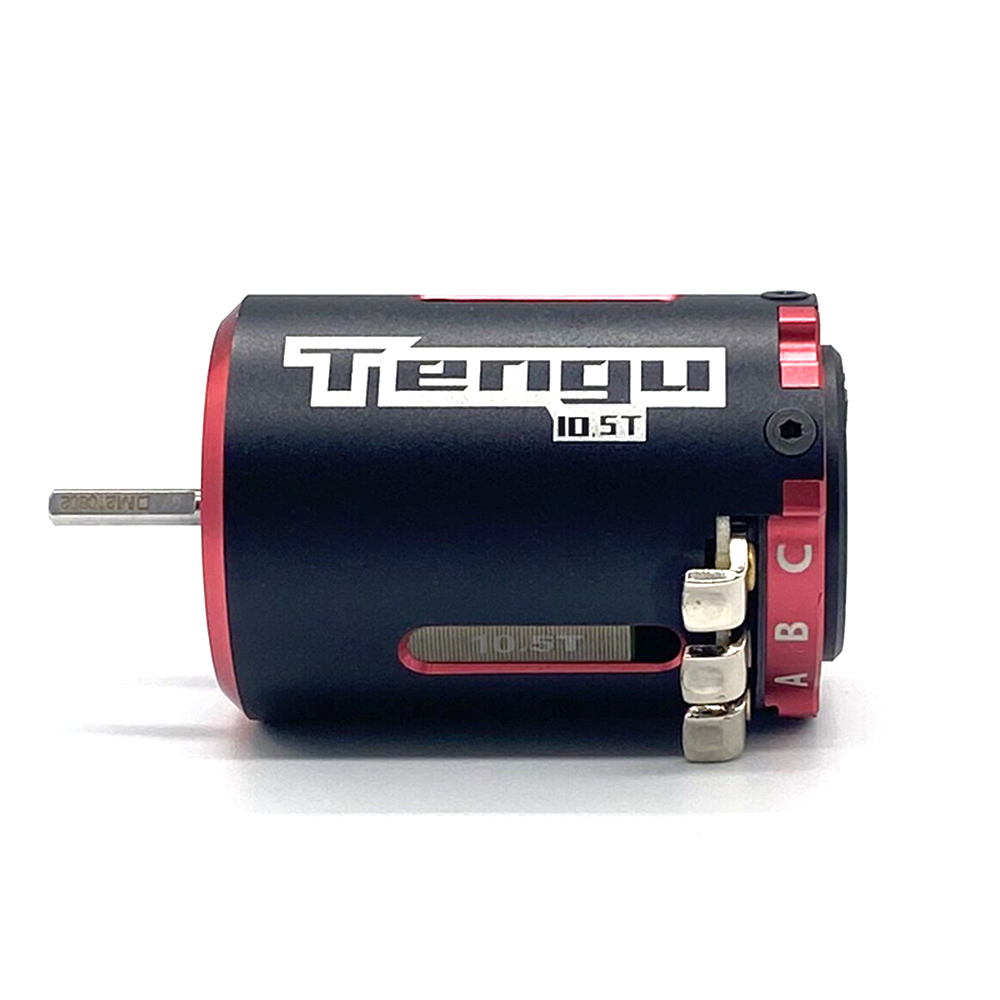

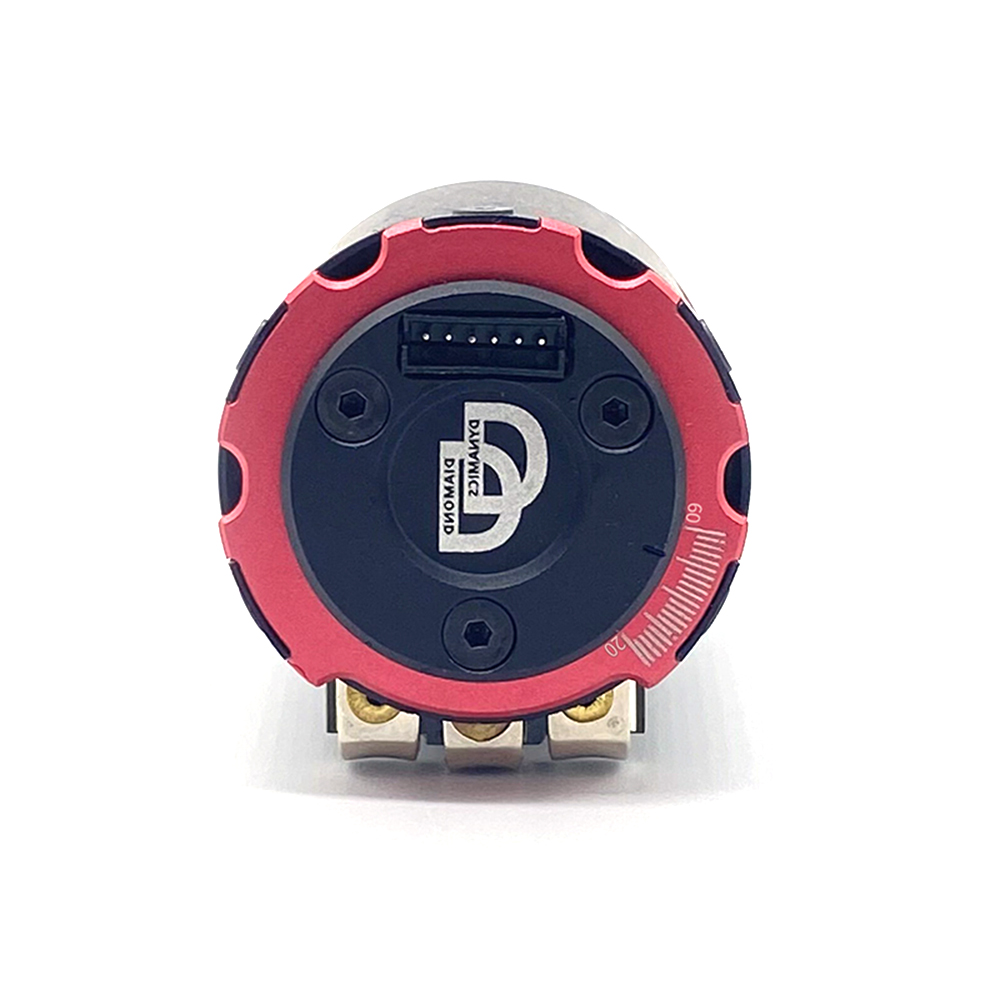

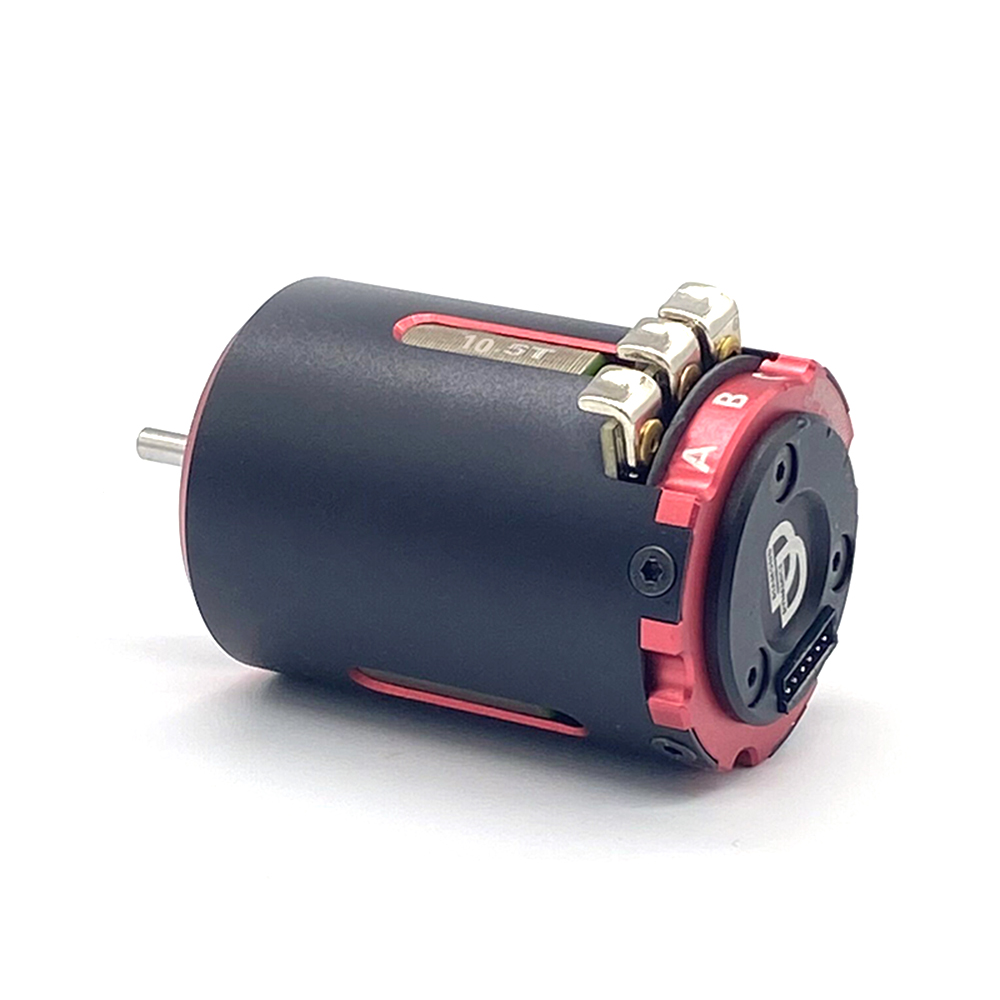

Tengu 540 2Pole 3.17mm Brushless Motor 10.5T 13.5T 17.5T 21.5T for 1/10 Drift RC Car Parts
Description:
Item Brand:Tengu
Item Number:540(3700/10.5T 3600/13.5T 2750/17.5T 2300/21.5T)
Item Name:RC car motor
Material:Metal and plastic
Color:Black+Red
The Size of the Motor:Length 50.5mm diameter 35.9mm shaft diameter is 3.17mm length of extended shaft is 14mm
The Weight of the Motor:About 150g
Fit For:1/10 brushless rc cars
Specification of the Motor:
KV:3700KV/3600KV/2750KV/2300KV
Lipo:2-3S
Resistance:0.0196/0.0326/0.0400/0.0615
No-load current(A): 5.0/3.6/2.7/2.2
Max output power(W):260/240/188/137
Max output power(A):74/59/42/32
Diameter/Length(mm): Ph=35.9mm L=50.5mm
Shaft Diameter/Length(mm):Ph=3.17mm L=14mm
Stock rotor: Ph7-12.5*25.2-G*S
Poles: 2
Weight(g): 152g/150g/151g/149g
Applications: 1/10 Drift car stock OFF-road short card climbling car
Features:
High Purity Copper Windings Maximizes Efficiency
High RPM ABEC5 Oversized Bearings
Universal fit fits all 1/10 brushless cars-multi-mounting system for M3 screws
Precision balanced rotor smoothness for best reliability and maximum RPM
Removable/Replaceable Rotor
Precision Engineered for Maximum Energy Conversion

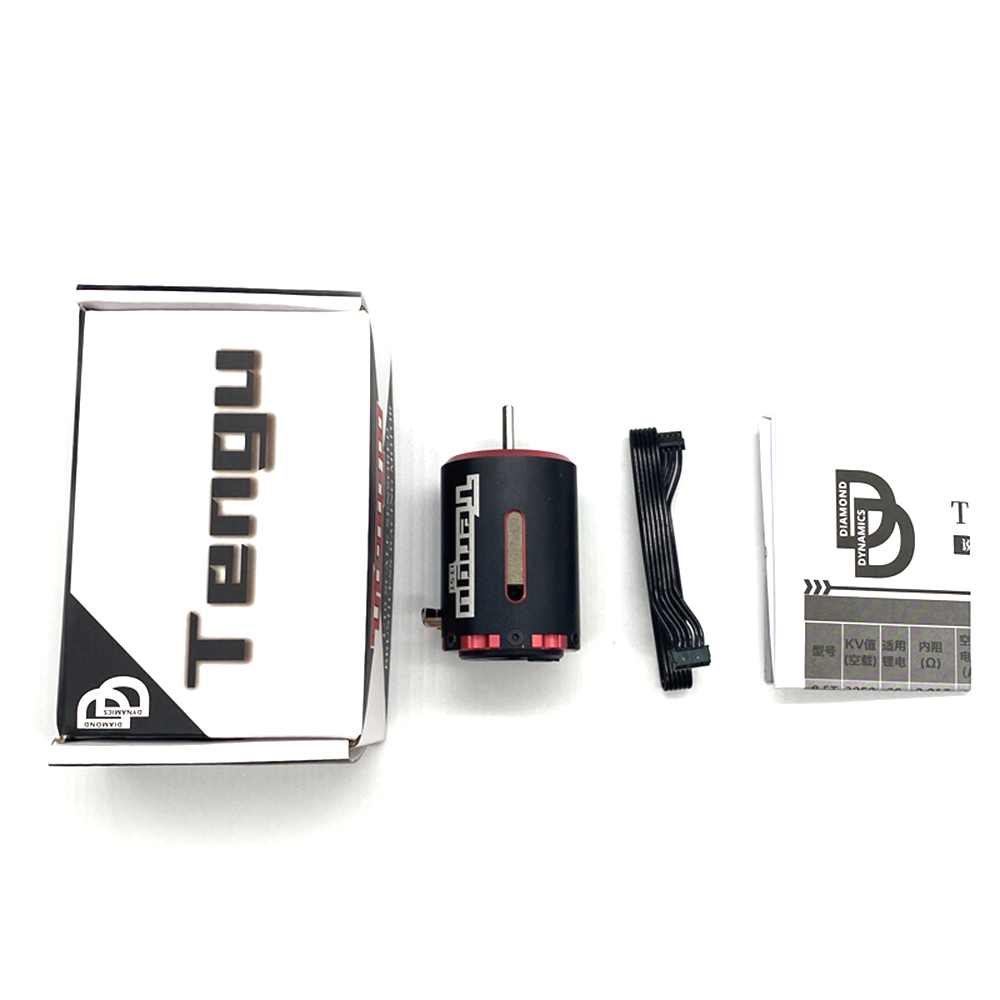

Package included:
1X Tengu 540 2Pole Brushless Motor
Specifications
| Teeth | 10.5T or 13.5T or 21.5T or 17.5T |
