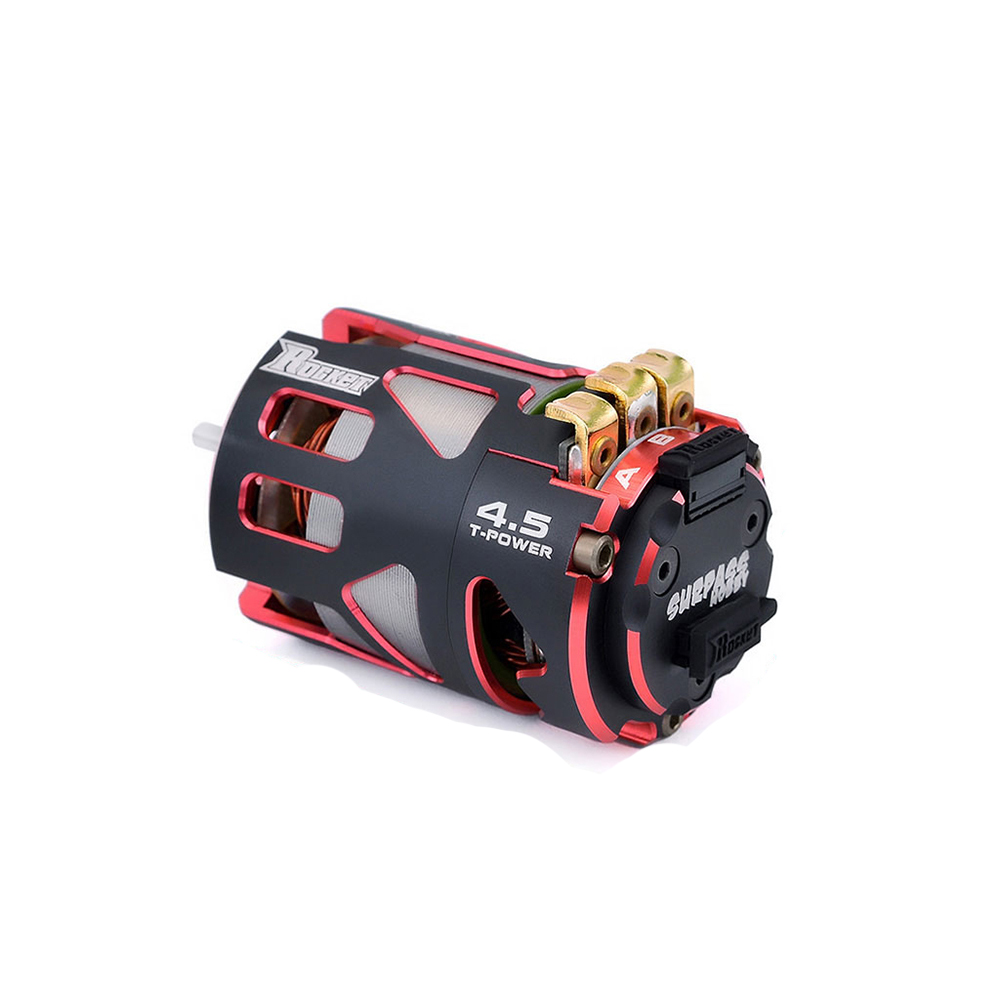

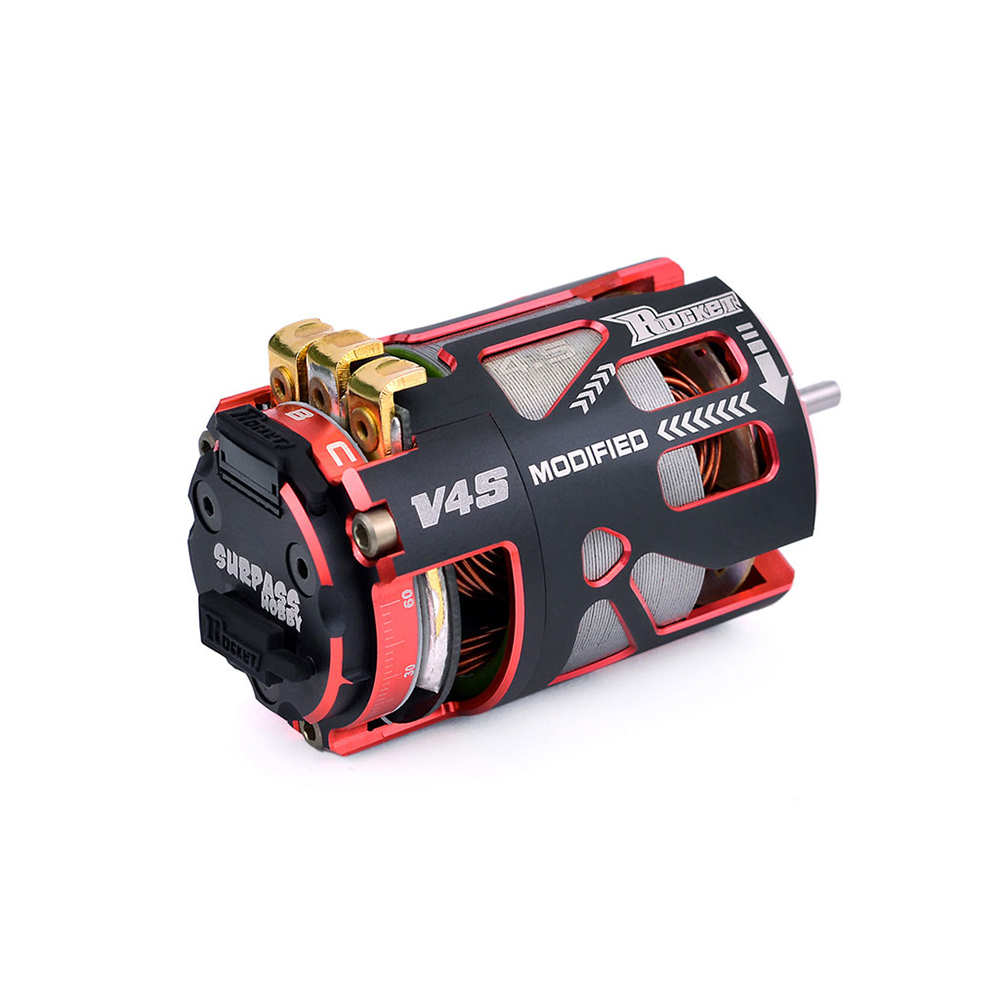

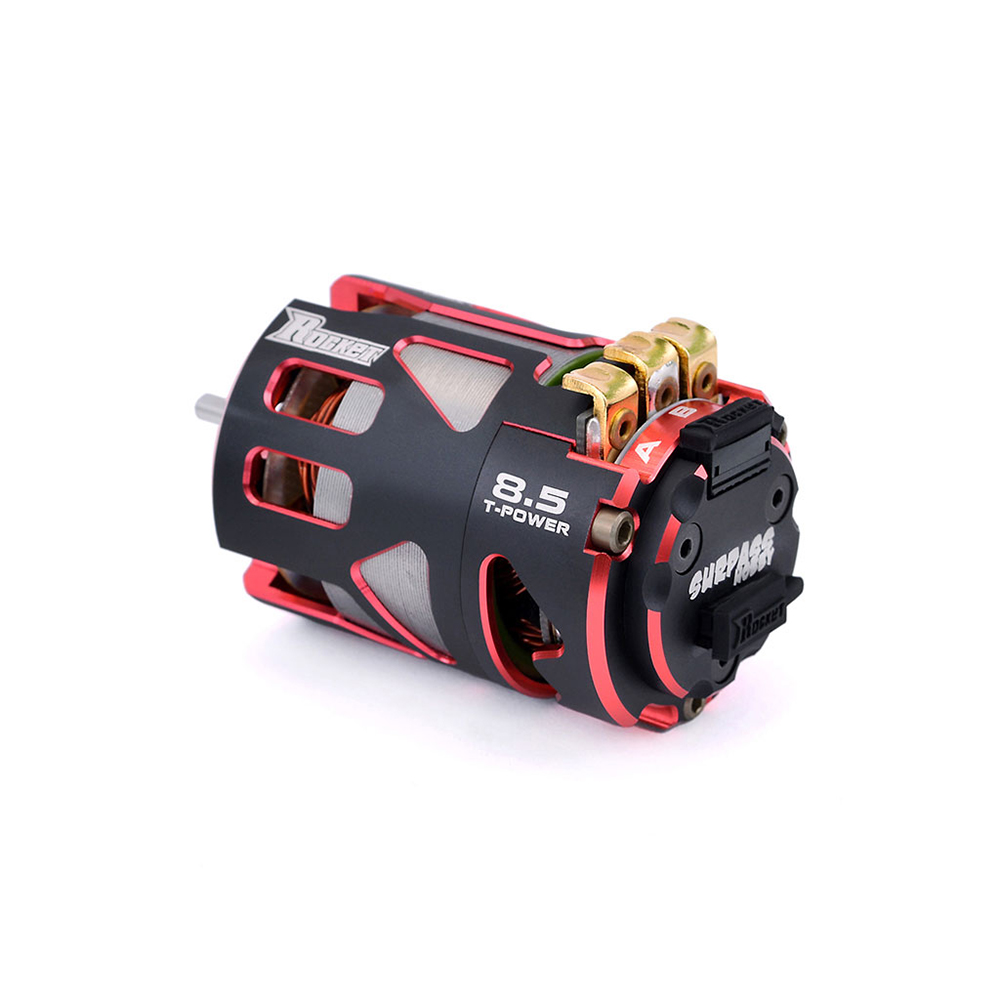

Surpass Hobby ROCKET 540 V4S Modified Sensored Brushless Motor for 1/10 RC Car Vehicles Model Parts
Specification:
Item Brand:Surpass Hobby
Item Number:ROCKET 540-V4S V2(F540/4.5T F540/8.5T)
Item Name:Brushless motor
Material:Metal
Color:As shown
The Size of the Motor:Length 52.1mm diameter 35.8mm shaft diameter is 3.175mm length of extended shaft is 35.8mm
The Weight of the Motor:About 160g
Fit For:1/10 drift rc cars
KV:7800KV(4.5T)/4250KV(8.5T)
Watts:490/340
Max Amps:108A/80A
Rotor Poles:2
IO:6.5A/2.8A
Resistance:0.0042/0.0138
Features:
1.Precision balanced rotor smoothness for best reliability and maximum RPM.
2.High power output heatsink design replaceable brushes.
3.Excellent torque and long-run times.

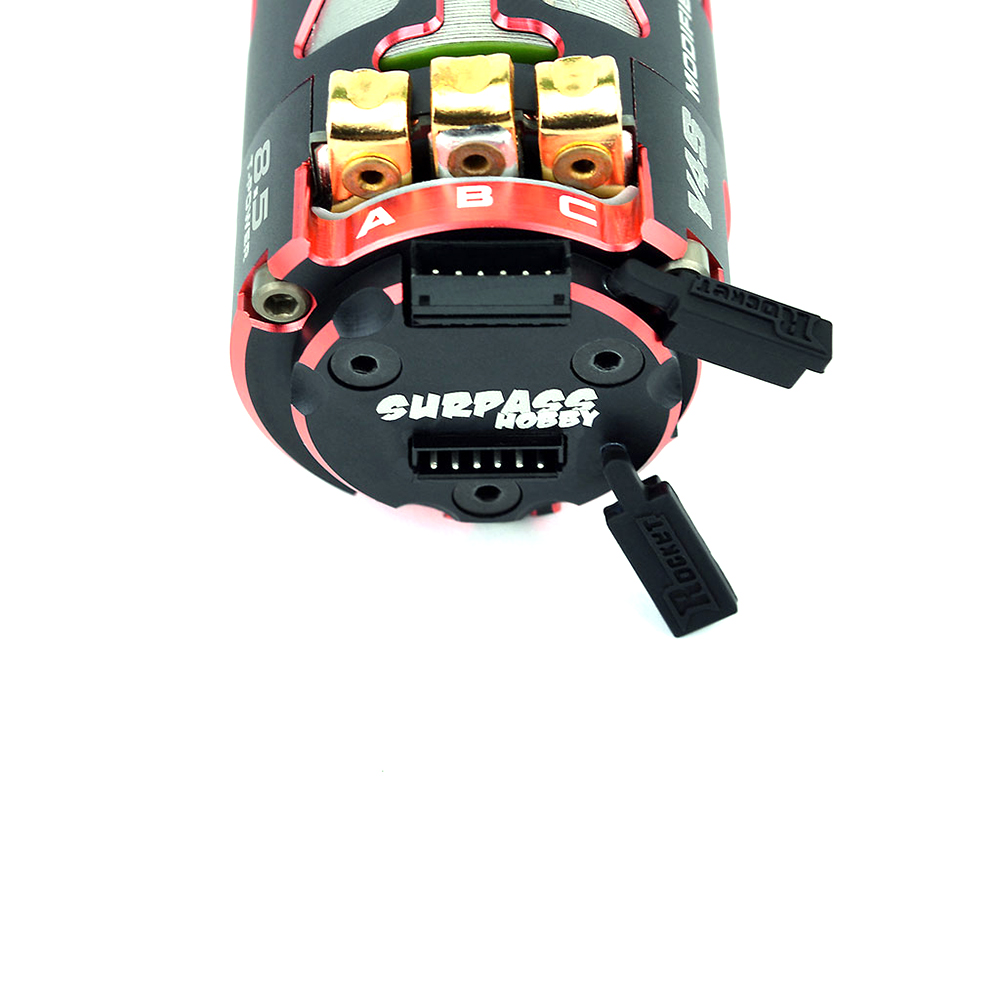

4.Dual-ball bearings design and Direct-solder wiring tabs for flexible soldering options.
2.High power output heatsink design replaceable brushes.
3.Excellent torque and long-run times.
4.Dual-ball bearings design and Direct-solder wiring tabs for flexible soldering options.
Package included:
1X ROCKET 540-V4S V2 Brushless Motor
Specifications
| Teeth | 8.5T or 4.5T or 9.5T or 7.5T |
