Pixhawk PPZ/MK/MWC/ PPM Encoder Board Decoder for RC Receiver Flight Controller

Description:

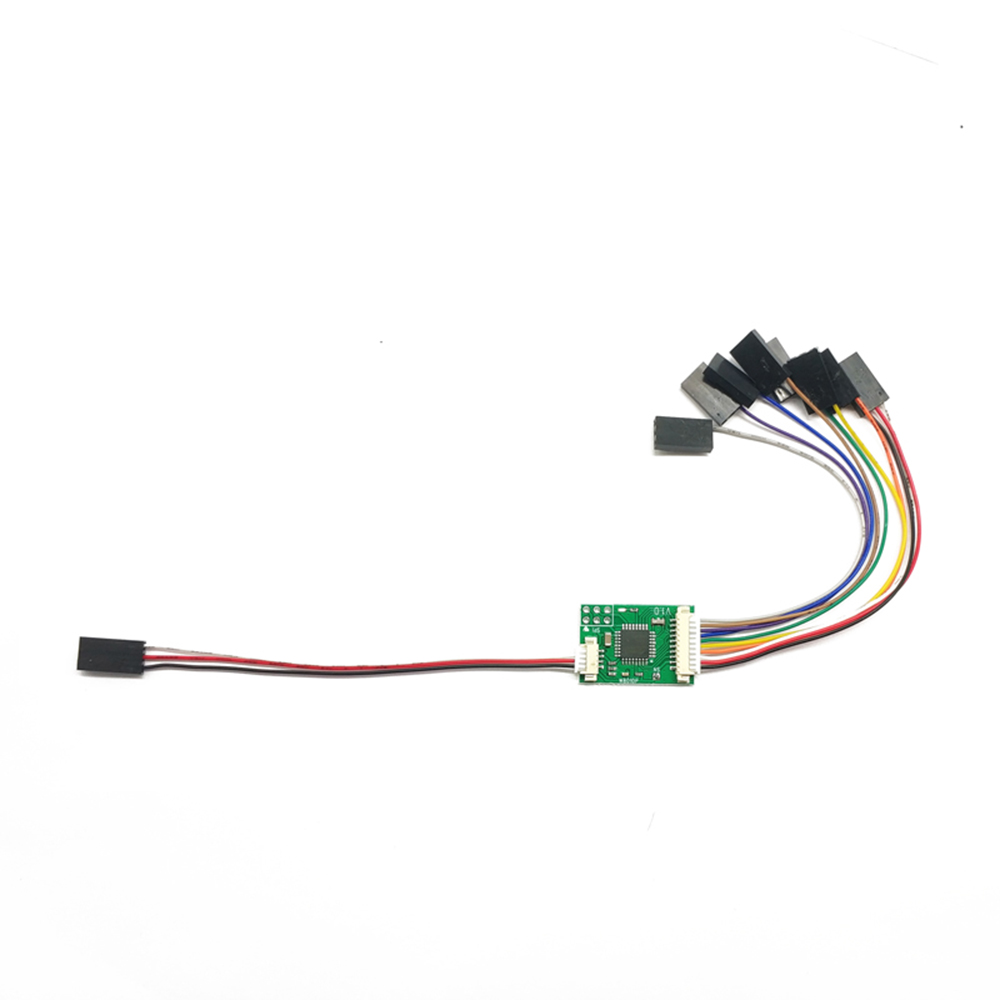

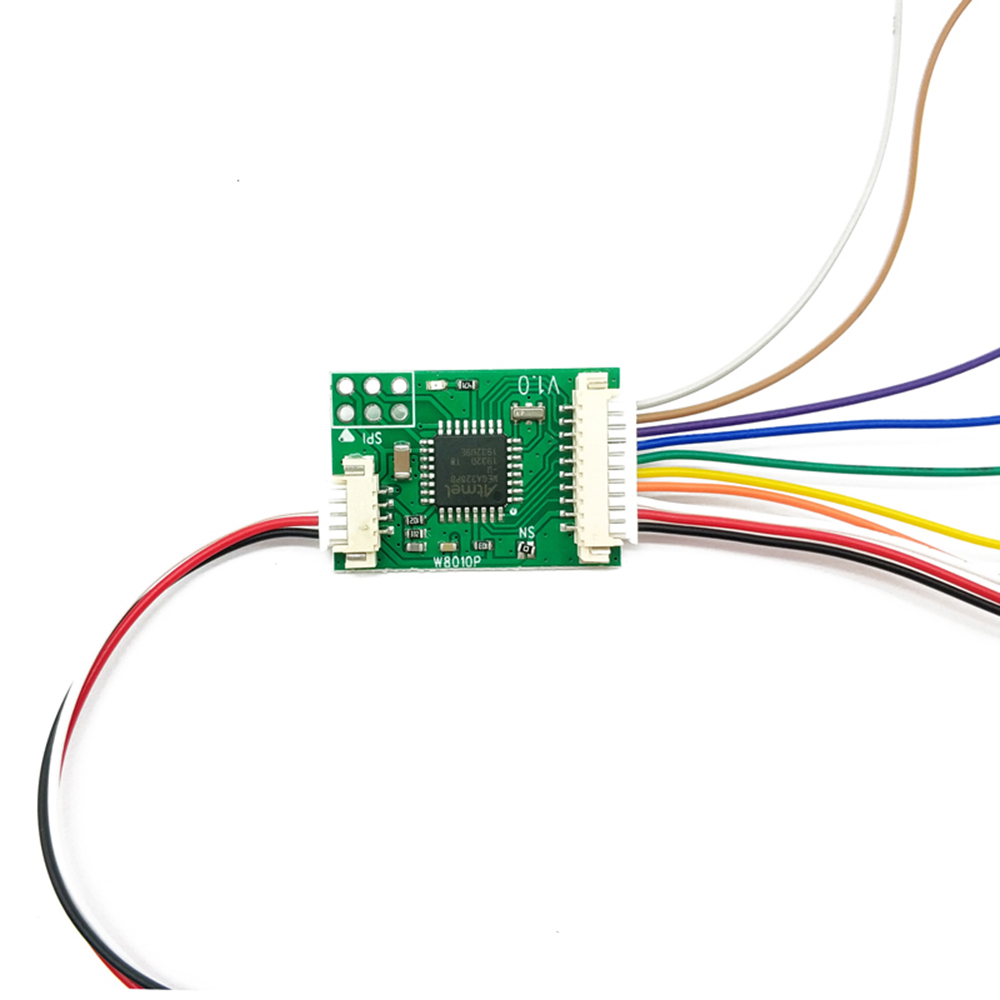

The PPM Encoder plugs into the PWM servo output ports of any R/C  receiver and encodes them into a PPM pulse suitable for many autopilots  (e.g. Pixhawk). Modifications to the R/C receiver are not necessary.

The whole project is based around the AVR processor and  all timing is done within interrupts so accuracy and stability is  optimized.

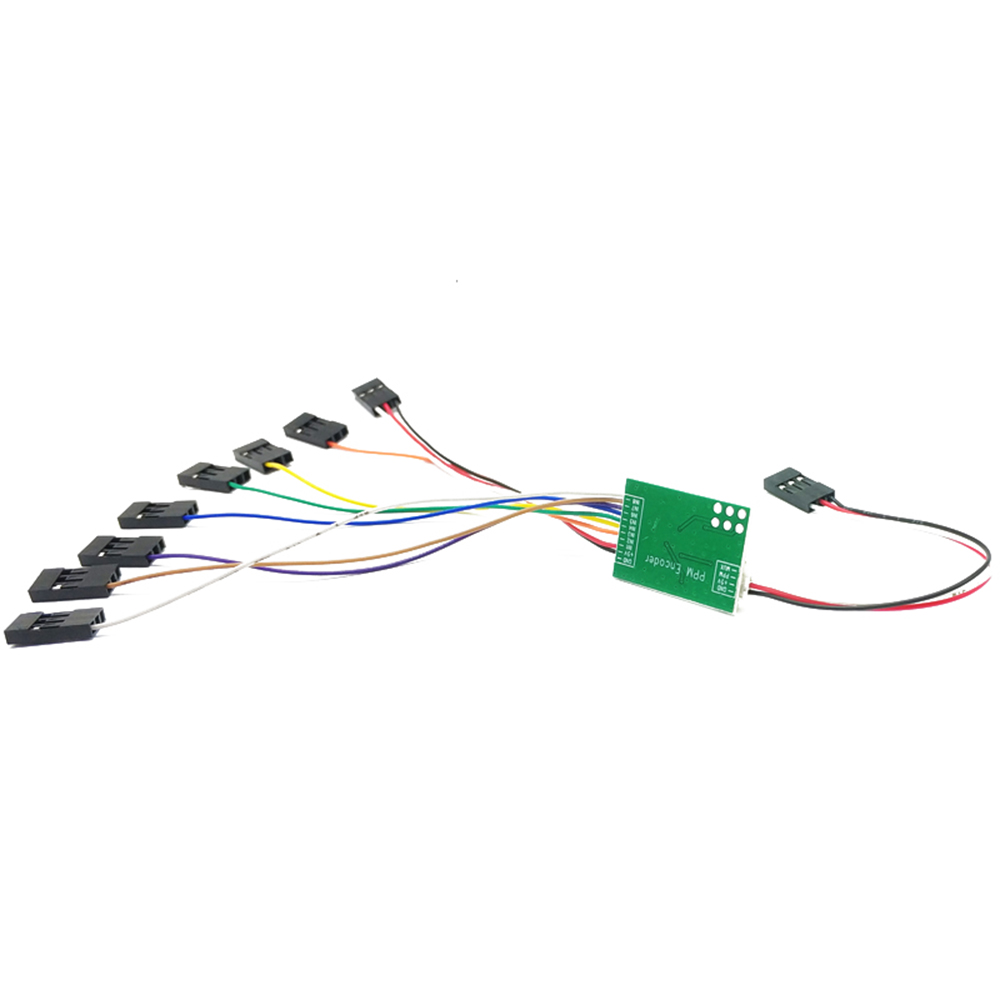

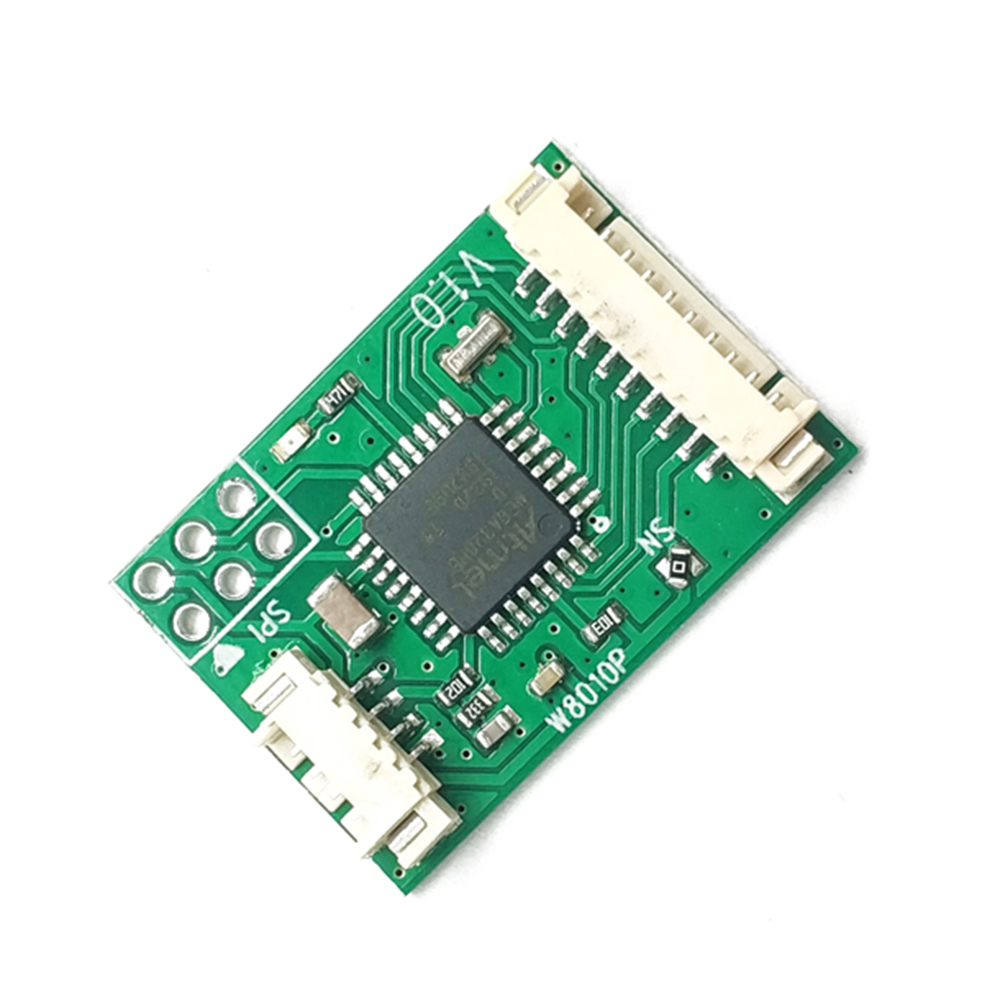

The whole project is based around the ATMEGA328p AVR processor and all timing is done within interrupts so accuracy and stability are optimized. Firmware is free and was created by John Arne and Olivier Adler.Acknowledgments: diydrones community John Arne and Olivier Adler.

The design of the PPM Encoder is based on the Paperazzi PPM Encoder.Important Note: The firmware comes pre-configured to read 8 Channels. In  case you would like to change the settings of the PPM encoder to invert  the PPM signal and change the fail safe pre-defined values you will need  an AVR ISP programmer in order to reprogram it.

The jumper on the board no soldering default. In this case the board  powered by FC

Specification:

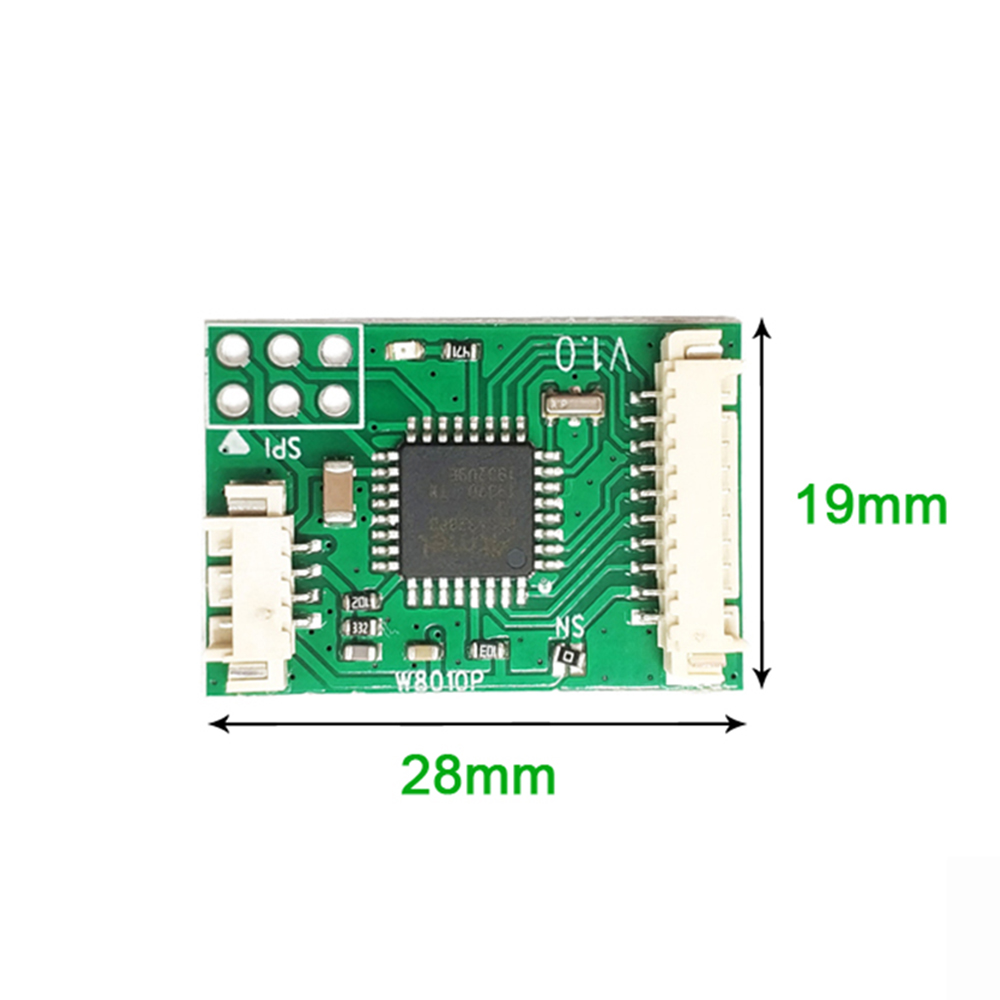

Dimension(mm): 26 x 18 x 4

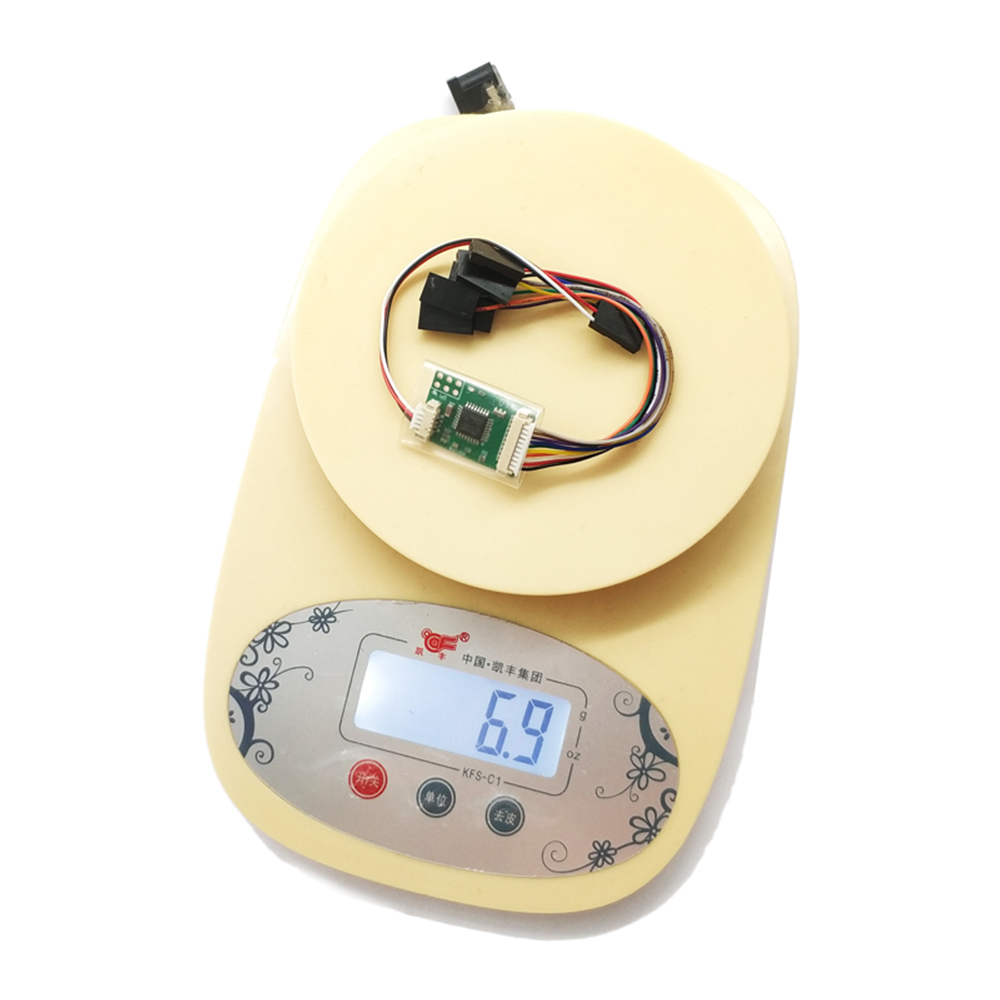

Weight(g): 8(include all wire)

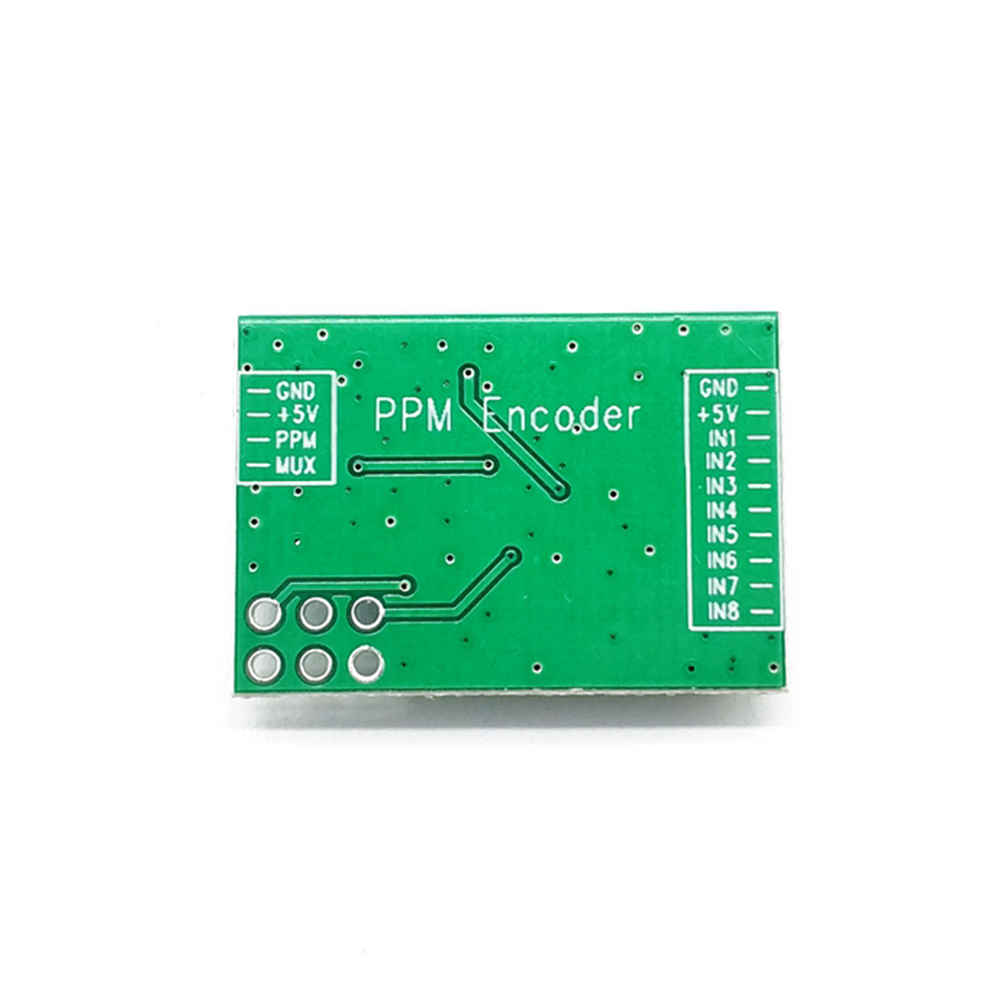

Output : PPM SUM x1 / MUX x1

Color: Green

Package included:

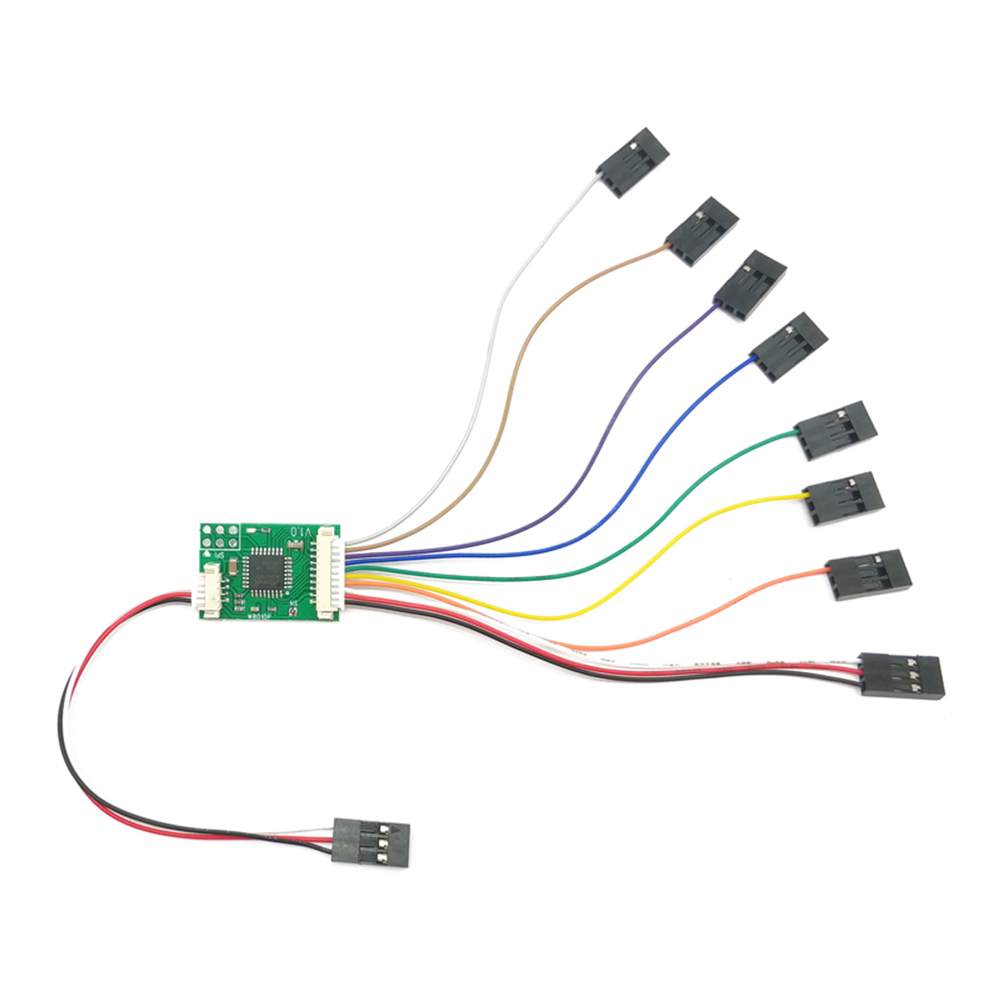

1x PPM Encoder(Black )

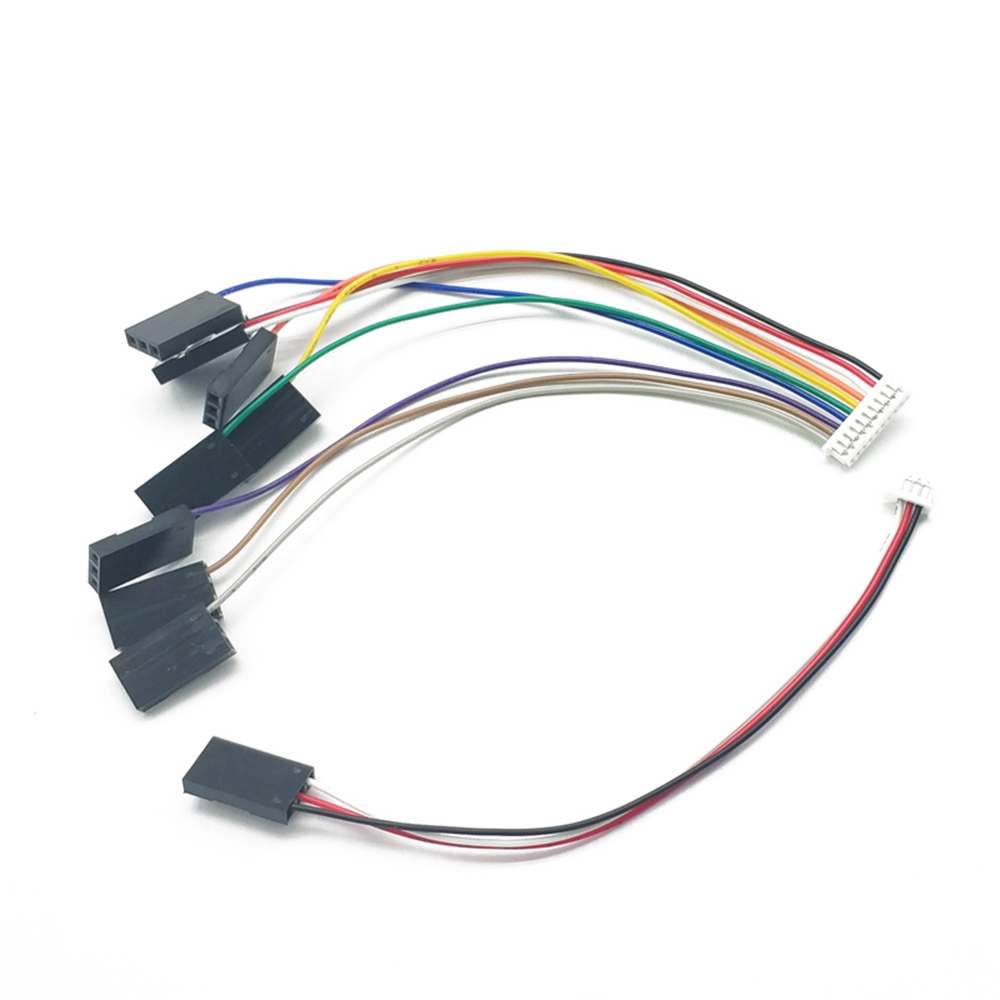

1x 10 Pin input cable 60mm

1x 4 Pin output cable 100mm
