  3. Surpass Hobby KK 2435 3300KV Brushless Motor 25A Brushless ESC 17G Digital Servo Brushless Set for 1/16 RC Car Model Parts
Public Pricelist

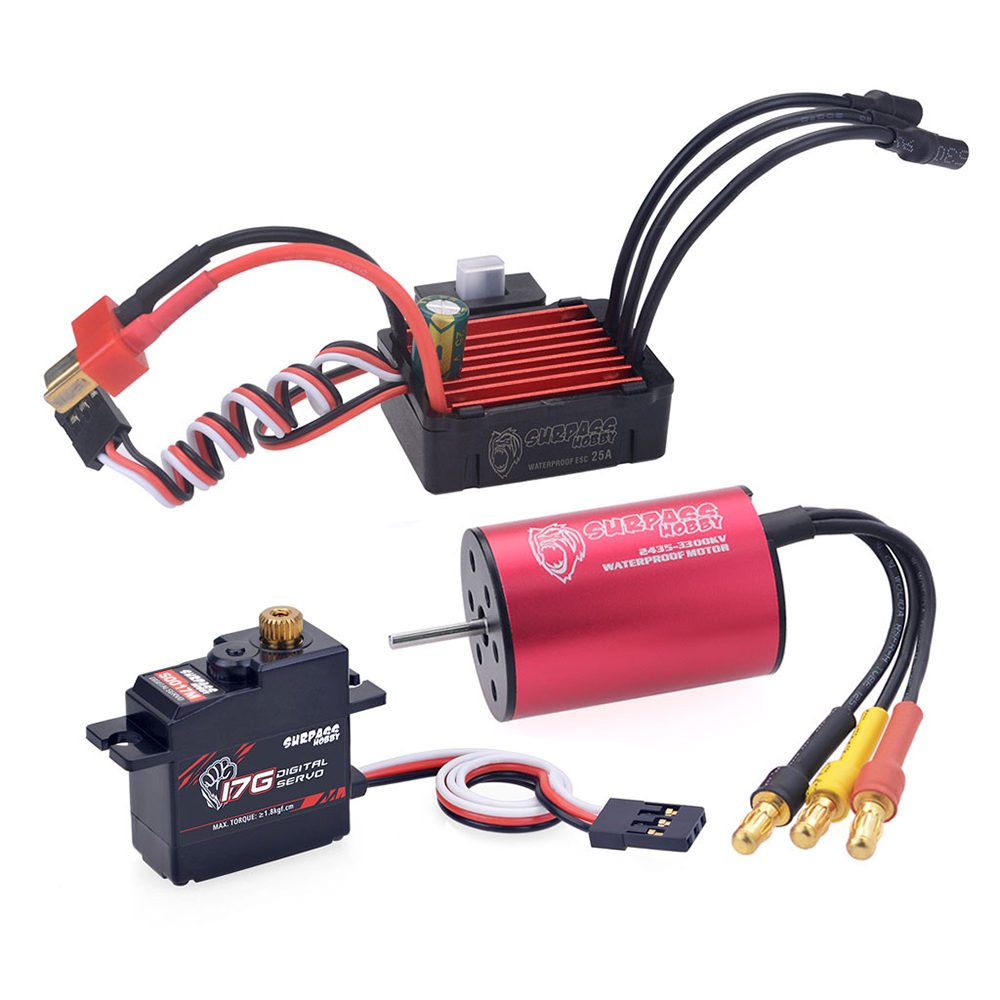

Surpass Hobby KK 2435 3300KV Brushless Motor 25A Brushless ESC 17G Digital Servo Brushless Set for 1/16 RC Car Model Parts

https://www.rcwarehouse.nl/web/image/product.template/6329/image_1920?unique=5fbcf47

48.29 € 48.29 EUR 48.29 €

48.29 €

    This combination does not exist.

    Description:
    Item Brand:Surpass Hobby
    Item Number: 2435 3300KV Brushless Motor 25A ESC With 17G Digital Servo
    Item Name:RC car motor +esc set
    Material:Metal and plastic
    Color:Black and Red
    The Size of the Motor:Length 35mm diameter 24mm shaft diameter is 3.175mm length of extended shaft is 12mm
    The Size of the ESC:40*32*15mm
    The Weight of the Motor/ESC:About 83g/33g
    Fit For:1/16 1/18  brushless rc cars

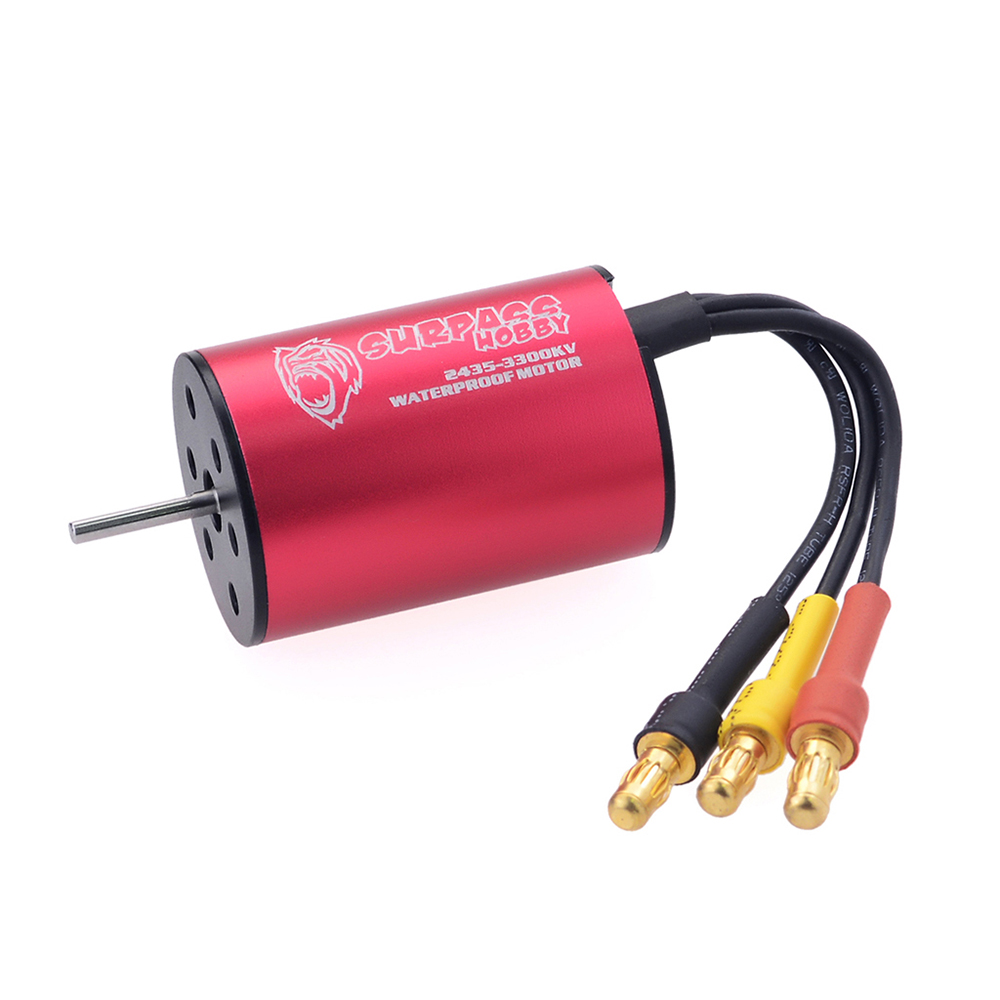

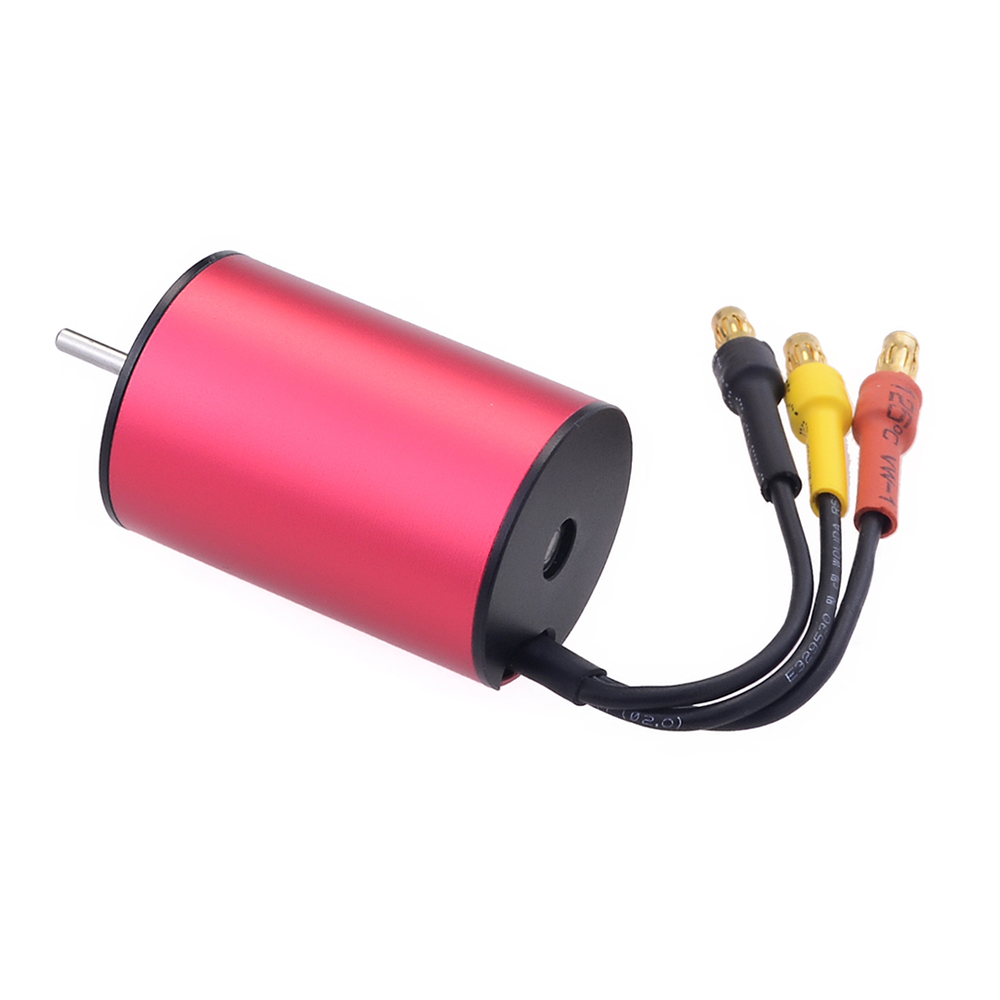

    The Specification of the Motor:
    KV:3300KV
    Watts:300
    Max Voltage:<15.8V
    Max Amps:18A
    Rotor Poles:4
    IO:1.2A
    Resistance:0.0167
    Max RPM:60000
    Connector:3.5mm gold

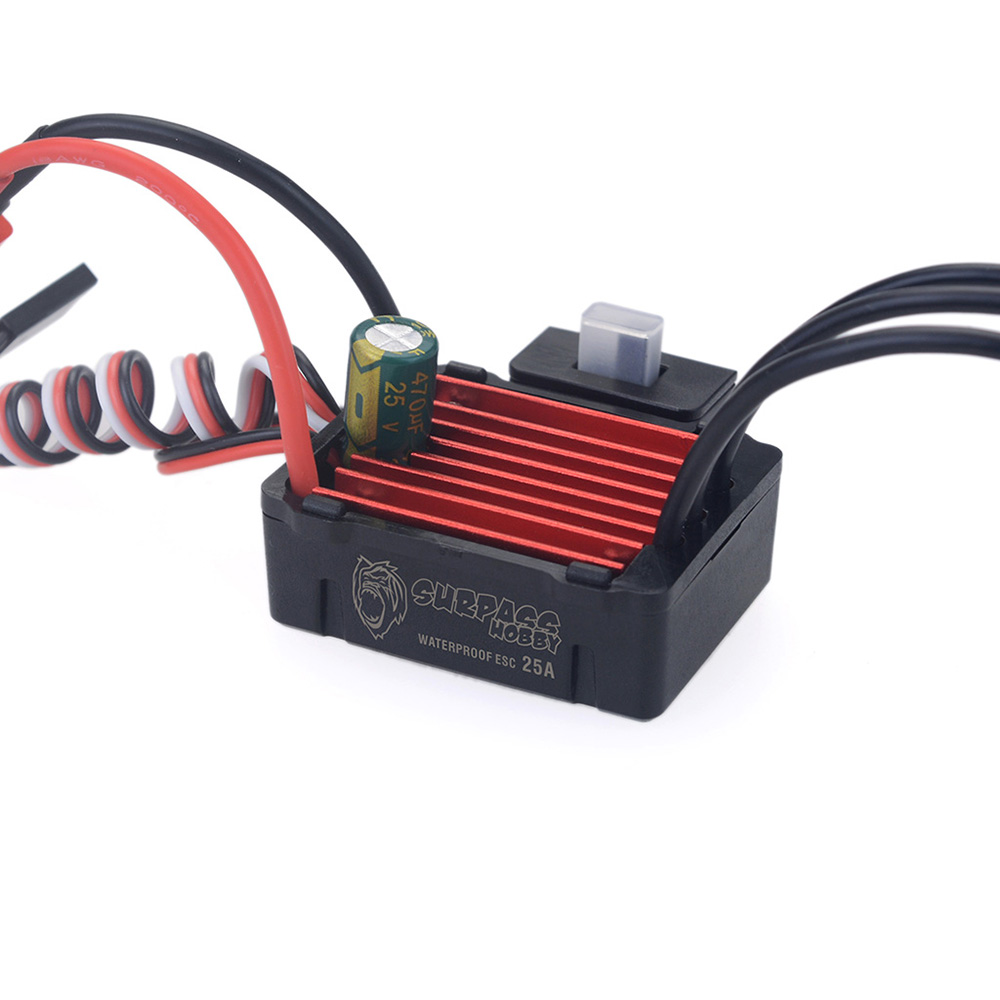

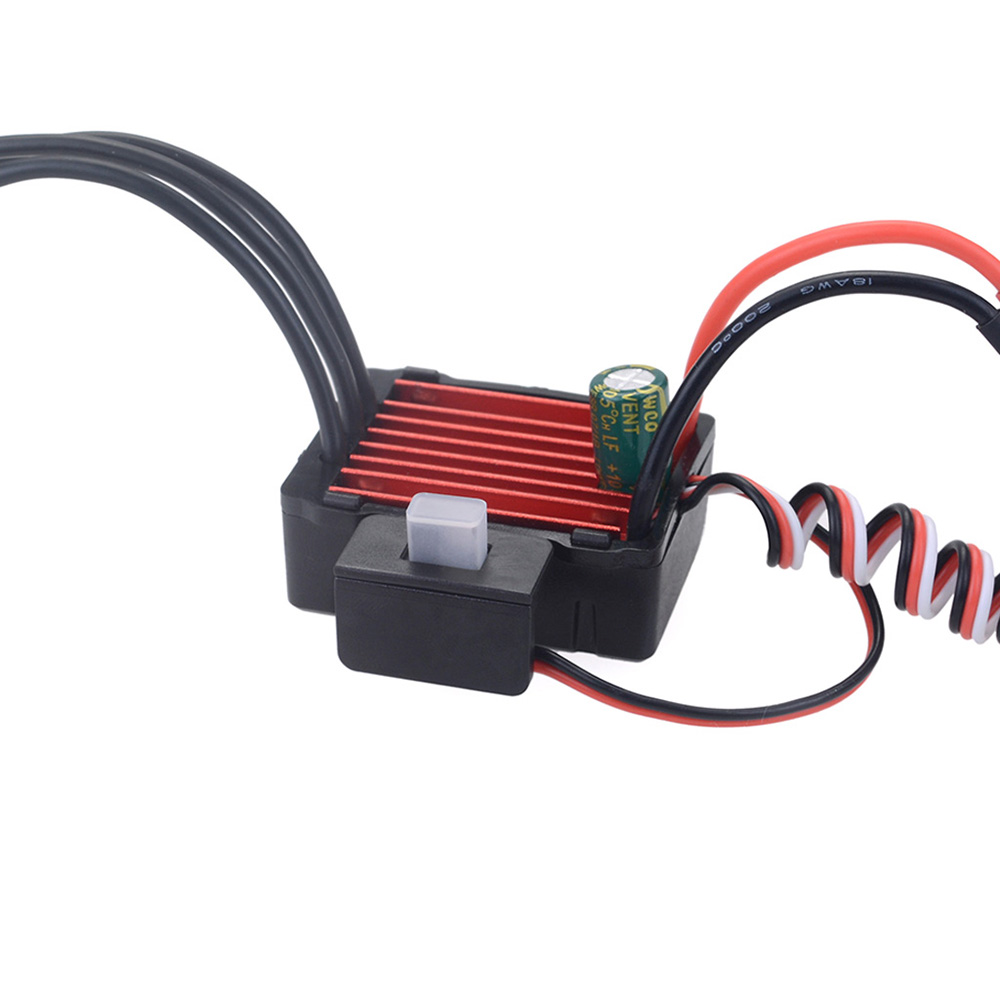

    The Specification of the ESC:
    Cont.Current:25A
    Burst Current:100A
    Motor Type:Sensorless Brushless Motor
    For 2s Lipo or 6 cells NiMH
    1.On-road 24XX-size or smaller motor with the kv <7200
    2.Off-road/buggy/monster 24XX-size or smaller motor with the kv <4800
    Suitable Car:1/16 1/18 1/20car
    Resistance:0.0014ohm
    Battery:2 cells lipo/4-6 cells NiMH
    BEC Output:5.0V2A(switch mode)
    For the esc manual please click here

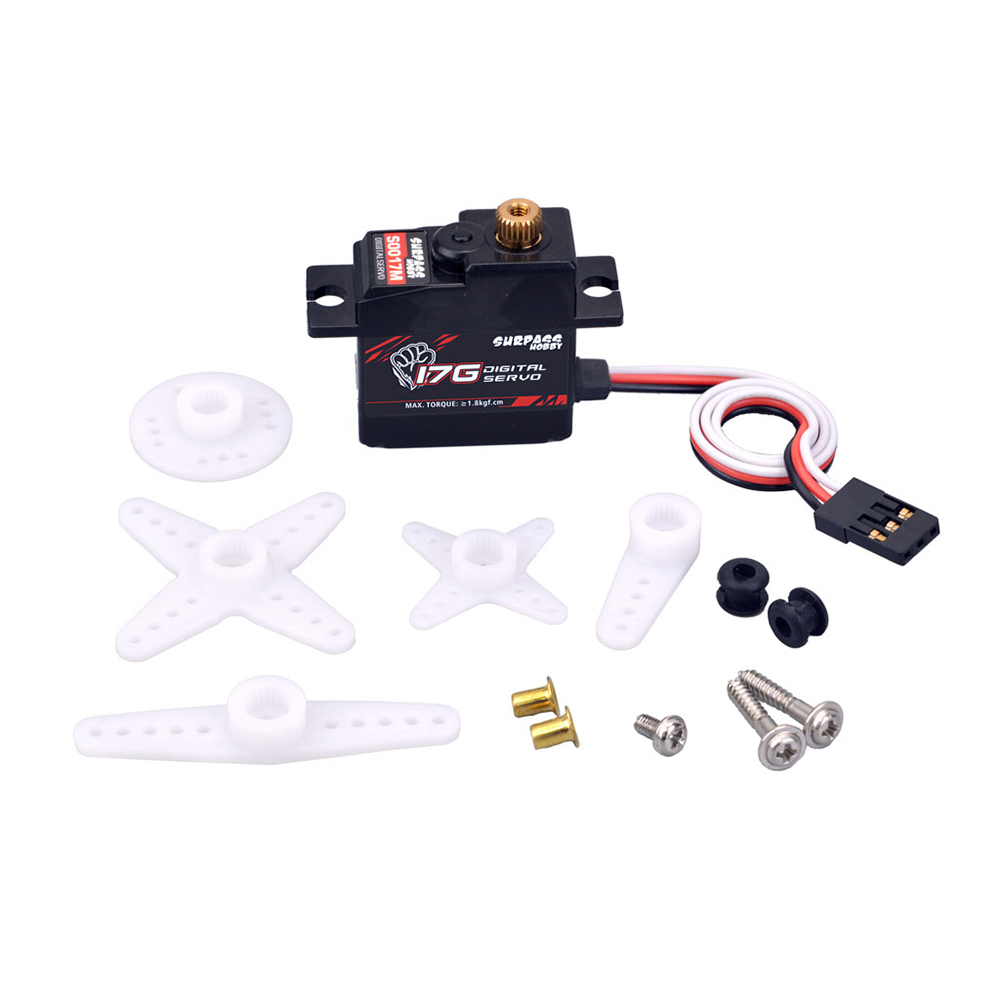

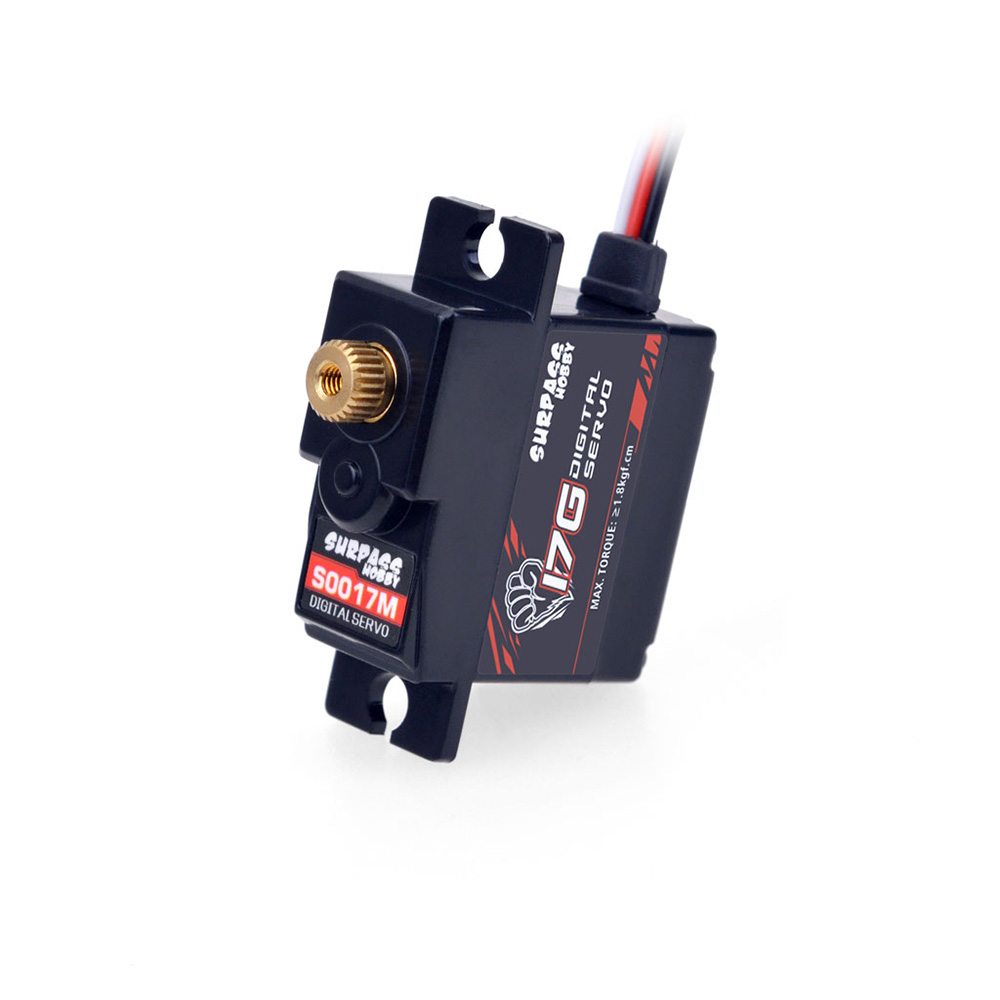

    17G Digital Servo

    Model: S0017M

    Rated torque: >=1.5kgf/cm

    Max torque:>=1.8kgf/cm

    Voltage:5.0V

    No load speed:<=0.13S/60deg

    Size:28*13.2*29.6mm

    Weight:21g


    Features:

    4 Pole 12 Slot Hi-torque Motor Design
    CNC Machined 6061 T6 Billet Aluminum Heatsink Can
    High Purity Copper Windings Maximizes Efficiency
    High RPM ABEC5 Oversized Bearings
    Universal fit fits all 1/16 1/18 brushless cars-multi-mounting system for M2.5 screws
    Precision balanced rotor smoothness for best reliability and maximum RPM
    Stator - Super Thin (0.35mm) Laminations
    Precision Engineered for Maximum Energy Conversion

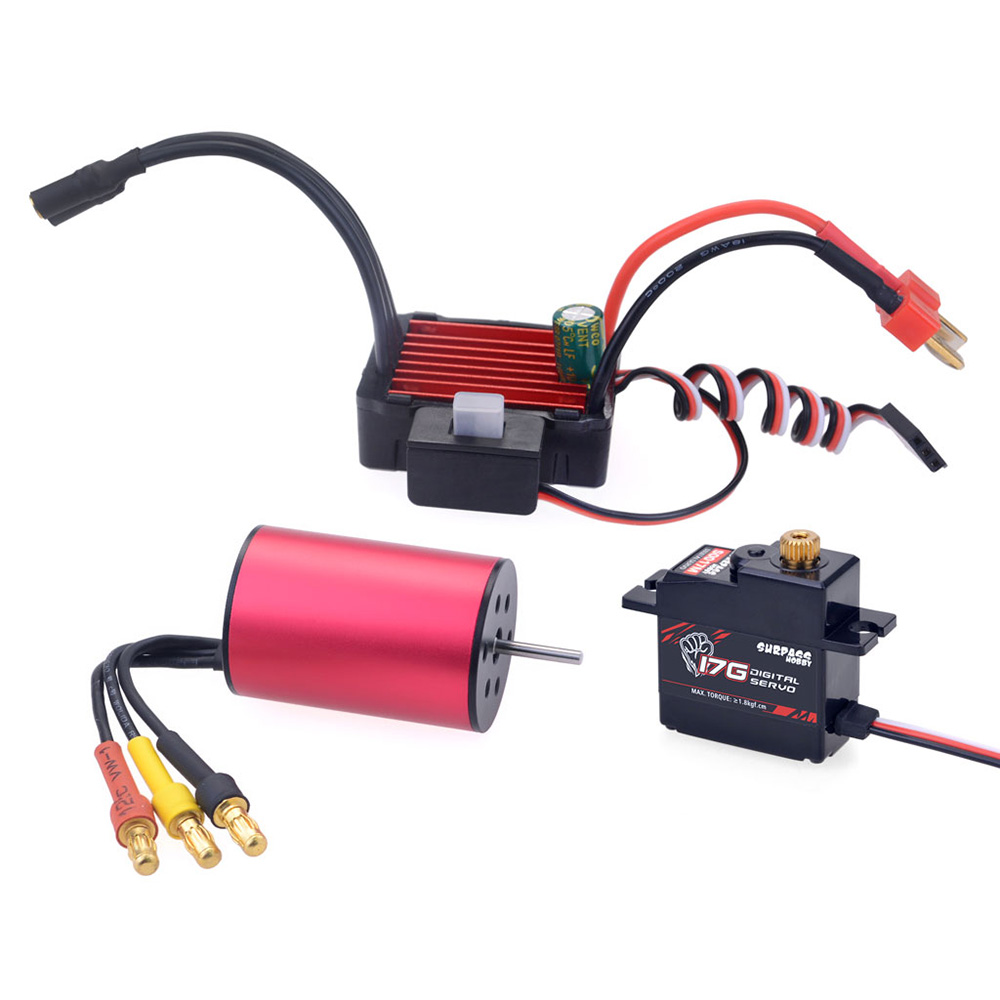

    Package included:
    1X 2435 3300KV Brushless Motor
    1X 25A ESC

    1X 17G Digital servo
    1X Manual
