  3. Surpass Hobby KK 3674 2250KV Brushless Motor 120A Brushless ESC 15KG Digital Servo Brushless Set for 1/8 RC Car Model Parts
Public Pricelist

Surpass Hobby KK 3674 2250KV Brushless Motor 120A Brushless ESC 15KG Digital Servo Brushless Set for 1/8 RC Car Model Parts

https://www.rcwarehouse.nl/web/image/product.template/6349/image_1920?unique=551c830

102.34 € 102.34 EUR 102.34 €

102.34 €

    This combination does not exist.

    Description:
    Item Brand:Surpass Hobby
    Item Number:3674 2250KV Brushless Motor 120A ESC With 15KG Digital Servo
    Item Name:RC car motor +esc set
    Material:Metal and plastic
    Color:Black and Red
    The Size of the Motor:Length 74mm diameter 36mm shaft diameter is 3.175mm length of extended shaft is 17mm
    The Size of the ESC:40*32*15mm
    The Weight of the Motor/ESC:About 352g/33g
    Fit For:1/10 1/8  brushless rc cars

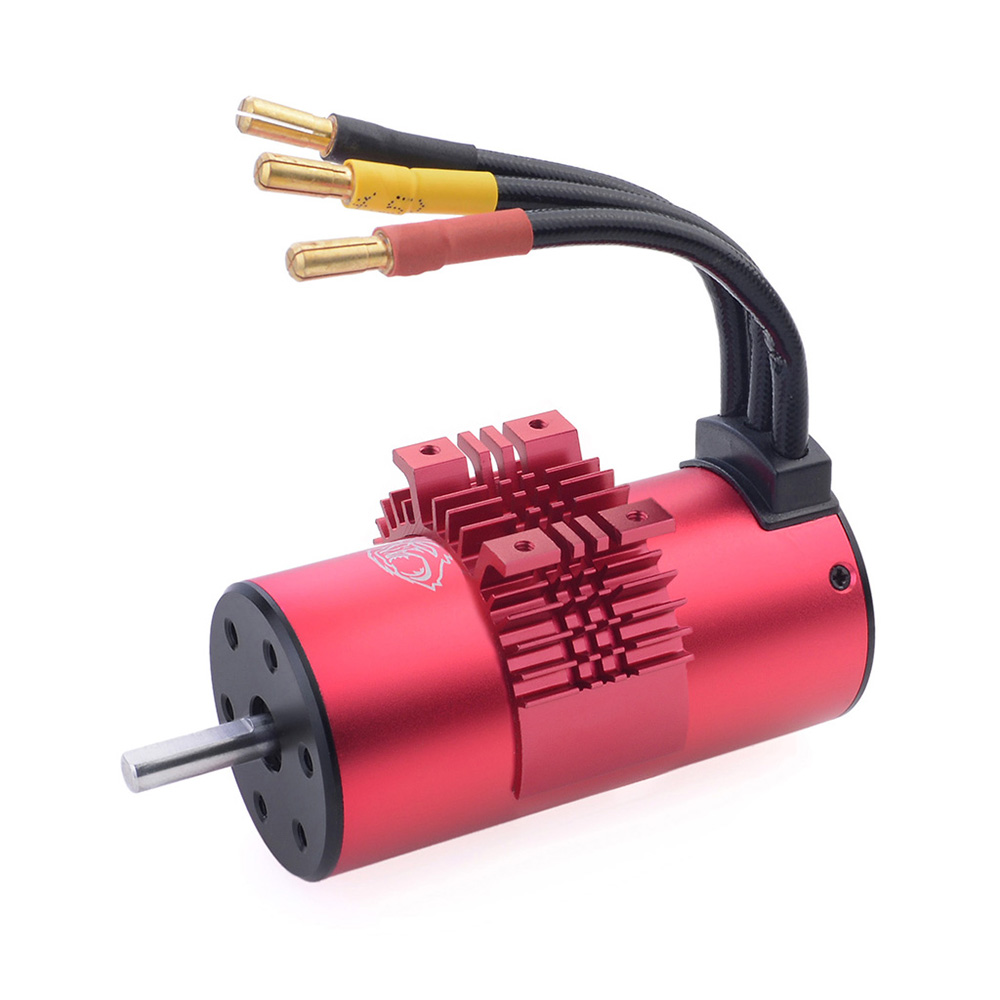

    The Specification of the Motor:
    KV2250KV
    Watts:1800
    Max Voltage:<22.2V
    Max Amps:80A
    Rotor Poles:4
    IO:4.0A
    Resistance:0.0076
    Max RPM:50000
    Connector:4.0mm gold

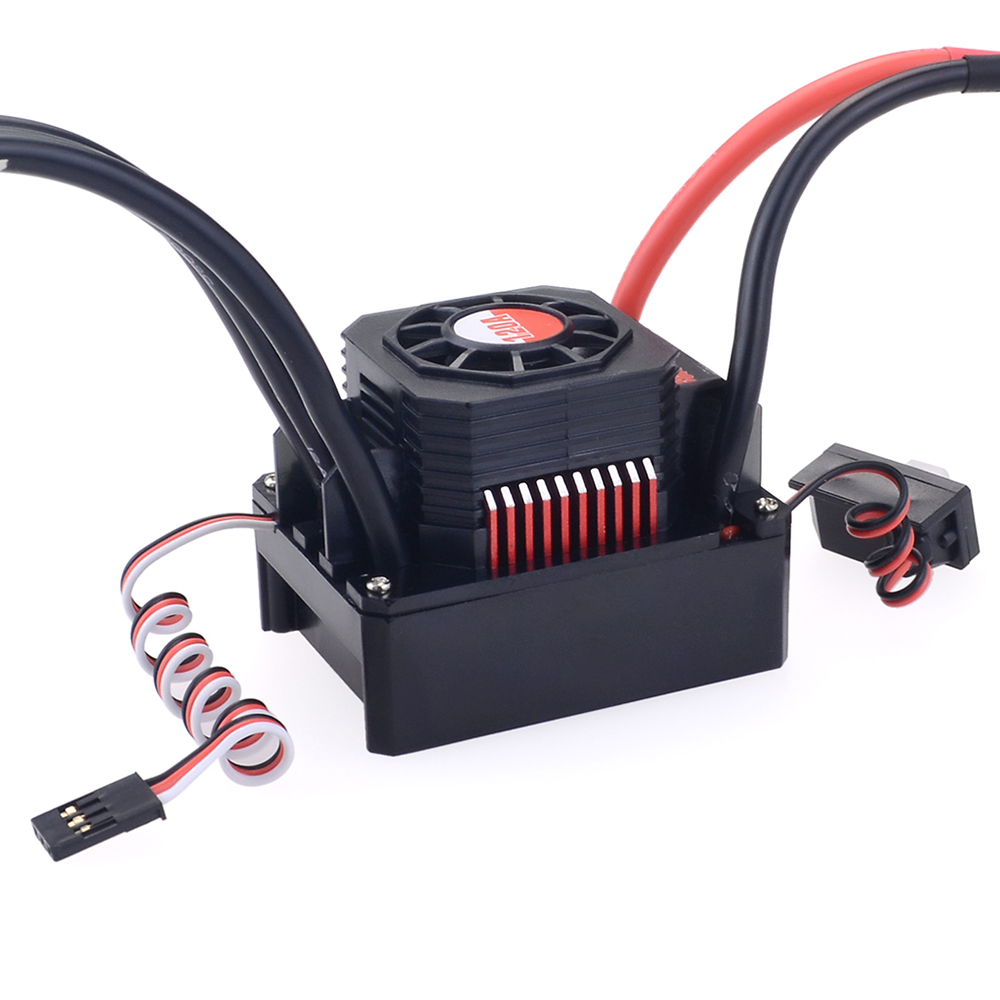

    The Specification of the ESC:
    Cont.Current:120A
    Burst Current:600A
    Motor Type:Sensorless Brushless Motor
    For 4s Lipo or 12 cells NiMH
    1.On-road 40XX-size or smaller motor with the kv <3000
    2.Off-road/buggy/monster 40XX-size or smaller motor with the kv <2500
    For 6s lipo or 18 cells NiMH
    1.On-road 40XX-size or smaller motor with the kv <2500
    2.Off-road/buggy/monster 40XX-size or smaller motor with the kv <2000
    Suitable Car:1/8 car
    Resistance:0.00035ohm
    Battery:3-6 cells lipo/9-18 cells NiMH
    BEC Output:6.1V/3A(switch mode)
    For the esc manual please click here

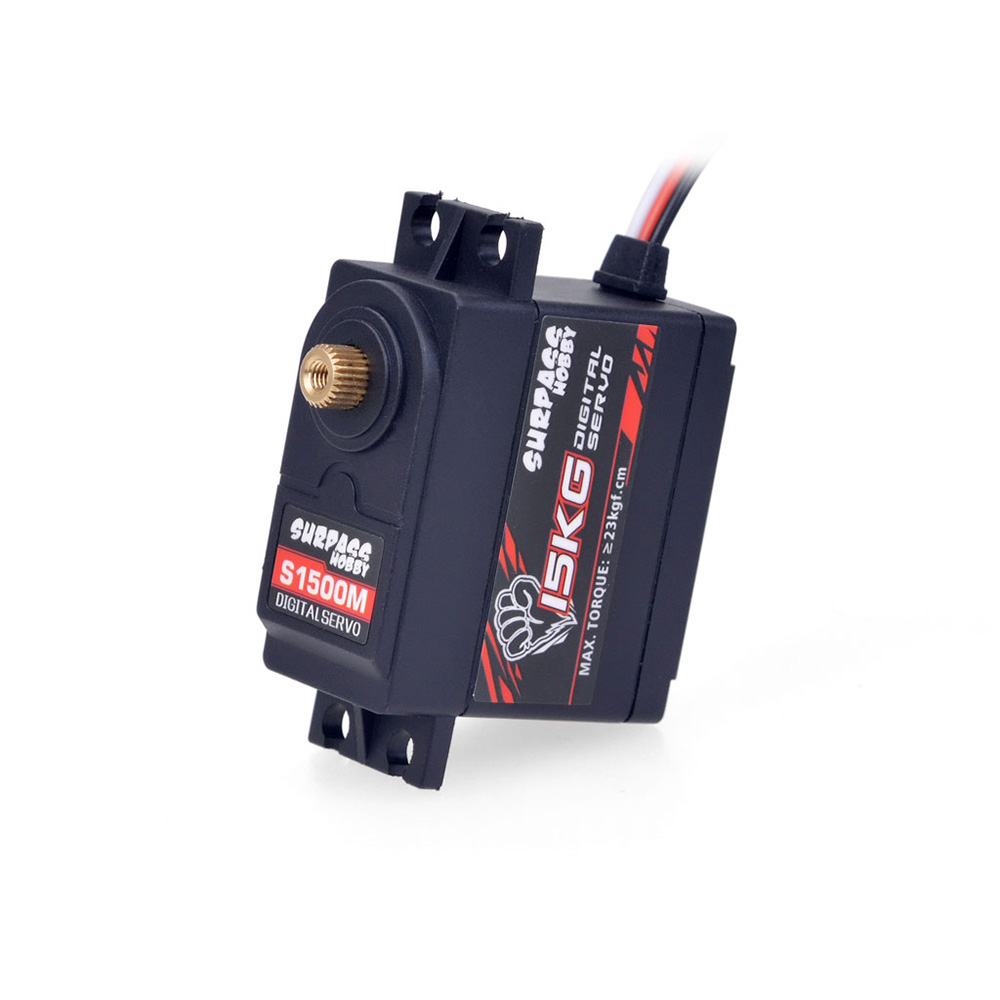

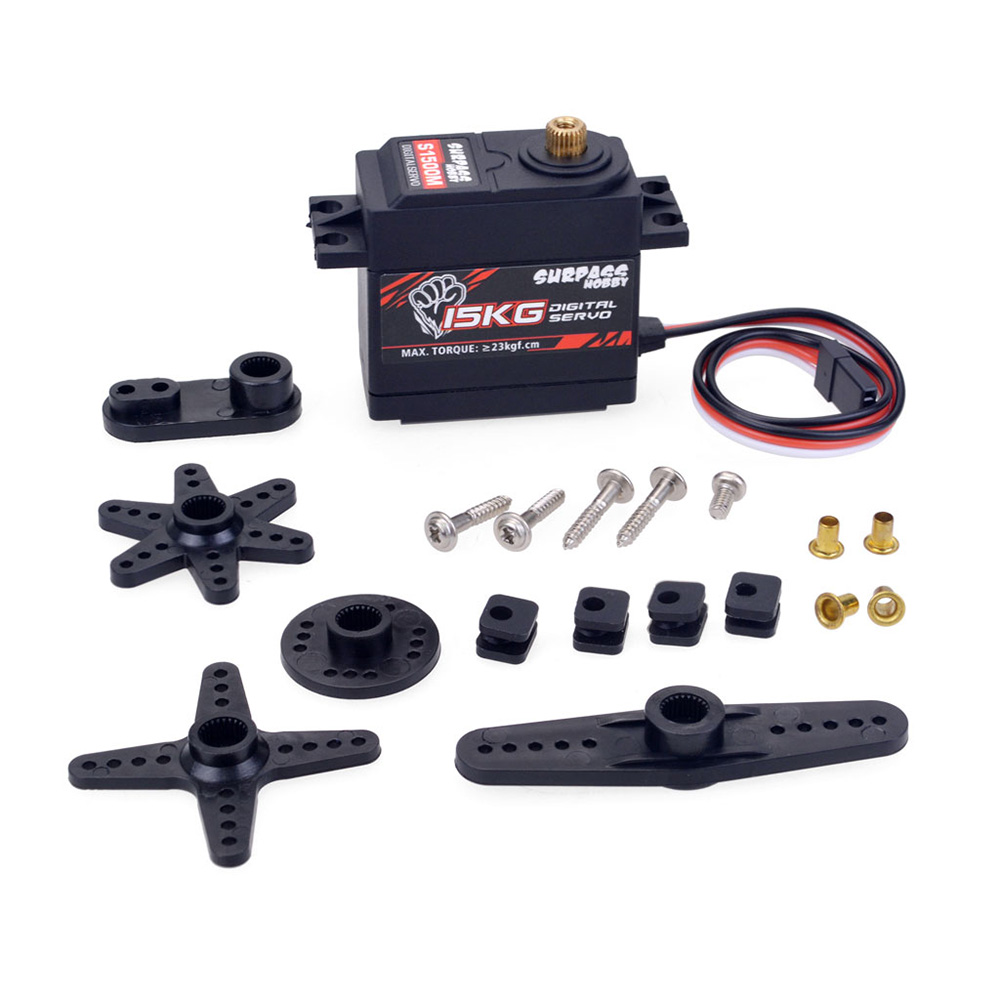

    15KG Metal Servo

    Model: S1500M

    Type:Digital

    Gear:Metal

    Horn gear spline:25T

    Rated torque: >=15kgf/cm

    Max torque:>=23kgf/cm

    Voltage:7.4V

    No load speed:<=0.23S/60deg

    Size:40.4*20*38.6mm

    Weight:62g


    Features:

    4 Pole 12 Slot Hi-torque Motor Design
    CNC Machined 6061 T6 Billet Aluminum Heatsink Can
    High Purity Copper Windings Maximizes Efficiency
    High RPM ABEC5 Oversized Bearings
    Universal fit fits all 1/8 1/10 brushless cars-multi-mounting system for M3 screws
    Precision balanced rotor smoothness for best reliability and maximum RPM
    Stator - Super Thin (0.35mm) Laminations
    Precision Engineered for Maximum Energy Conversion

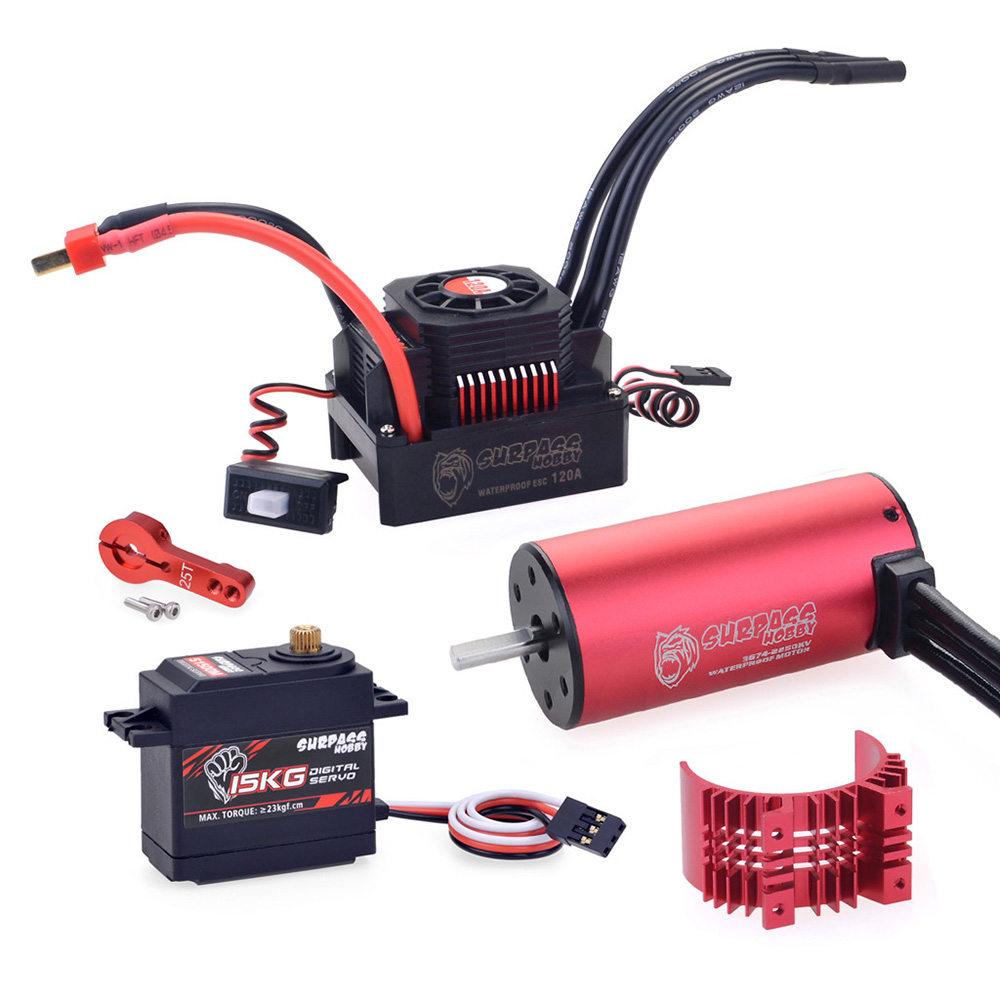

    Package included:
    1X 3674 2250KV Brushless Motor
    1X 120A ESC

    1X 15KG Digital servo
    1X Manual
