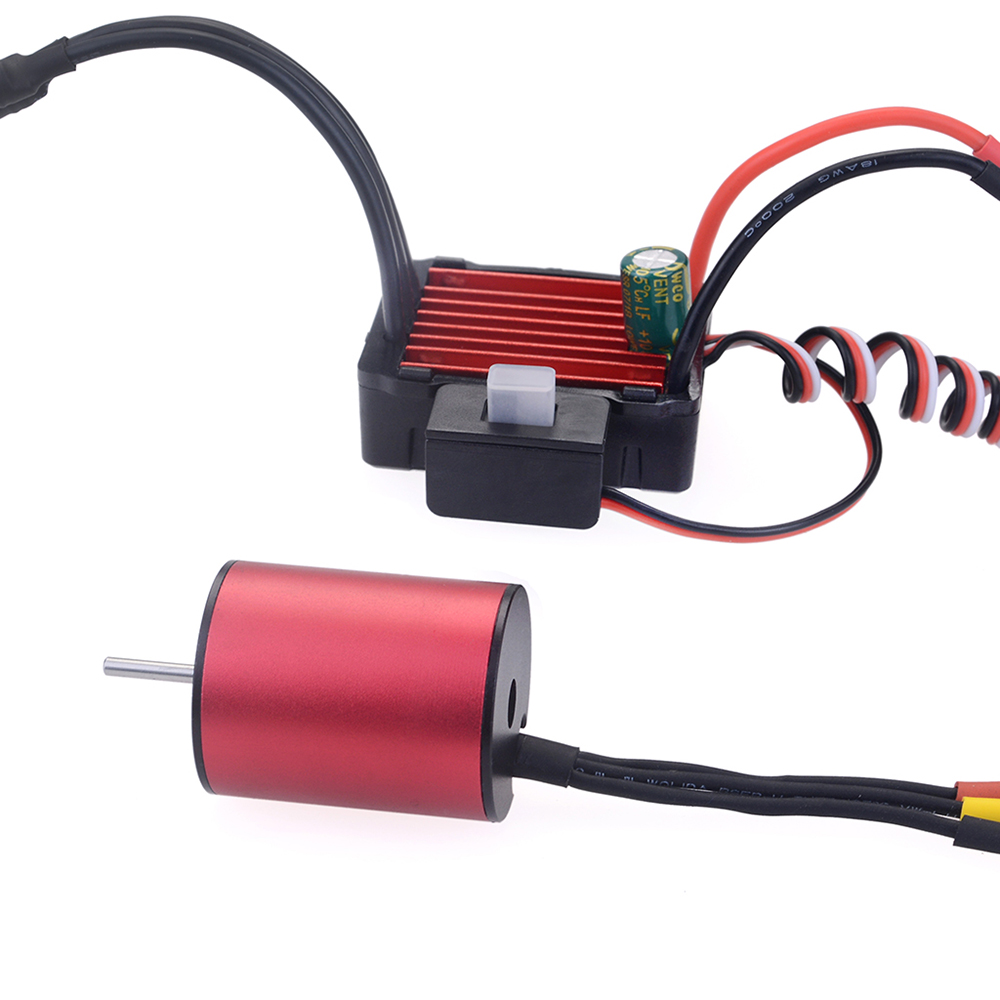

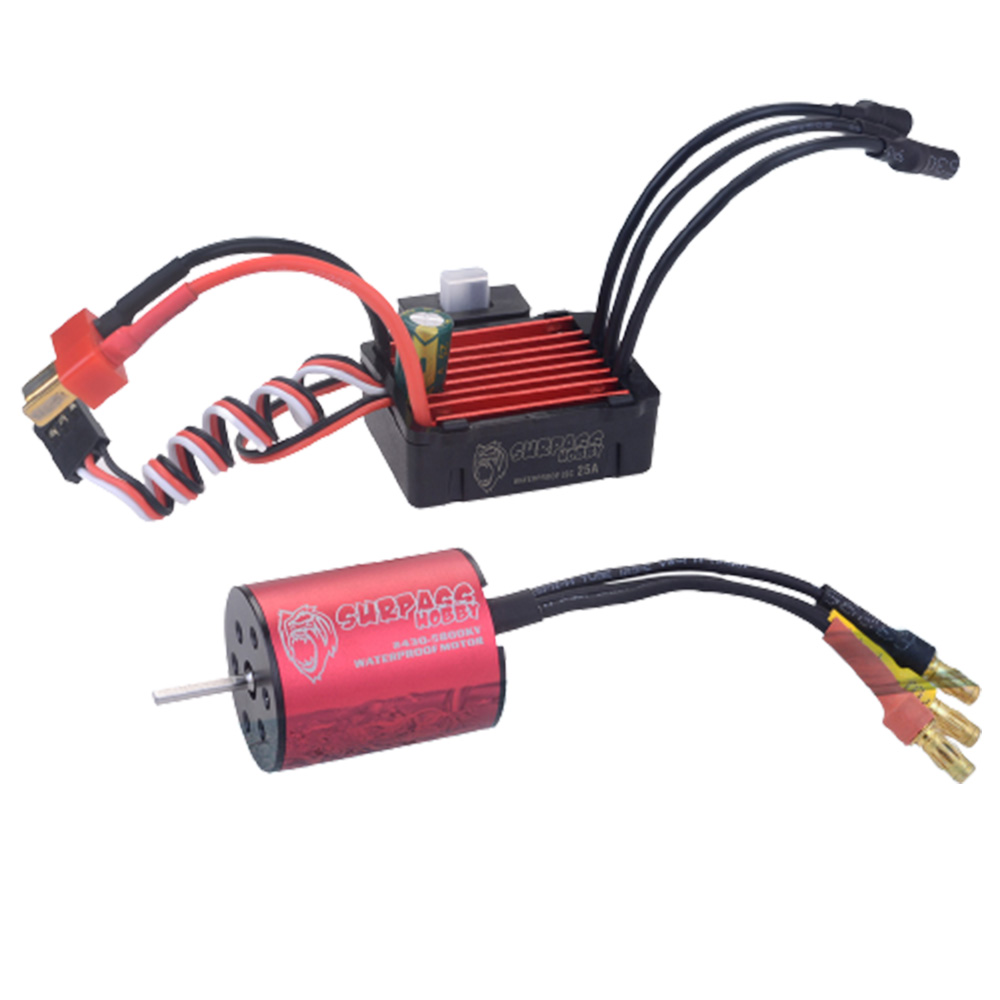

Surpass Hobby Diamond Seriers Waterproof 2430 5800KV Brushless Motor with 25A ESC for 1/16 1/18 RC Vehicles
Description:
Item Brand:Surpass Hobby
Item Number: 2430 5800KV Brushless Motor with 25A ESC
Item Name:RC car motor +esc set
Material:Metal and plastic
Color:Black and Red

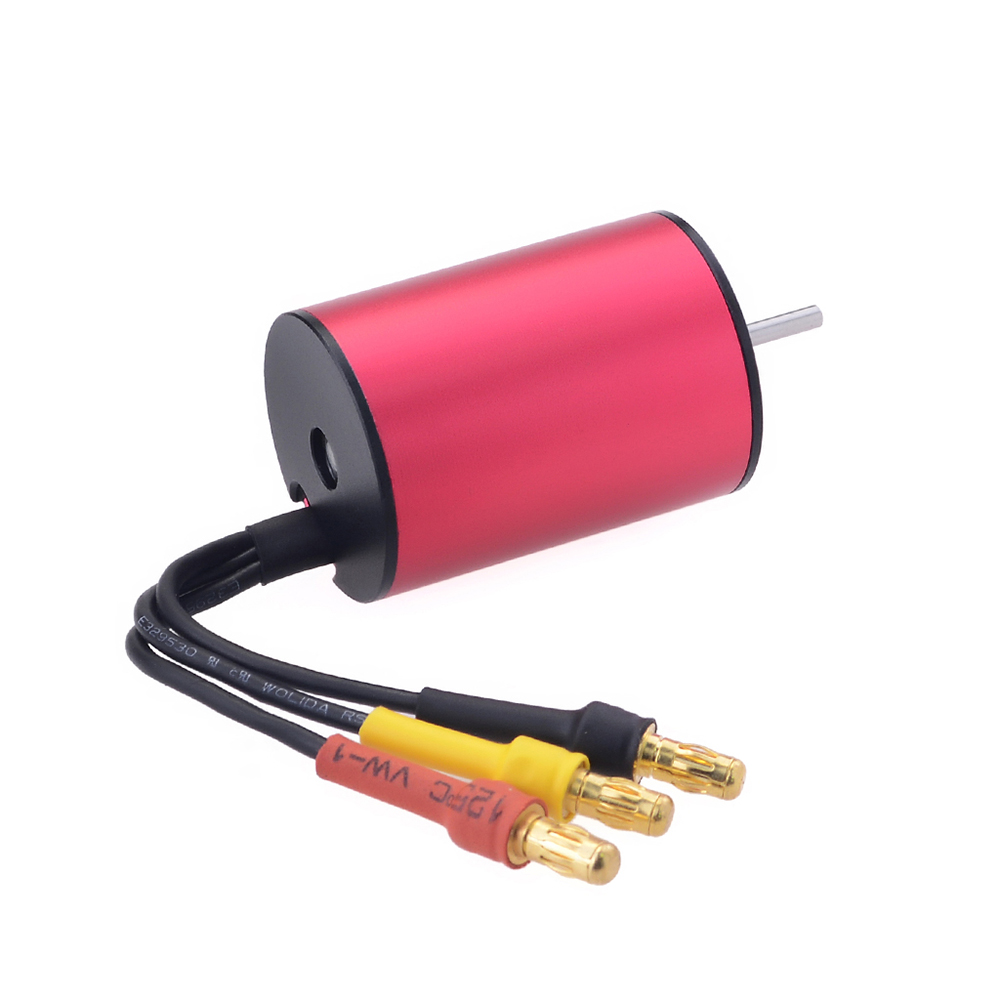

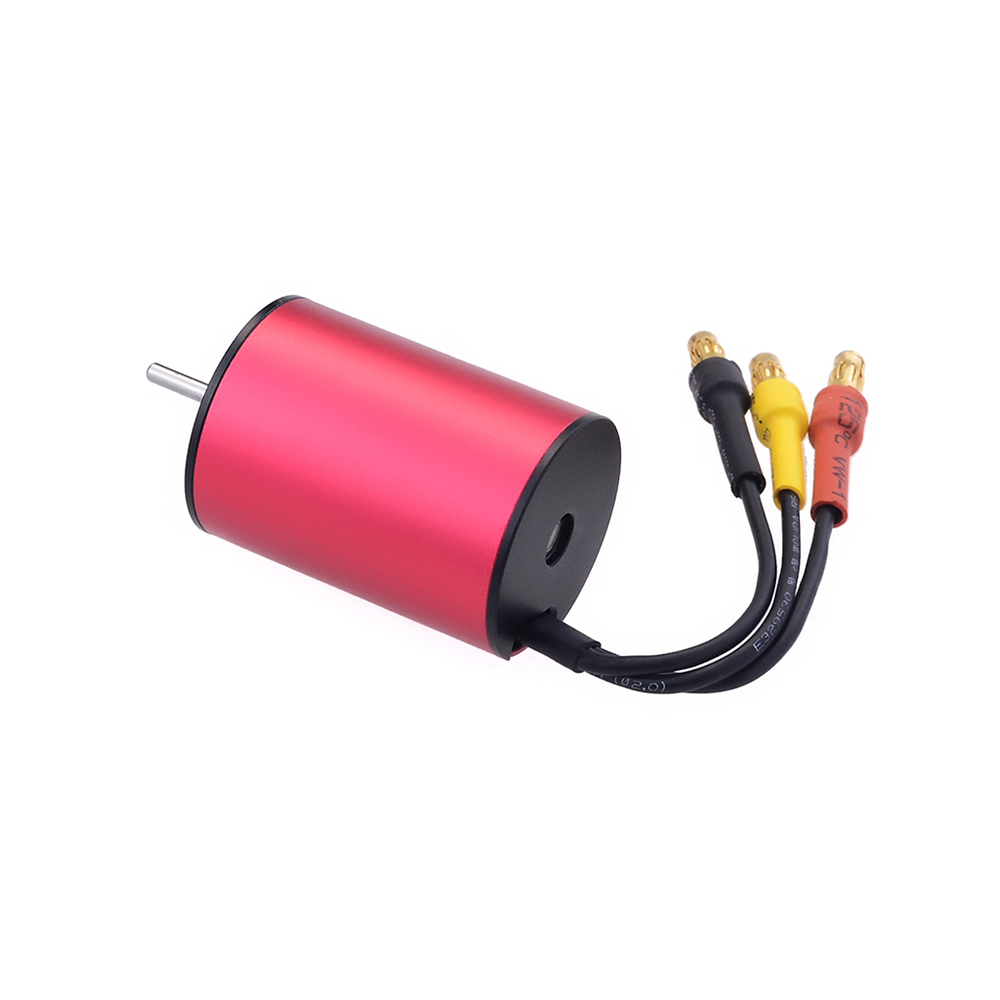

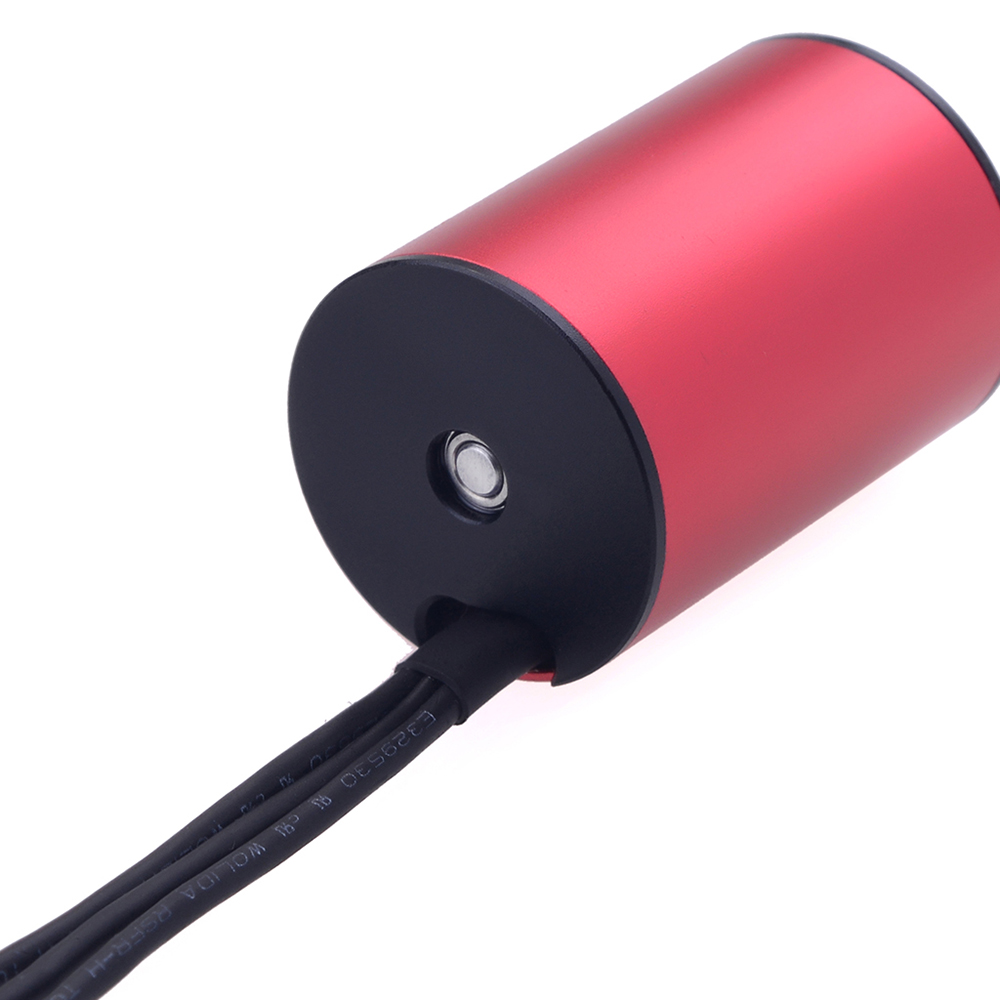

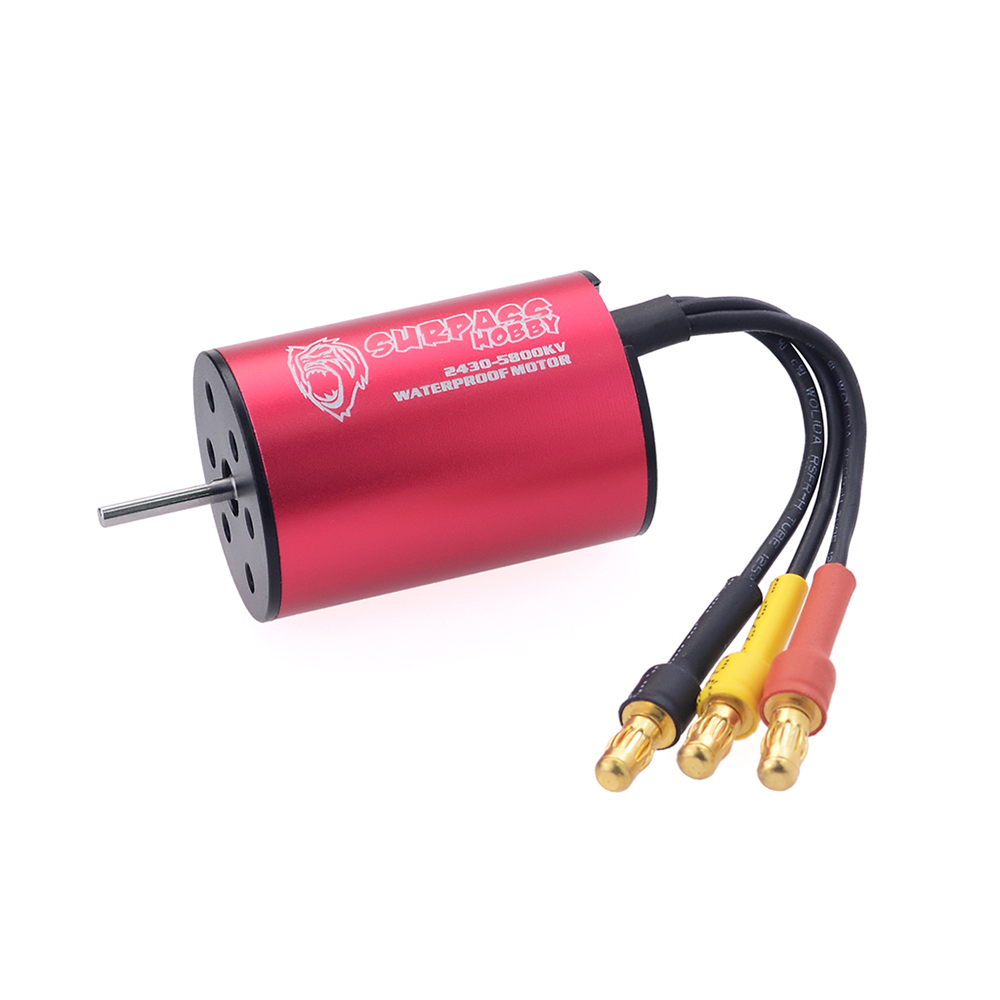

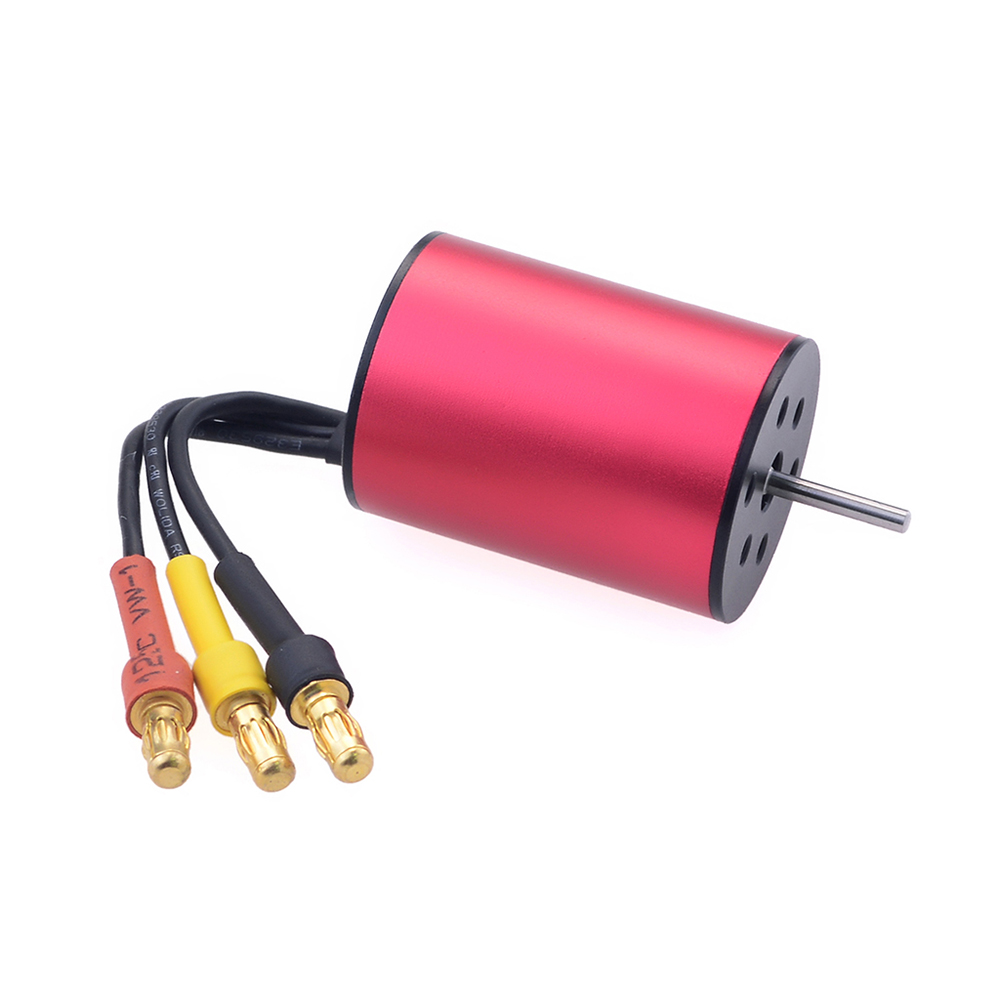

The Size of the Motor:Length 30mm diameter 24mm shaft diameter is 3.175mm length of extended shaft is 16mm
The Size of the ESC:40*32*15mm
The Weight of the Motor/ESC:About 78g/33g
Fit For:1/16 1/18 brushless rc cars
The Specification of the Motor:
KV:5800KV
Watts:200
Max Voltage:<10.8V
Max Amps:18A
Rotor Poles:4
IO:1.9A
Resistance:0.0127
Max RPM:60000
Connector:3.5mm gold

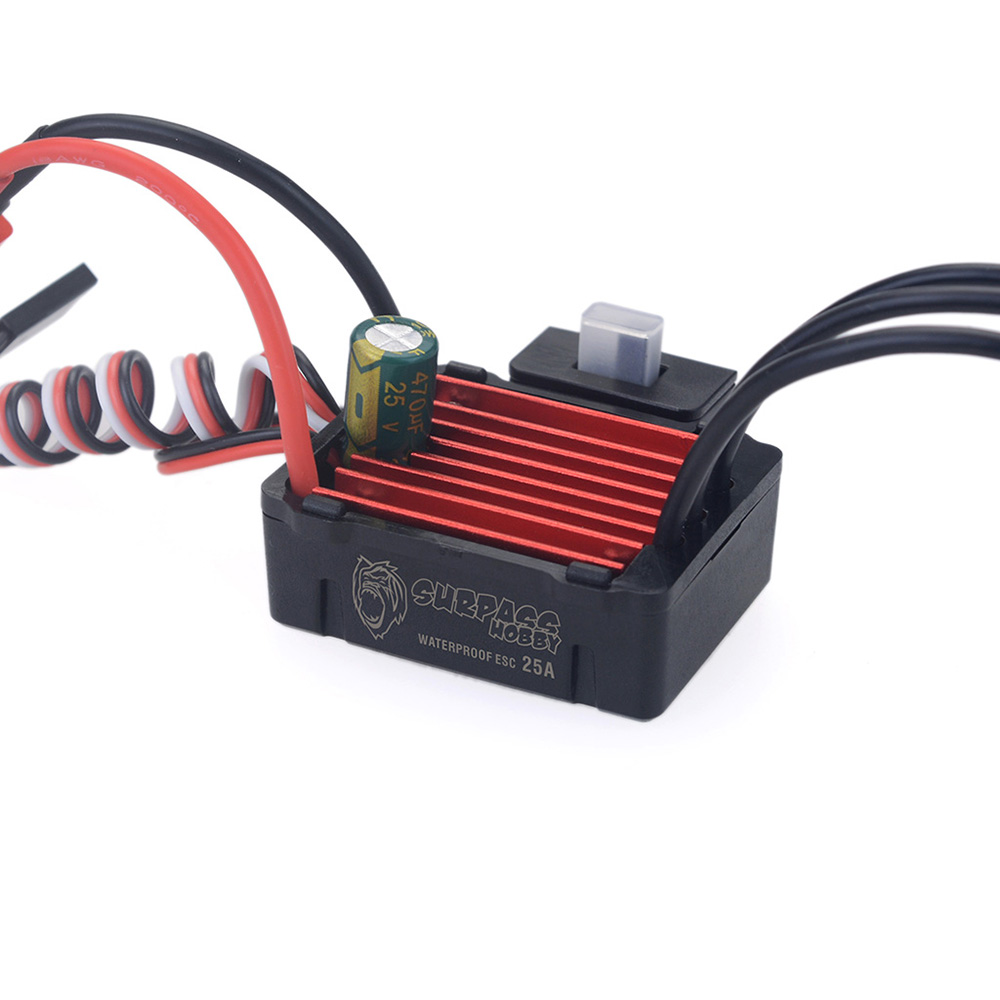

The Specification of the ESC:
Cont.Current:25A
Burst Current:100A
Motor Type:Sensorless Brushless Motor
For 2s Lipo or 6 cells NiMH
1.On-road 24XX-size or smaller motor with the kv <7200
2.Off-road/buggy/monster 24XX-size or smaller motor with the kv <4800
Suitable Car:1/16 1/18 1/20car
Resistance:0.0014ohm
Battery:2 cells lipo/4-6 cells NiMH
BEC Output:5.0V2A(switch mode)
For the esc manual please click here
Features:
1X 2430 5800KV Brushless Motor
1X 25A ESC
1X Manual
Item Brand:Surpass Hobby
Item Number: 2430 5800KV Brushless Motor with 25A ESC
Item Name:RC car motor +esc set
Material:Metal and plastic
Color:Black and Red
The Size of the Motor:Length 30mm diameter 24mm shaft diameter is 3.175mm length of extended shaft is 16mm
The Size of the ESC:40*32*15mm
The Weight of the Motor/ESC:About 78g/33g
Fit For:1/16 1/18 brushless rc cars
The Specification of the Motor:
KV:5800KV
Watts:200
Max Voltage:<10.8V
Max Amps:18A
Rotor Poles:4
IO:1.9A
Resistance:0.0127
Max RPM:60000
Connector:3.5mm gold
The Specification of the ESC:
Cont.Current:25A
Burst Current:100A
Motor Type:Sensorless Brushless Motor
For 2s Lipo or 6 cells NiMH
1.On-road 24XX-size or smaller motor with the kv <7200
2.Off-road/buggy/monster 24XX-size or smaller motor with the kv <4800
Suitable Car:1/16 1/18 1/20car
Resistance:0.0014ohm
Battery:2 cells lipo/4-6 cells NiMH
BEC Output:5.0V2A(switch mode)
For the esc manual please click here
Features:
4 Pole 12 Slot Hi-torque Motor Design
CNC Machined 6061 T6 Billet Aluminum Heatsink Can
High Purity Copper Windings Maximizes Efficiency
High RPM ABEC5 Oversized Bearings
Universal fit fits all 1/16 1/18 brushless cars-multi-mounting system for M2.5 screws
Precision balanced rotor smoothness for best reliability and maximum RPM
Stator - Super Thin (0.35mm) Laminations
Precision Engineered for Maximum Energy Conversion

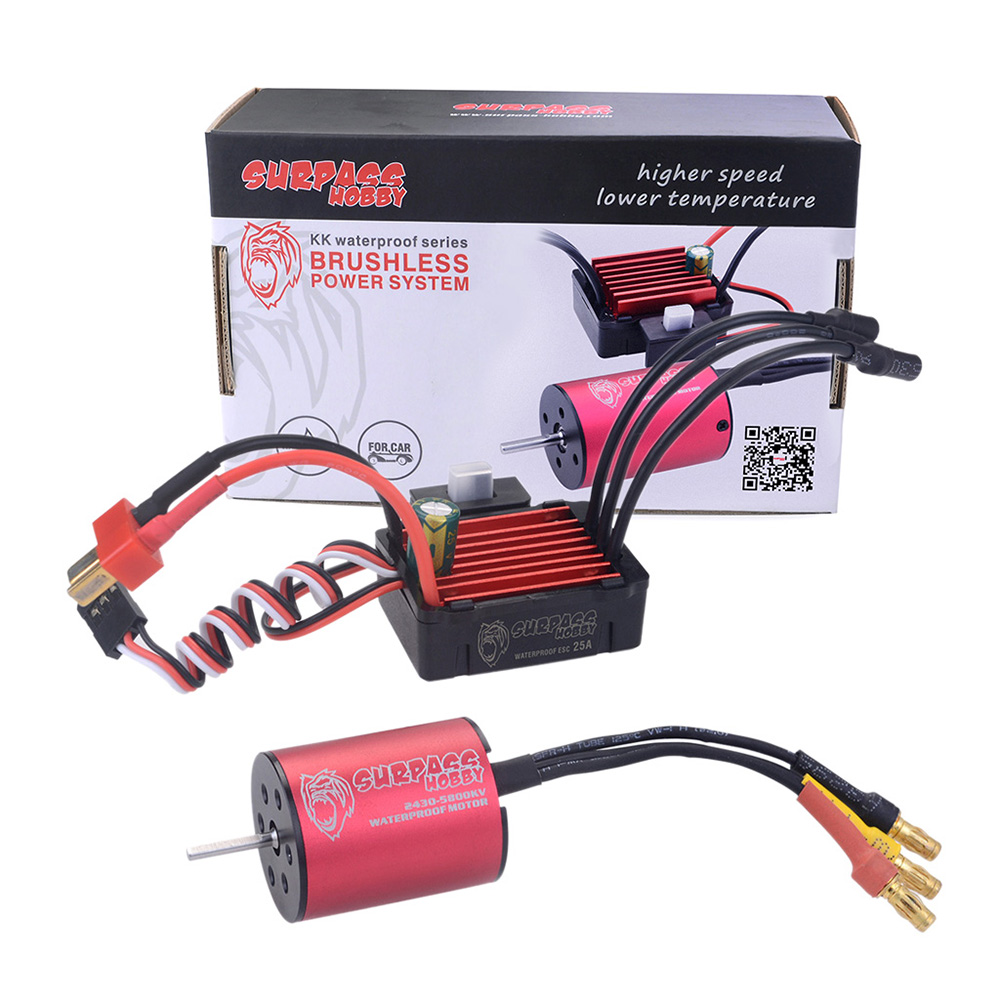

Package included:1X 2430 5800KV Brushless Motor
1X 25A ESC
1X Manual
