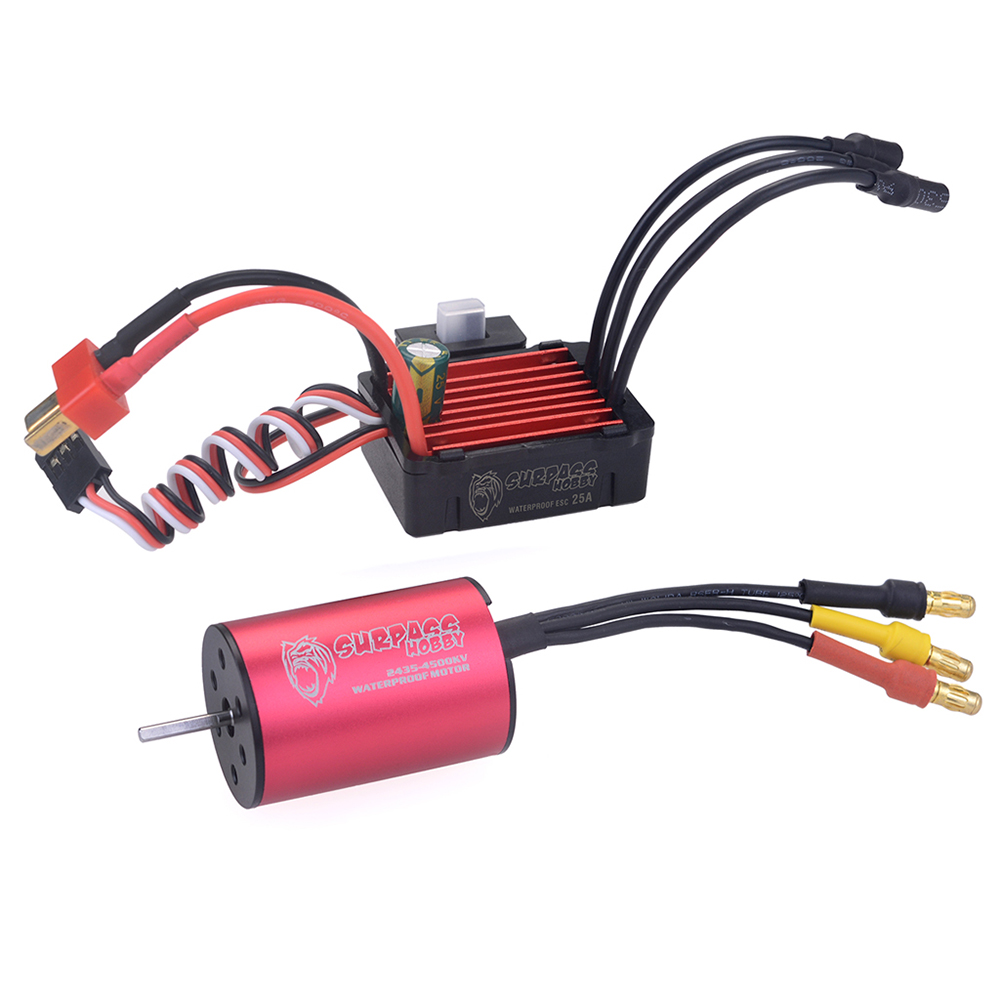

Surpass Hobby Diamond Seriers Waterproof 2435 4500KV Brushless Motor with 25A ESC for 1/16 RC Vehicles

https://www.rcwarehouse.nl/web/image/product.template/6398/image_1920?unique=5fbcf47

34.79 € 34.79 EUR 34.79 €

34.79 €

    This combination does not exist.

    Description:
    Item Brand:Surpass Hobby
    Item Number:2435 4500KV Brushless Motor with 25A ESC

    Item Name:RC car motor +esc set
    Material:Metal and plastic
    Color:Black and Red
    The Size of the Motor:Length 35mm diameter 24mm shaft diameter is 3.175mm length of extended shaft is 16mm
    The Size of the ESC:40*32*15mm
    The Weight of the Motor/ESC:About 83g/33g
    Fit For:1/16 1/18 brushless rc cars

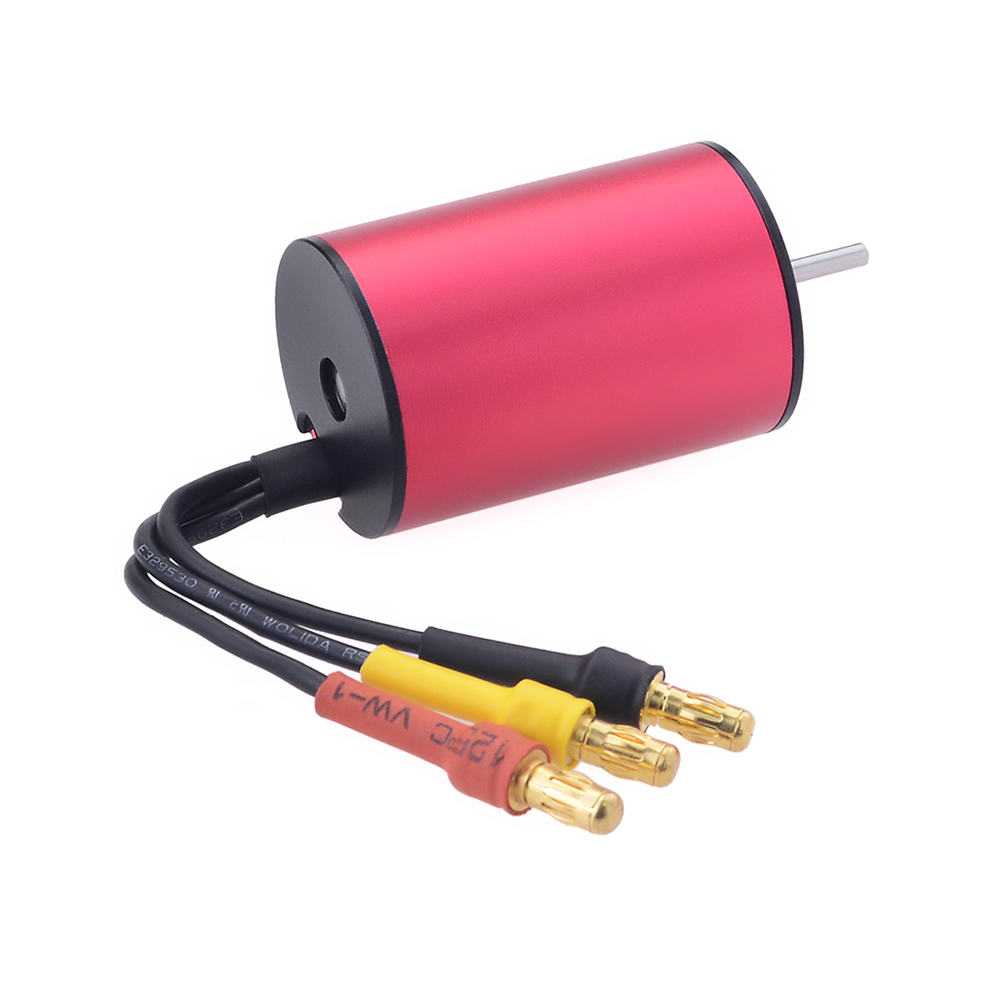

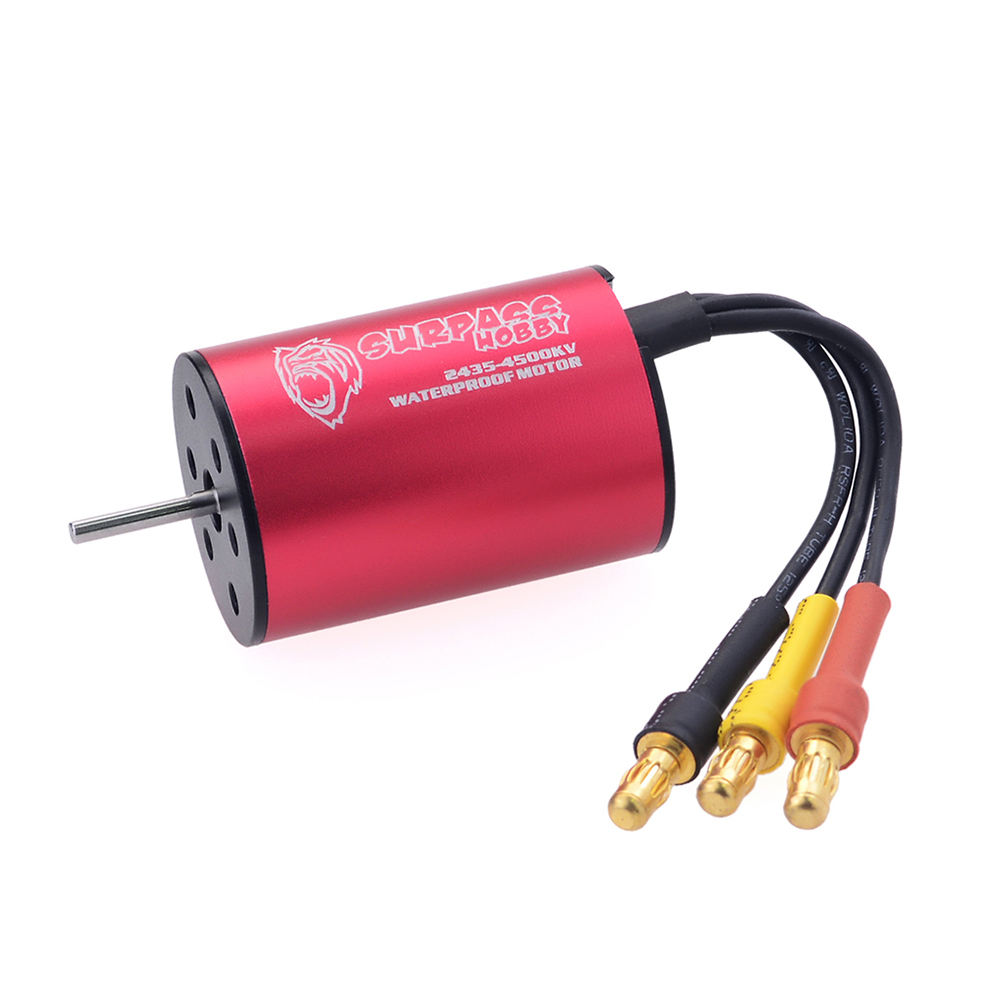

    The Specification of the Motor:
    KV:4500KV
    Watts:300
    Max Voltage:<13.2V
    Max Amps:22A
    Rotor Poles:4
    IO:1.7A
    Resistance:0.0122
    Max RPM:60000
    Connector:3.5mm gold

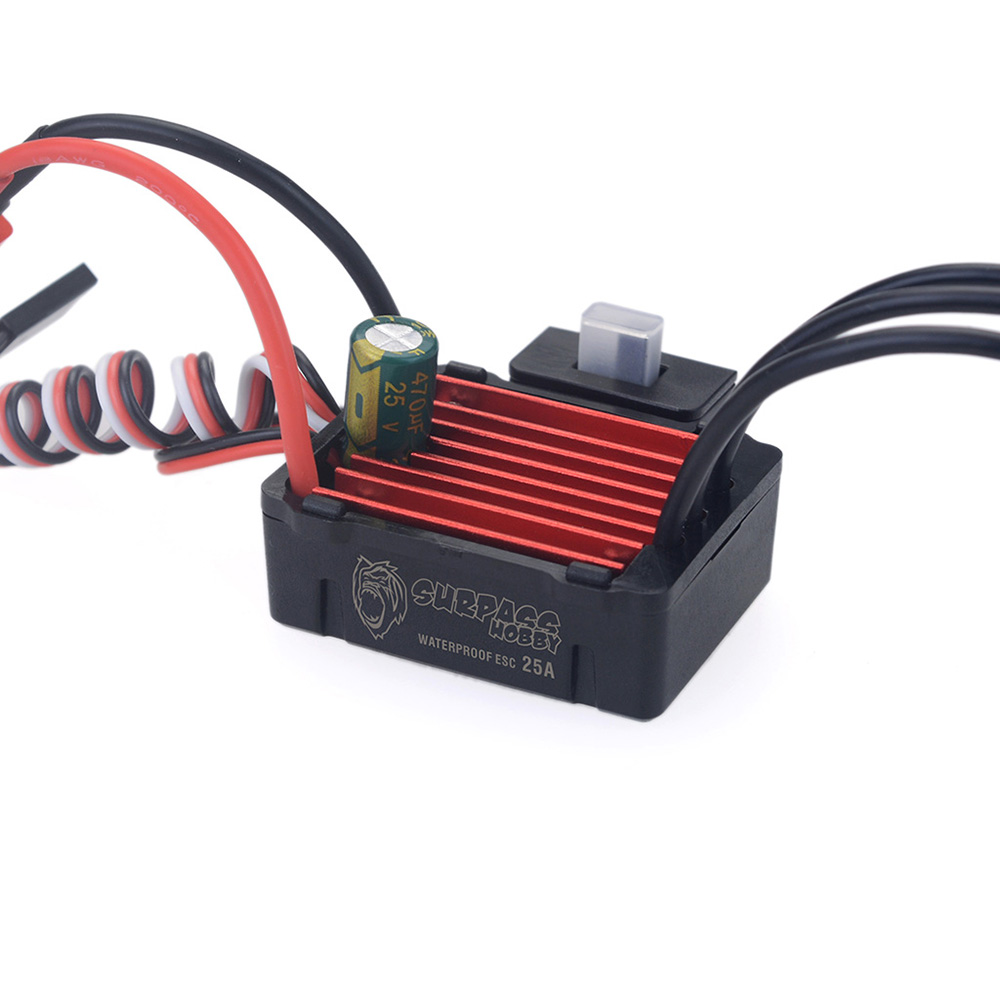

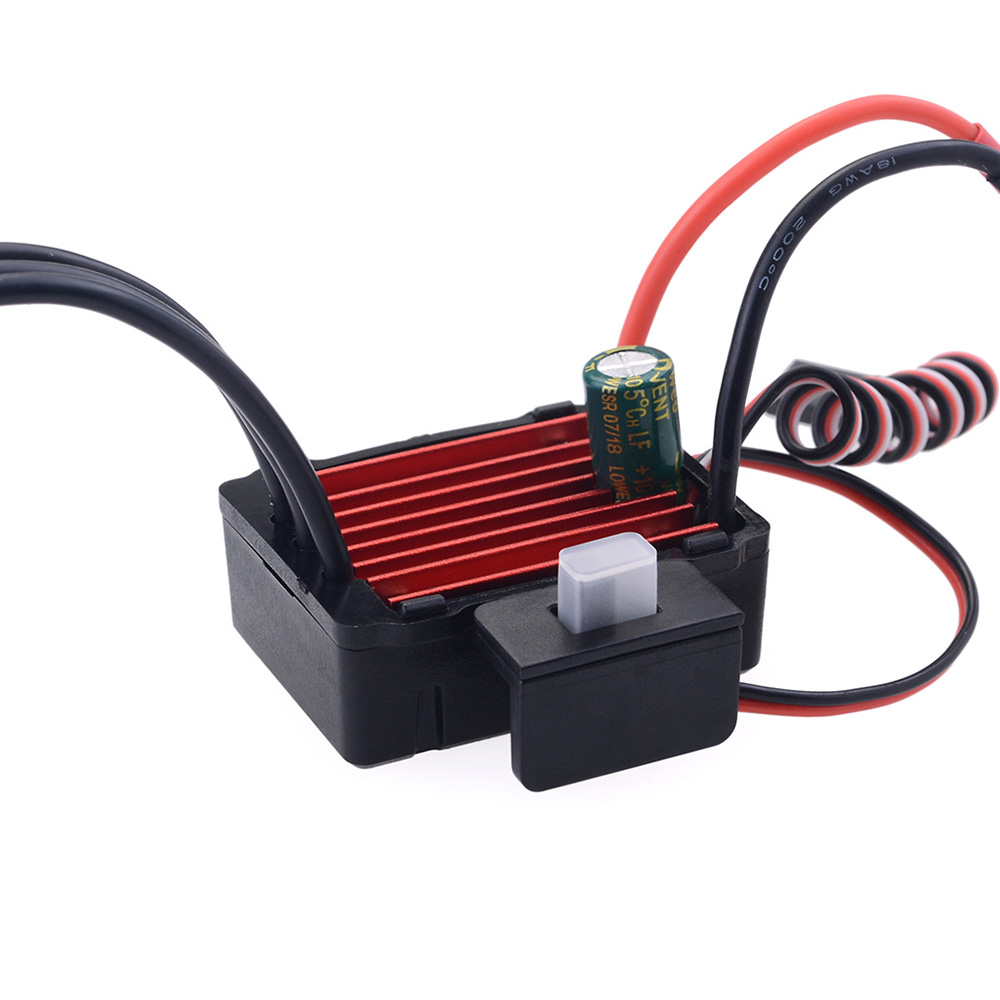

    The Specification of the ESC:
    Cont.Current:25A
    Burst Current:100A
    Motor Type:Sensorless Brushless Motor
    For 2s Lipo or 6 cells NiMH
    1.On-road 24XX-size or smaller motor with the kv <7200
    2.Off-road/buggy/monster 24XX-size or smaller motor with the kv <4800
    Suitable Car:1/16 1/18 1/20car
    Resistance:0.0014ohm
    Battery:2 cells lipo/4-6 cells NiMH
    BEC Output:5.0V2A(switch mode)
    For the esc manual please click here

    Features:

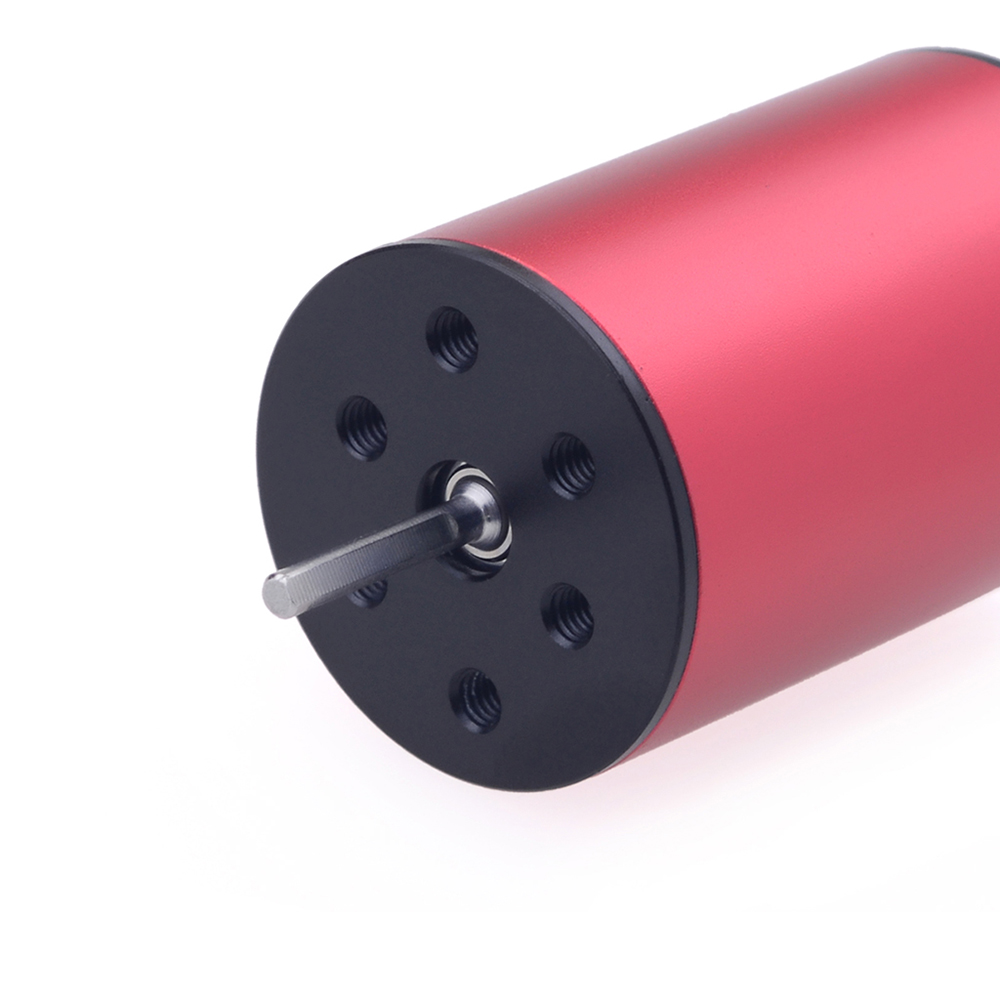

    4 Pole 12 Slot Hi-torque Motor Design
    CNC Machined 6061 T6 Billet Aluminum Heatsink Can
    High Purity Copper Windings Maximizes Efficiency
    High RPM ABEC5 Oversized Bearings
    Universal fit fits all 1/18 1/18 brushless cars-multi-mounting system for M2.5 screws
    Precision balanced rotor smoothness for best reliability and maximum RPM
    Stator - Super Thin (0.35mm) Laminations
    Precision Engineered for Maximum Energy Conversion

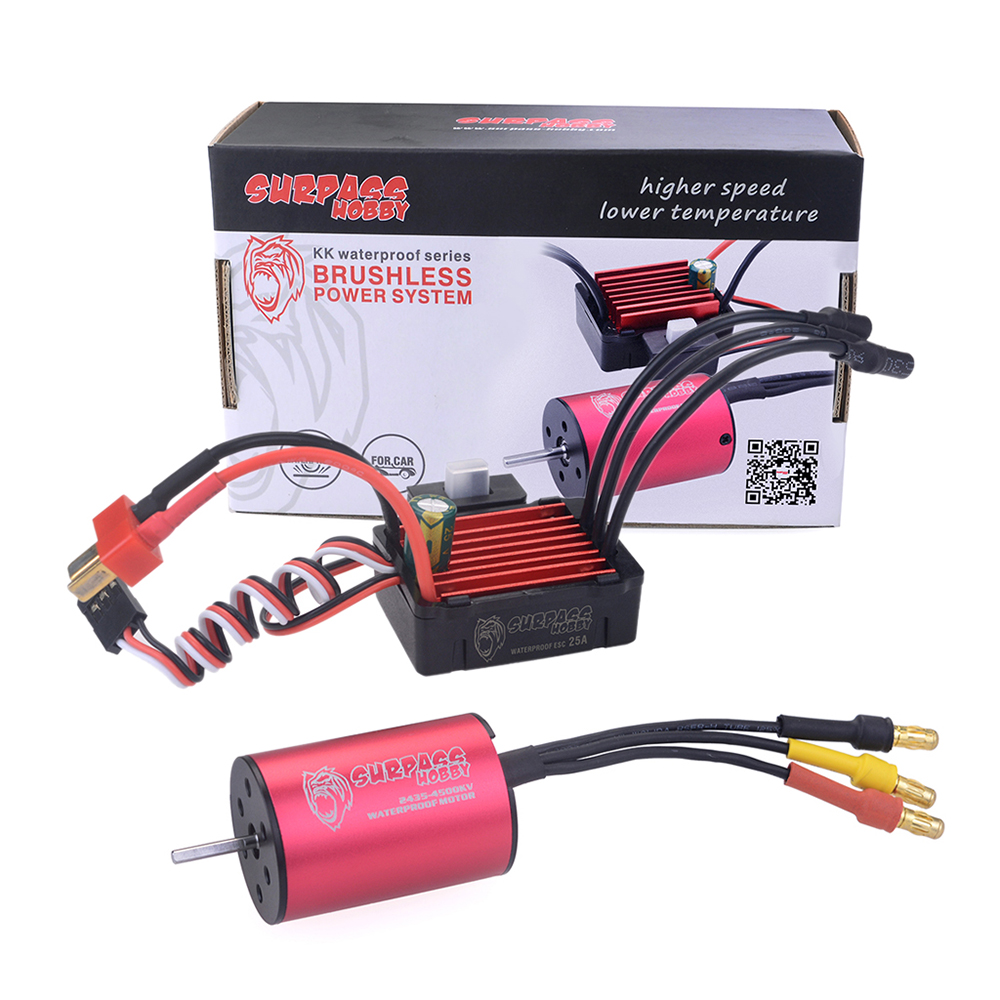

    Package included:
    1X 2435 4500KV Brushless Motor
    1X 25A ESC
    1X Manual
