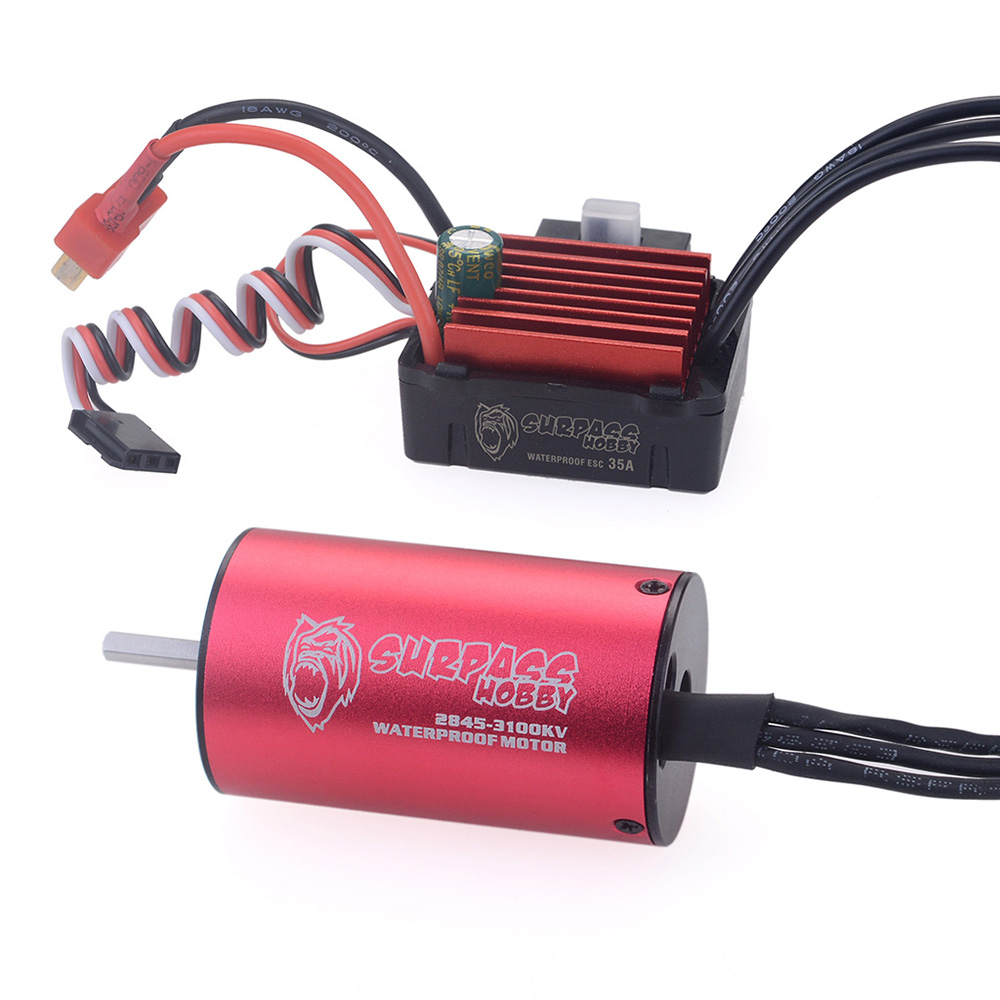

Surpass Hobby Diamond Seriers Waterproof 2845 3100KV Brushless Motor with 35A ESC for 1/12 RC Vehicles
Description:
Item Brand:Surpass Hobby
Item Number:2845 3100KV Brushless Motor with 35A ESC
Item Name:RC car motor +esc set
Material:Metal and plastic
Color:Black and Red
The Size of the Motor:Length 47mm diameter 28mm shaft diameter is 3.175mm length of extended shaft is 19mm
The Size of the ESC:40*32*20mm
The Weight of the Motor/ESC:About 145g/37g
Fit For:1/16 1/18 brushless rc cars

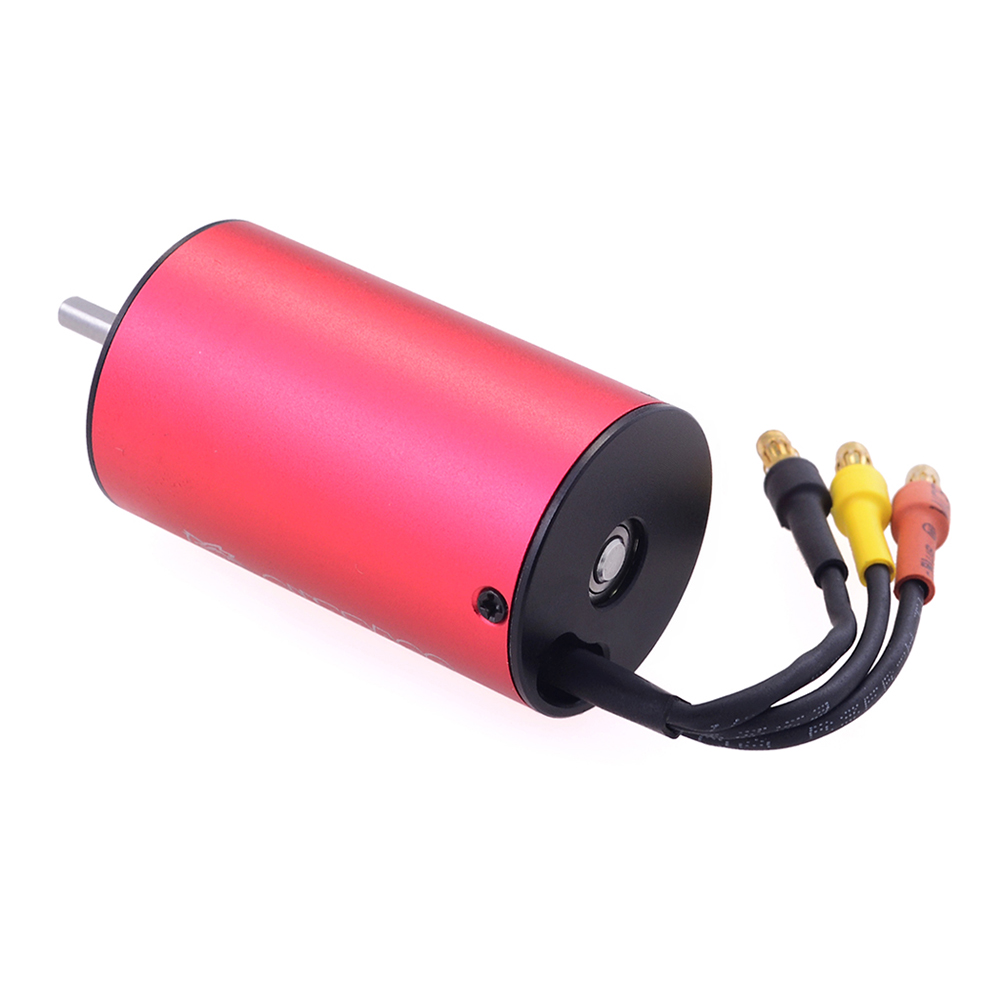

The Specification of the Motor:
KV:3100KV
Watts:800
Max Voltage:<17V
Max Amps:47A
Rotor Poles:4
IO:1.9A
Resistance:0.0285
Max RPM:50000
Connector:3.5mm gold

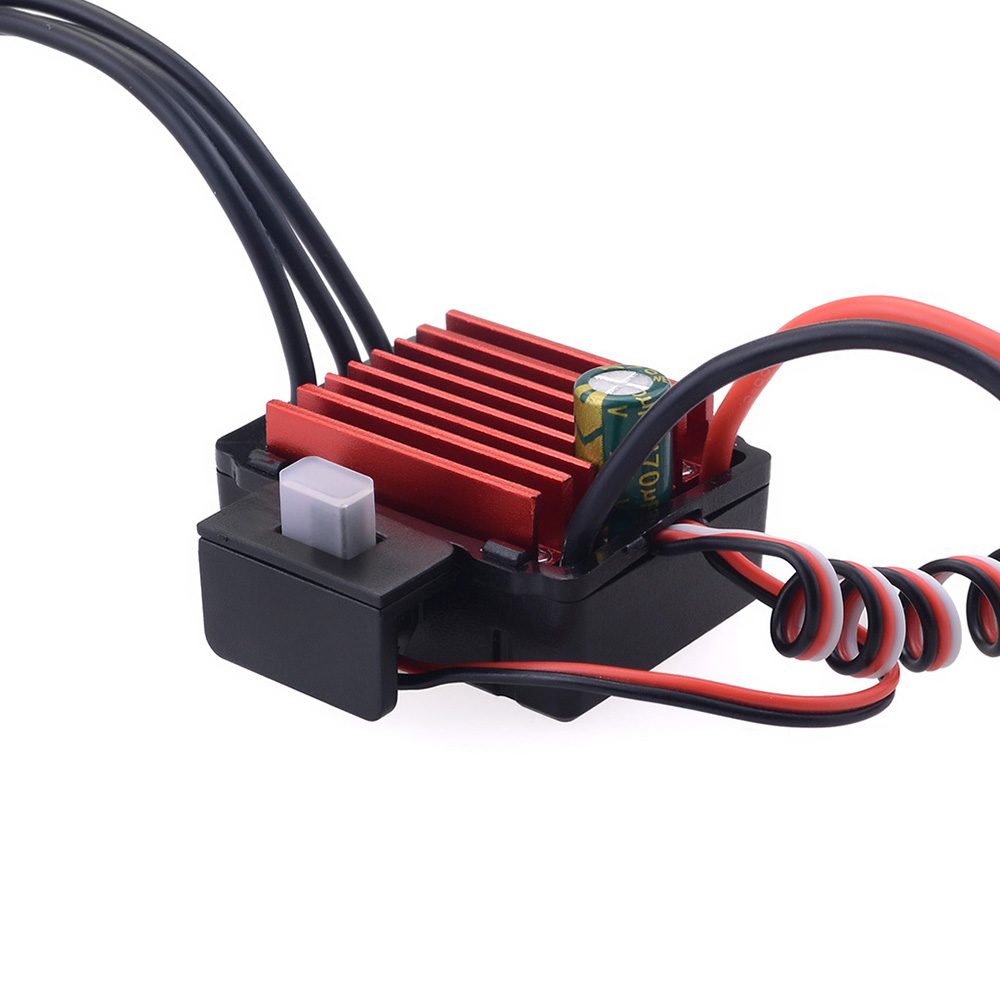

The Specification of the ESC:
Cont.Current:35A
Burst Current:120A
Motor Type:Sensorless Brushless Motor
For 2s Lipo or 6 cells NiMH
1.On-road 28XX-size or smaller motor with the kv <6000
2.Off-road/buggy/monster 28XX-size or smaller motor with the kv <4000
For 3s lipo or 9 cells NiMH
1.On-road 28XX-size or smaller motor with the kv <4000
2.Off-road/buggy/monster 28XX-size or smaller motor with the kv <3000
Suitable Car:1/16 1/14 car
Resistance:0.0007ohm
Battery:2-3 cells lipo/4-9 cells NiMH
BEC Output:5.0V2A(switch mode)
For the esc manual please click here
Features:
1X 2845 3100KV Brushless Motor
1X 35A ESC
1X Manual
Item Brand:Surpass Hobby
Item Number:2845 3100KV Brushless Motor with 35A ESC
Item Name:RC car motor +esc set
Material:Metal and plastic
Color:Black and Red
The Size of the Motor:Length 47mm diameter 28mm shaft diameter is 3.175mm length of extended shaft is 19mm
The Size of the ESC:40*32*20mm
The Weight of the Motor/ESC:About 145g/37g
Fit For:1/16 1/18 brushless rc cars
The Specification of the Motor:
KV:3100KV
Watts:800
Max Voltage:<17V
Max Amps:47A
Rotor Poles:4
IO:1.9A
Resistance:0.0285
Max RPM:50000
Connector:3.5mm gold
The Specification of the ESC:
Cont.Current:35A
Burst Current:120A
Motor Type:Sensorless Brushless Motor
For 2s Lipo or 6 cells NiMH
1.On-road 28XX-size or smaller motor with the kv <6000
2.Off-road/buggy/monster 28XX-size or smaller motor with the kv <4000
For 3s lipo or 9 cells NiMH
1.On-road 28XX-size or smaller motor with the kv <4000
2.Off-road/buggy/monster 28XX-size or smaller motor with the kv <3000
Suitable Car:1/16 1/14 car
Resistance:0.0007ohm
Battery:2-3 cells lipo/4-9 cells NiMH
BEC Output:5.0V2A(switch mode)
For the esc manual please click here
Features:
4 Pole 12 Slot Hi-torque Motor Design
CNC Machined 6061 T6 Billet Aluminum Heatsink Can
High Purity Copper Windings Maximizes Efficiency
High RPM ABEC5 Oversized Bearings
Universal fit fits all 1/10 brushless cars-multi-mounting system for M2.5 screws
Precision balanced rotor smoothness for best reliability and maximum RPM
Stator - Super Thin (0.35mm) Laminations
Precision Engineered for Maximum Energy Conversion
Package included:1X 2845 3100KV Brushless Motor
1X 35A ESC
1X Manual
